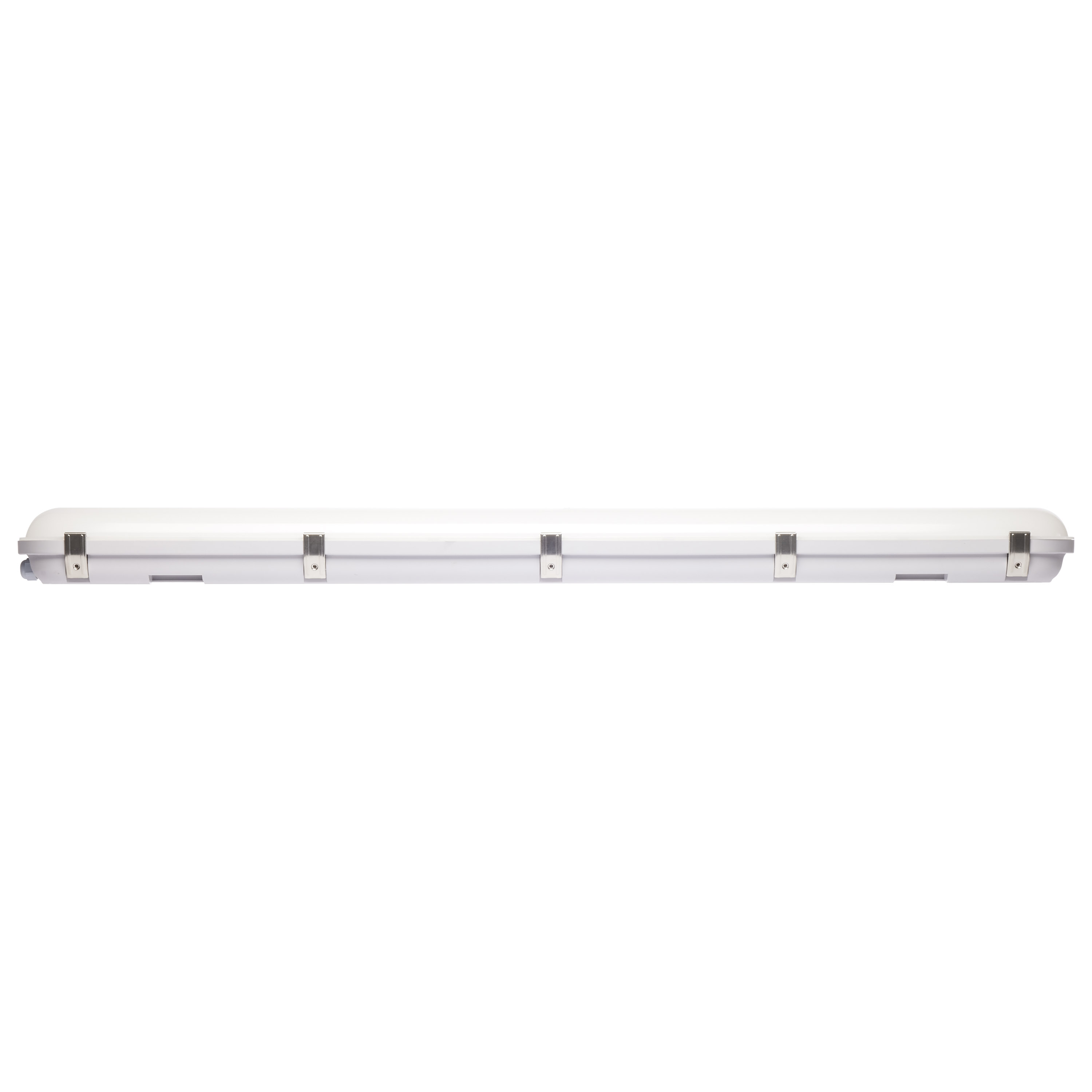

65-824R1 4' LINEAR VAPOR PROOF W/SENSOR

65-824R1

4' LINEAR VAPOR PROOF W/SENSOR

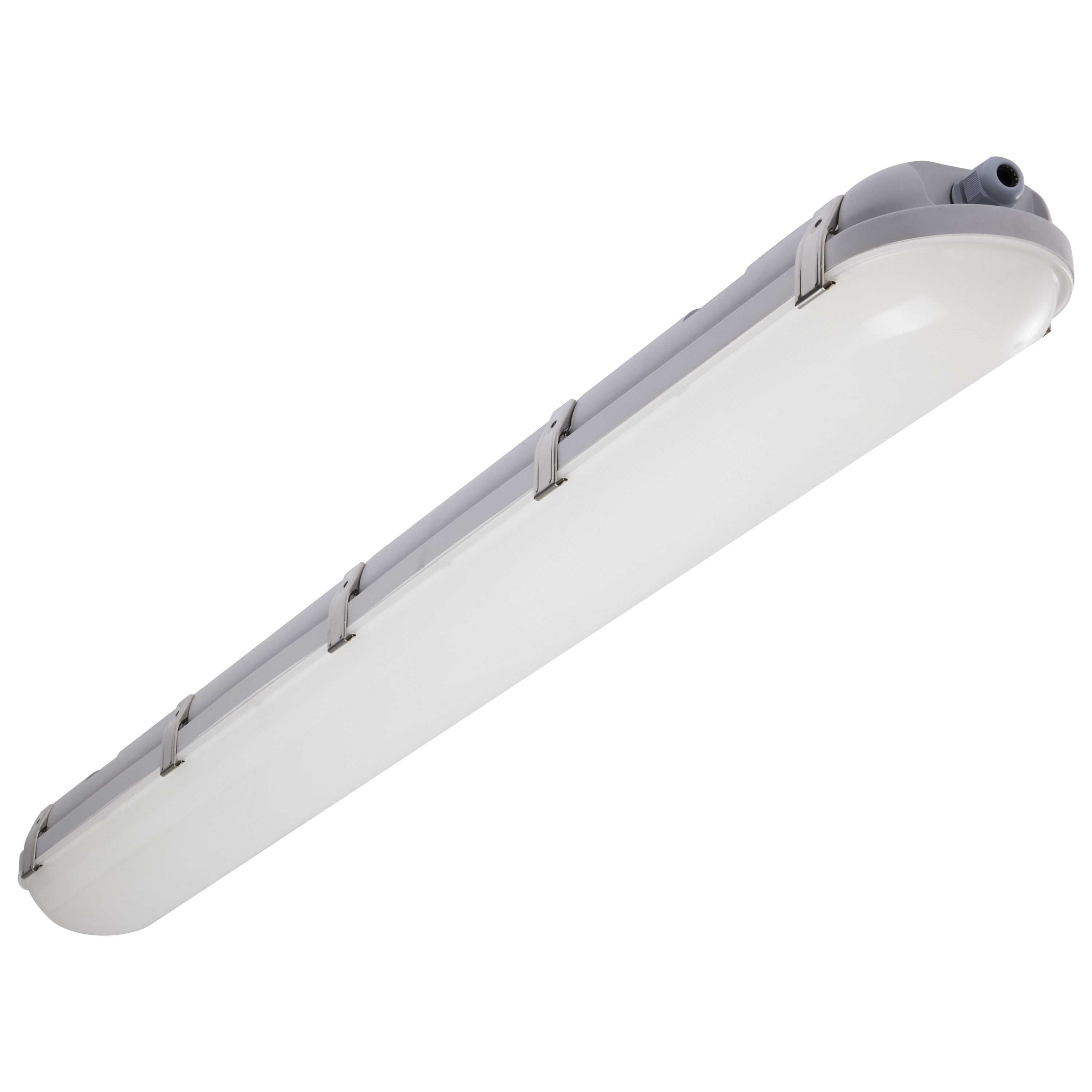

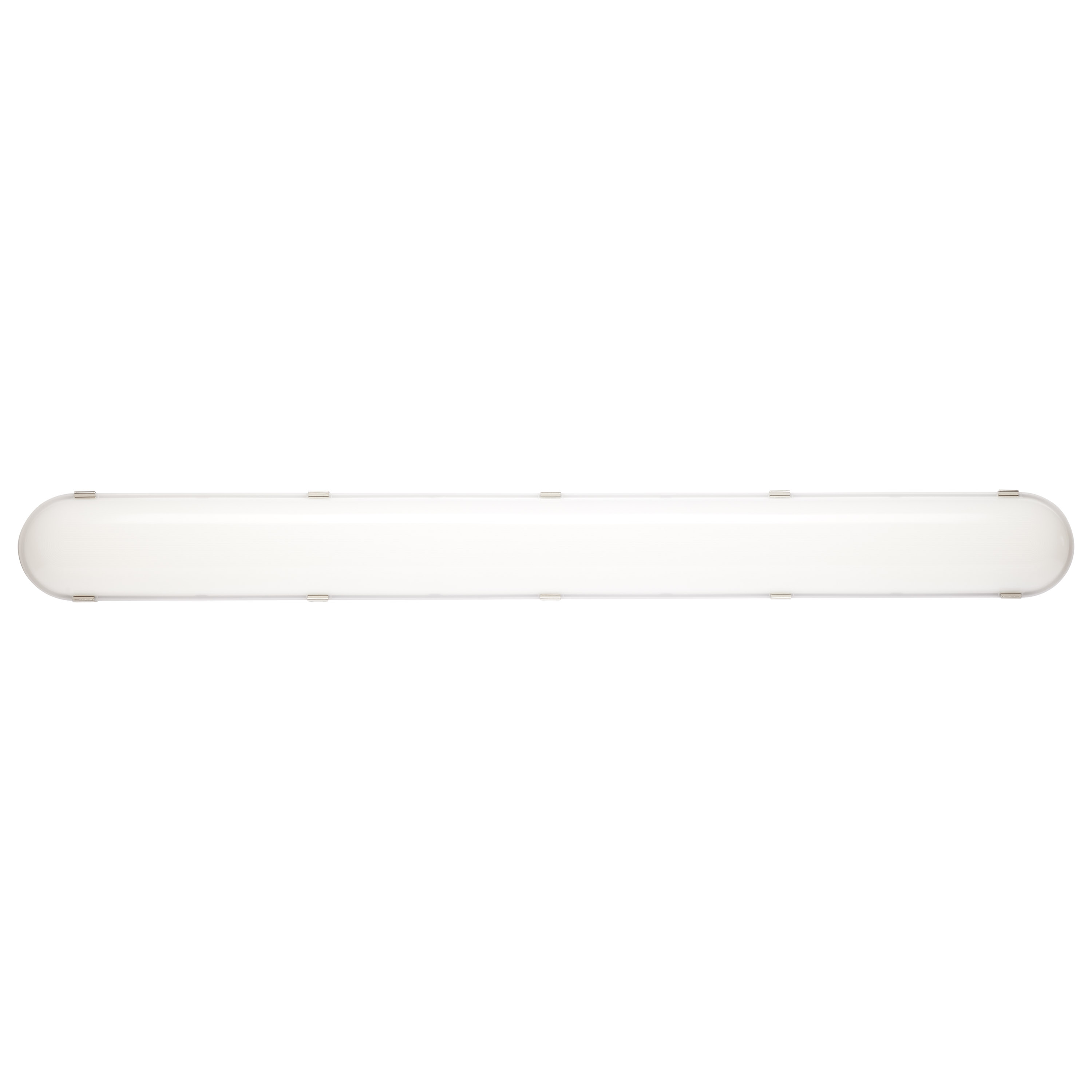

4 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated; 120V-347V


Lights

65-824R1

4' LINEAR VAPOR PROOF W/SENSOR

4 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated; 120V-347V

Specifications

General
StatusActive
Fixture TypeVapor Tight
FinishGray
Wattage40W/50W/60W
Lumen Output5360L-7991L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
IP RatingIP65
Indoor or Outdoor FixtureIndoor; Outdoor
Specifications
TechnologyLED
Wattage40W/50W/60W
Lumen Output5360L-7991L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80
Voltage120V-347V
Beam Angle120
Rated Hours50000
Operating Temperature-40C (-40F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V; Integrated Sensor

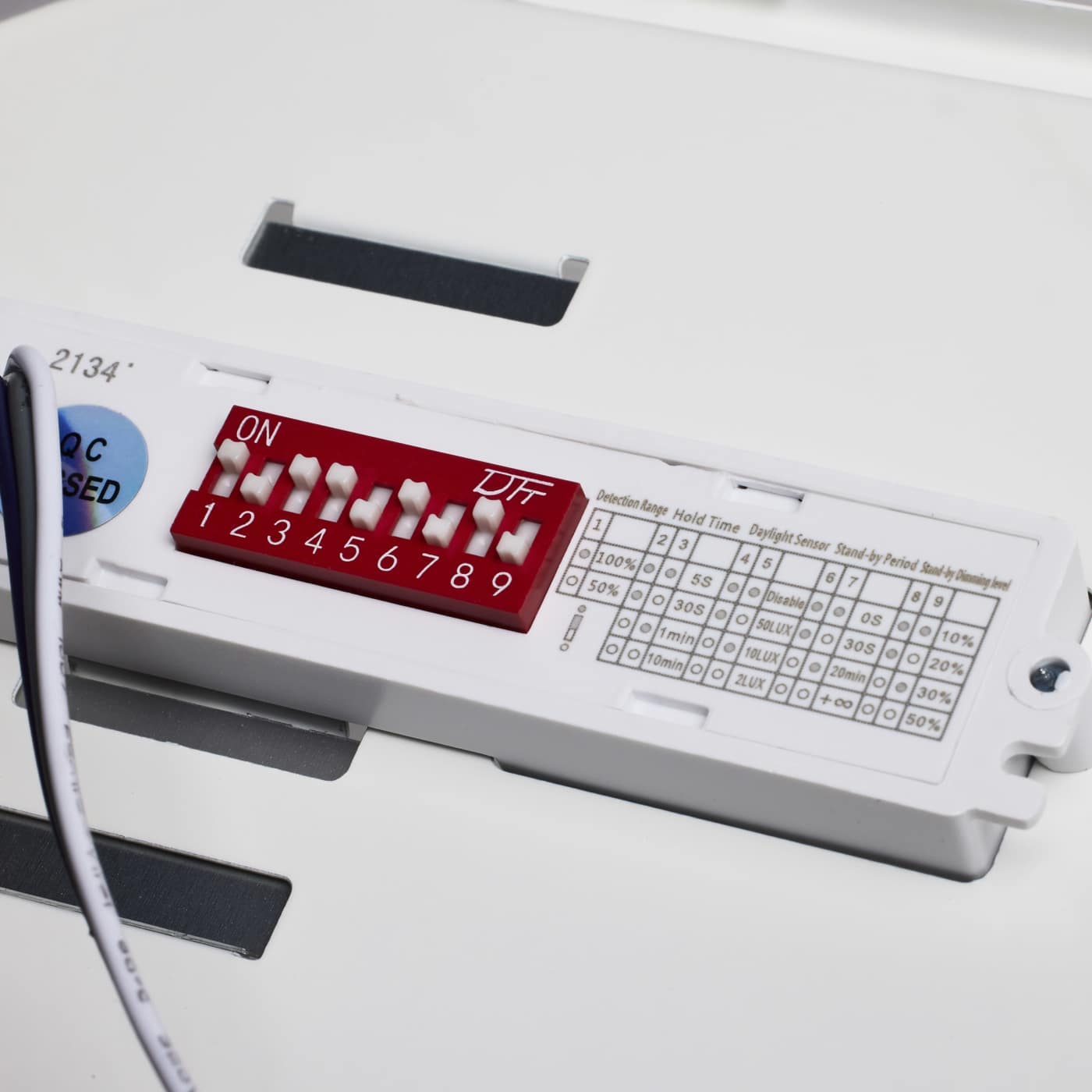

Photocell or SensorIntegrated Microwave Sensor
Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 2KV
Weight (lb.)5.29
IP RatingIP65
MaterialPlastic

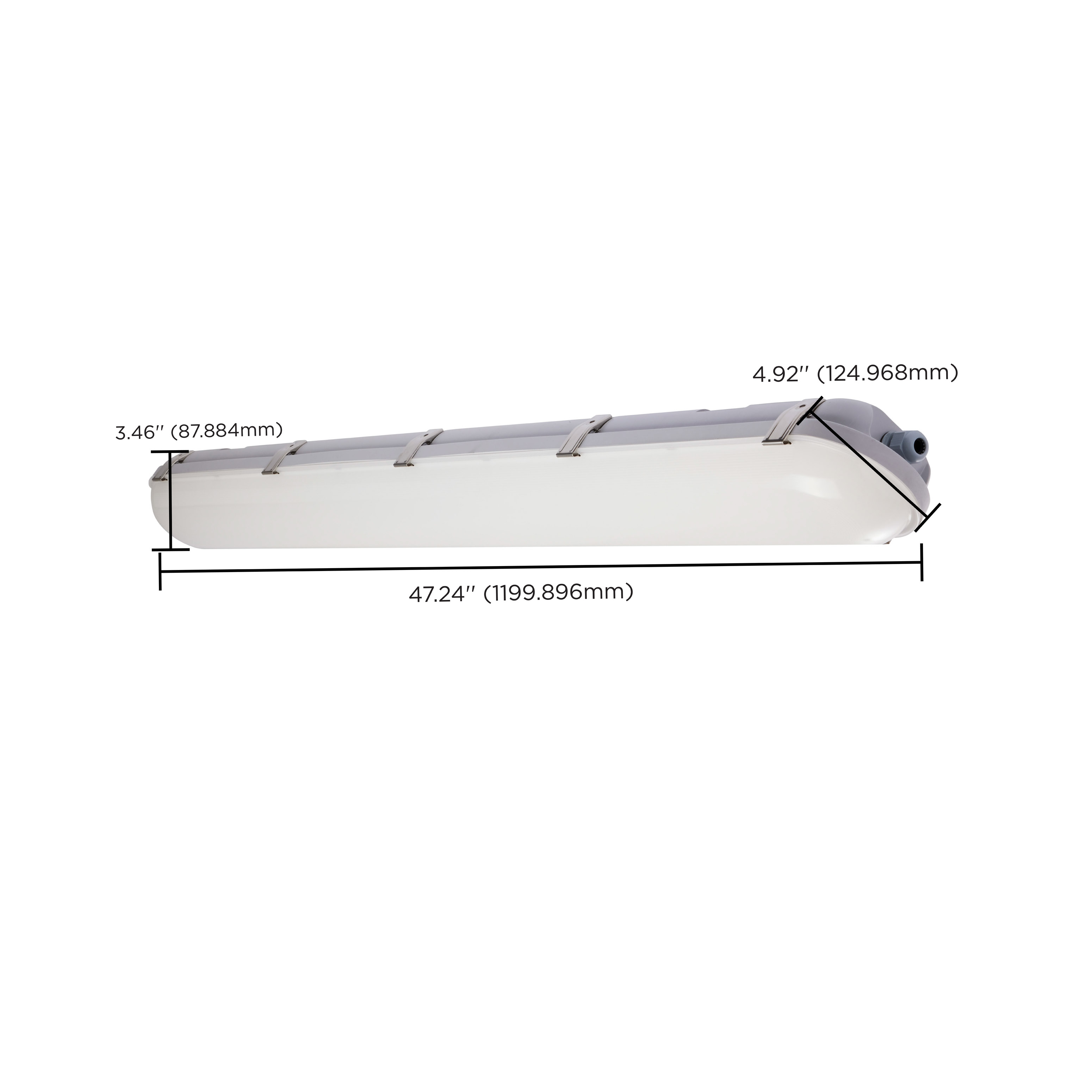

Dimensions
Height (in.)3.46
Width (in.)4.92
Length (in.)47.24
Compliance
Safety ListingcETLus - Listed
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDS-BJ9SAW; S-PGBKE7
NSF ApprovedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Flicker FreeNo
SDS SheetLED Fixture
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923650994
Each Quantity1
Each Length (in.)49.61
Each Width (in.)5.71
Each Height (in.)3.94
Each Weight (lb.)6.54
Each Cube (CuFt.)0.6459
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923650991
Case Quantity6
Case Length (in.)49.61
Case Width (in.)11.42
Case Height (in.)11.81
Case Weight (lb.)39.24
Case Cube (CuFt.)3.8721
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
