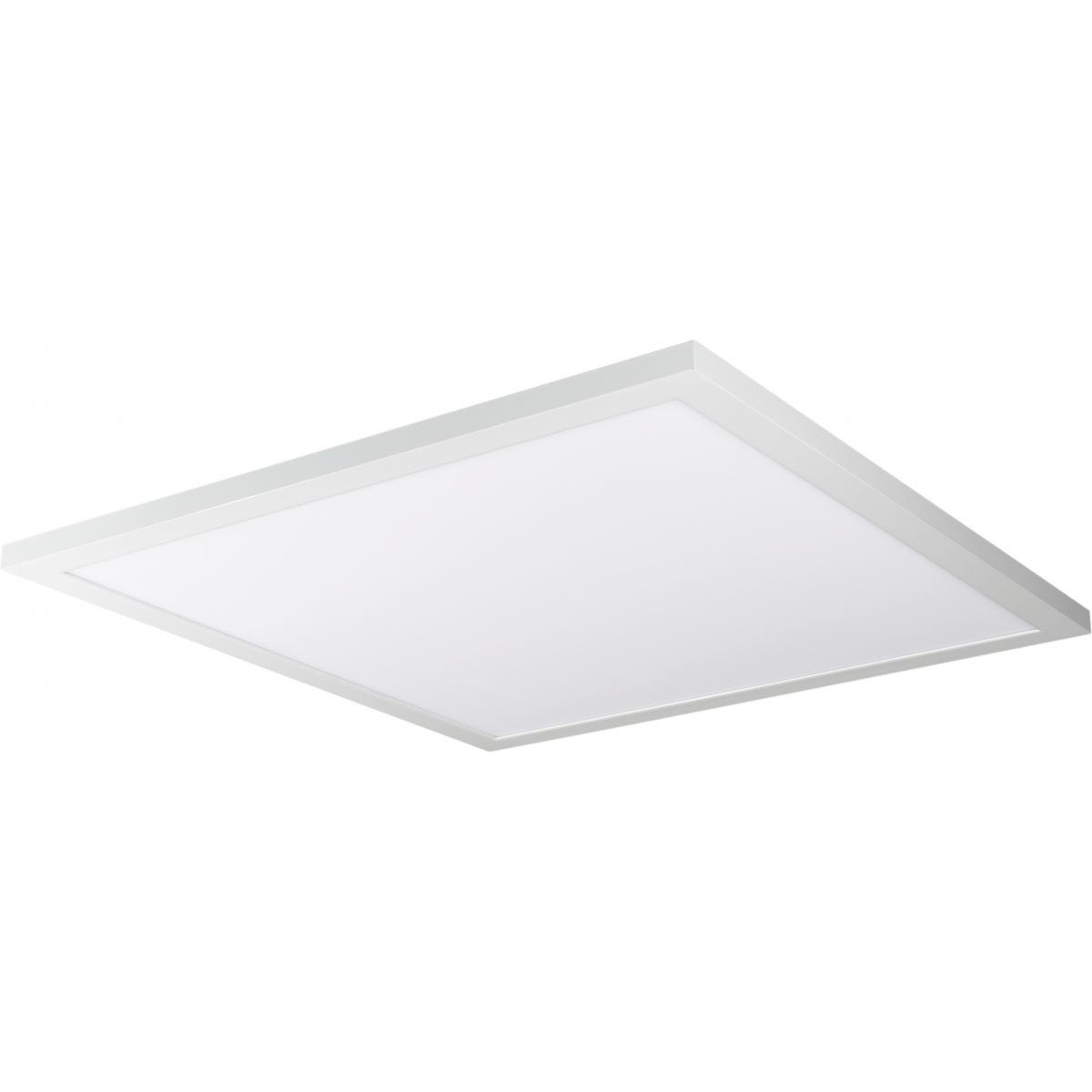

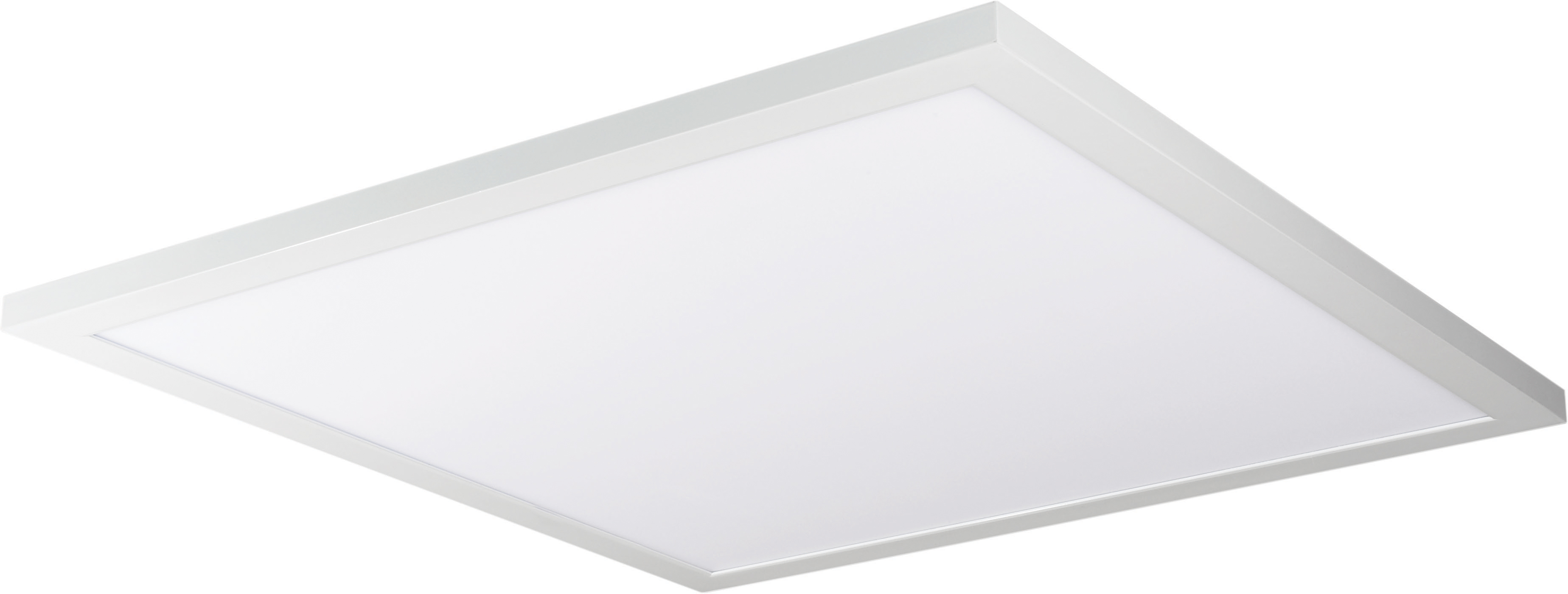

62-1153

45W/LED/2X2/FLUSH/5K/WH

  • 45W
  • 24 in.
  • x 24 in.
  • Surface Mount LED Fixture
  • 5000K
  • 80 CRI
  • Low Profile
  • White Finish
  • 120/277V
location_rating^damp^1
title_24^y^1
dimmable^dimmable^2
hours_rated^50k^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1153 Specifications62-1153 Installation InstructionsNU1350-5 LO RES LED Fixt Guide 10 20
Tools
Lighting Layout Analysis For 62-1153
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
45W; 24 in.; x 24 in.; Surface Mount LED Fixture; 5000K; 80 CRI; Low Profile; White Finish; 120/277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
Dimmable Text120V only
MaterialAluminum
Fixture TypeBLINK Plus
StatusDiscontinued
StyleUtility
Most Current Generation62-1774
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.375/0.162A
Has CameraFalse
IOT EnabledFalse
Power Factor0.8
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated50000
Color TempNatural Light
CRI80+
Dimming TypeReverse Phase or Phase Selectable
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)
Lumens4050L
Volts120V/277V
Watts45W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingDamp
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextCalifornia T24 Listed
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923511530
Case Cube2.2623
Case Height27.05
Case Length25.67
Case Quantity2
Case UPC10045923511537
Case Weight23.48
Case Width5.63
EA Cube0.9541
EA Height26.38
EA Length25.2
EA Quantity1
EA Weight9.24
EA Width2.48
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height0.75
Web Length24.0
Web Width24.0
