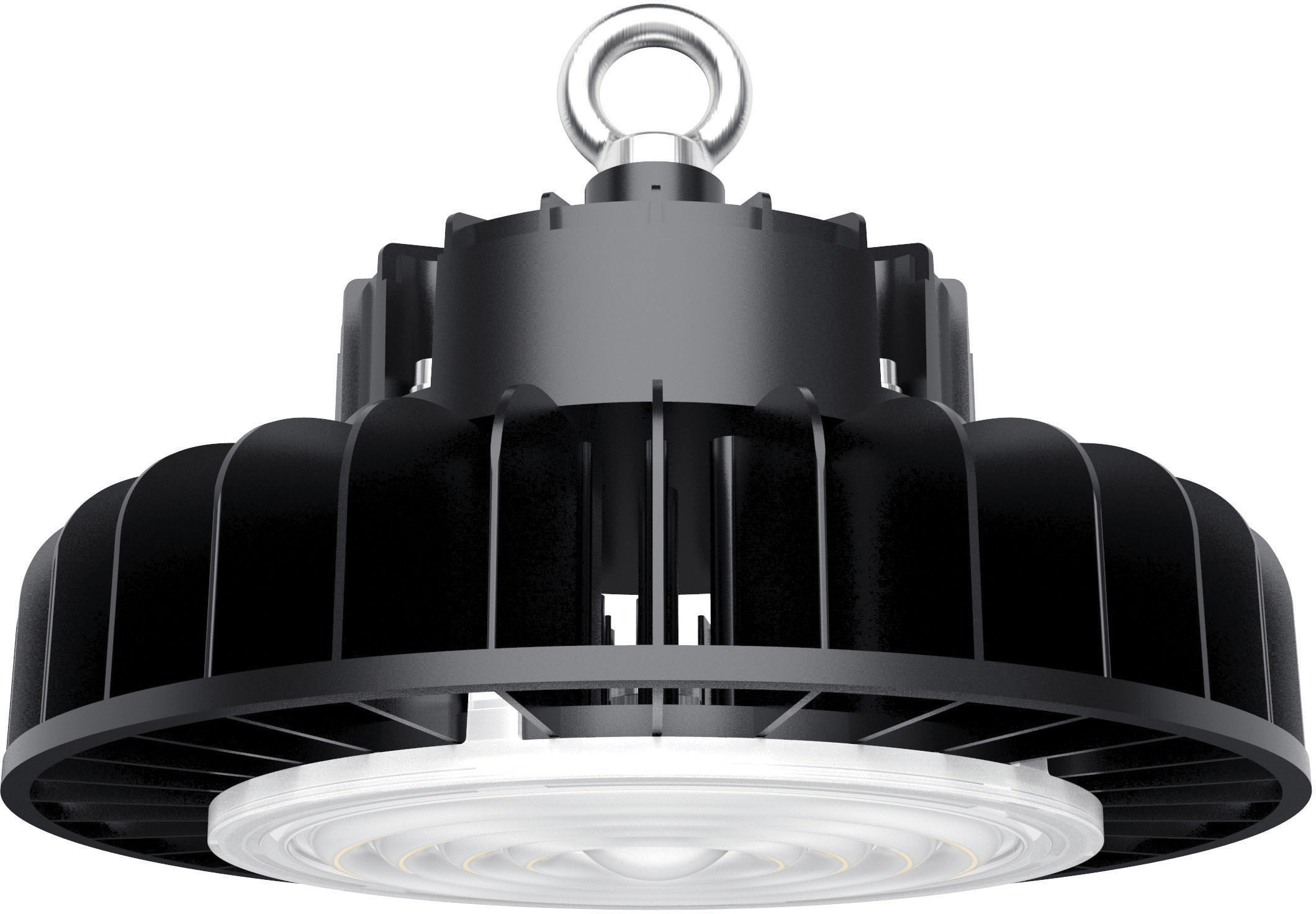

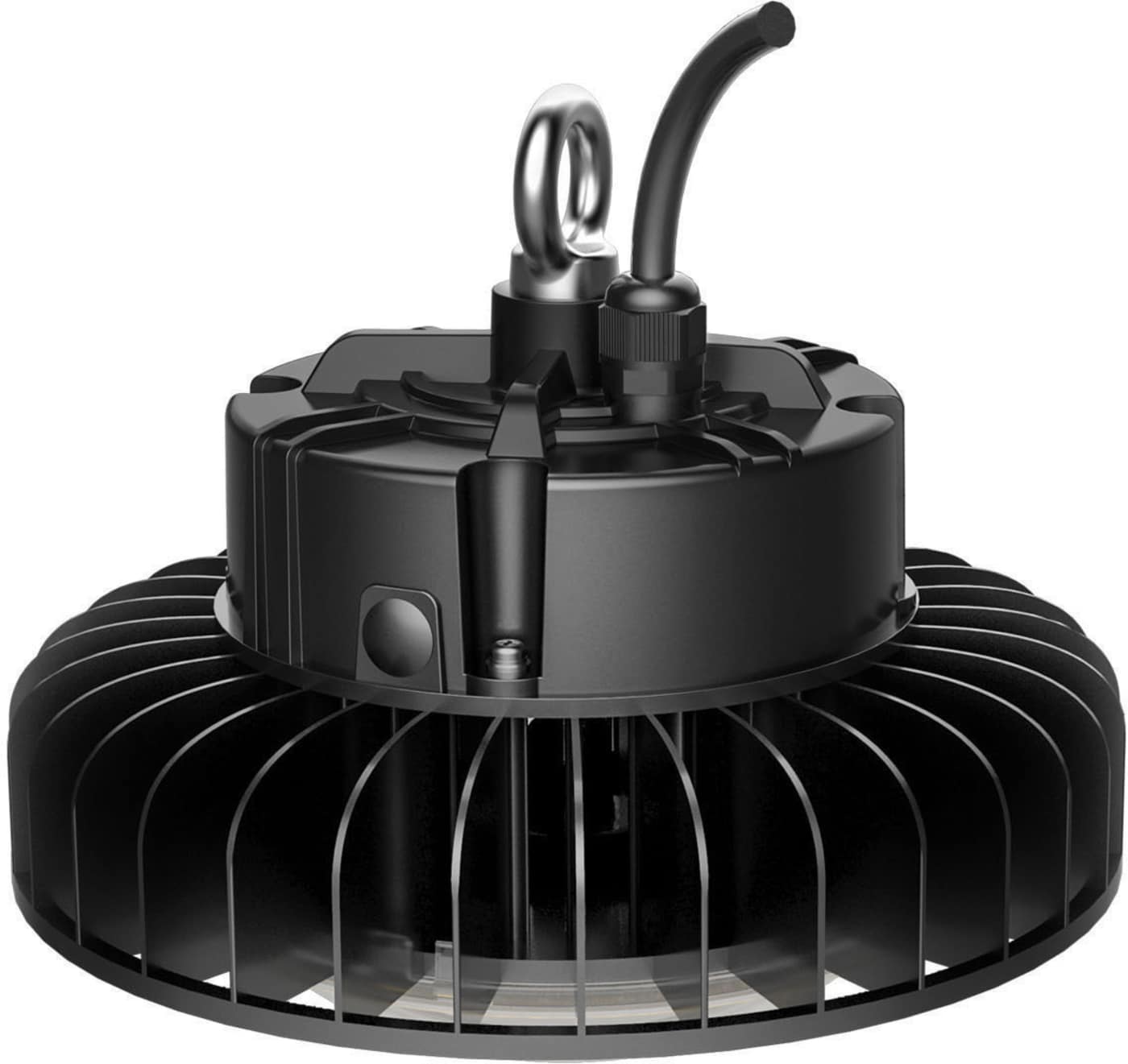

LED UFO HIGHBAY - 100W/4000K - 65-181
LED UFO HIGHBAY - 100W/4000K - 65-181
65-181

LED UFO HIGHBAY - 100W/4000K

Discontinued
  • LED High bay
  • 100W
  • 4000K
  • Black Finish
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3
65-181 Specifications65-181 Instructions EnSpFr.pdf
Tools
Lighting Layout Analysis For 65-181
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED High bay; 100W; 4000K; Black Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Diameter9.44
Dimmable Text0-10V Dimming
MaterialAluminum Alloy
Fixture TypeUFO Hi-Bay
StatusDiscontinued
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
Wire Length18.0
CCT SelectableNo
Wattage SelectableNo
Finish FamilyBlack
Amps1.000-0.361A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Power Factor0.93
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent500W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempCool White
CRI70+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +50C (+122F)
HID Equivalent200W-250W

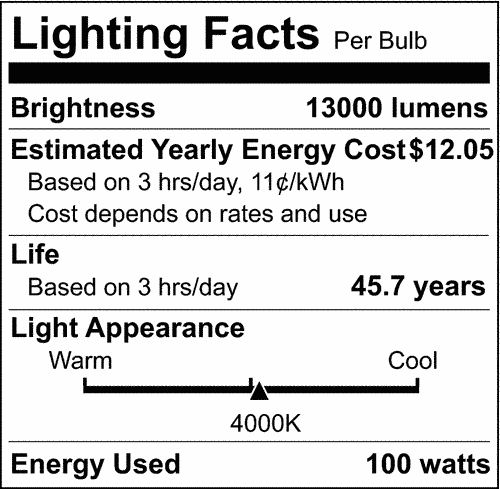

Lumens13000L
Volts120V-277V
Watts100W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus
California BanLawful for sale
UL ApplicationCeiling
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923738104
Case Cube0.7413
Case Height9.84
Case Length11.41
Case Quantity1
Case UPC10045923738101
Case Weight6.85
Case Width11.41
EA Cube0.6782
EA Height9.65
EA Length11.02
EA Quantity1
EA Weight6.17
EA Width11.02
Pack TypeBox
Web Height7.31
Web Width9.44
