65-451

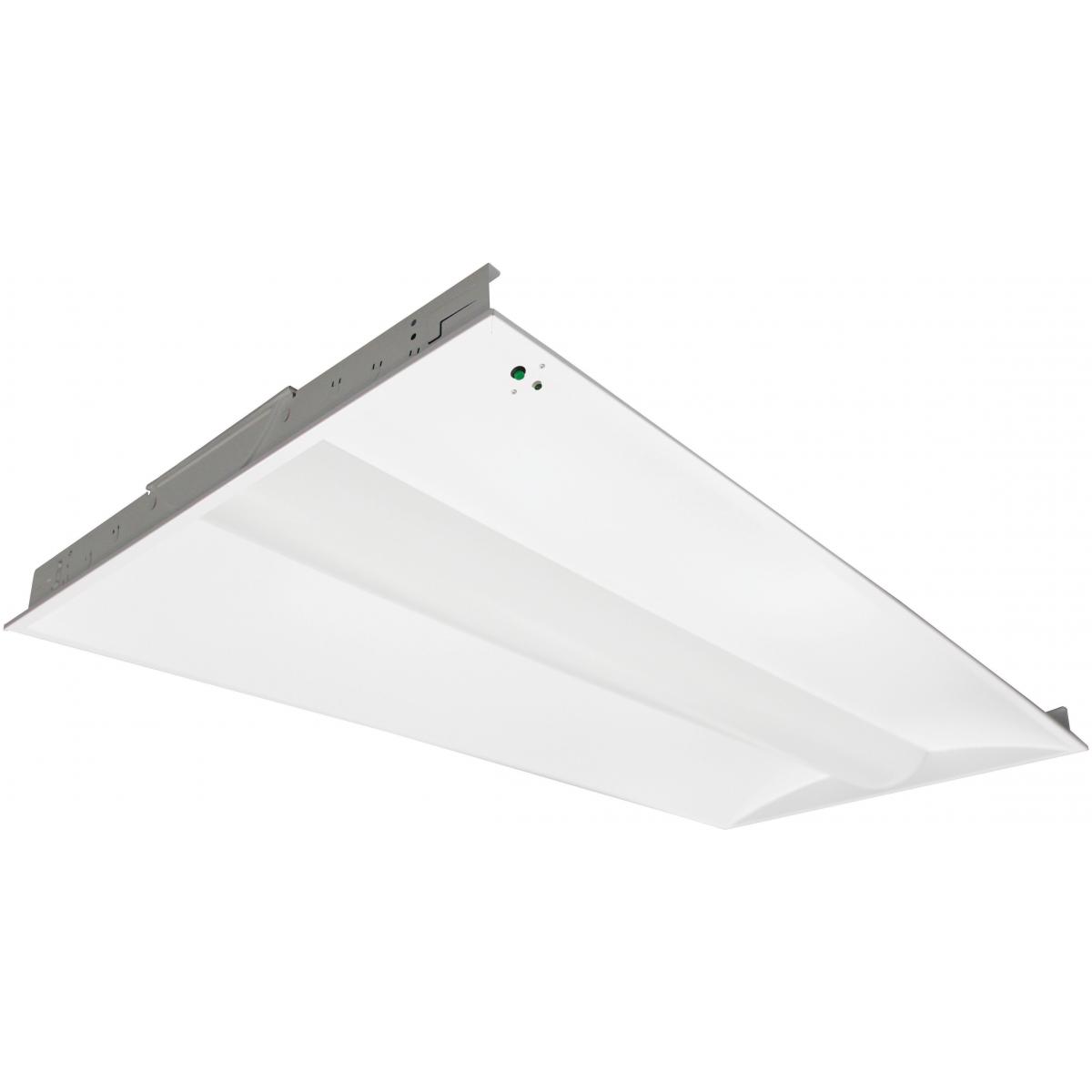

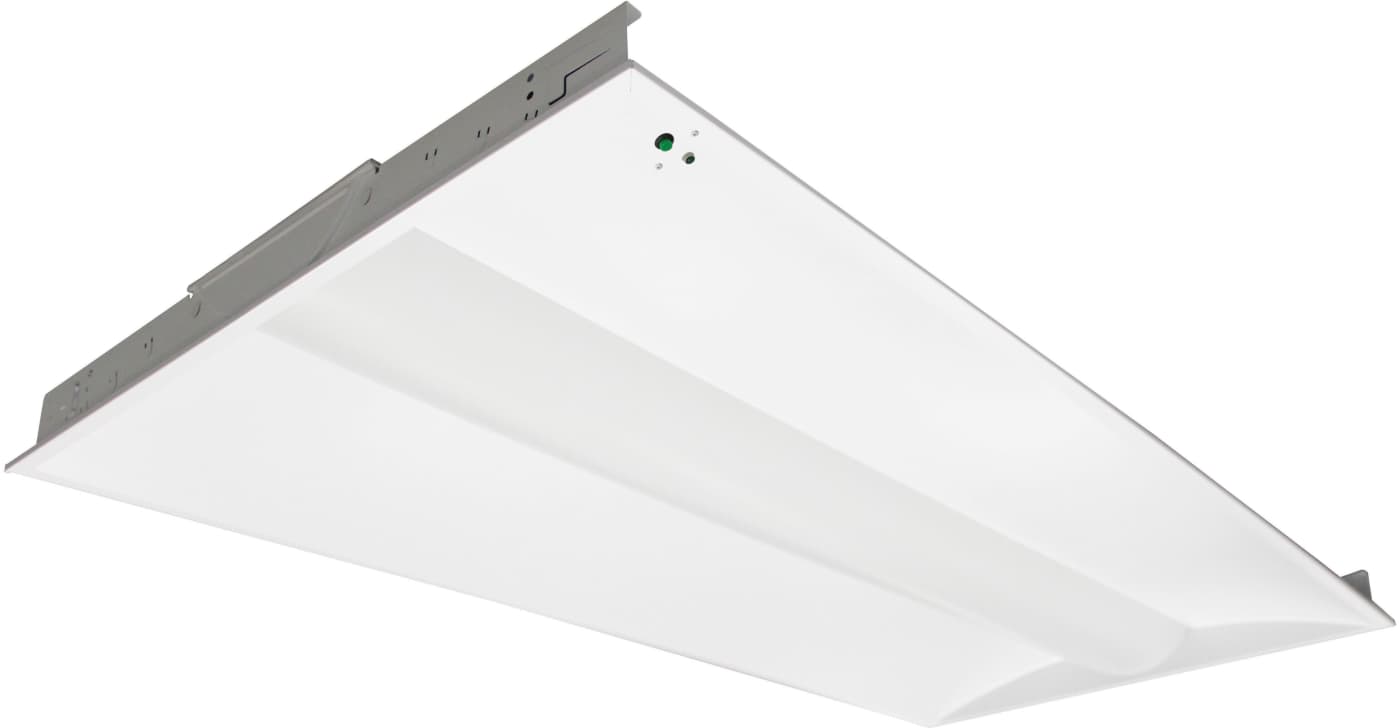

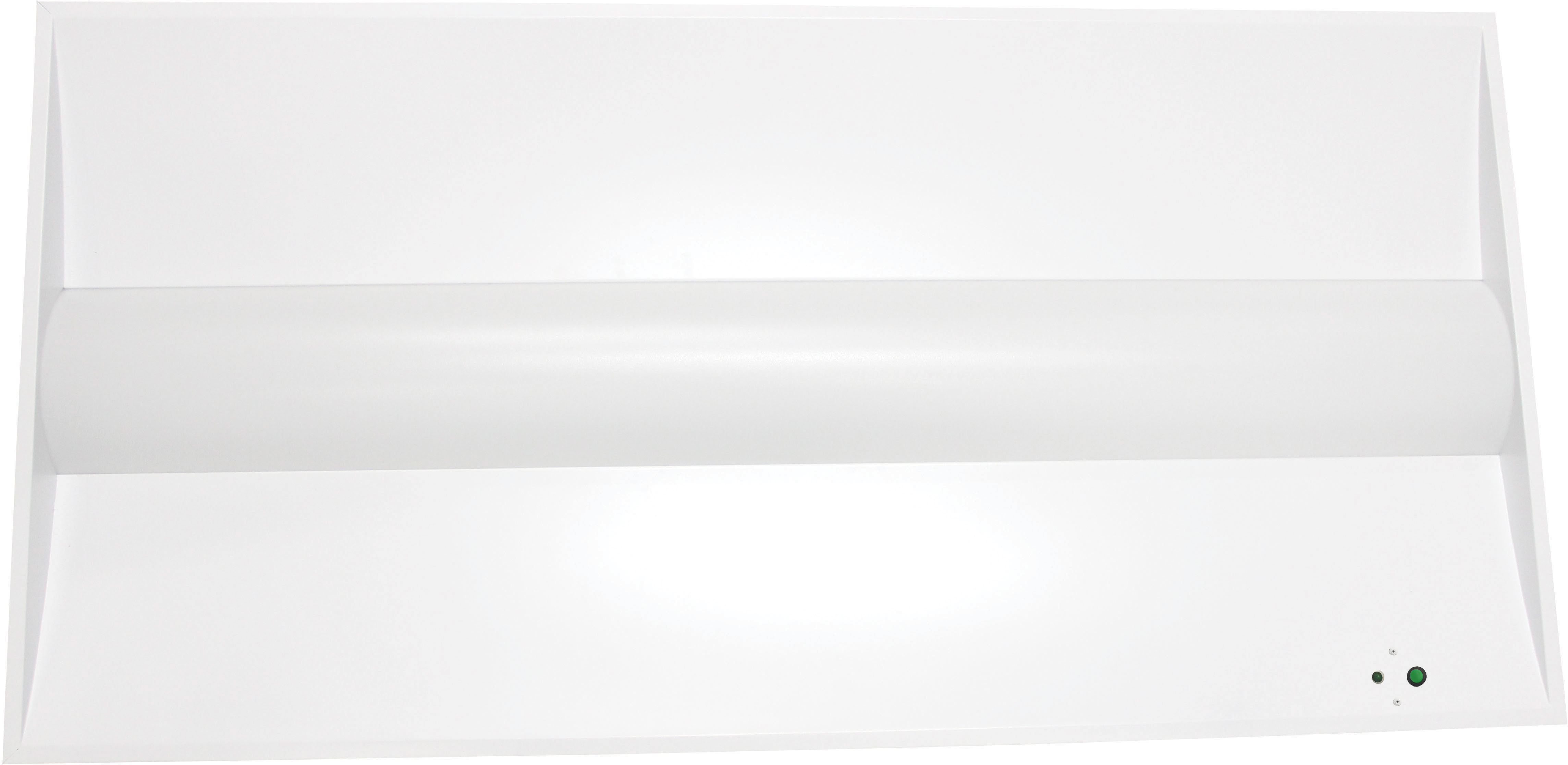

2FT X 4FT EM LED TROFFER 40W

  • LED Emergency Troffer Fixture
  • 40W
  • 2 ft. x 4 ft.
  • 3500K
  • 100-277V
location_rating^damp^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-451 Specifications65-451 Instructions EnSpFr65-451 Wiring without a switched line
Description
Description
LED Emergency Troffer Fixture; 40W; 2 ft. x 4 ft.; 3500K; 100-277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Non-Compliant - Never Tested
Dimmable Text0-10V Dimming Only; Use 120-277V or 347V Dimmers only
MaterialSteel
Fixture TypeCenter Basket Troffer
StatusDiscontinued
StyleUtility
Total Harmonic Distortion12.30%
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.400-0.144A
Has CameraFalse
IOT EnabledFalse
Lens MaterialPolycarbonate (PC)
Power Factor0.92
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent175W
Electrical
CCT (Kelvin Temp)3500K
DimmableYes-Dimmable
Hours Rated50000
Color TempNeutral White
CRI80+
Operating Temp-20C (-4F) to +40C (+104F)
Lumens5000L
Volts120V-277V
Watts40W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
CA Prop 65Lead
CA StatusNon-Compliant
DLC IDPLS97TYODJP2
FCC CompliantTrue
IC RatedTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified
CA Compliance TextNon-Compliant
UL ApplicationLED Recessed Luminaire
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923534515
Case Cube5.1813
Case Height27.09
Case Length50.0
Case Quantity1
Case UPC10045923534512
Case Weight22.49
Case Width6.61
EA Cube5.1813
EA Height27.09
EA Length50.0
EA Quantity1
EA Weight22.49
EA Width6.61
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height2.75
Web Length47.59
Web Width23.59
