| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |

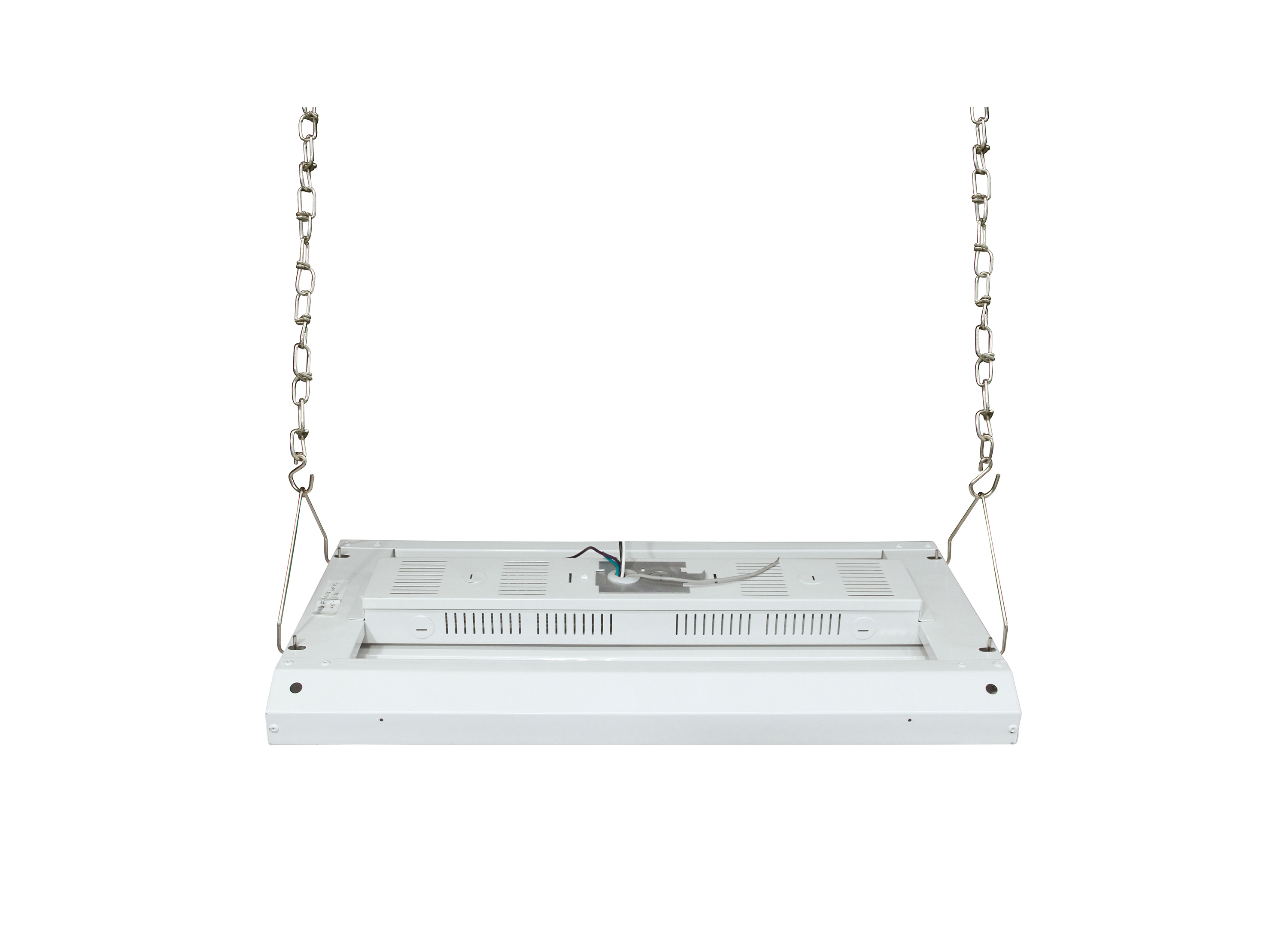

| Chain Length (in) | 48 |
| Dimmable Text | 0-10V Dimming Only |
| Material | Aluminum |

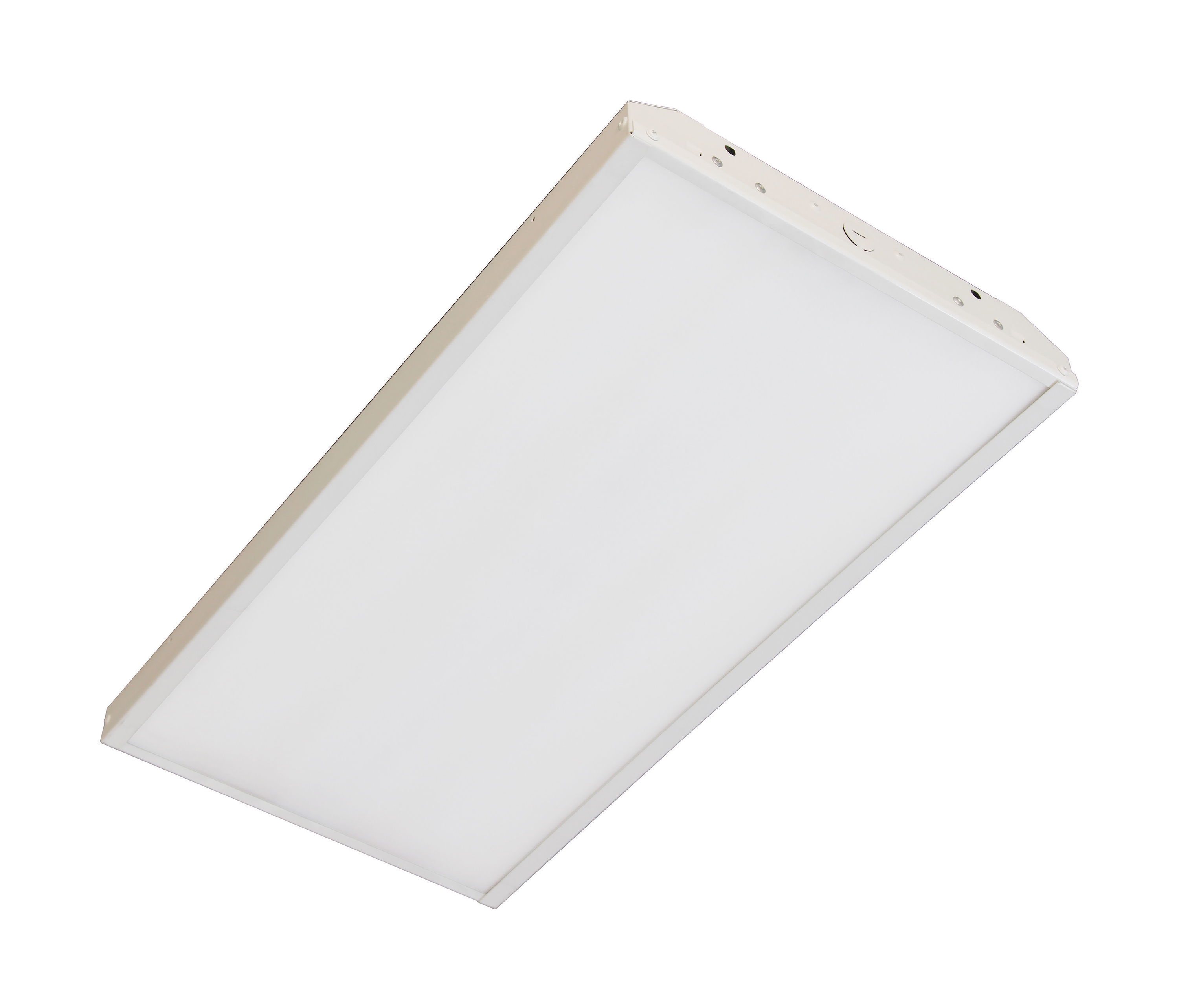

| Fixture Type | Linear Hi-Bay |

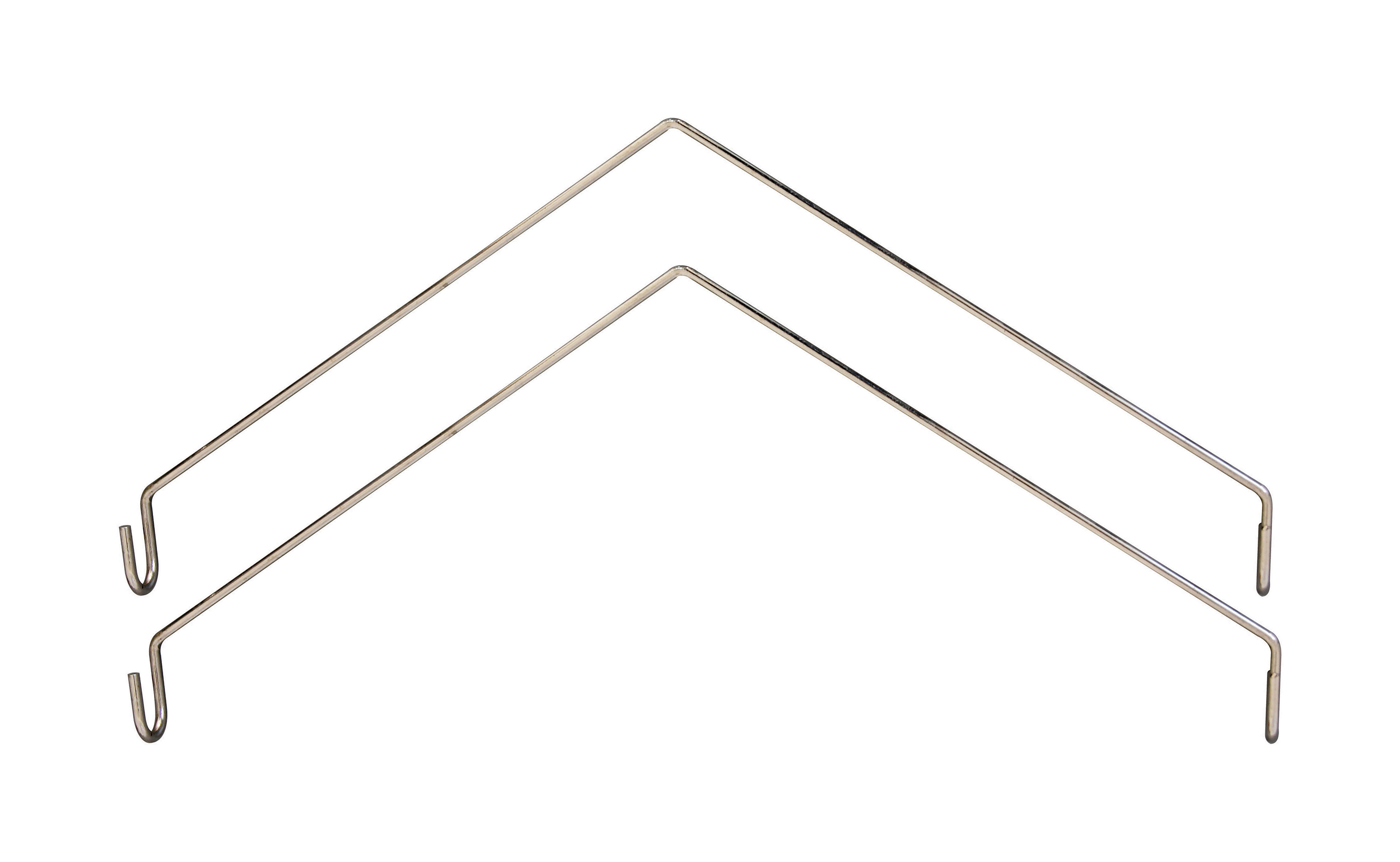

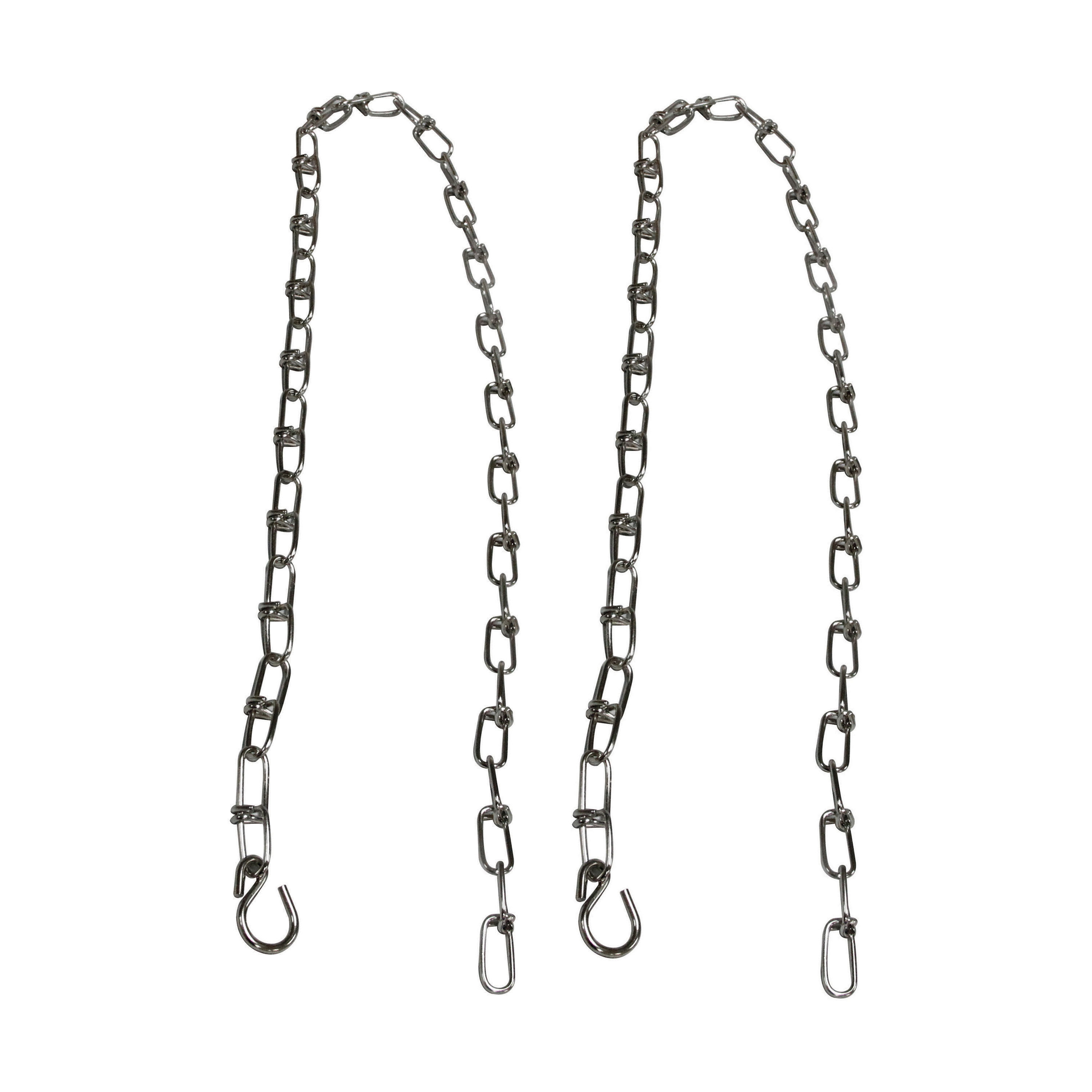

| Includes | (2) 48 Inch Chain; (2) V-Clips; (1) 1.02 Inch Mounting Bracket |
| Status | Active |
| Style | Utility |
| Total Harmonic Distortion | 9.30% |
| Wire Color | Green / White / Black / Gray / Purple |
| Wire Quantity | 5 |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 1.100-0.397A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Frost |
| Lens Material | Polystyrene (PS) |
| Power Factor | 0.95 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 200W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 120 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 14300L |
| Volts | 120V-277V |
| Watts | 110W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | PLTQCBT8S2G0 |
| FCC Compliant | True |
| IP Rating | IP20 |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923682407 |
|---|---|
| Case Cube | 1.0178 |
| Case Height | 15.75 |
| Case Length | 25.79 |
| Case Quantity | 1 |
| Case UPC | 10045923682404 |
| Case Weight | 11.68 |
| Case Width | 4.33 |
| EA Cube | 1.0178 |
| EA Height | 15.75 |
| EA Length | 25.79 |
| EA Quantity | 1 |
| EA Weight | 11.68 |
| EA Width | 4.33 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

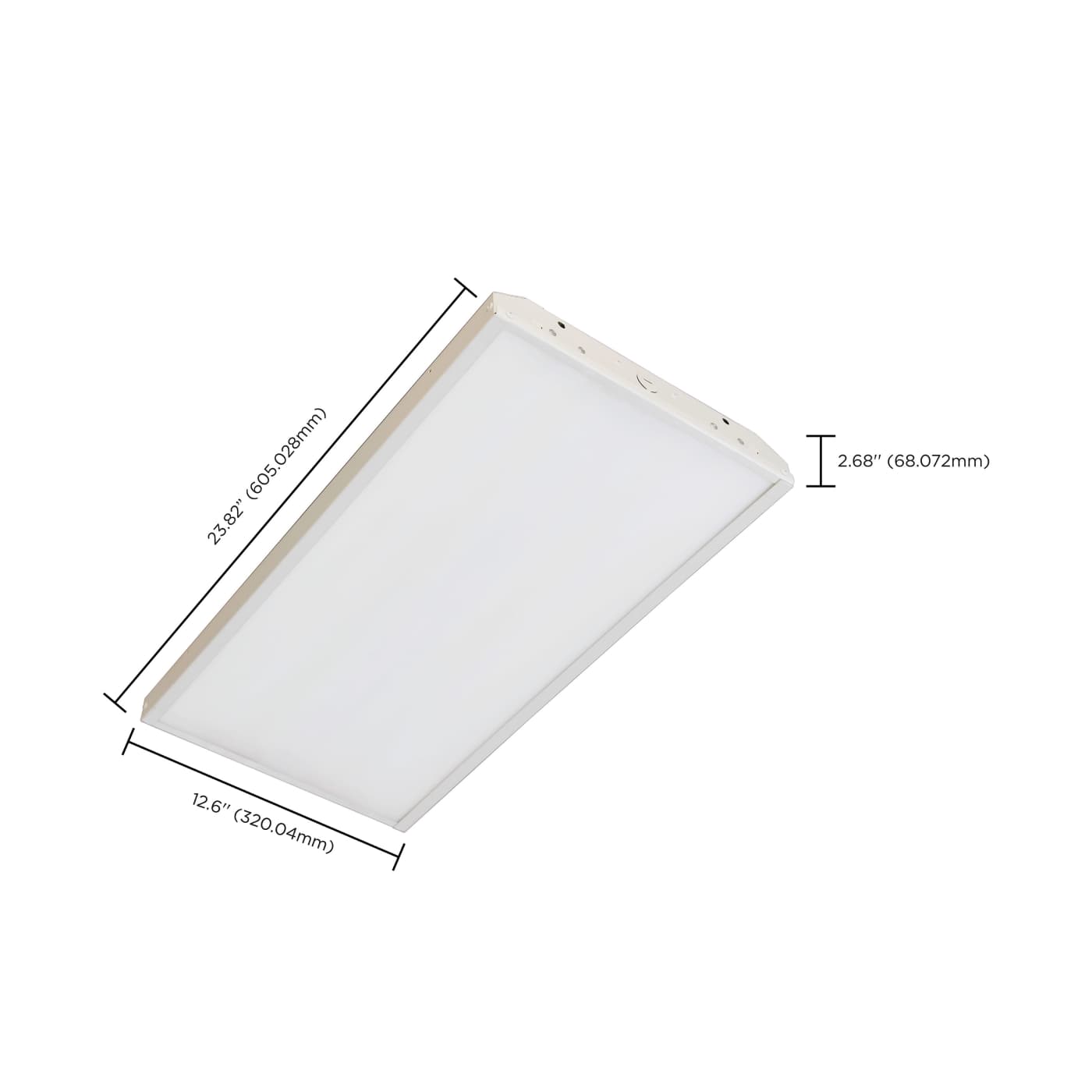

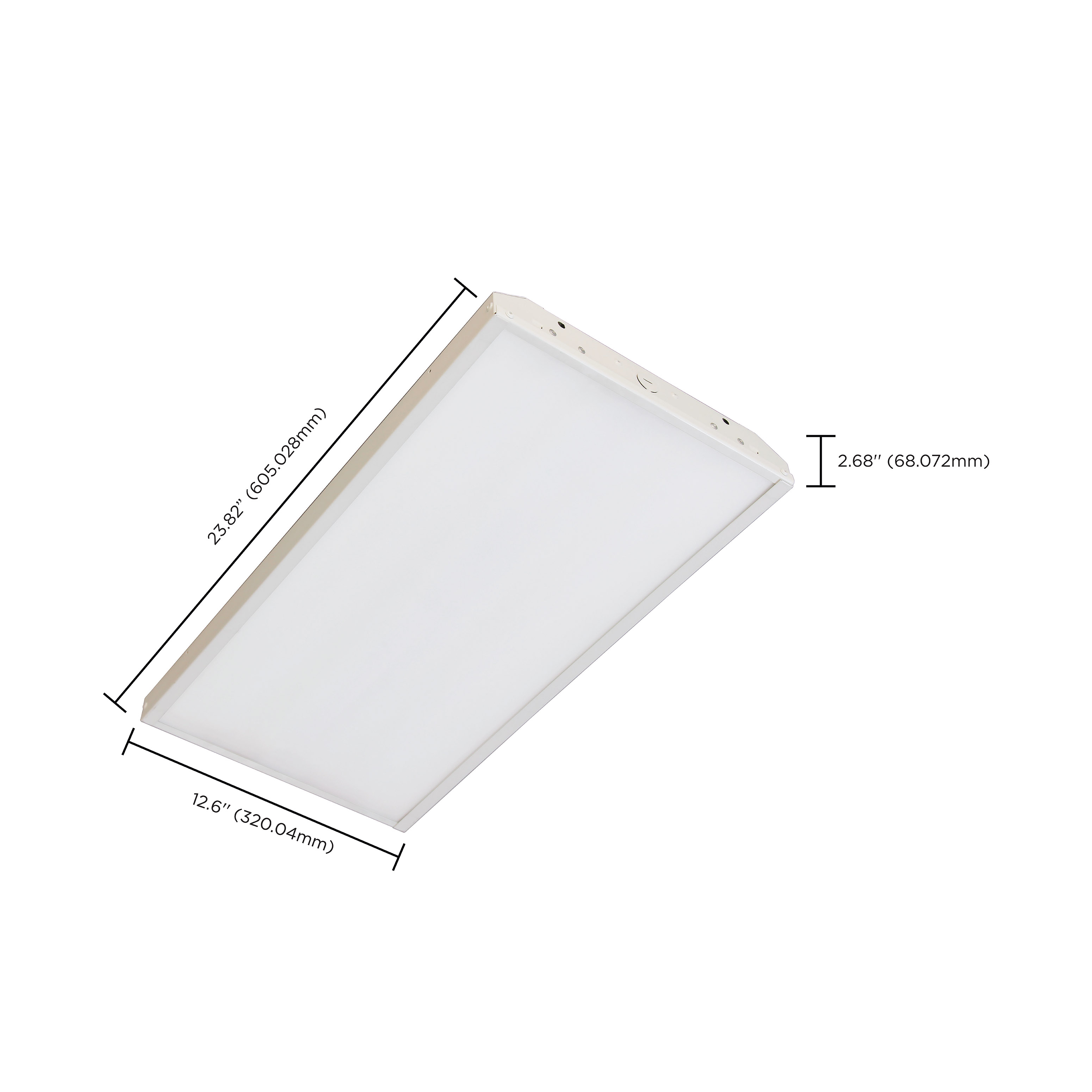

| Web Height | 2.68 |
| Web Length | 23.82 |
| Web Width | 12.6 |
