| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Glass Finish | Clear |
| Dimmable Text | 0-10V Dimming Only |
| Material | Die-cast Aluminum |

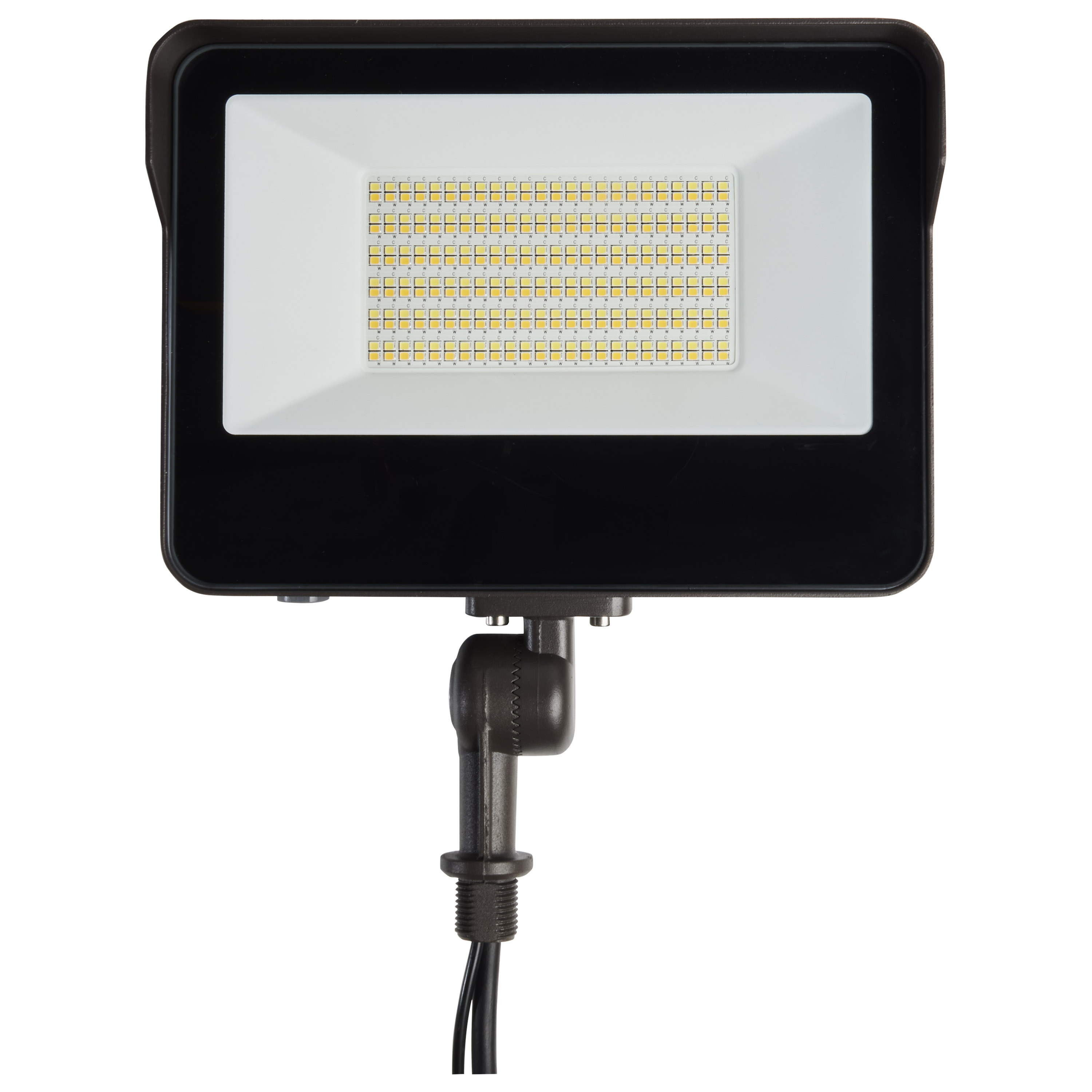

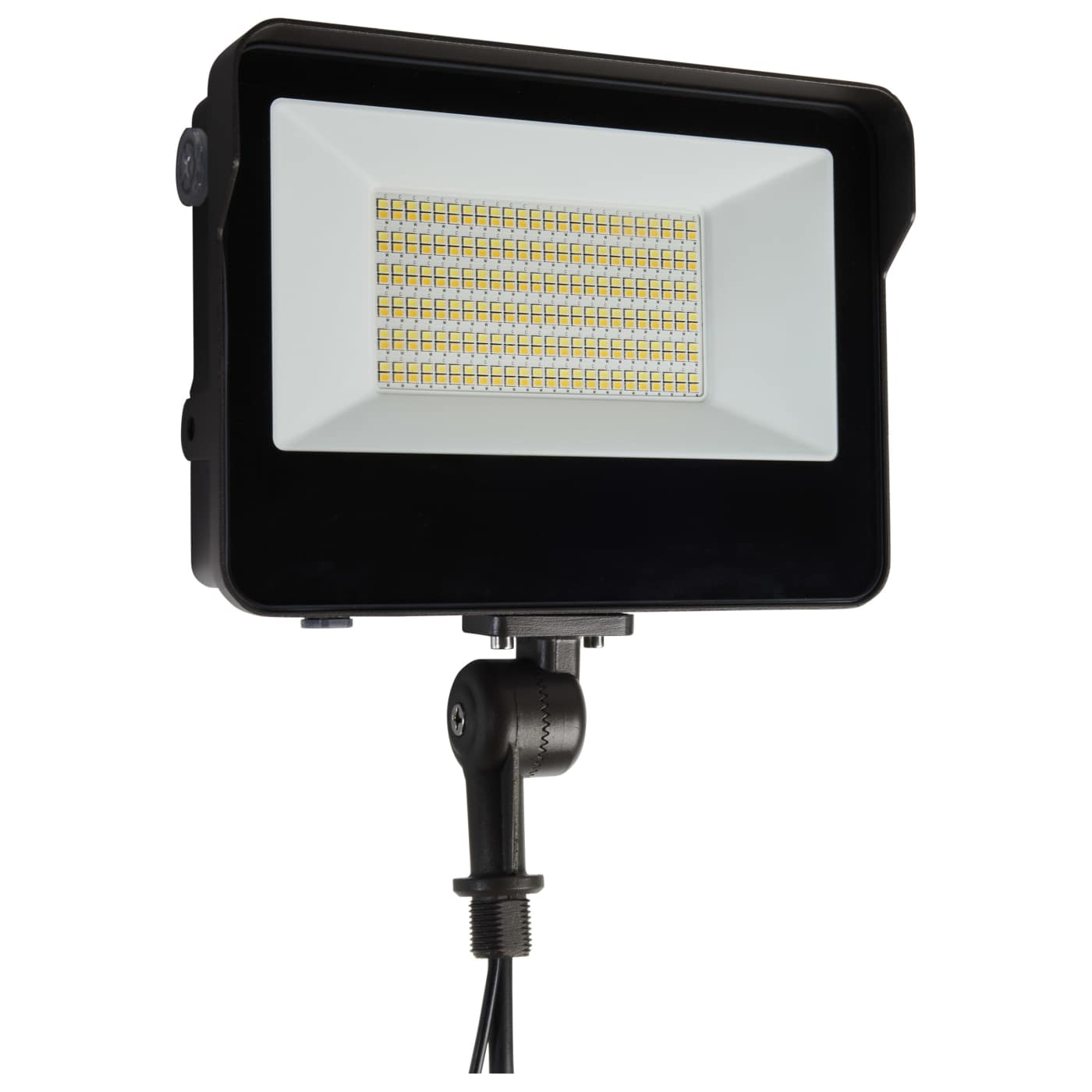

| Fixture Type | Flood Light |

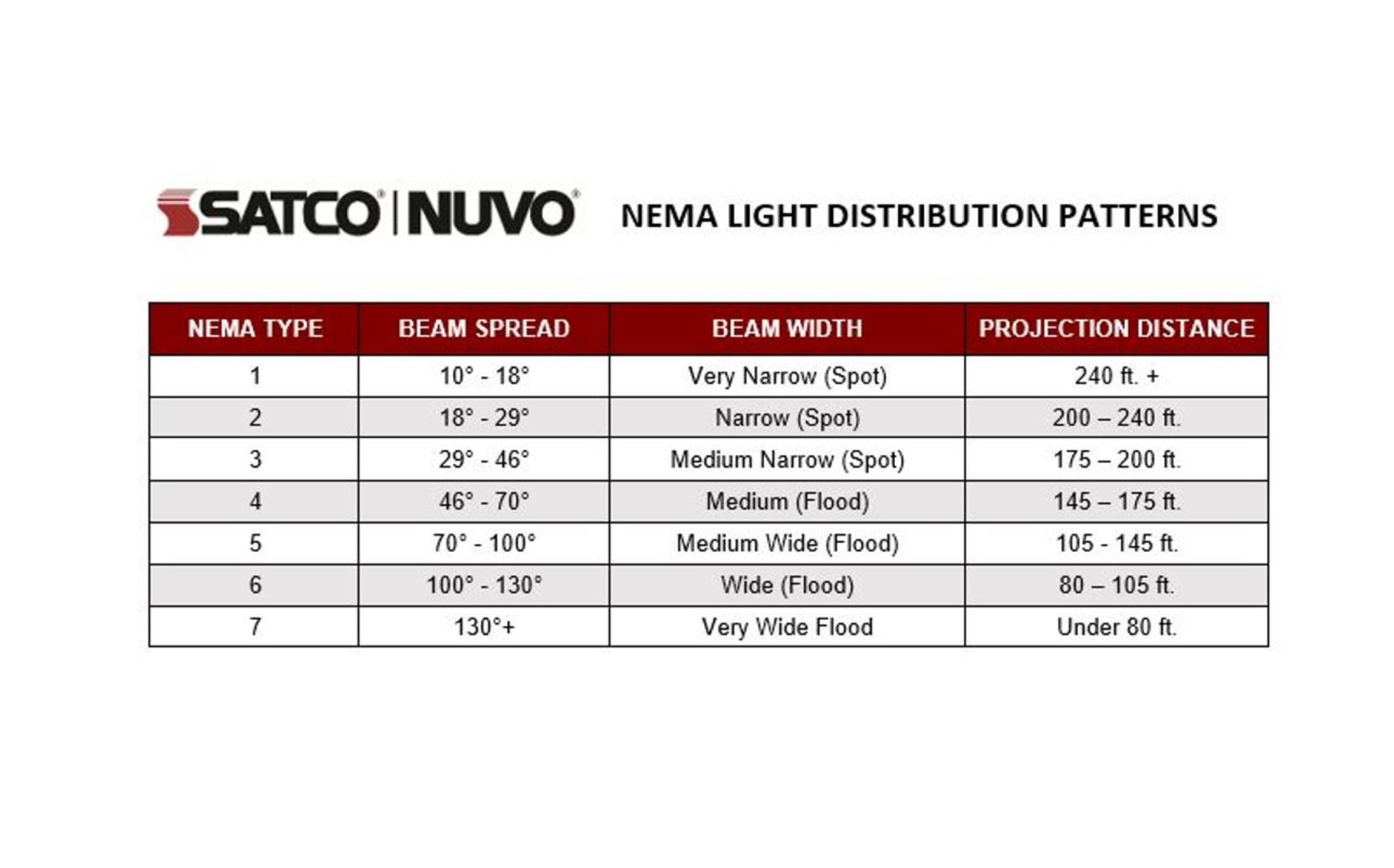

| Product Notes | NEMA Distribution: 7V x 7H |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 6KV |
| Total Harmonic Distortion | 20% |

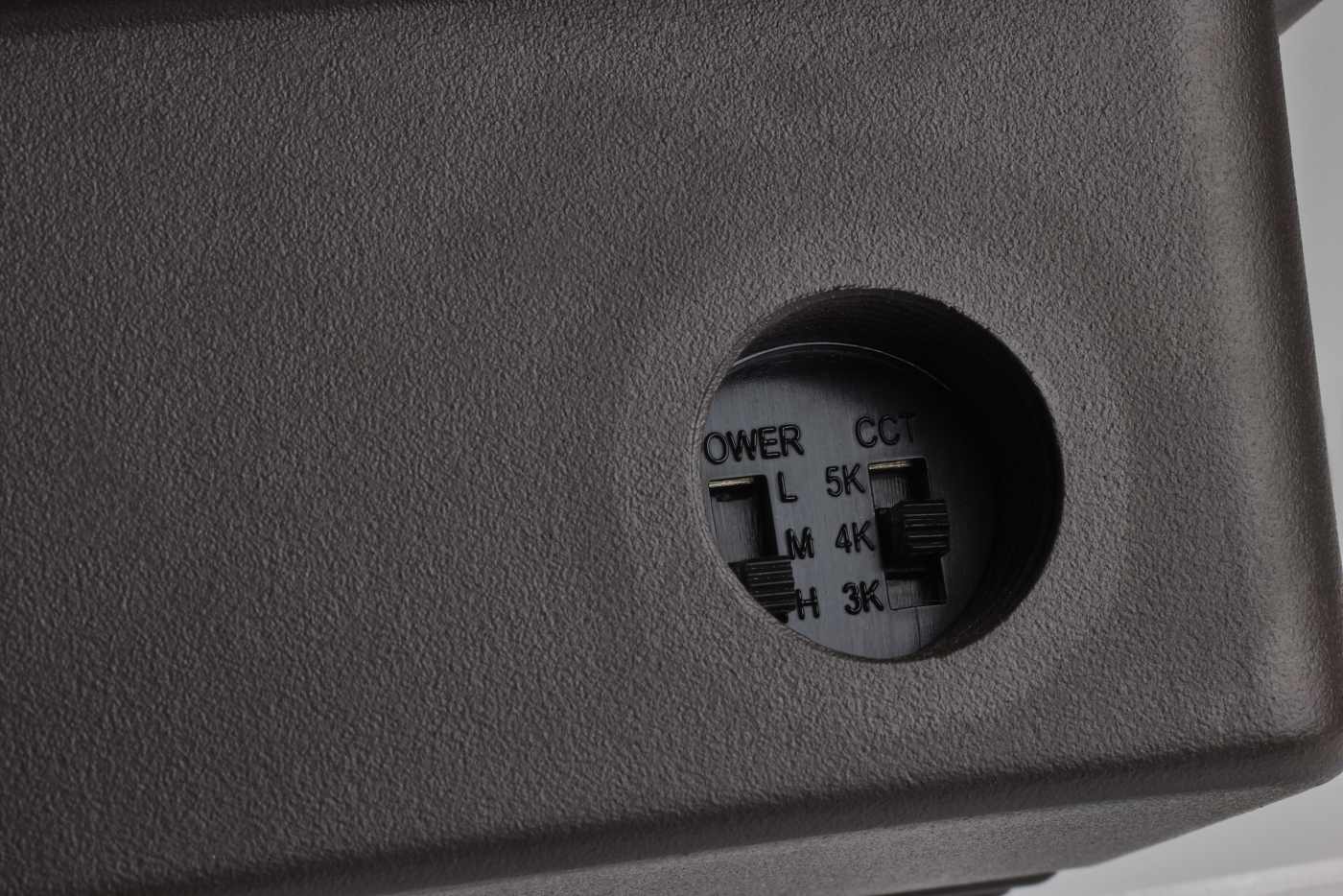

| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | Bronze |
| Amps | 0.375-0.130/0.500-0.173/0.667-0.231A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Tempered Glass |

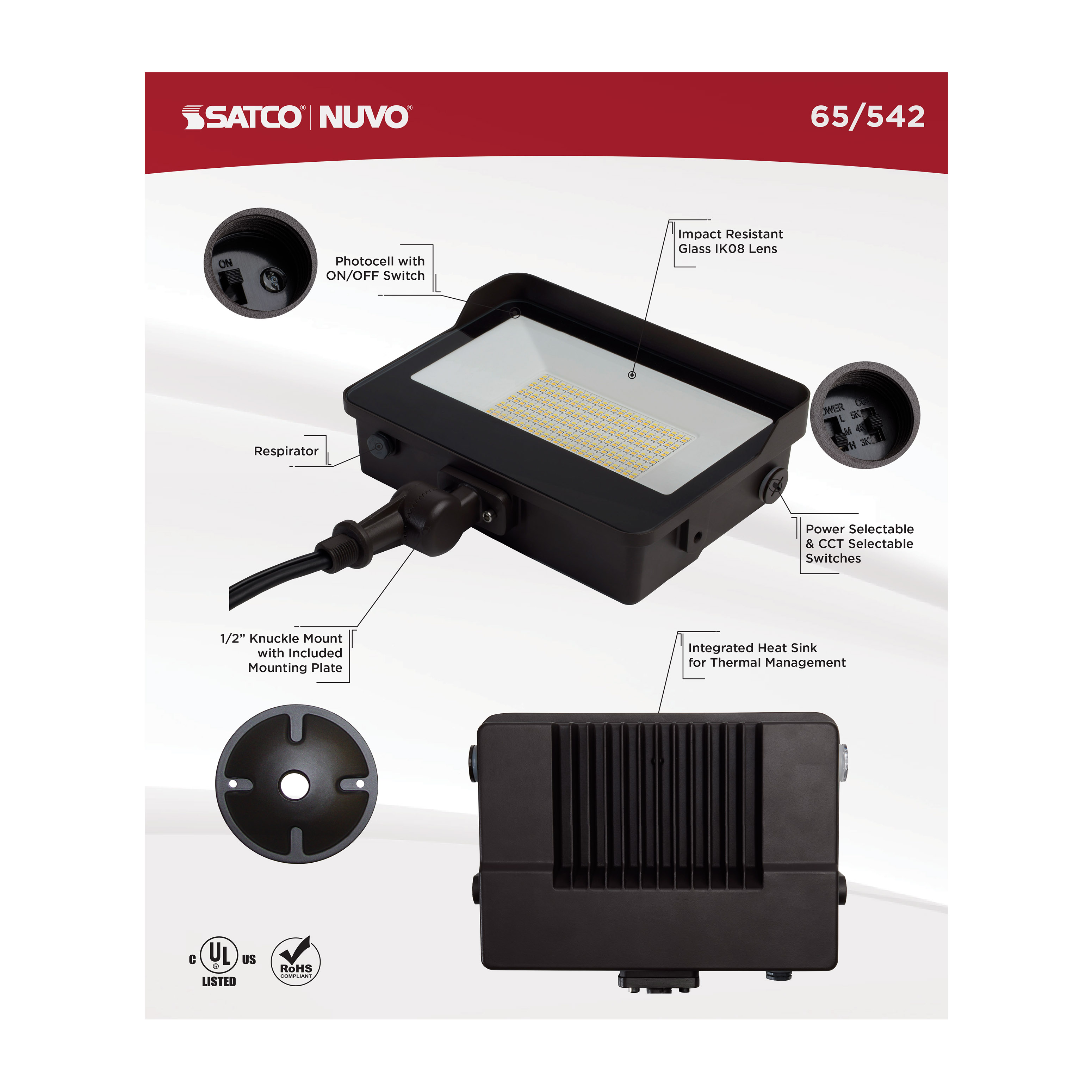

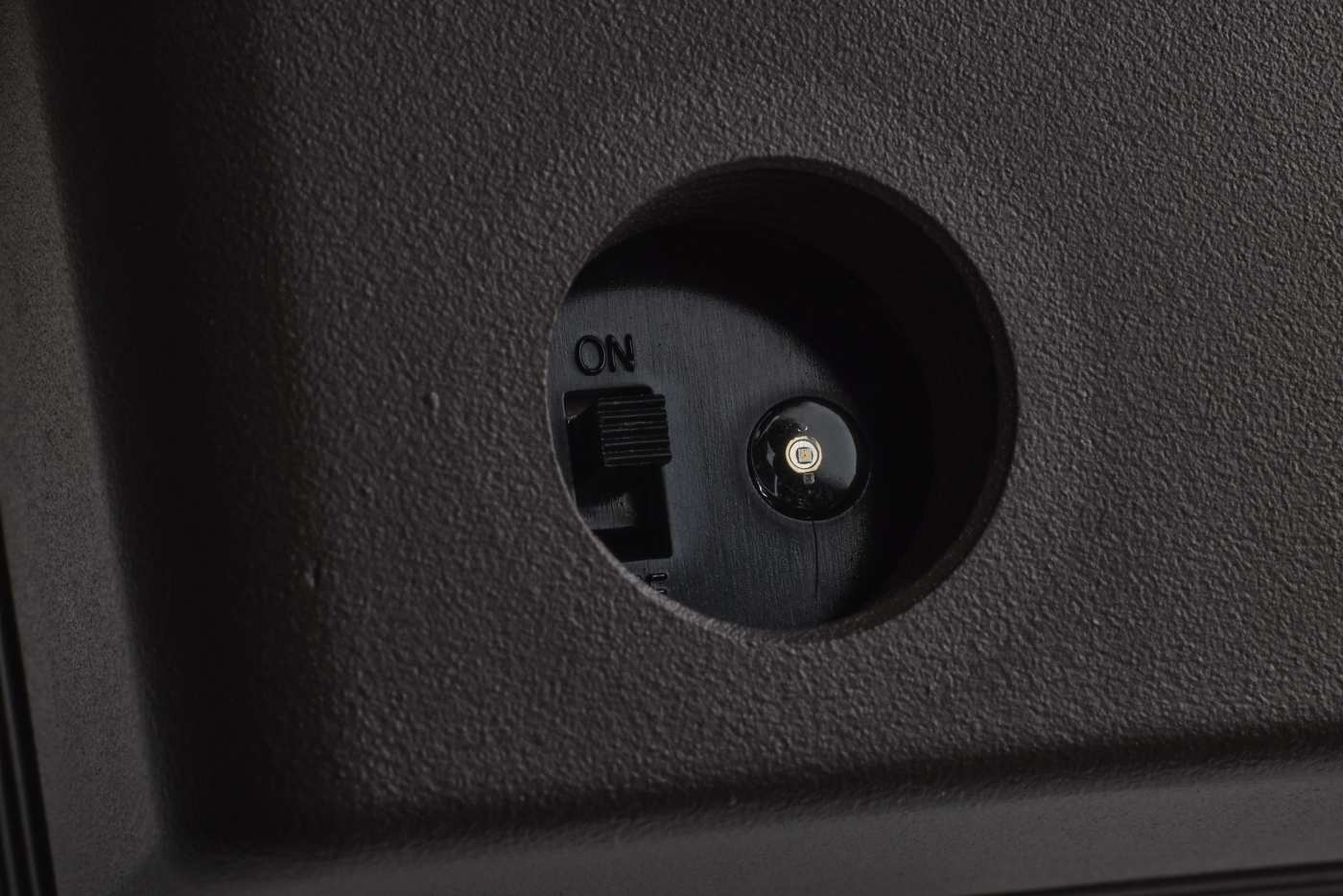

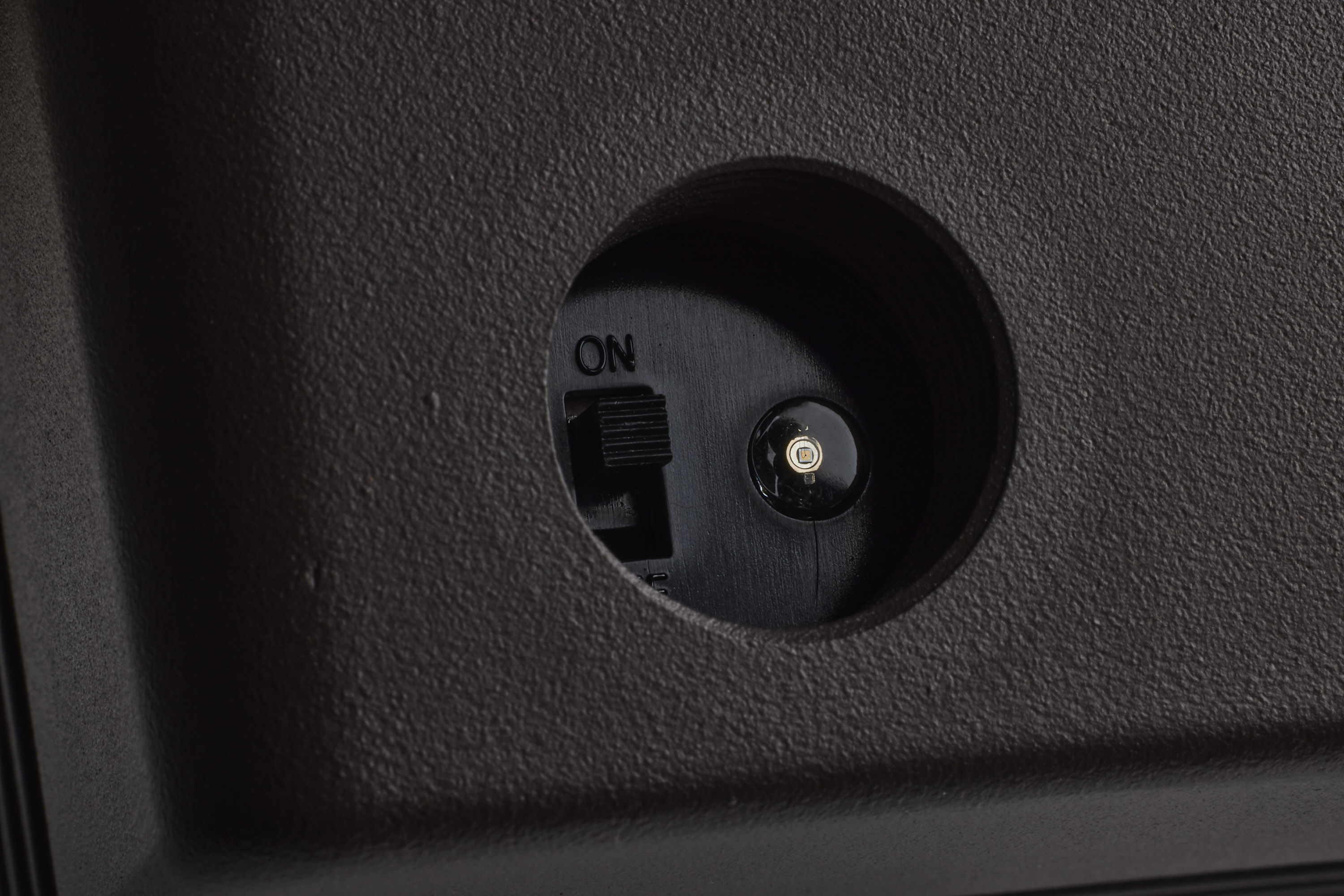

| Photo Cell | Has Photocell |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 300W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 150x140 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| HID Equivalent | 150W-250W |
| Lumens | 5400L-11200L |
| Volts | 120V-347V |
| Watts | 45W/60W/80W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |

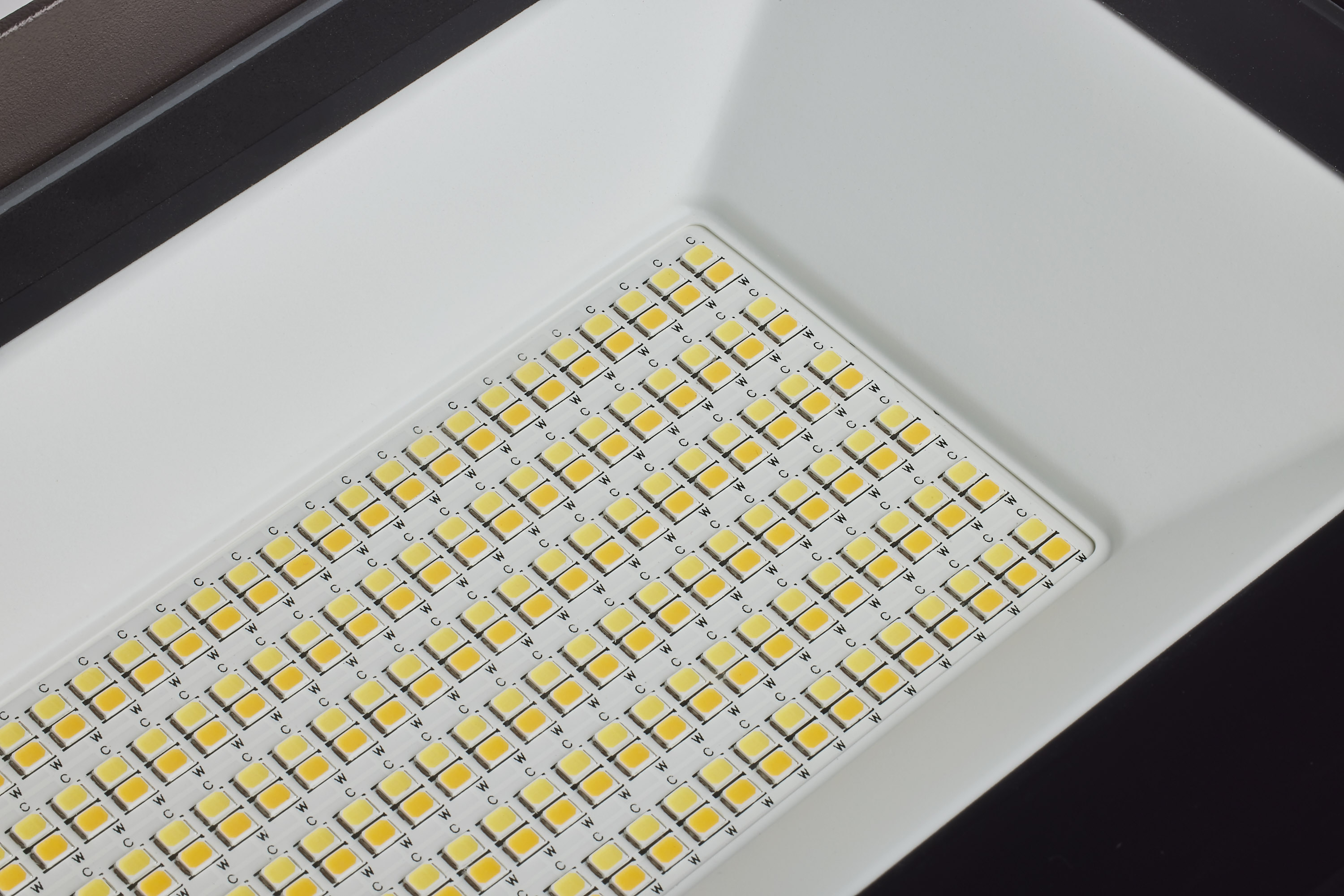

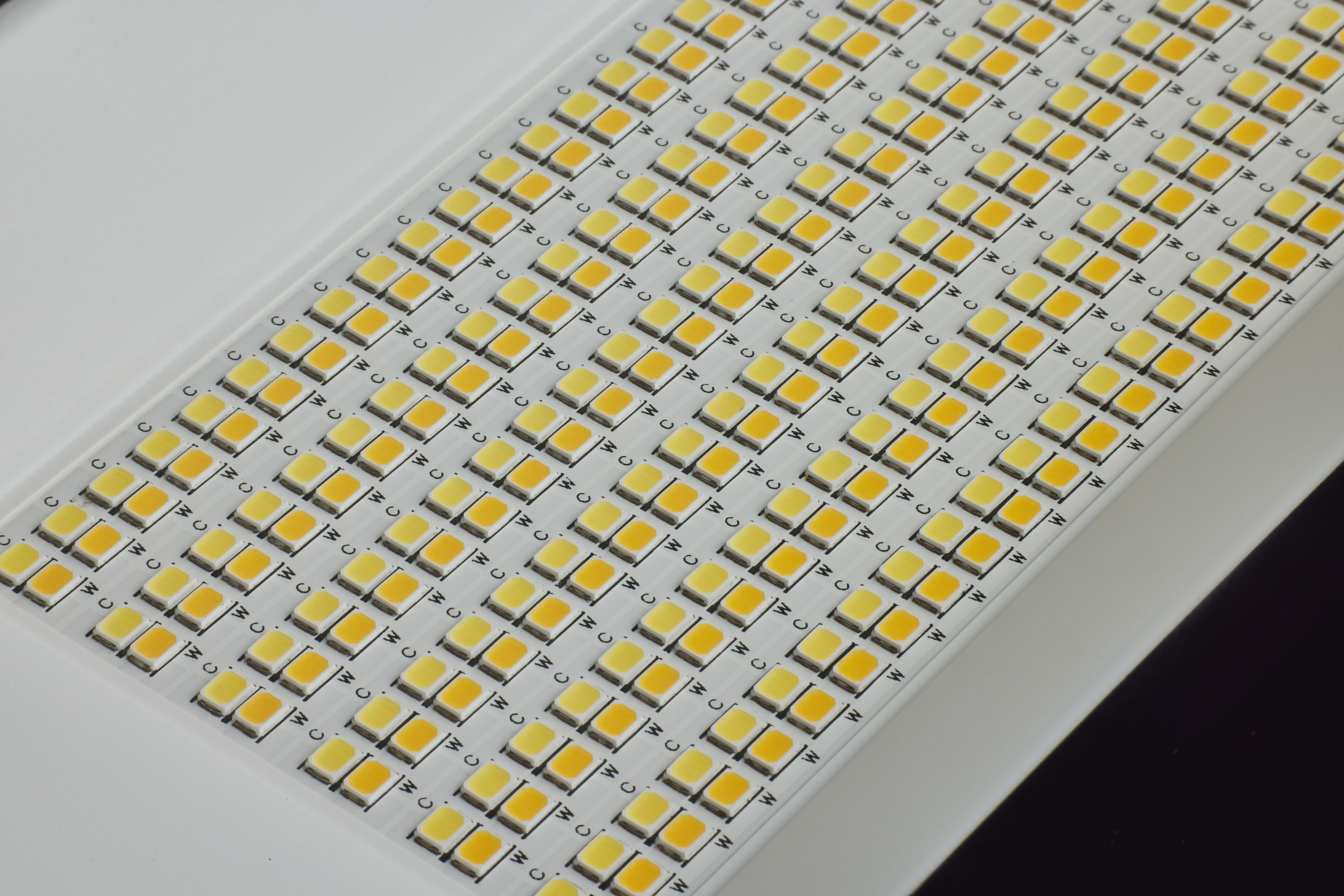

| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|---|

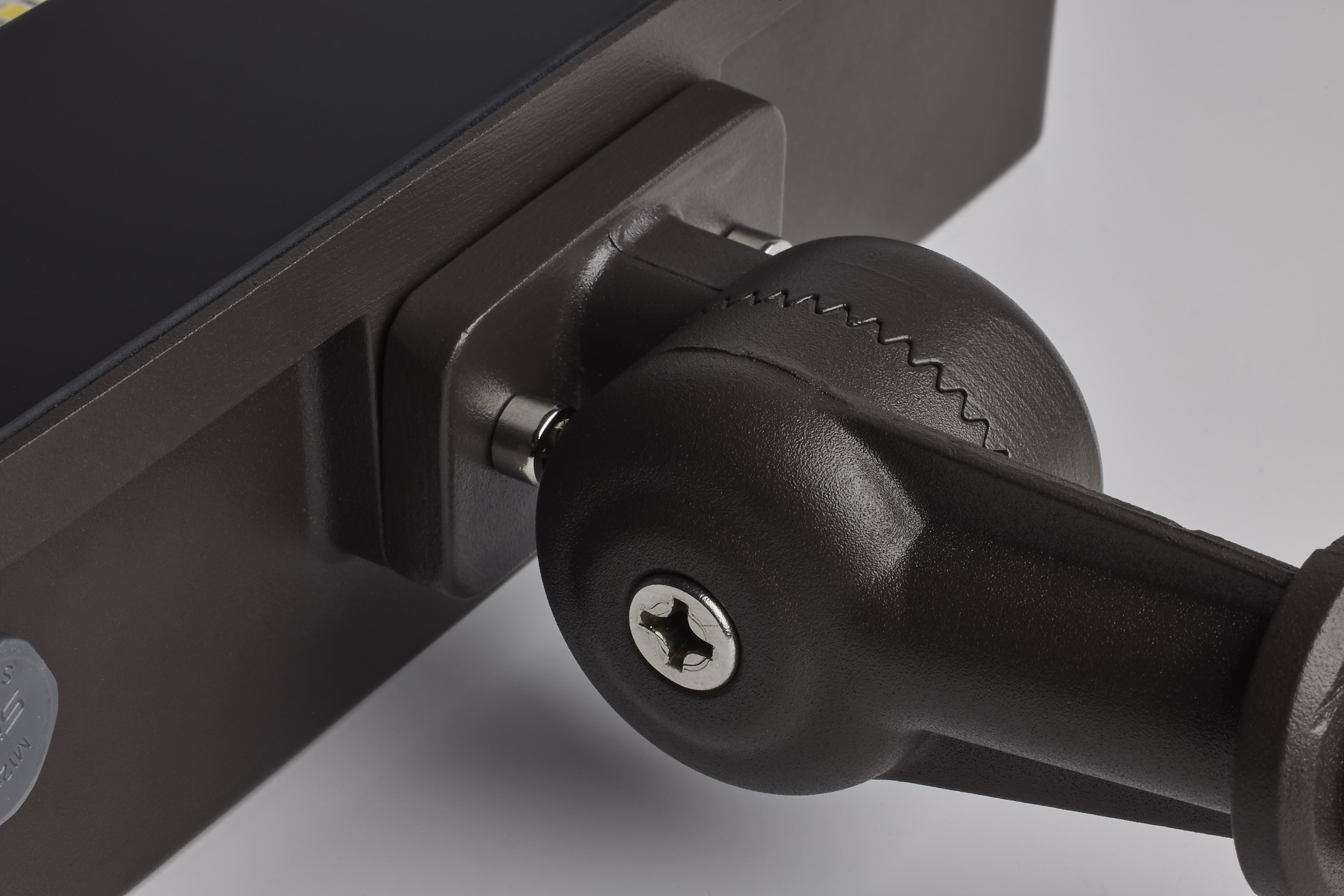

| Installation Notes | Height will change with different mounting options. |
| Bug Rating | B3-U2-G1 |
|---|---|
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | S-HIQURN |
| FCC Compliant | True |
| IP Rating | IP66 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923657979 |
|---|---|
| Case Cube | 1.735 |
| Case Height | 13.78 |
| Case Length | 20.86 |
| Case Quantity | 4 |
| Case UPC | 10045923657976 |
| Case Weight | 25.56 |
| Case Width | 10.43 |
| EA Cube | 0.3673 |
| EA Height | 12.9 |
| EA Length | 10.0 |
| EA Quantity | 1 |
| EA Weight | 6.03 |
| EA Width | 4.92 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

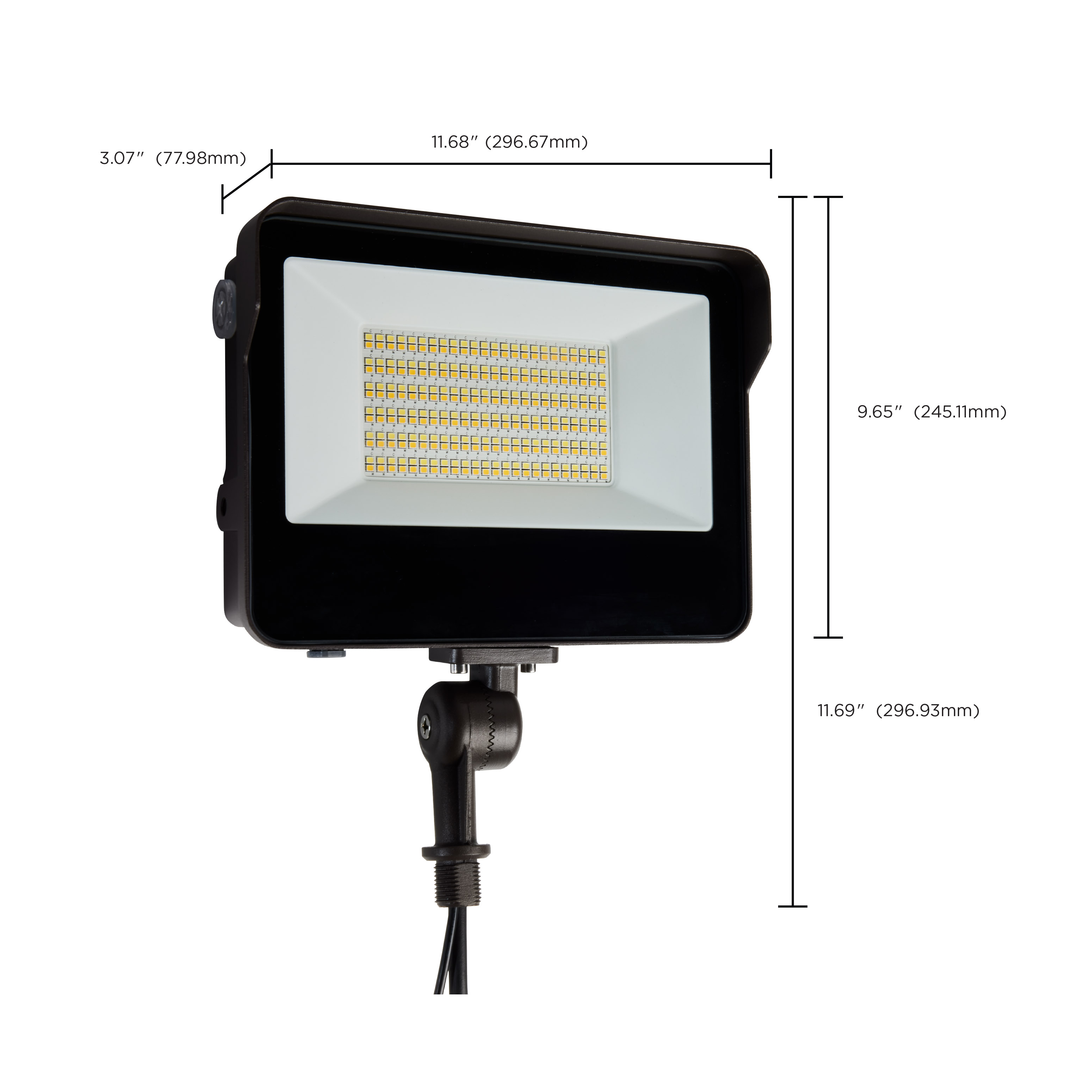

| Web Height | 3.07 |
| Web Length | 9.65 |
| Web Width | 11.68 |
