62-1226

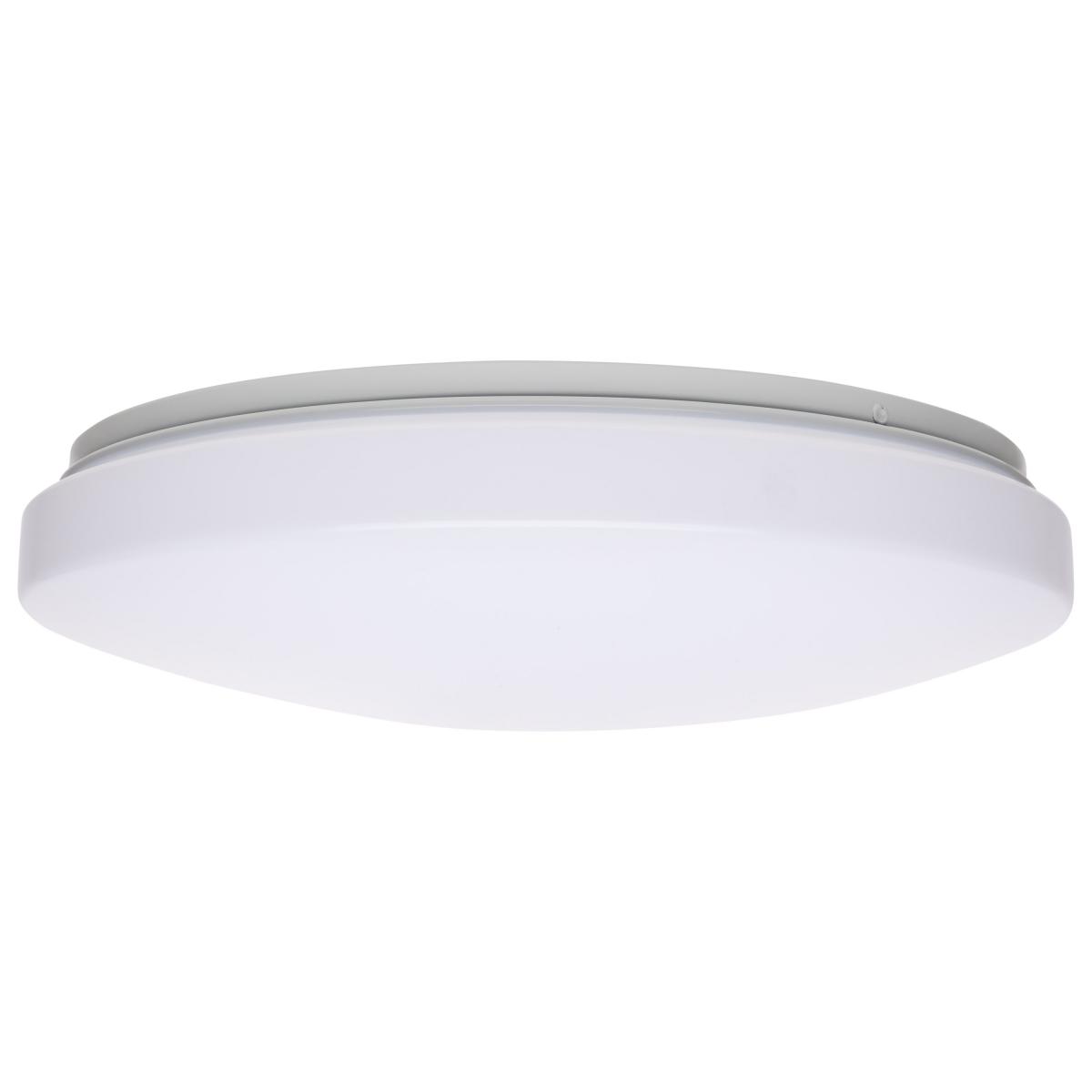

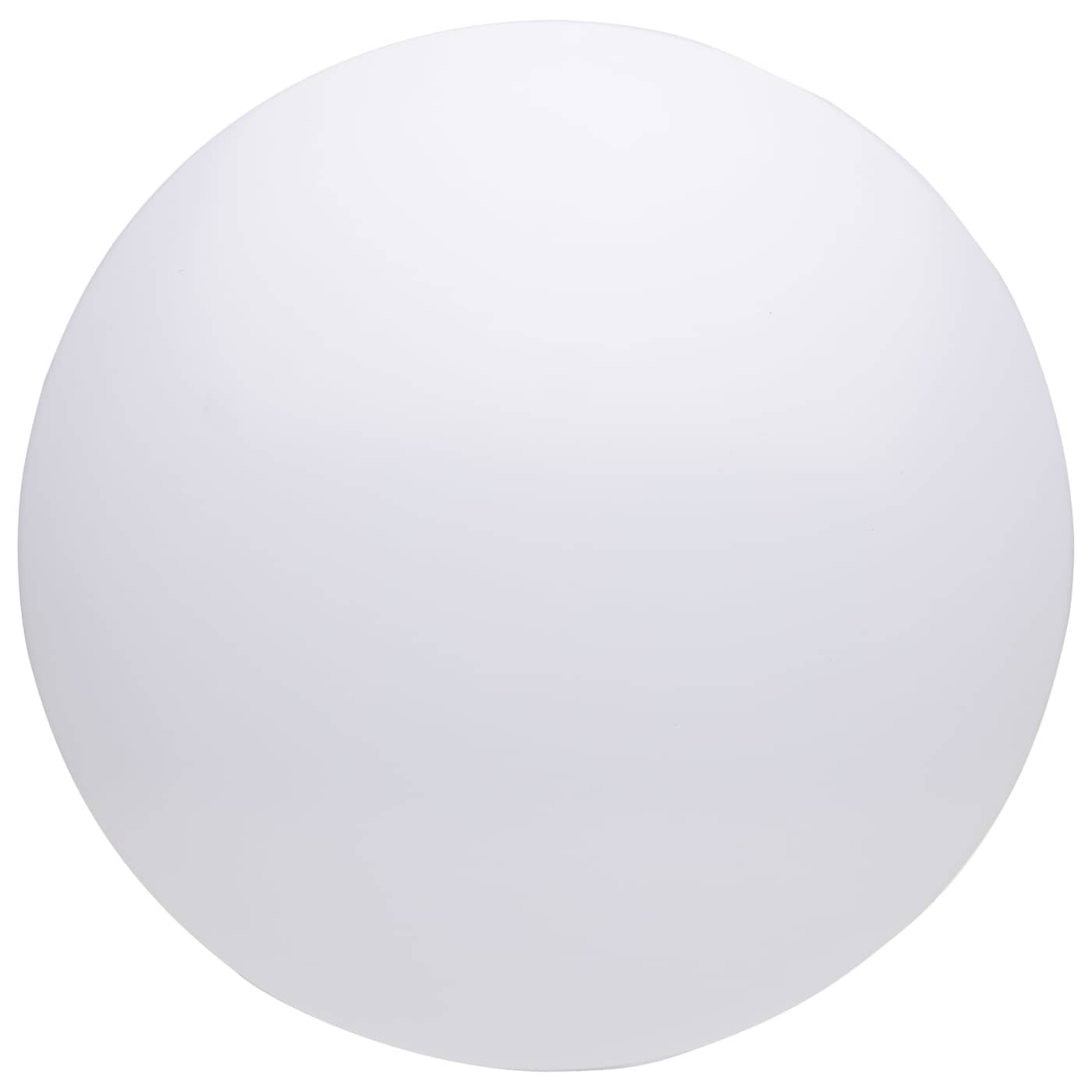

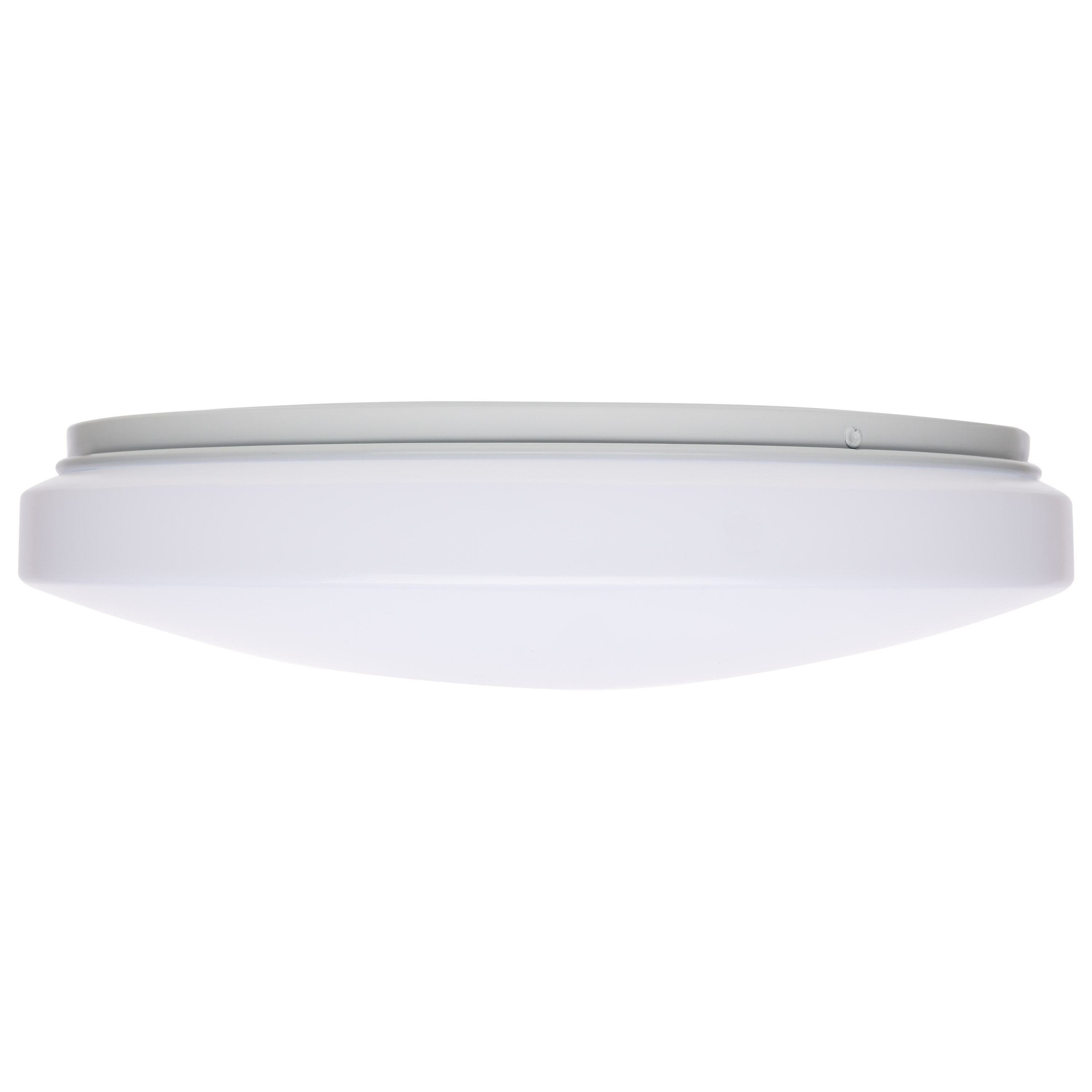

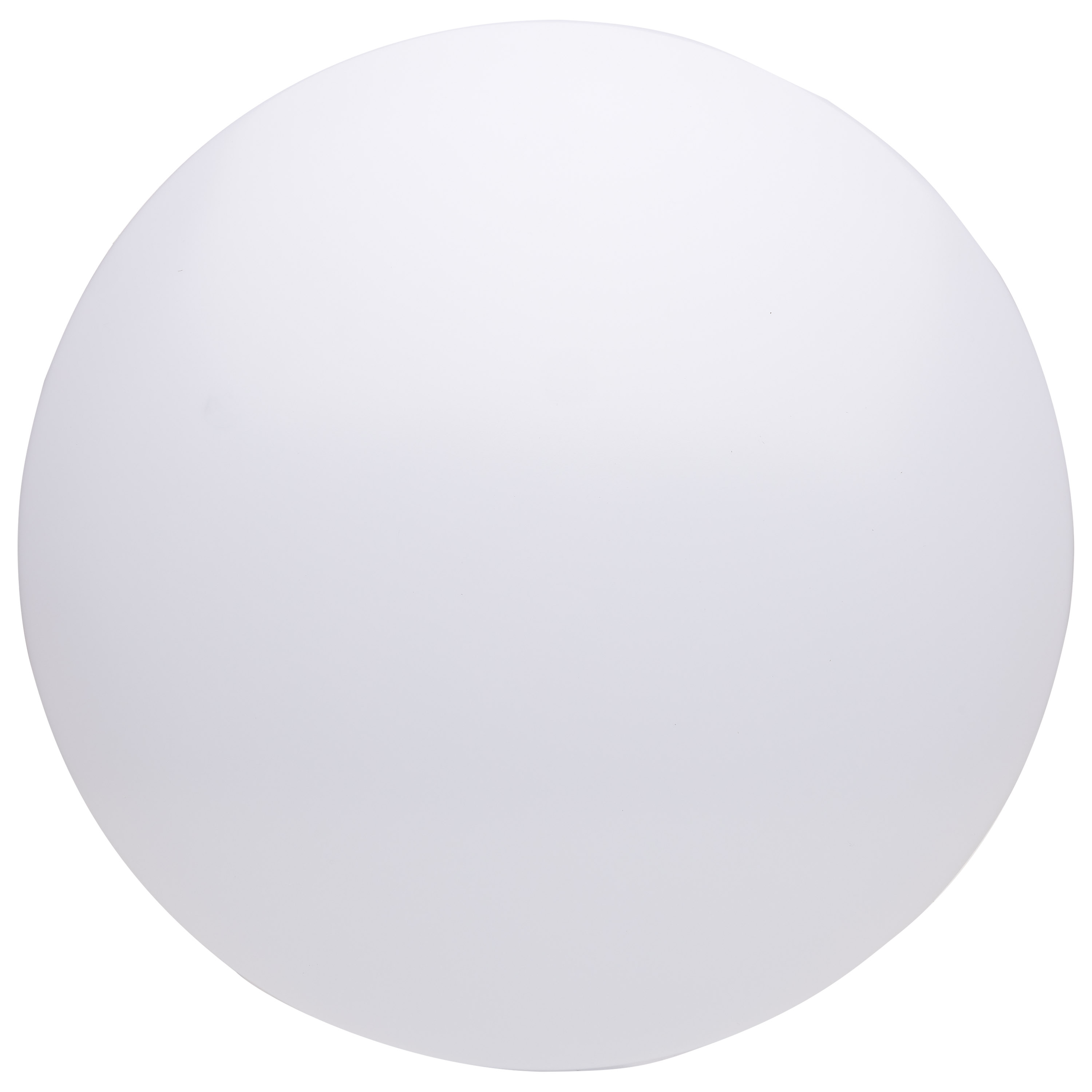

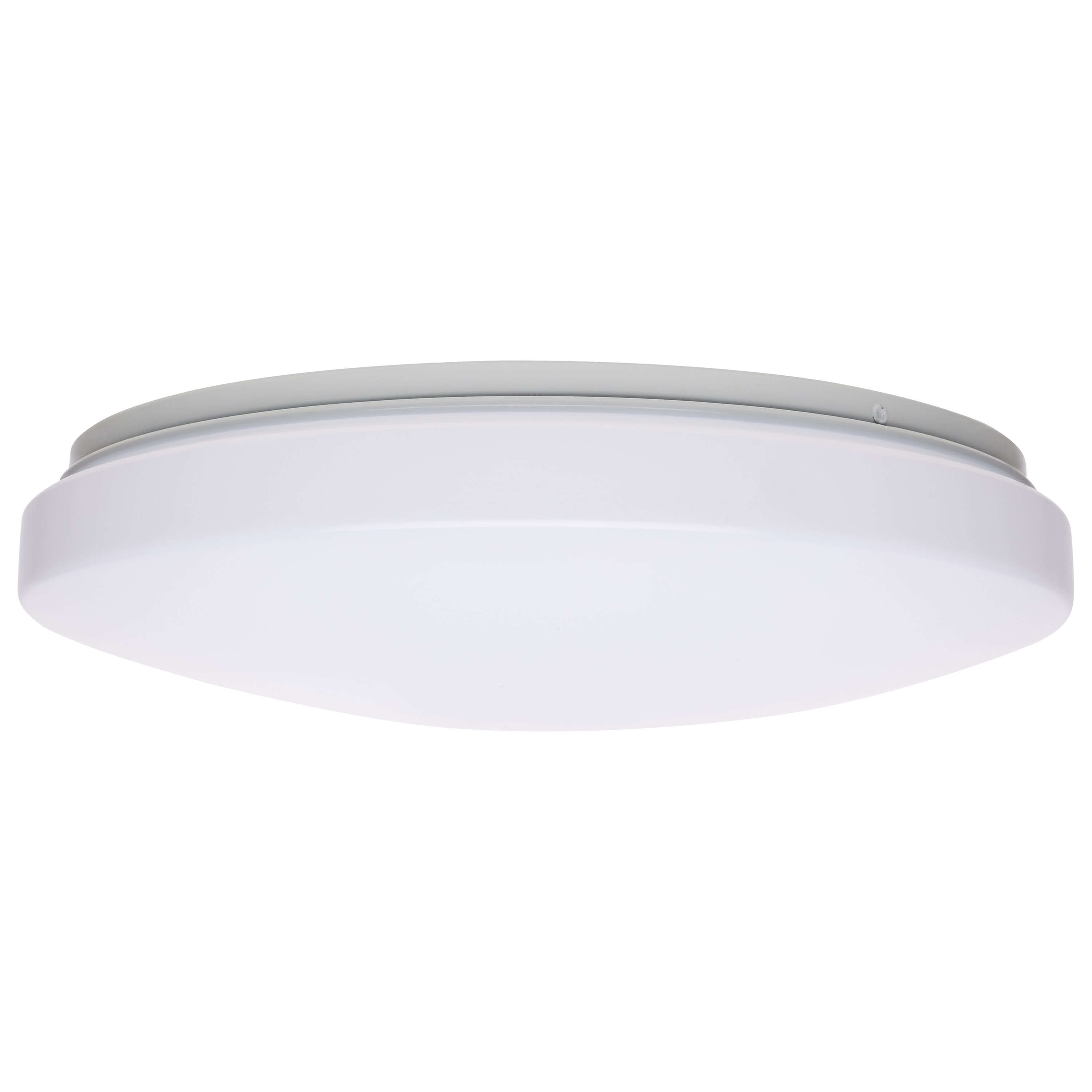

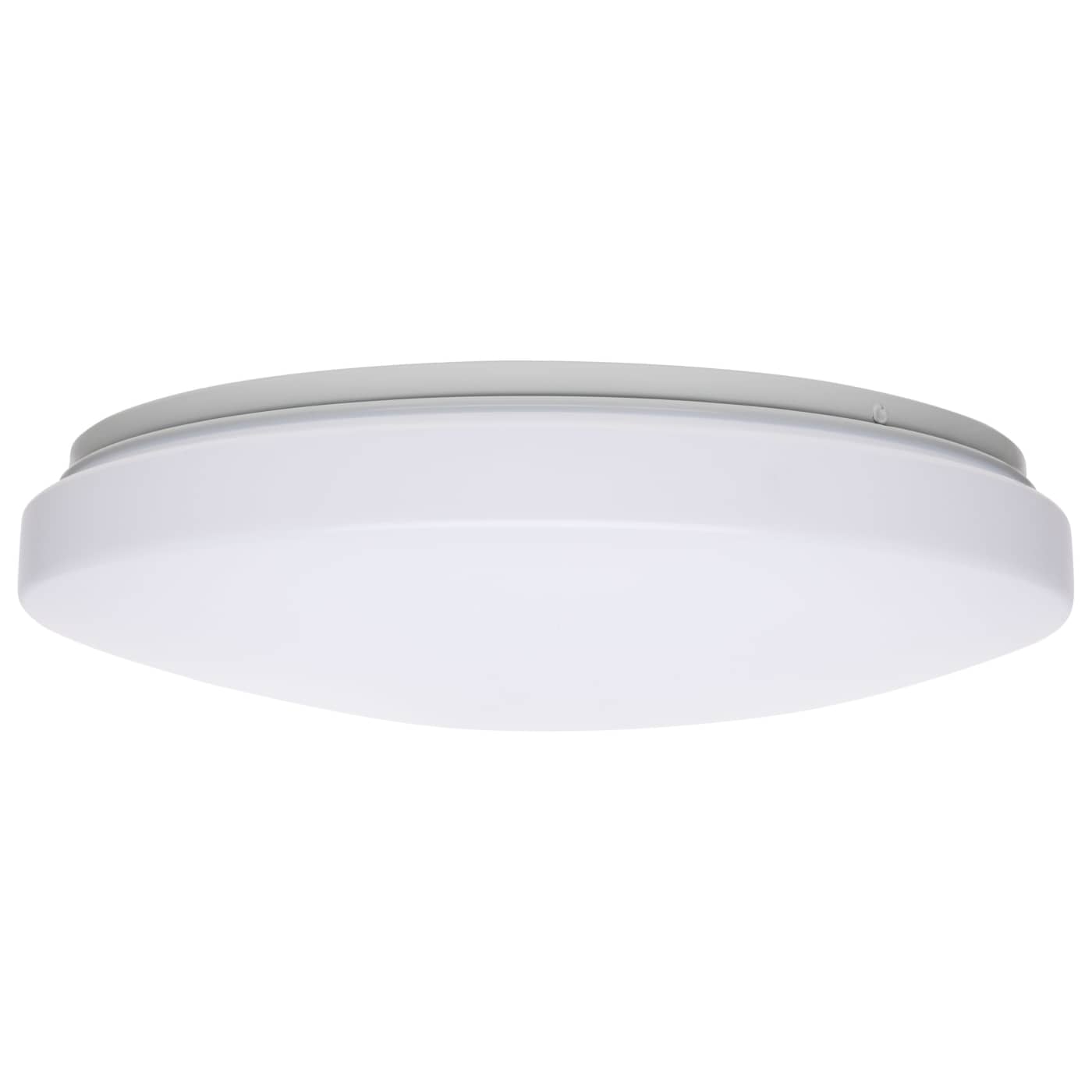

14" ACRYLIC LED FLUSH FIXTURE

Suggested Replacement: 62-1861
  • 14 Inch LED Cloud Fixture 0-10V Dimming
  • CCT Selectable
location_rating^damp^1
cc_selectable^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1226 Specifications62-1226 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Description
Description
14 Inch LED Cloud Fixture 0-10V Dimming; CCT Selectable
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Diameter14.0
Dimmable Text0-10V Dimming
MaterialSteel
Fixture TypeFlush Mount
StatusTransitioning
StyleContemporary
Most Current Generation62-1861
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.167-0.722A
Has CameraFalse
IOT EnabledFalse
Lens FinishWhite
Lens MaterialAcrylic
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm White to Natural Light
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens1450L/1550L/1450L
Volts120V/277V
Watts20W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty3-Years
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextCalifornia T24 Listed
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923612268
Case Cube2.775
Case Height16.93
Case Length16.93
Case Quantity4
Case UPC10045923612265
Case Weight12.13
Case Width16.73
EA Cube0.5369
EA Height15.75
EA Length3.74
EA Quantity1
EA Weight2.5
EA Width15.75
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.55
Web Width14.0
