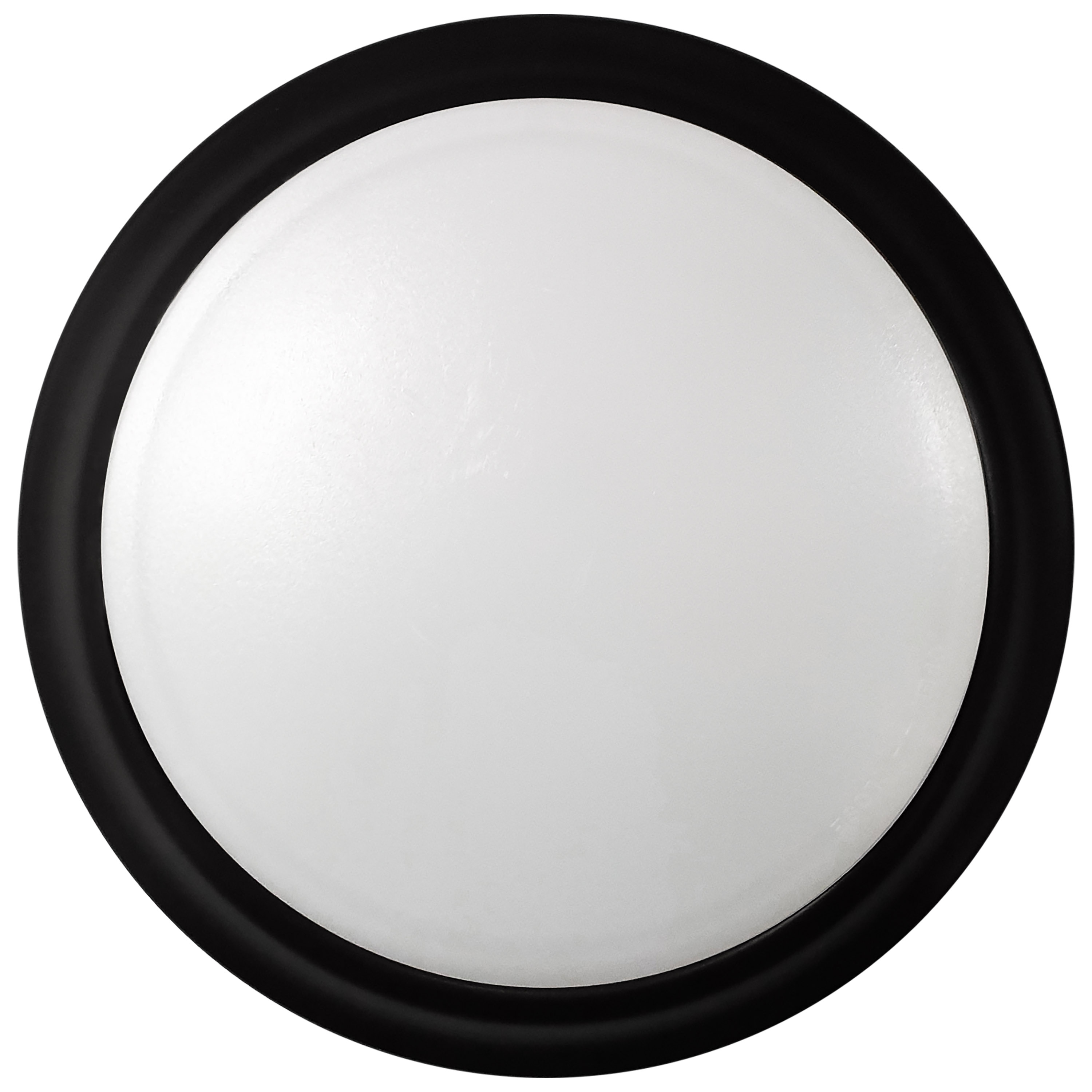

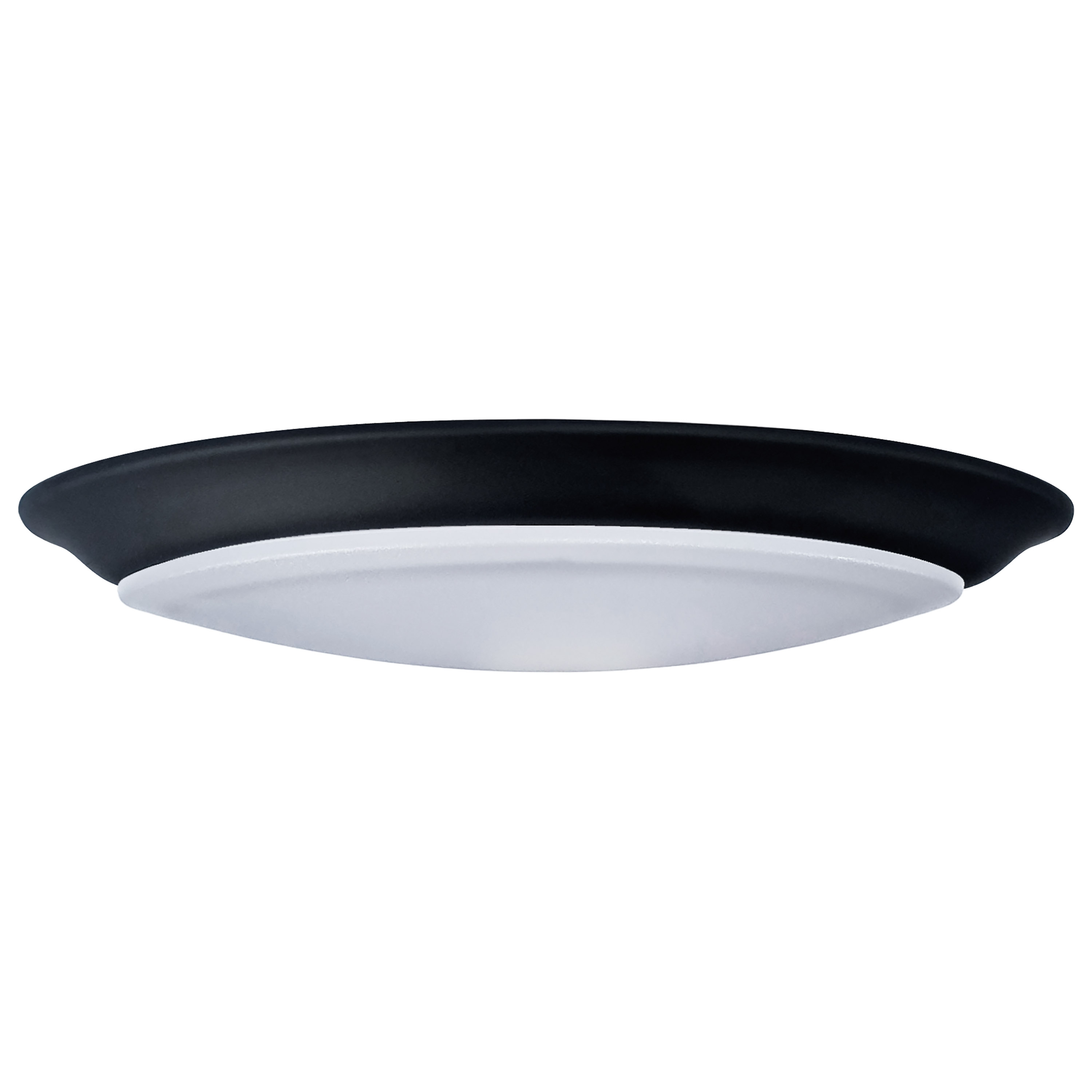

10" LED DISK LIGHT BLACK FIN - 62-1677
10" LED DISK LIGHT BLACK FIN - 62-1677
10" LED DISK LIGHT BLACK FIN - 62-1677
62-1677

10" LED DISK LIGHT BLACK FIN

Discontinued - Suggested Replacement: 62-1814R1
  • 10 inch
  • LED Disk Light
  • CCT Selectable 3K/4K/5K
  • Black Finish
cc_selectable^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1677 Specifications62-1677 Instructions Crossbar A.pdf62-1677 Instructions Crossbar B.pdf
Description
Description
10 inch; LED Disk Light; CCT Selectable 3K/4K/5K; Black Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Diameter9.49
Shade FinishFrosted
MaterialSteel
Fixture TypeDisk Light
Product Notes3000K = 990L; 4000K = 1050L; 5000K = 1000L
StatusObsolete
StyleTransitional
Most Current Generation62-1814R1
Surge ProtectionBuilt-in surge protection - 2.5KV
CCT SelectableYes
Wattage SelectableNo
Finish FamilyBlack
Amps0.133A
Has CameraNo
IOT EnabledNo
Lens MaterialAcrylic
Power Factor0.91
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)112
Color TempWarm to Cool White
CRI90+
Operating Frequency60Hz
Operating Temp-35C (-31F) to +50C (+122F)
Lumens990L-1050L
Volts120v
Watts16W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingWet
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantYes
Packaging
UPC045923616778
Case Cube1.3877
Case Height11.02
Case Length20.47
Case Quantity12
Case UPC10045923616775
Case Weight18.72
Case Width10.63
EA Cube0.0992
EA Height9.84
EA Length9.84
EA Quantity1
EA Weight1.36
EA Width1.77
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height1.28
Web Width9.49
