62-1704

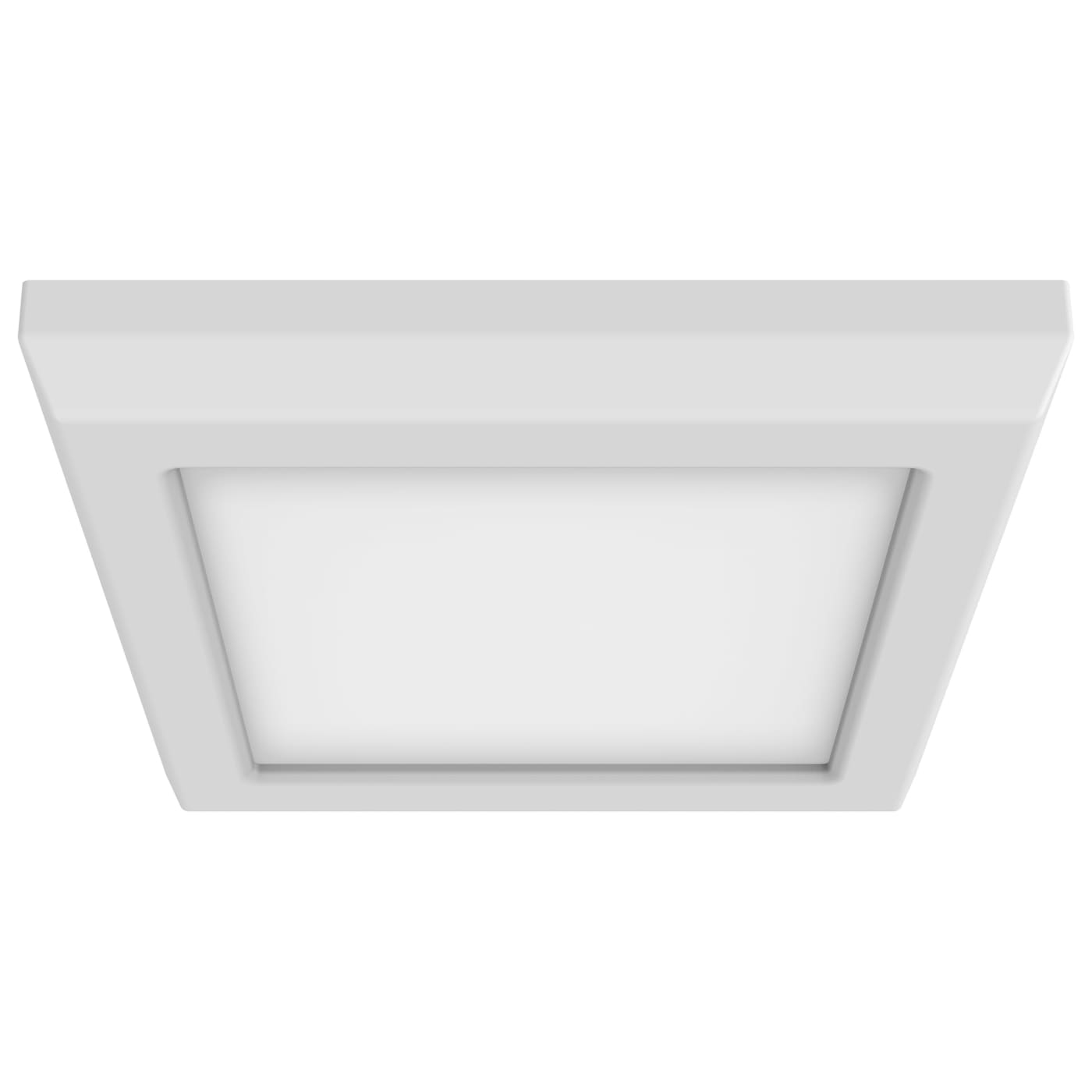

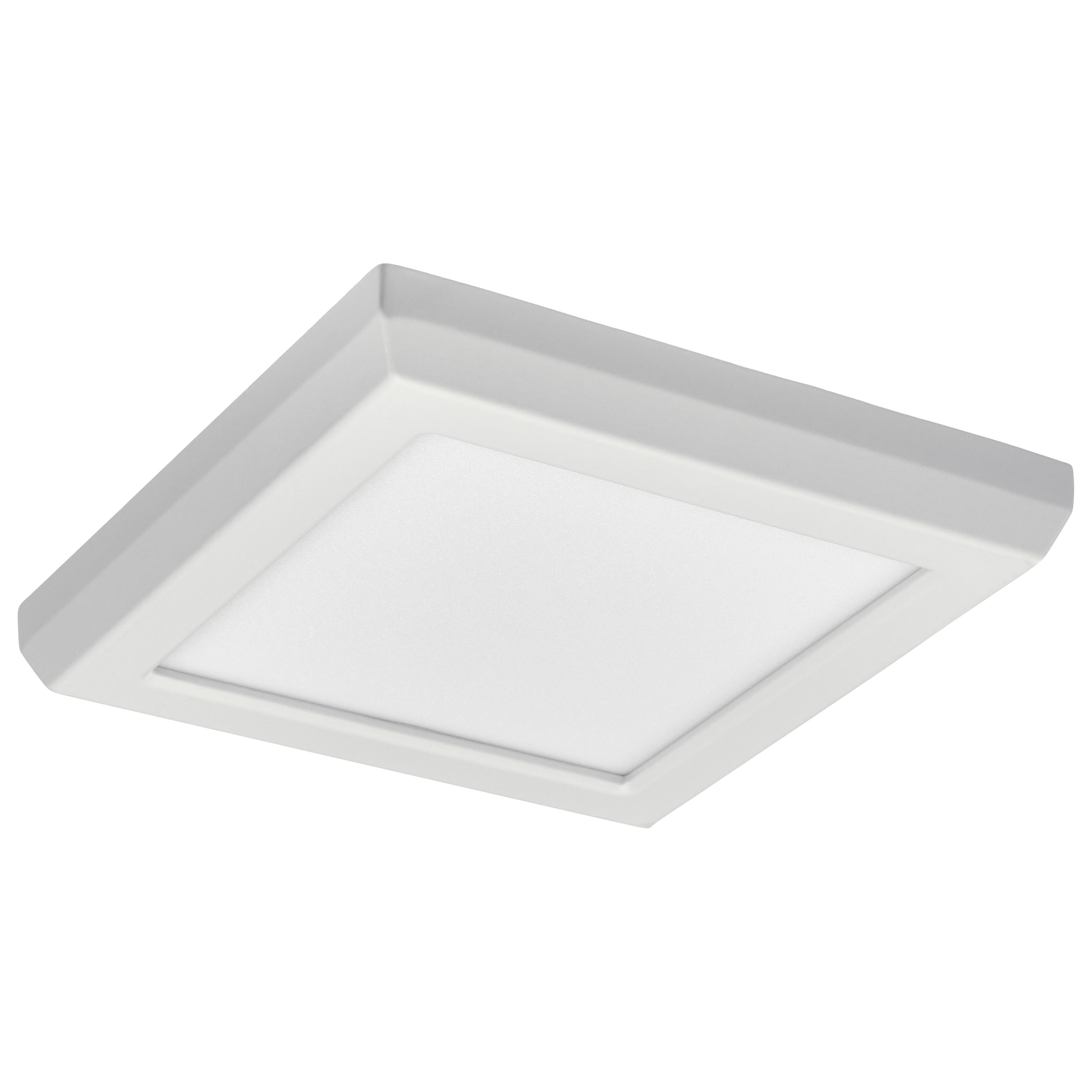

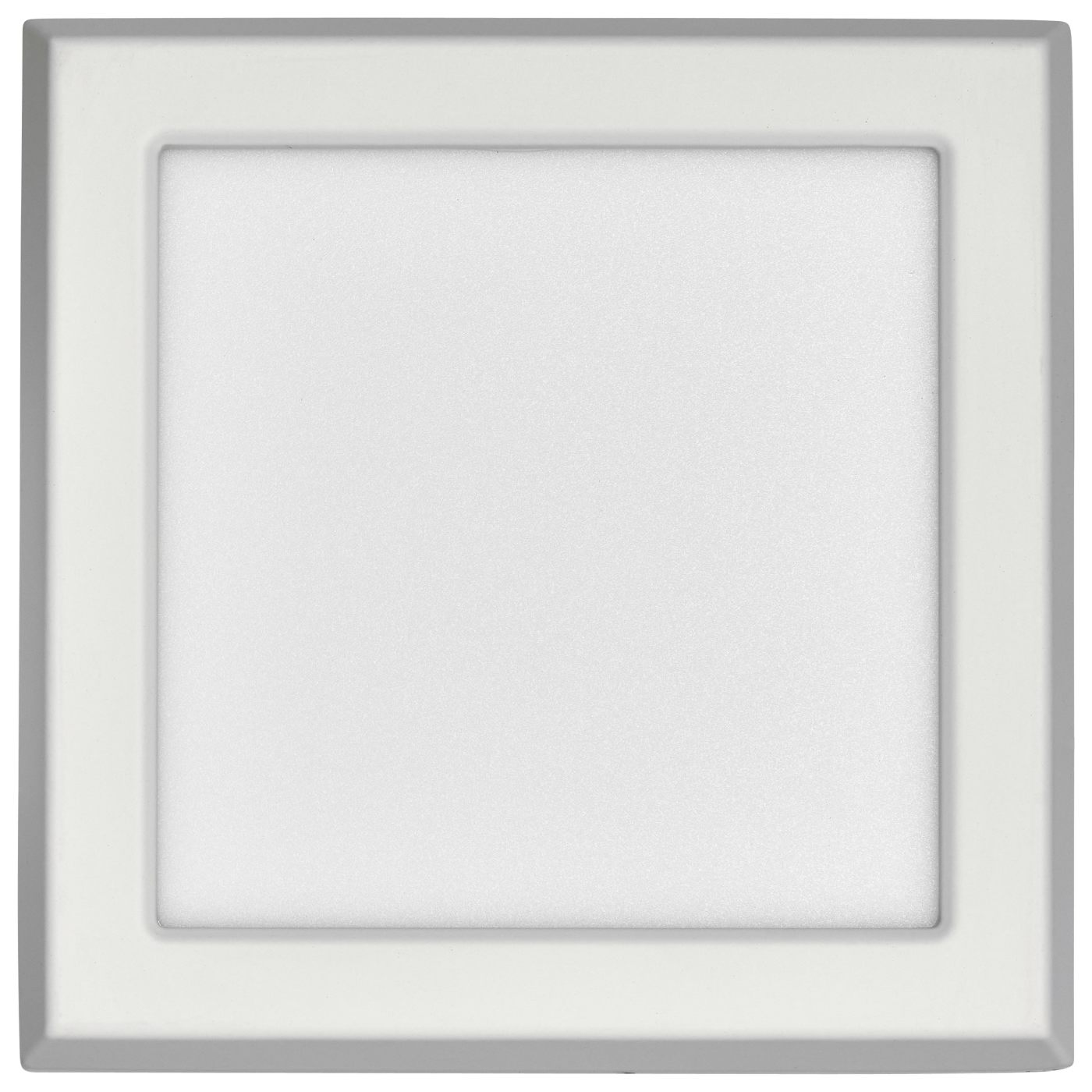

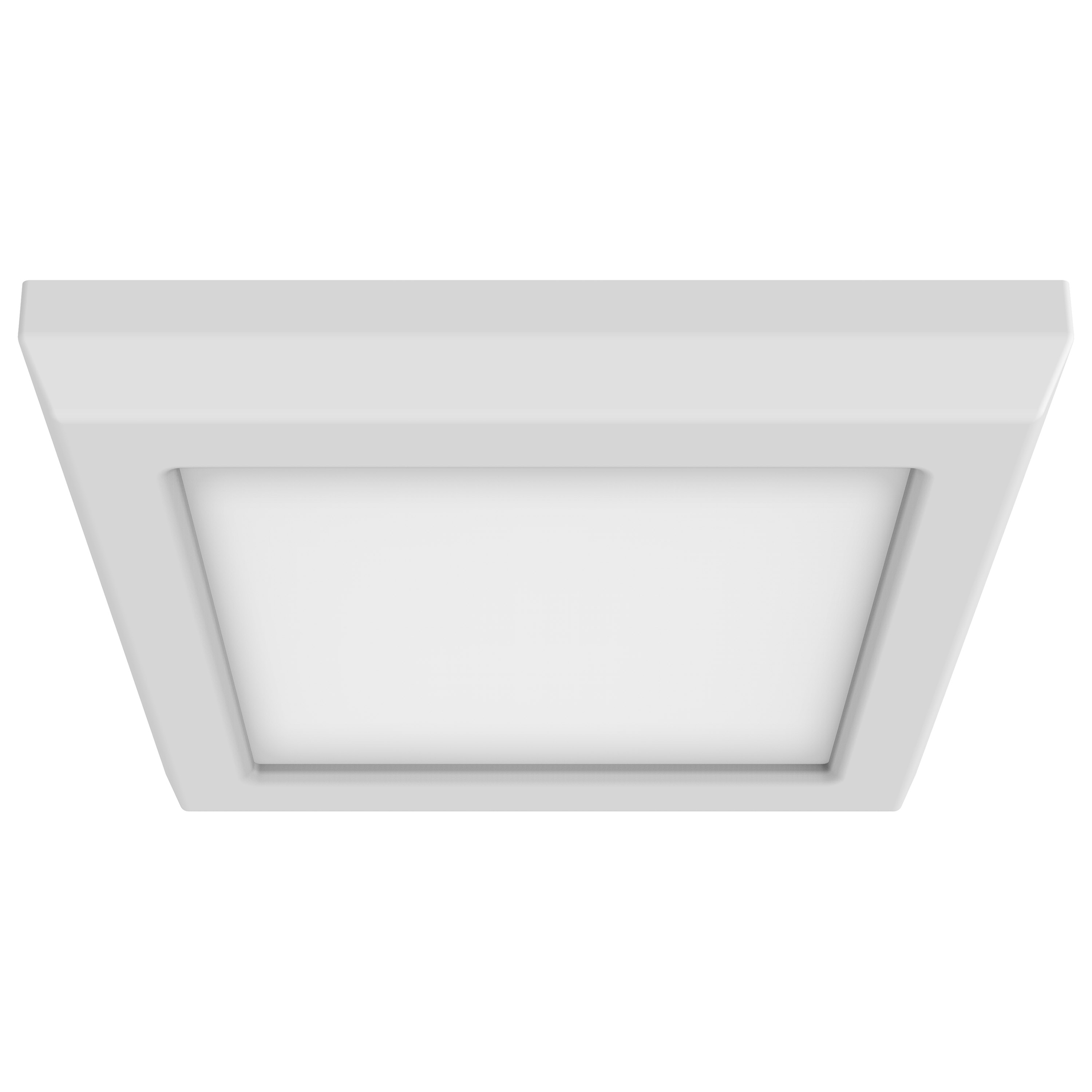

BLINK 9W LED 5" SQ WHITE

  • Blink Pro - 9W
  • 5in
  • LED Fixture
  • CCT Selectable
  • Square Shape
  • White Finish
  • 120V
cc_selectable^y^1
energy_star_certified^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1704 Specifications62-1704 Photometrics 2700K.ies62-1704 Photometrics 3000K.ies
Tools
Lighting Layout Analysis For 62-1704
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Blink Pro - 9W; 5in; LED Fixture; CCT Selectable; Square Shape; White Finish; 120V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text120V only
MaterialDie-cast Aluminum
Fixture TypeFlush Mount

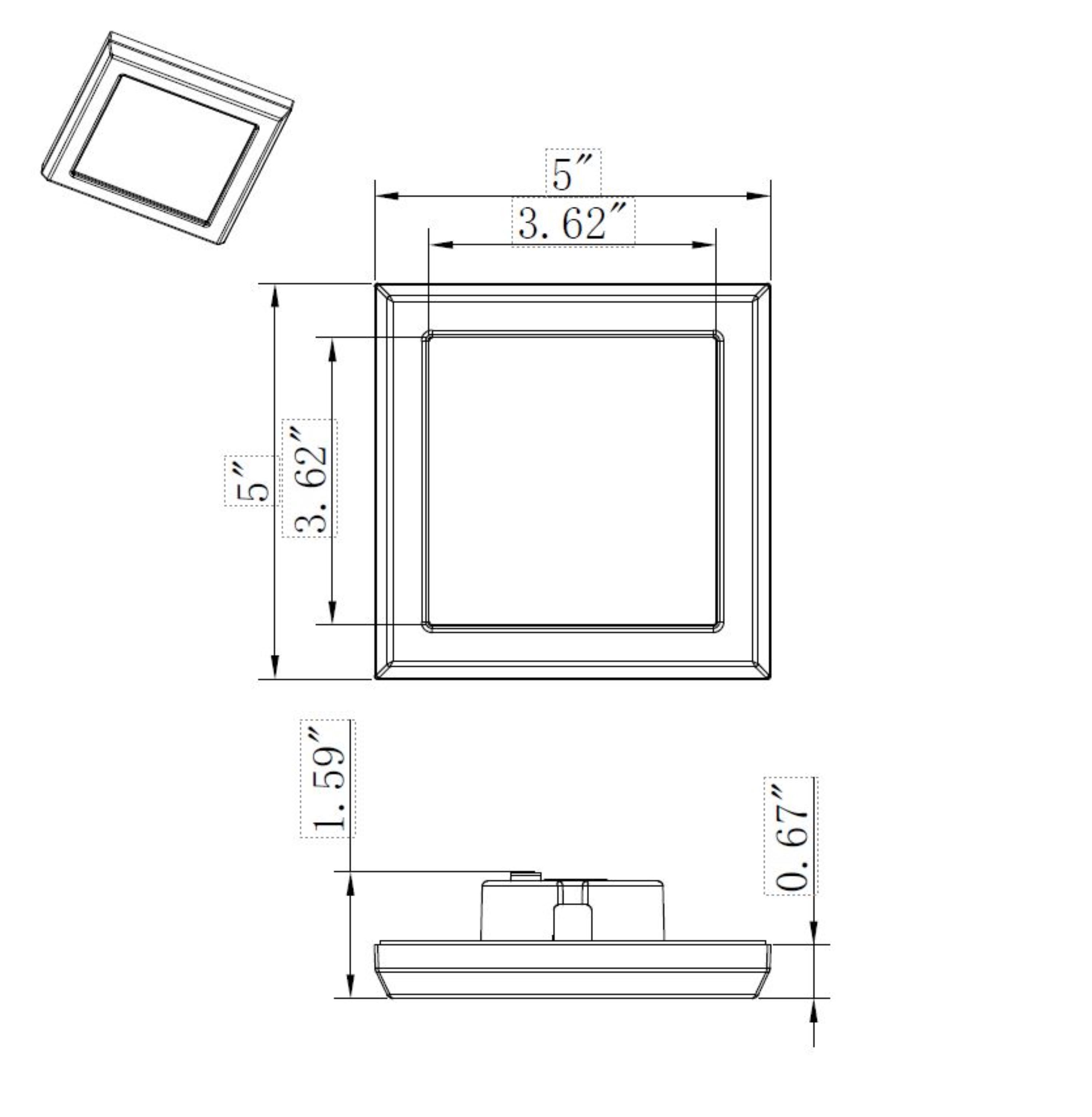

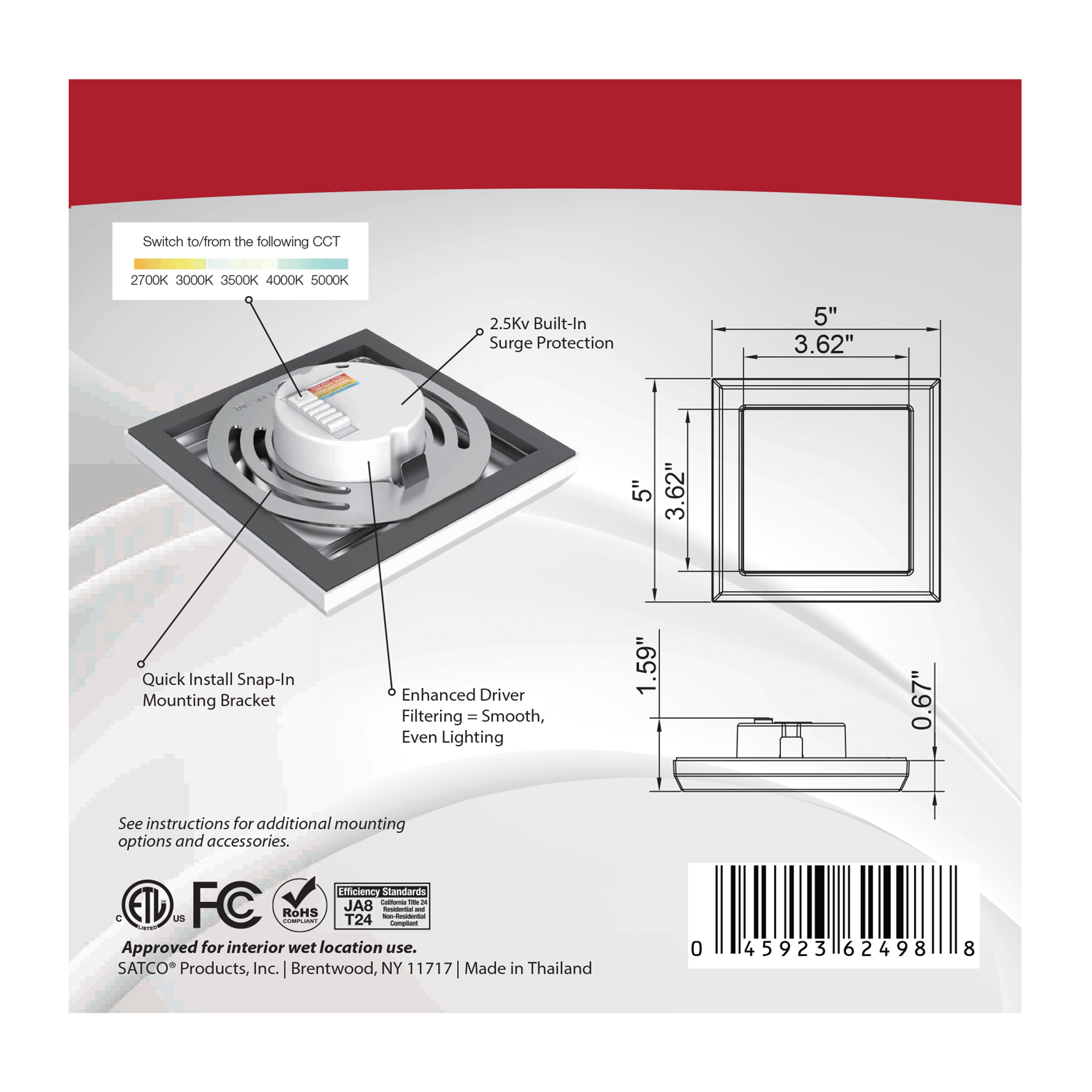

Product NotesOverall height of fixture and driver: 1.59"
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Additional InfoUGR - 28.05; SDCM - 464; Hi pot - DC-1550V; Edge-lit - Yes
Amps0.075A
Has CameraNo
IOT EnabledNo
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical

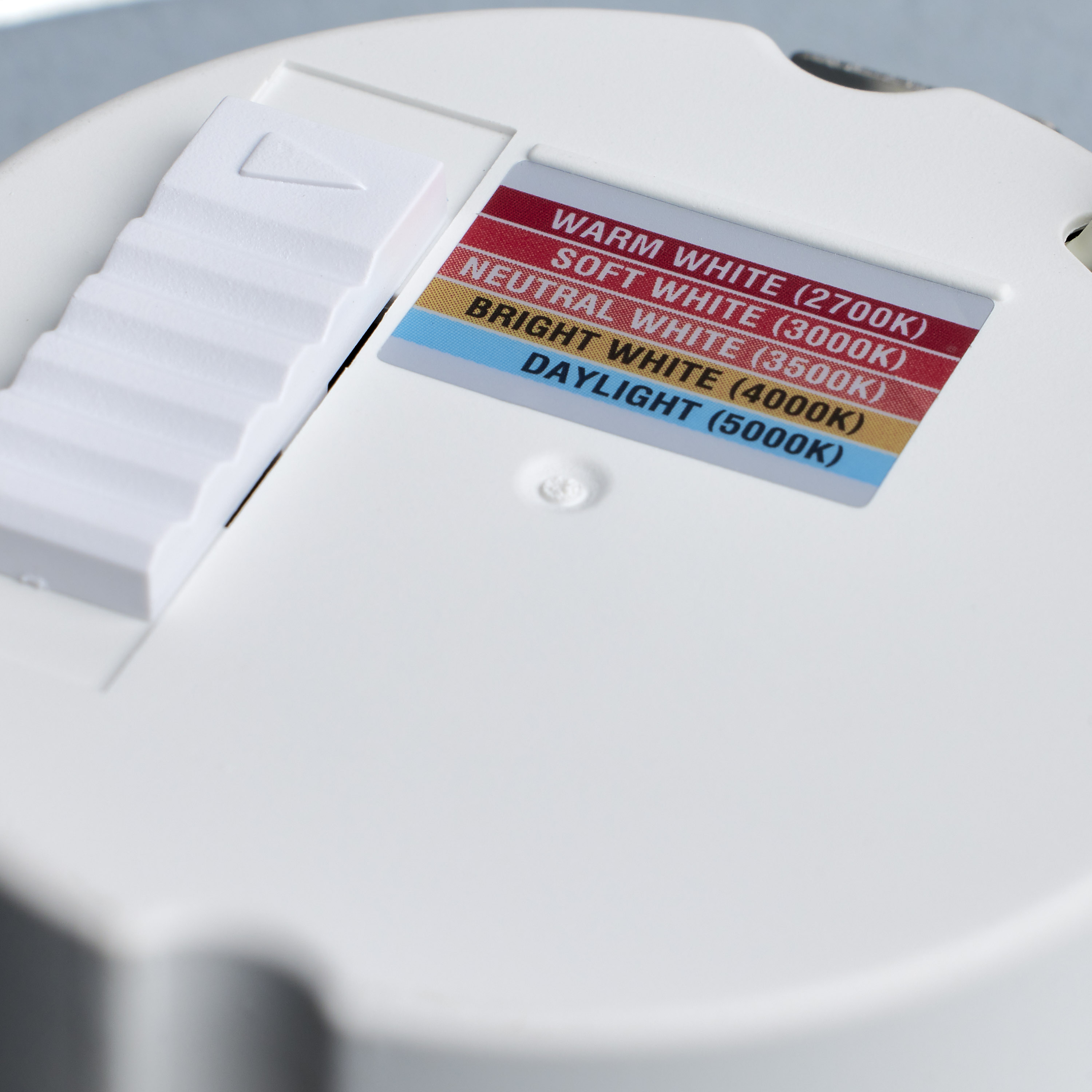

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)100
Color TempWarm White to Natural Light
CRI90+
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens680L-730L
Volts120v
Watts9W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years

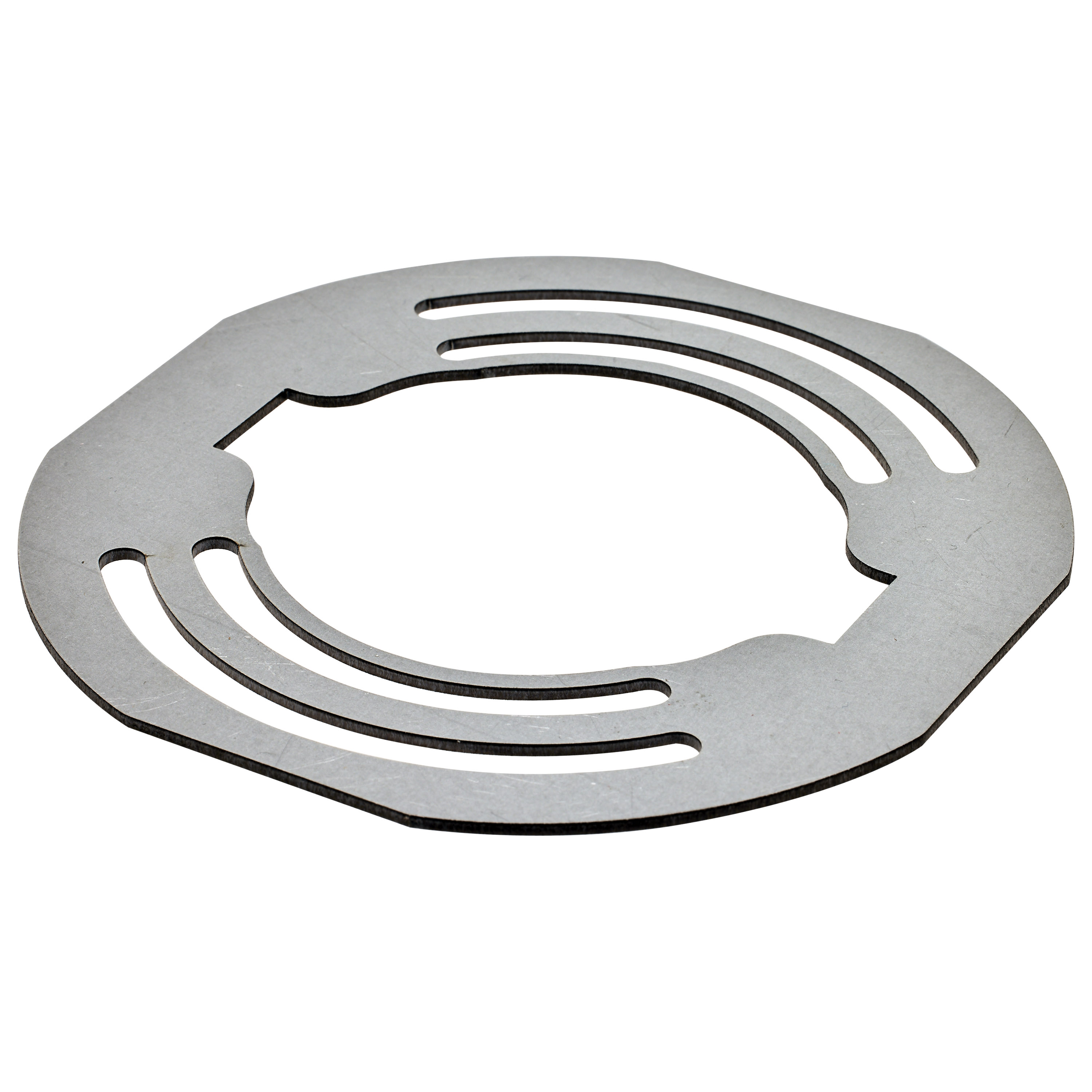

Installation NotesSurface mount; Compatible with 3"&4" J-box and pancake J-box with additional accessory
Documents
Features
Flicker FreeNo
Compliance
CA Prop 65Lead
Energy Star ID3629664
FCC CompliantYes
Location RatingWet
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedYes
Title 20Exempt
T24 CompliantYes
Packaging
UPC045923624988
Case Cube0.4451
Case Height5.91
Case Length11.81
Case Quantity12
Case UPC10045923624985
Case Weight8.94
Case Width11.02
EA Cube0.0283
EA Height5.2
EA Length5.2
EA Quantity1
EA Weight0.77
EA Width1.81
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height0.67
Web Length5.0
Web Width5.0
