62-1719

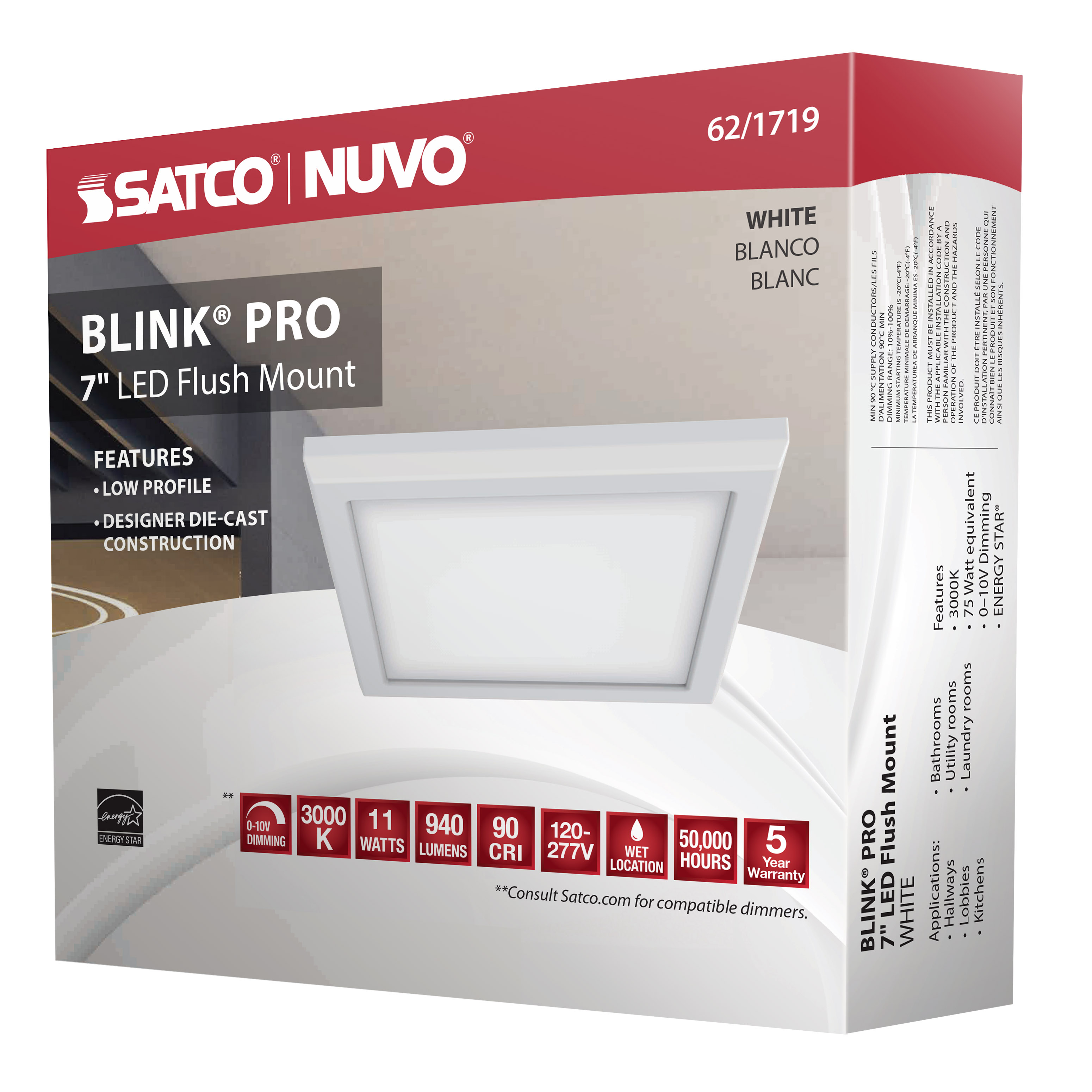

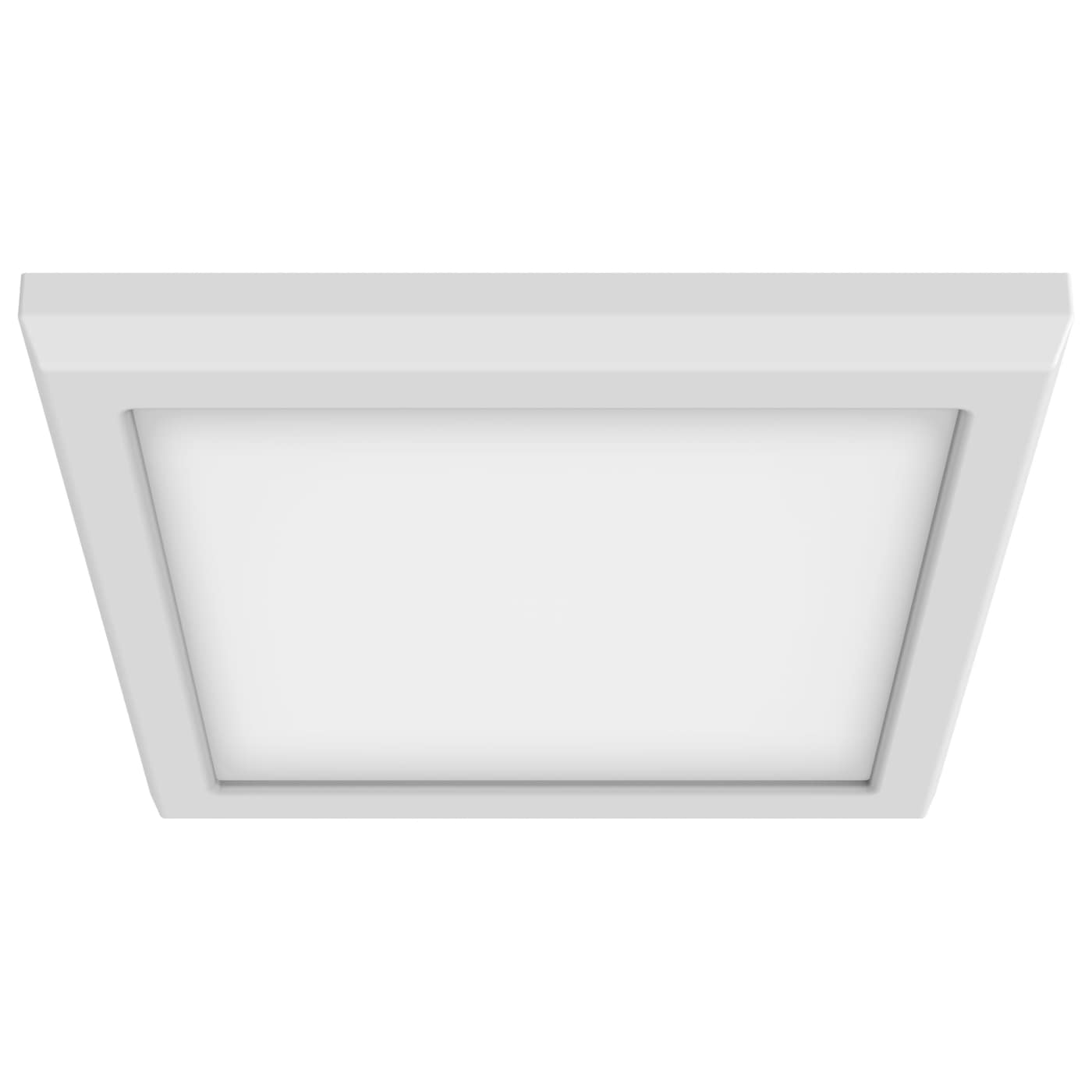

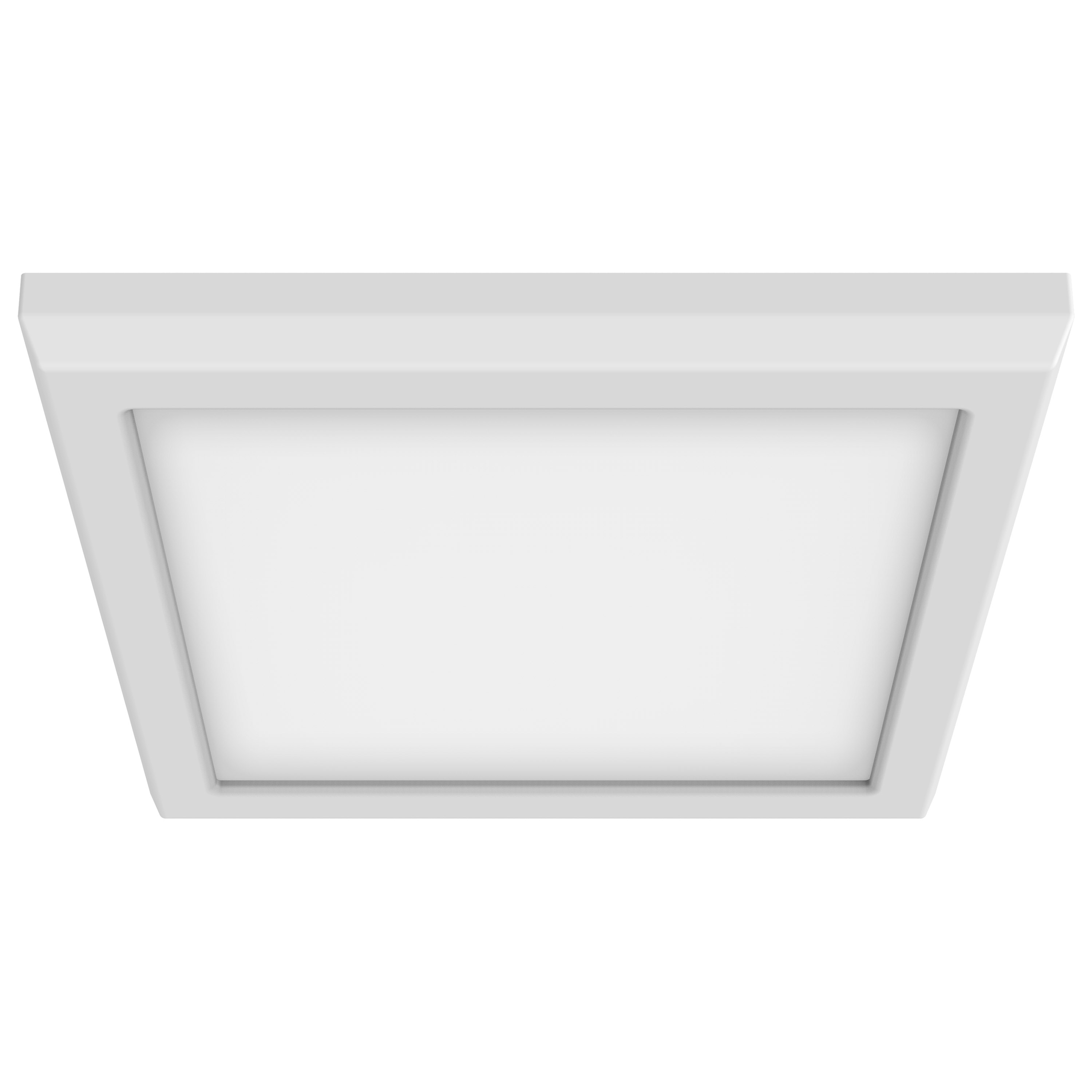

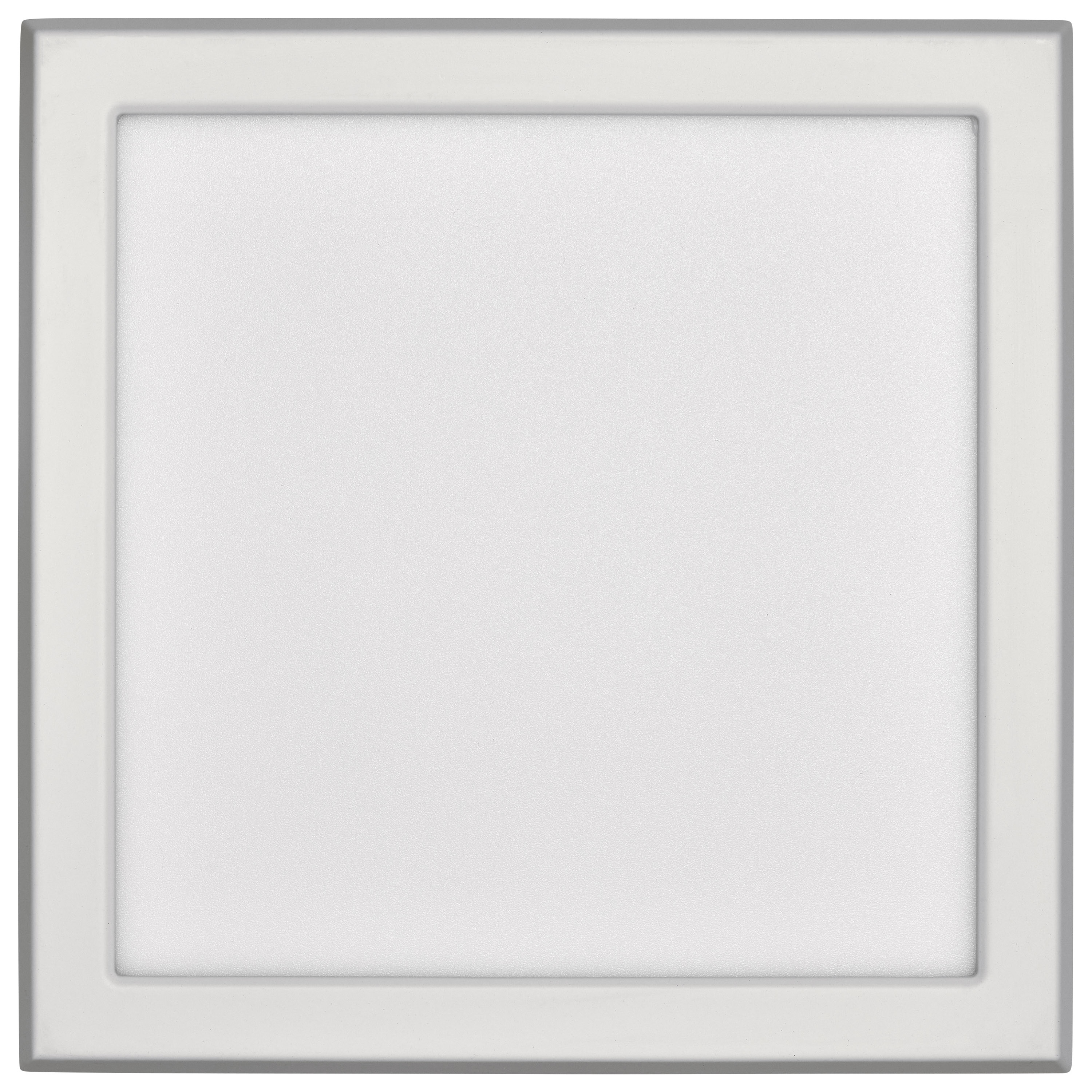

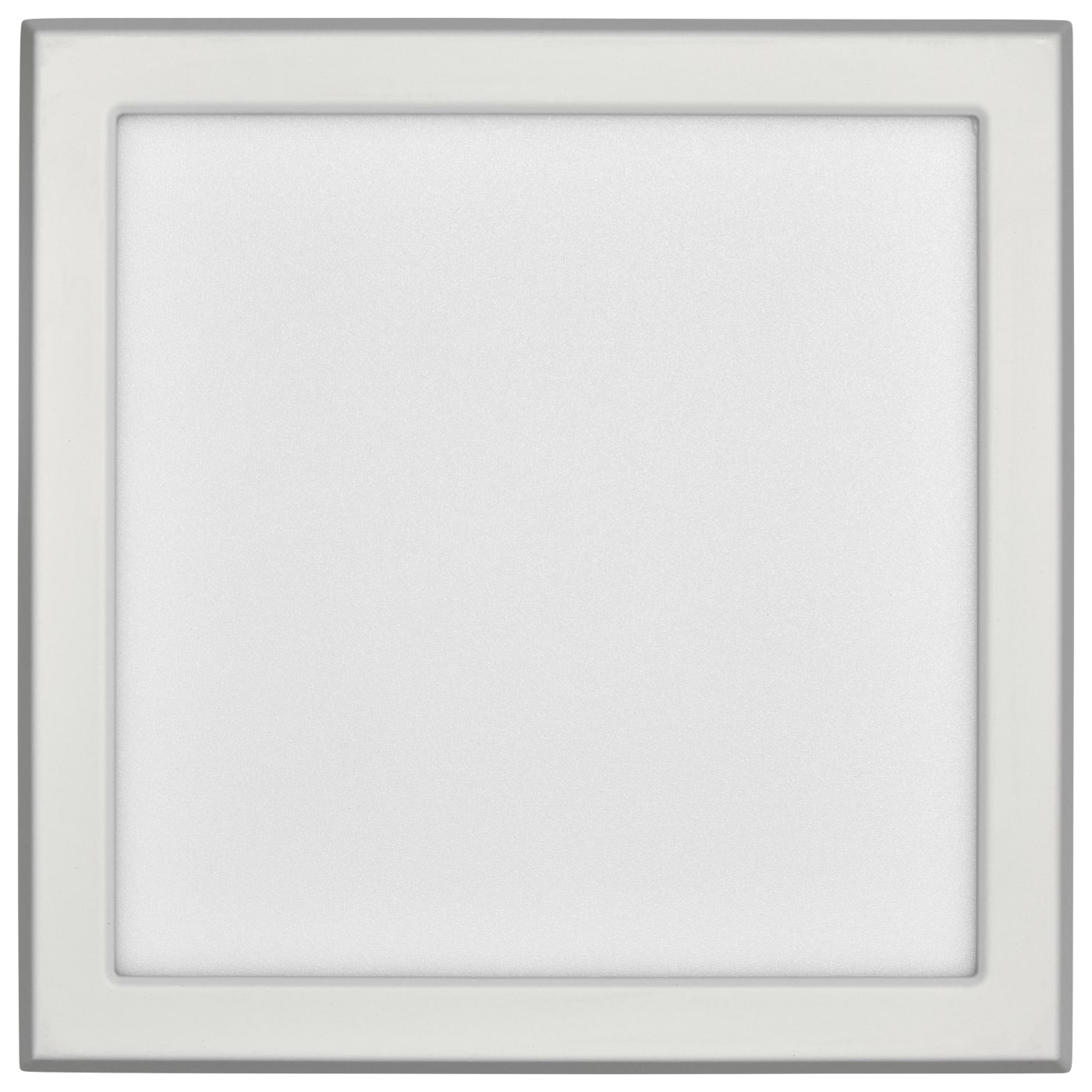

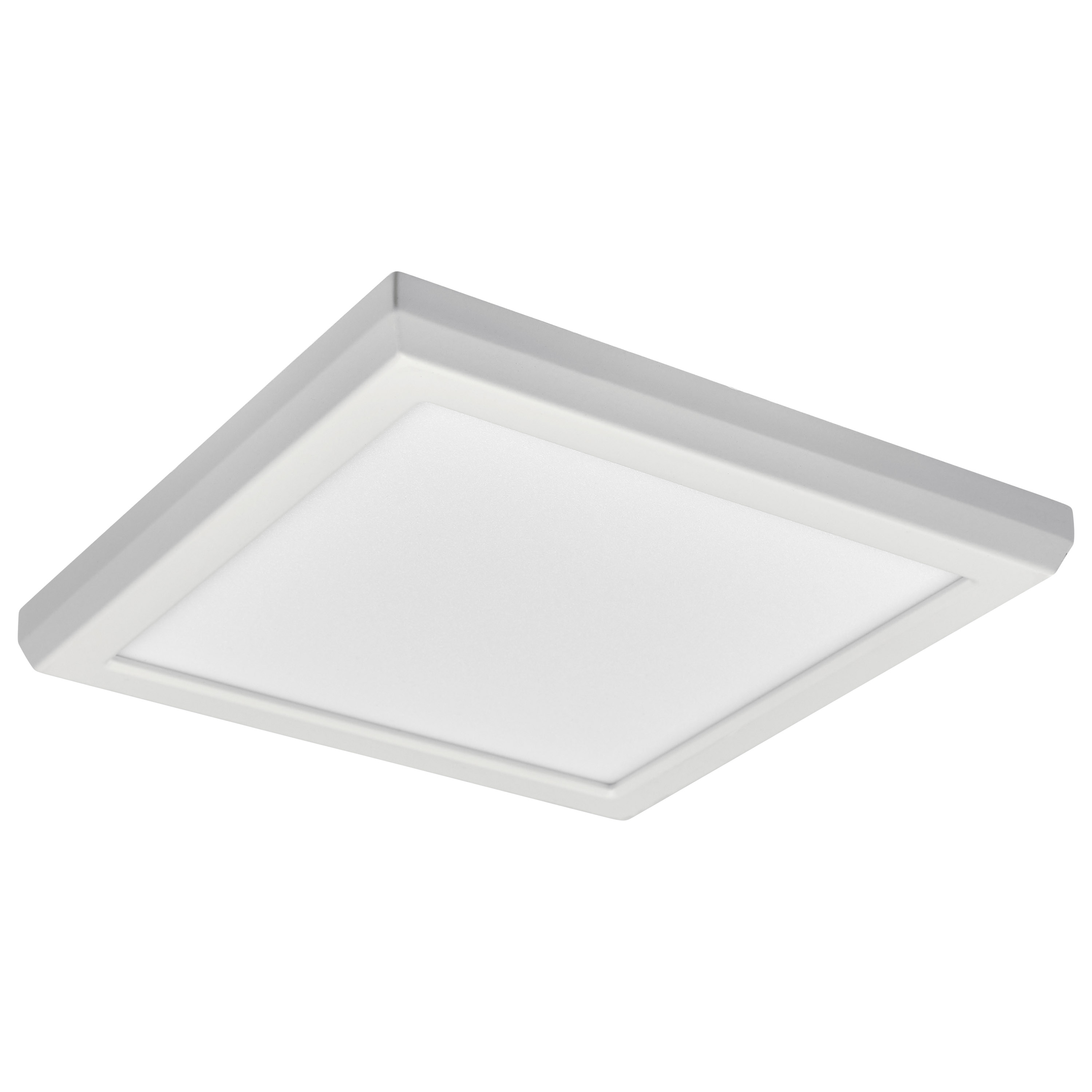

BLINK 11W LED 7" SQ WH 0-10V

Suggested Replacement: 62-1747
  • Blink Pro - 11W
  • 7in
  • LED Fixture
  • 3000K
  • Square Shape
  • White Finish
  • 120/277V
  • 0-10V Dimming
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^3_years^2
volts^120-277v^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1719 Specifications62-1719 Instructions.pdf
Tools
Lighting Layout Analysis For 62-1719
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

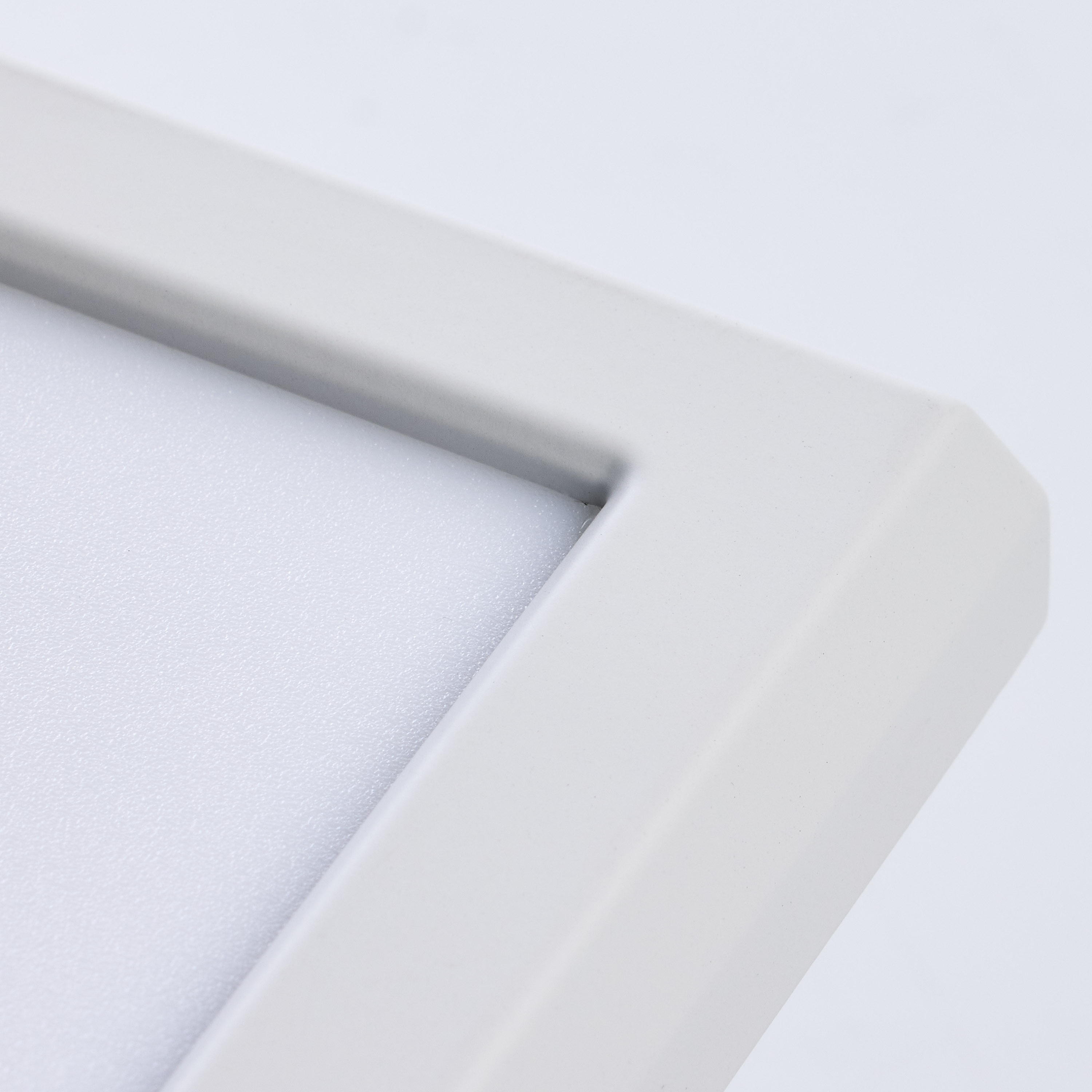

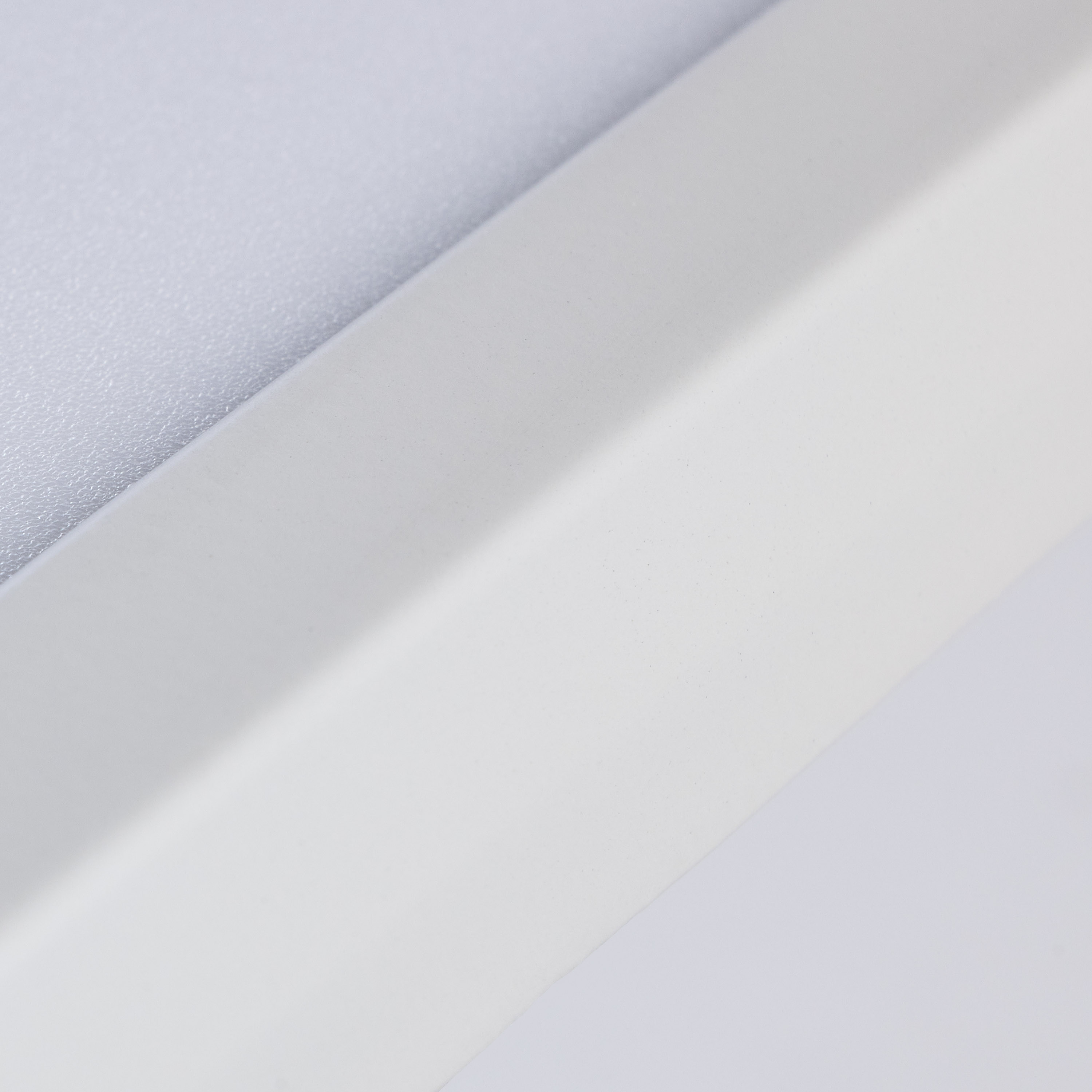

From designer aesthetics to state of the art technology, BLINK's fixtures embody this concept entirely. The sleek, low-profile style features die-cast construction, and BLINK Pro 62-1719 is the ideal fixture for installations where space is at a premium. The BLINK Pro series is perfect for corridors, closets, kitchens, bathrooms, bedrooms, even use outdoors as they are wet location certified for applications with a closed ceiling. All products feature a robust driver for enhanced surge protection, flicker free operation, smooth dimming and providing years of trouble-free operation.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialDie-cast Aluminum
Fixture TypeFlush Mount

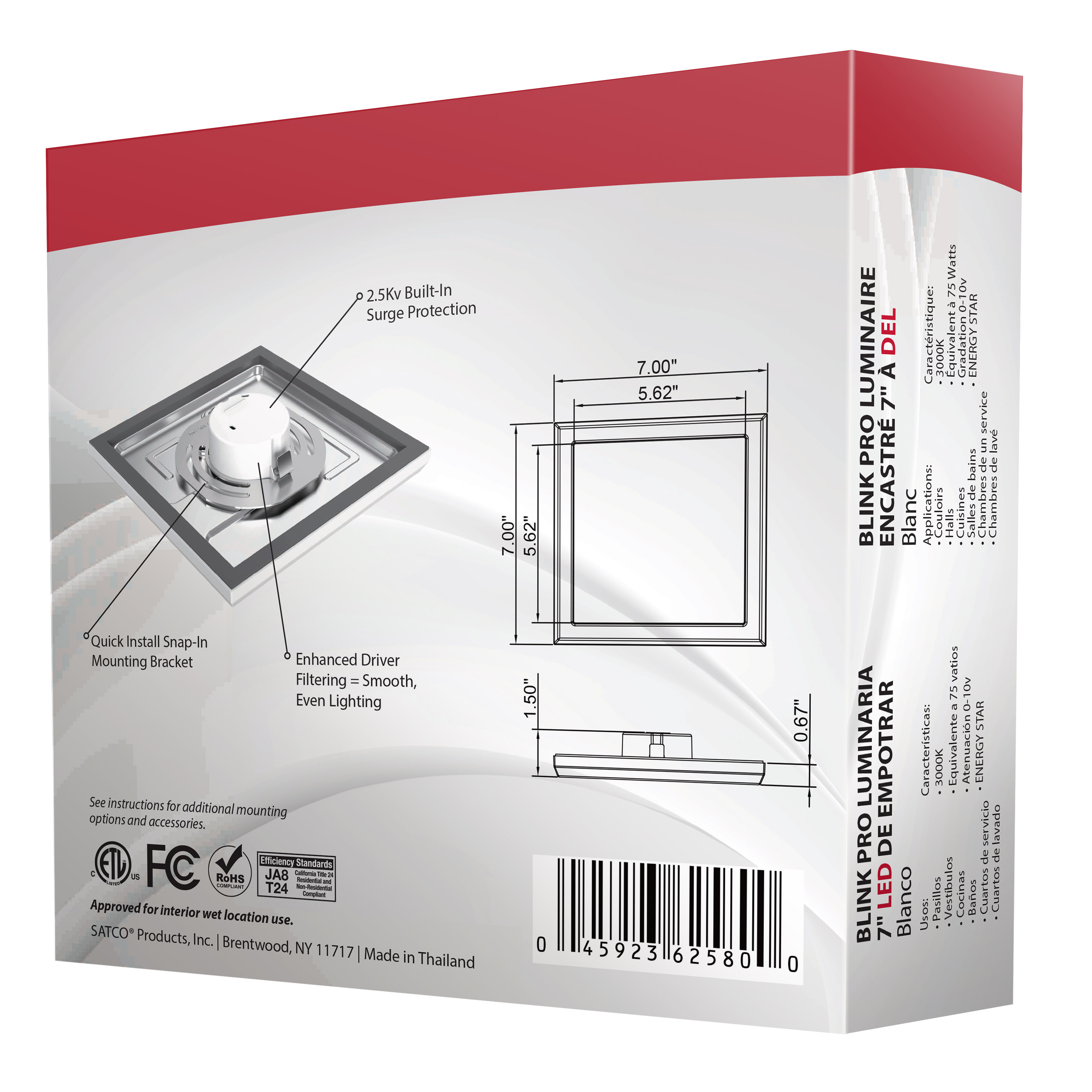

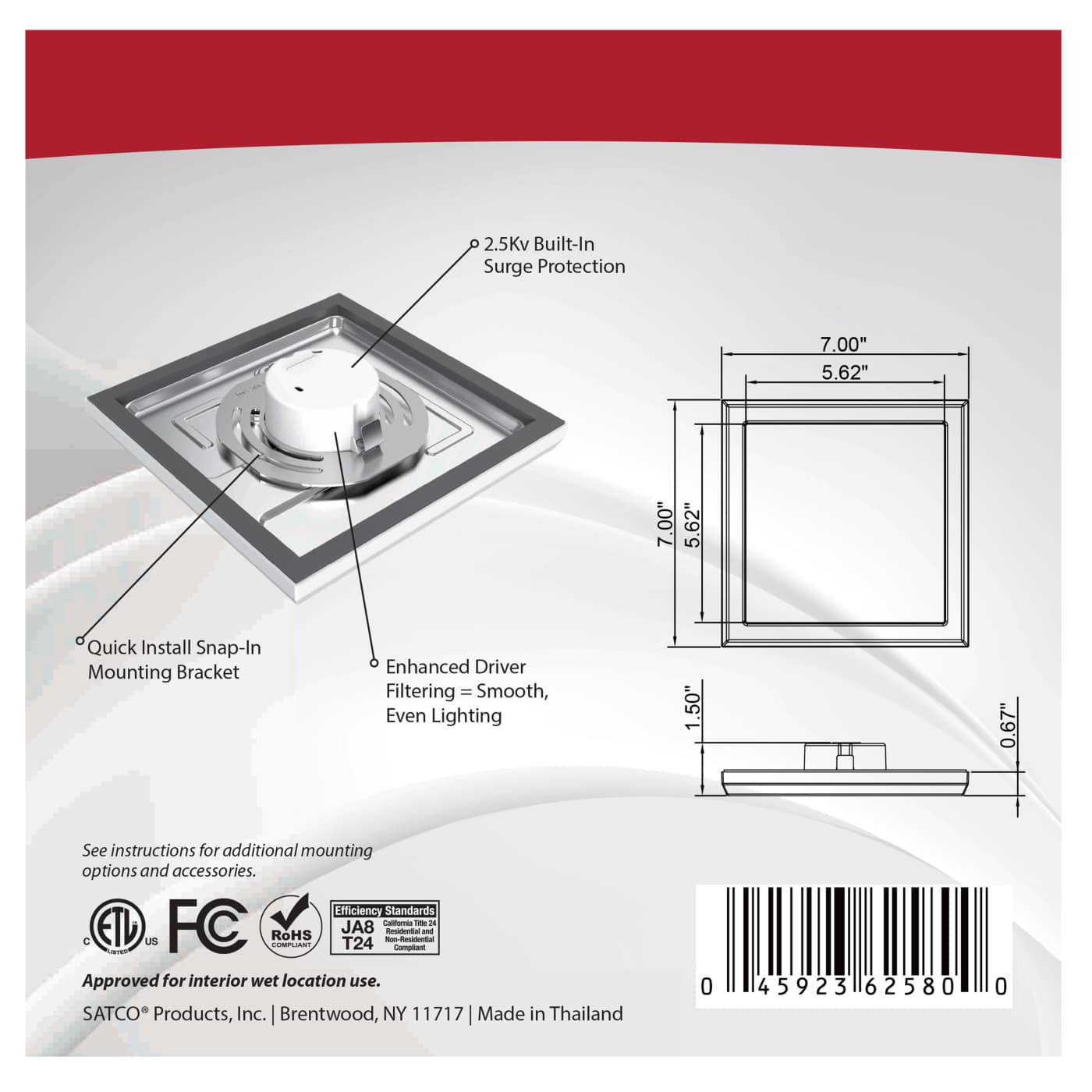

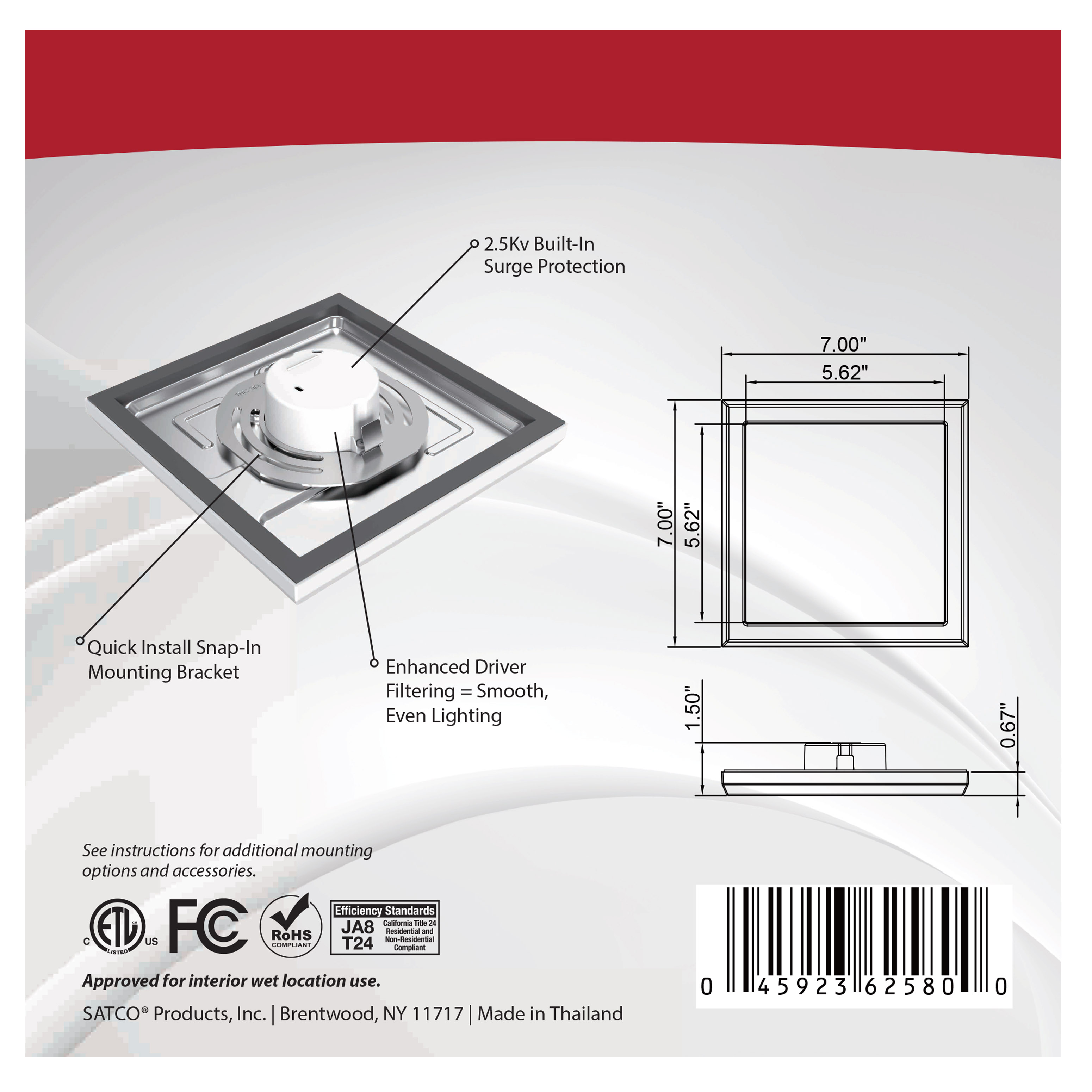

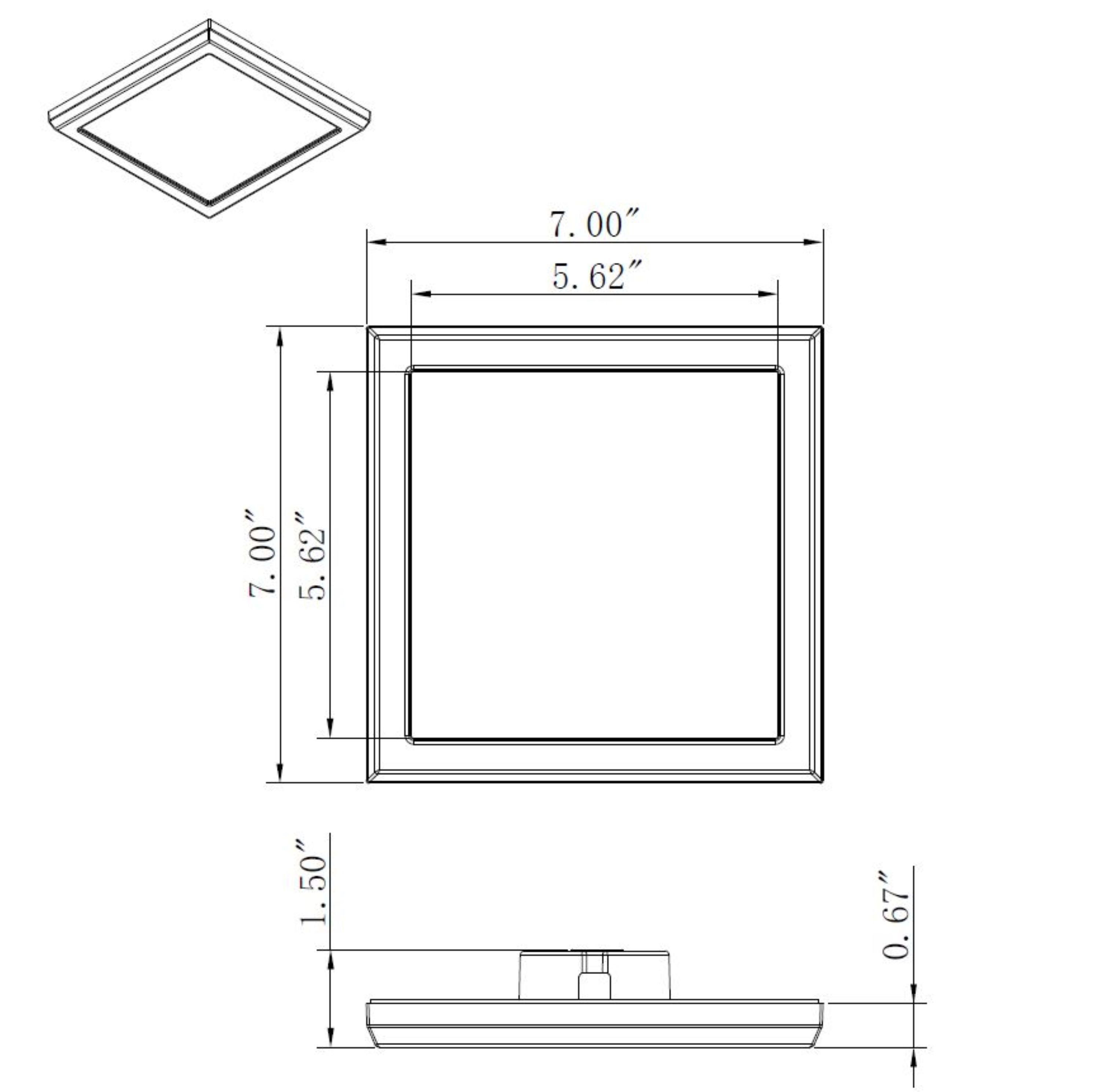

Product NotesOverall height of fixture and driver: 1.50"
StatusTransitioning
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<20%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoUGR - 26.13; SDCM - 464; Hi pot - DC-1550V; Edge-lit - Yes; at 277 Volts THD <30%
Amps0.092/0.040A
Has CameraNo
IOT EnabledNo
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)100
Color TempSoft White
CRI90+
Dimming Type0-10V Dimming
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)
Lumens940L
Volts120V/277V
Watts11W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Mounting ProcedureCeiling
Additional Info
Warranty3-Years

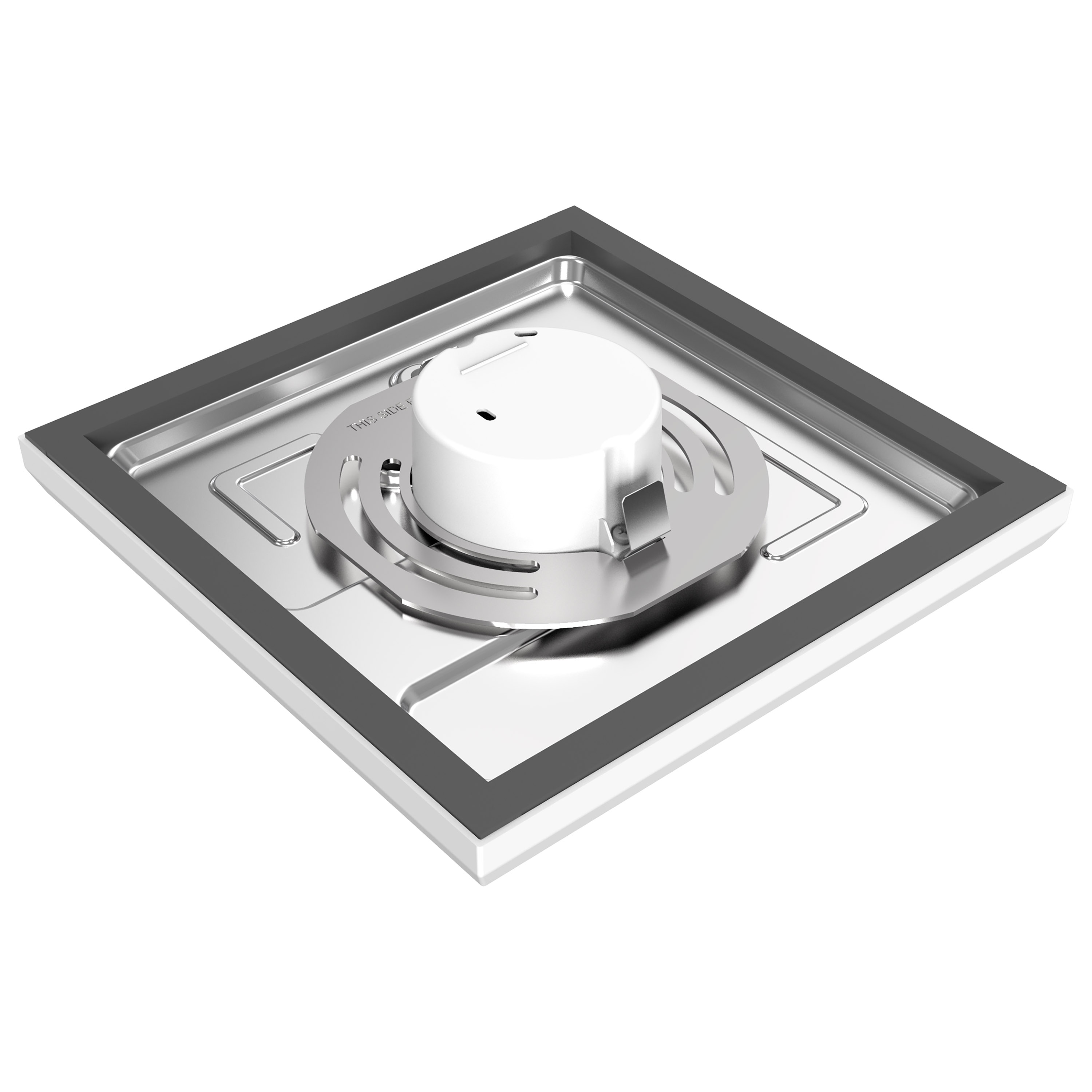

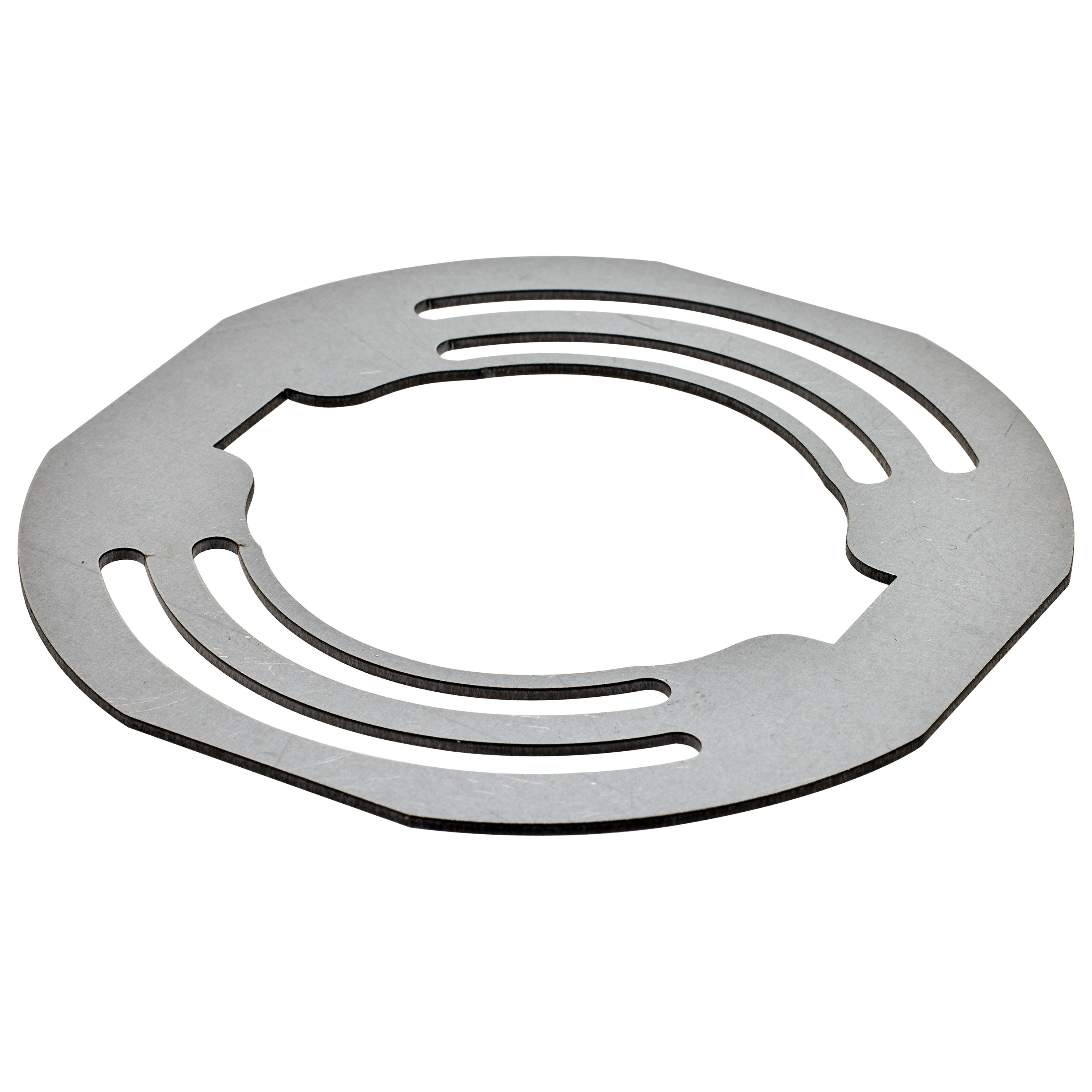

Installation NotesSurface mount; Compatible with 3"&4" J-box and pancake J-box with additional accessory
Documents
Features
Flicker FreeNo
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923625800
Case Cube0.8047
Case Height7.87
Case Length14.96
Case Quantity12
Case UPC10045923625807
Case Weight11.93
Case Width11.81
EA Cube0.0543
EA Height7.2
EA Length7.2
EA Quantity1
EA Weight1.18
EA Width1.81
Pack TypeBox
Web Height0.67
Web Length7.0
Web Width7.0
