| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | California T24 2016 - 2025 JA8 Listed |
| Dimmable Text | 120V only |
| Material | Die-cast Aluminum |
| Fixture Type | Surface Mount |
| Status | Active |
| Style | Contemporary |
| Surge Protection | Built-in surge protection - 2.5KV |
| Total Harmonic Distortion | <20% |
| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | Black |
| Additional Info | UGR - 19.7; Hi pot - DC-1550V; Edge-lit - Yes |
| Amps | 0.200/0.087A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Frost |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Power Factor | 0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 125W |

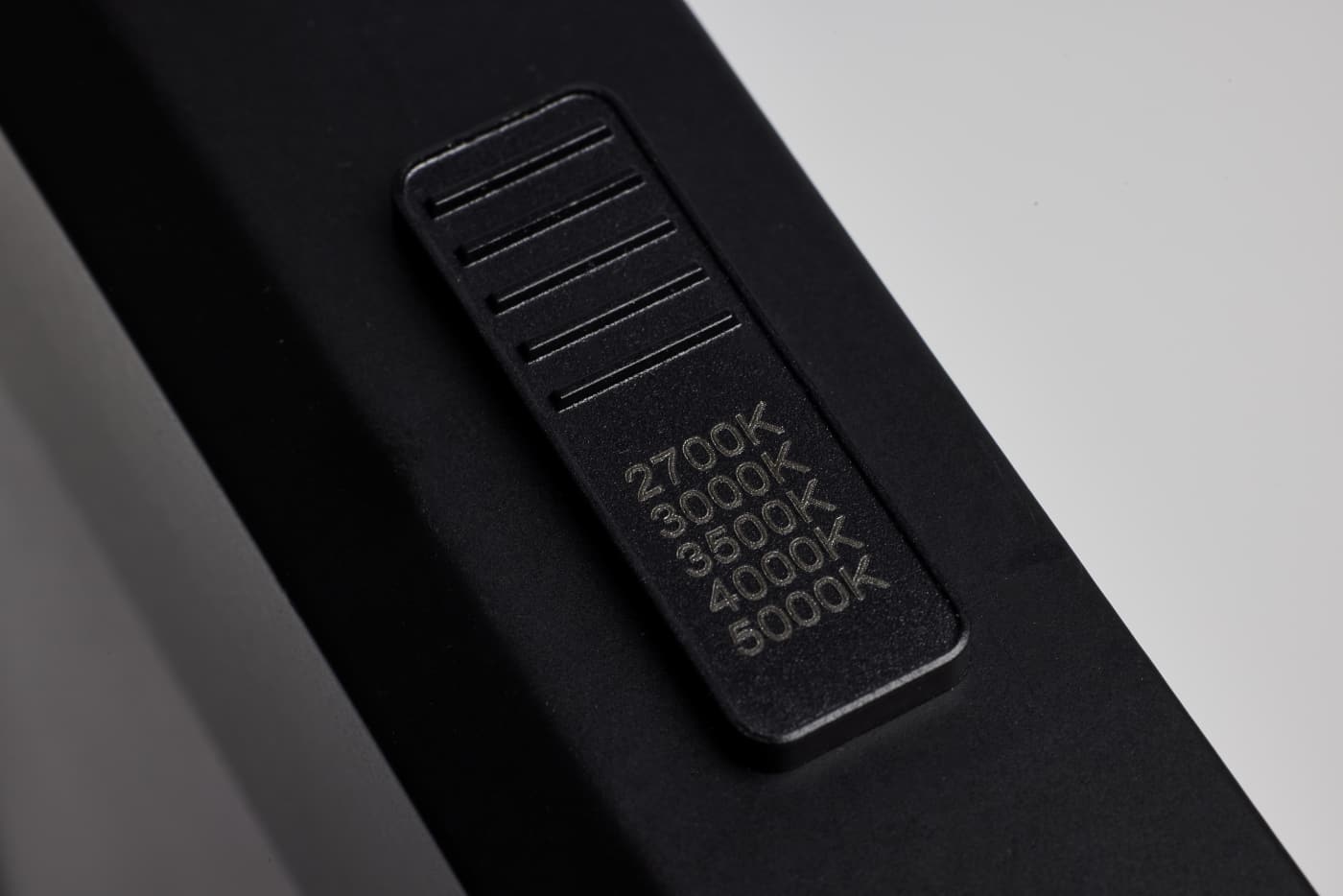

| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 110 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Dimming Type | Forward Phase or Reverse Phase |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Lumens | 1650L-1850L |
| Volts | 120V/277V |
| Watts | 24W |
| Lamp Base | Integrated |
|---|---|
| Finish | BLACK |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Rectangle |
| Warranty | 5-Years |
|---|---|

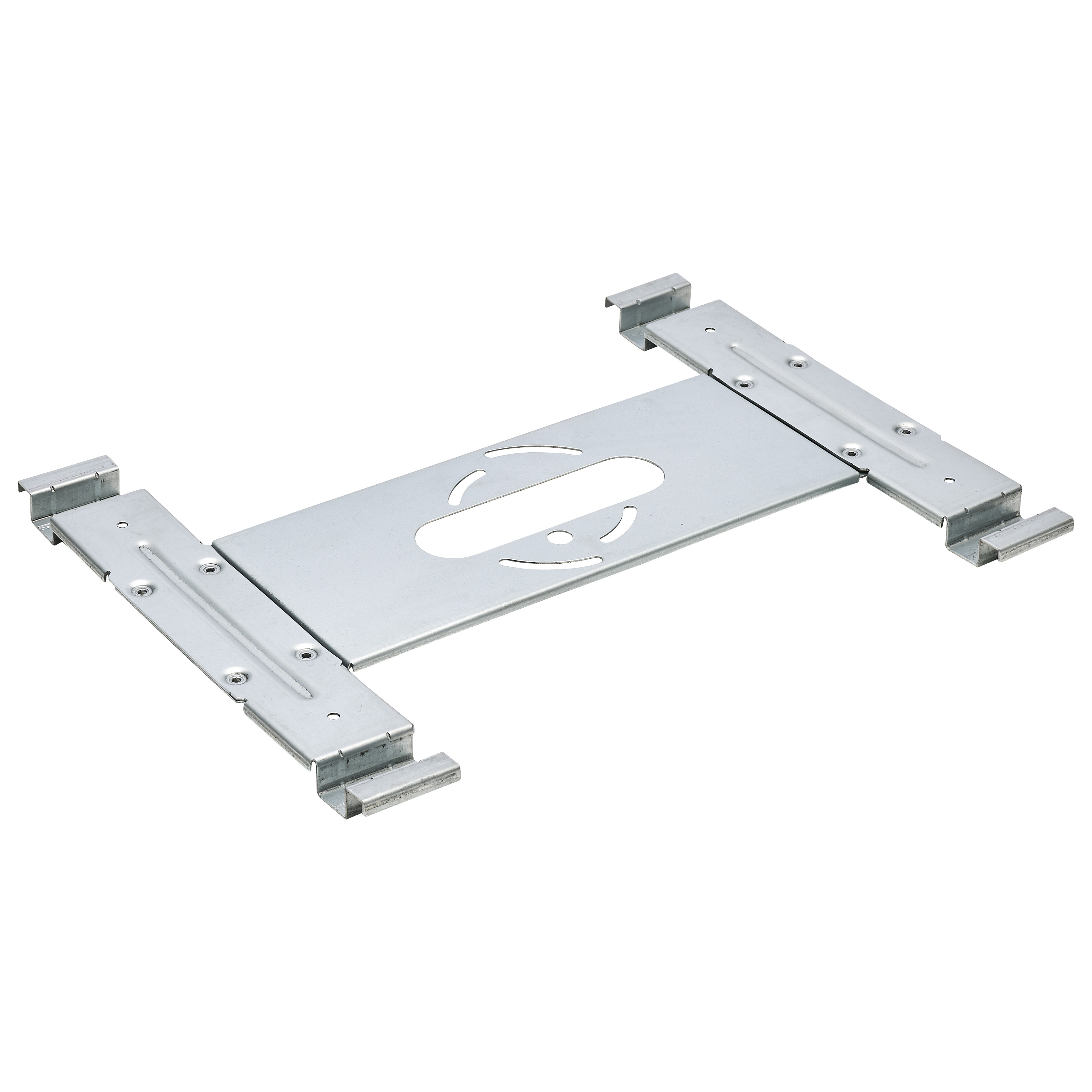

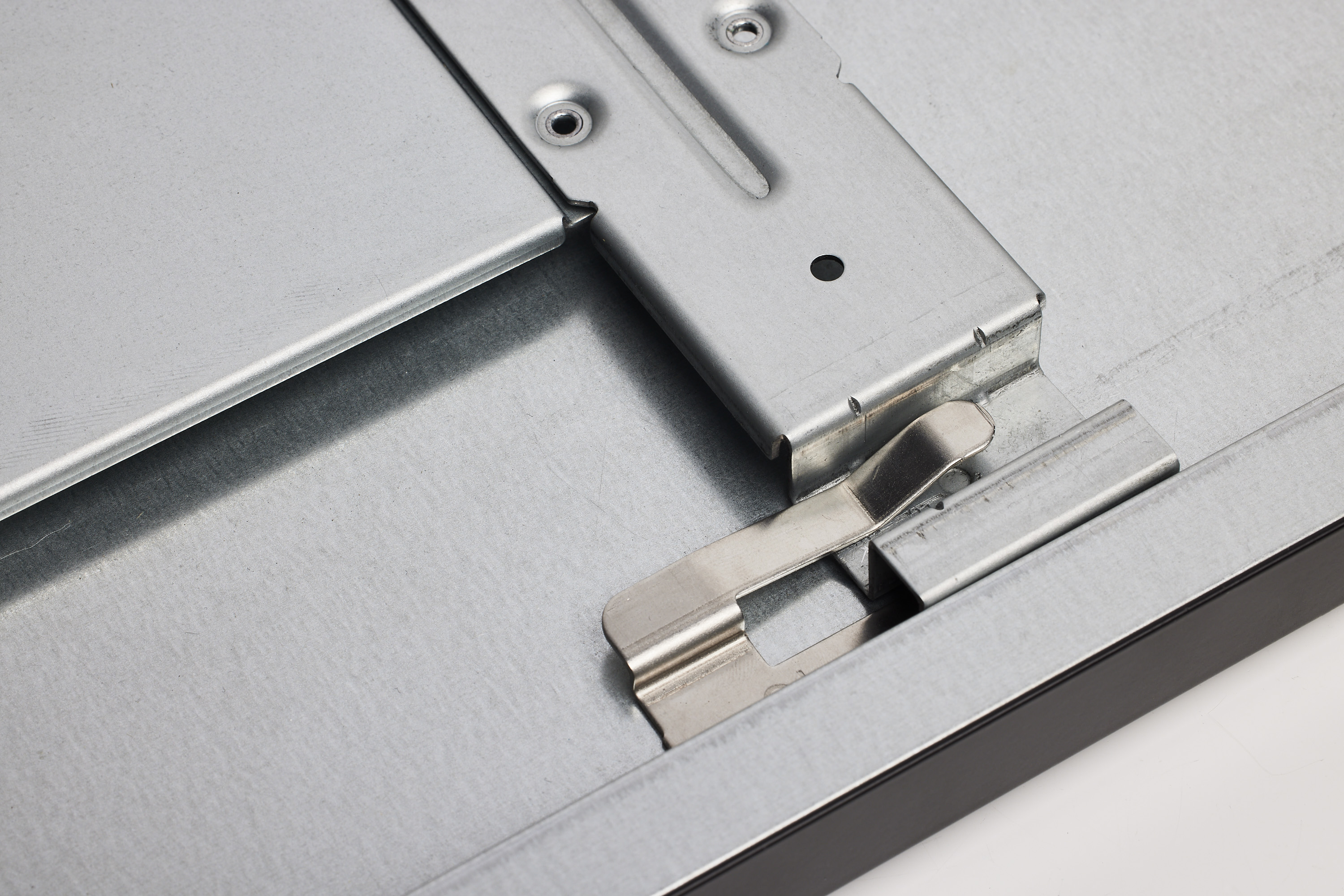

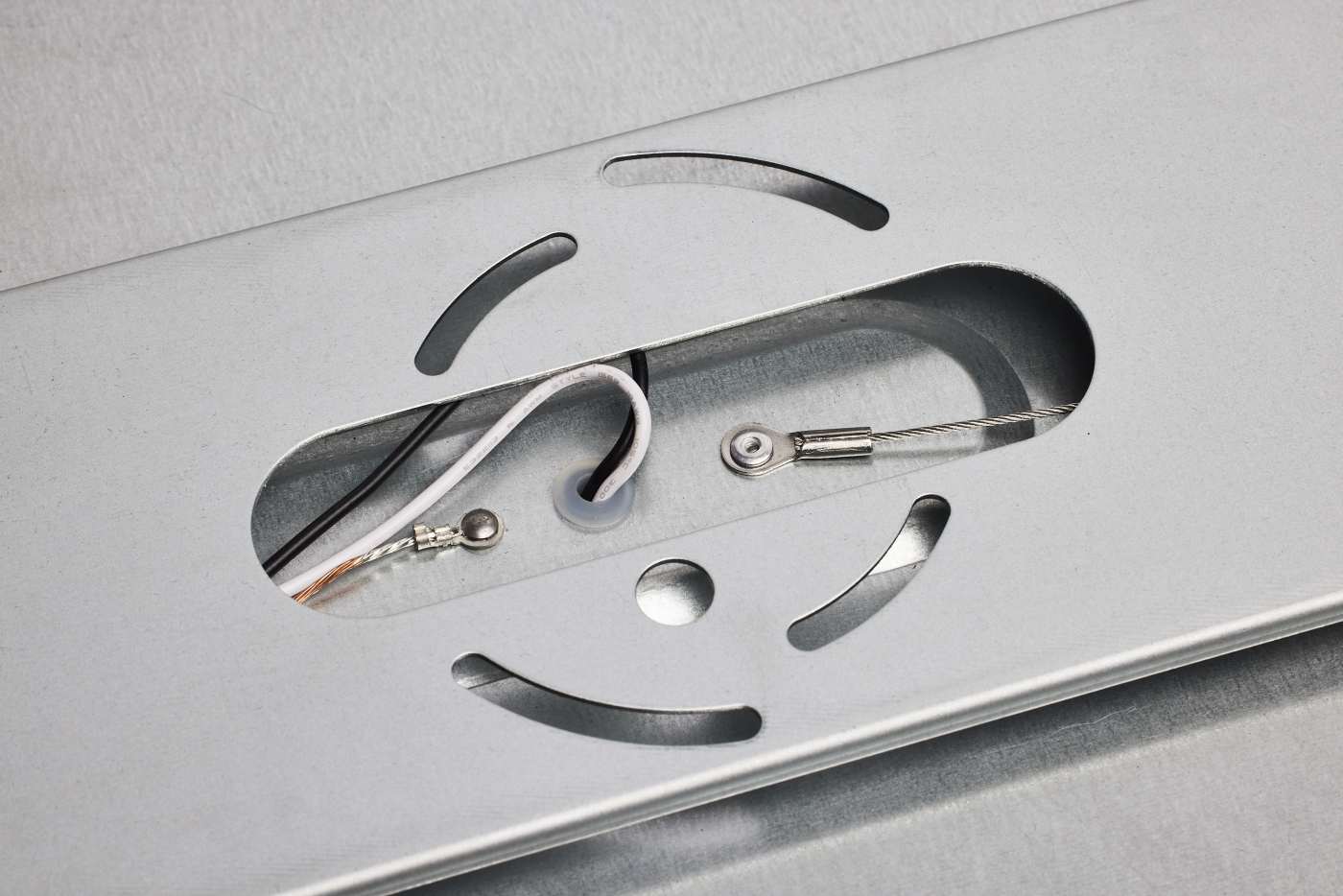

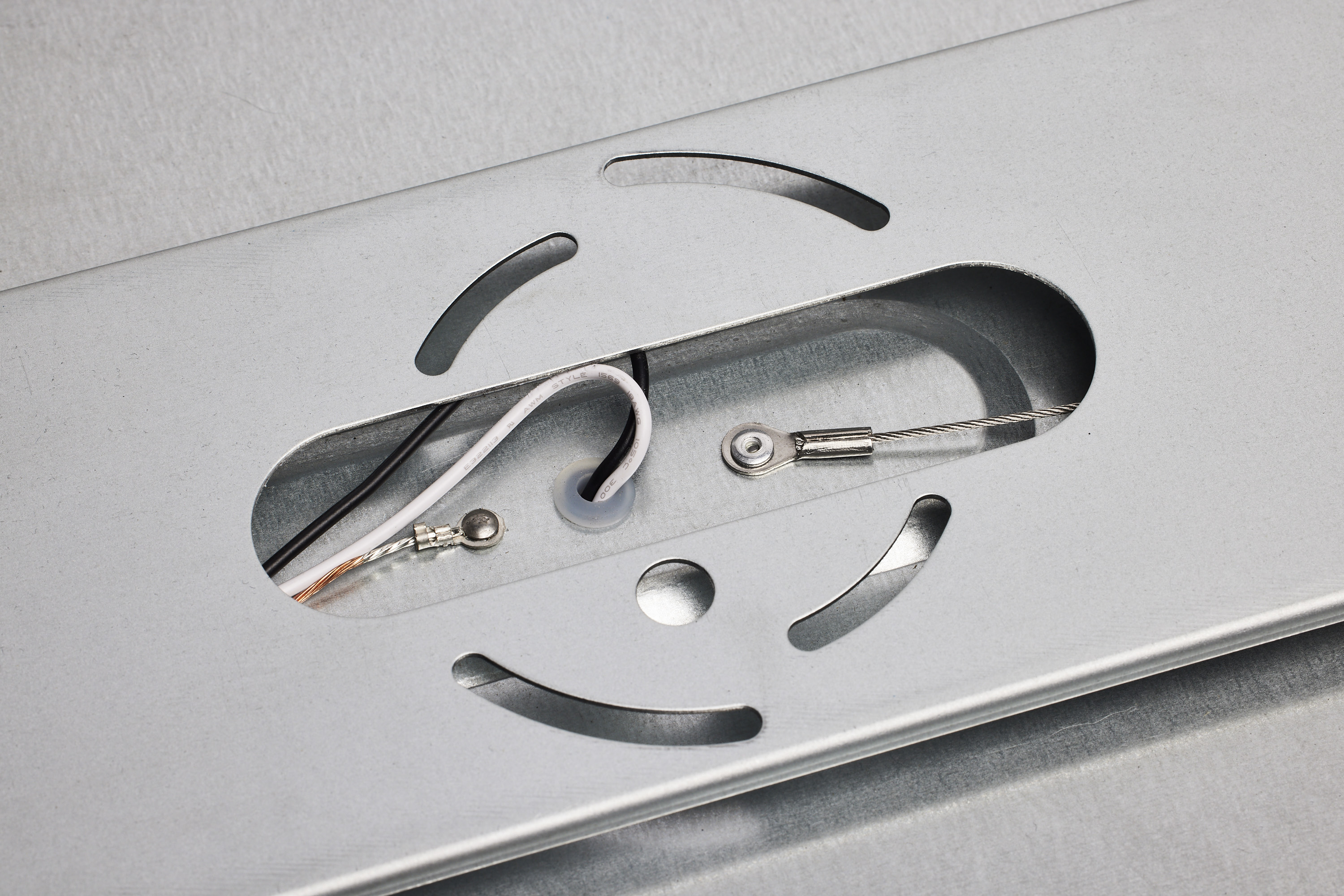

| Installation Notes | Compatible with 3" & 4" J-box and pancake J-box |
| Flicker Free | False |
|---|
| CA Prop 65 | Lead |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| CA Compliance Text | California T24 Listed |
| DLC Approved | False |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | True |
| UPC | 045923613128 |
|---|---|
| Case Cube | 1.53 |
| Case Height | 12.99 |
| Case Length | 24.61 |
| Case Quantity | 6 |
| Case UPC | 10045923613125 |
| Case Weight | 39.09 |
| Case Width | 8.27 |
| EA Cube | 0.2001 |
| EA Height | 12.2 |
| EA Length | 24.02 |
| EA Quantity | 1 |
| EA Weight | 6.27 |
| EA Width | 1.18 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Height | 1.06 |
| Web Length | 23.7 |
| Web Width | 11.83 |
