62-1788

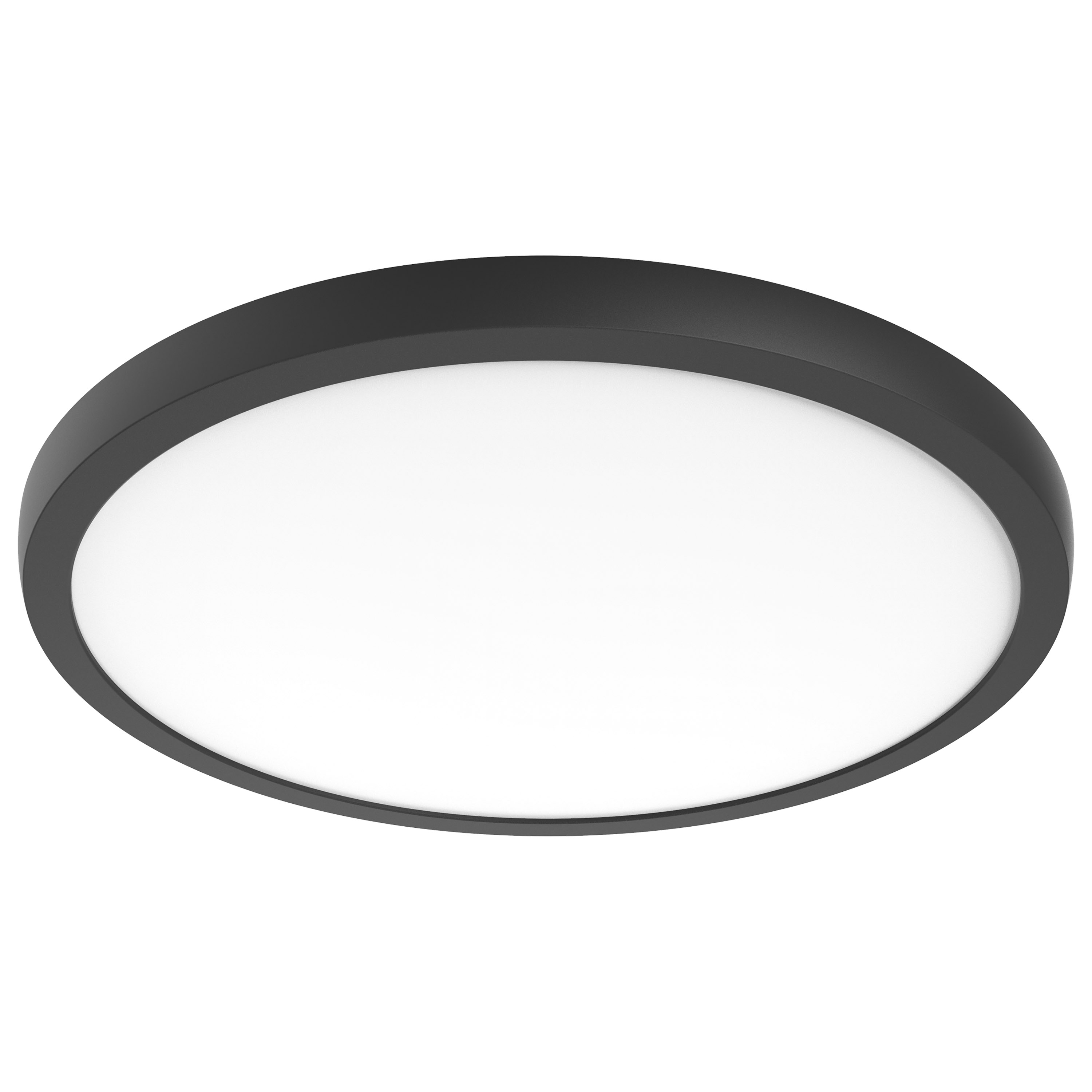

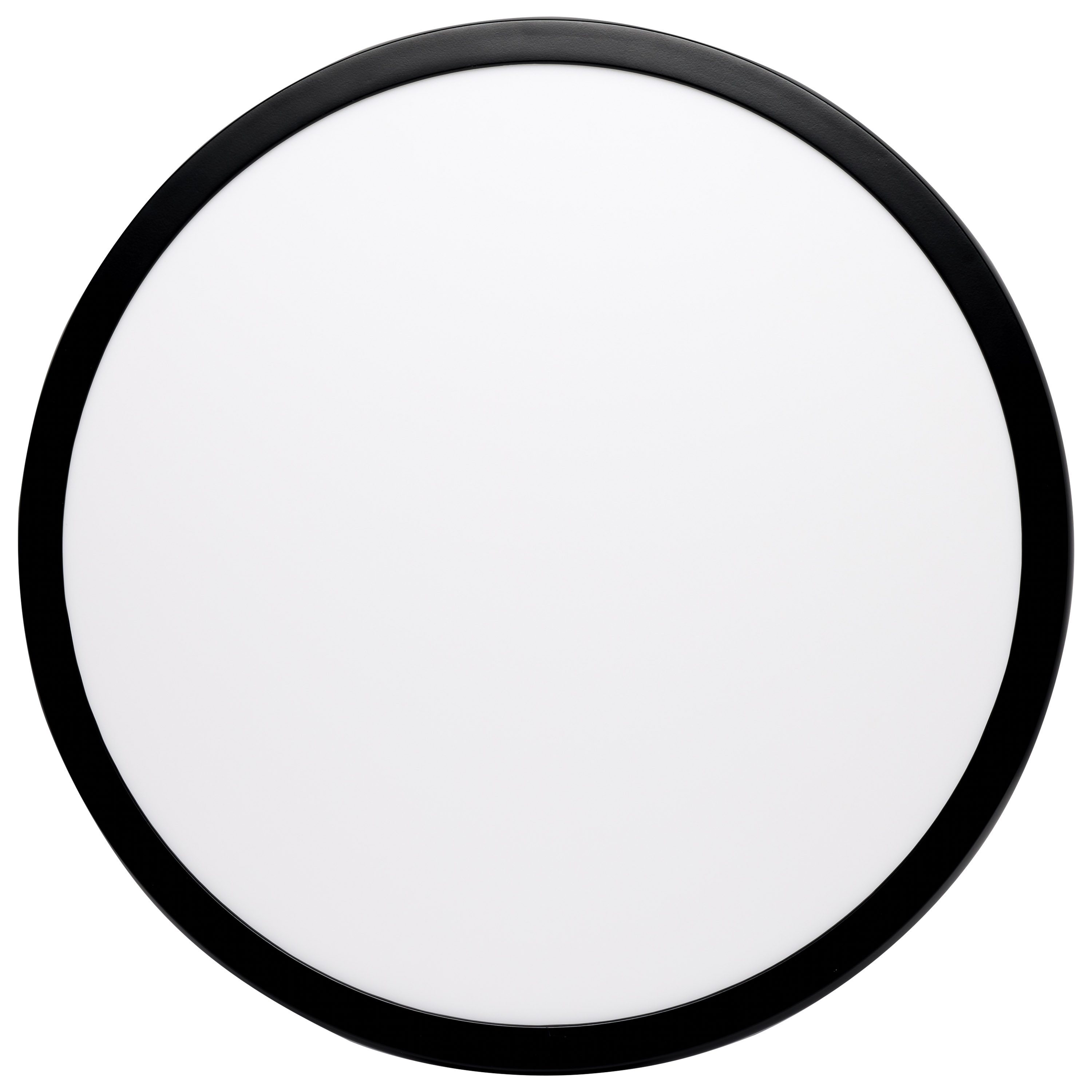

BLINK PRO PLUS 34W 19 ROUND

  • Blink Pro Plus
  • 34 Watt
  • 19 in.
  • Surface Mount LED
  • CCT Selectable
  • 90 CRI
  • Black Finish
  • 120/277 Volt
  • Round Shape
location_rating^damp^1
cc_selectable^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1788 Specifications62-1788 Photometrics 2700K.ies62-1788 Photometrics 3000K.ies
Tools
Lighting Layout Analysis For 62-1788
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Blink Pro Plus; 34 Watt; 19 in.; Surface Mount LED; CCT Selectable; 90 CRI; Black Finish; 120/277 Volt; Round Shape
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated

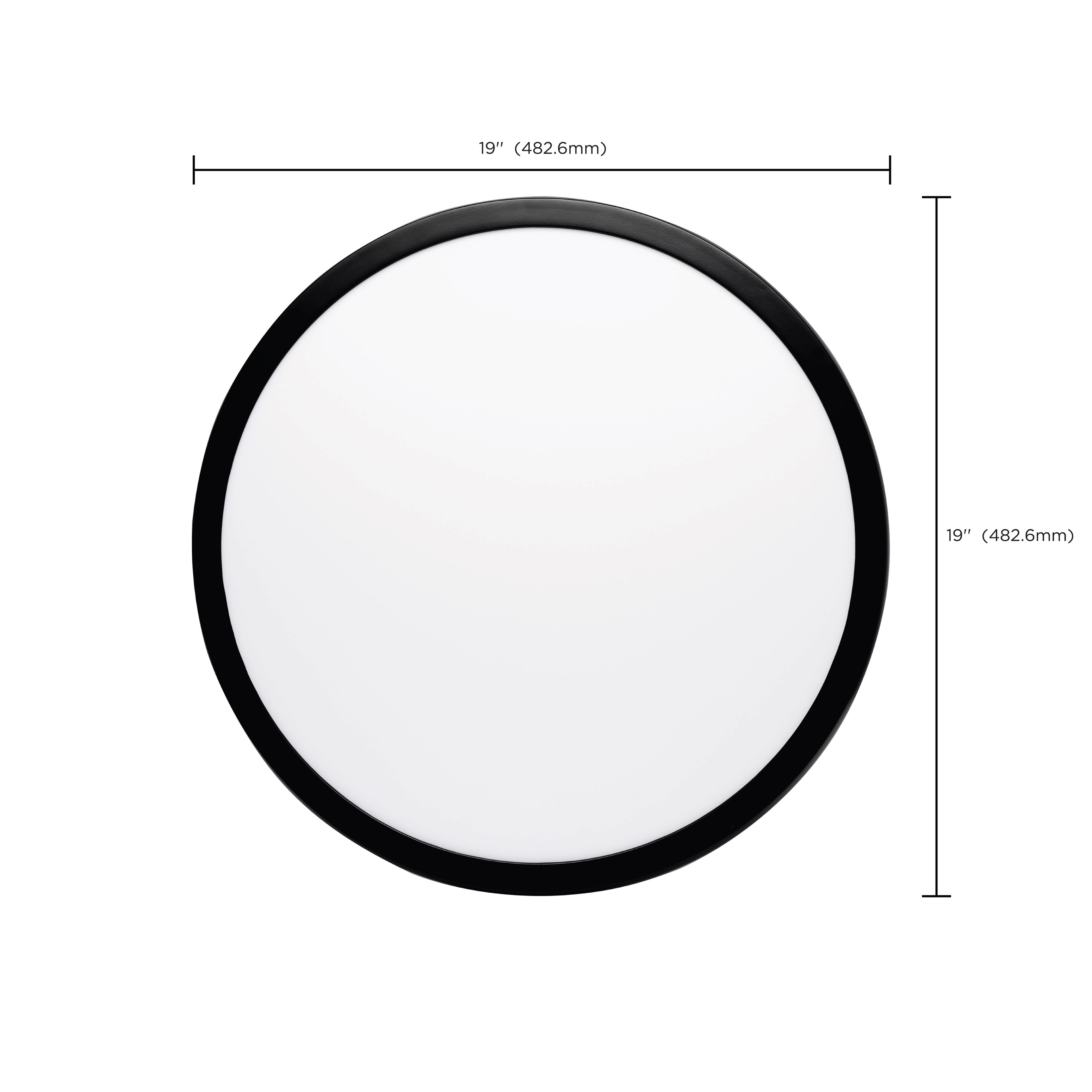

Diameter19.0
Dimmable TextForward Phase or Reverse Phase; 120V only
MaterialDie-cast Aluminum
Fixture TypeSurface Mount
StatusActive
StyleContemporary
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyBlack
Additional InfoUGR - 21.8; Hi pot - DC-1550V; Edge-lit - Yes
Amps0.283/0.123A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent125W
Electrical

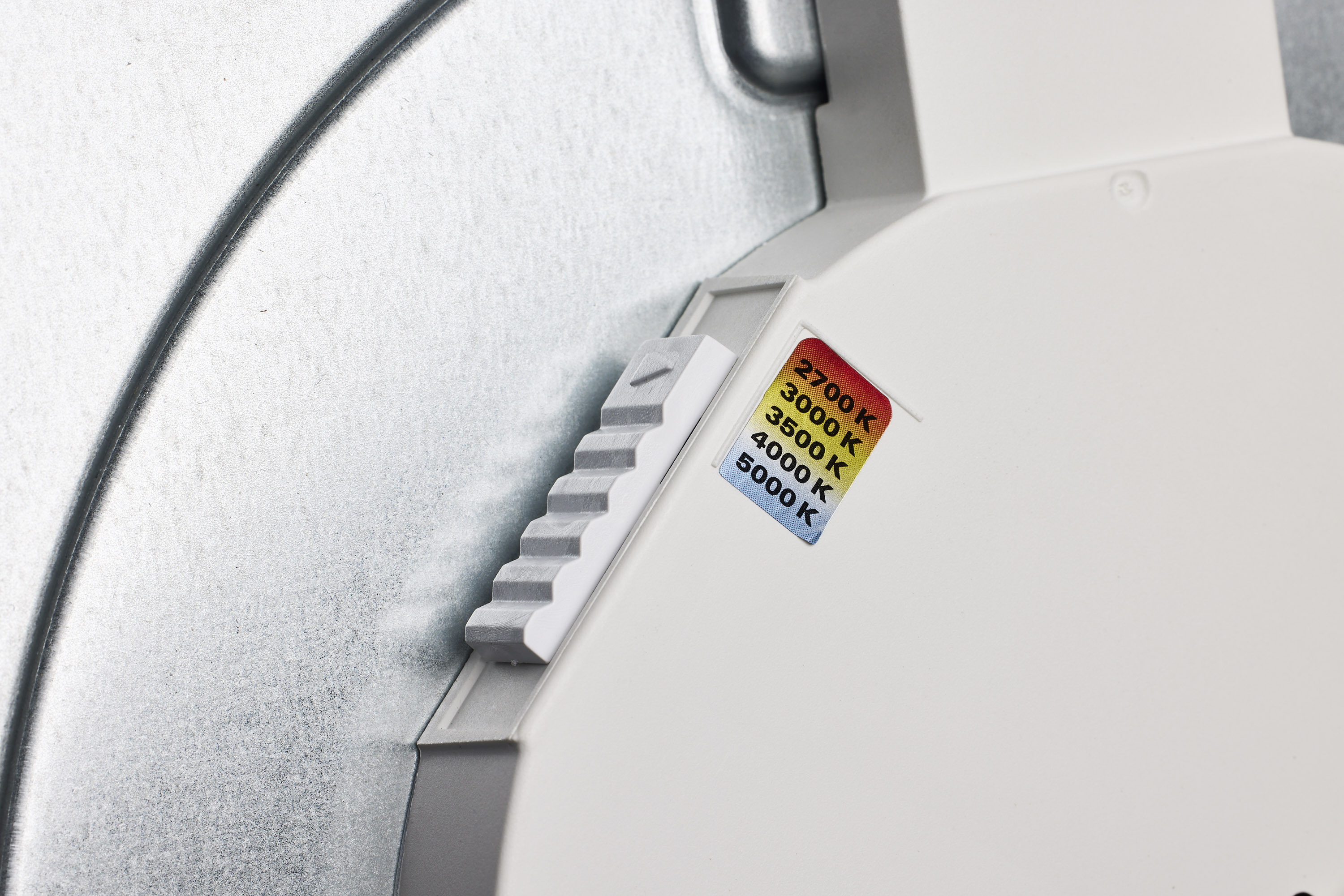

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm White to Natural Light
CRI90+
Dimming TypeForward Phase or Reverse Phase
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens2500L-2640L
Volts120V/277V
Watts34W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years

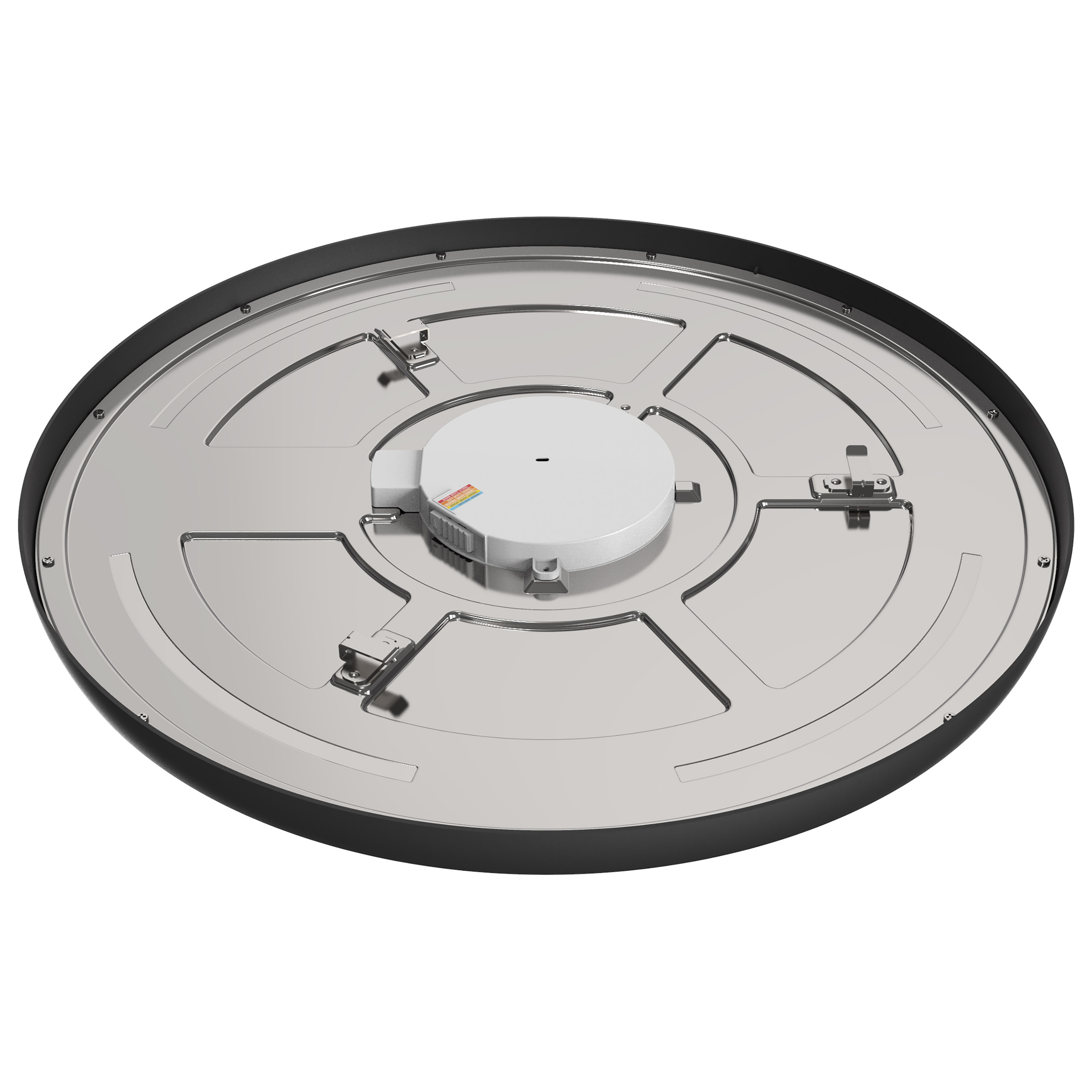

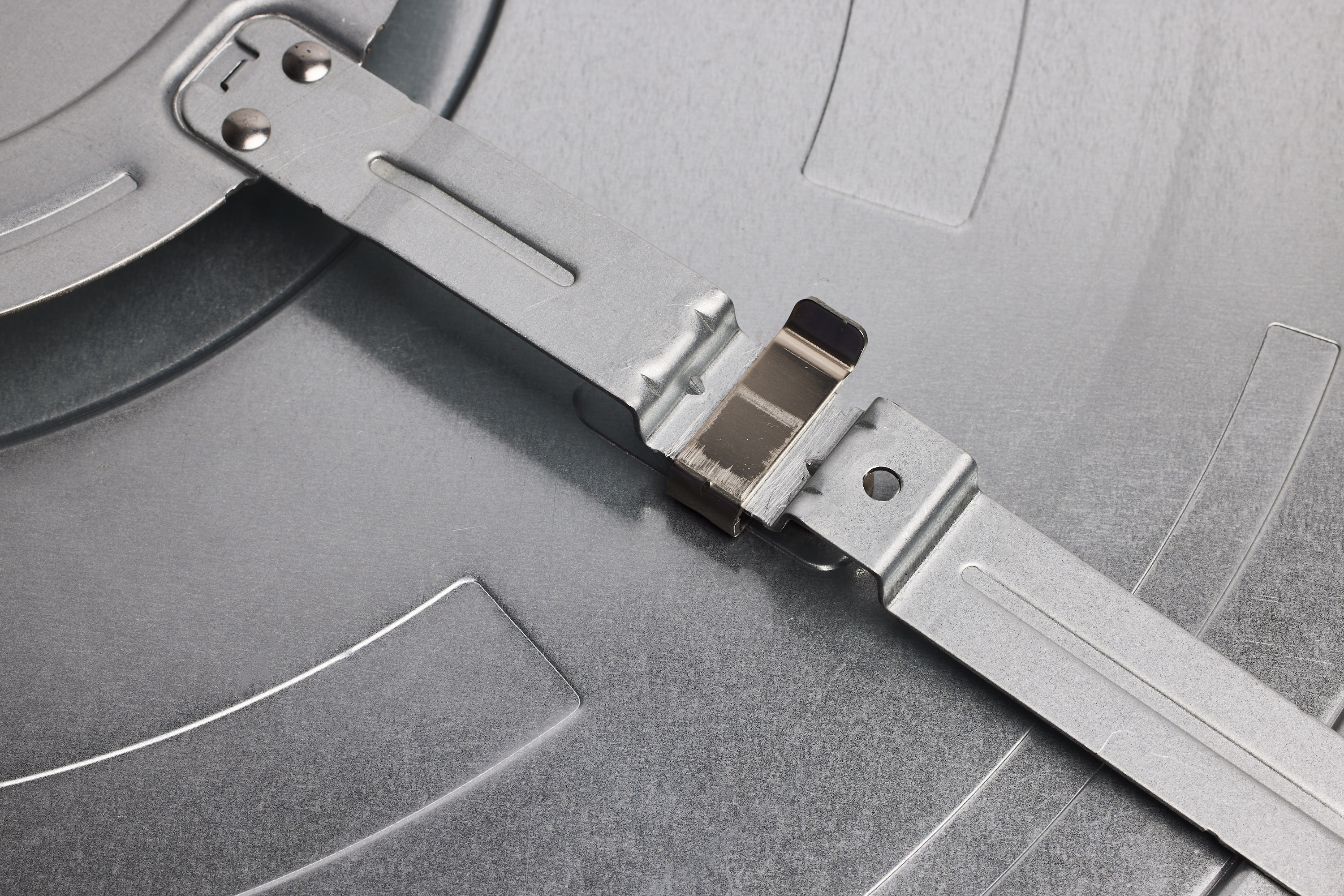

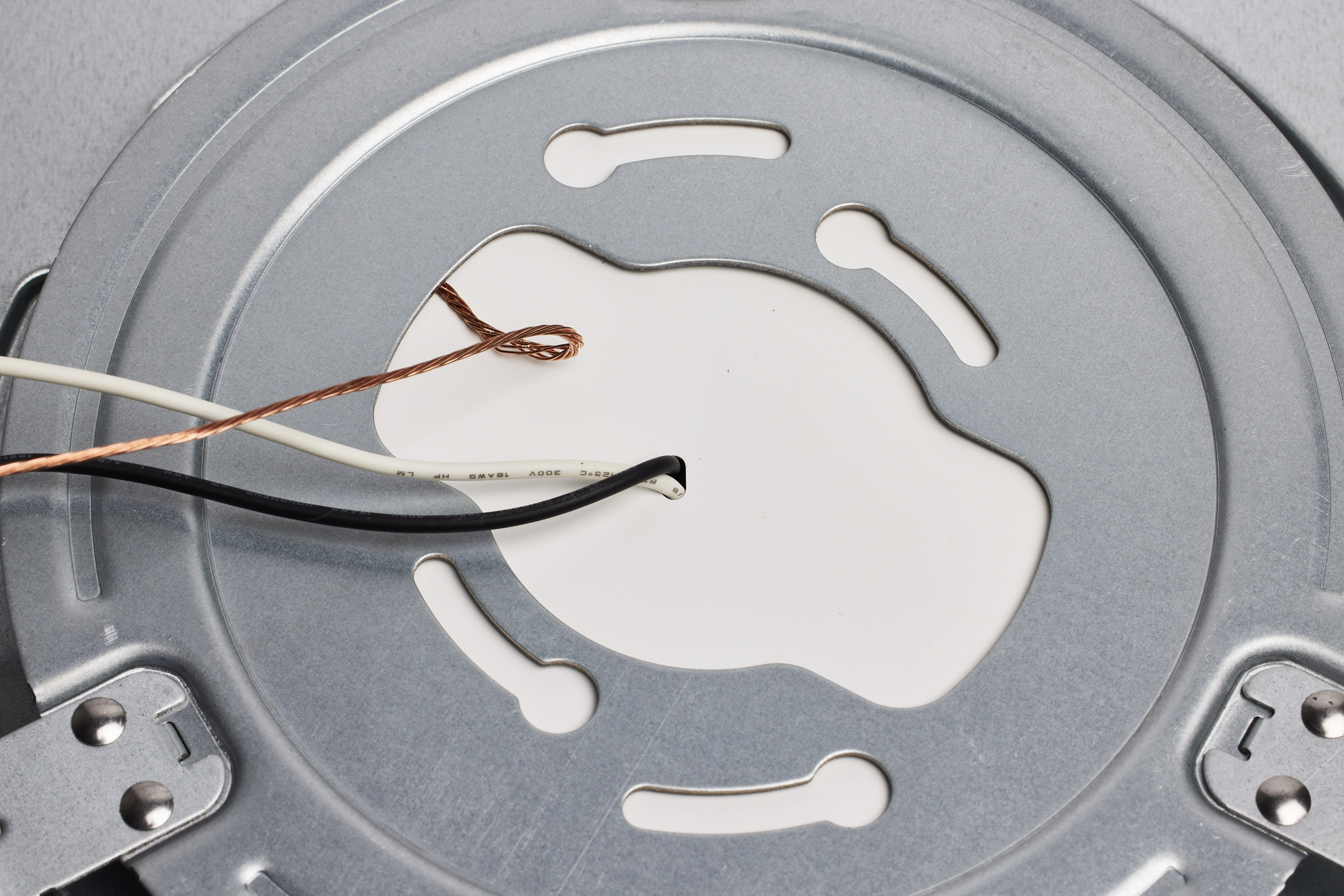

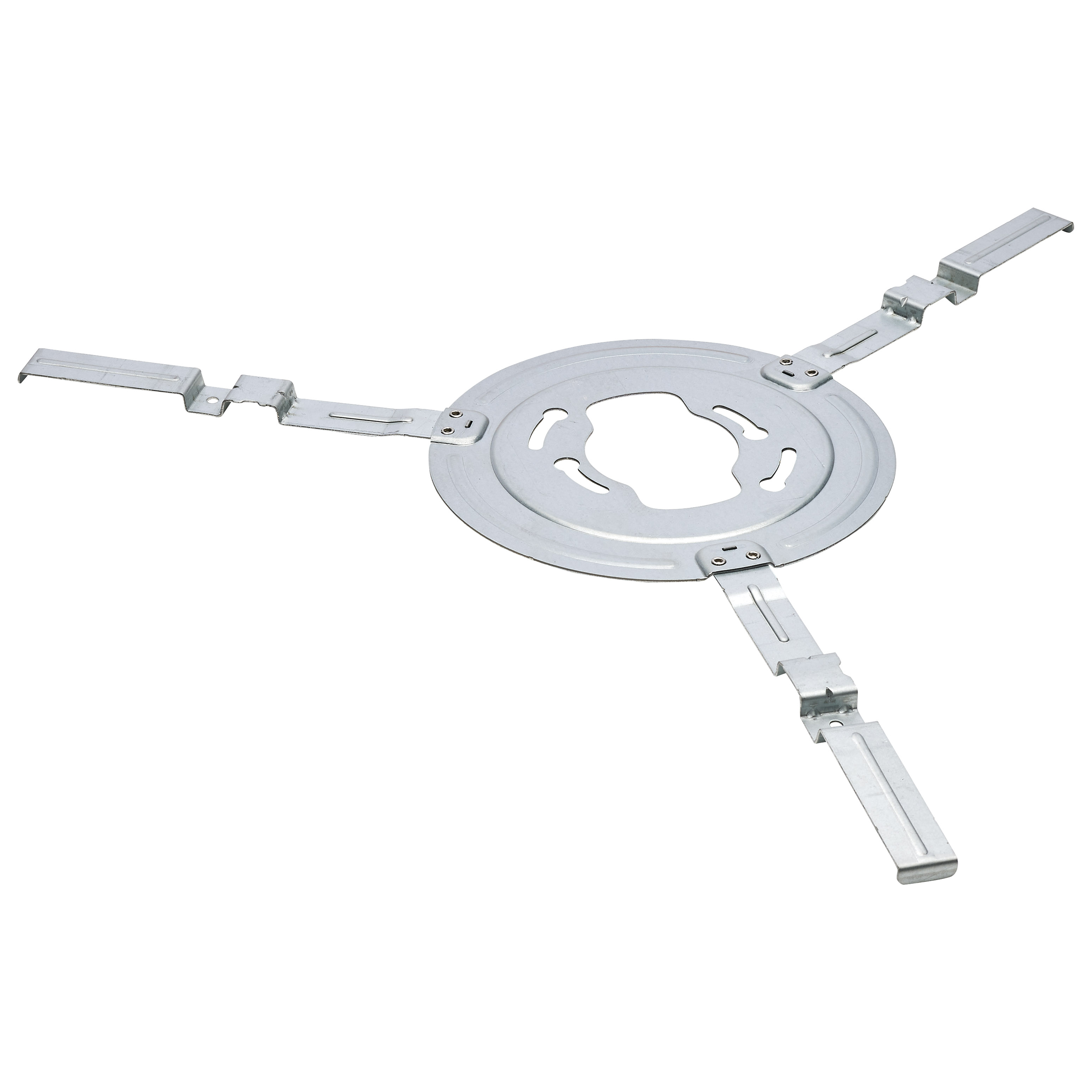

Installation NotesCompatible with 3" & 4" J-box and pancake J-box
Documents
Features
Flicker FreeNo
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantYes
Packaging
UPC045923613173
Case Cube1.9856
Case Height20.87
Case Length19.88
Case Quantity6
Case UPC10045923613170
Case Weight39.37
Case Width8.27
EA Cube0.2541
EA Height19.29
EA Length19.29
EA Quantity1
EA Weight6.27
EA Width1.18
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height1.06
Web Width19.0
