62-1805

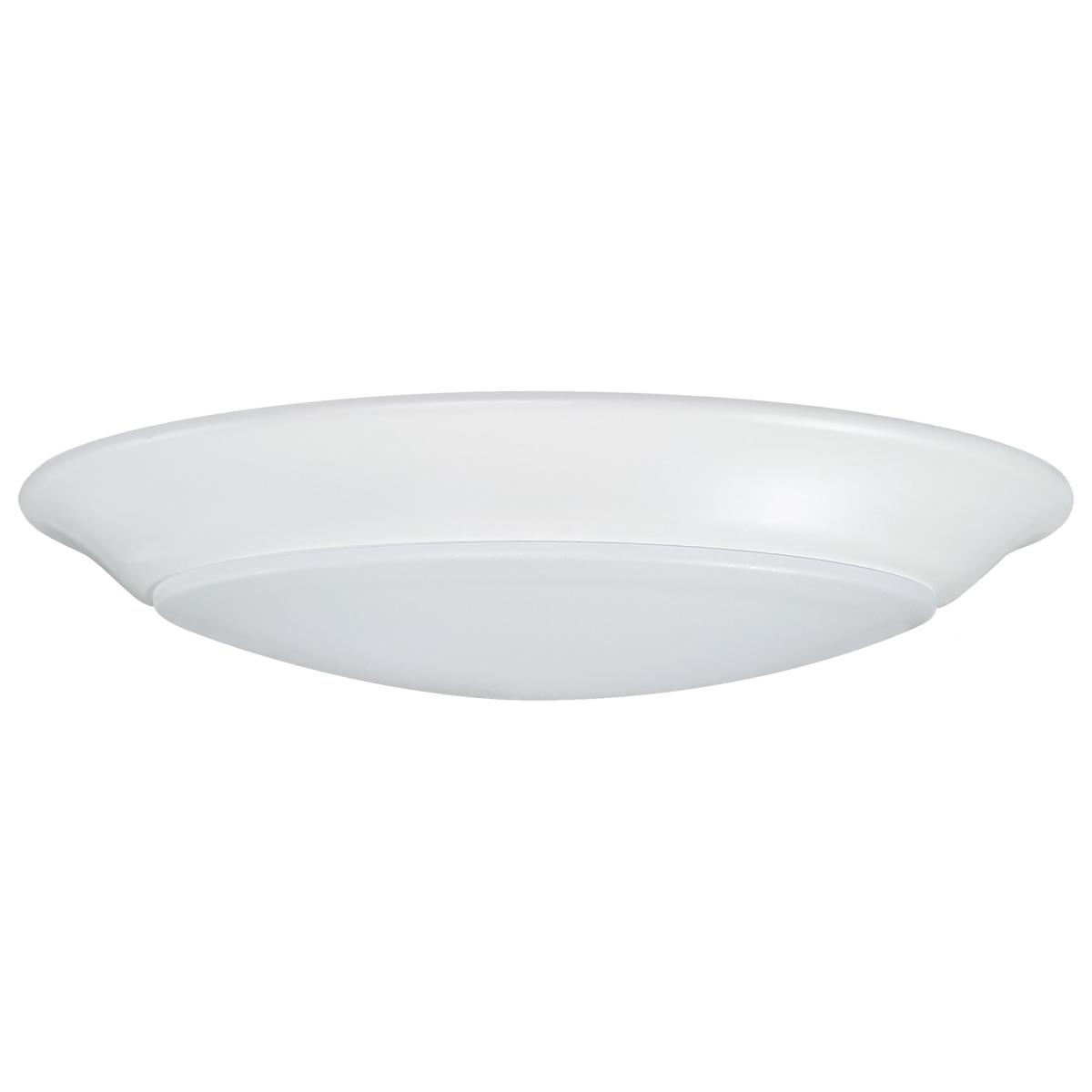

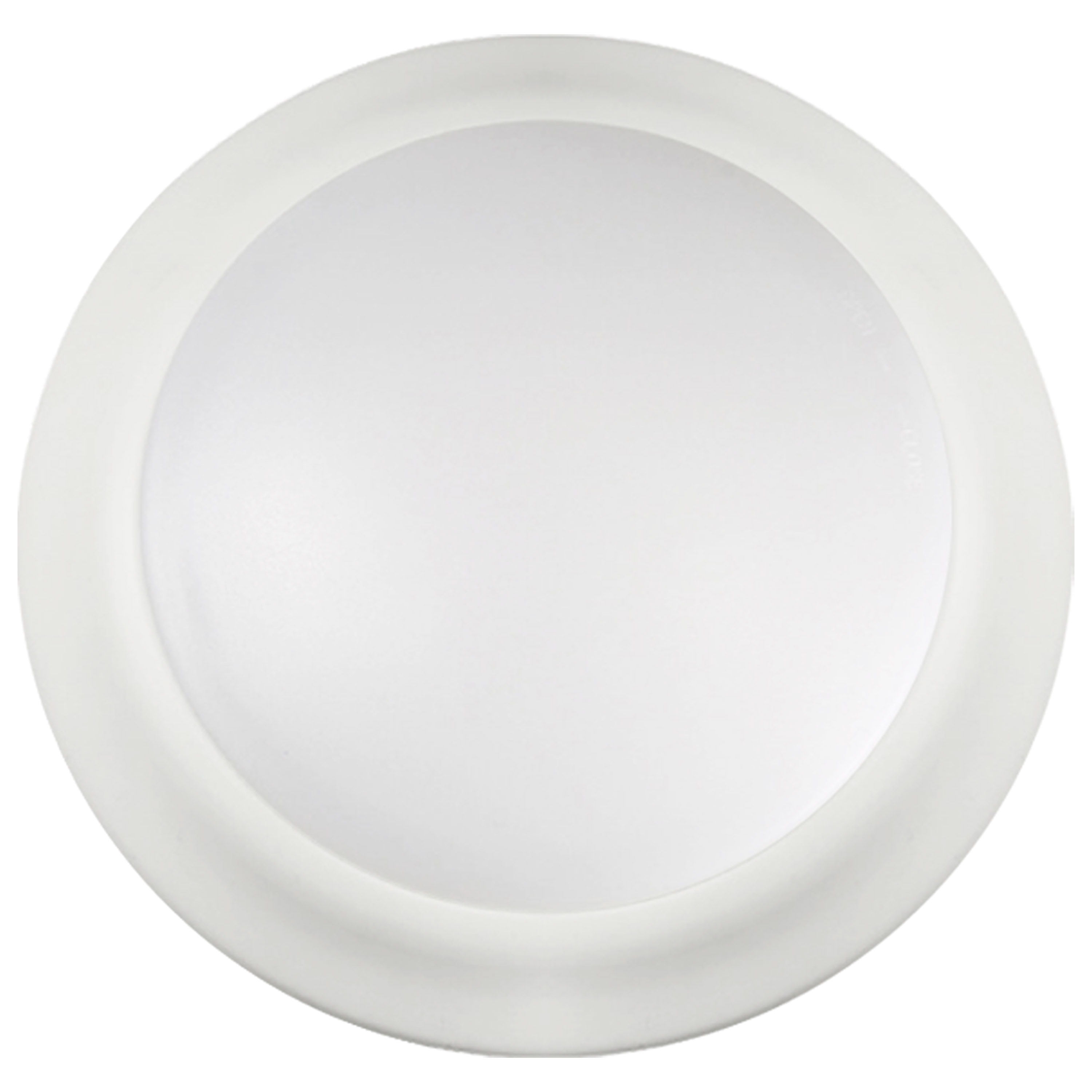

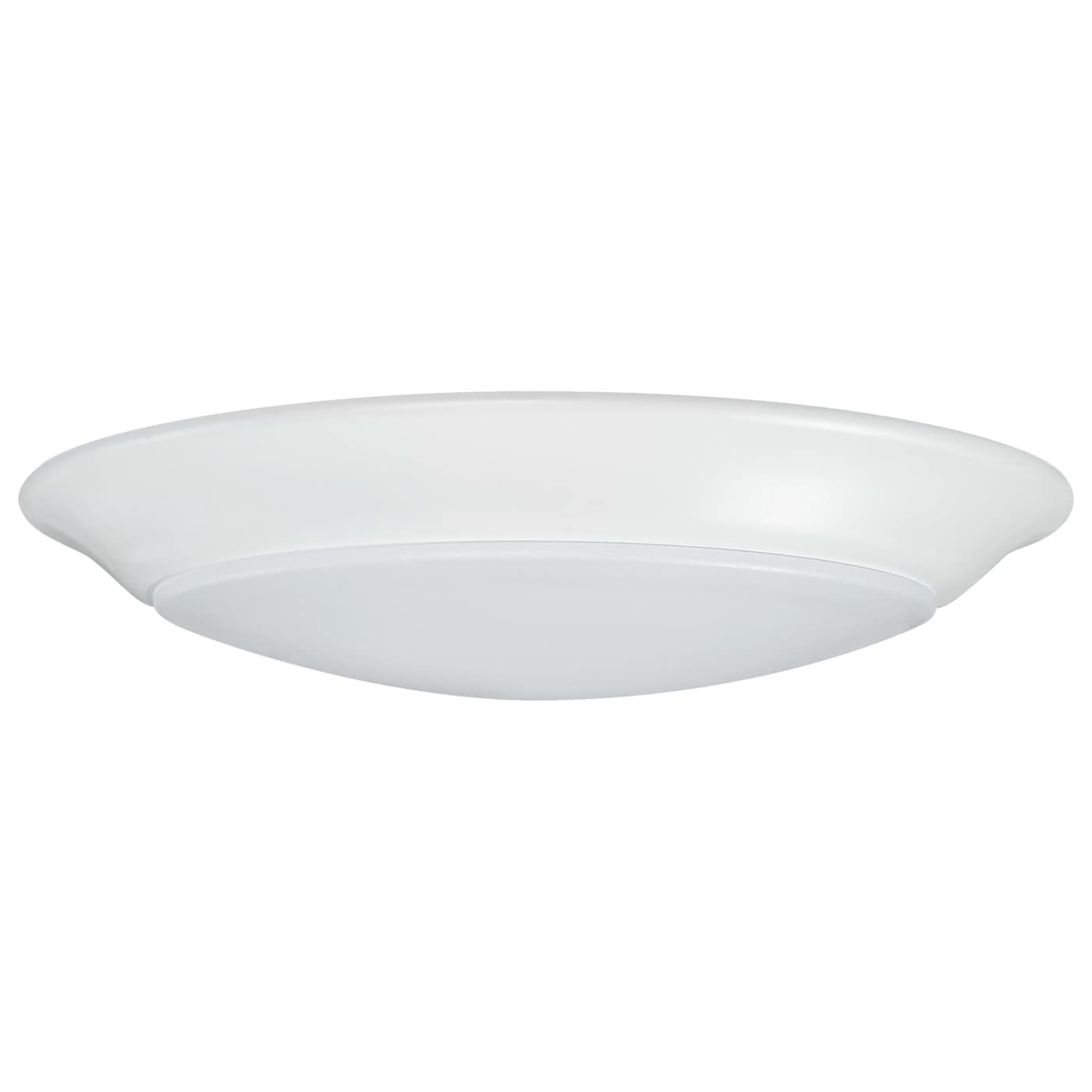

7" LED 8W DISK LIGHT WHITE

  • 8 Watt
  • 7 Inch LED Disk Light
  • White Finish
  • CCT Selectable
cc_selectable^y^1
title_24^y^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1805 Specifications62-1805 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Tools
Lighting Layout Analysis For 62-1805
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
8 Watt; 7 Inch LED Disk Light; White Finish; CCT Selectable
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed

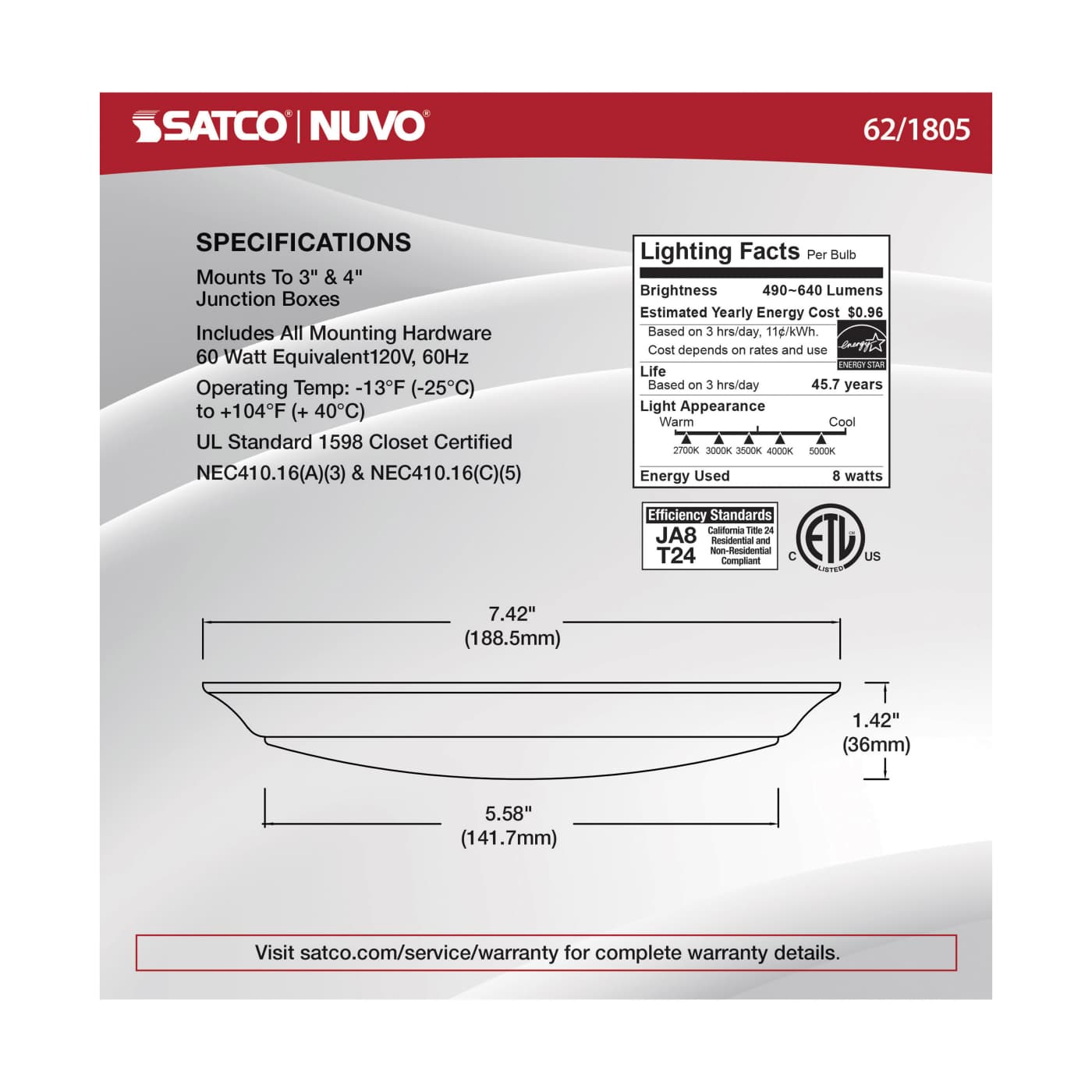

Diameter7.42
MaterialSteel
Fixture TypeDisk Light
StatusActive
StyleContemporary
Most Current Generation62-1805R1
Surge ProtectionBuilt-in surge protection - 2.5KV
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.067A
Has CameraFalse
IOT EnabledFalse
Lens FinishWhite
Lens MaterialAcrylic
Power Factor0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm White to Natural Light
CRI93+
Dimming TypeForward Phase or Reverse Phase
Operating Frequency60Hz
Operating Temp-25C (-13F) to +40C (+104F)
Lumens490L-640L
Volts120v
Watts8W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Installation NotesKeyhole Slots
Documents
Compliance
CA Prop 65Lead
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingWet
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextCalifornia T24 Listed
DLC ApprovedFalse
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923623509
Case Cube0.8711
Case Height8.346
Case Length22.24
Case Quantity12
Case UPC10045923623506
Case Weight10.4
Case Width8.11
EA Cube0.0569
EA Height7.63
EA Length7.63
EA Quantity1
EA Weight0.793
EA Width1.69
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeColor Box
Web Height1.42
Web Width7.42
