63-500 UNDER CAB LED SCCT 8

63-500

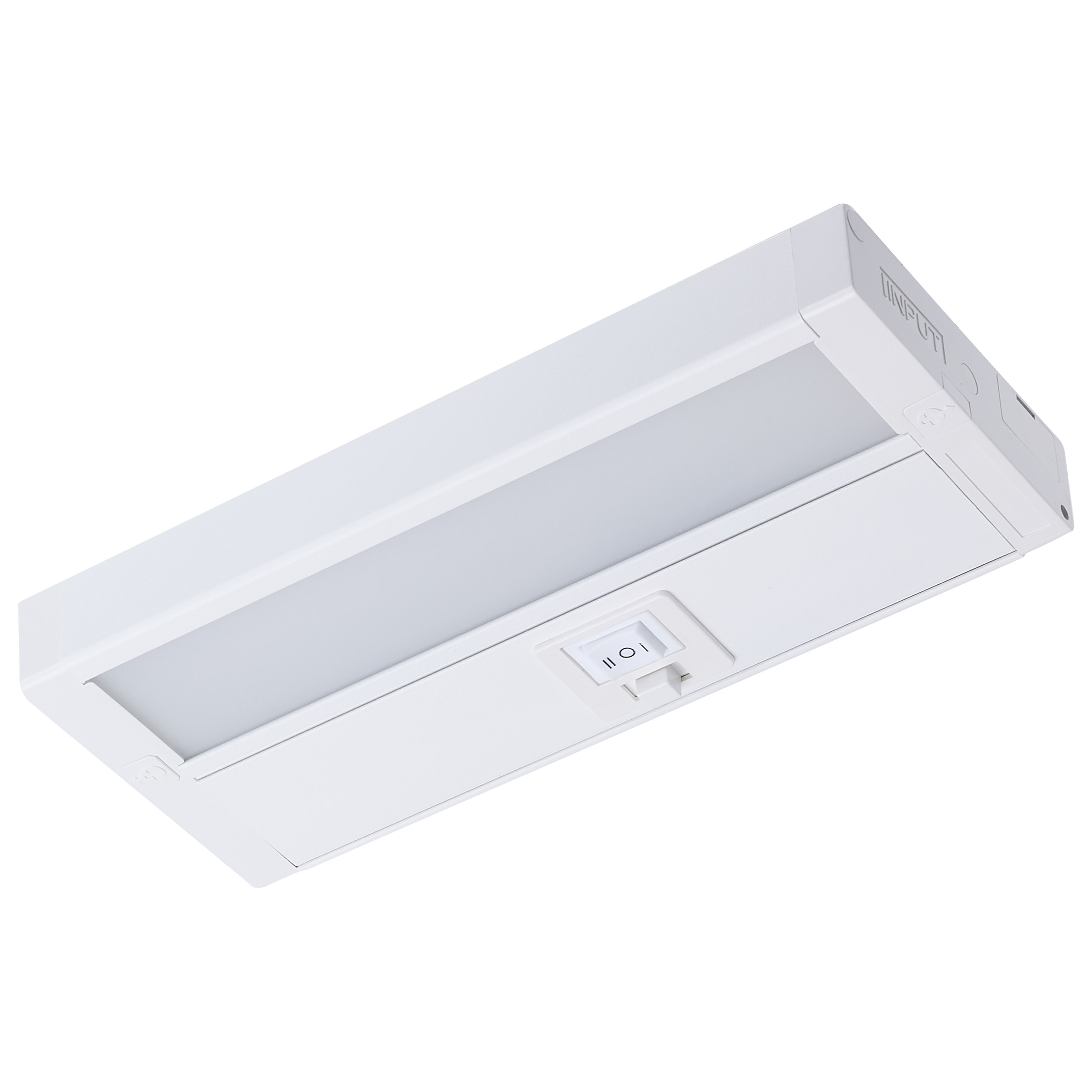

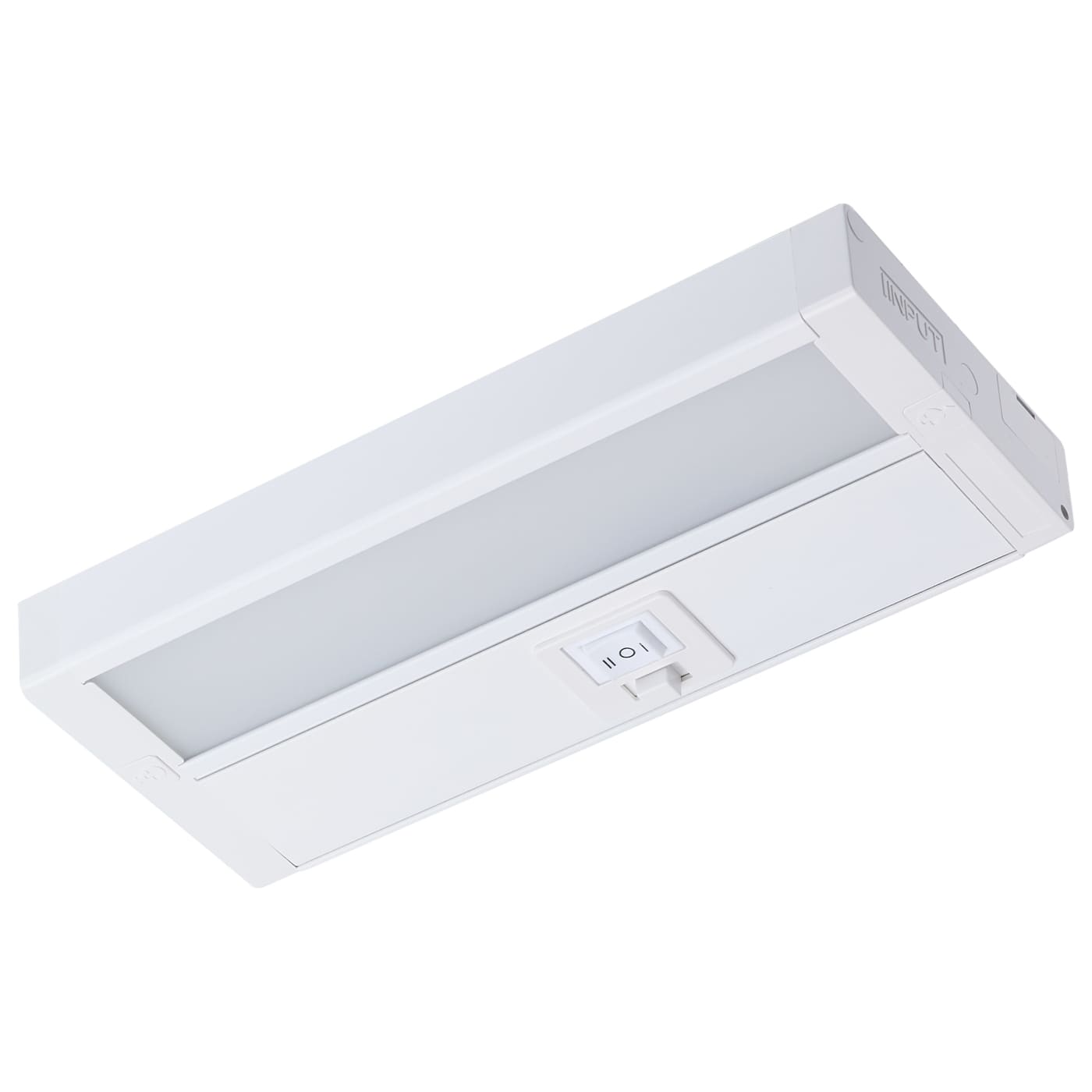

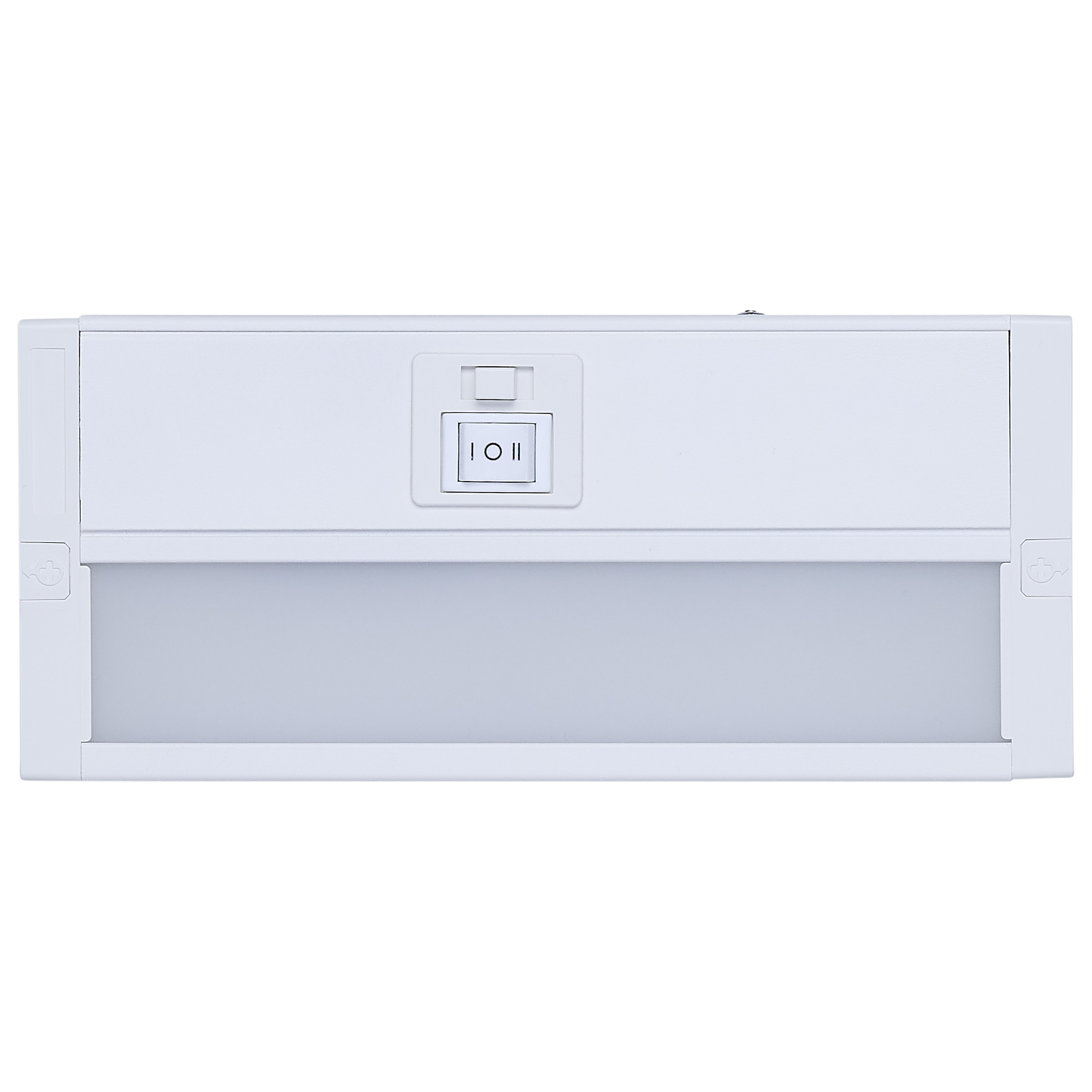

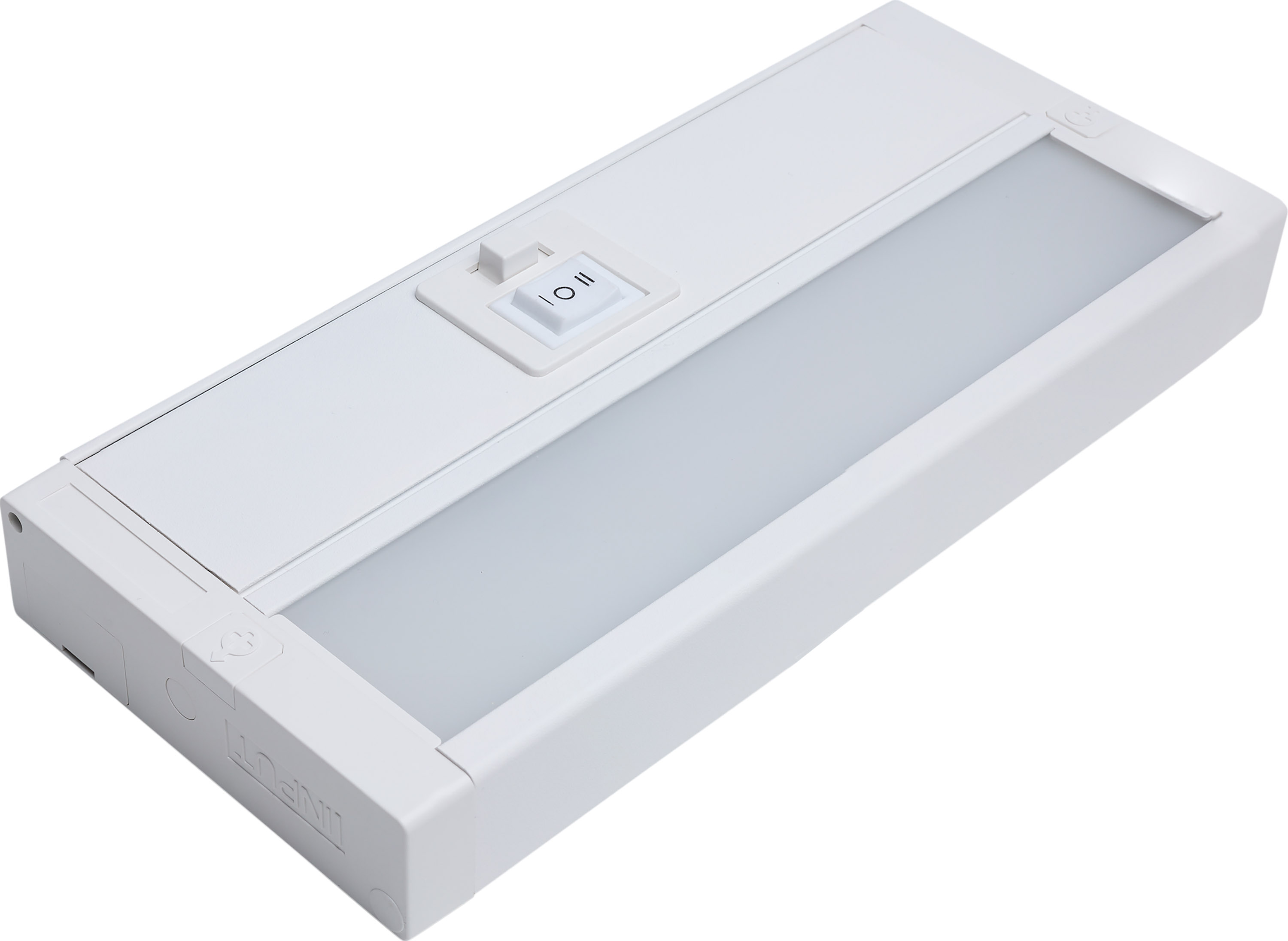

UNDER CAB LED SCCT 8" - WH

5 Watt; 8 Inch LED White Under Cabinet Light; CCT Selectable; 40000 Hours

No matter how you hang it, install it, connect it, link it, wire it, or light it - CounterQUICK LED under cabinet lights are designed to help get the job done; with installation solutions that save on labor, quality, and durability that make for a long, maintenance-free life. Plus, SKU-saving selectable CCT at the switch. It's that QUICK. It's that easy.

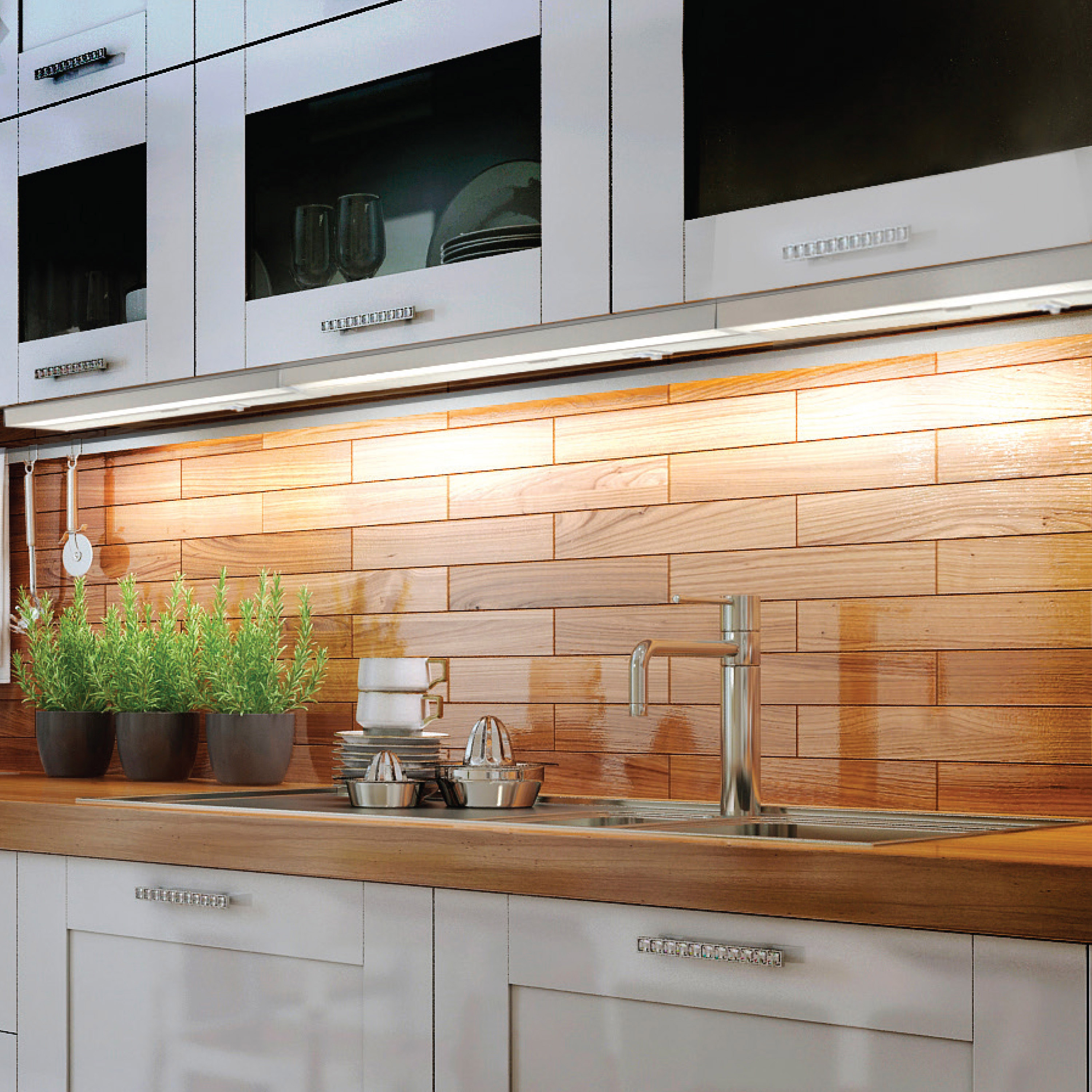

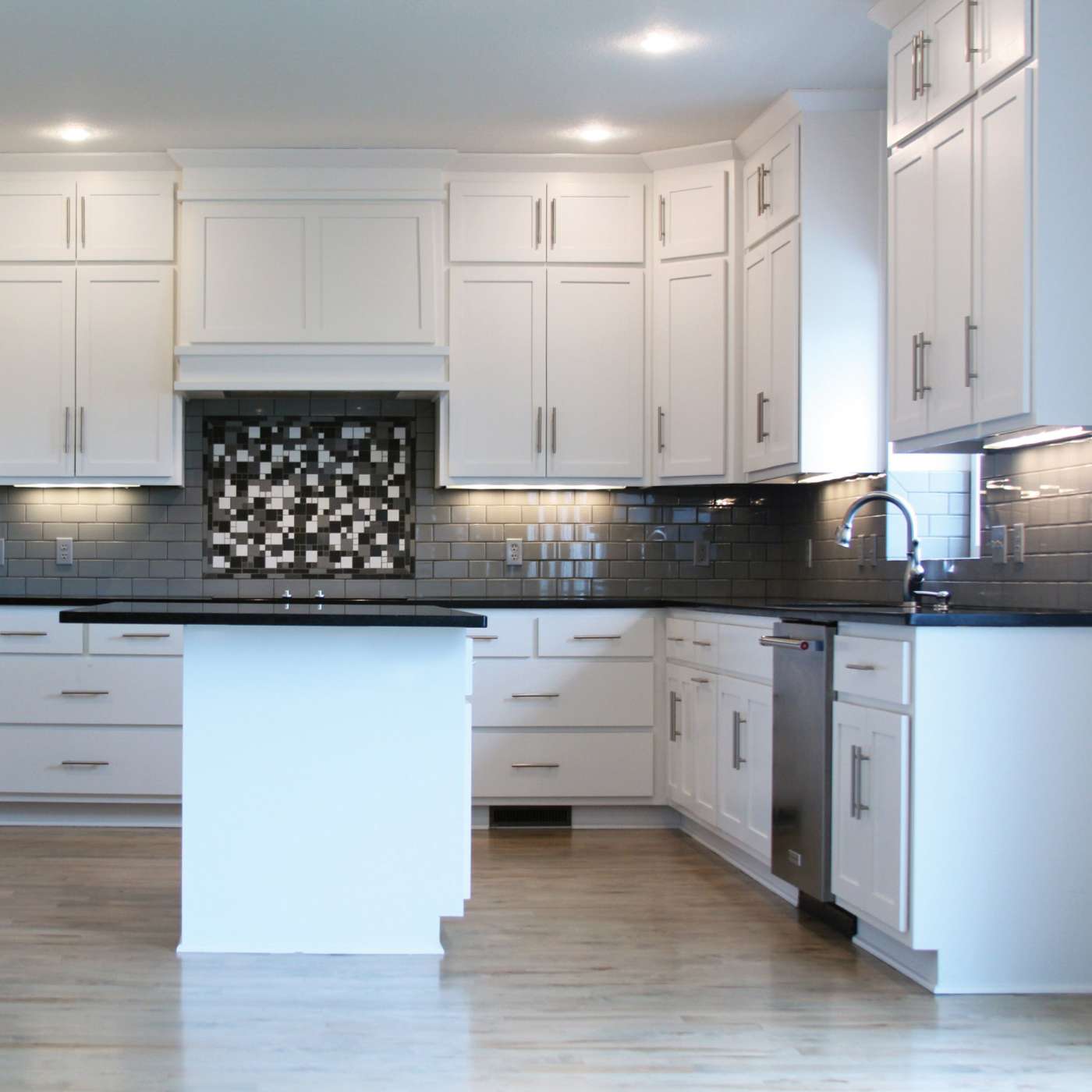

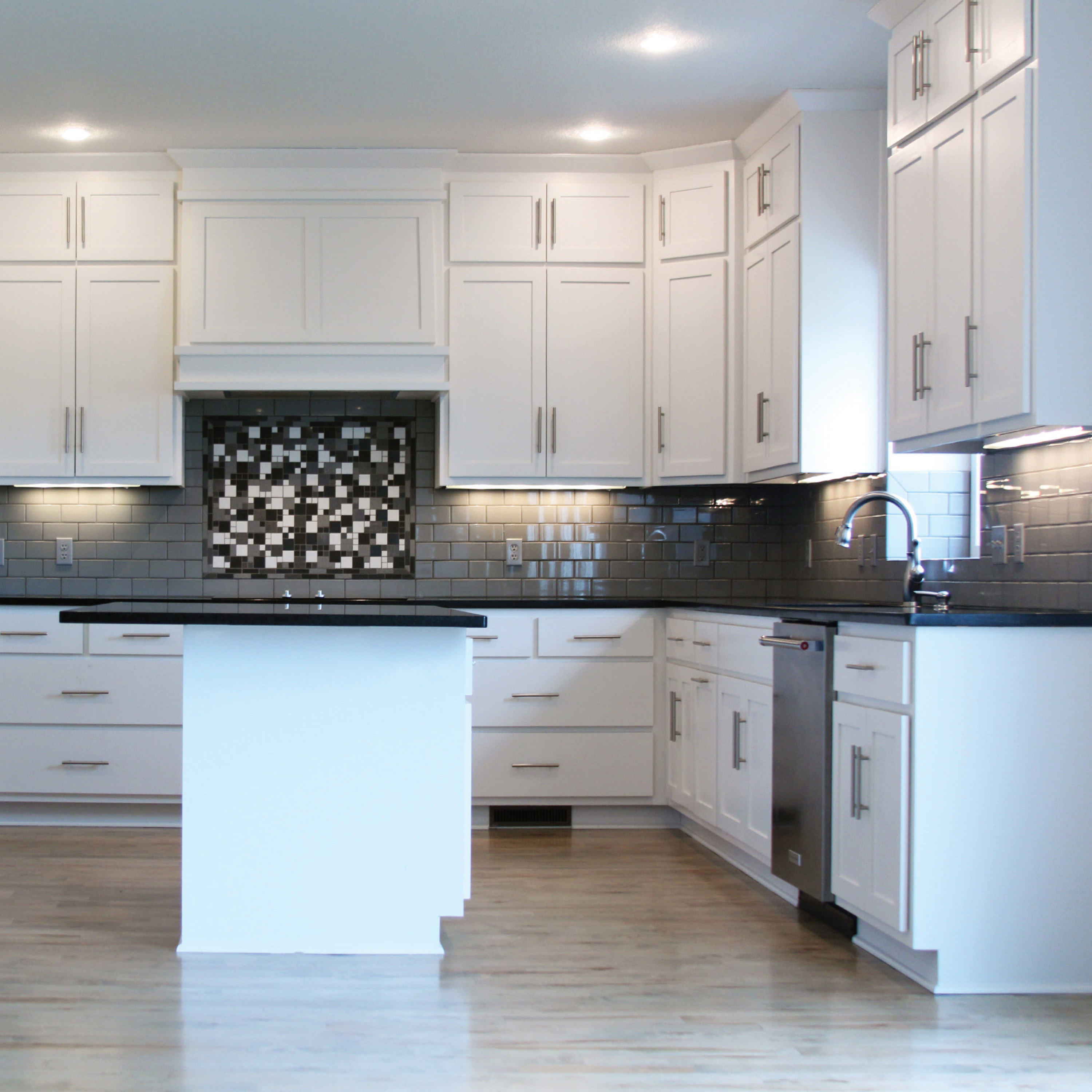

  • CounterQUICK's high-quality design illuminates counter space with a clean, bright light that showcases natural and true colors.

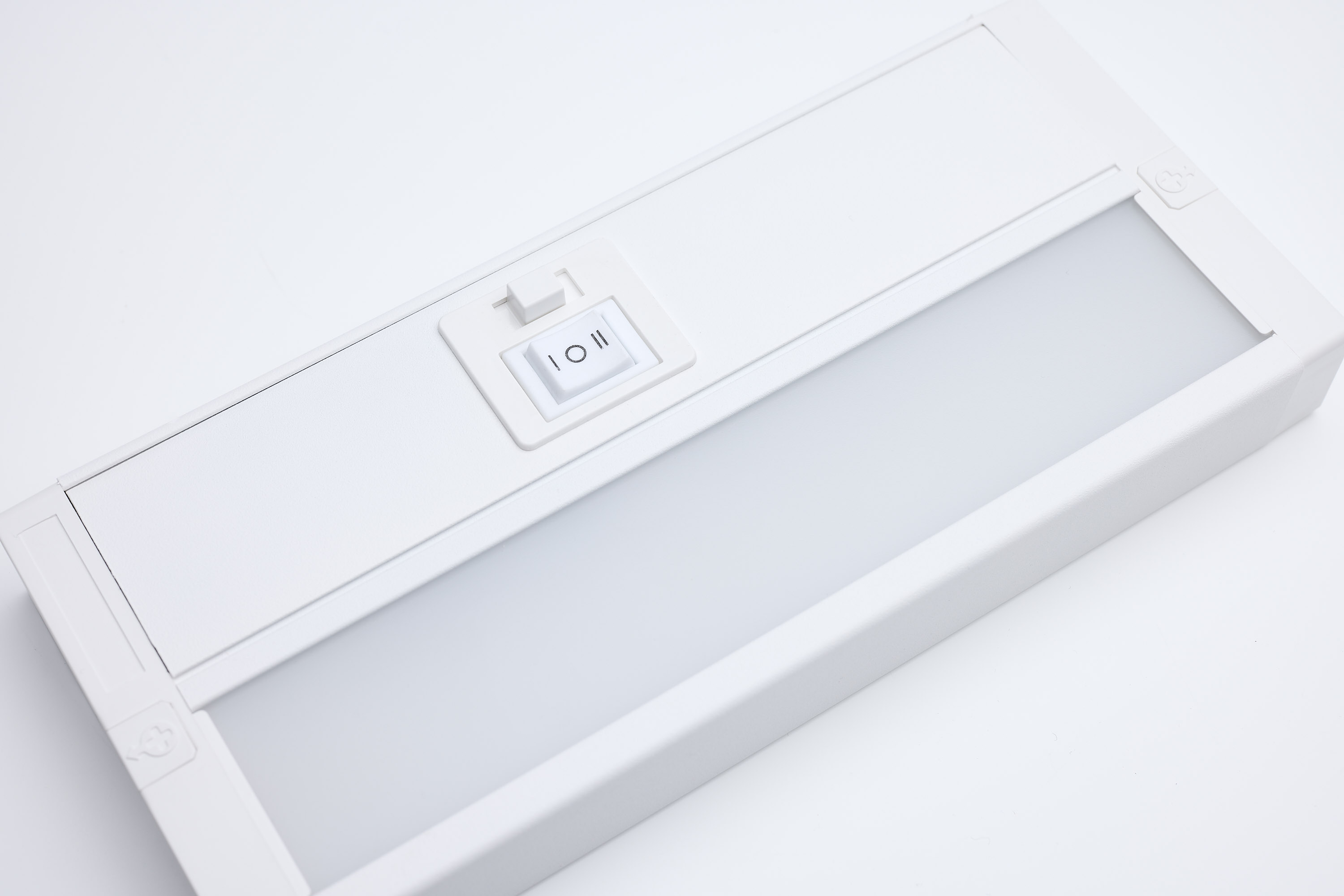

  • Selectable CCT technology allows you to switch between 3000K, 4000K, and 5000K color temperatures. Pairing this with 90 CRI quality light, you can create the perfect atmosphere in your home.

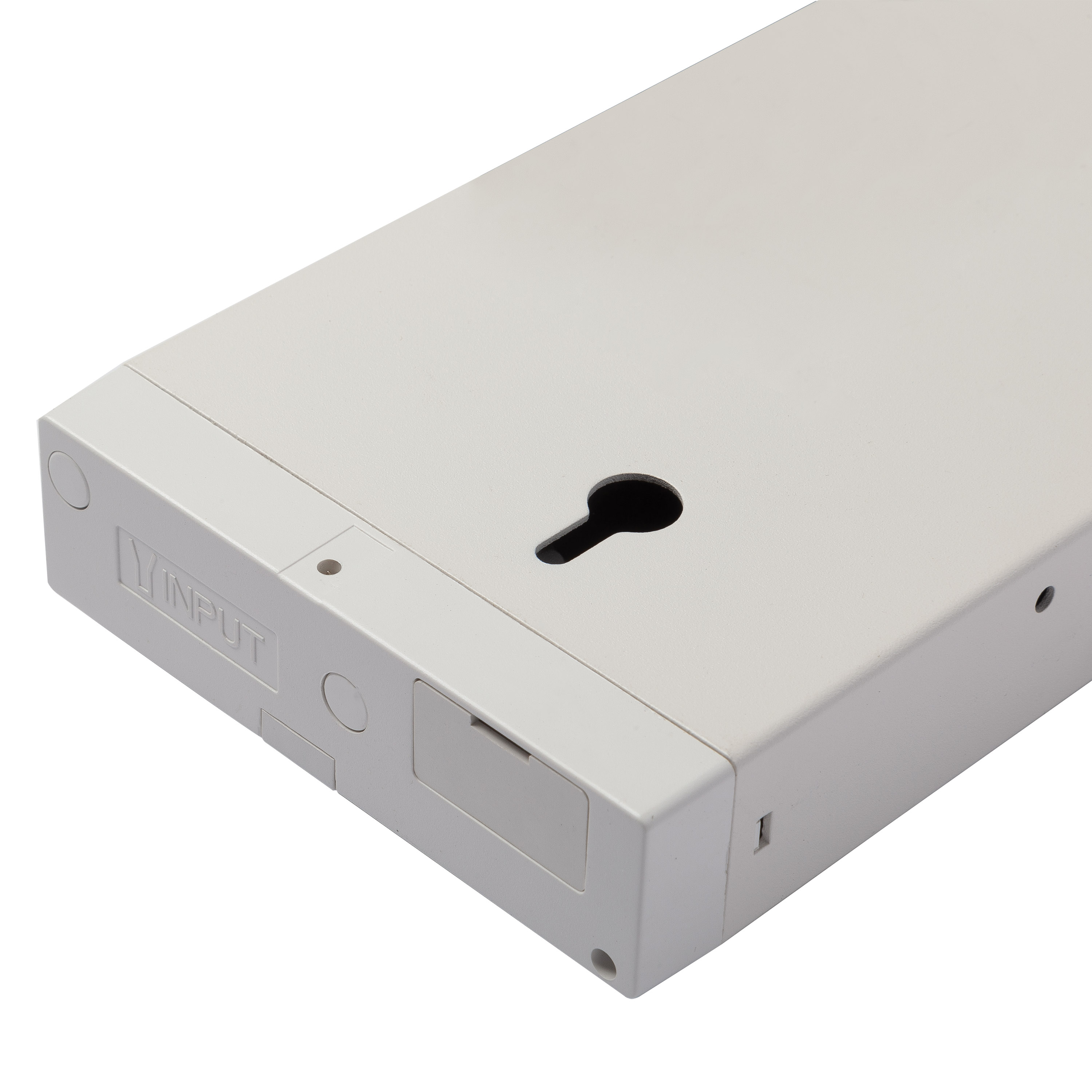

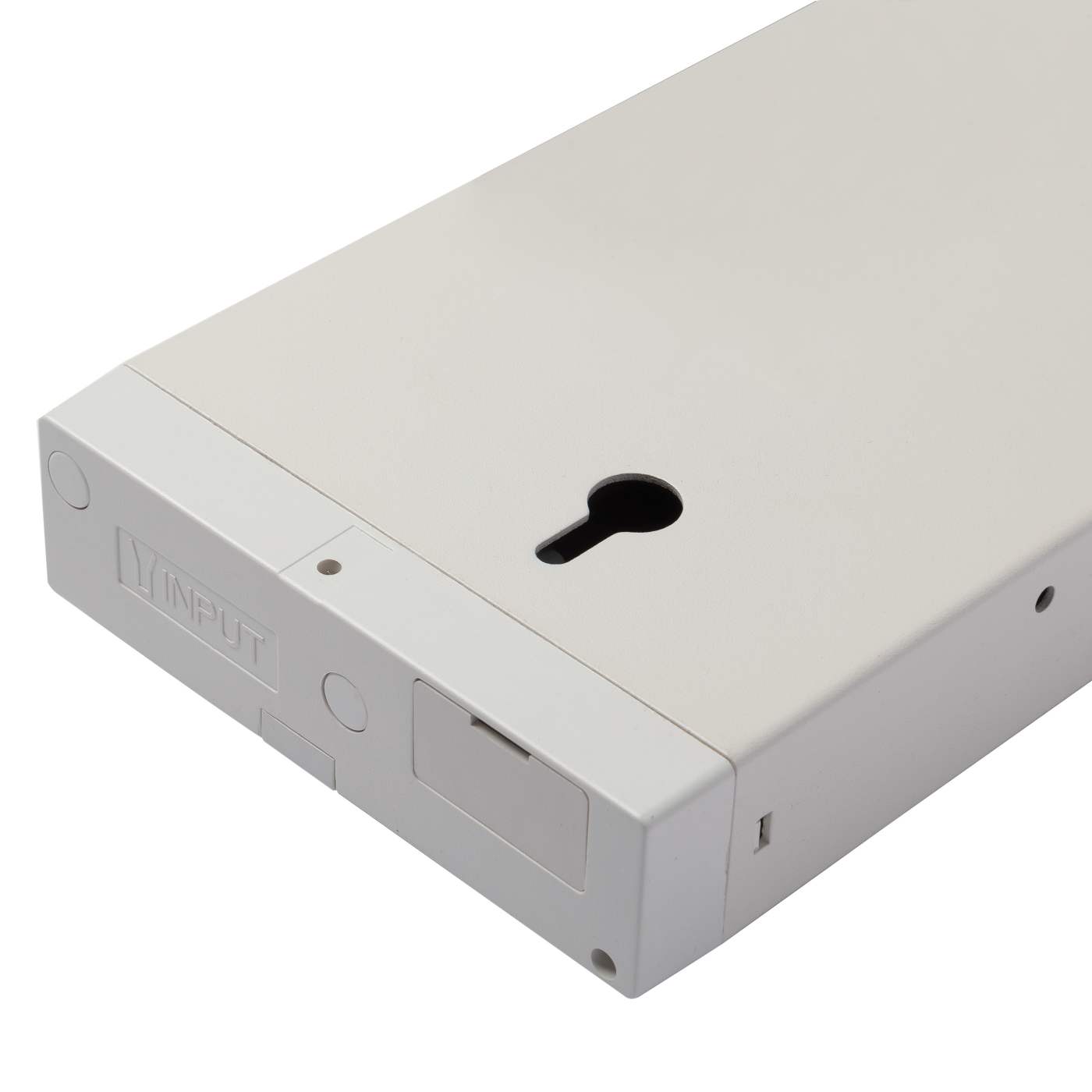

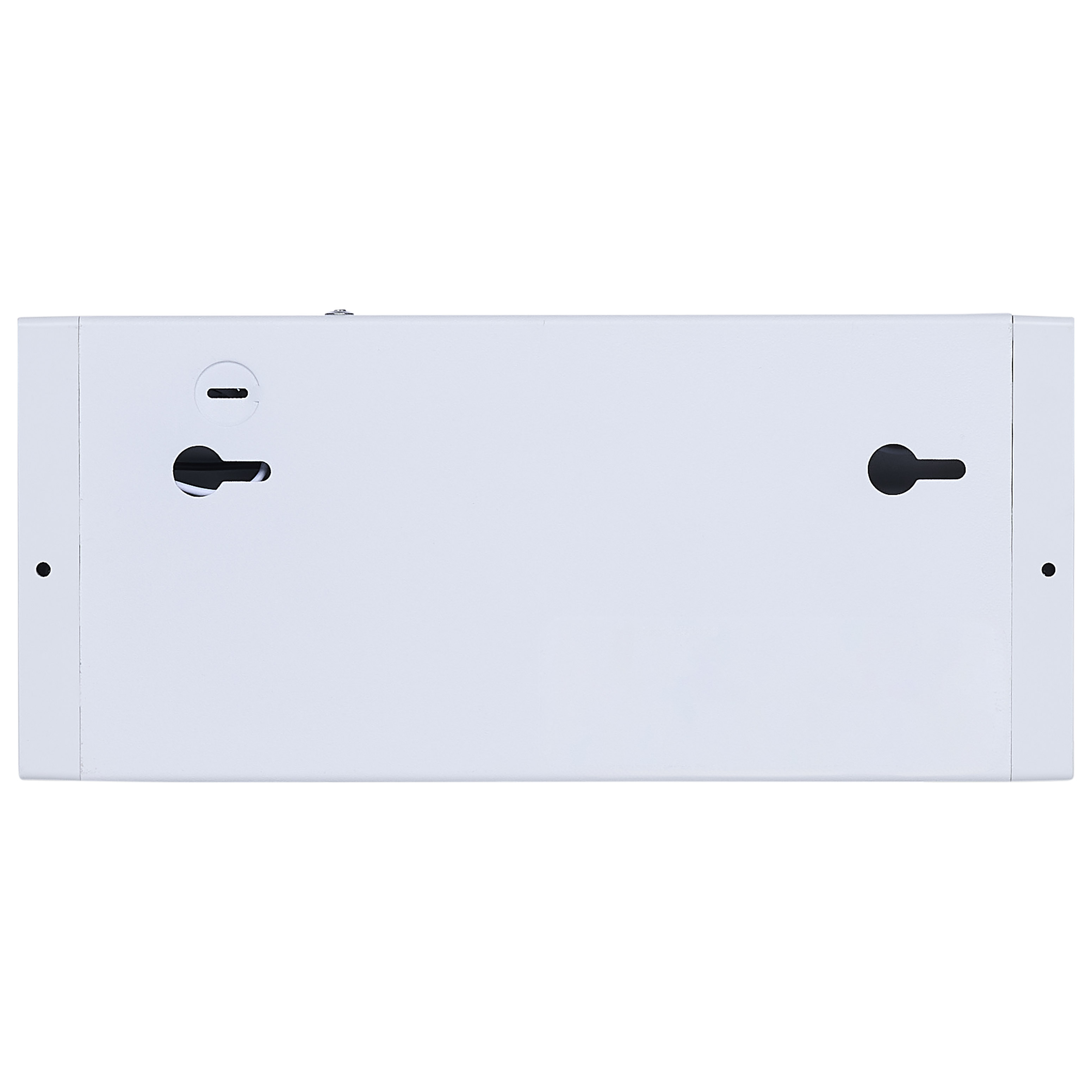

  • Two mounting options to best fit your installation. Use the integrated mounting screws or standard keyhole mounting.
  • Three wiring configurations for ease of installation: Direct Wire to Fixture, Direct Wire to Junction Box, or Plug into an outlet with Power Cord (sold separately)
  • Various knockouts along the back and sides provide more access points for convenient wiring. An expanded internal compartment leaves room to work and stores the connected wire with plenty of room to close the fixture.
  • Powder Coated Aluminum body provides a high-quality, durable design that includes a textured lens for premium light distribution.

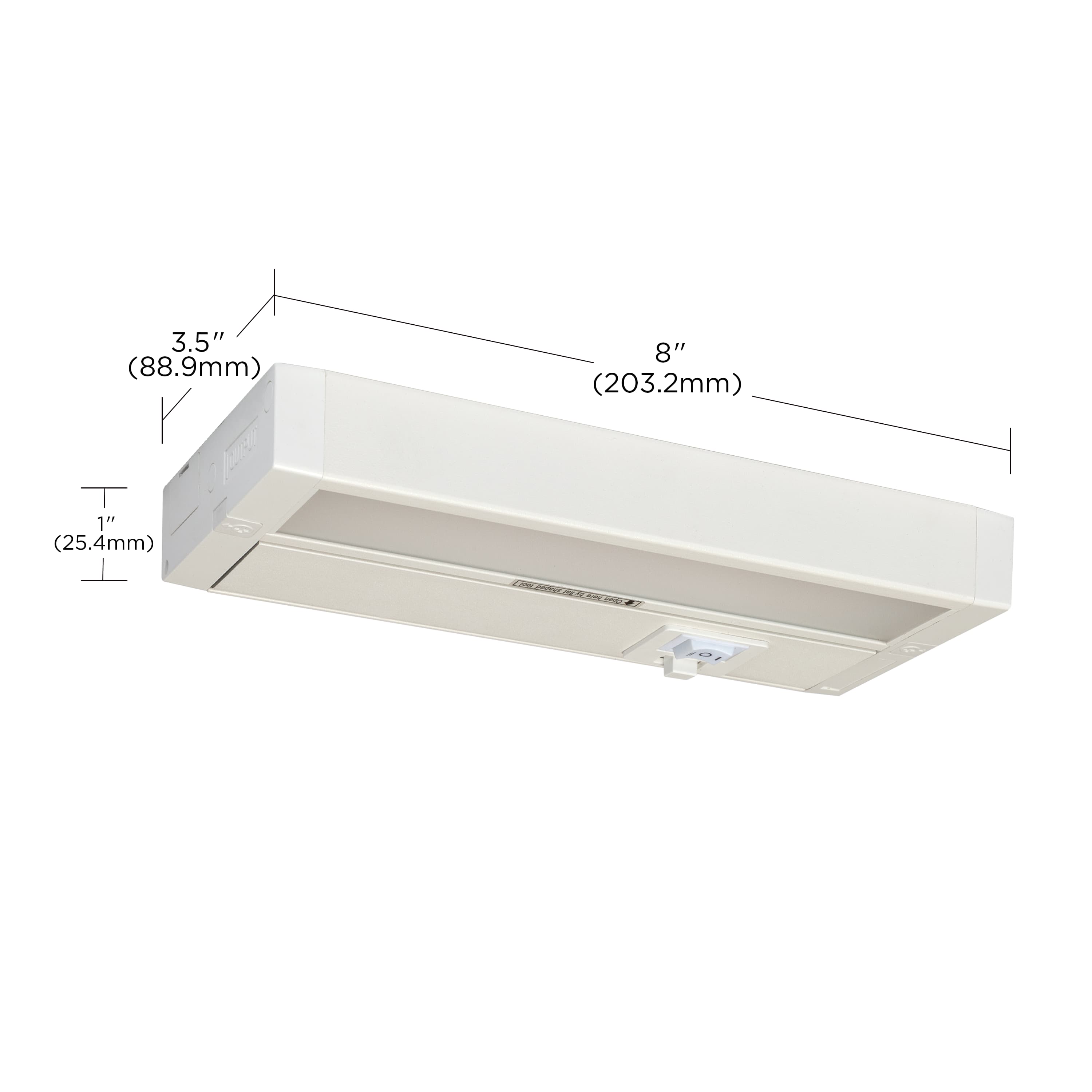

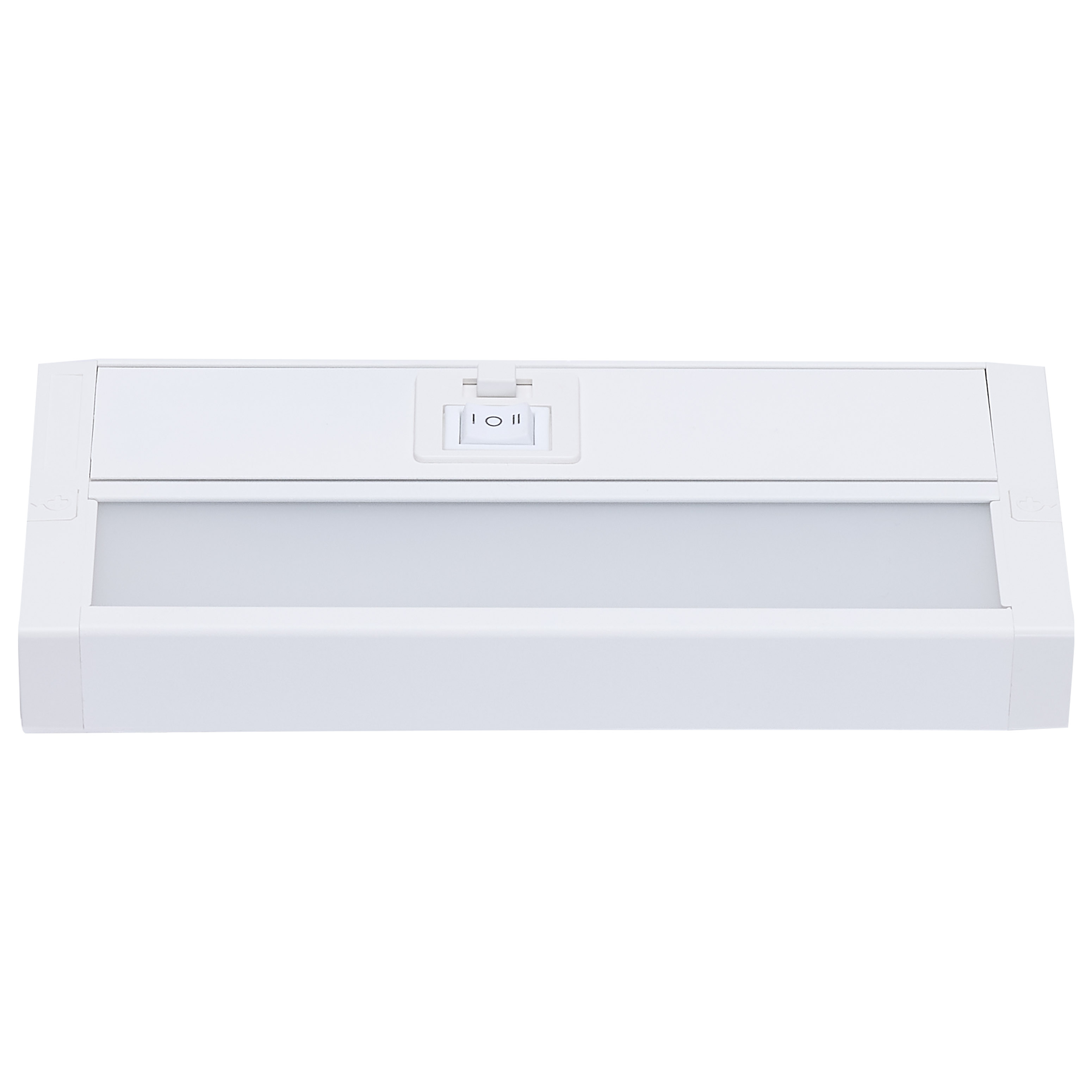

  • Low profile, slim design. Measures 8 in. Length x 3.5 in. Width x 1 in. Height.
Lights

63-500

UNDER CAB LED SCCT 8" - WH

5 Watt; 8 Inch LED White Under Cabinet Light; CCT Selectable; 40000 Hours

No matter how you hang it, install it, connect it, link it, wire it, or light it - CounterQUICK LED under cabinet lights are designed to help get the job done; with installation solutions that save on labor, quality, and durability that make for a long, maintenance-free life. Plus, SKU-saving selectable CCT at the switch. It's that QUICK. It's that easy.
  • CounterQUICK's high-quality design illuminates counter space with a clean, bright light that showcases natural and true colors.
  • Selectable CCT technology allows you to switch between 3000K, 4000K, and 5000K color temperatures. Pairing this with 90 CRI quality light, you can create the perfect atmosphere in your home.
  • Two mounting options to best fit your installation. Use the integrated mounting screws or standard keyhole mounting.
  • Three wiring configurations for ease of installation: Direct Wire to Fixture, Direct Wire to Junction Box, or Plug into an outlet with Power Cord (sold separately)
  • Various knockouts along the back and sides provide more access points for convenient wiring. An expanded internal compartment leaves room to work and stores the connected wire with plenty of room to close the fixture.
  • Powder Coated Aluminum body provides a high-quality, durable design that includes a textured lens for premium light distribution.
  • Low profile, slim design. Measures 8 in. Length x 3.5 in. Width x 1 in. Height.

Specifications

General
StatusActive
FinishWhite
Wattage5W
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
Length (in.)8
Width (in.)3.5
Height (in.)1
Indoor or Outdoor FixtureIndoor
Specifications
TechnologyLED
Wattage5W
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI90+
Lumen Output322L-366L
Rated Hours40000
Voltage120V
DimmableYes-Dimmable
Dimming NoteDimming range from 100 to less than or equal to 20 percent depending on dimmer control
Weight (lb.)0.55
Sloped CeilingNo
Fixture ShapeRectangle
Fixture MaterialAluminum / Polycarbonate (PC)
Fixture TypeUnder Cabinet
Max. Connectable Units96
Operating Temperature-20C (-4F) to a maximum of +40C (+104F)
Dimensions
Height (in.)1
Width (in.)3.5
Length (in.)8
Compliance
Safety ListingcETLus - Listed
Location RatingDry
Energy StarYes
ES Unique IDESID-2384713
CA T20 / T24 RationaleCalifornia T24 2016 & 2019 JA8 Listed
California StatusLawful for sale in California
Title 20 / 24 StatusCalifornia T24 Listed
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Additional Information
Additional Information63-510 Under Cabinet Power Cord is sold separately
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923635007
Each Quantity1
Each Length (in.)8.66
Each Width (in.)3.74
Each Height (in.)1.38
Each Weight (lb.)0.69
Each Cube (CuFt.)0.0259
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923635004
Case Quantity12
Case Length (in.)9.40
Case Width (in.)9.10
Case Height (in.)8.50
Case Weight (lb.)9.11
Case Cube (CuFt.)0.4208
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Leviton 6674 Visit
Dimmer Lutron AYCL-153P Visit
Dimmer Lutron CTRP-253P Visit
Dimmer Leviton DDMX1 Visit
Dimmer Leviton DSE06-10Z Visit
Dimmer Leviton DSL06-1LZ Visit
Dimmer Cooper DUL06P-C2 Visit
Dimmer Lutron DVCL-153P Visit
Dimmer Lutron DVRP-253P Visit
Dimmer Leviton DW6HD Visit
Dimmer Leviton IPE04-1L Visit
Dimmer Leviton IPL06 Visit
Dimmer Lutron LECL-153PH Visit
Dimmer Lutron MA-PRO Visit
Dimmer Lutron MACL-153M Visit
Dimmer Lutron MSCL-OP153M Visit
Dimmer Lutron NTCL-250 Visit
Dimmer Lutron NTRP-250 Visit
Dimmer Lutron RCL-153PNL Visit
Dimmer Cooper RF9640-ND Visit
Dimmer Legrand RH703PTUTC Visit
Dimmer Legrand RHCL450PTC Visit
Dimmer Lutron RRD-PRO Visit
Dimmer Satco S11268 Visit
Dimmer Cooper SAL06P Visit
Dimmer Cooper SUF7 Visit
Dimmer Cooper VSUL06D Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
