| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | T20 Non-Compliant - Never Tested |
| Dimmable Text | 0-10V Dimming Only |

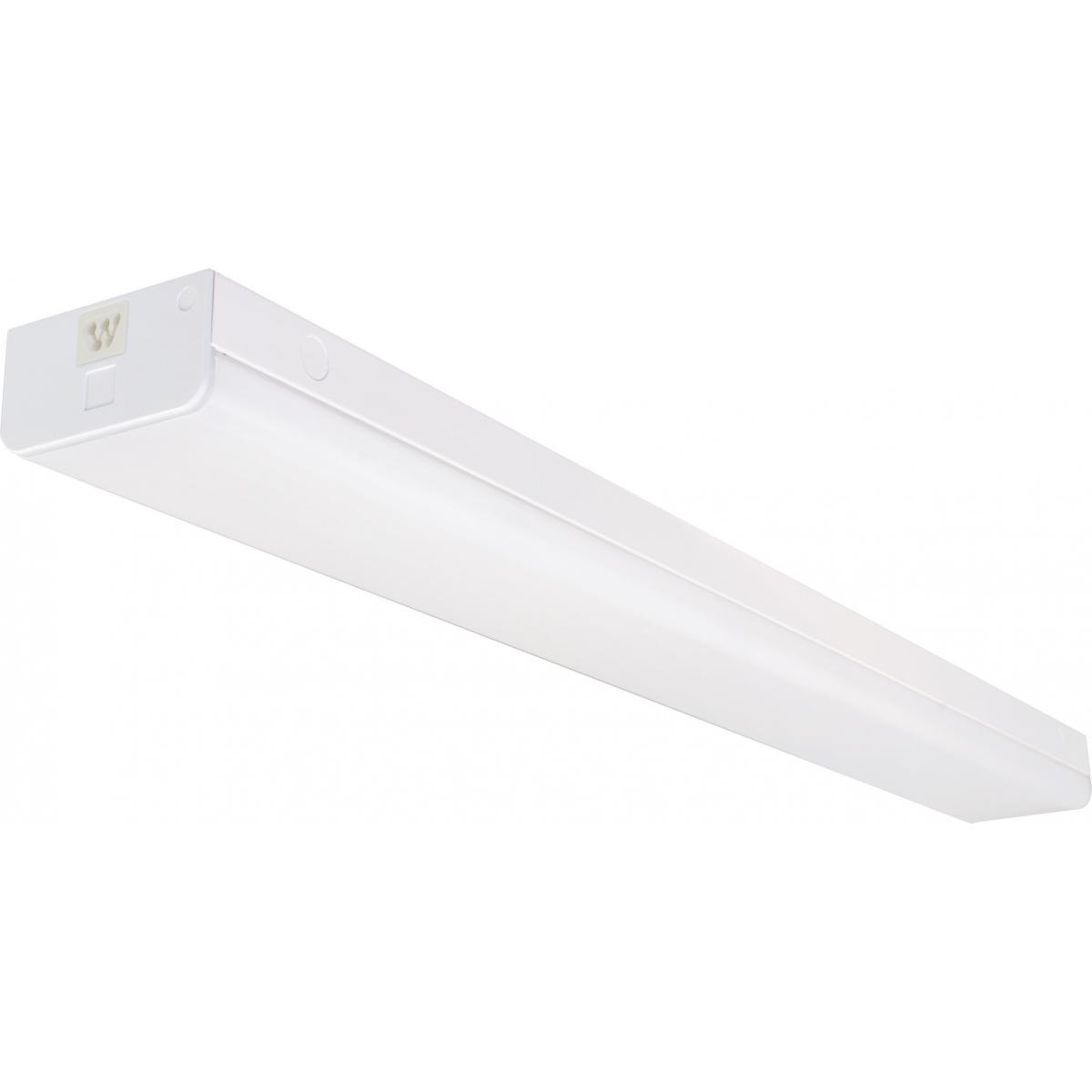

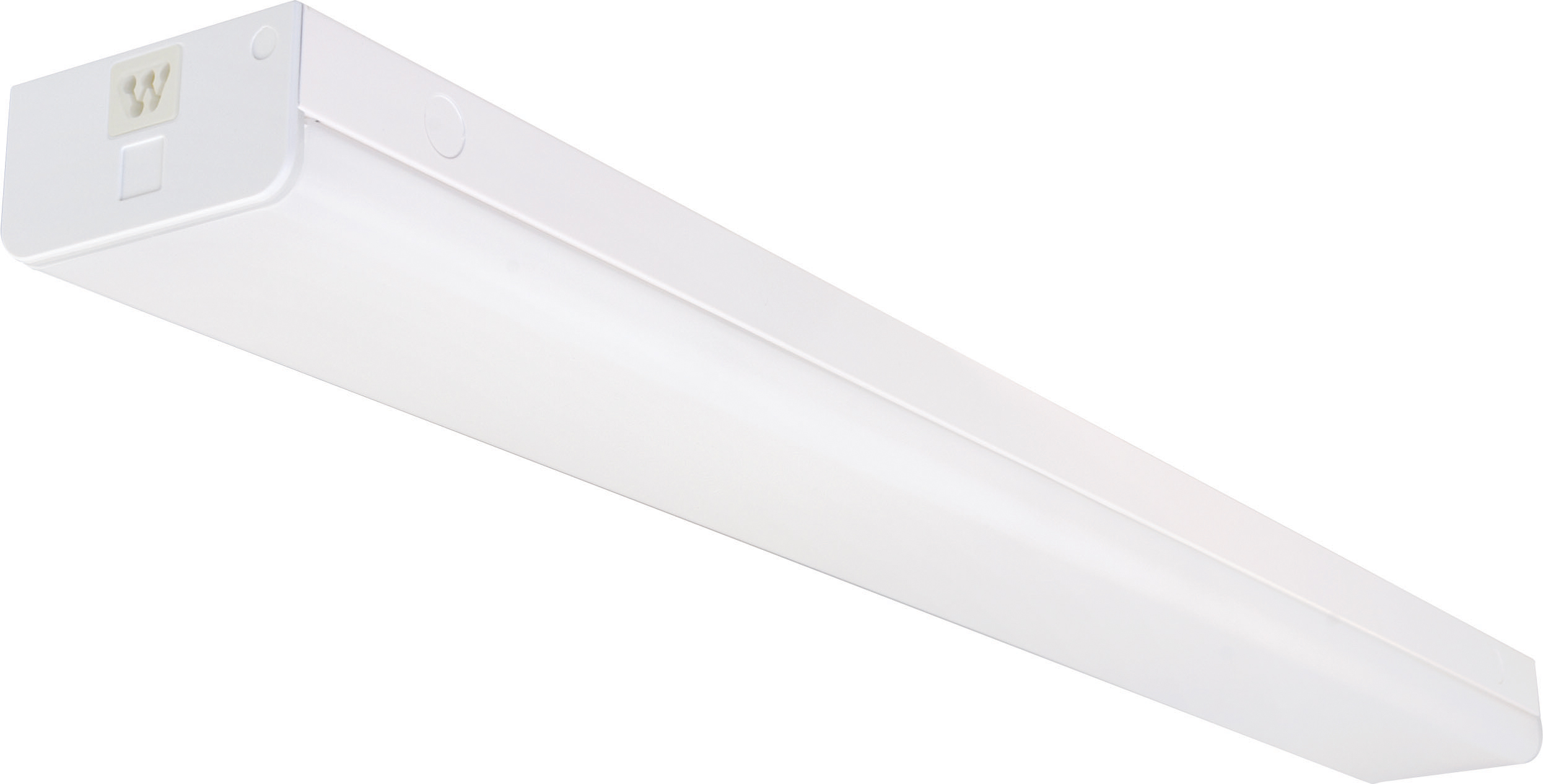

| Fixture Type | Strip Light |
| Status | Discontinued |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2KV |
| Total Harmonic Distortion | 3.90% |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.333-0.144A |
| Has Camera | False |
| IOT Enabled | False |
| Connectable Units | Up to 7 units @ 120V; 10 units @ 277V |
| Power Factor | 1 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 175W |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 110 |
| Color Temp | Cool White |
| CRI | 80+ |
| Operating Temp | -20C (-4F) to +40C (+104F) |

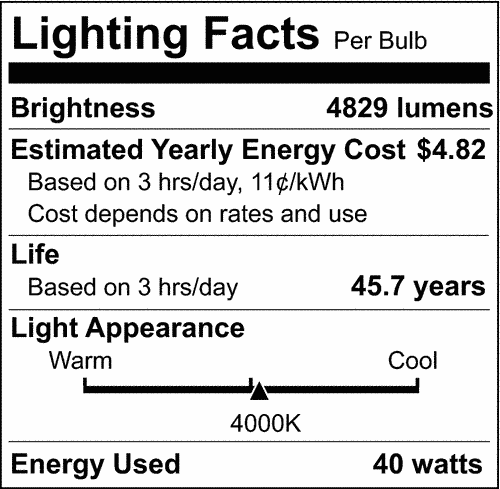

| Lumens | 4829L |
| Volts | 120V-277V |
| Watts | 40W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| CA Status | Non-Compliant |
| DLC ID | PLZMON5NBCKS |
| FCC Compliant | True |
| IP Rating | IP44 |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Non-Compliant |
| UL Application | Ceiling / Wall |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | No |
| T24 Compliant | False |
| UPC | 045923682100 |
|---|---|
| Case Cube | 3.7971 |
| Case Height | 12.5 |
| Case Length | 49.38 |
| Case Quantity | 6 |
| Case UPC | 10045923682107 |
| Case Weight | 59.52 |
| Case Width | 10.63 |
| EA Cube | 0.6083 |
| EA Height | 48.75 |
| EA Length | 5.75 |
| EA Quantity | 1 |
| EA Weight | 8.59 |
| EA Width | 3.75 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

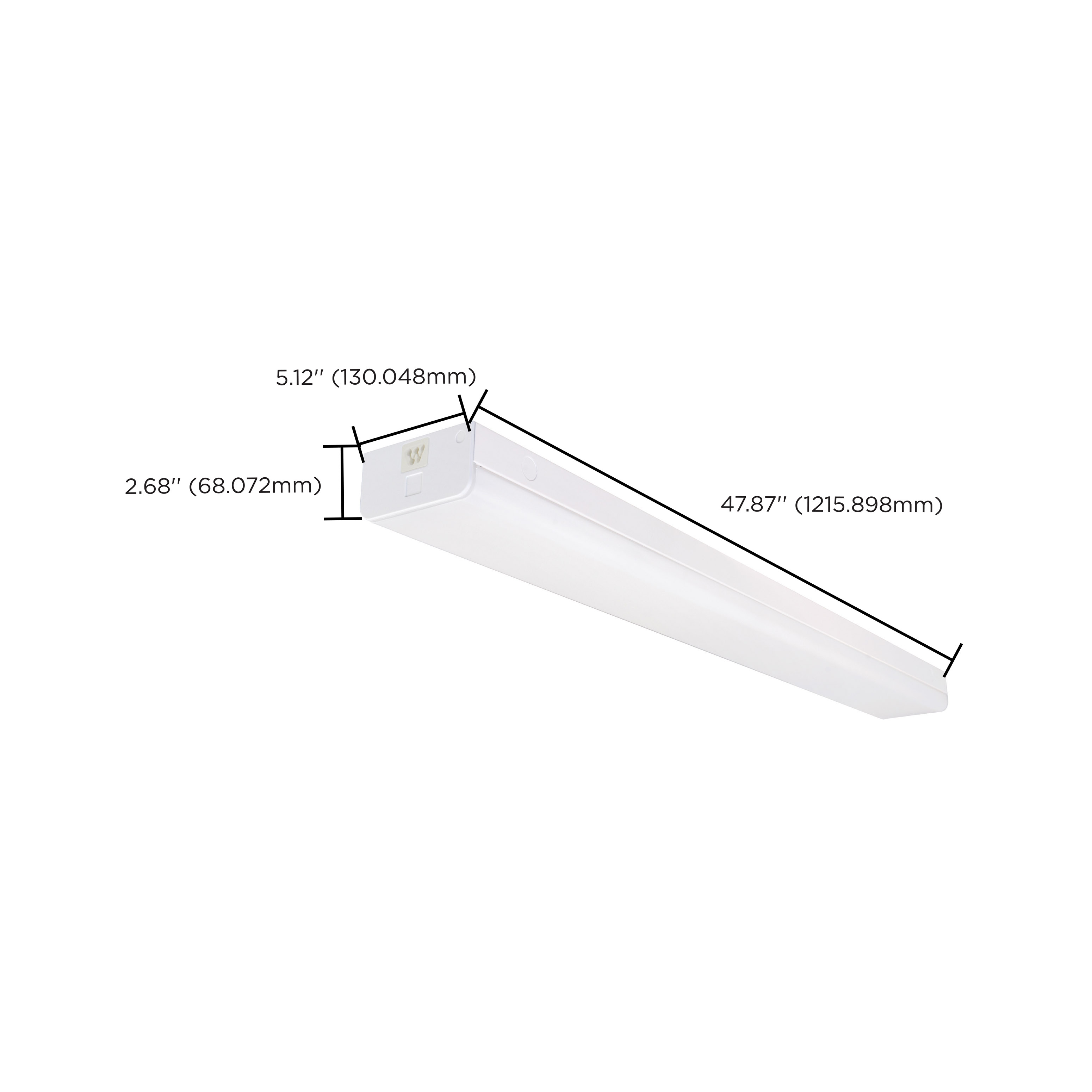

| Web Height | 2.68 |
| Web Length | 47.87 |
| Web Width | 5.12 |
