65-1181

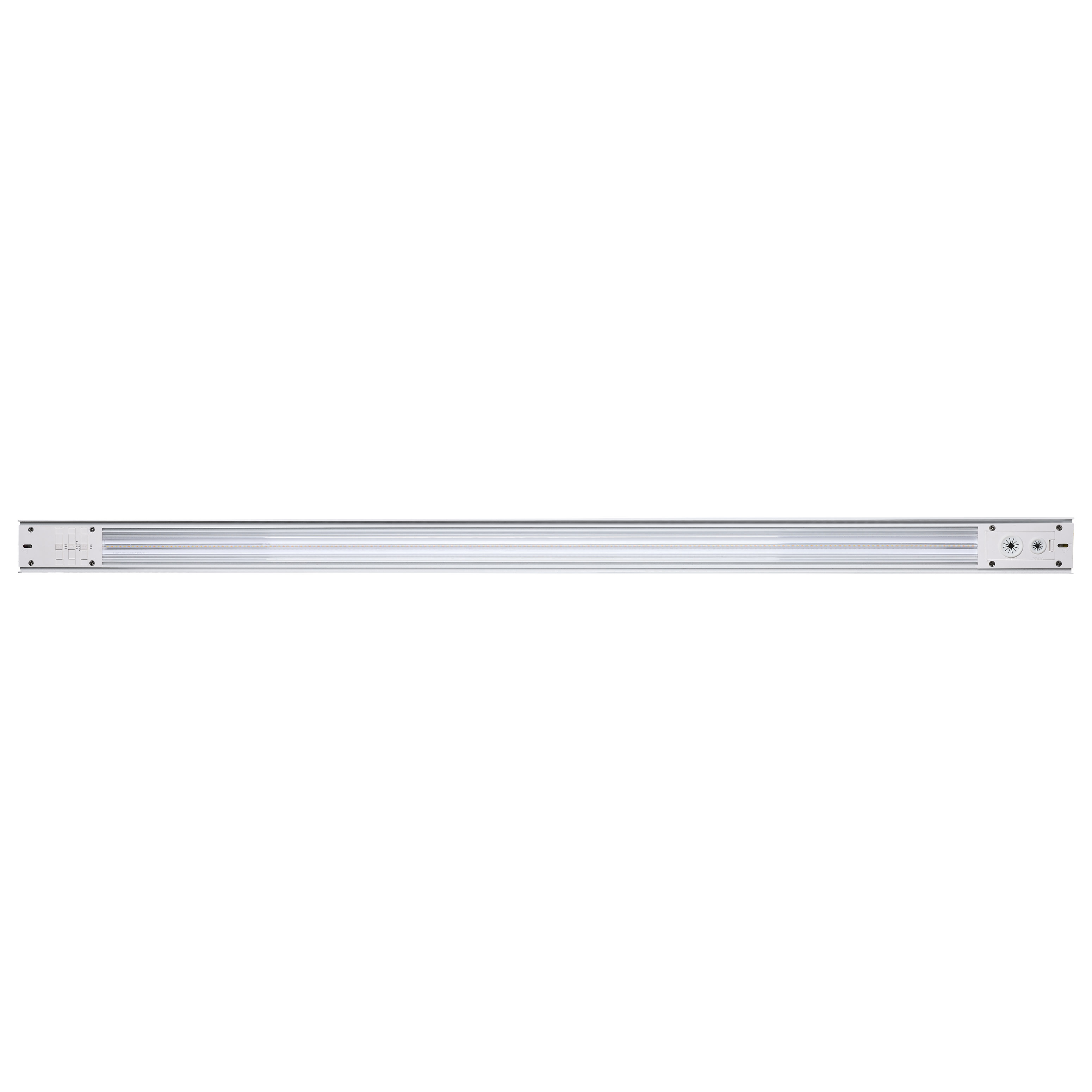

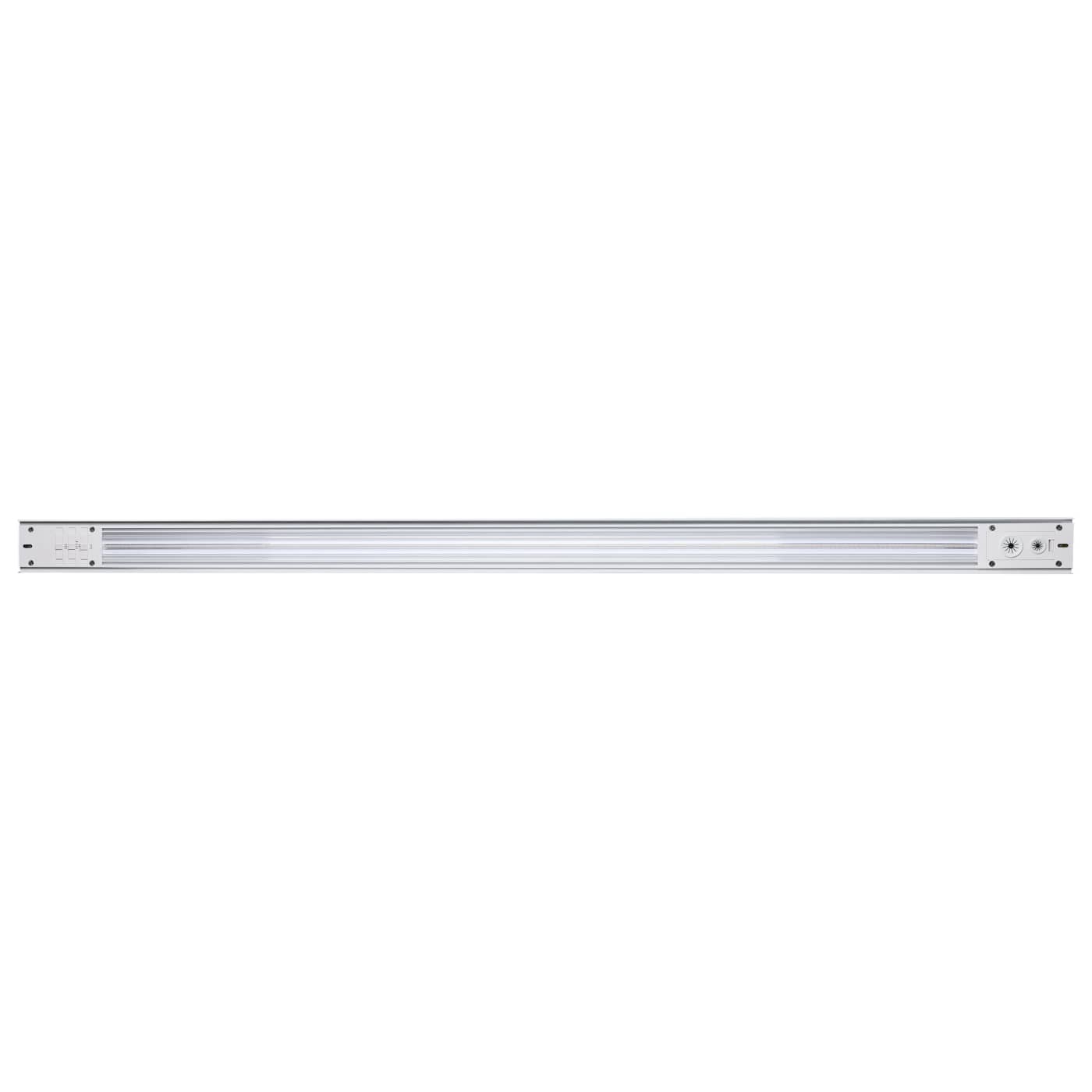

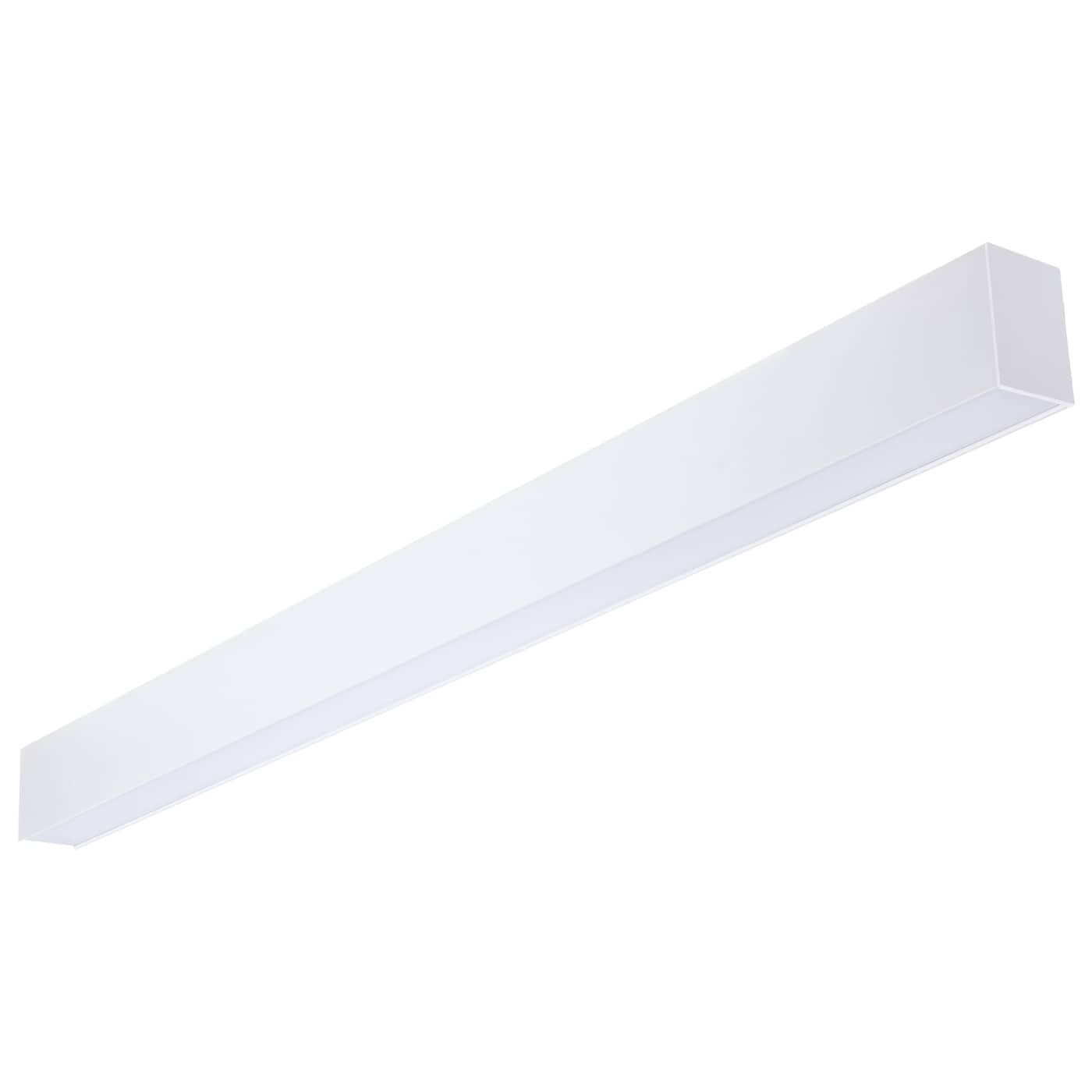

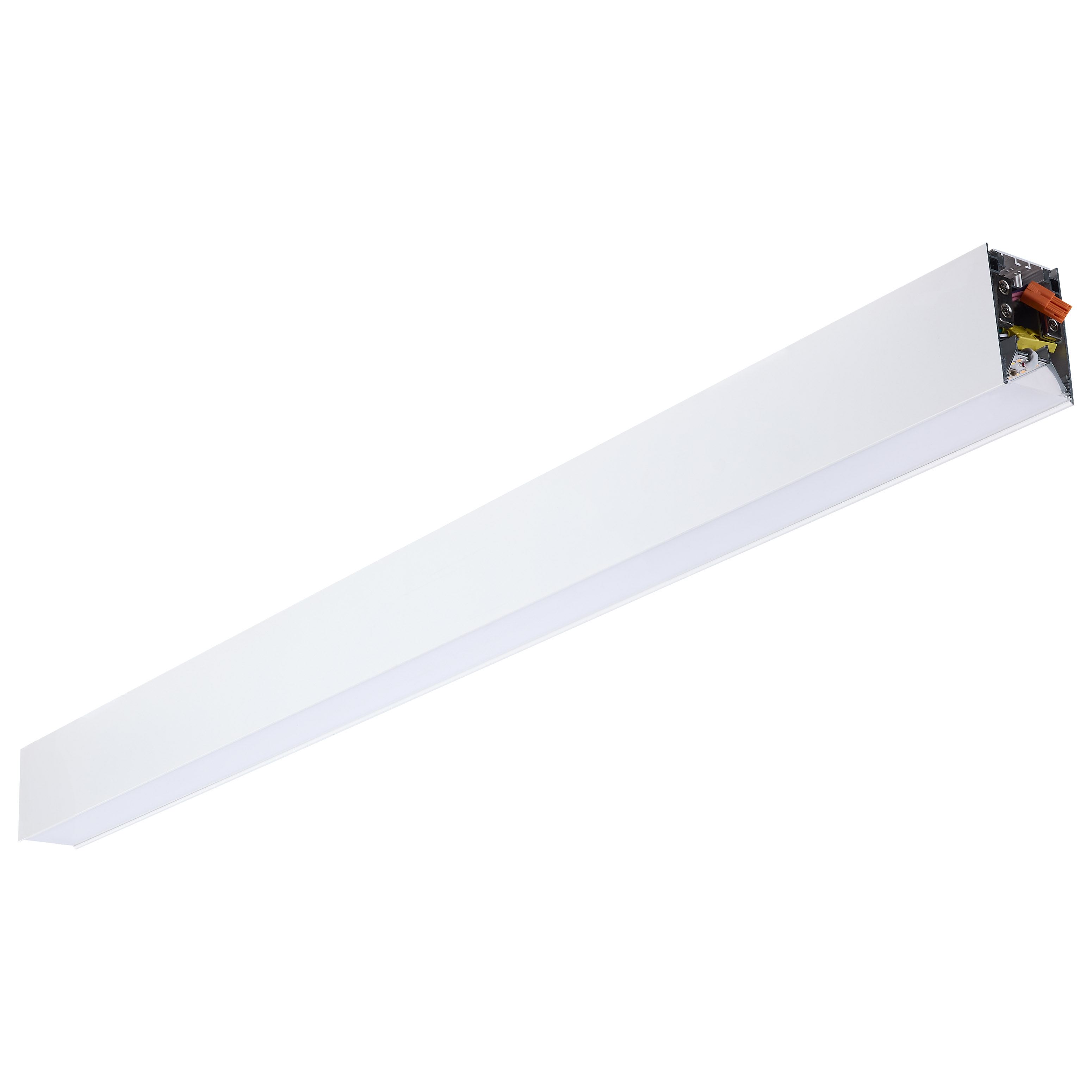

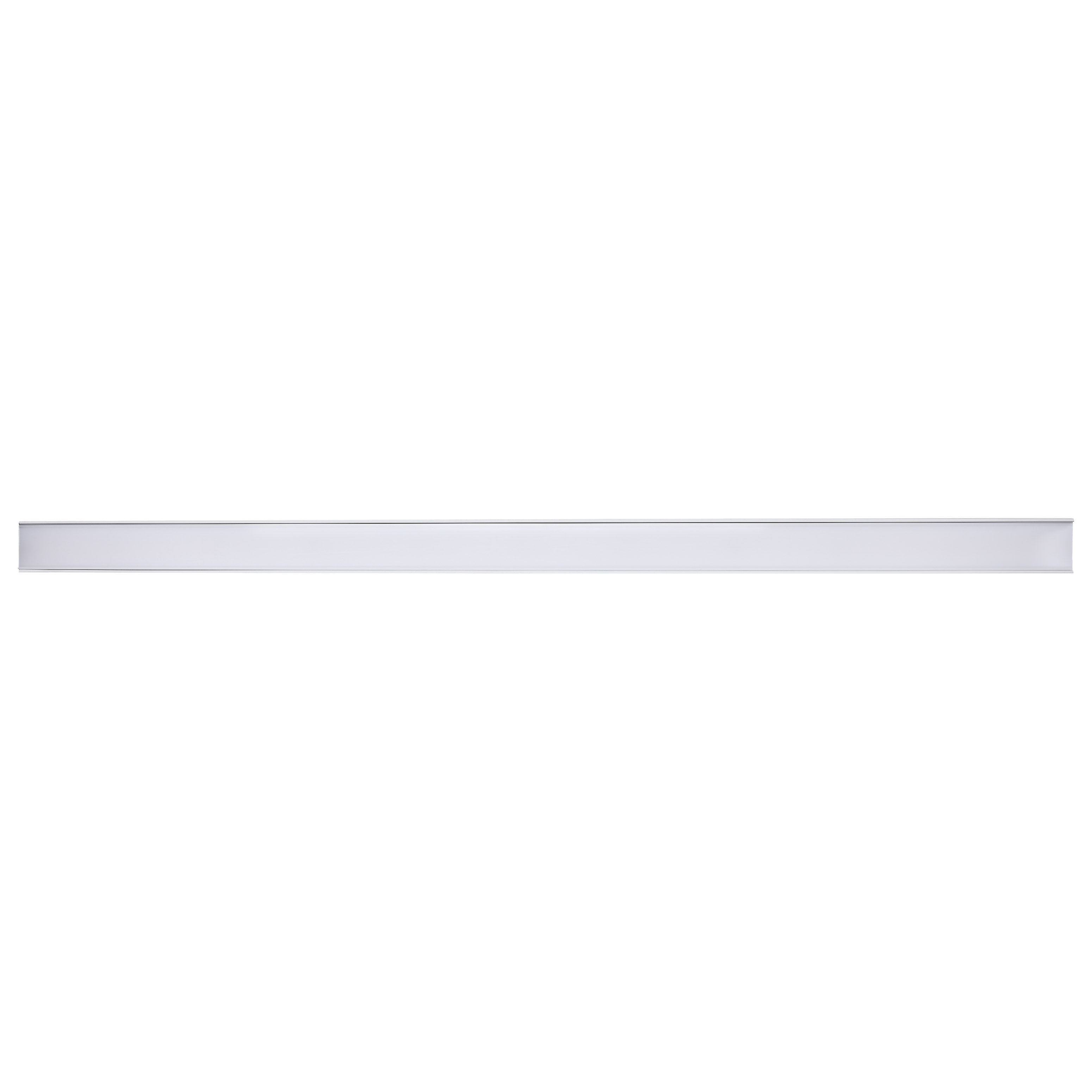

4' LED CONNECTABLE LINEAR

  • Momentum
  • 4 Foot LED Connectable Linear Strip
  • Up and Down Selectable
  • White Finish
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3
65-1181 Specifications65-1181 Photometrics 30W 3000K.ies65-1181 Photometrics 30W 4000K.ies
Tools
Lighting Layout Analysis For 65-1181
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Momentum; 4 Foot LED Connectable Linear Strip; Up and Down Selectable; White Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V
MaterialAluminum
Fixture TypeLinear
Product NotesMax Wattage when connected at 120V: 700W; Max Wattage when connected at 277V: 1400W; Max Wattage when connected at 347V: 1750W
StatusActive
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion11.3%

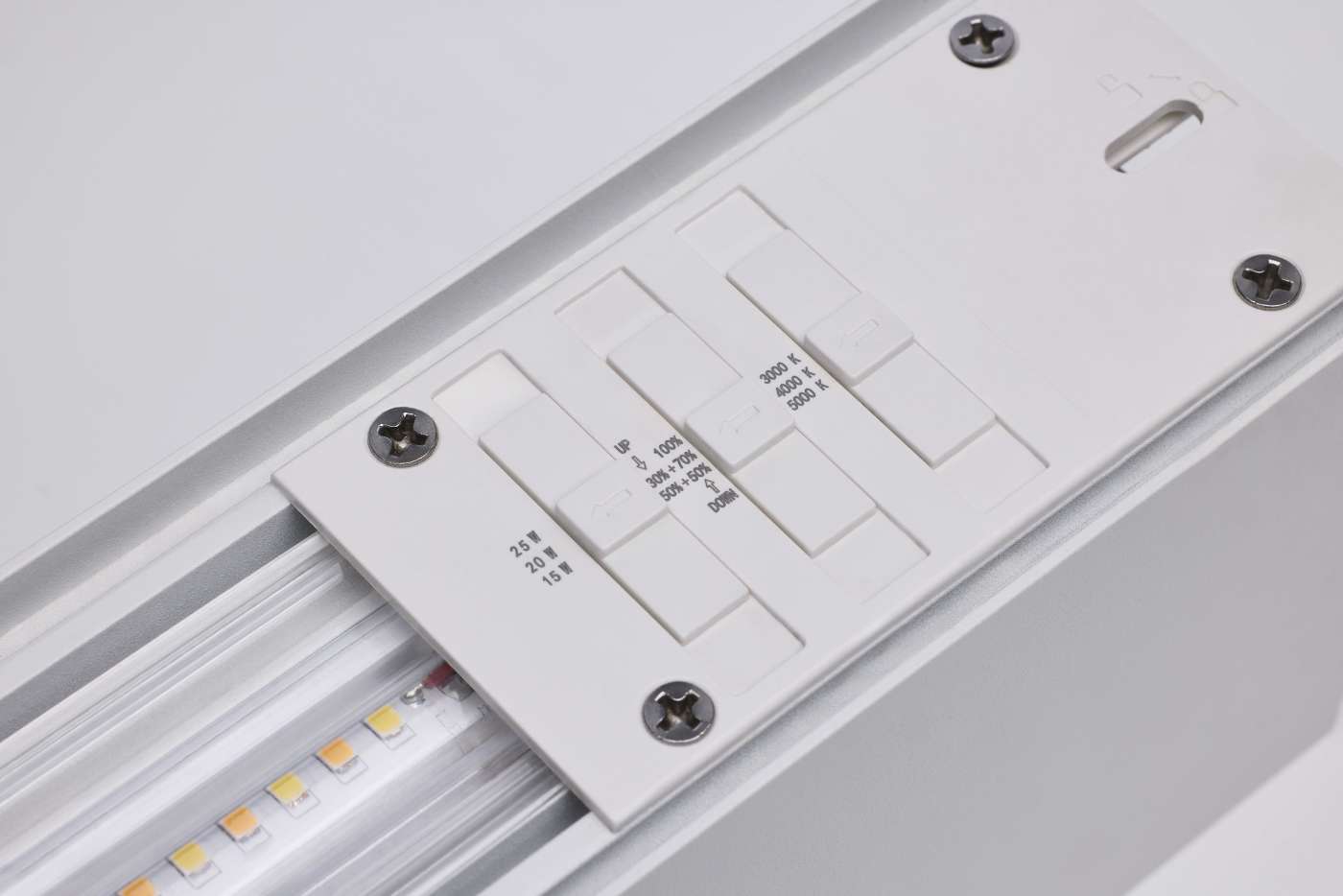

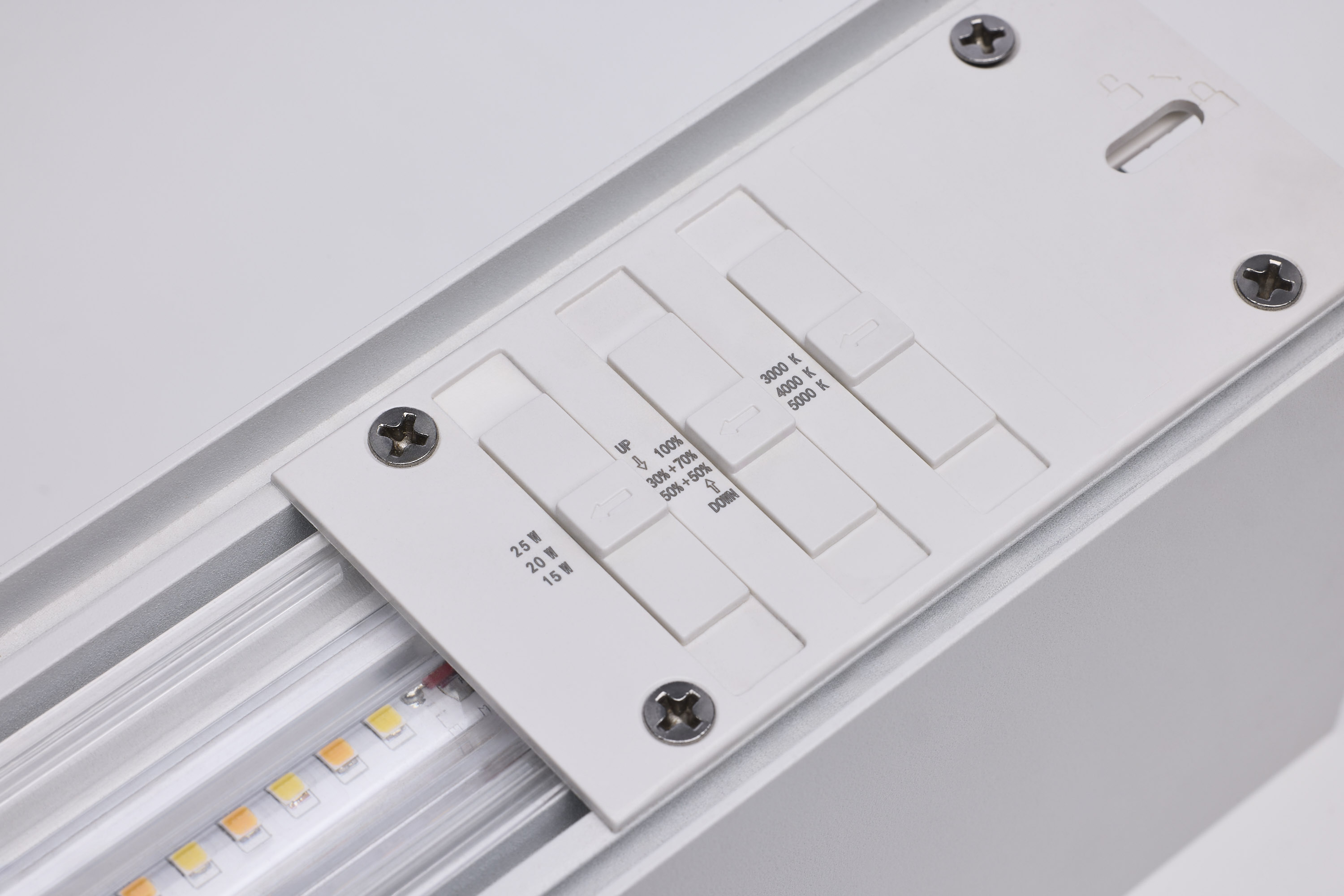

CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Amps0.250-0.086/0.333-0.115/0.417-0.144A
Has CameraNo
IOT EnabledNo
Lens FinishWhite
Lens MaterialPolycarbonate (PC)
LensedYes
Power Factor0.93
Sloped Ceiling CompatibleWhen suspended
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent175W-250W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempSoft White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens3300L/4400L/5500L
Volts120V-347V
Watts30W/40W/50W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeYes
Compliance
CA Prop 65Lead
DLC IDS-RJQBWB
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923654244
Case Cube2.3539
Case Height8.11
Case Length48.98
Case Quantity4
Case UPC10045923654241
Case Weight28.56
Case Width10.24
EA Cube0.4818
EA Height3.66
EA Length48.19
EA Quantity1
EA Weight7.14
EA Width4.72
Inner Cube0.0
Pack TypeBox

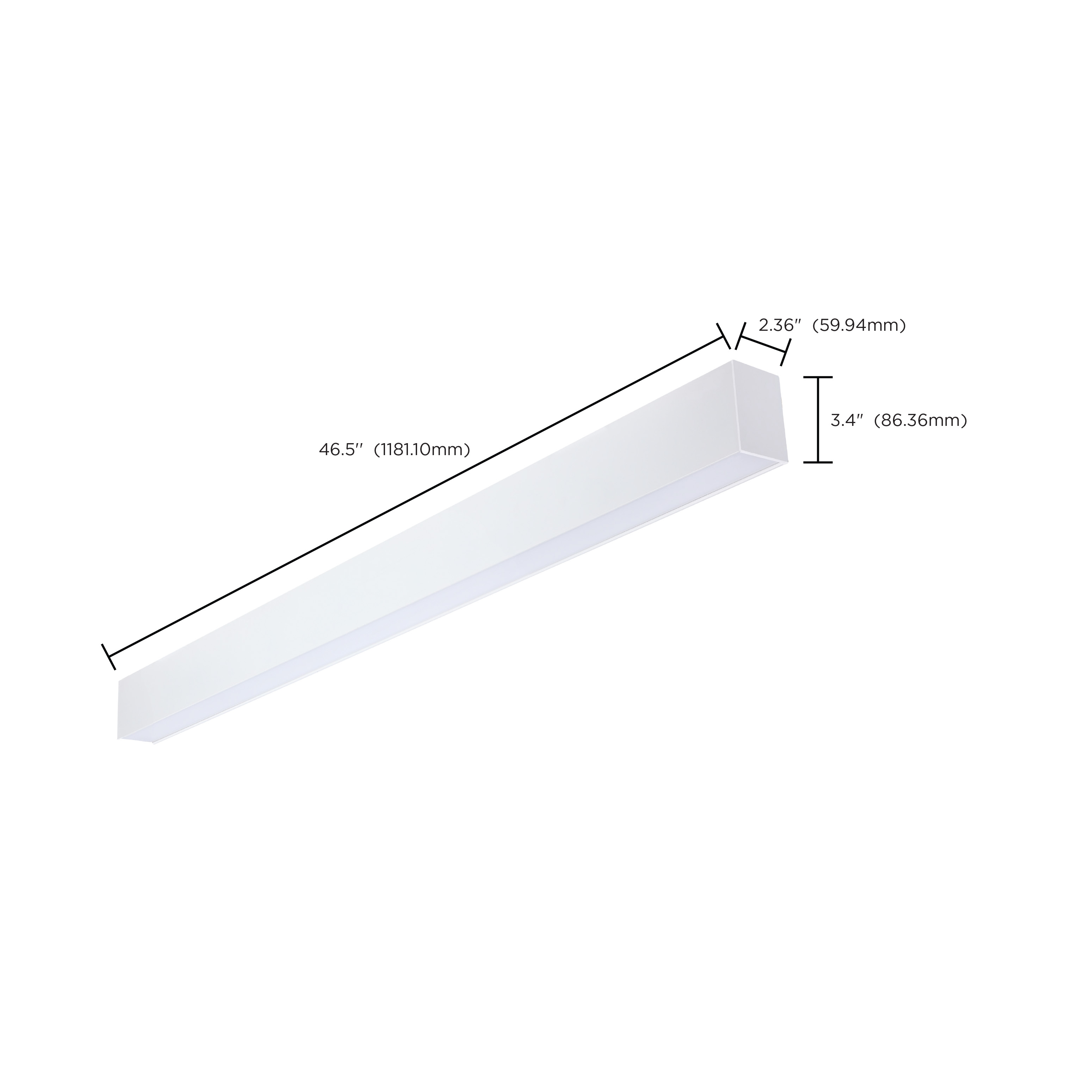

Web Height3.4
Web Length46.5
Web Width2.36
