65-142

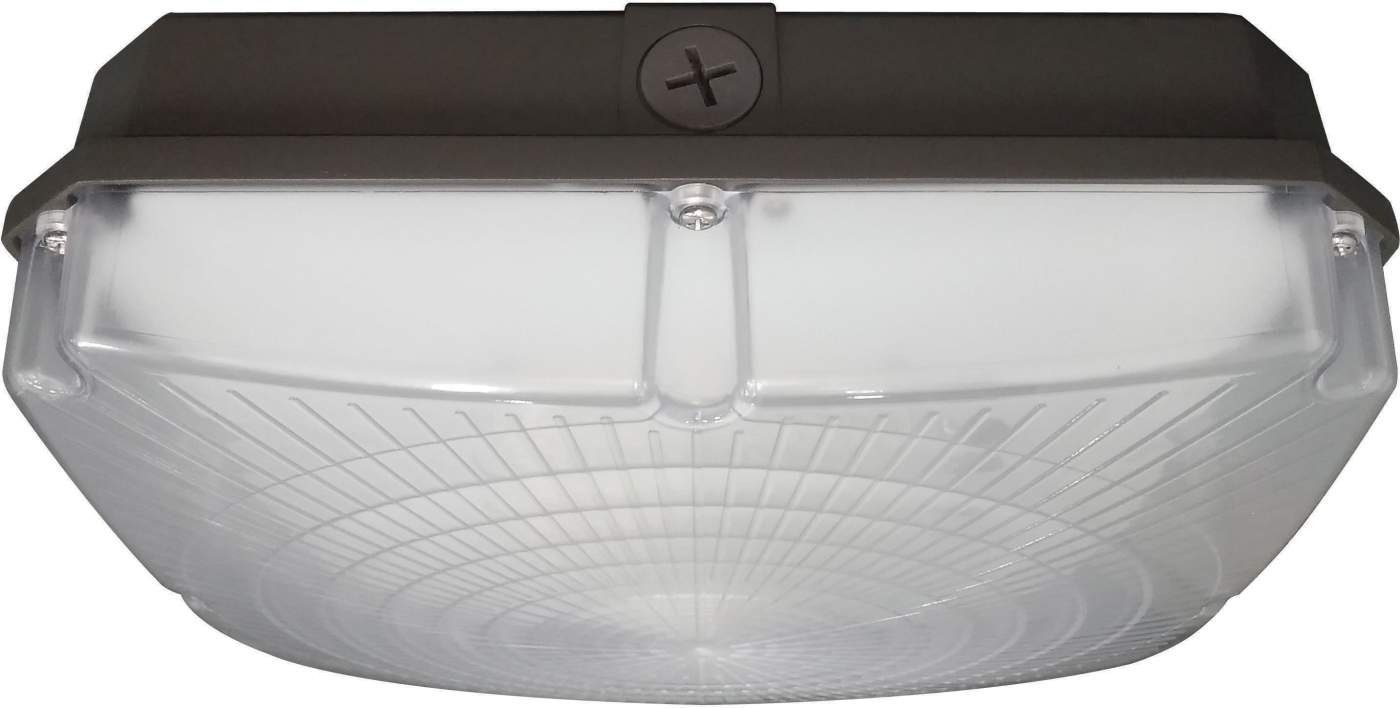

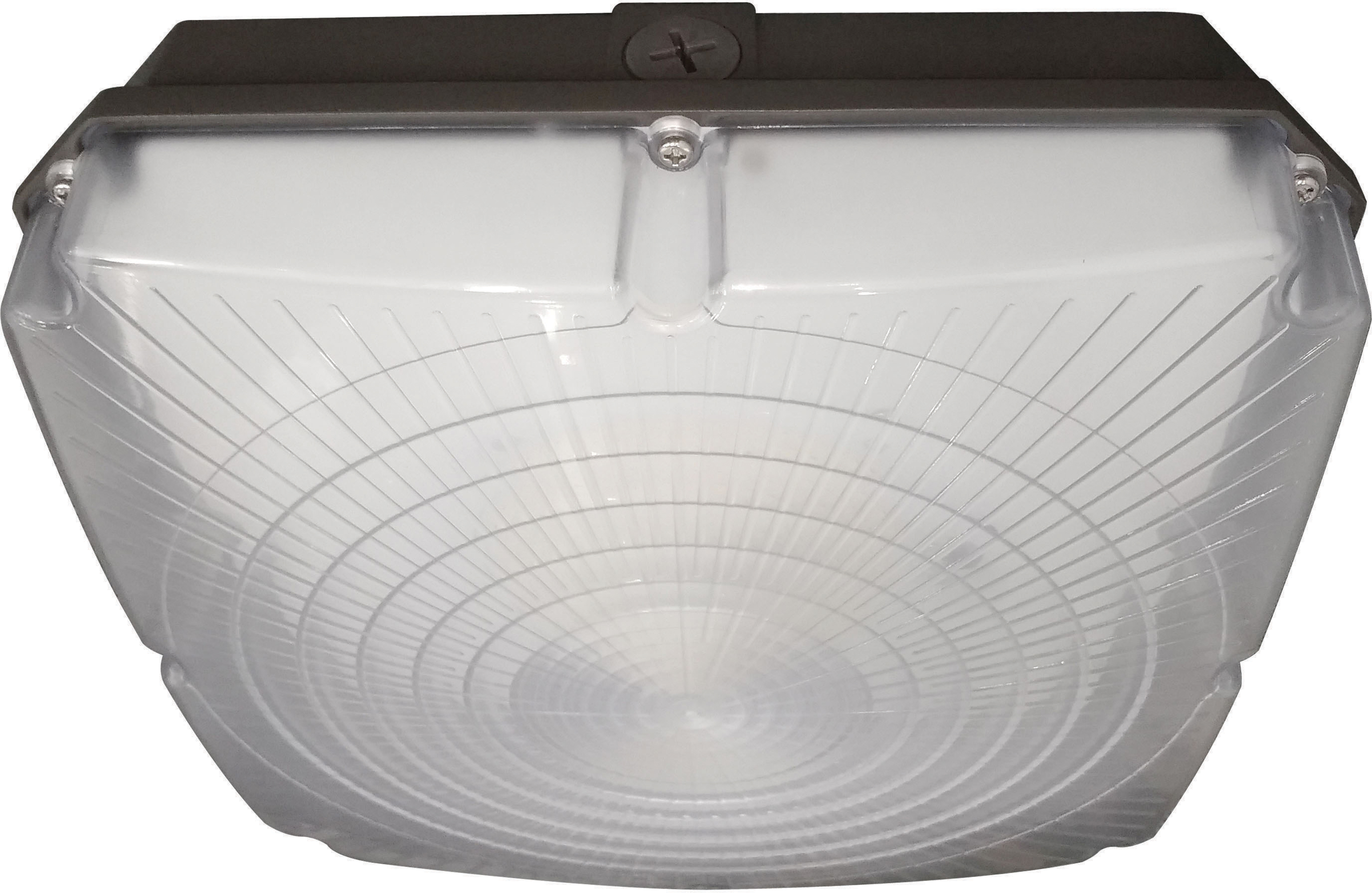

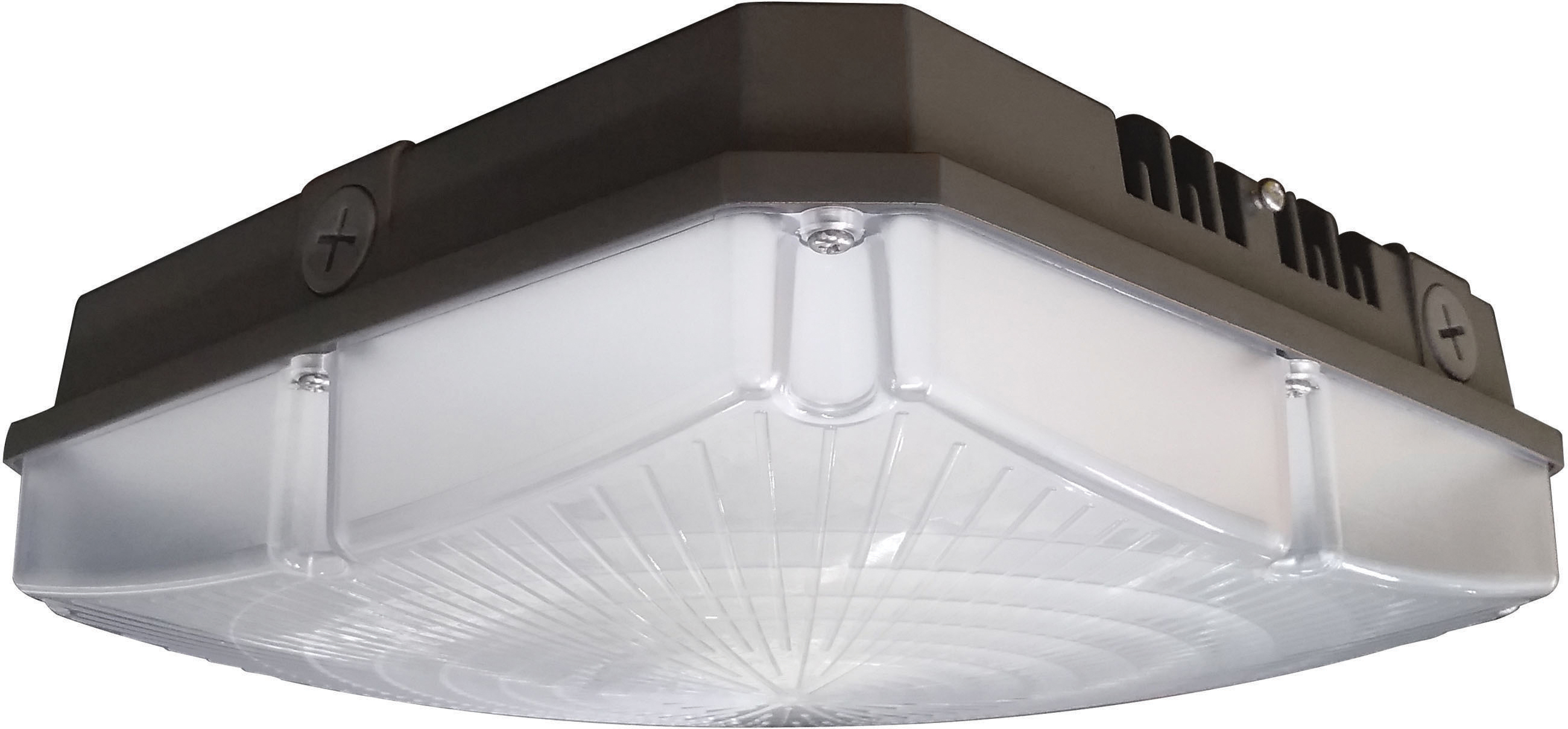

28W LED CANOPY FIXTURE 10"

Suggested Replacement: 65-981
  • LED Canopy Fixture
  • 28W
  • 4000K
  • 120-277V
  • Bronze Finish
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-142 Specifications65-142 Instructions EnSpFr.pdf
Tools
Lighting Layout Analysis For 65-142
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Canopy Fixture; 28W; 4000K; 120-277V; Bronze Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialDie-cast Aluminum
Fixture TypeCanopy
StatusTransitioning
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion10%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyBronze
Additional InfoUV stabilized powder coated finish
Amps0.280-0.101A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Photo CellMultiple Optional Sensors Available
Power Factor0.91
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempCool White
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +104F (-40C to +40C)
Lumens3360L
Volts120V-277V
Watts28W
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB2-U3-G1
CA Prop 65Lead
DLC IDPL3R0SXZZZLM
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923531422
Case Cube2.0625
Case Height12.4
Case Length23.03
Case Quantity4
Case UPC10045923531429
Case Weight24.47
Case Width12.48
EA Cube0.4402
EA Height11.61
EA Length11.89
EA Quantity1
EA Weight5.18
EA Width5.51
Pack TypeBox

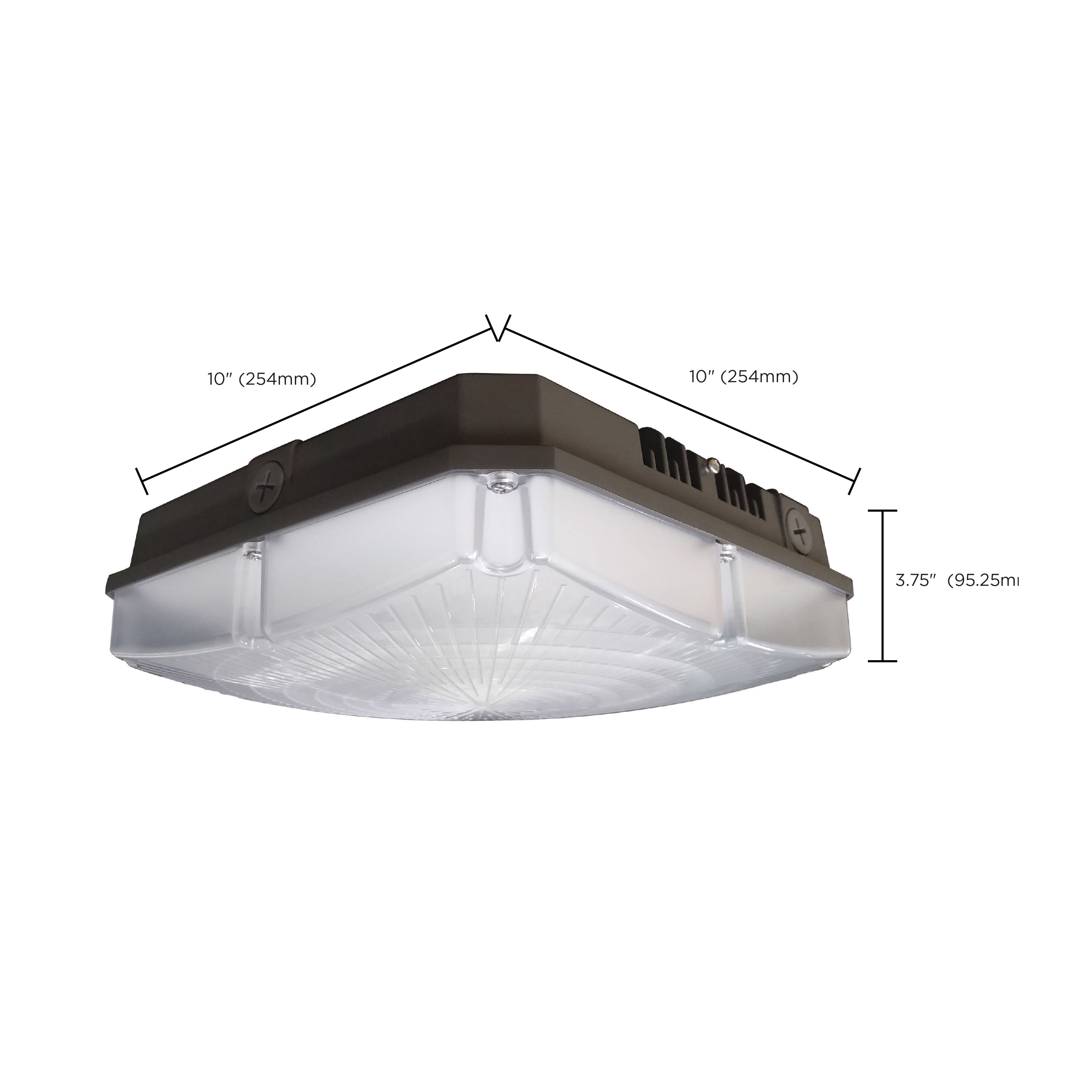

Web Height3.75
Web Length10.0
Web Width10.0
