70W LED CANOPY FIXTURE 10" - 65-148
70W LED CANOPY FIXTURE 10" - 65-148
70W LED CANOPY FIXTURE 10" - 65-148
70W LED CANOPY FIXTURE 10" - 65-148
70W LED CANOPY FIXTURE 10" - 65-148
70W LED CANOPY FIXTURE 10" - 65-148
70W LED CANOPY FIXTURE 10" - 65-148
70W LED CANOPY FIXTURE 10" - 65-148
70W LED CANOPY FIXTURE 10" - 65-148
70W LED CANOPY FIXTURE 10" - 65-148
70W LED CANOPY FIXTURE 10" - 65-148
Description
Description

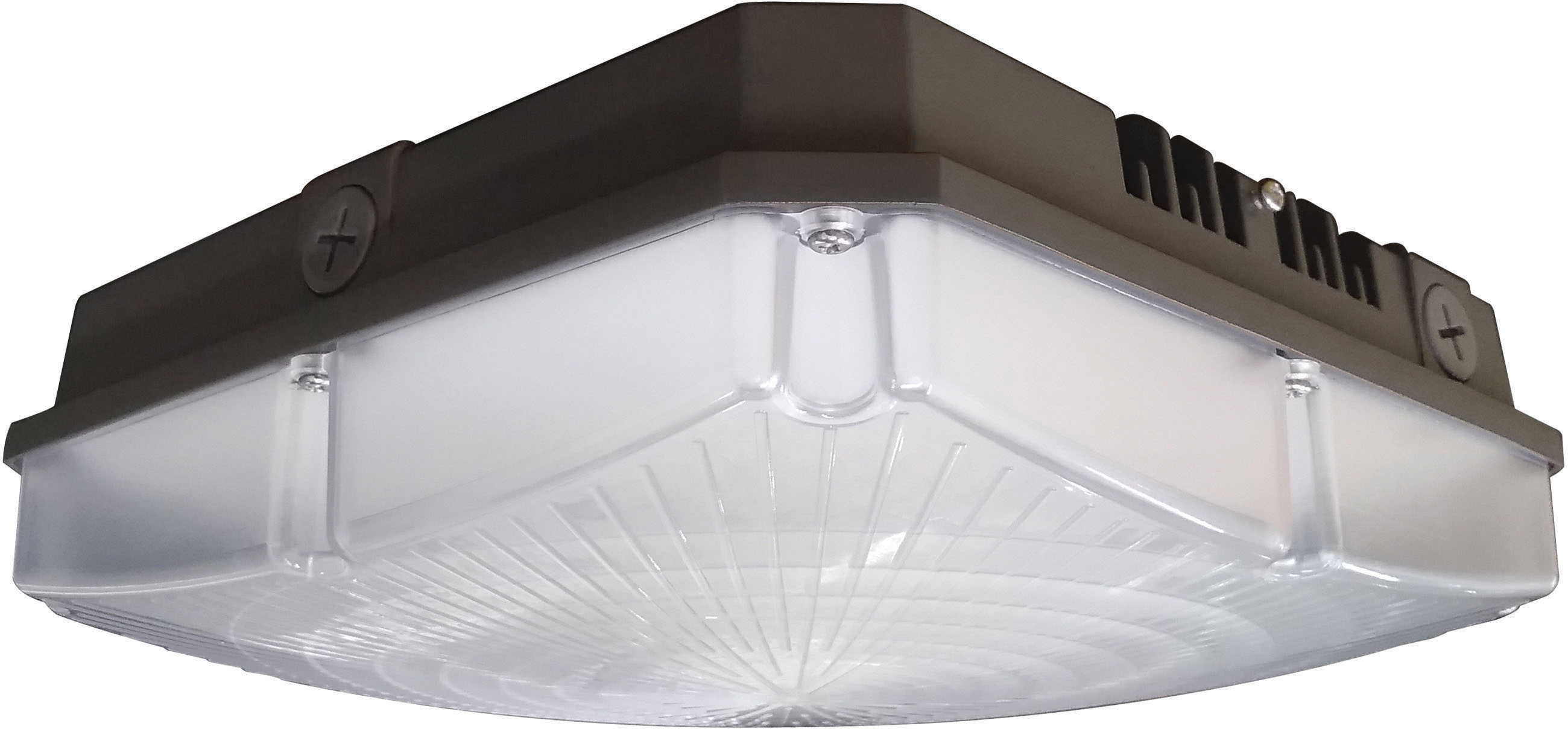

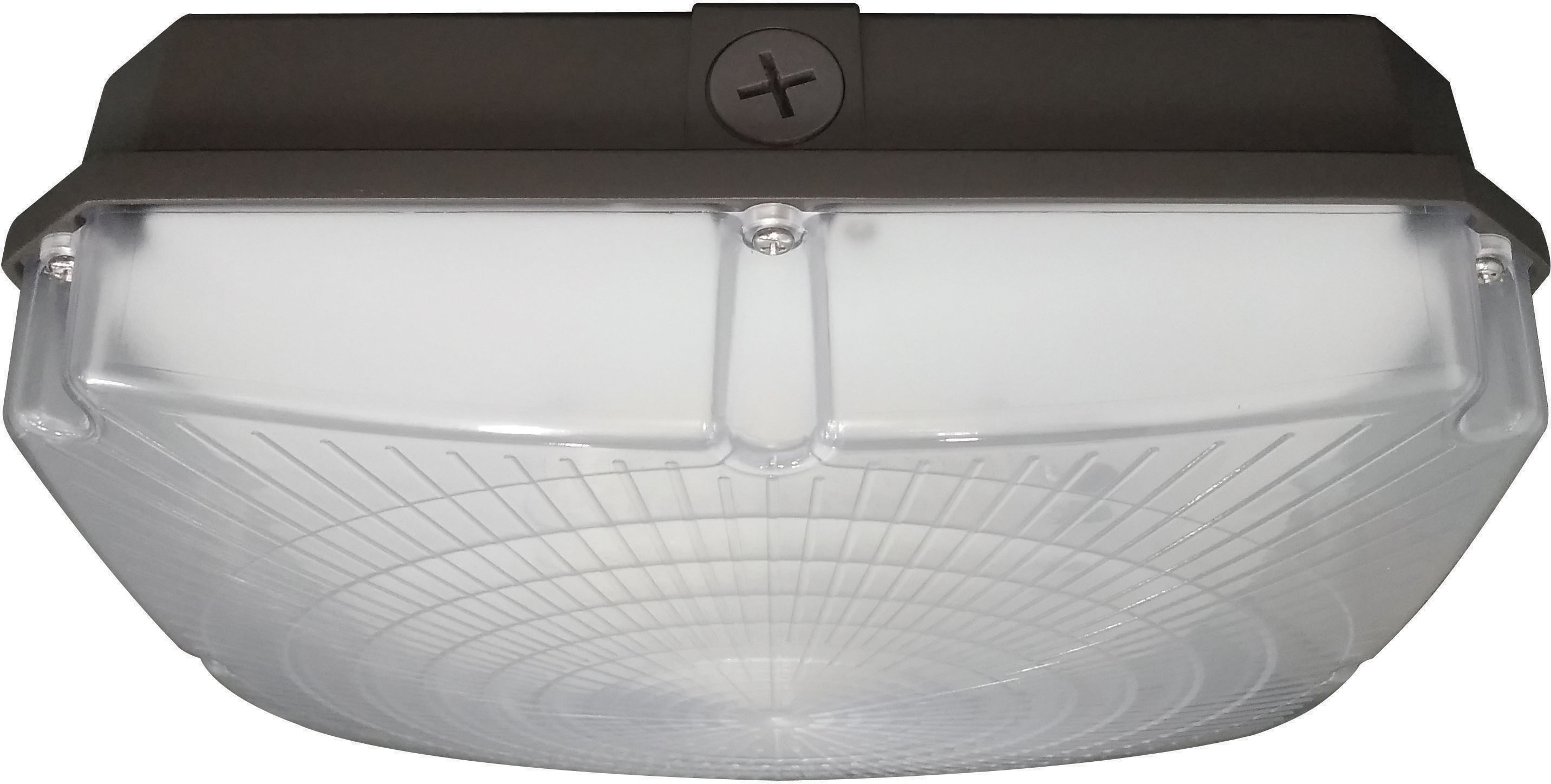

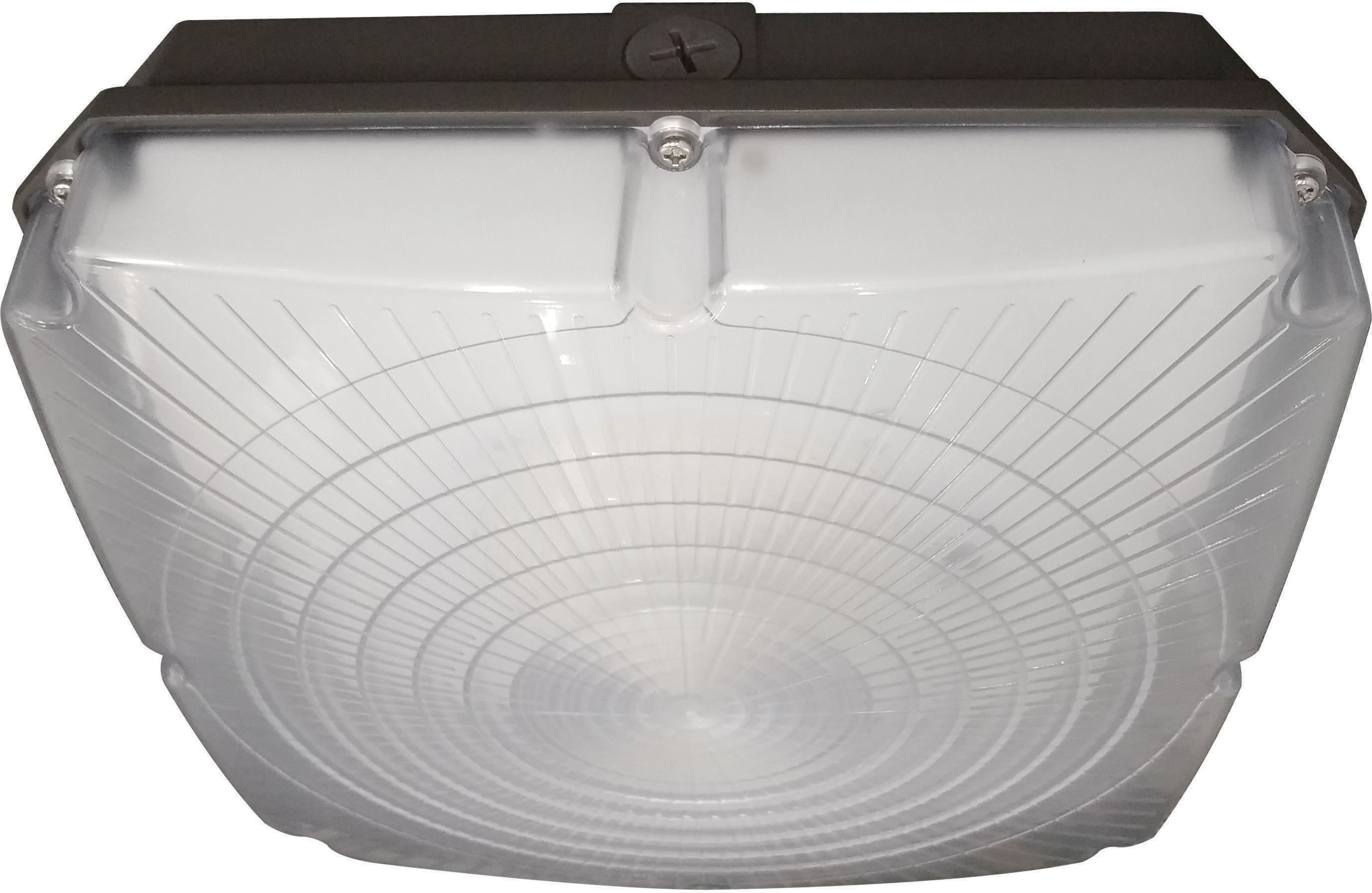

SATCO NUVO's 65-148 70 watt, 10 inch low profile canopy fixture provides broad, even light distribution in all commercial applications. Perfect for commercial or large area lighting applications, this dimmable, square fixture is made of die cast aluminum with a bronze finish. Combining rugged construction and versatility, these canopy lights cover a multitude of applications. At a temperature of 4000 kelvins, this fixture provides 50,000 hours of cool white light.
Products Specs
General
Generational SKU65-981
CompanyNUVO
Bulb IncludedIntegrated
MaterialDie-cast Aluminum
Fixture TypeCanopy
StatusTransitioning
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion10.80%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyBronze
Additional InfoUV stabilized powder coated finish
Amps0.700-0.253A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Photo CellMultiple Optional Sensors Available
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent550W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempCool White
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +104F (-40C to +40C)
Lumens8400L
Volts120V-277V
Watts70W
ConnectionDirect Wired
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Mounting ProcedureCeiling
Additional Info
Warranty5-Years
Compliance
Bug RatingB3-U3-G2
CA Prop 65Lead
DLC IDPLE46C9RR7U7
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923531484
Case Cube2.0625
Case Height12.4
Case Length23.03
Case Quantity4
Case UPC10045923531481
Case Weight27.45
Case Width12.48
EA Cube0.4402
EA Height11.61
EA Length11.89
EA Quantity1
EA Weight5.95
EA Width5.51
Pack TypeBox

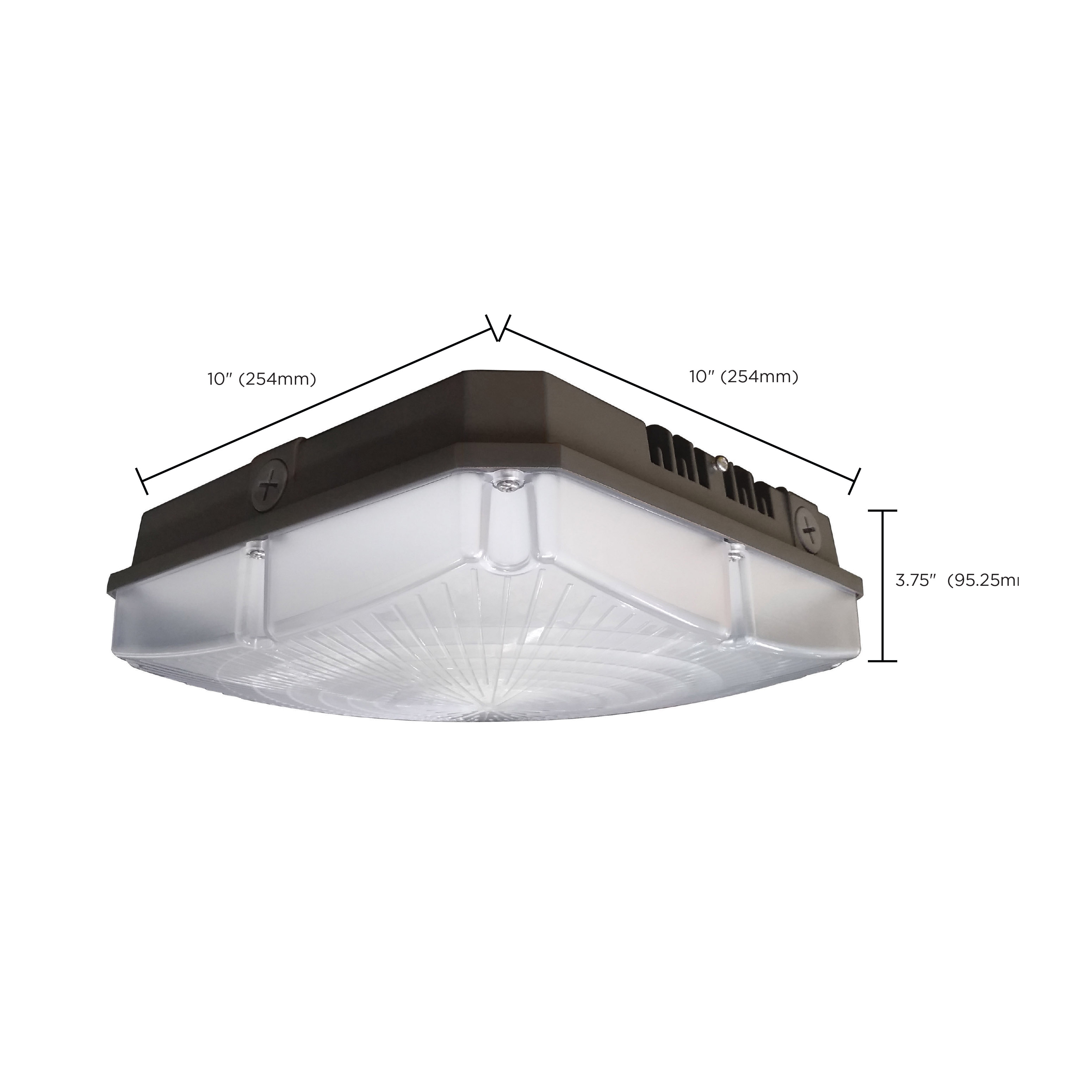

Web Height3.75
Web Length10.0
Web Width10.0
