| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming |
| Material | Die-cast Aluminum |

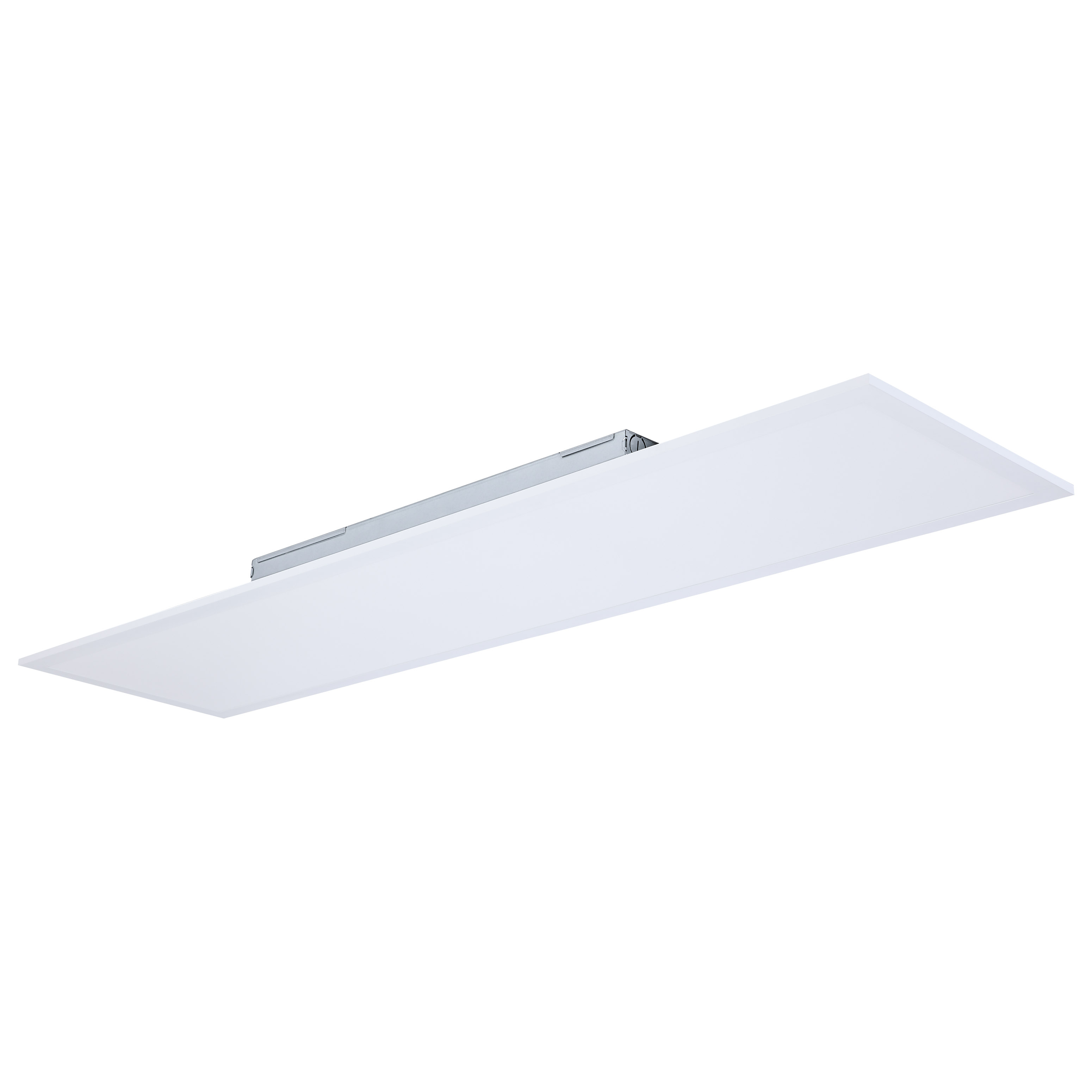

| Fixture Type | Flat Panel |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2KV |
| Total Harmonic Distortion | <20% |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| Finish Family | White |
| Amps | 0.070-0.340A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | White |
| Lens Material | Polystyrene (PS) |
| Lensed | Yes |
| Power Factor | 0.9 |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 200W |

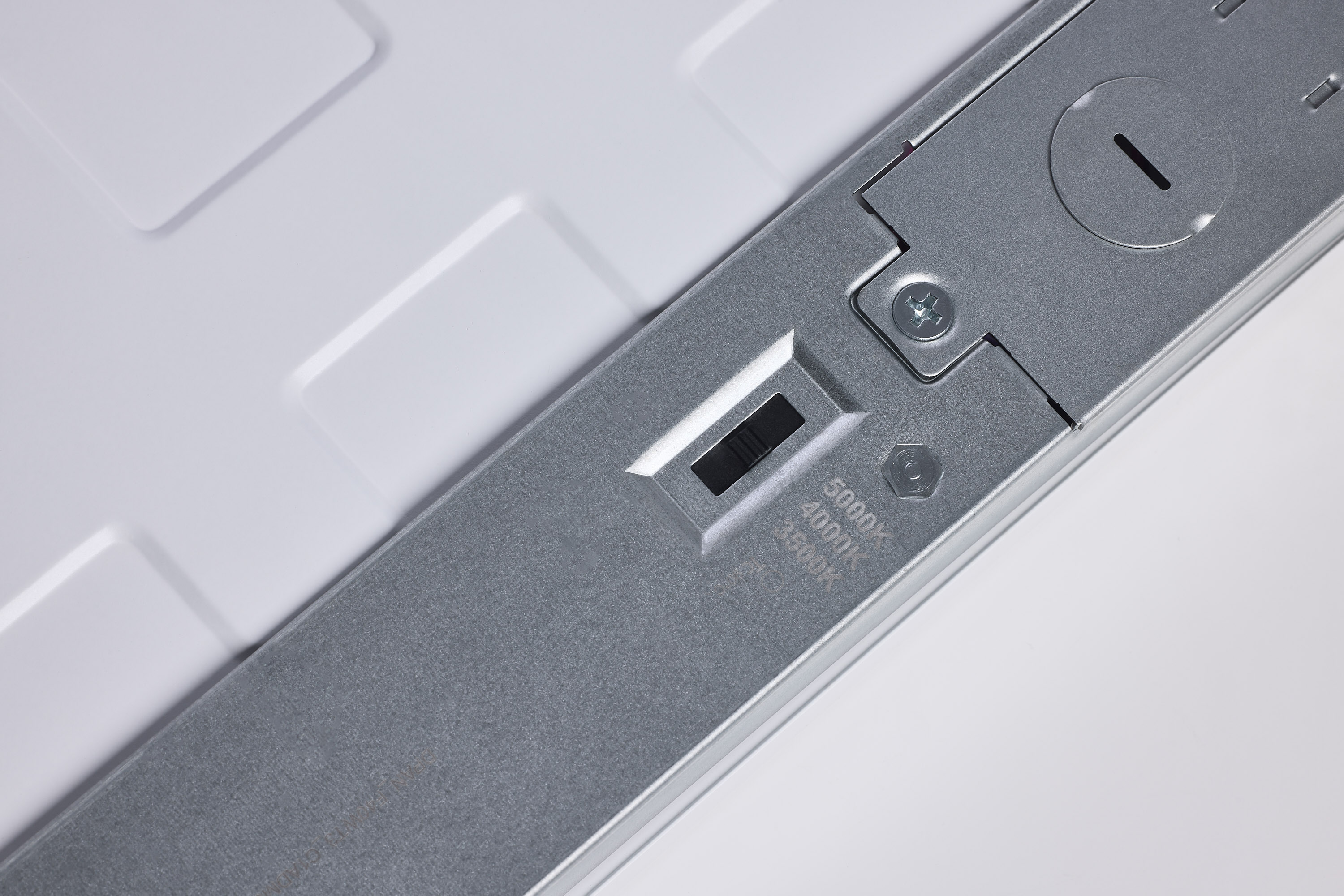

| CCT (Kelvin Temp) | 3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 120 |
| Color Temp | Neutral White to Natural Light |
| CRI | 80+ |
| Dimming Type | 0-10V Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -17C (+1.4F) to +45C (+113F) |
| Lumens | 2500L/3750L/5000L |
| Volts | 120V-277V |

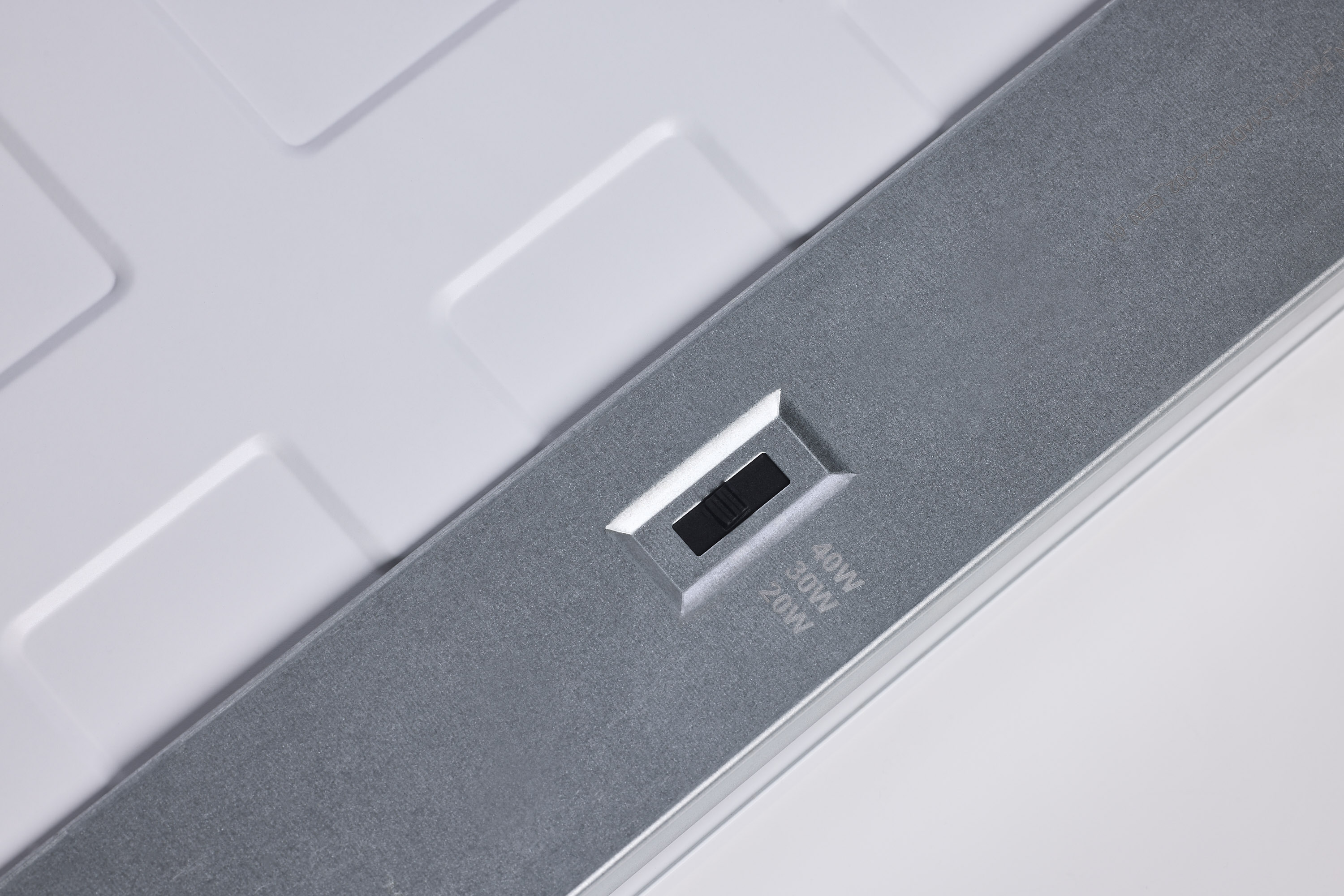

| Watts | 20W/30W/40W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Rectangle |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| DLC ID | S-NBWDB3; S-V1T9RF |
| FCC Compliant | Yes |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| California Ban | Lawful for sale |
| DLC Approved | Yes |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923411793 |
|---|---|
| Case Cube | 1.0217 |
| Case Height | 12.52 |
| Case Length | 48.46 |
| Case Quantity | 2 |
| Case UPC | 10045923411790 |
| Case Weight | 9.83 |
| Case Width | 2.91 |
| EA Cube | 1.0217 |
| EA Height | 12.52 |
| EA Length | 48.46 |
| EA Quantity | 1 |
| EA Weight | 9.83 |
| EA Width | 2.91 |
| Inner Cube | 0.0 |
| Pack Type | Box |

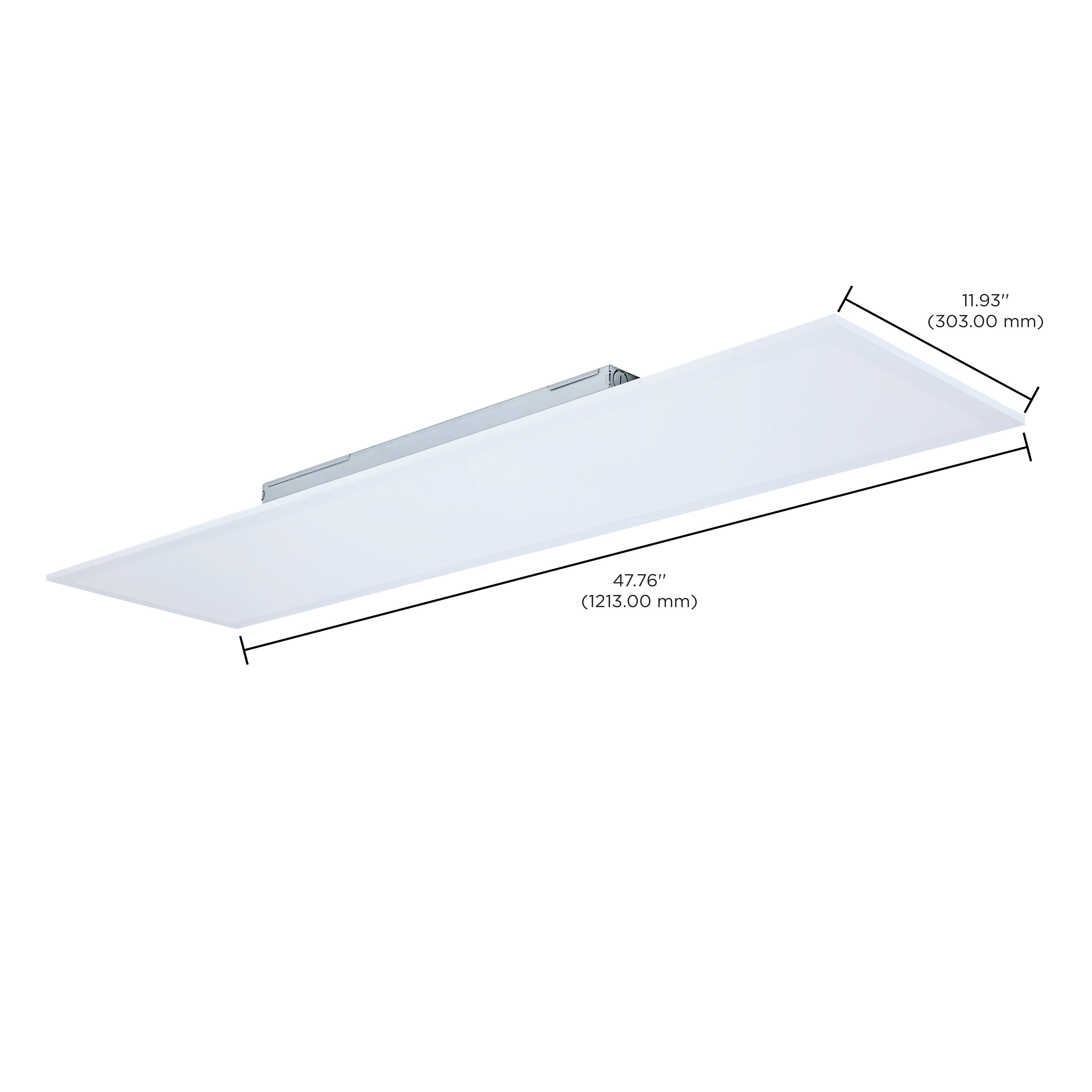

| Web Height | 1.38 |
| Web Length | 47.76 |
| Web Width | 11.93 |
