65-1676

2X4 LED EM BACKLIT FLAT PANEL

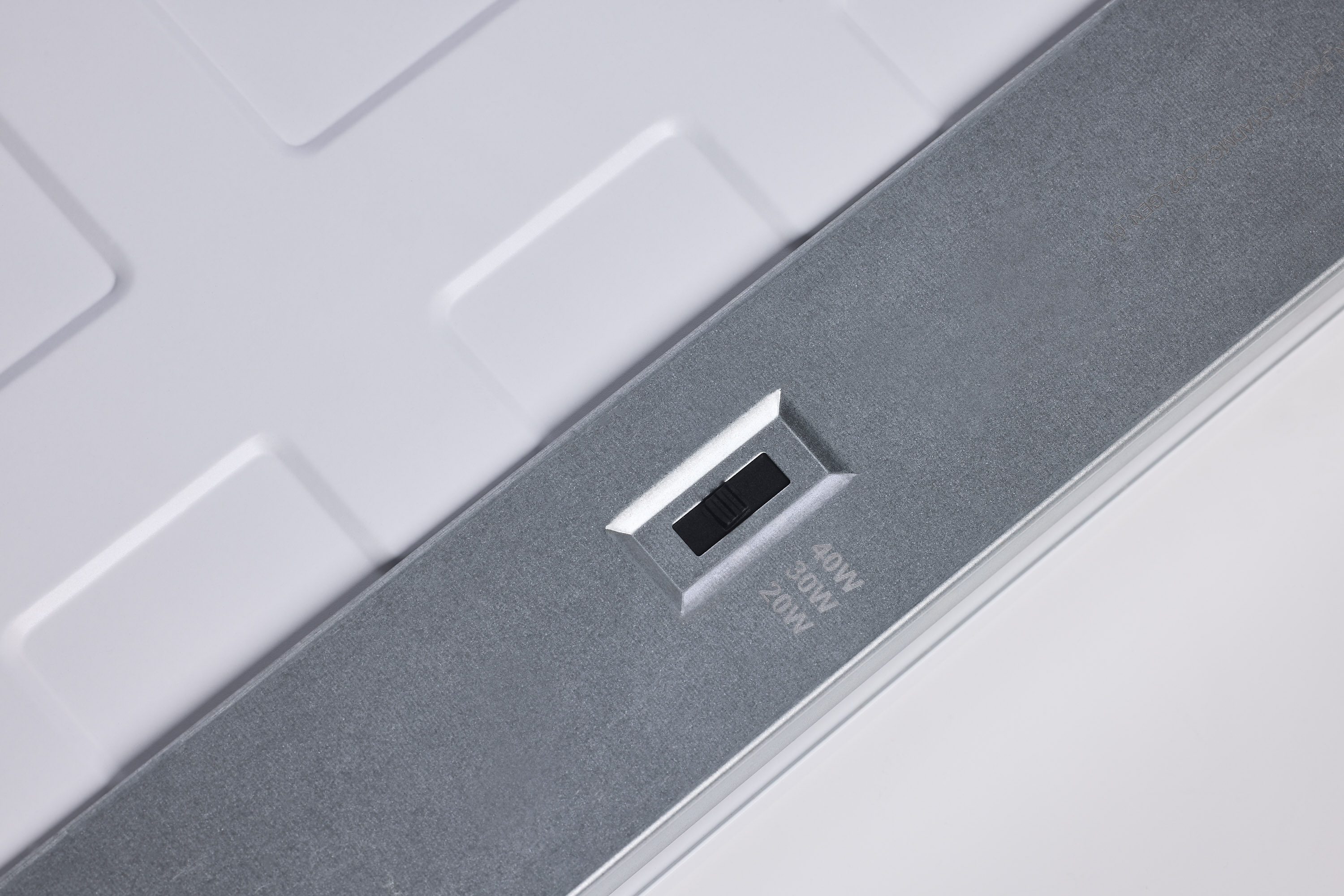

  • 30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel

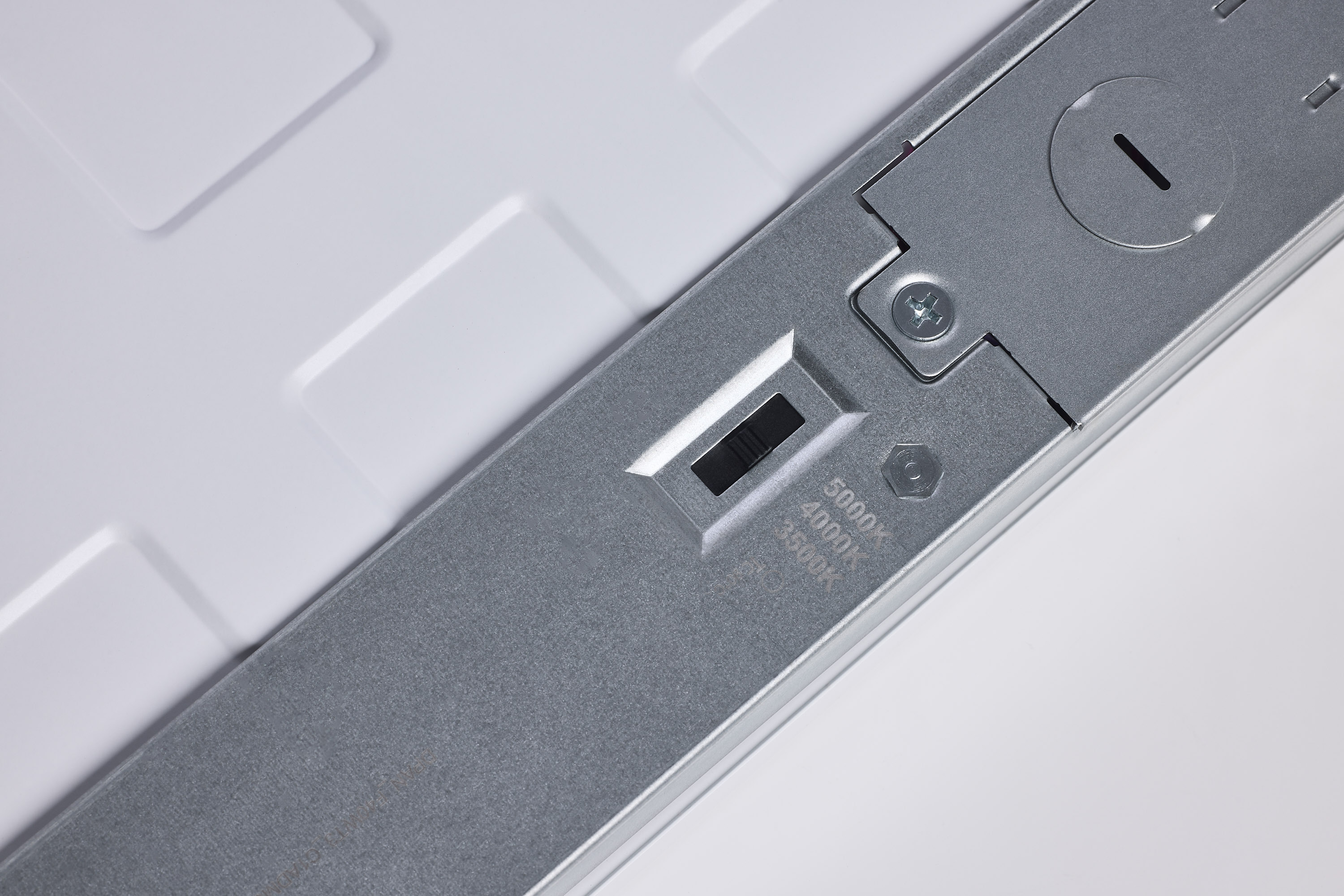

  • 35K/4K/5K CCT Selectable

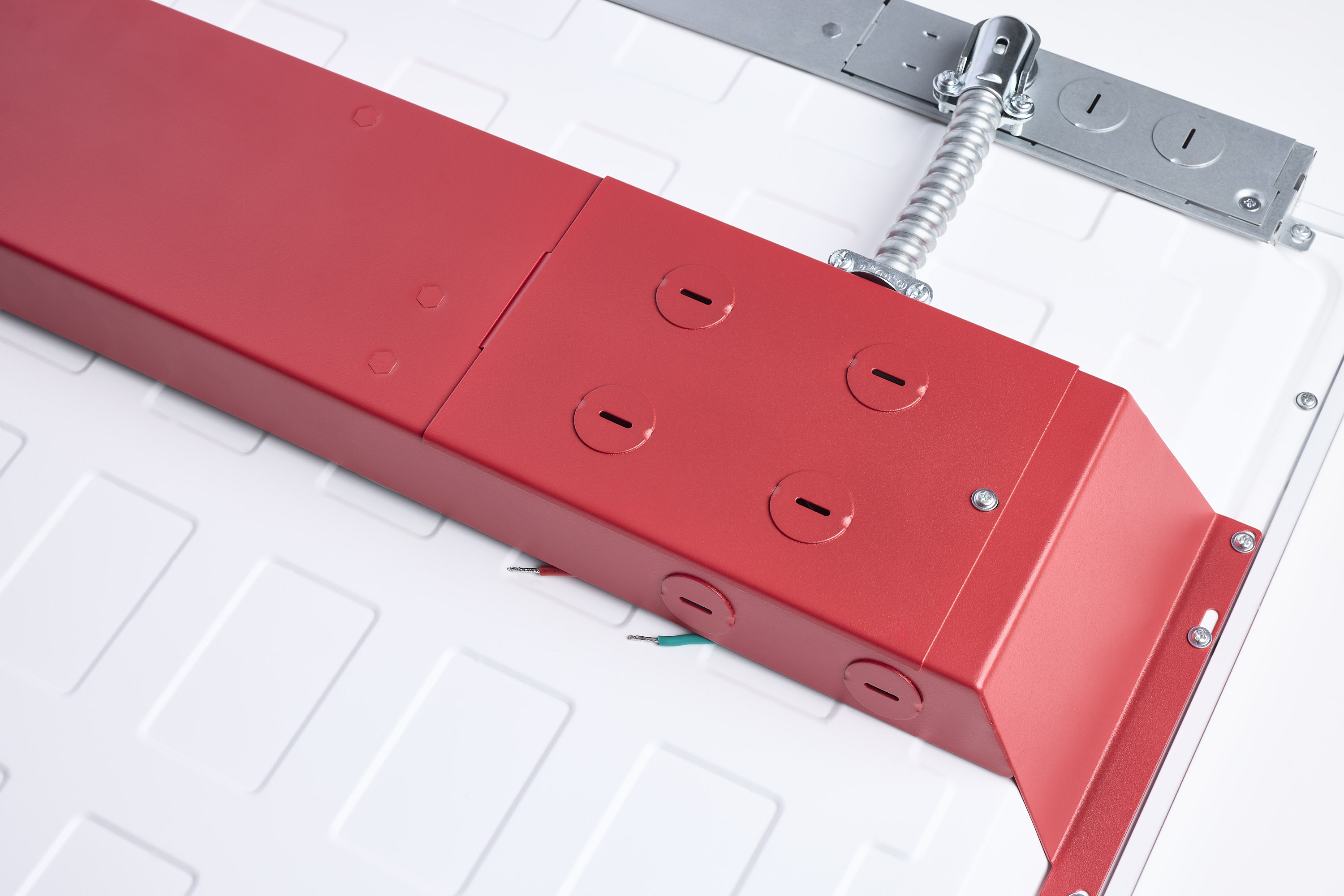

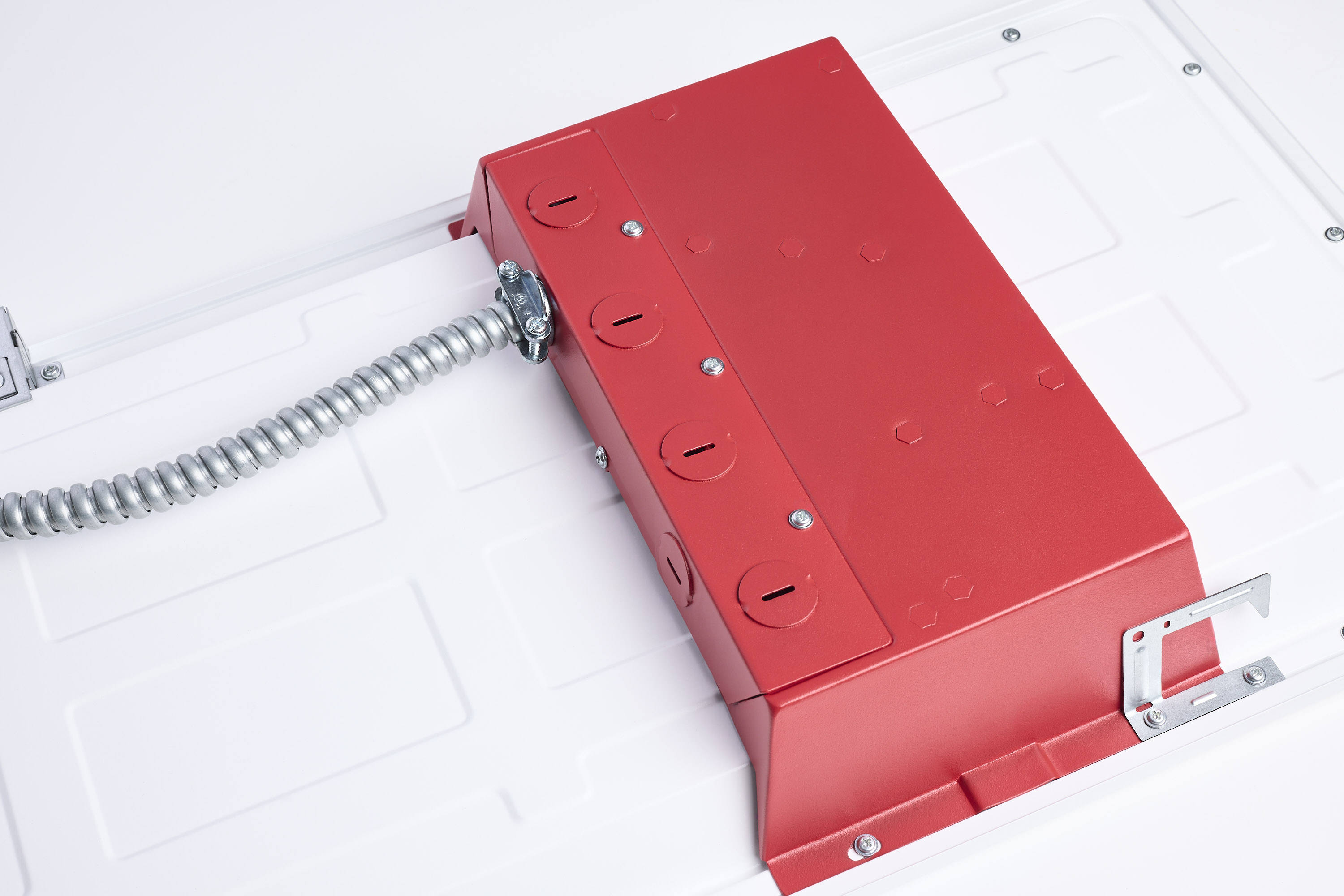

  • Emergency Battery
  • 120-347 Range Voltage
  • White Finish
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
title_20^y^1
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
Description
Description

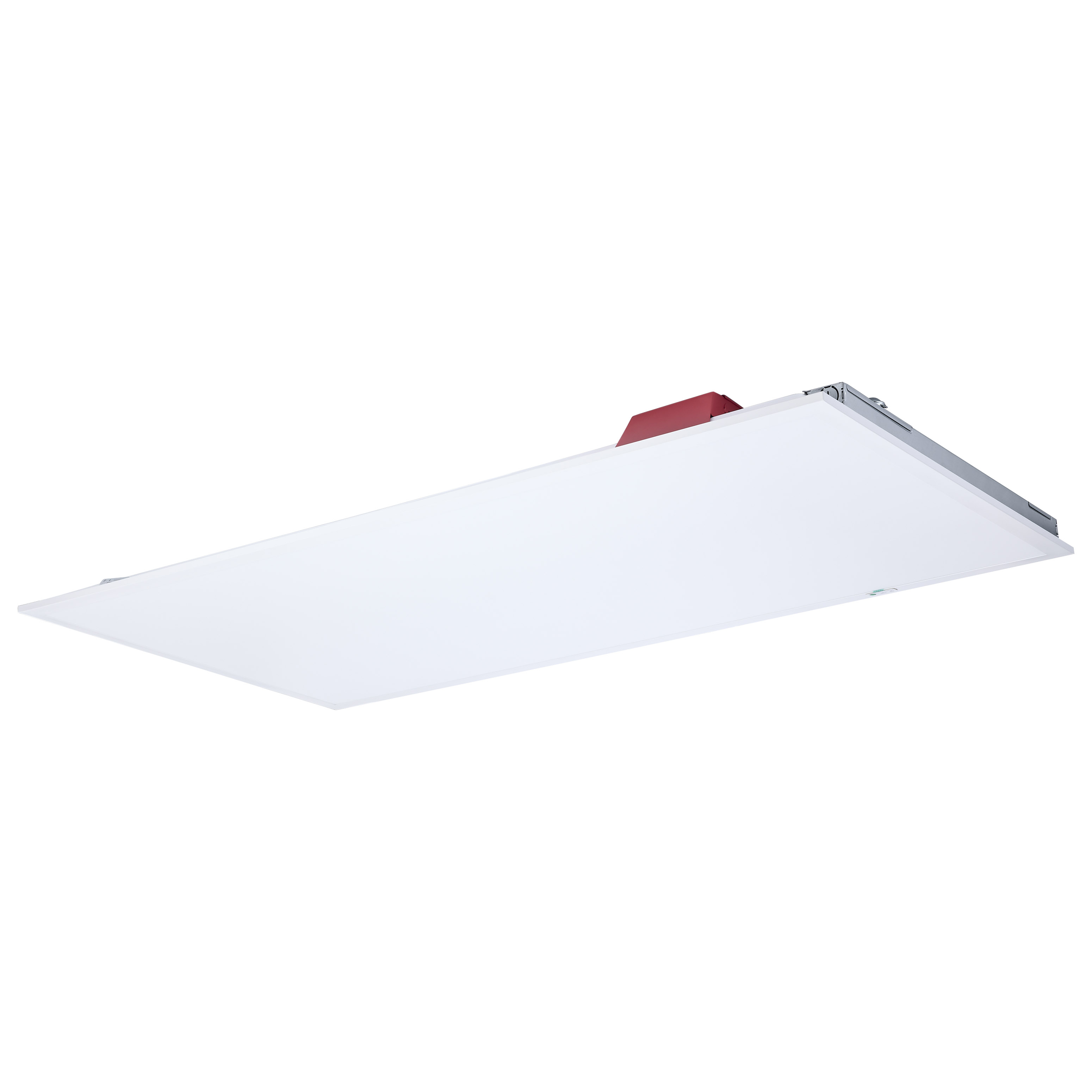

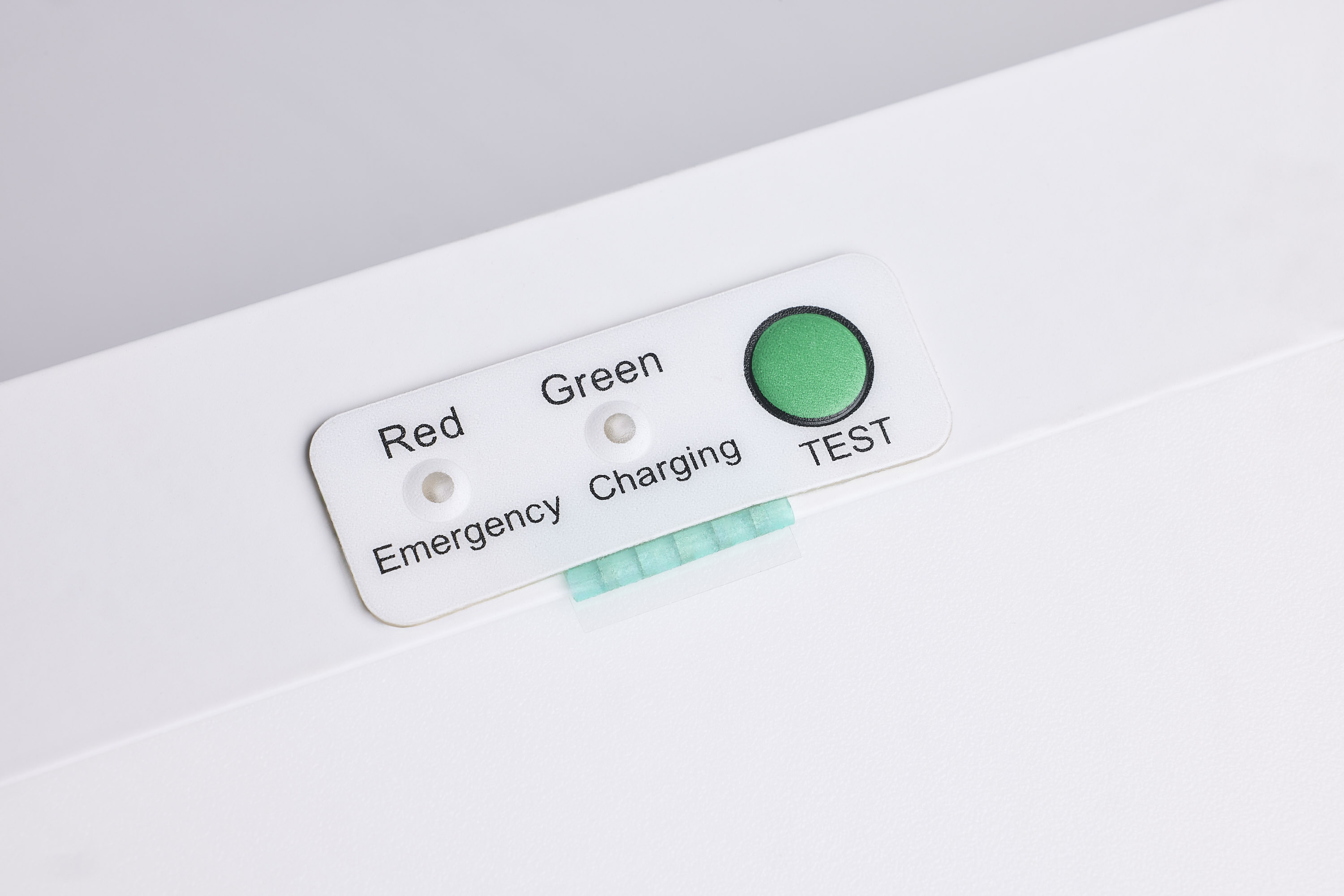

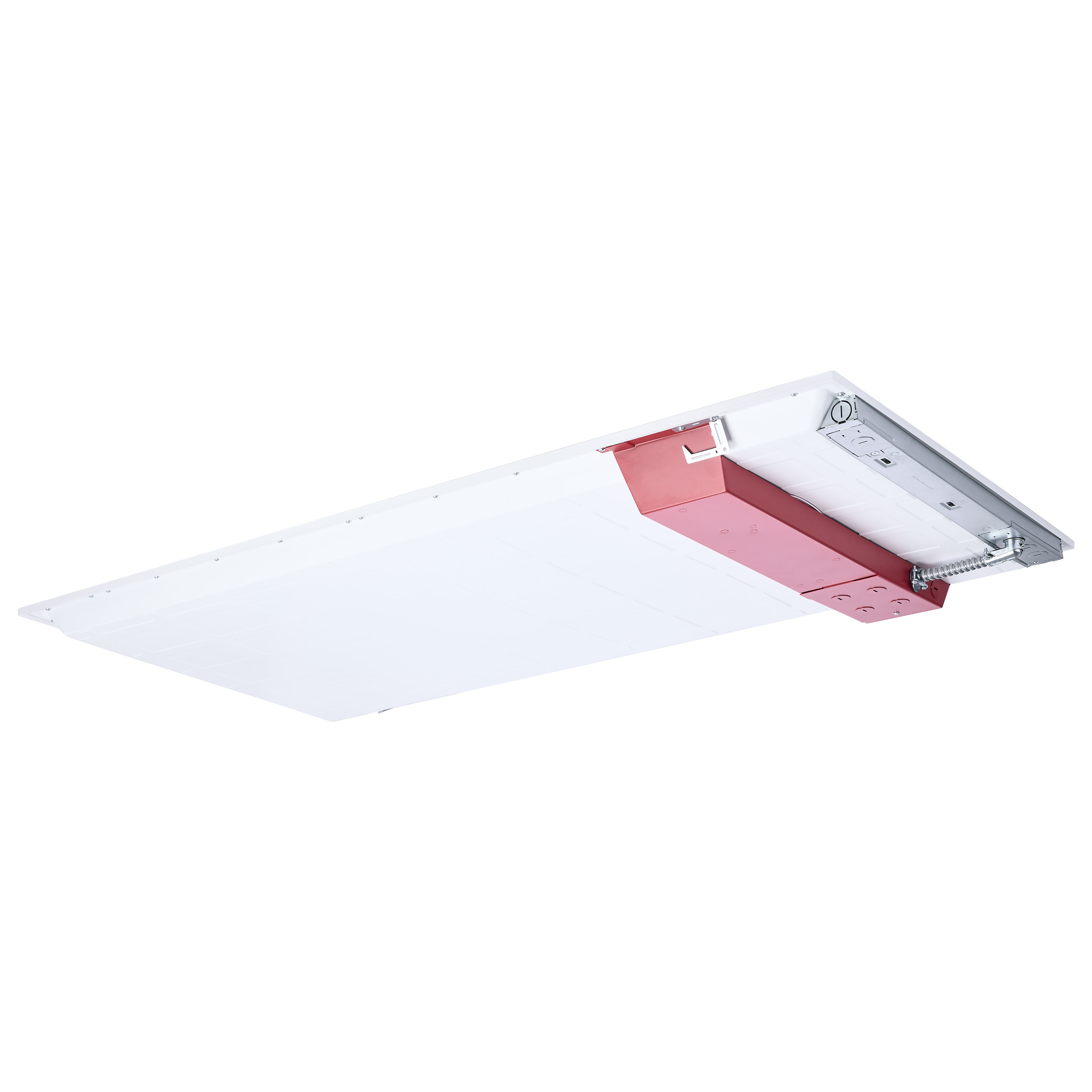

The SATCO NUVO 65-1676 Backlit Panel provides dependable illumination with selectable wattages of 30W, 40W, or 50W and universal voltage operation at 120–347V. This 2x4 model includes an integrated emergency battery that delivers 90 minutes of runtime, with a red battery backup and indicator light for added safety. Offering CCT selectability (3500K/4000K/5000K), the fixture features a steel body, die-cast aluminum trim with seamless corners, and a polystyrene lens for even light distribution. Designed with 0–10V dimming to 10%, it carries an IP20 rating for damp locations. DLC listed, 50,000-hour rated, and supported by a 5-year warranty, this panel ensures efficiency, safety, and lasting value.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialDie-cast Aluminum
Fixture TypeFlat Panel
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Amps0.080-0.420A
Has CameraNo
Integrated FeaturesIntergrated Battery Backup
IOT EnabledNo
Lens FinishWhite
Lens MaterialPolystyrene (PS)
LensedYes
Power Factor0.9
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent250W
Battery Discharge Time Minutes90
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempNeutral White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp+1.4F to +113F (-17C to +45C)
Lumens3750L/4500L/6250L
Volts120V-347V
Watts30W/40W/50W
Max Lumens6250L
ConnectionHardwire
Charge Time24hr
Battery ChemistryLiFePO4
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Mounting ProcedureCeiling
Additional Info
Warranty5-Years
Compliance
CA Prop 65Lead
DLC IDS-PDB3QM; S-89HZRC
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Yes
T24/JA8 CompliantNo
Packaging
UPC045923411878
Case Cube2.0249
Case Height24.69
Case Length48.7
Case Quantity1
Case UPC10045923411875
Case Weight12.76
Case Width2.91
EA Cube2.0249
EA Height24.69
EA Length48.7
EA Quantity1
EA Weight12.76
EA Width2.91
Pack TypeBox

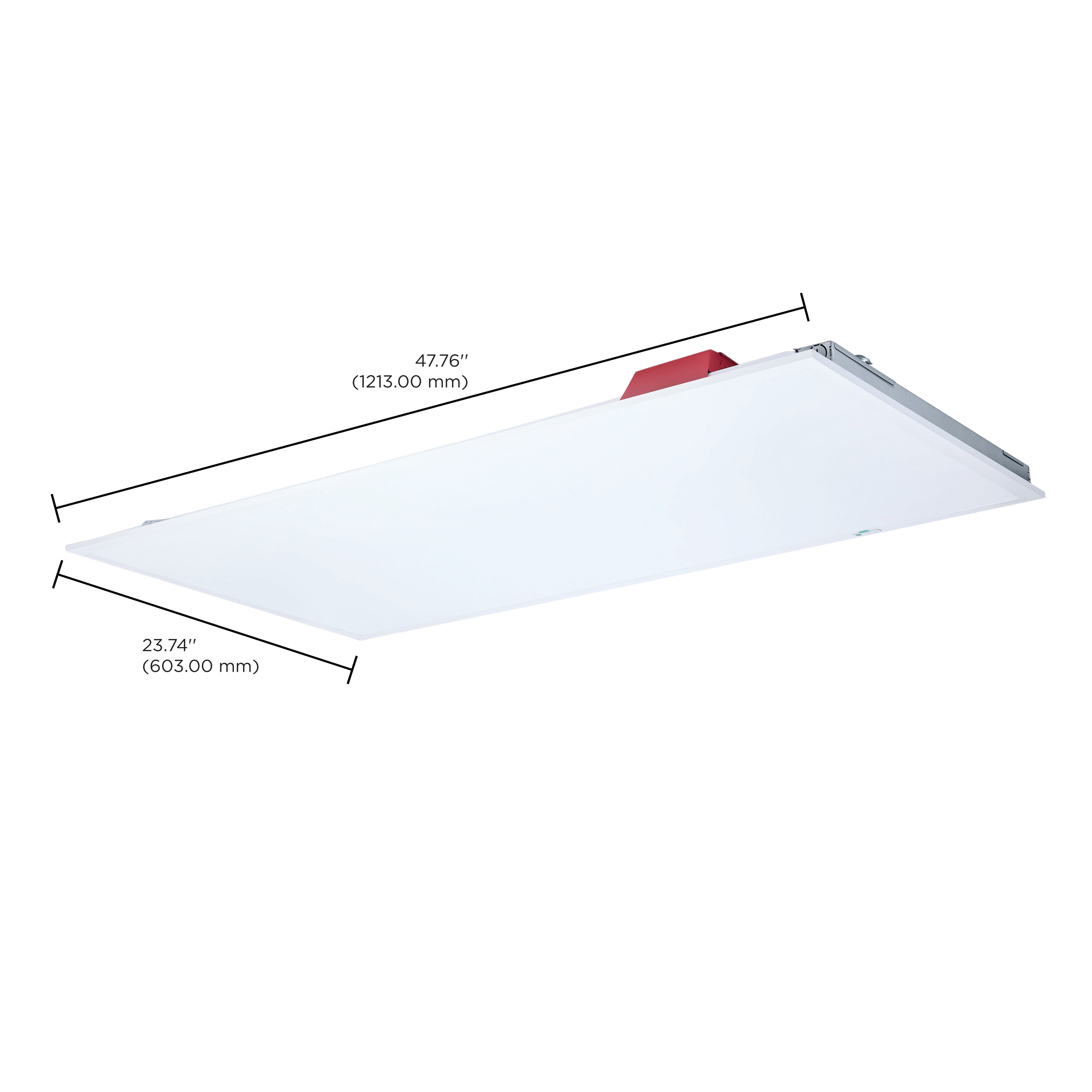

Web Height2.6
Web Length47.76
Web Width23.74
