Status | Active |

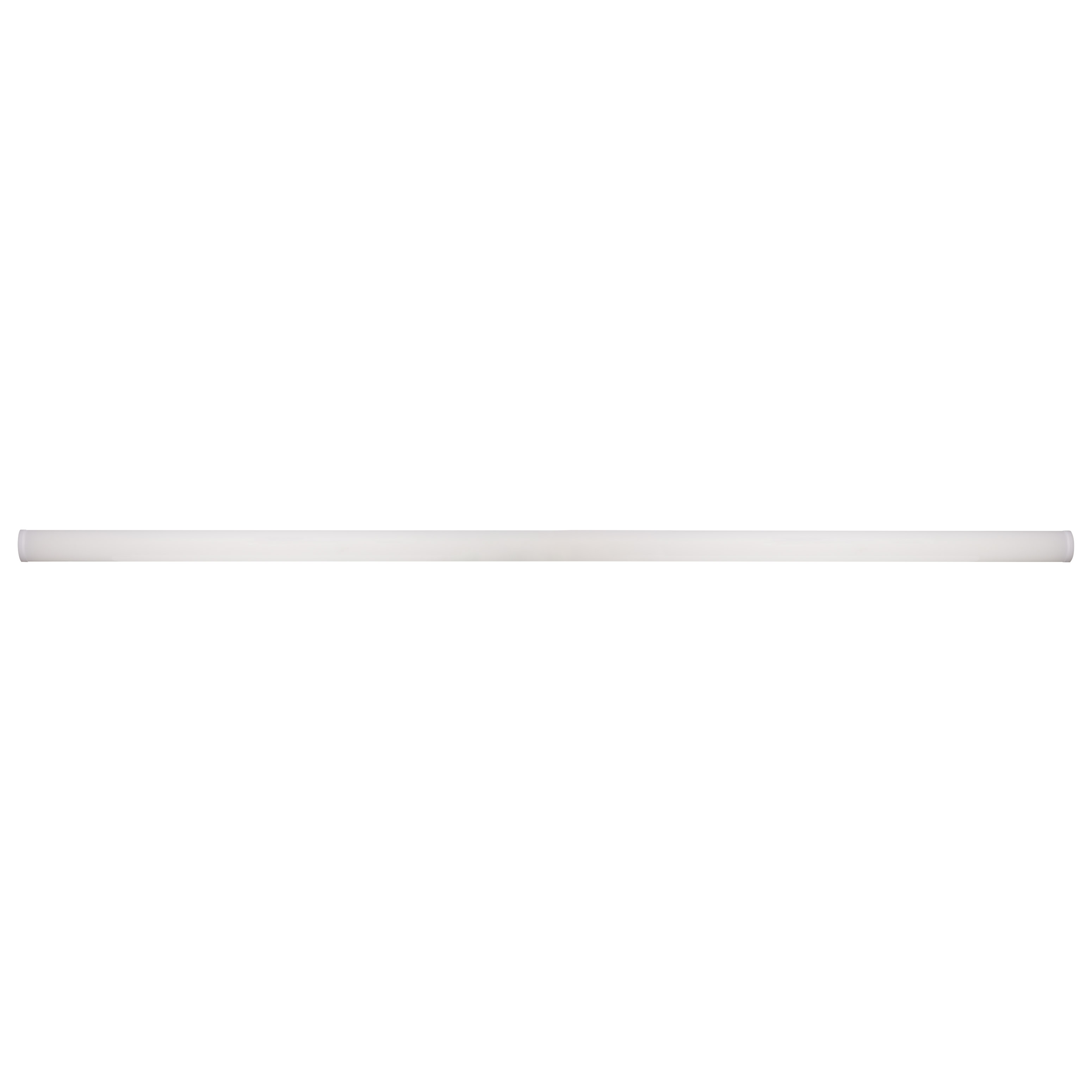

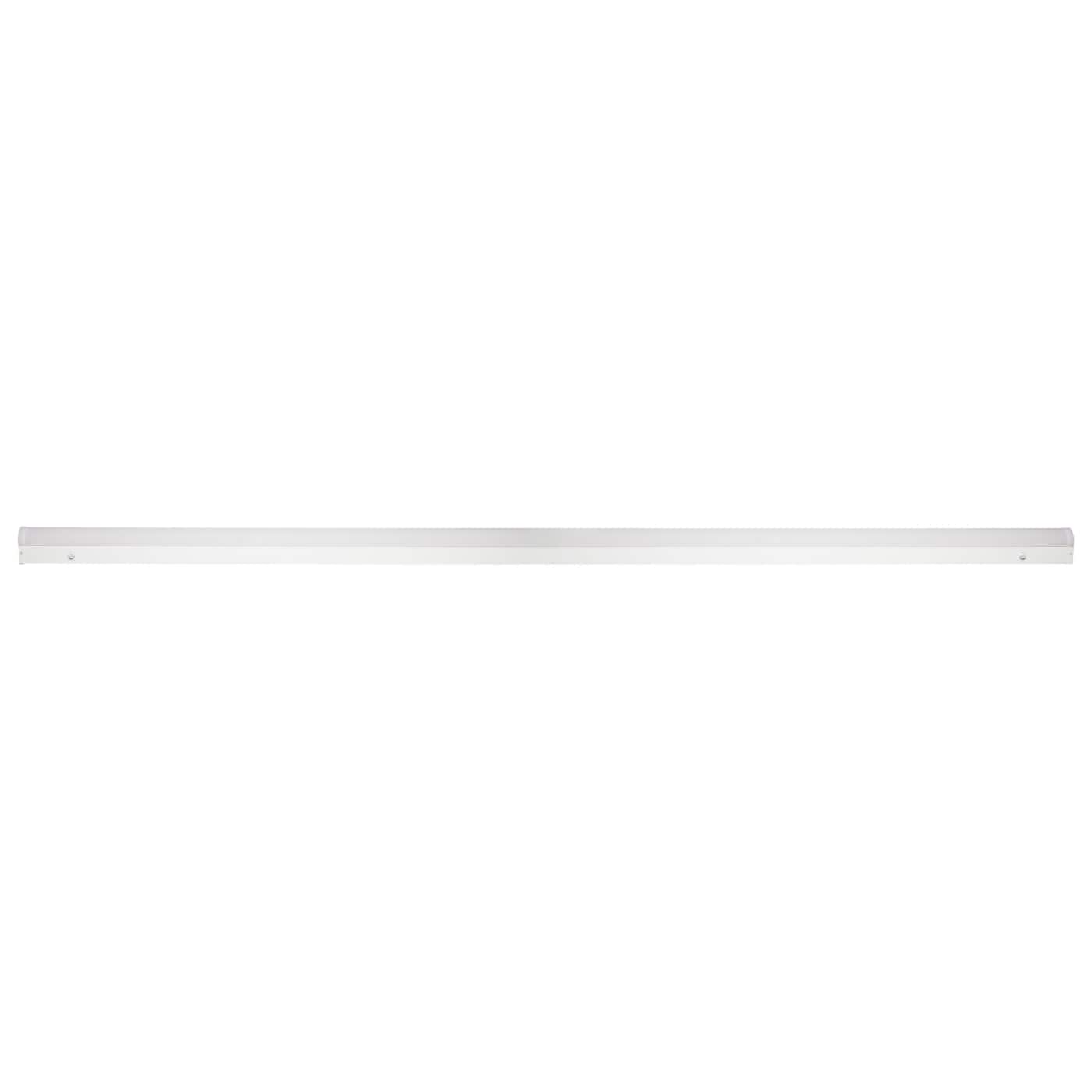

Fixture Type | Strip Light |
Finish | White |

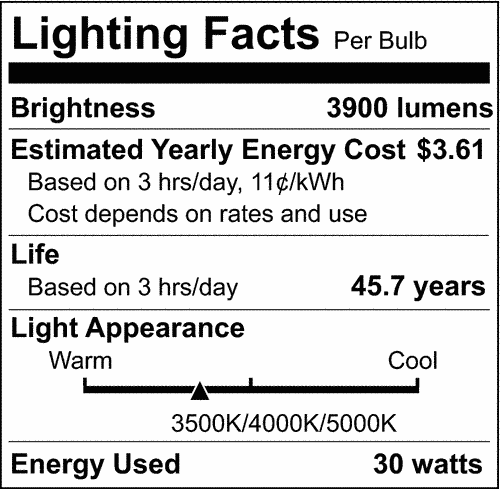

Wattage | 30W/40W/50W |
Lumen Output | 3900L-6750L |
CCT (Kelvin) | 3500K/4000K/5000K |
IP Rating | IP20 |
Indoor or Outdoor Fixture | Indoor |
IOT Enabled | No |
Technology | LED |
Wattage | 30W/40W/50W |
Lumen Output | 3900L-6750L |
CCT (Kelvin) | 3500K/4000K/5000K |
Color Temperature | Neutral White to Daylight |
CRI | 80 |
Voltage | 120V-277V |
Beam Angle | 120 |
Rated Hours | 50000 |
Operating Temperature | -20C (-4F) to +60C (+140F) |
Dimmable | Yes-Dimmable |
Dimming Note | 0-10V Dimming Only |
Photocell or Sensor | Bi-Level Microwave Sensor |
Lens Material | Polycarbonate (PC) |
Surge Protection | Built-in surge protection - 2KV |
Weight (lb.) | 6.84 |
IP Rating | IP20 |
Material | Steel |

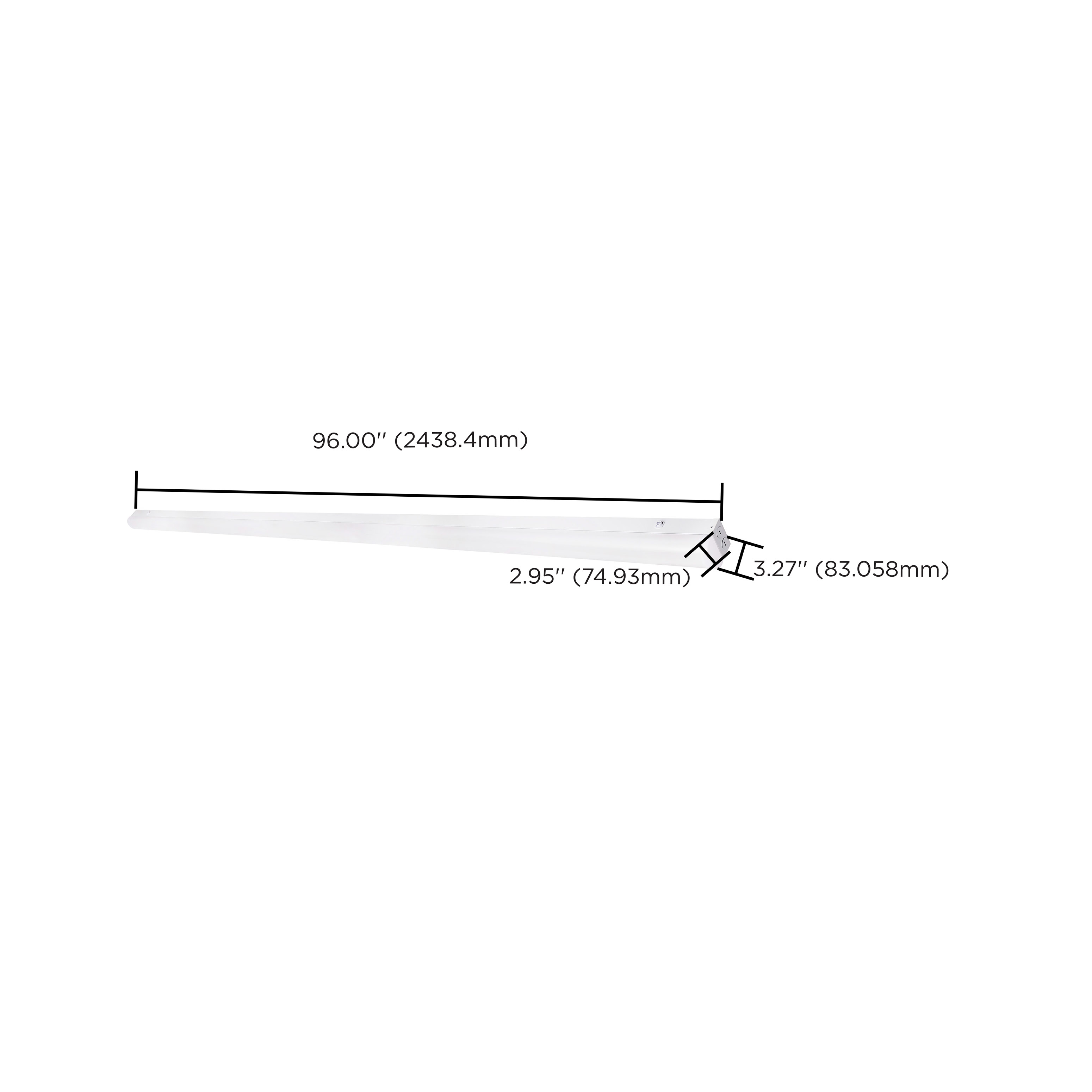

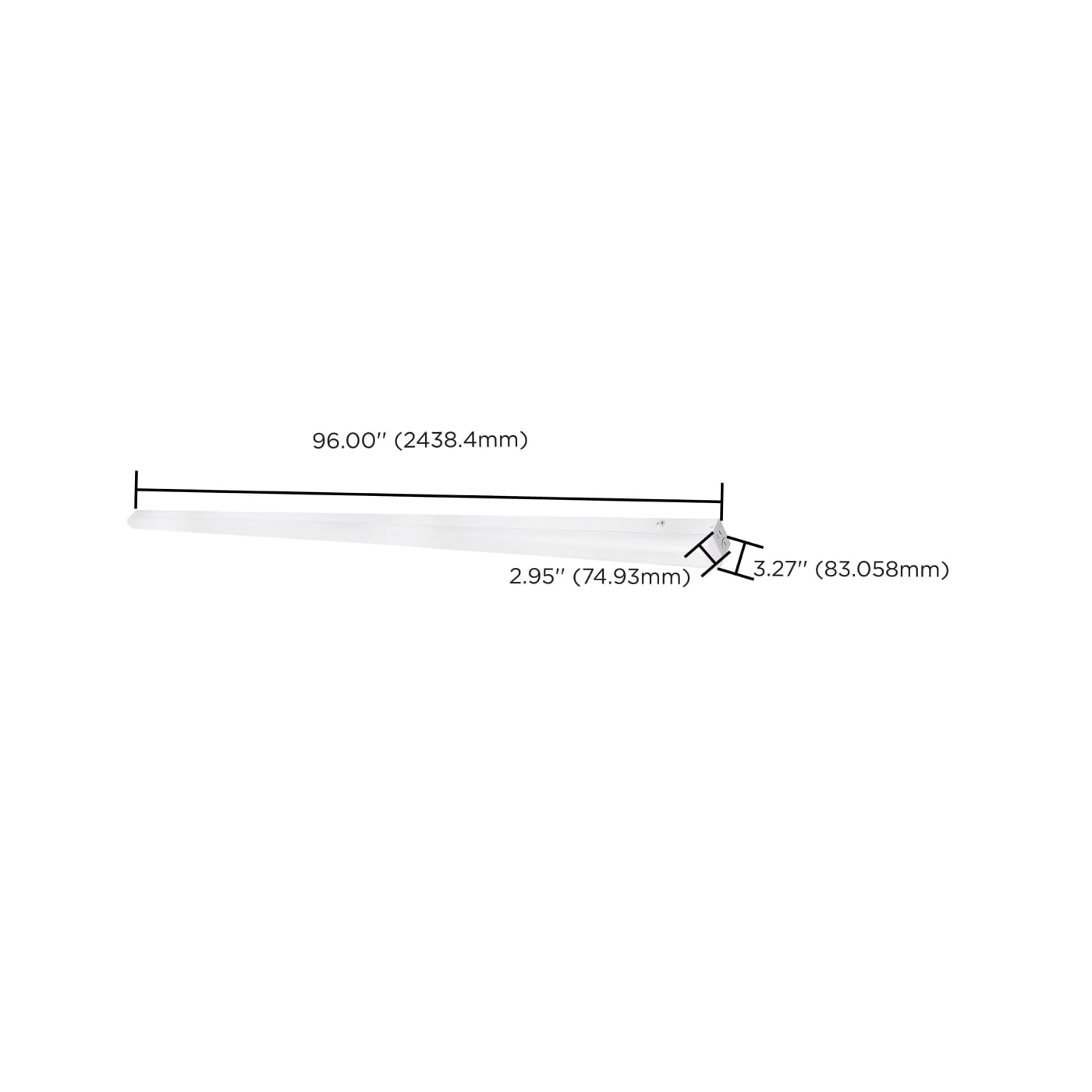

Height (in.) | 3.27 |
Width (in.) | 2.95 |
Length (in.) | 96 |
Back Plate or Canopy Diameter (in.) | 4.75 |
Safety Listing | cULus - Listed |
Location Rating | Damp |
DLC Approved | Yes |
DLC ID | S-YVM4W9; S-RH9PMZ; S-9FLKU1 |
B.U.G. Rating | B1-U3-G1 |
CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
California Prop 65 | Lead |
RoHS Compliant | Yes |
FCC Compliant | Yes |
Flicker Free | Yes |
SDS Sheet | LED Fixture |
Additional Information | Other DLC Listings: S-9FLKU1, Standard, Direct Linear Ambient Luminaires; S-RH9PMZ, Standard, Low-Bay Luminaires for Commercial and Industrial Buildings. |
Warranty | 5 Year Limited - Fixtures |
Each UPC | 045923656798 |
Each Quantity | 1 |
Each Length (in.) | 98.03 |
Each Width (in.) | 5.20 |
Each Height (in.) | 5.32 |
Each Weight (lb.) | 7.20 |
Each Cube (CuFt.) | 1.5694 |
Pack Type | Box |
Inner Quantity | 0 |
Inner Length (in.) | 0.00 |
Inner Width (in.) | 0.00 |
Inner Height (in.) | 0.00 |
Inner Weight (lb.) | 0.00 |
Inner Cube (CuFt.) | 0.0000 |
Case UPC | 10045923656795 |
Case Quantity | 4 |
Case Length (in.) | 98.62 |
Case Width (in.) | 11.02 |
Case Height (in.) | 11.81 |
Case Weight (lb.) | 32.50 |
Case Cube (CuFt.) | 7.4277 |
