| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Glass Finish | Clear |
| Dimmable Text | 0-10V Dimming Only |

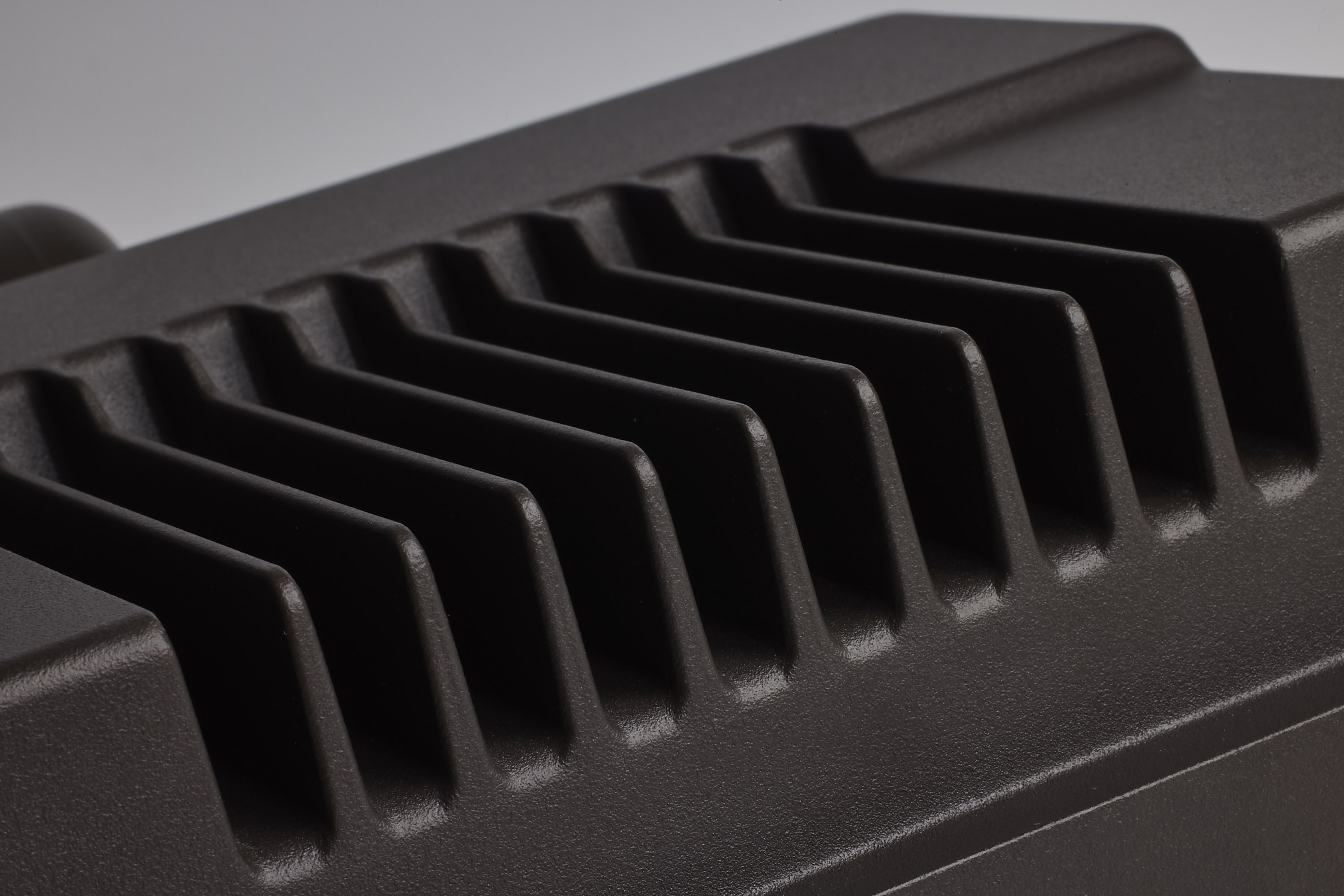

| Material | Die-cast Aluminum |

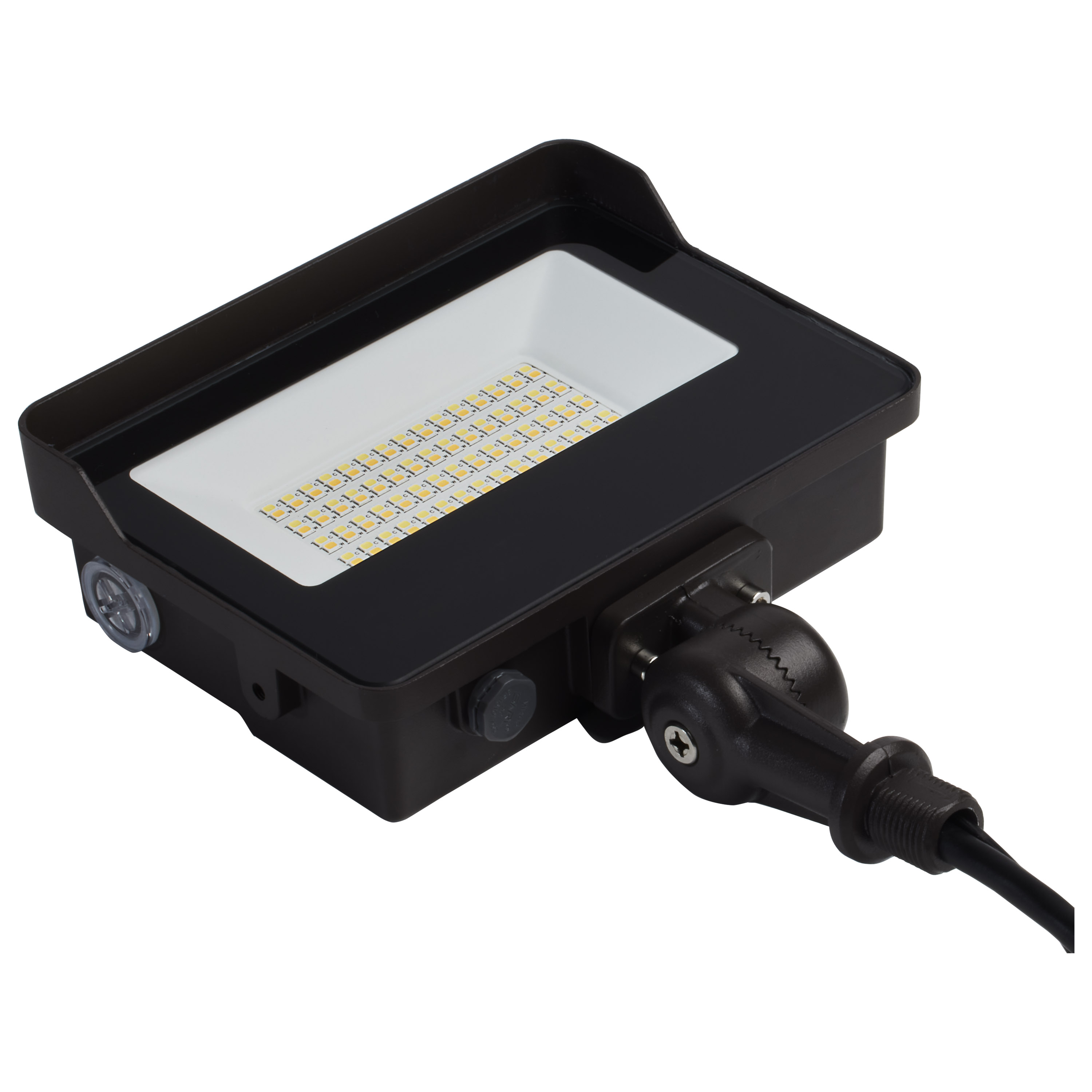

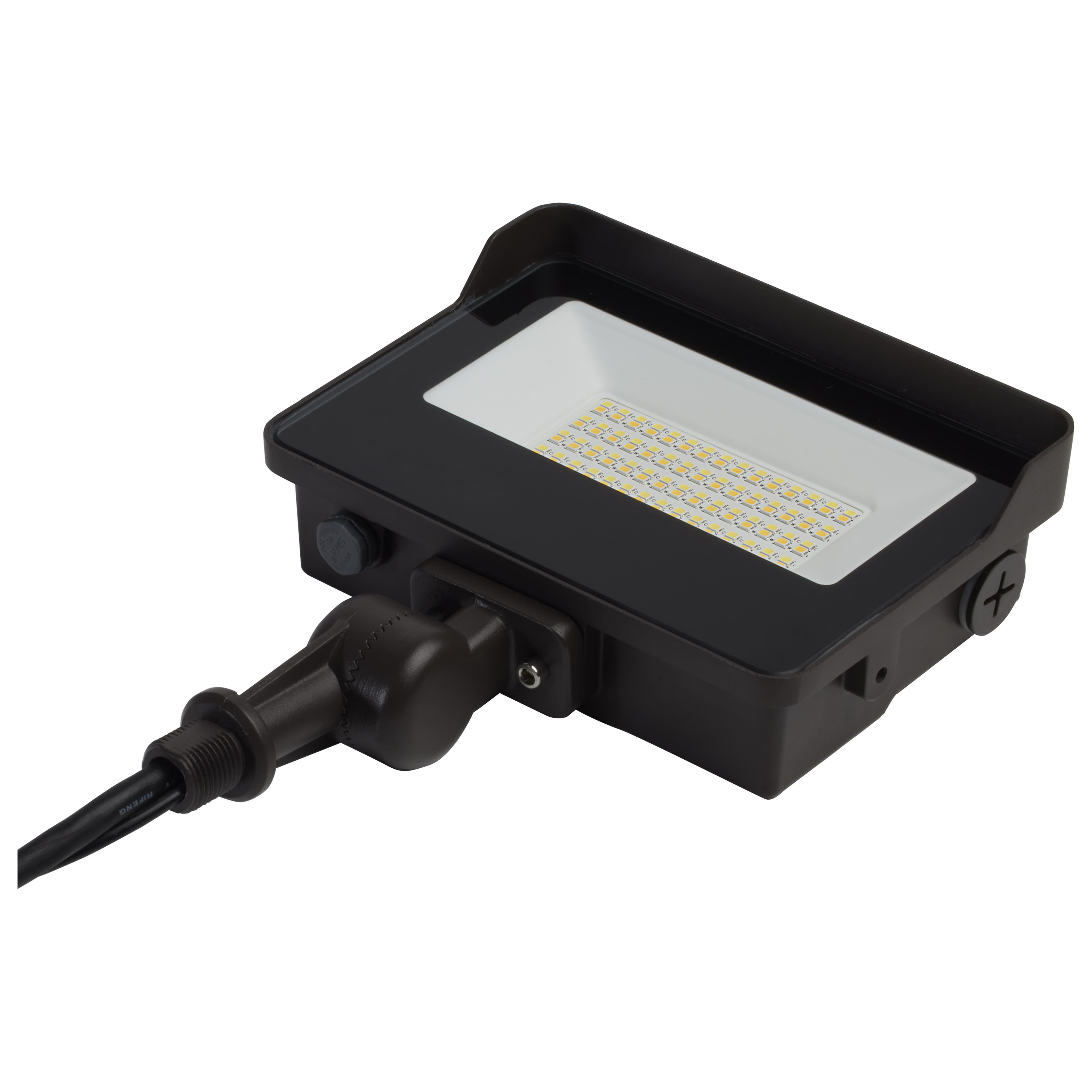

| Fixture Type | Flood Light |

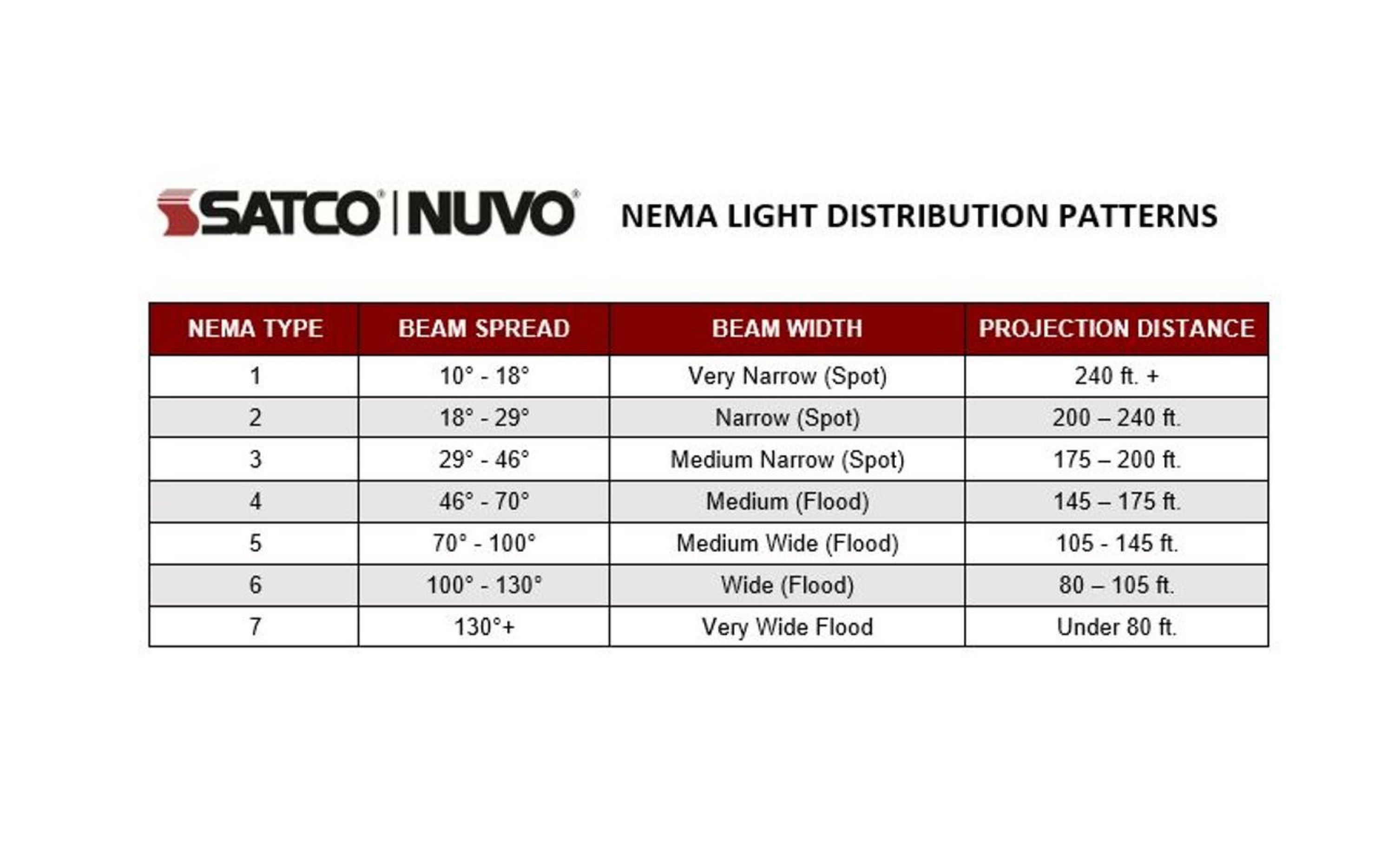

| Product Notes | NEMA Distribution: 7V x 7H |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 20% |

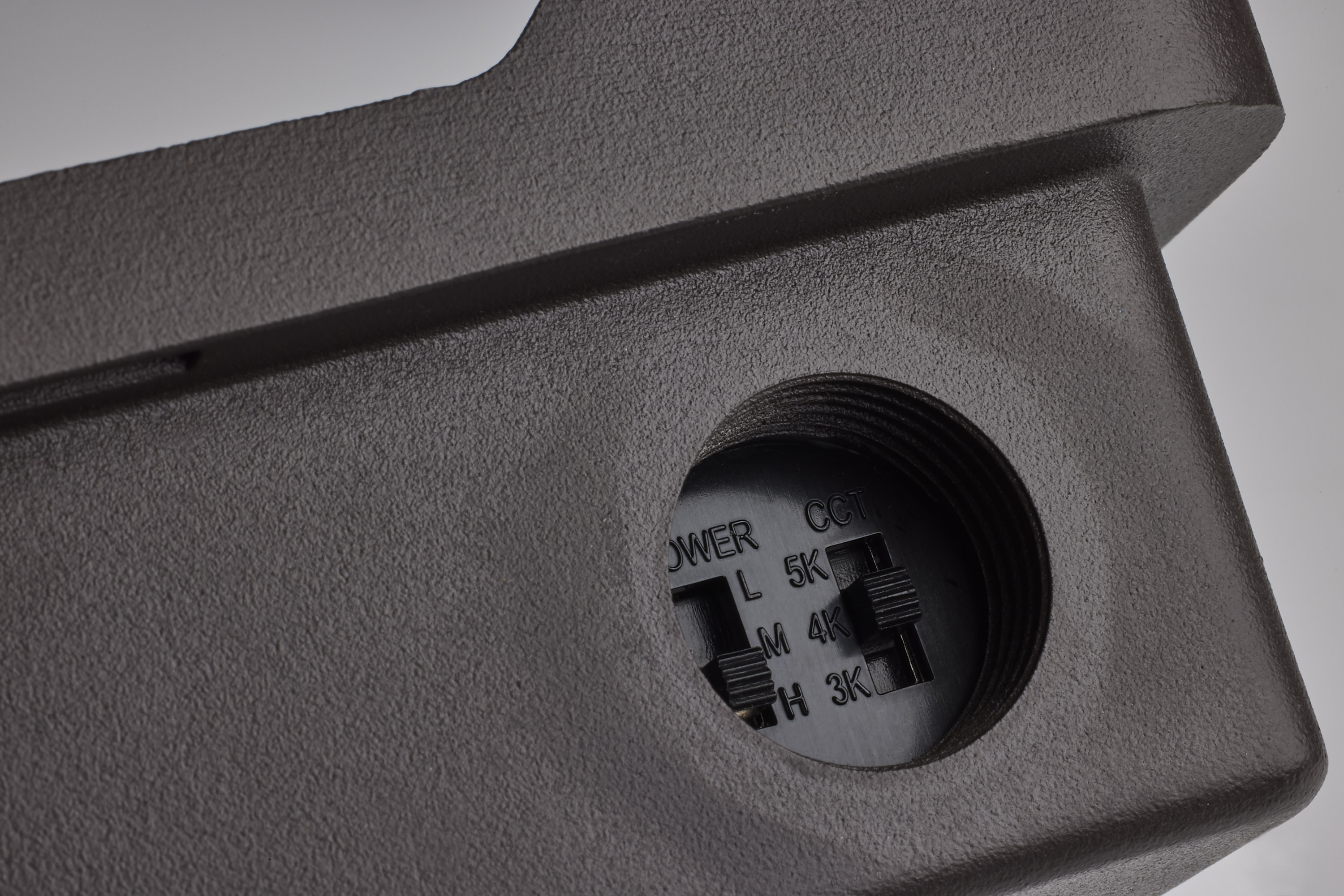

| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | Bronze |
| Amps | 0.125-0.043/0.208-0.072/0.292-0.101A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Tempered Glass |

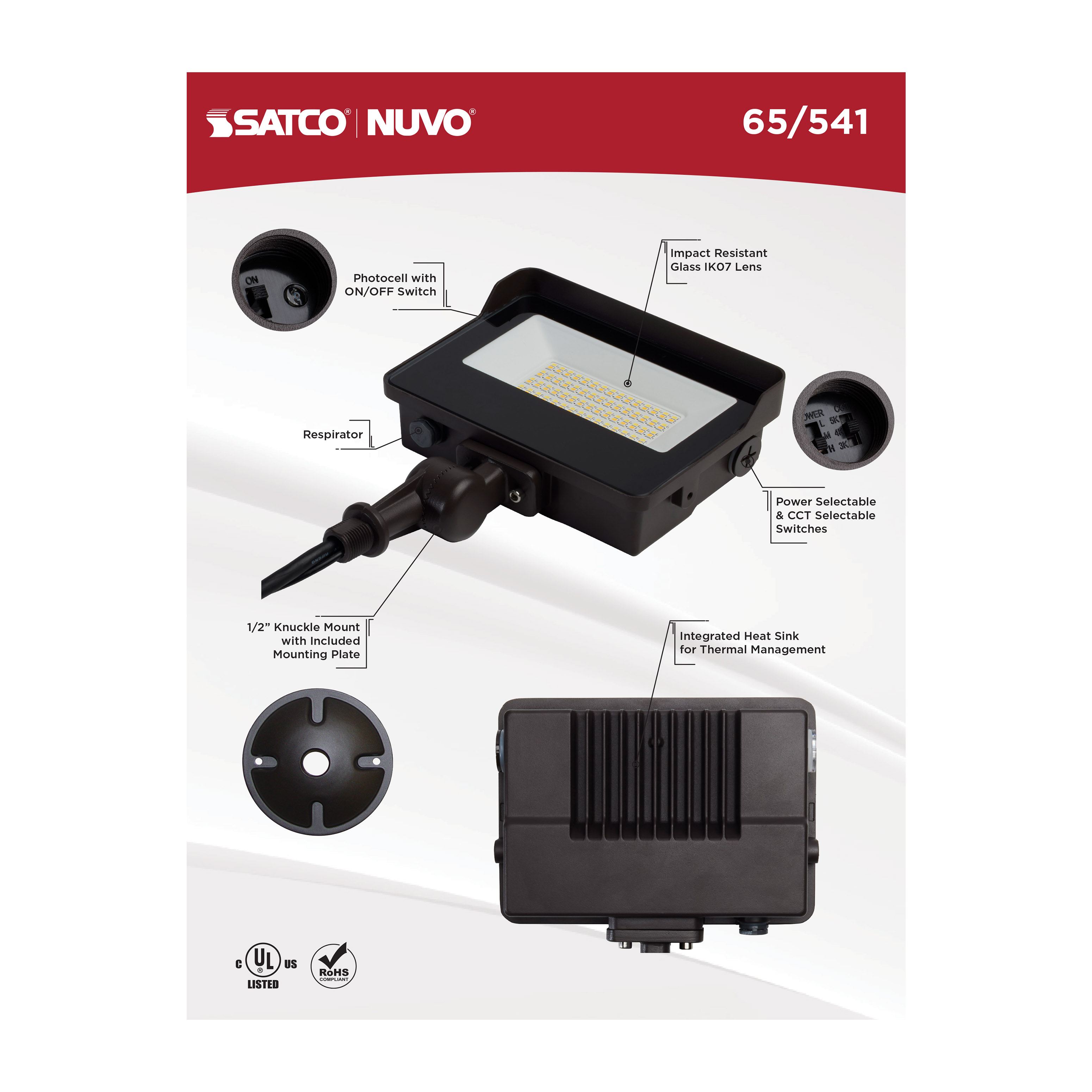

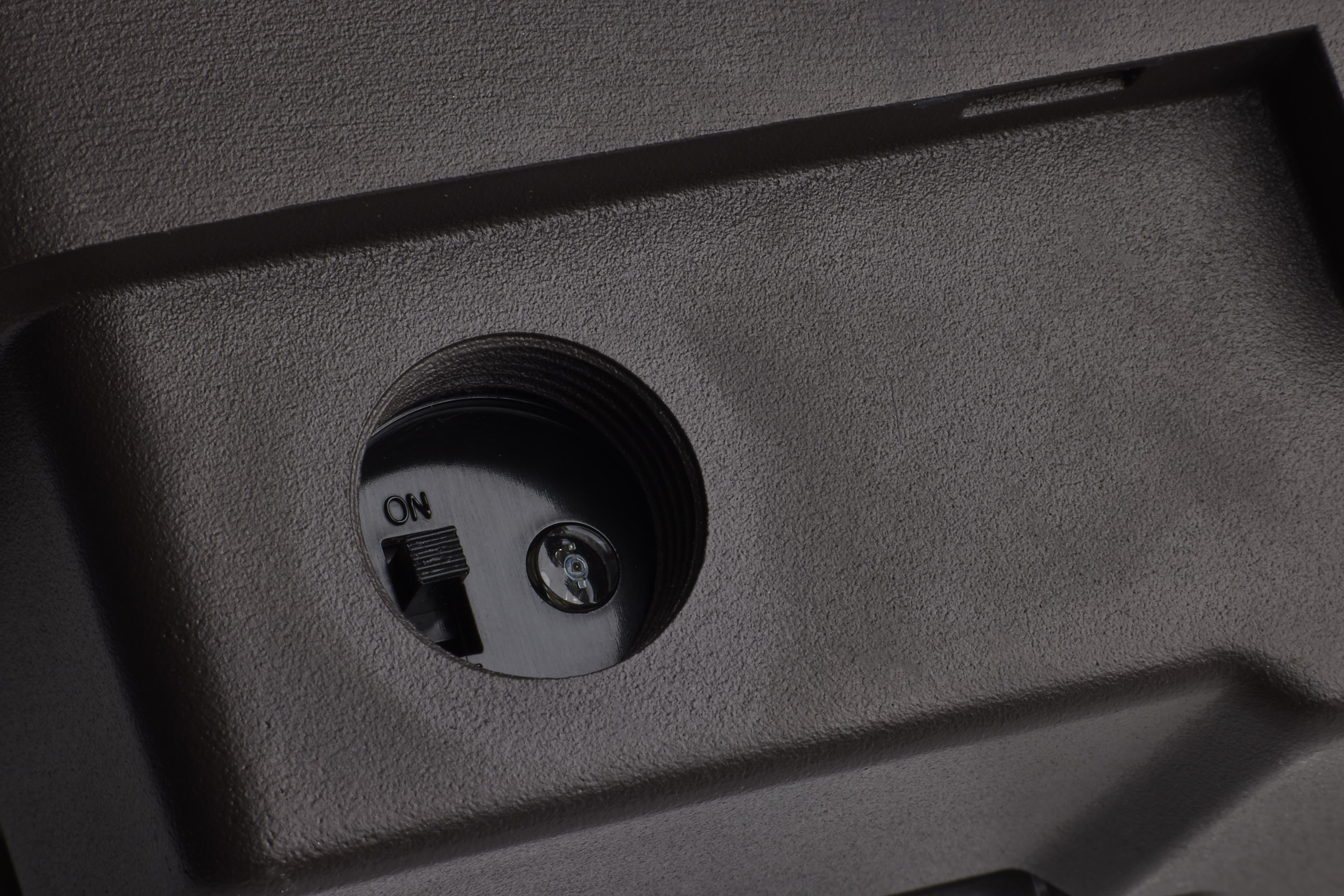

| Photo Cell | Has Photocell |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Outdoor |

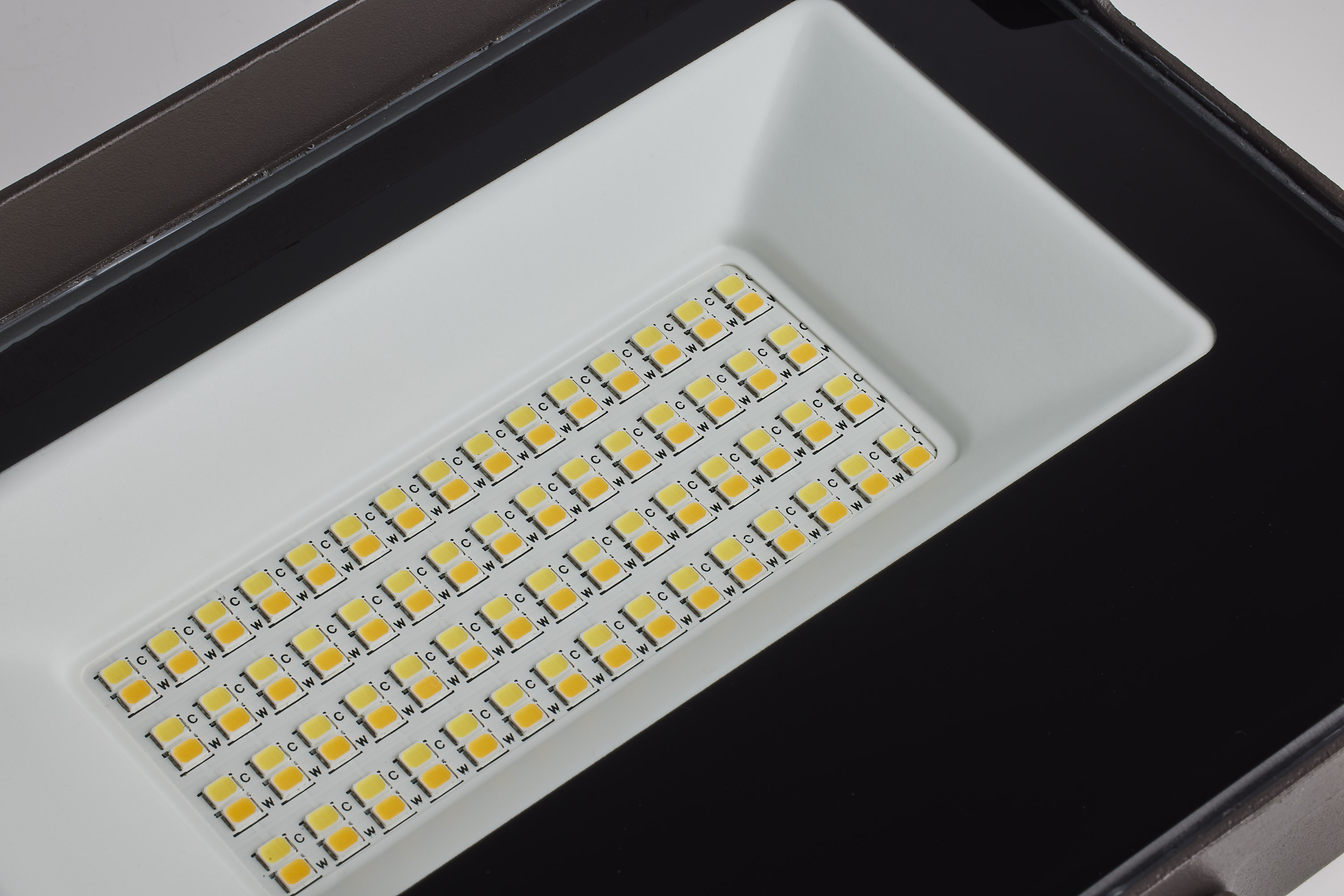

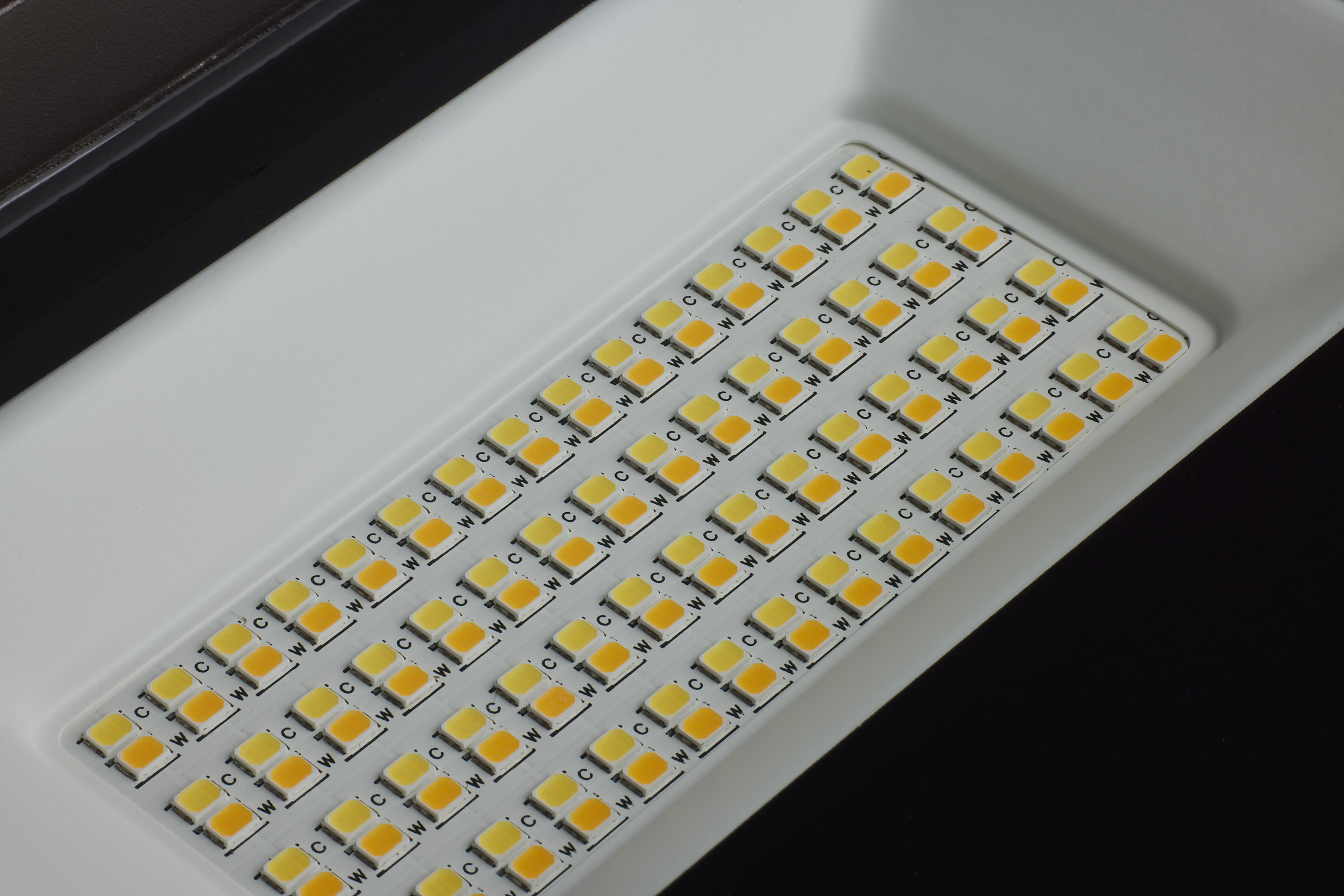

| Product Technology | LED |
| Incandescent Equivalent | 100W-150W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 150x135 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| HID Equivalent | 100W-150W |

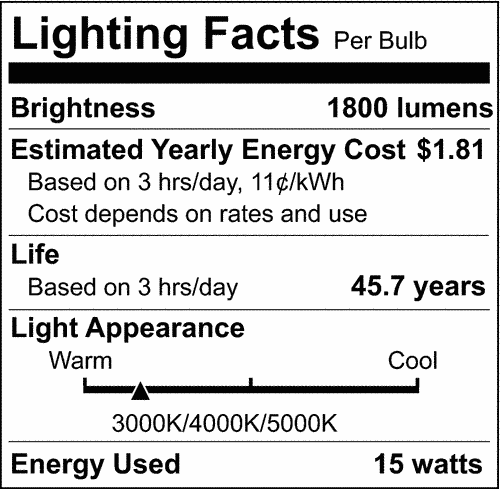

| Lumens | 1800L-4900L |
| Volts | 120V-347V |
| Watts | 15W/25W/35W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Height will change with different mounting options. |
| Bug Rating | B2-U1-G0 |
|---|---|
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | S-YAZ2QI |
| FCC Compliant | True |
| IP Rating | IP66 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923657962 |
|---|---|
| Case Cube | 1.7653 |
| Case Height | 12.0 |
| Case Length | 16.14 |
| Case Quantity | 6 |
| Case UPC | 10045923657969 |
| Case Weight | 21.16 |
| Case Width | 15.75 |
| EA Cube | 0.2442 |
| EA Height | 11.14 |
| EA Length | 7.7 |
| EA Quantity | 1 |
| EA Weight | 3.26 |
| EA Width | 4.92 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

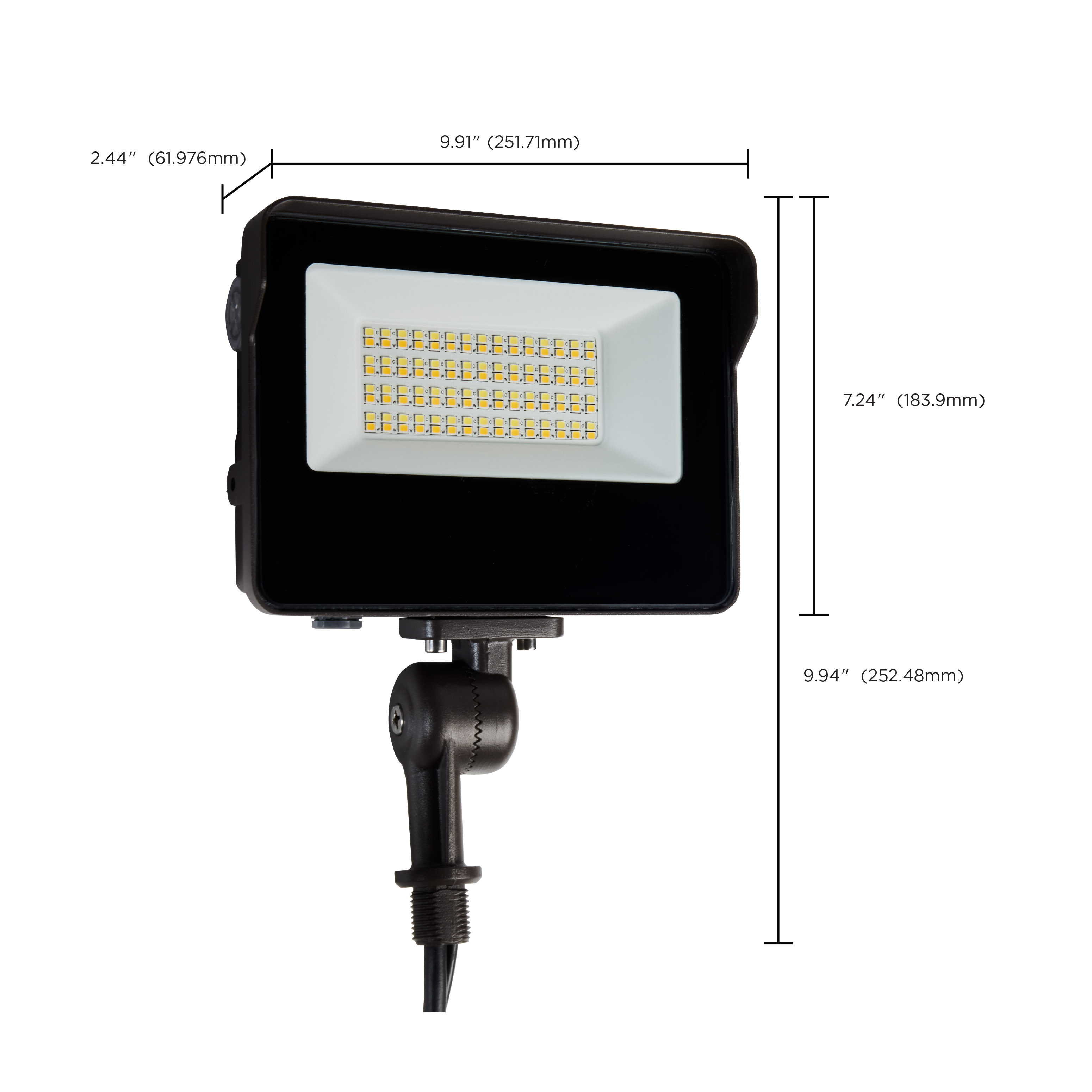

| Web Height | 2.44 |
| Web Length | 7.24 |
| Web Width | 9.91 |
