65-577R1

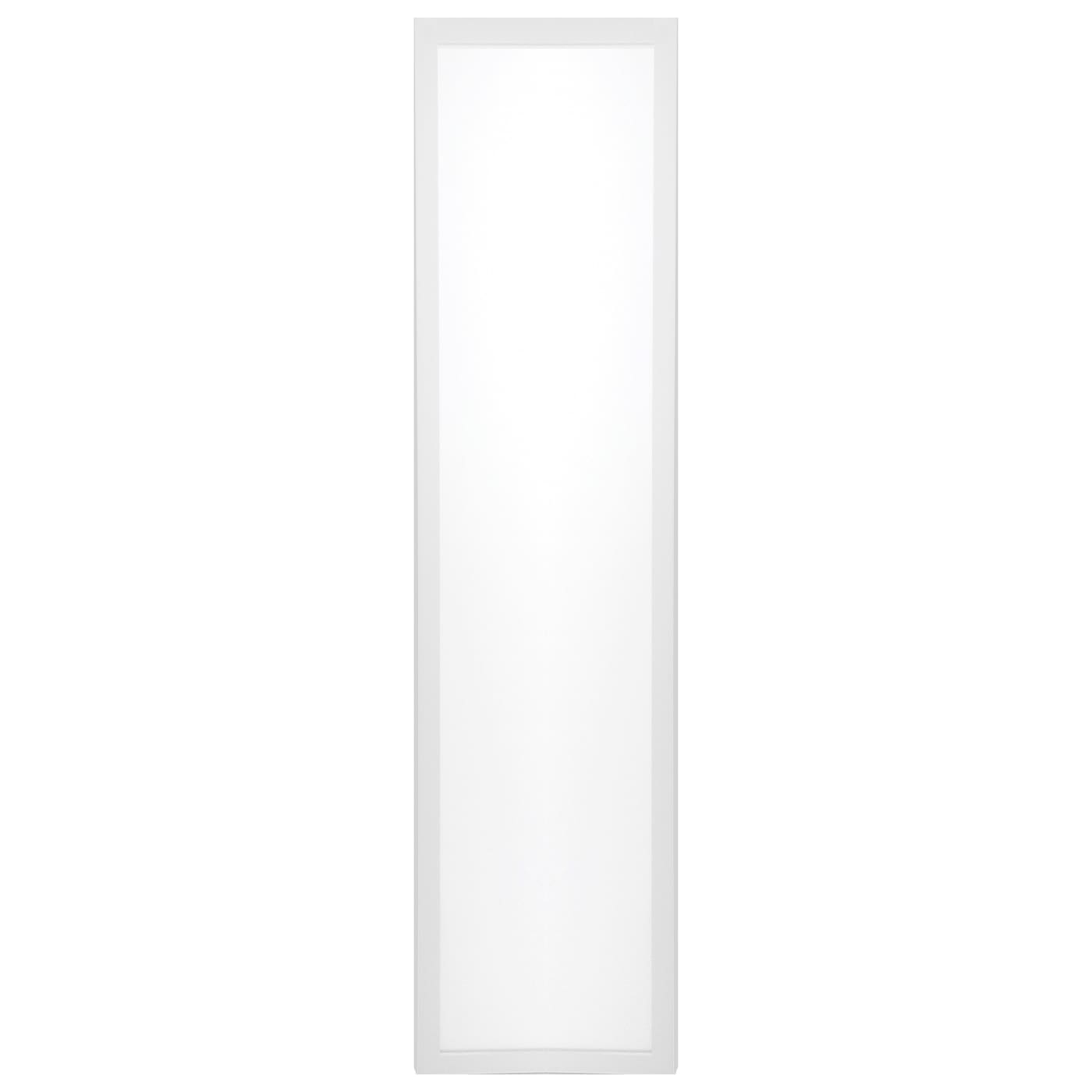

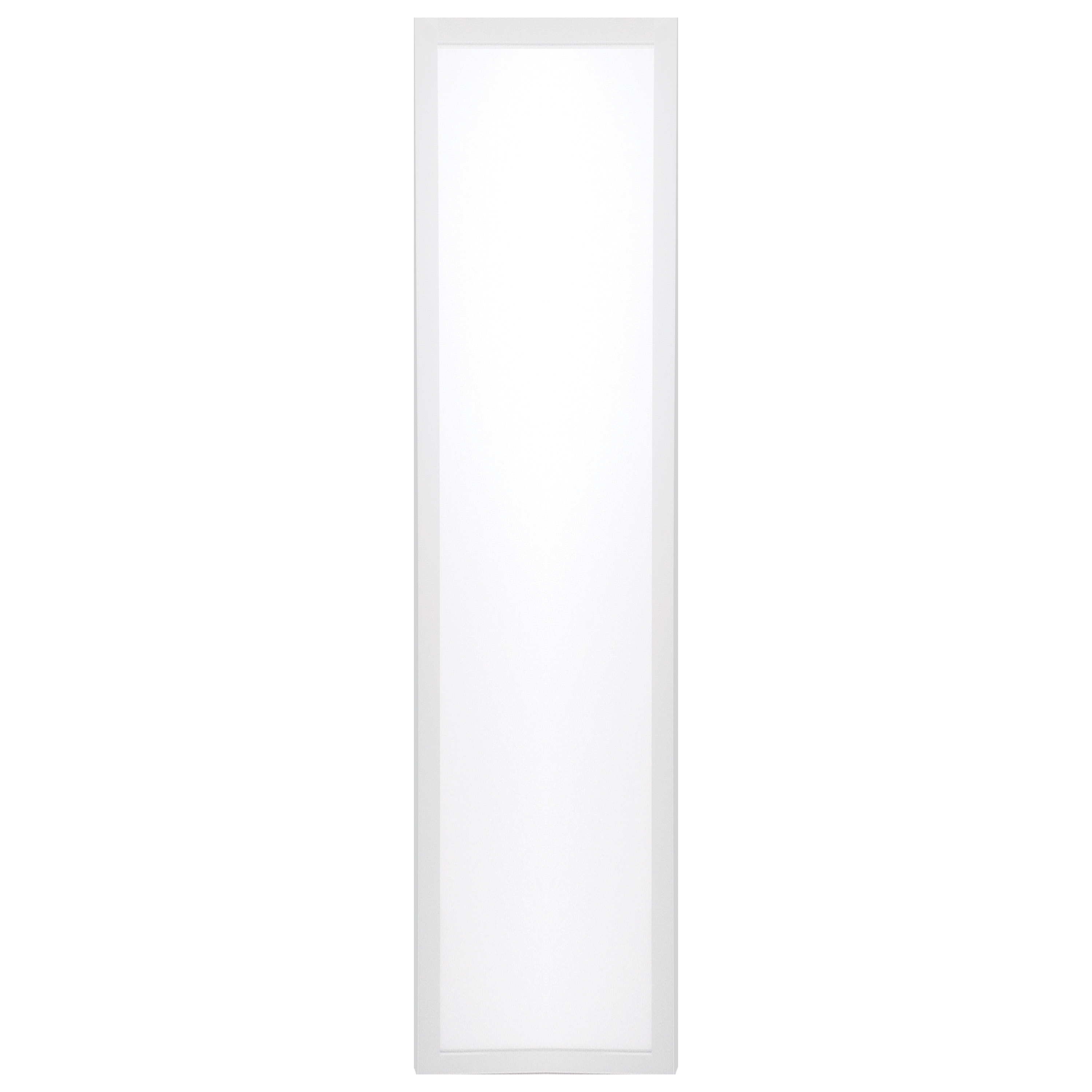

1X4 LED EM BACKLIT FLAT PANEL

  • LED Emergency Backlit Flat Panel
  • 1 ft. x 4 ft.
  • Wattage and CCT Selectable
  • 100-277 Volt
  • ColorQuick Technology
  • PowerQuick Technology
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
title_20^y^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-577R1 Specifications65-577R1 Instructions65-577R1 Spec Chart
Tools
Lighting Layout Analysis For 65-577R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Emergency Backlit Flat Panel; 1 ft. x 4 ft.; Wattage and CCT Selectable; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 SBCS Listed
Dimmable Text0-10V Dimming Only
MaterialAluminum / Steel
Fixture TypeBacklit Flat Panel
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion9%
Wire ColorWhite / Black / Green
Wire Length3.54
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Additional InfoDriver Specs - VDC38-48V; 430/620/810mA
Amps0.200-0.072/0.300-0.108/0.400-0.144A
Has CameraFalse
IOT EnabledFalse

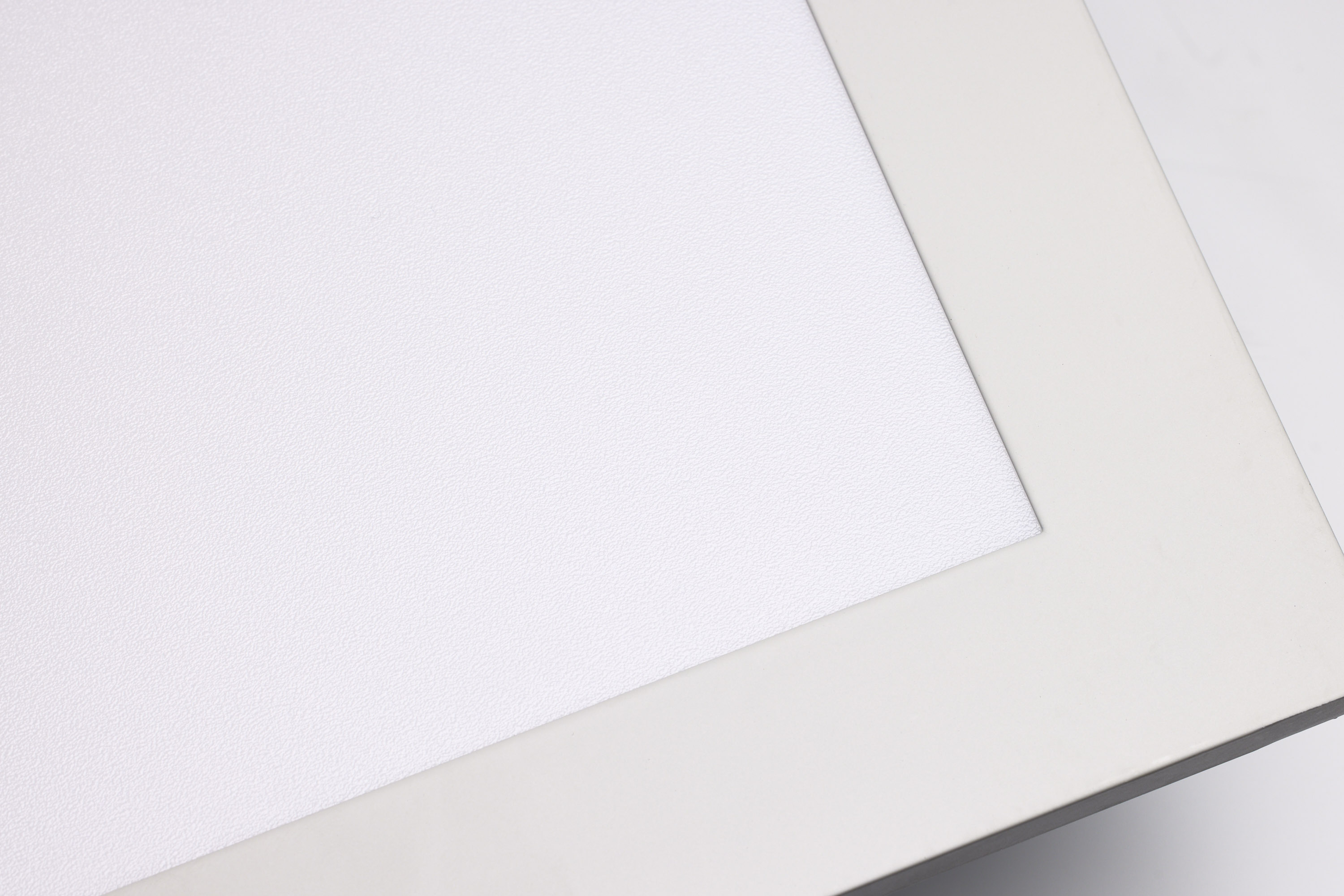

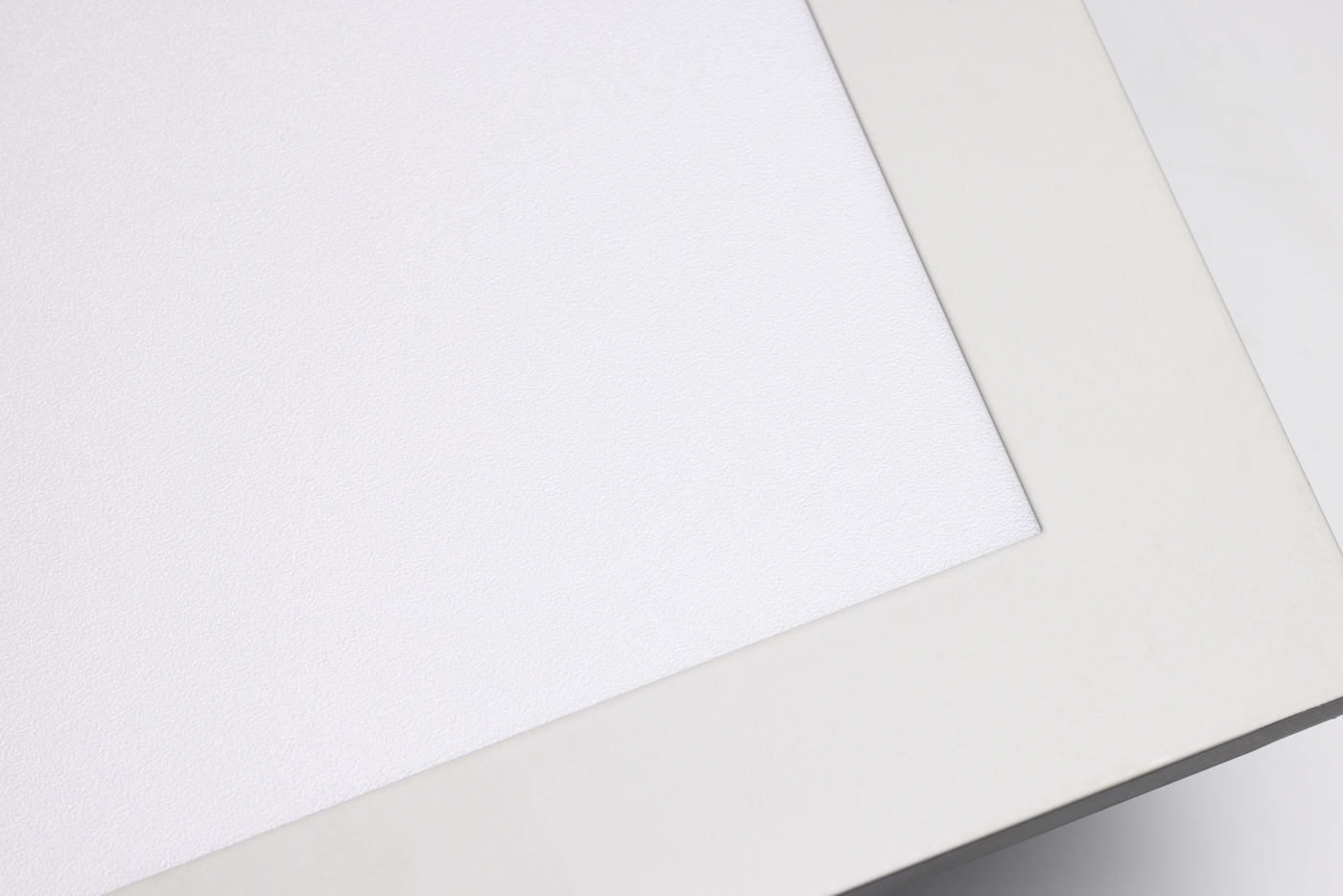

Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Photo CellNo Photocell
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent100W-150W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)
Lumens2200L-4600L
Volts120V-277V
Watts20W/30W/40W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
Air TightFalse
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-HLPDJ6; S-CFTMNM
FCC CompliantTrue
IC RatedTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
UL ApplicationLED Panel Luminaire
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Yes
T24 CompliantFalse
Packaging
UPC045923657191
Case Cube0.9724
Case Height13.39
Case Length49.02
Case Quantity1
Case UPC10045923657198
Case Weight6.7
Case Width2.56
EA Cube0.9724
EA Height13.39
EA Length49.02
EA Quantity1
EA Weight6.7
EA Width2.56
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

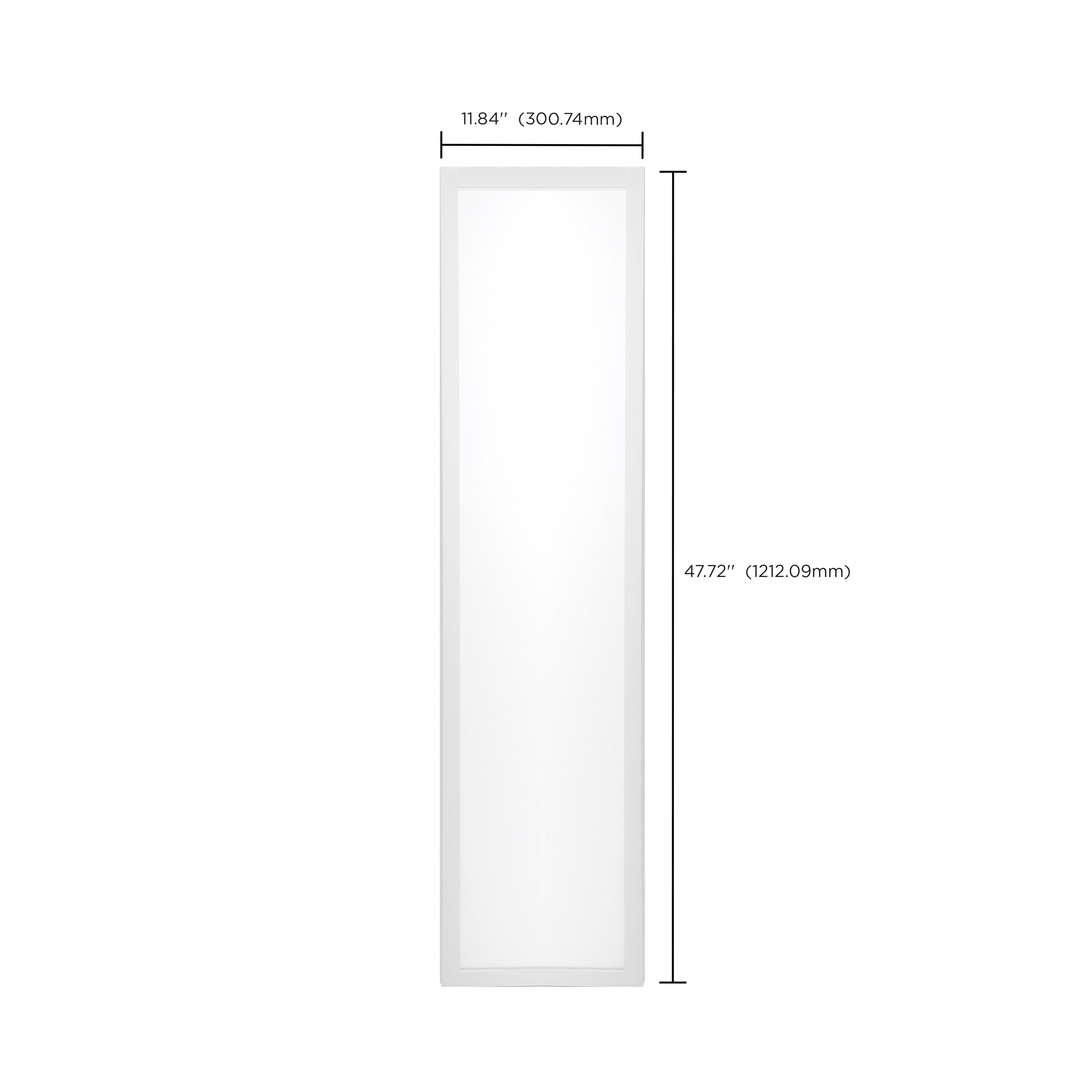

Web Height3.09
Web Length47.72
Web Width11.84
