65-582

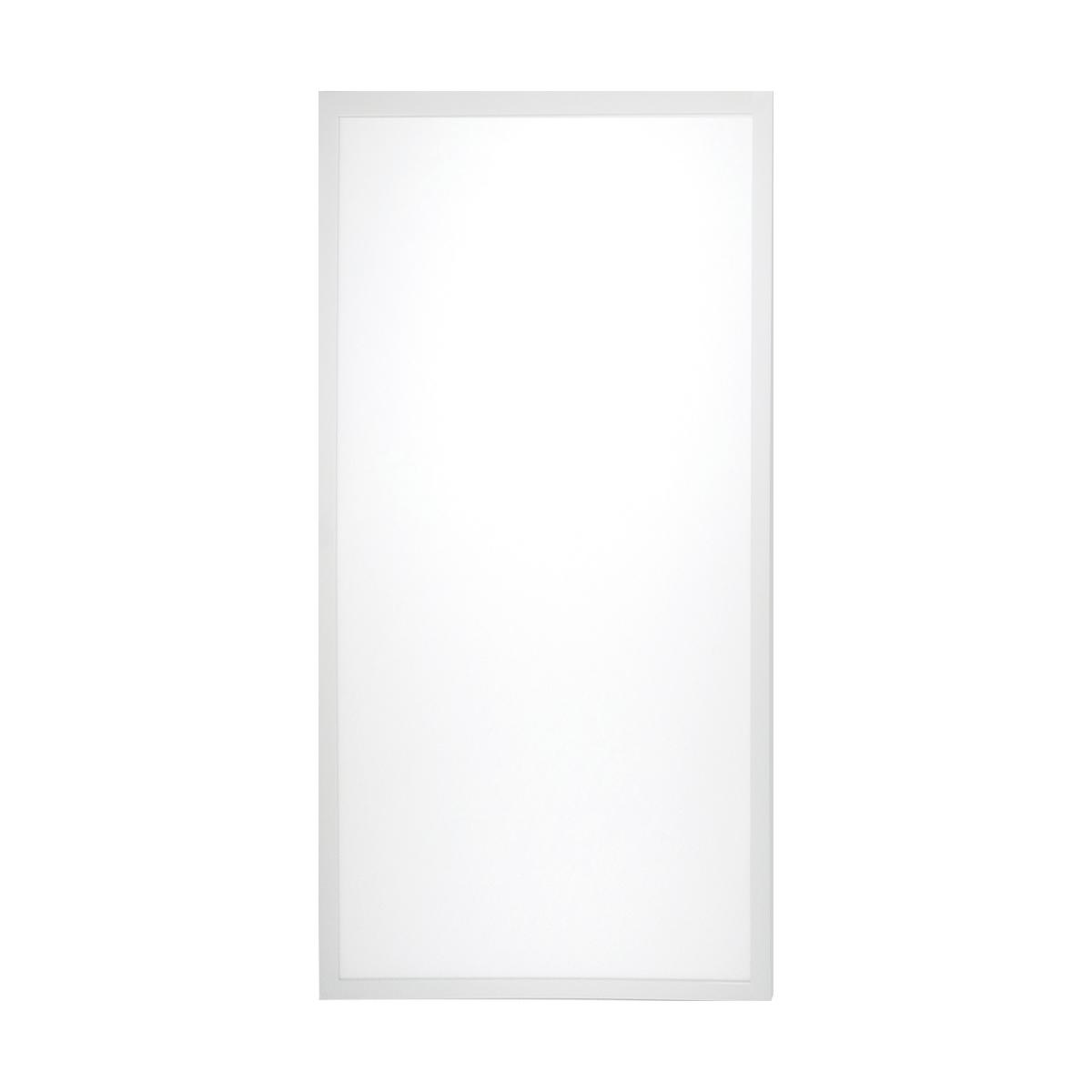

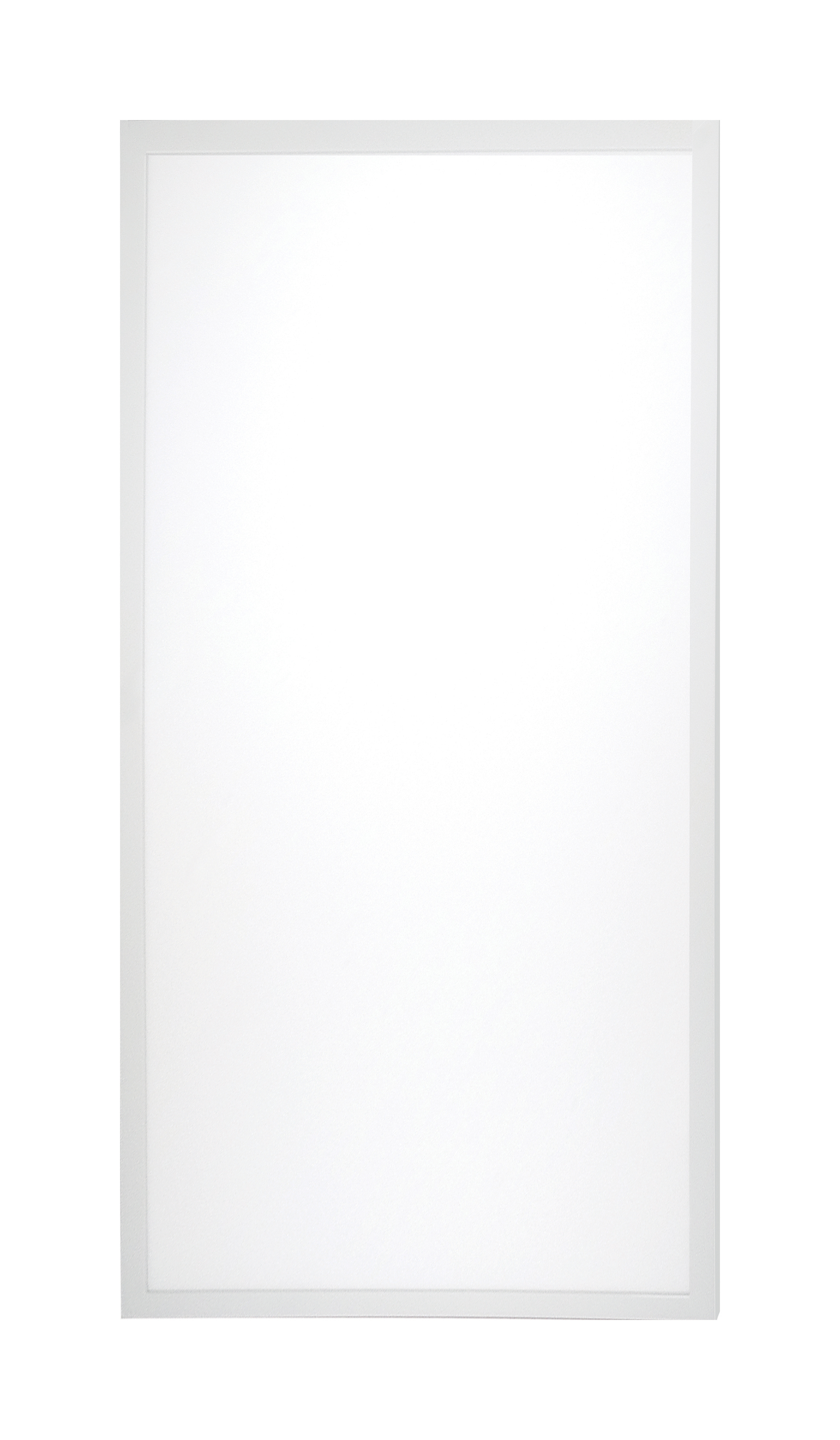

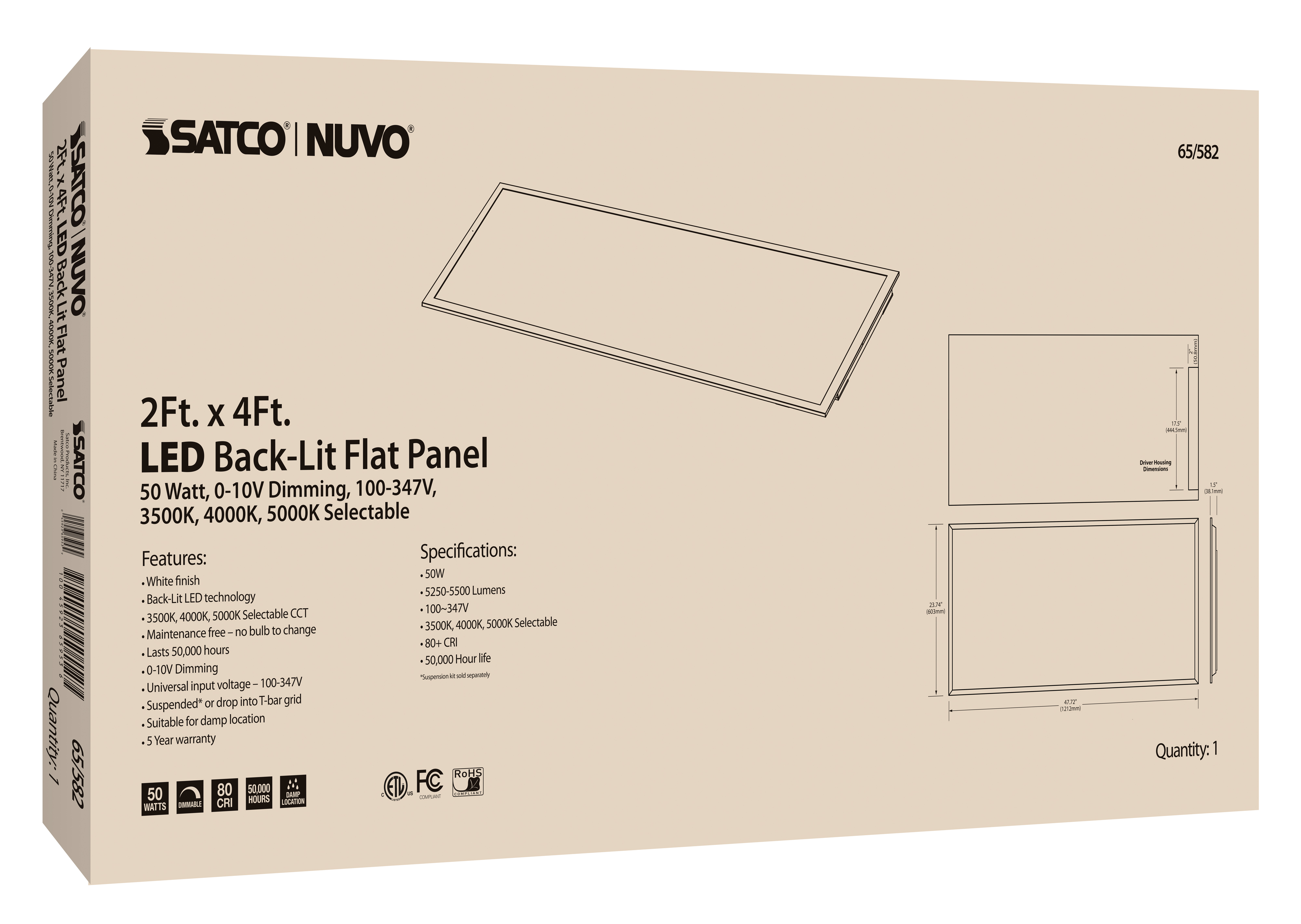

2X4 LED BACKLIT FLAT PANEL

Discontinued - Suggested Replacement: 65-582R1
  • LED Backlit Flat Panel
  • 50 Watt
  • 2 ft. x 4 ft.
  • Selectable CCT
  • 100-347 Volt
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-582 Specifications65-582 Photometrics 120V.ies65-582 Photometrics 347V.ies
Tools
Lighting Layout Analysis For 65-582
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Backlit Flat Panel; 50 Watt; 2 ft. x 4 ft.; Selectable CCT; 100-347 Volt
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only
MaterialAluminum / Steel
Fixture TypeBacklit Flat Panel
StatusDiscontinued
StyleUtility
Most Current Generation65-582R1
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion20%
Wire ColorWhite / Black / Green
Wire Length3.54
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.500-0.144A
Has CameraNo
IOT EnabledNo

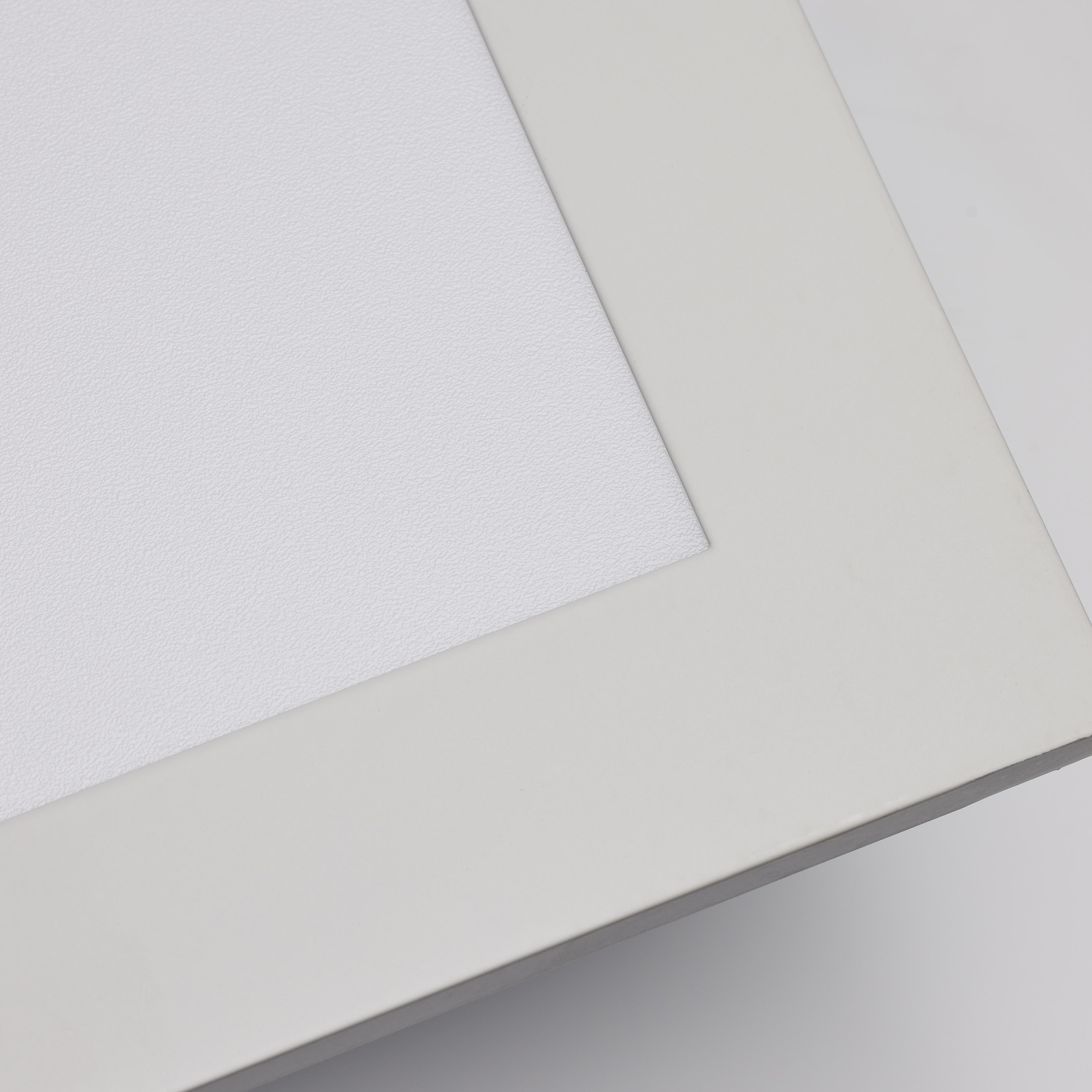

Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Photo CellNo Photocell
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent250W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)
Lumens5500L-5750L
Volts120V-347V
Watts50W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeYes
Compliance
Air TightNo
CA Prop 65Lead
DLC IDPLQG0GTV7QRN
FCC CompliantYes
IC RatedYes
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
UL ApplicationLED Panel Luminaire
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923659539
Case Cube1.8301
Case Height25.2
Case Length49.02
Case Quantity1
Case UPC10045923659536
Case Weight12.24
Case Width2.56
EA Cube1.8301
EA Height25.2
EA Length49.02
EA Quantity1
EA Weight12.24
EA Width2.56
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height1.5
Web Length47.72
Web Width23.75
