65-583R1

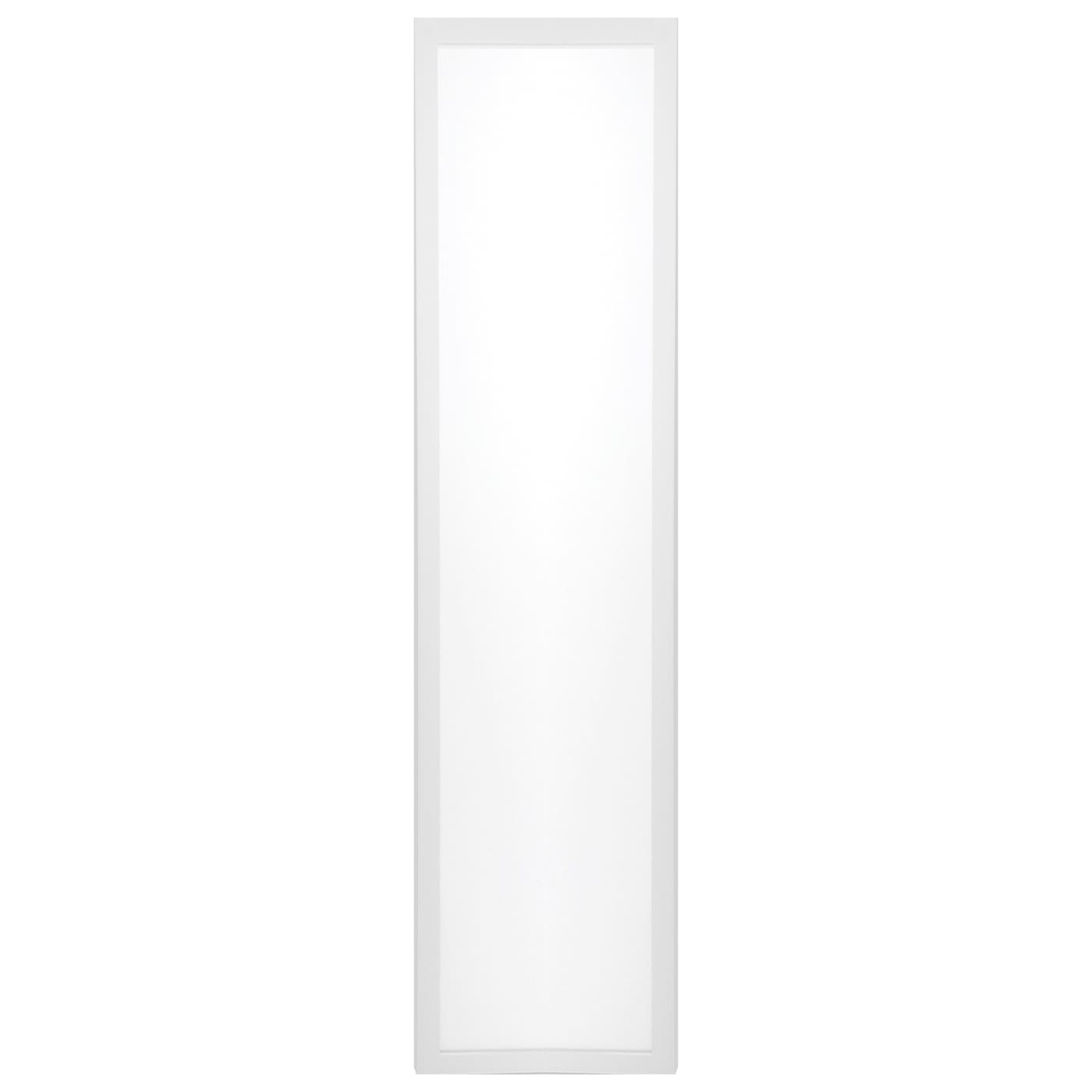

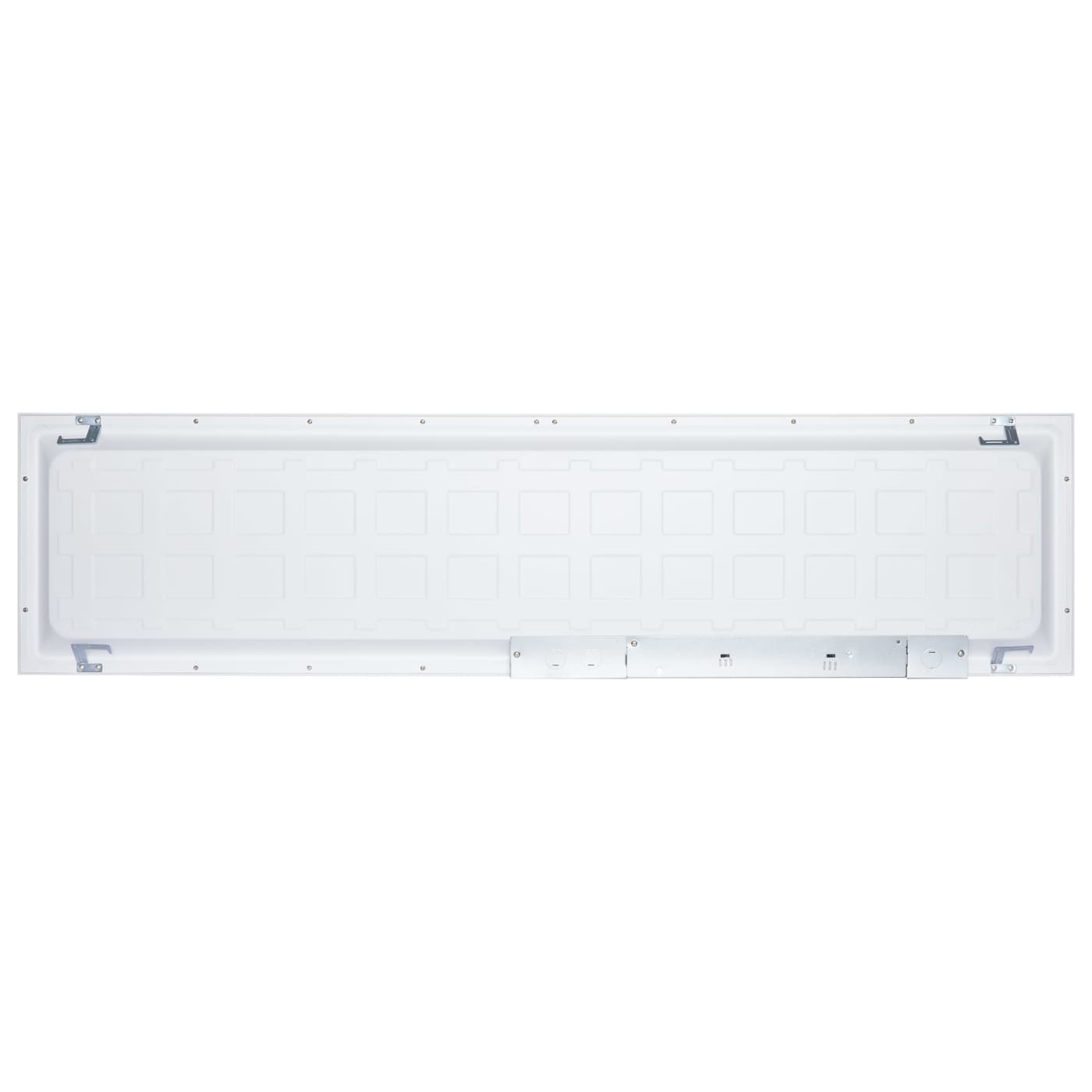

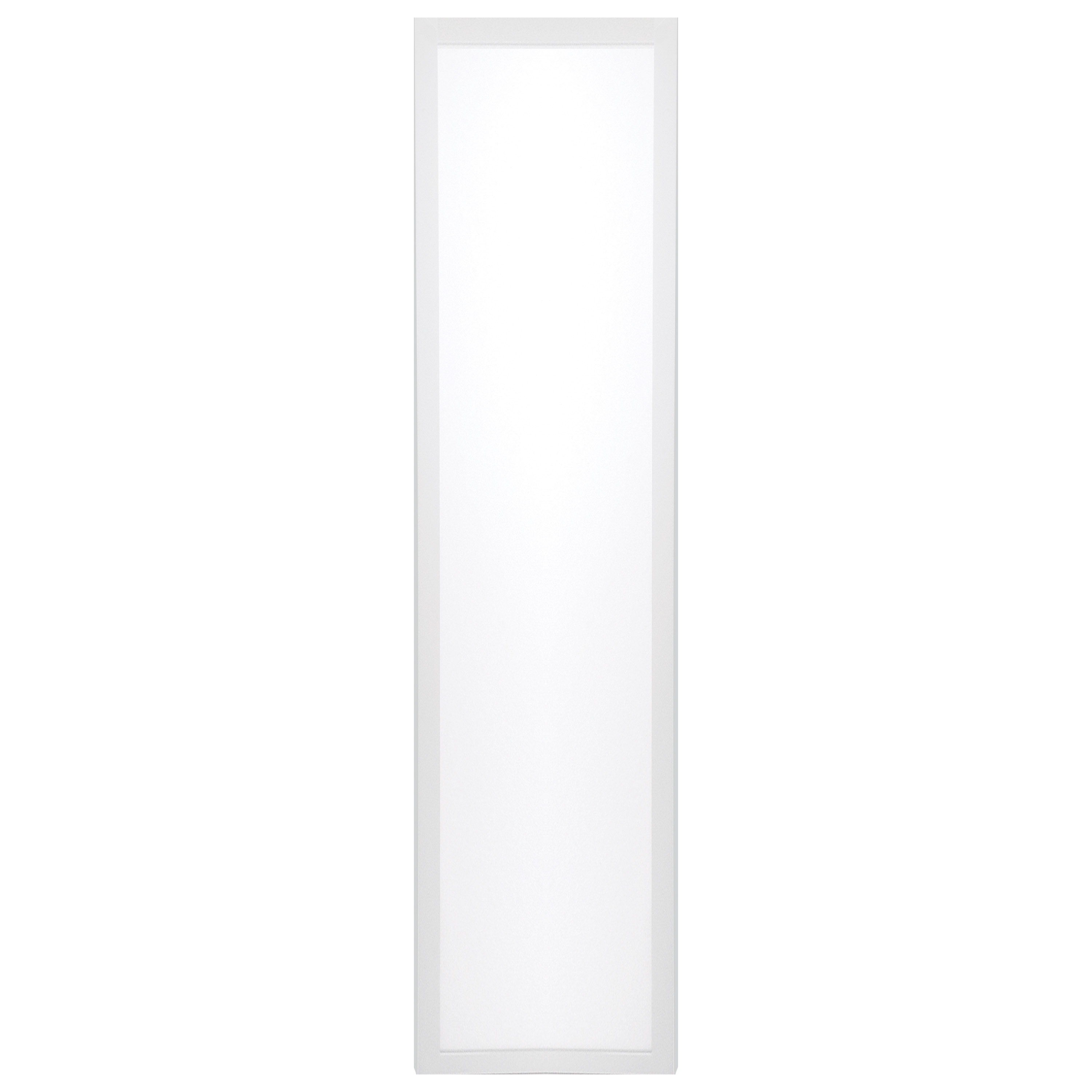

1X4 LED BACKLIT FLAT PANEL

  • LED Backlit Flat Panel
  • 1 ft. x 4 ft.
  • Wattage and CCT Selectable
  • 100-347 Volt
  • ColorQuick Technology
  • PowerQuick Technology
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-583R1 Specifications65-583R1 Instructions65-583R1 Spec Chart
Description
Description
LED Backlit Flat Panel; 1 ft. x 4 ft.; Wattage and CCT Selectable; 100-347 Volt; ColorQuick Technology; PowerQuick Technology
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming Only
MaterialAluminum / Steel
Fixture TypeBacklit Flat Panel
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion19%
Wire ColorWhite / Black / Green
Wire Length3.54
CCT SelectableTrue

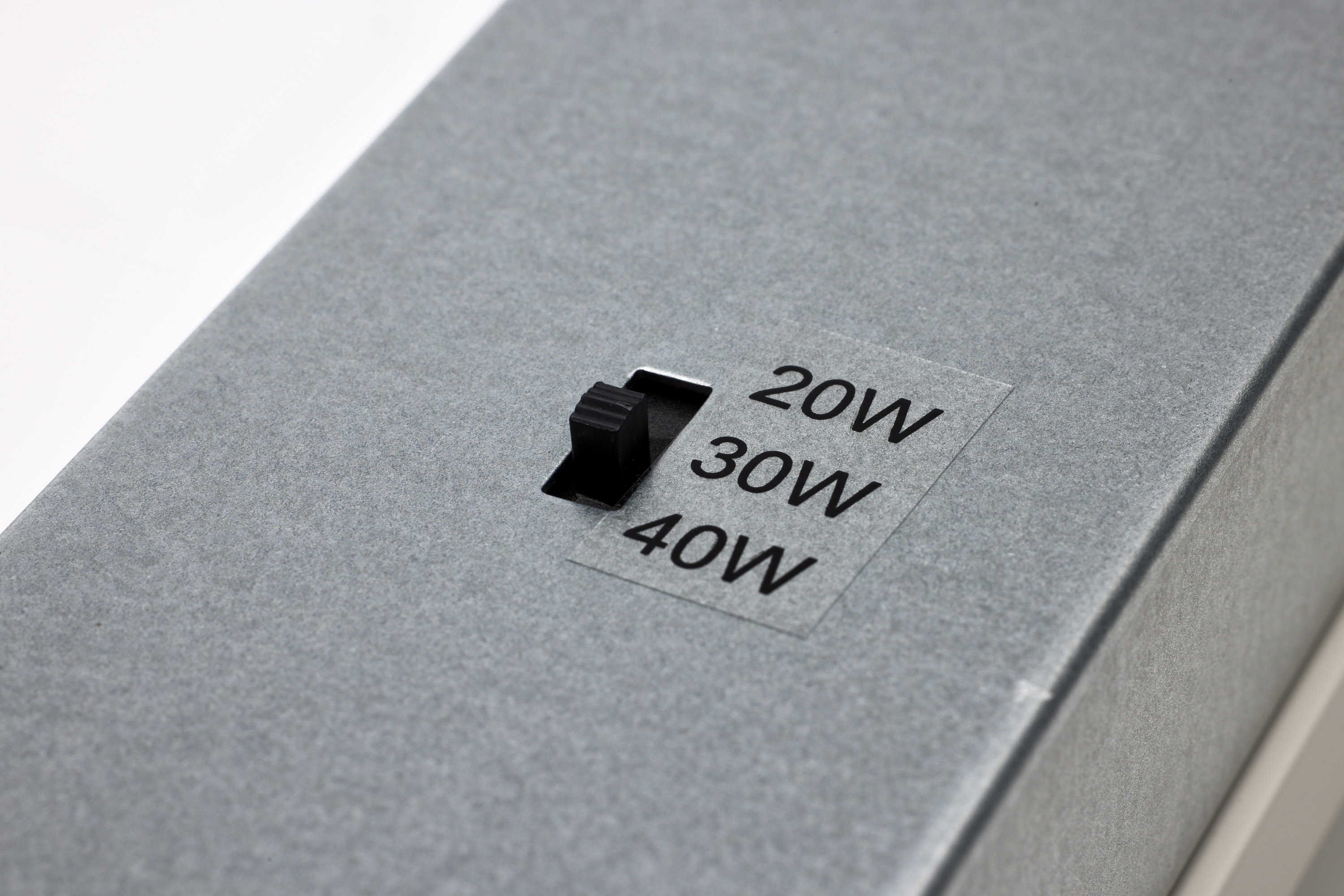

Wattage SelectableTrue
Finish FamilyWhite
Additional InfoDriver Specs - VDC38-48V; 430/620/810mA
Amps0.200-0.058/0.300-0.086/0.400-0.115A
Has CameraFalse
IOT EnabledFalse

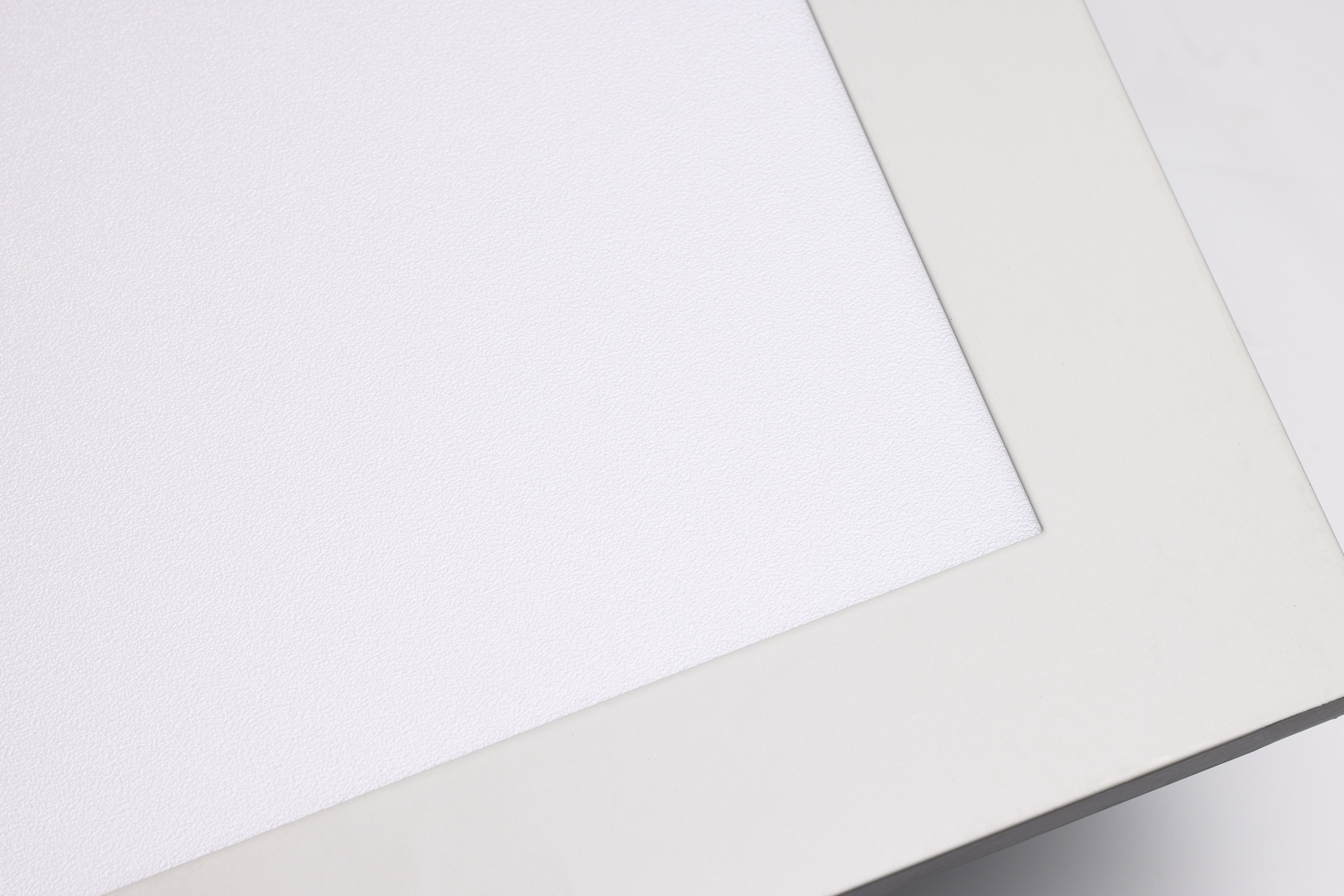

Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Photo CellNo Photocell
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent100W-150W
Electrical

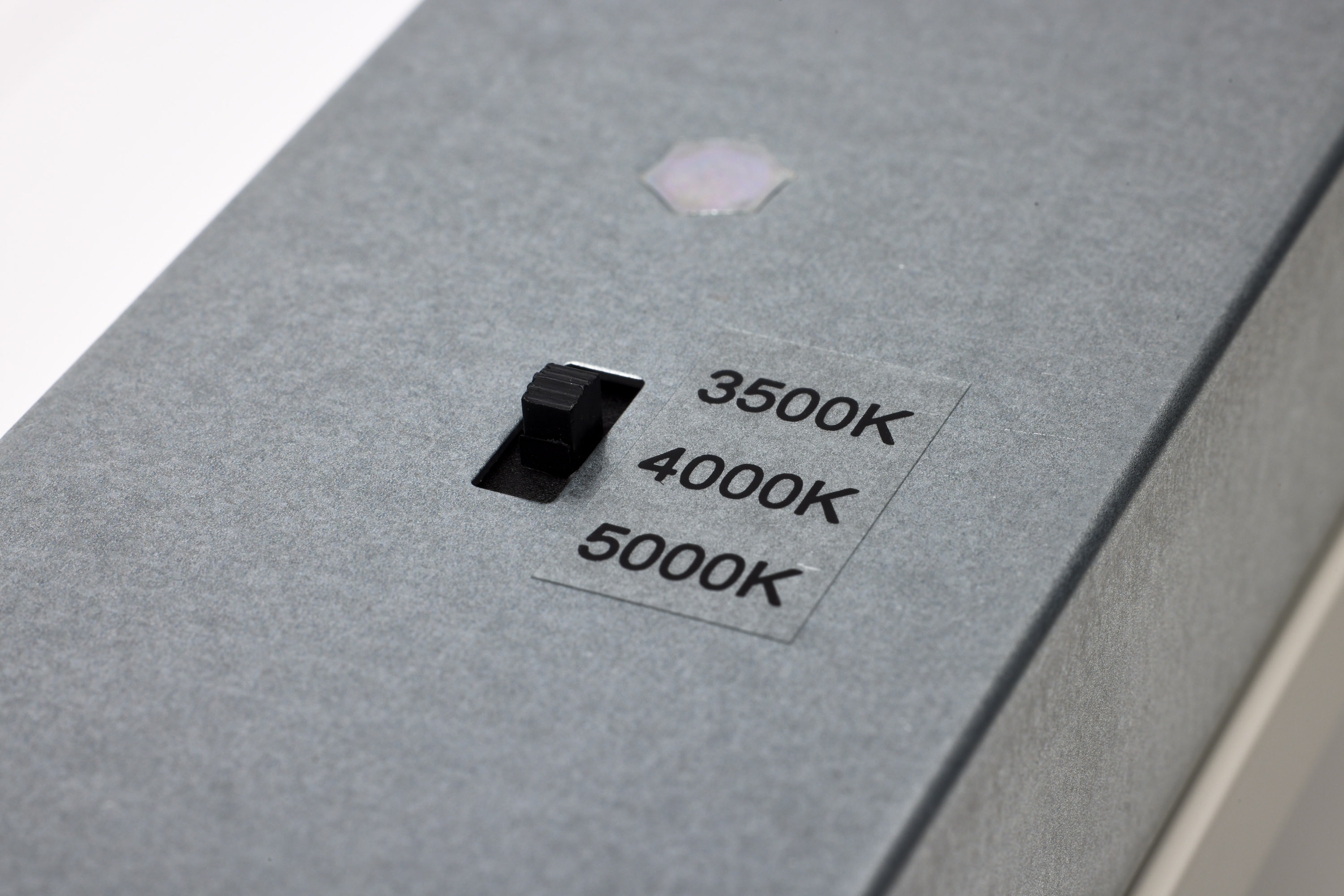

CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)
Lumens2200L-4600L
Volts120V-347V
Watts20W/30W/40W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
Air TightFalse
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-DSM13R; S-Y031KV
FCC CompliantTrue
IC RatedTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
UL ApplicationLED Panel Luminaire
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923657160
Case Cube0.9724
Case Height13.39
Case Length49.02
Case Quantity1
Case UPC10045923657167
Case Weight6.7
Case Width2.56
EA Cube0.9724
EA Height13.39
EA Length49.02
EA Quantity1
EA Weight6.7
EA Width2.56
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

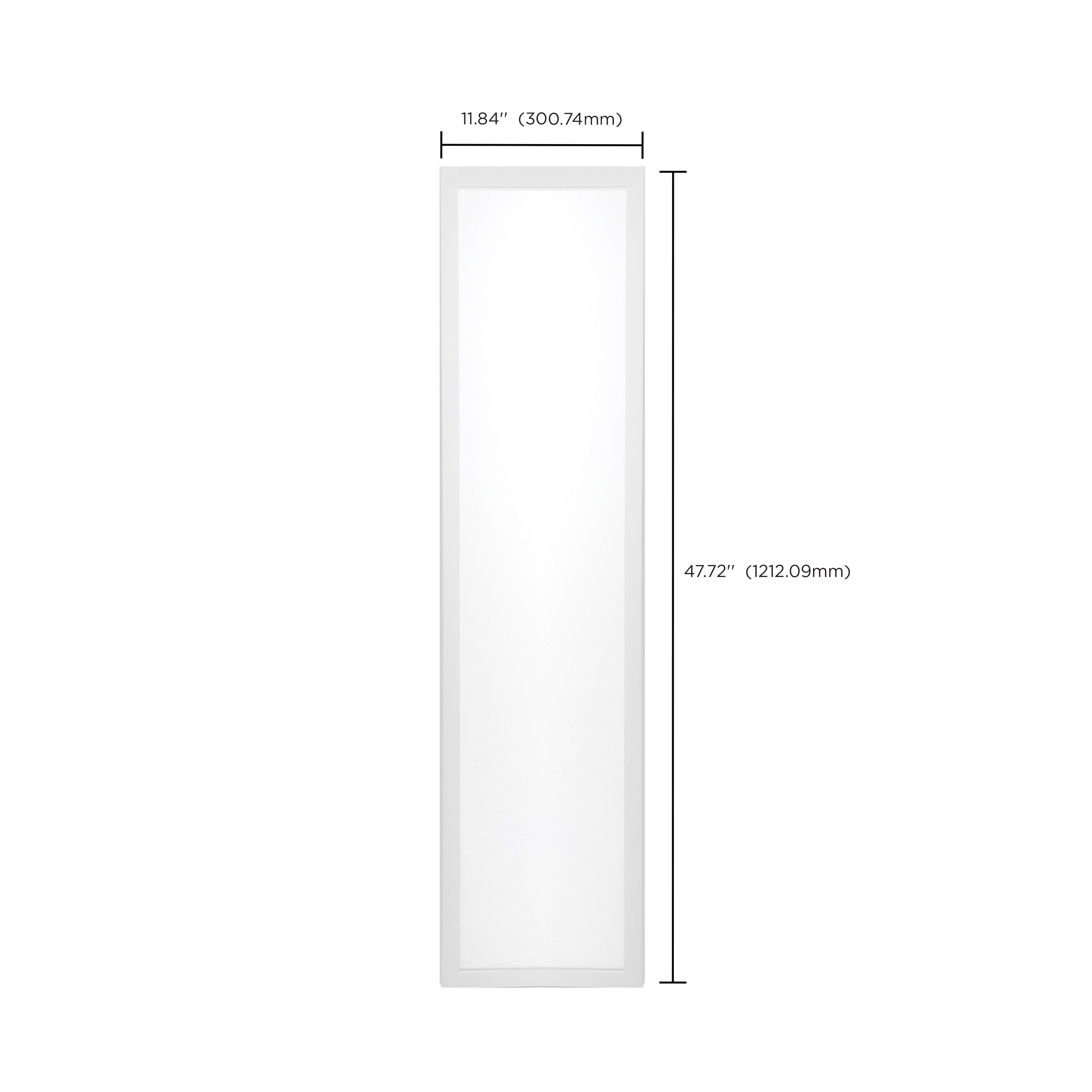

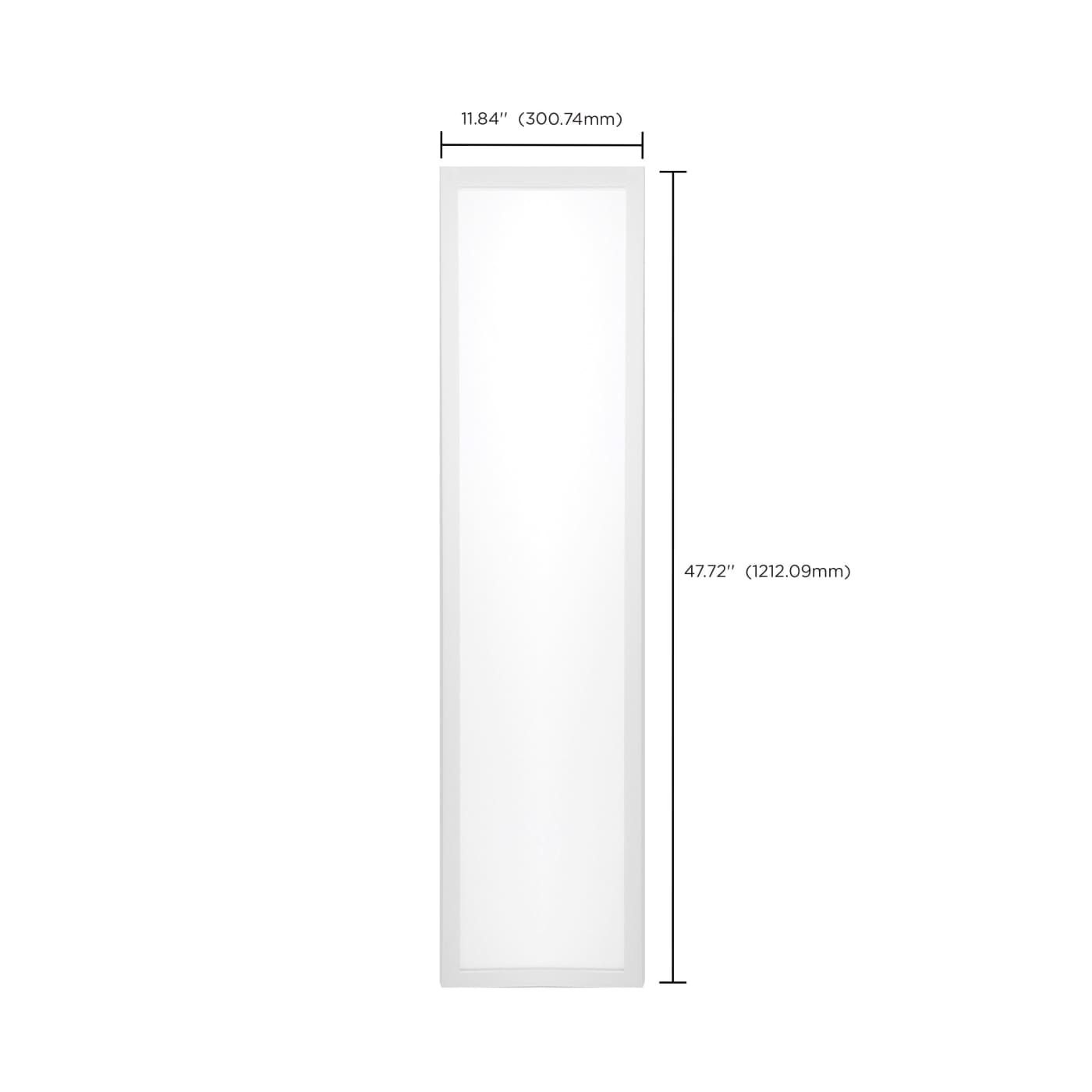

Web Height1.5
Web Length47.72
Web Width11.84
