65-585

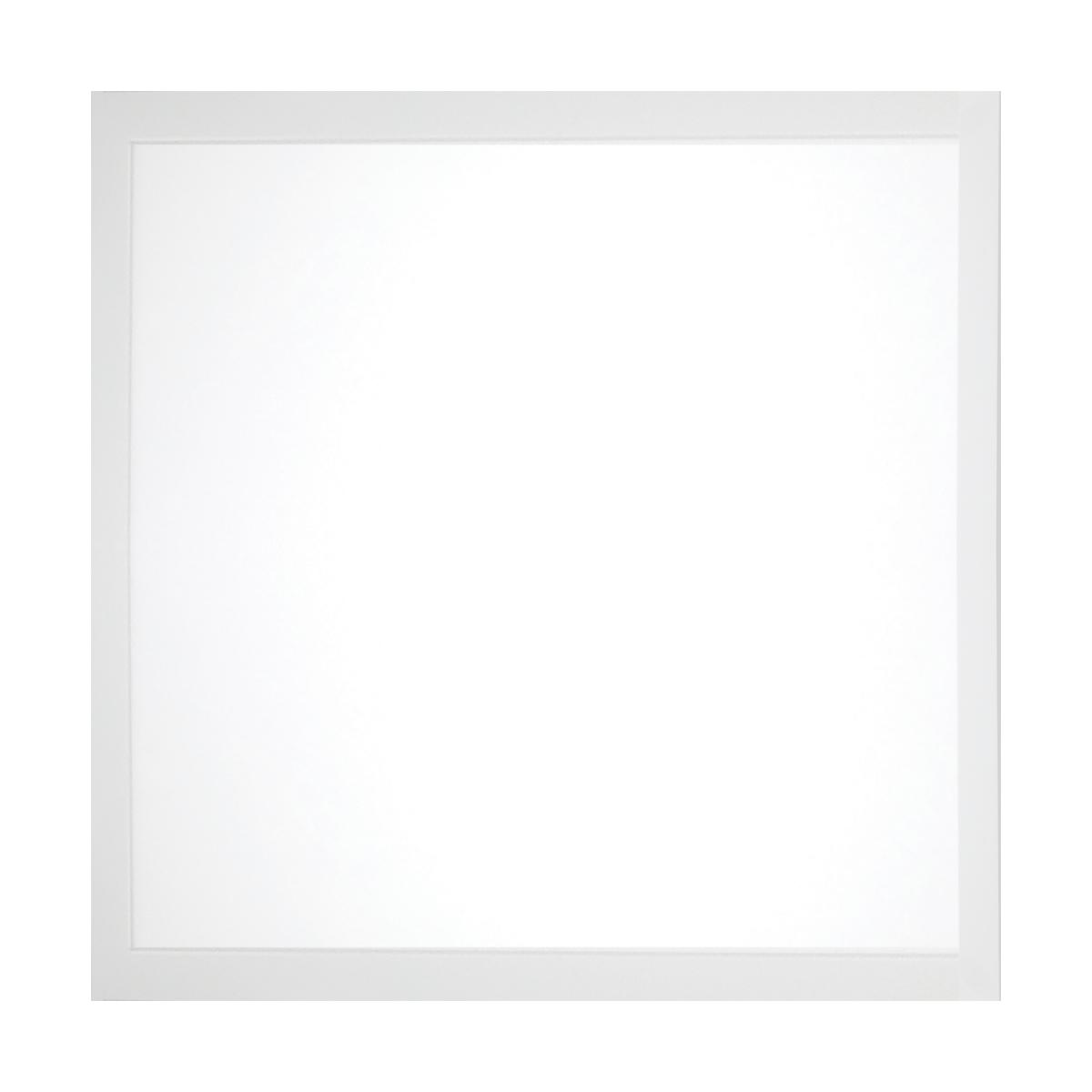

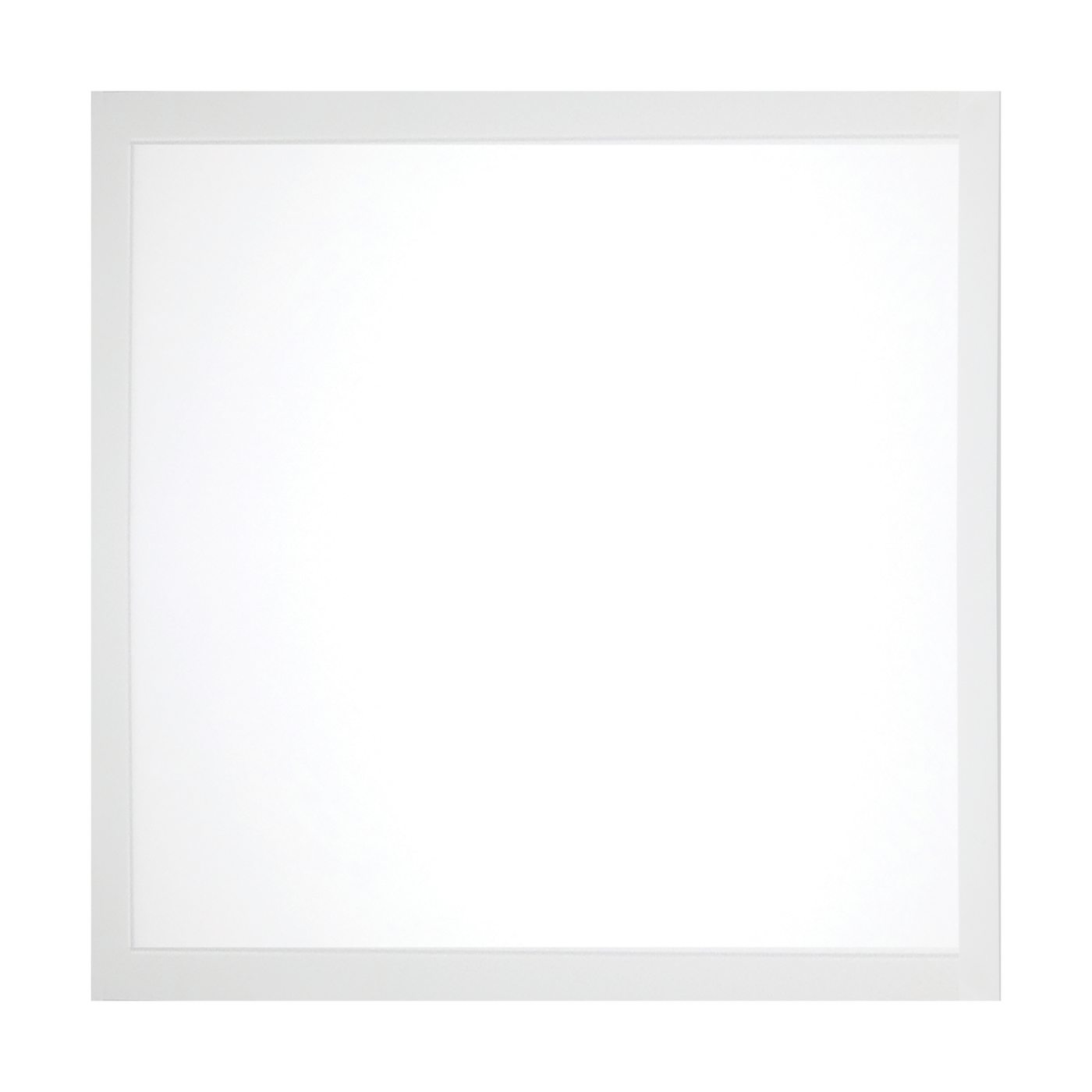

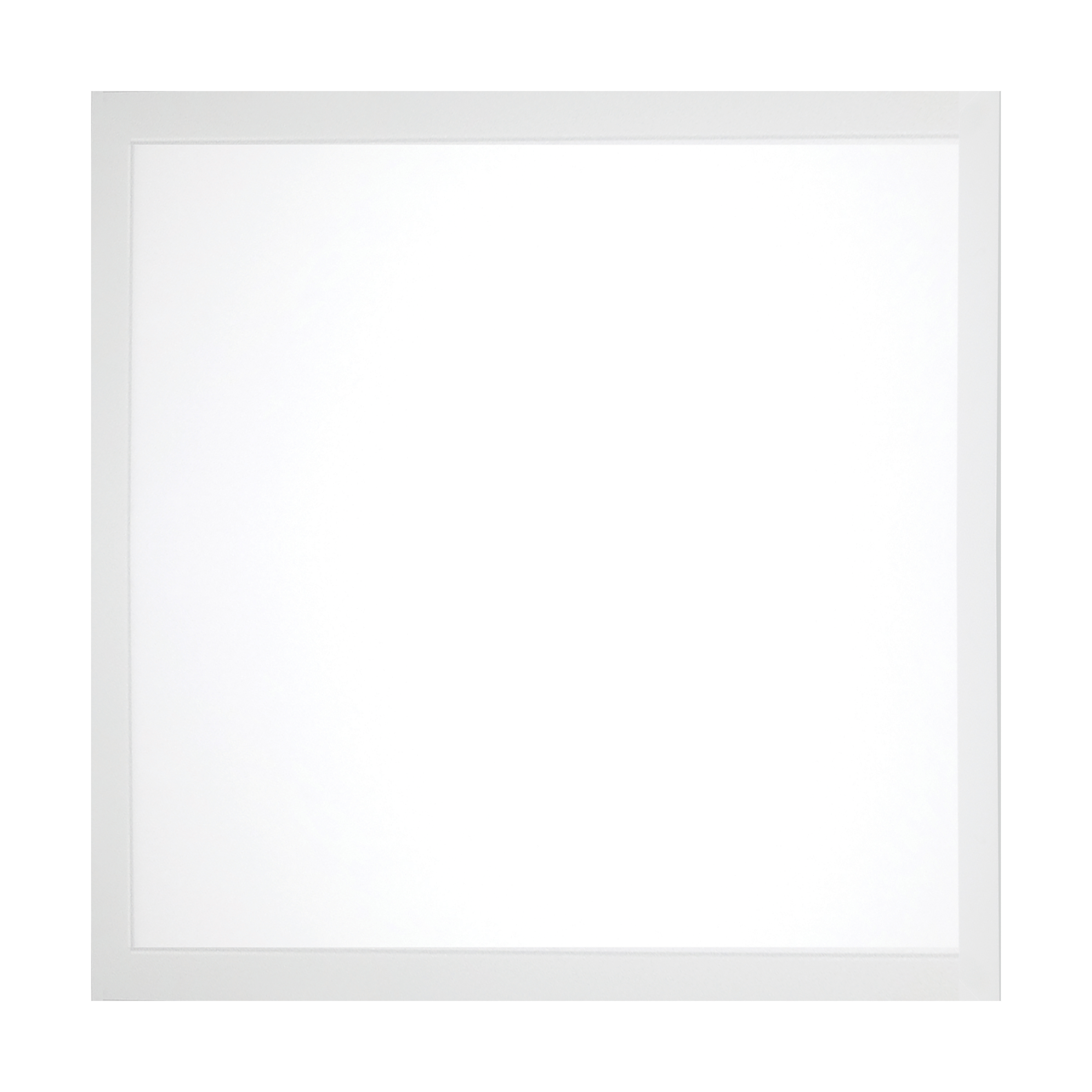

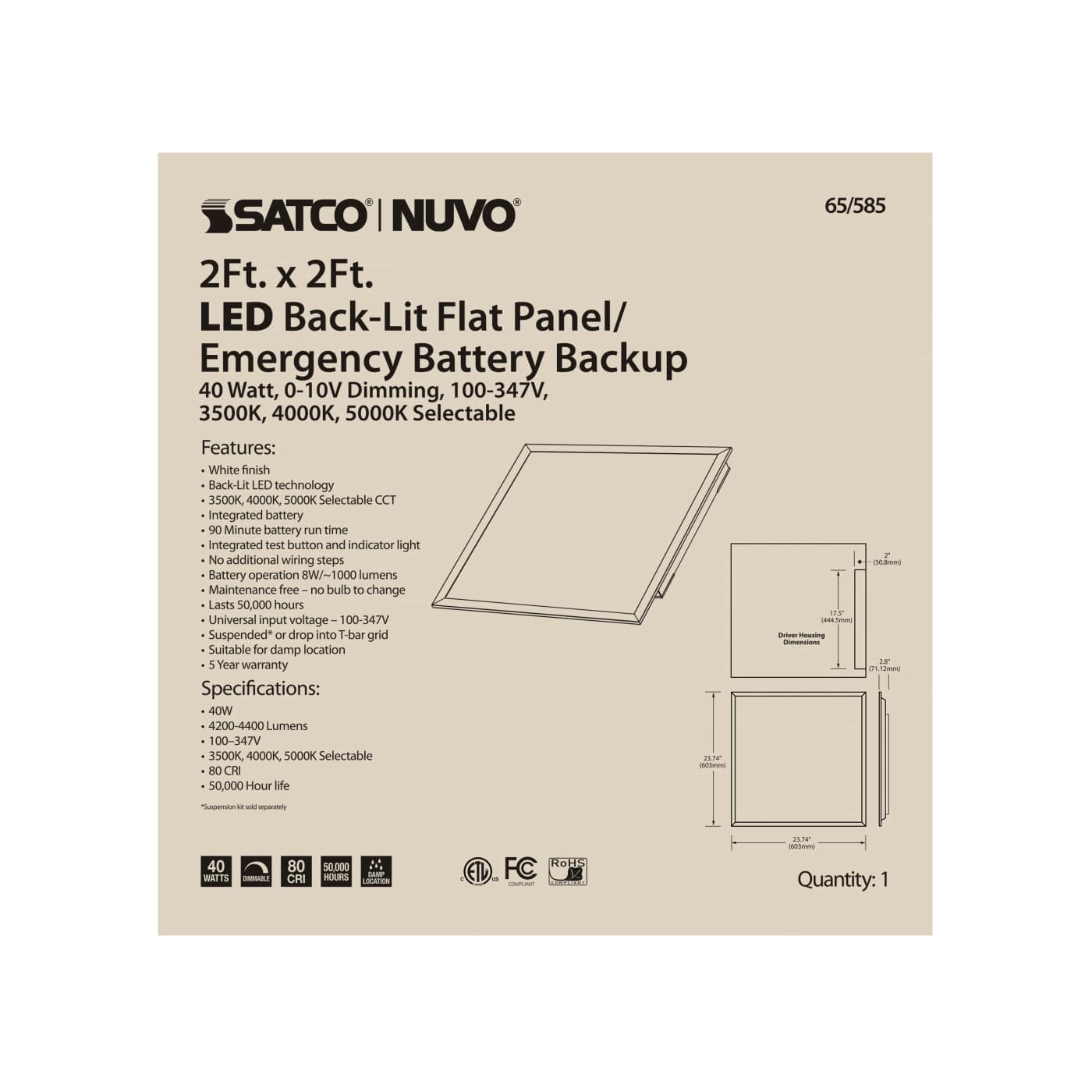

2X2 LED EM BACKLIT FLAT PANEL

Discontinued - Suggested Replacement: 65-585R1
  • LED Emergency Backlit Flat Panel
  • 40 Watt
  • 2 ft. x 2 ft.
  • Selectable CCT
  • 100-347 Volt
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-585 Specifications65-585 Instructions65-585 Wiring Diagram
Tools
Lighting Layout Analysis For 65-585
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Emergency Backlit Flat Panel; 40 Watt; 2 ft. x 2 ft.; Selectable CCT; 100-347 Volt
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only
MaterialAluminum / Steel
Fixture TypeBacklit Flat Panel
StatusDiscontinued
StyleUtility
Most Current Generation65-585R1
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion19.20%
Wire ColorWhite / Black / Green
Wire Length3.54
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.400-0.115A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Photo CellNo Photocell
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)
Lumens4400L-4600L
Volts120V-347V
Watts40W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
Air TightFalse
CA RegulationsT20 Non-Compliant - Never Tested
CA Prop 65Lead
CA StatusNon-Compliant
DLC IDPLXWJELBYVI9
FCC CompliantTrue
IC RatedTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextNon-Compliant
UL ApplicationLED Panel Luminaire
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20No
T24 CompliantFalse
Packaging
UPC045923659560
Case Cube1.5786
Case Height25.2
Case Length25.0
Case Quantity1
Case UPC10045923659567
Case Weight9.59
Case Width4.33
EA Cube1.5786
EA Height25.2
EA Length25.0
EA Quantity1
EA Weight9.59
EA Width4.33
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height2.88
Web Length23.75
Web Width23.75
