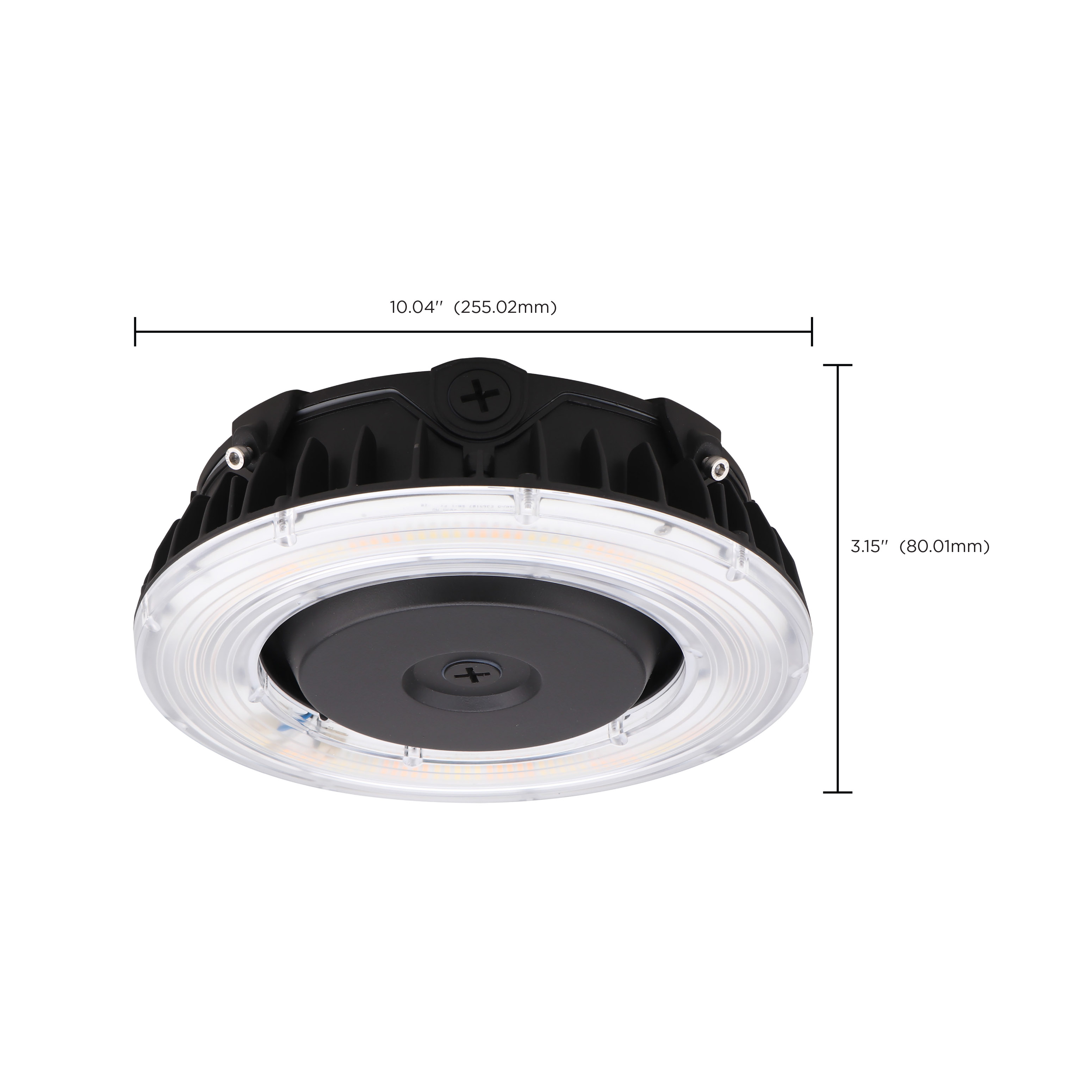

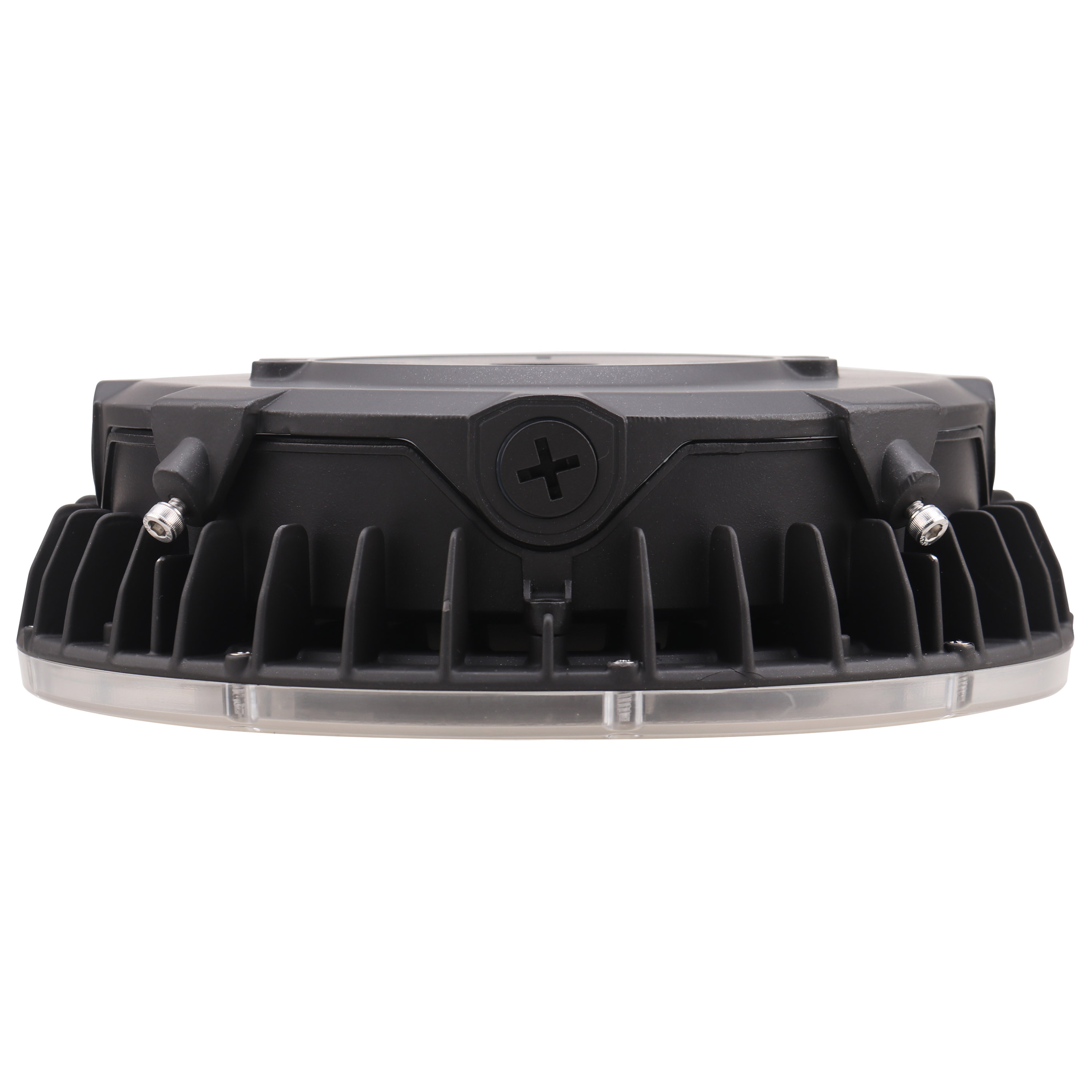

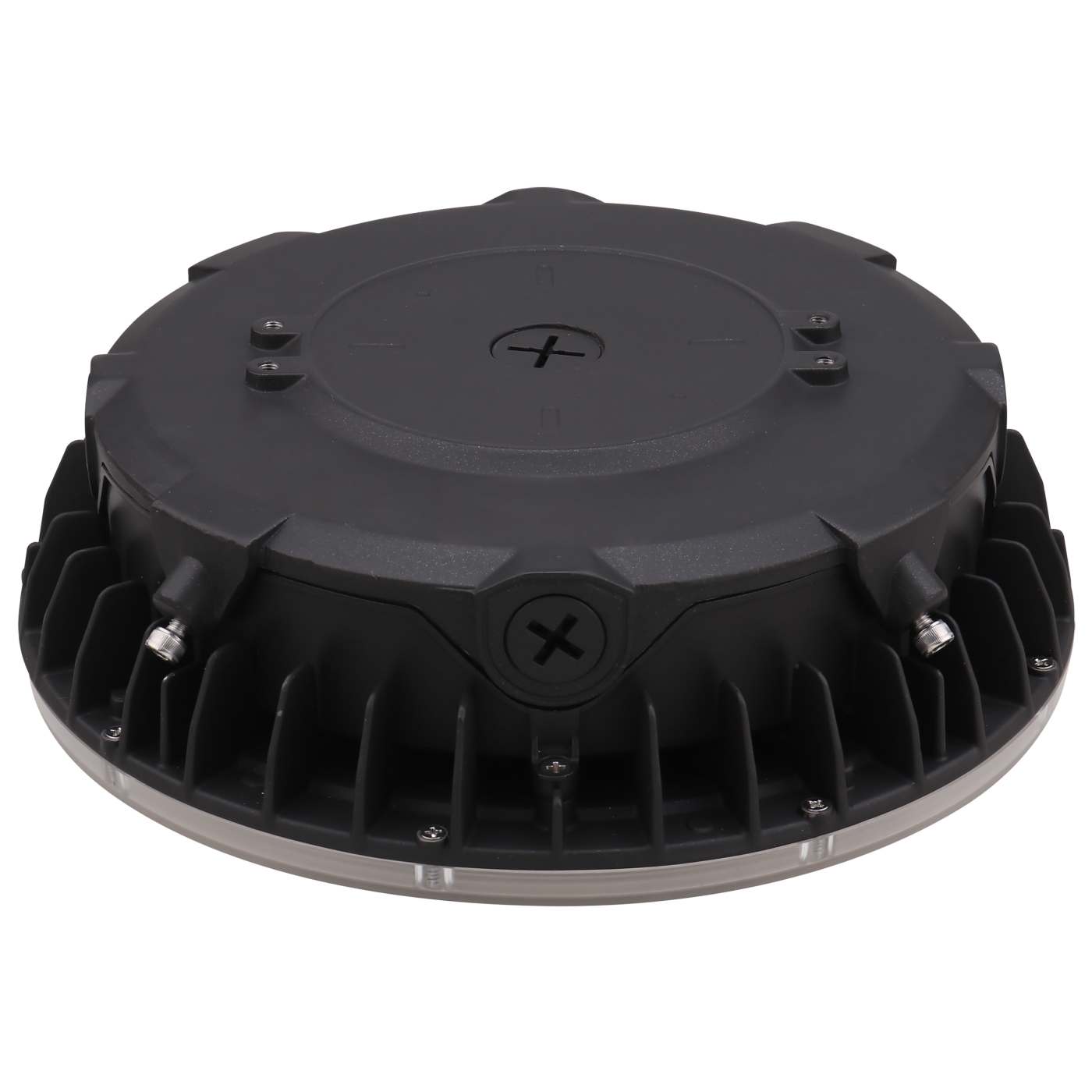

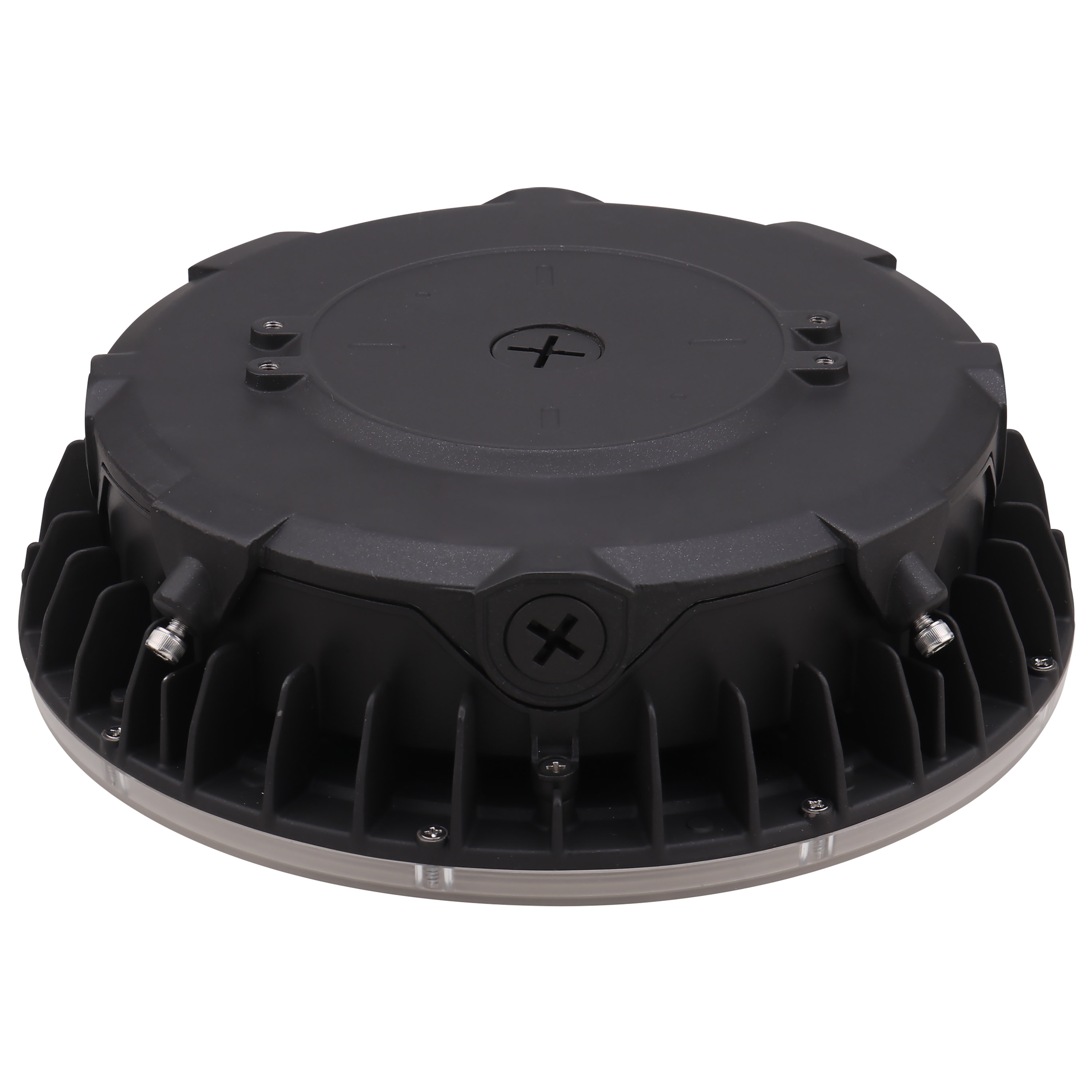

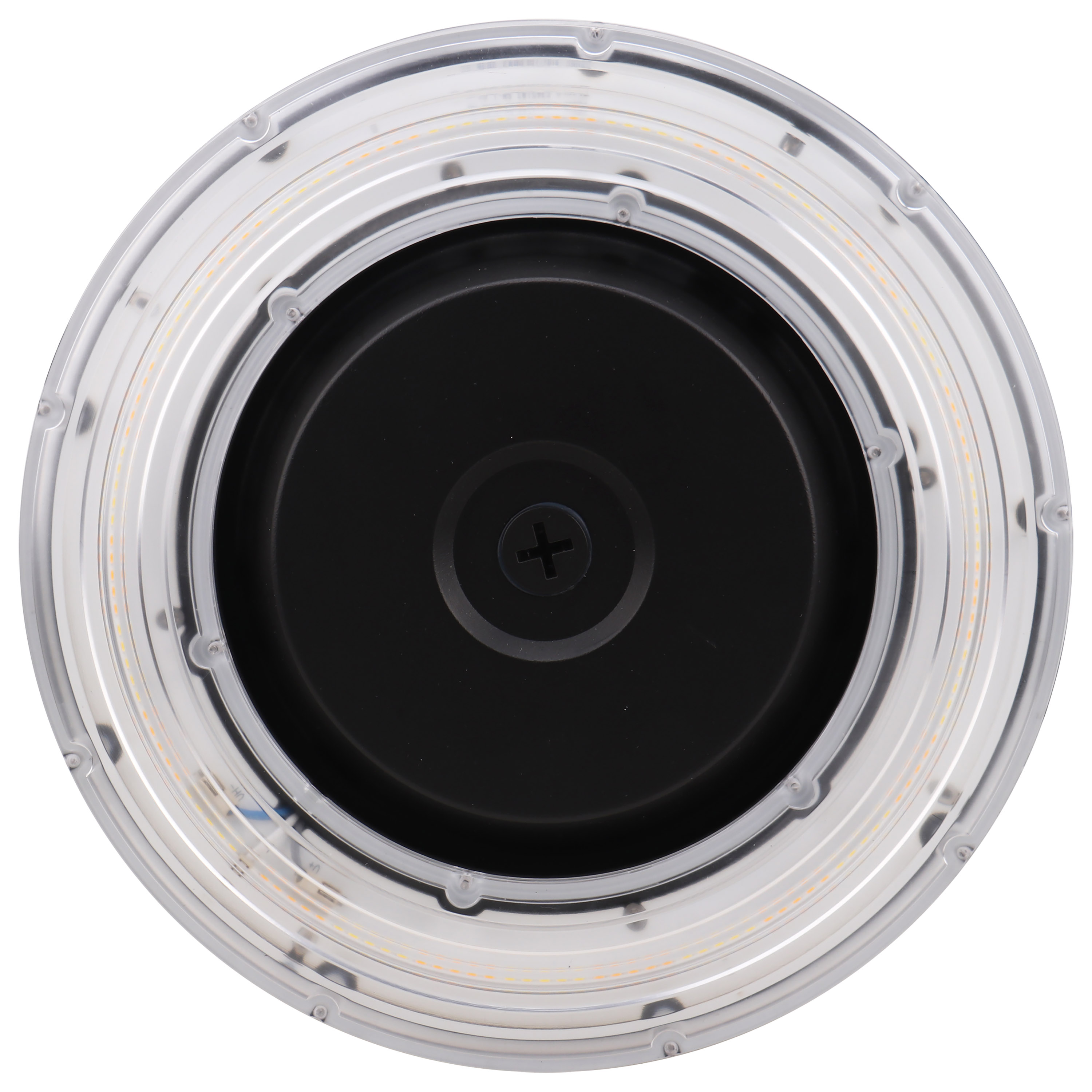

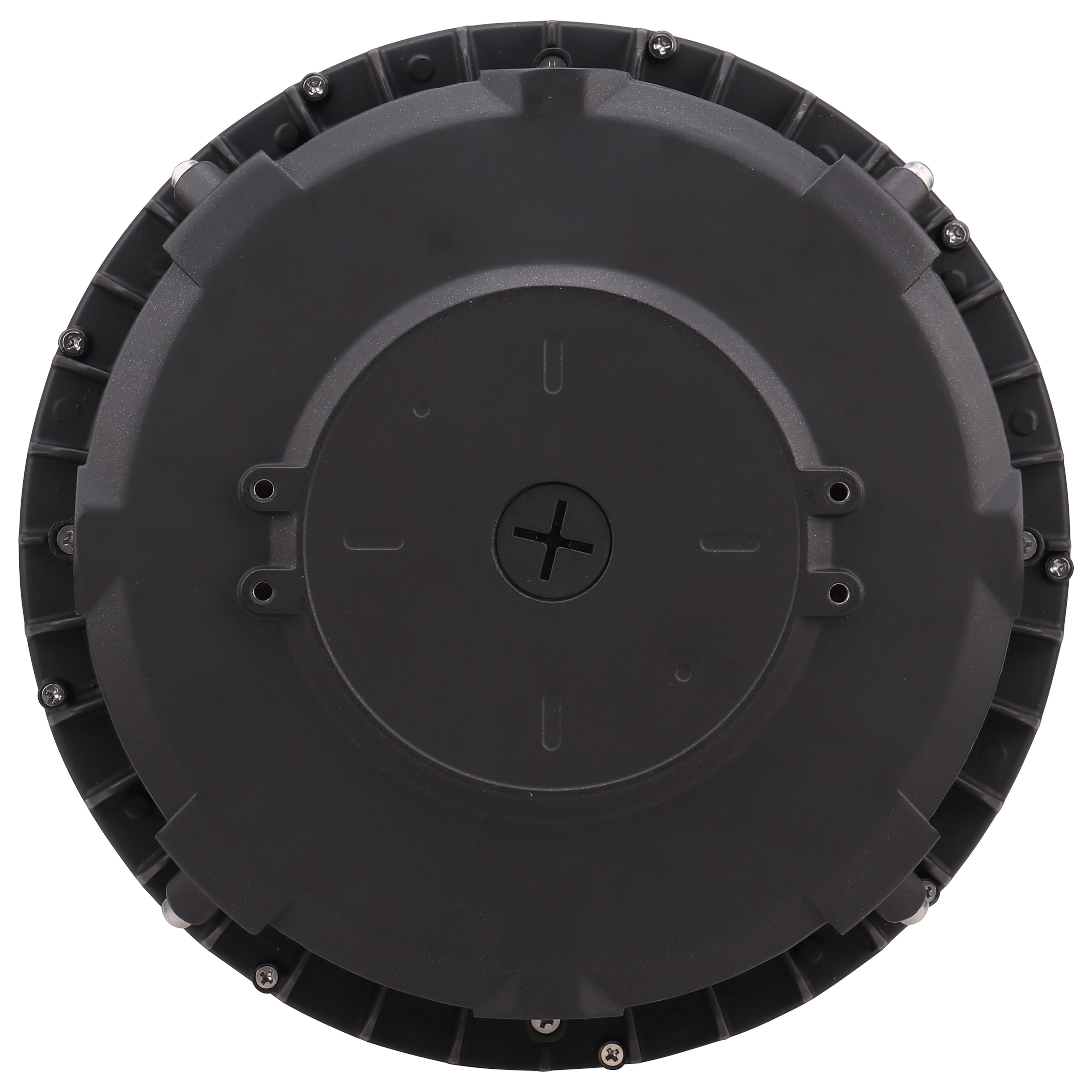

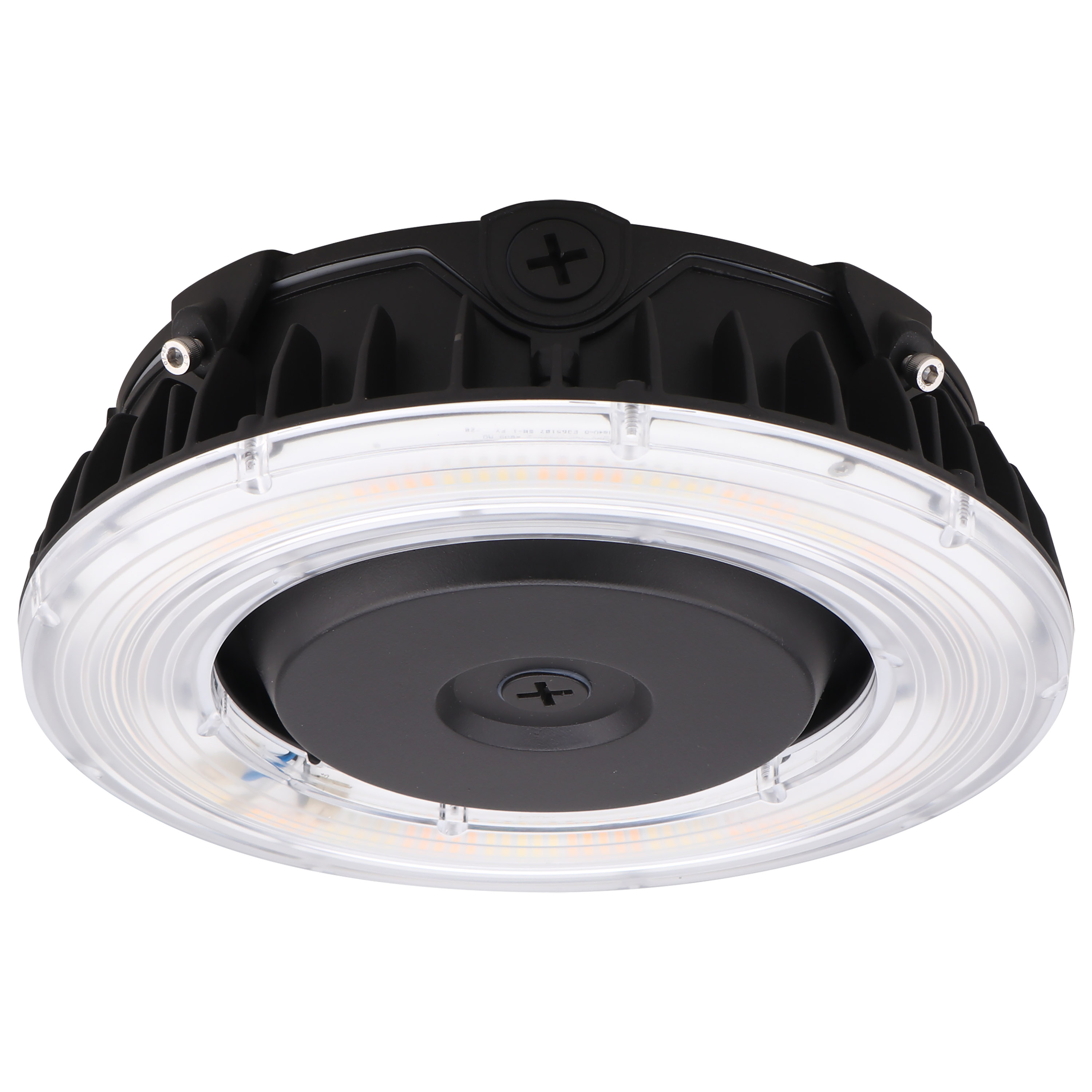

55W LED CANOPY W/ SENSOR PORT - 65-628R1
55W LED CANOPY W/ SENSOR PORT - 65-628R1
55W LED CANOPY W/ SENSOR PORT - 65-628R1
55W LED CANOPY W/ SENSOR PORT - 65-628R1
55W LED CANOPY W/ SENSOR PORT - 65-628R1
55W LED CANOPY W/ SENSOR PORT - 65-628R1
55W LED CANOPY W/ SENSOR PORT - 65-628R1
65-628R1

55W LED CANOPY W/ SENSOR PORT

  • LED Canopy Fixture
  • 55 Watt
  • CCT Selectable
  • Bronze Finish
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-628R1 Specifications65-628R1 Instructions.pdf
Tools
Lighting Layout Analysis For 65-628R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

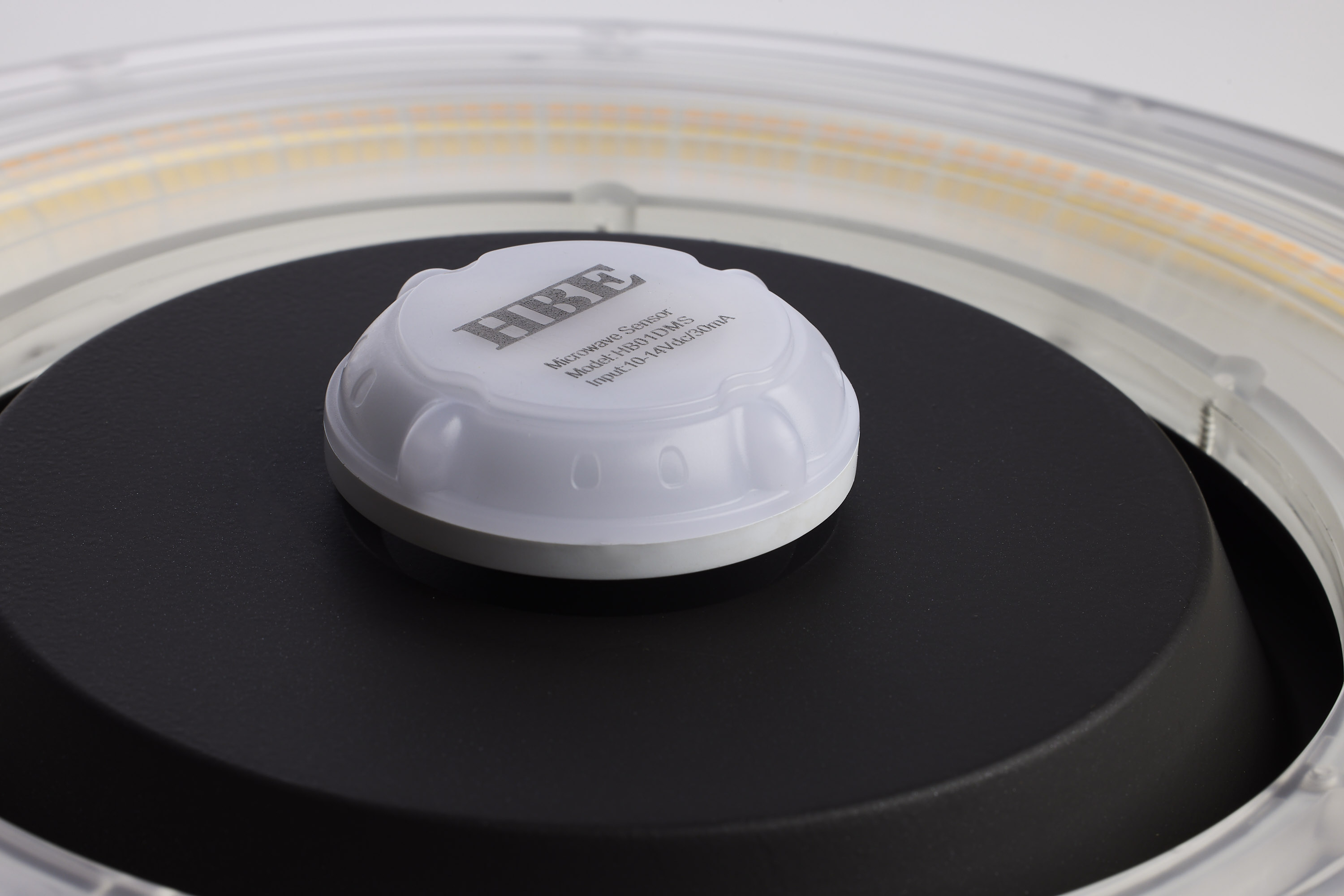

SATCO NUVO's 65-628R1 LED Round Canopy Light offers durable and versatile lighting with ColorQuick technology for easy color temperature selection. With an integrated sensor port, adding microwave or PIR motion sensors is effortless. This canopy light is made of premium die-cast aluminum with an IK10 impact rating and 4kV surge protection. Wet location rated, this canopy light is perfect for outdoor spaces, parking garages, and loading docks. With an efficacy of up to 151 lumens per watt, this canopy light is a versatile and energy-efficient lighting solution.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Diameter10.04
MaterialDie-cast Aluminum
Fixture TypeCanopy
Product NotesUV Stabilized Powder Coated Finish
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyBronze
Amps0.458-0.199A
Has CameraNo
Integrated FeaturesIntegrated Sensor Port
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Photo CellOptional Add-On
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent325W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)150
Color TempWarm to Cool White
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +113F (-40C to +45C)
Lumens7733L/8284L/8072L
Volts120V-277V
Watts55W
Max Lumens8284L
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Mounting ProcedureCeiling Pendant
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB3-U3-G2
CA Prop 65Lead
DLC IDS-260R9W
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923652301
Case Cube1.085
Case Height12.6
Case Length12.6
Case Quantity2
Case UPC10045923652308
Case Weight12.1
Case Width11.81
EA Cube0.4447
EA Height5.51
EA Length11.81
EA Quantity1
EA Weight5.5
EA Width11.81
Pack TypeBox
Web Height3.15
Web Width10.04
