65-635

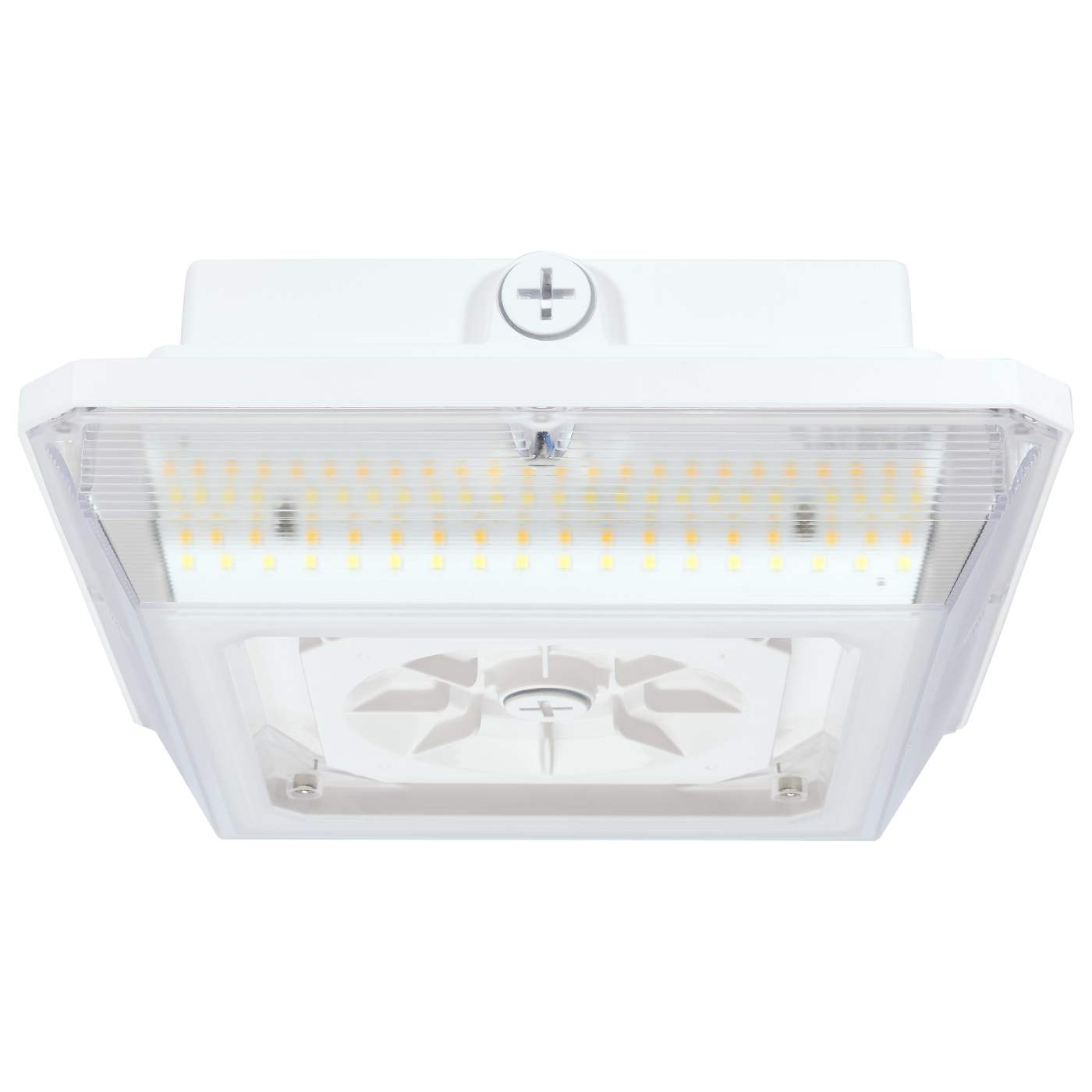

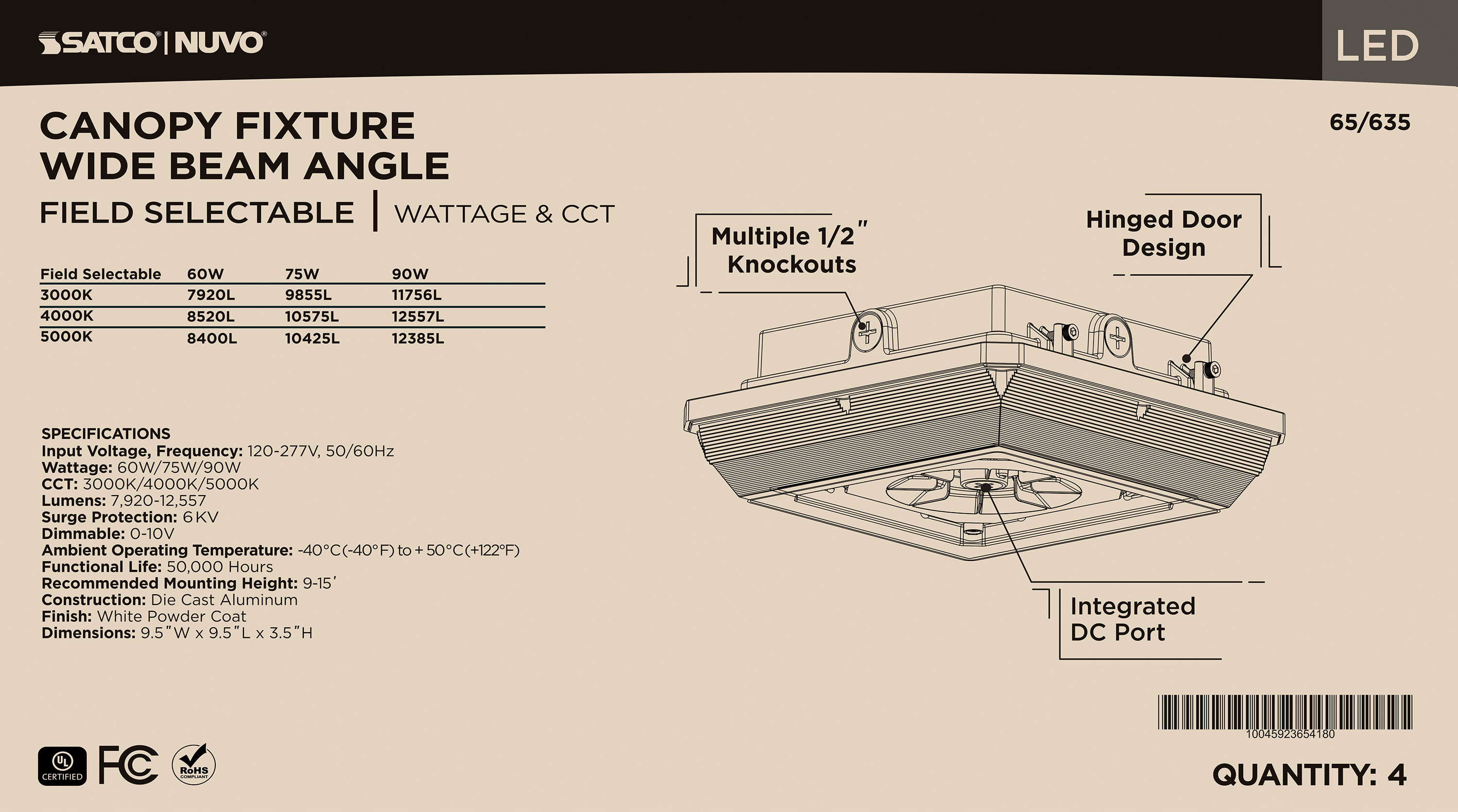

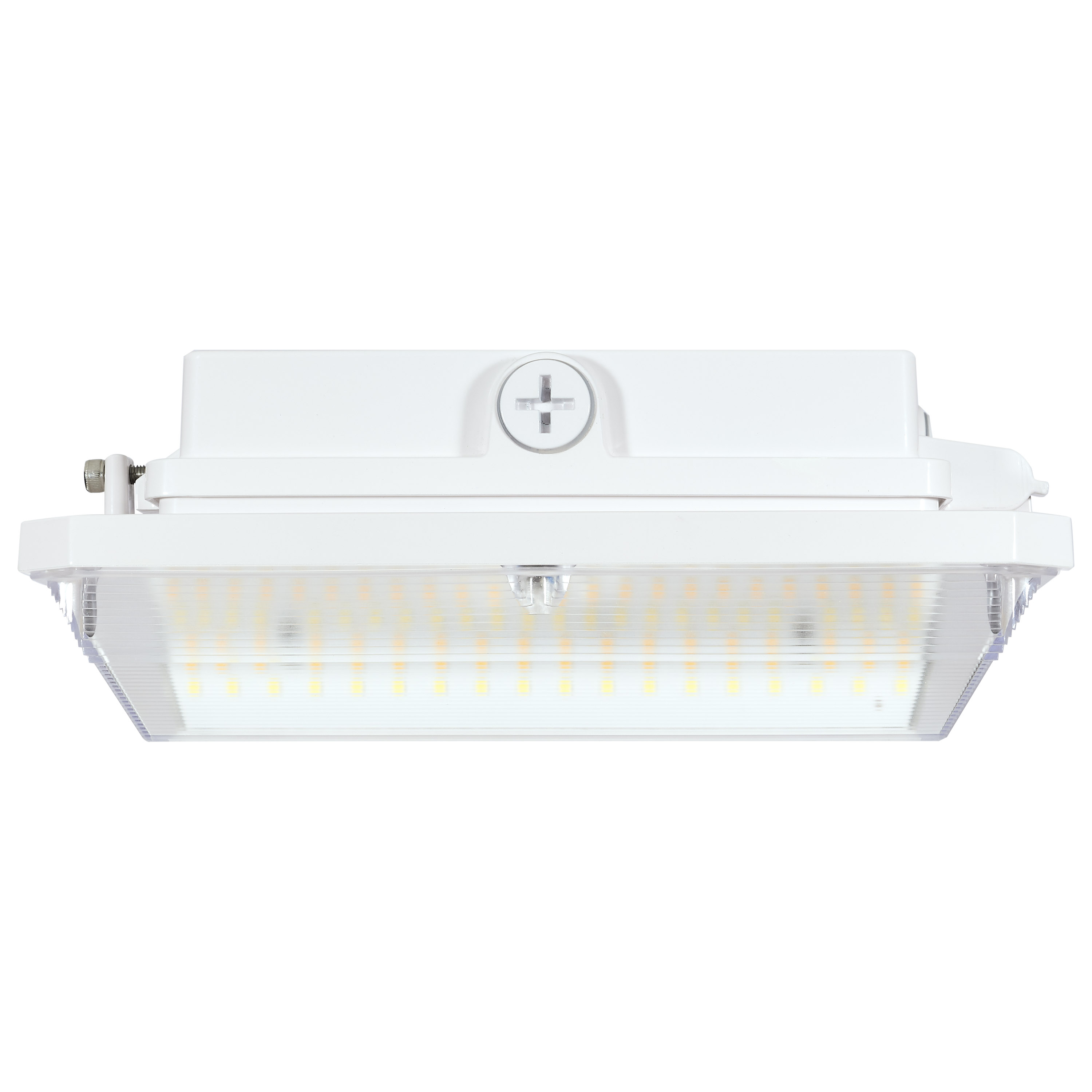

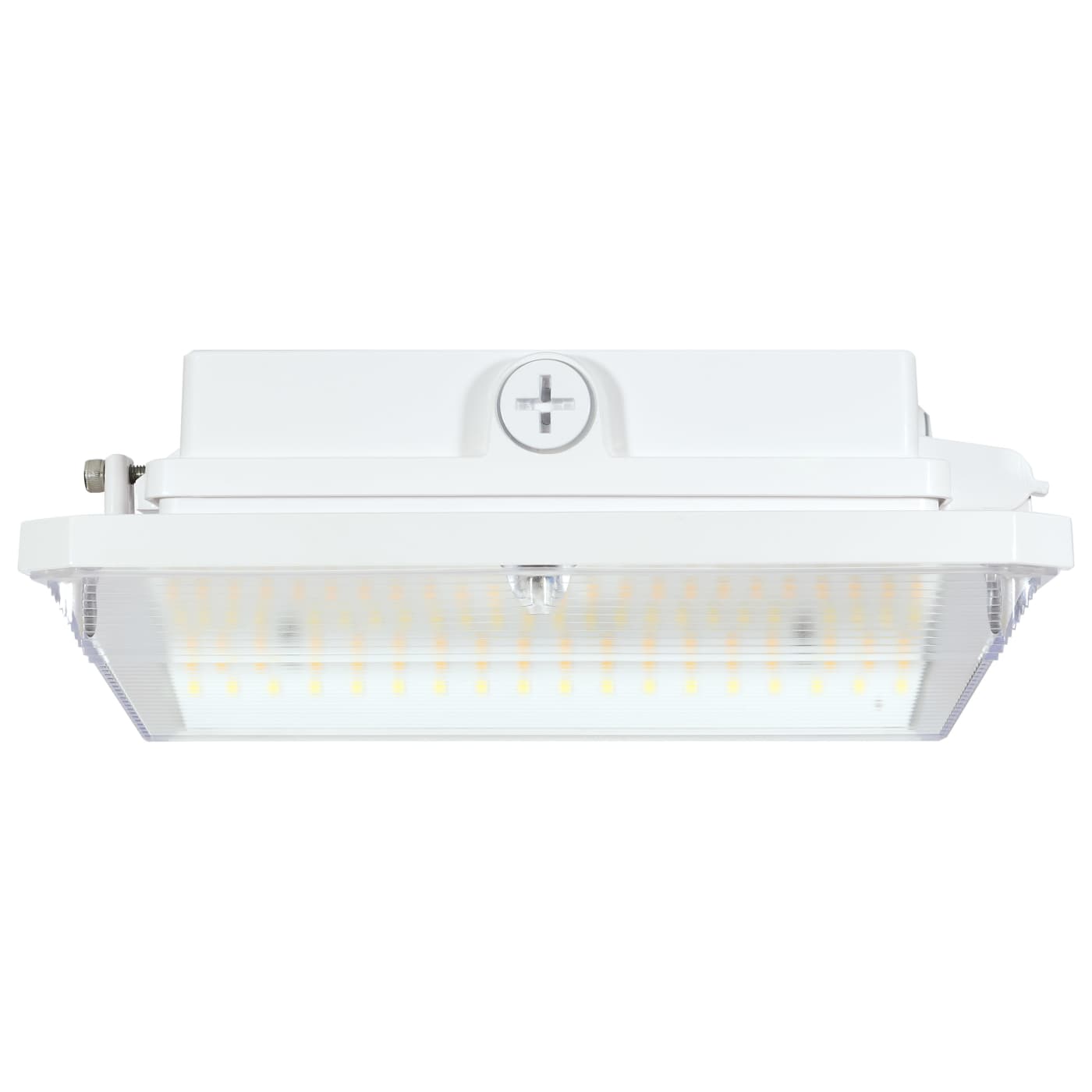

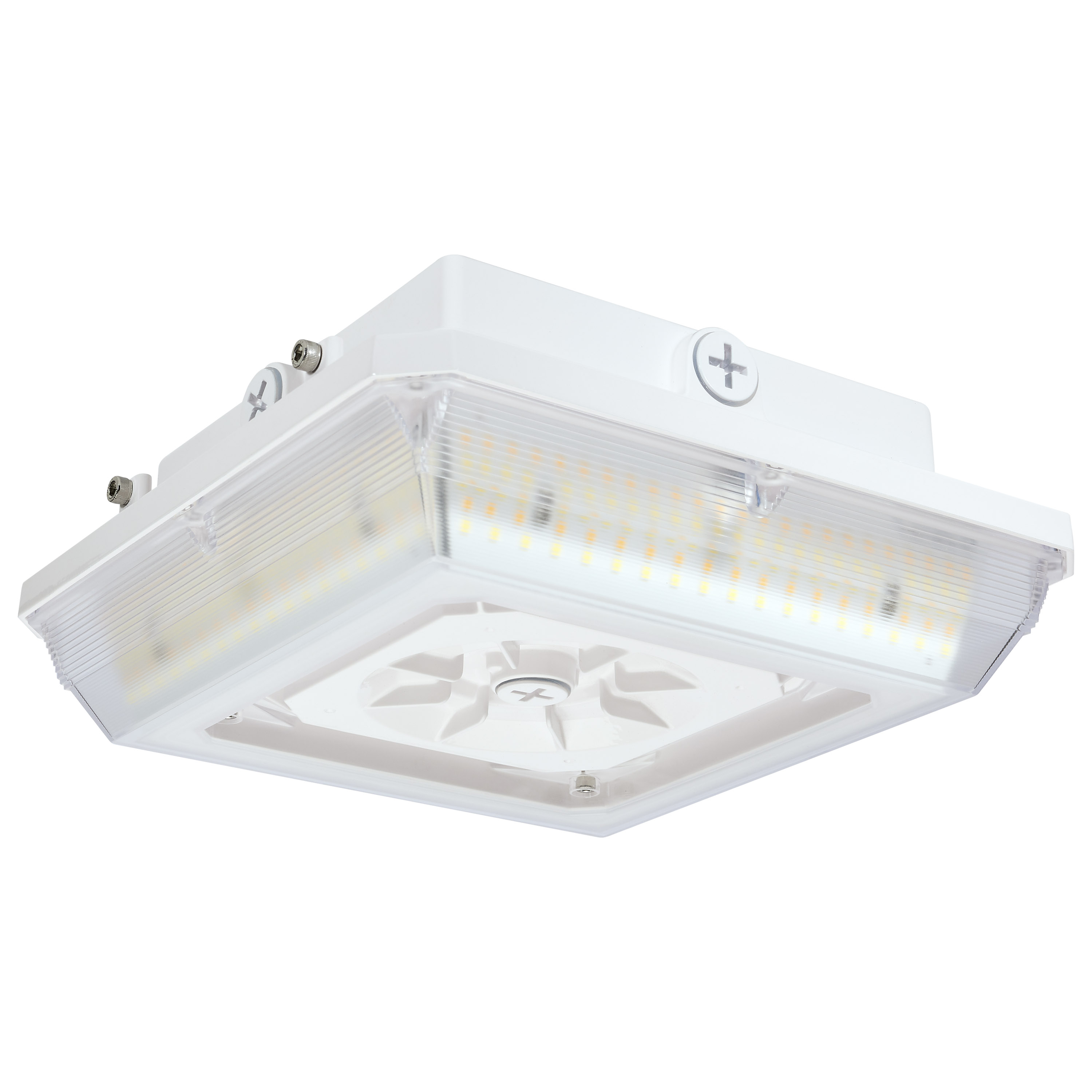

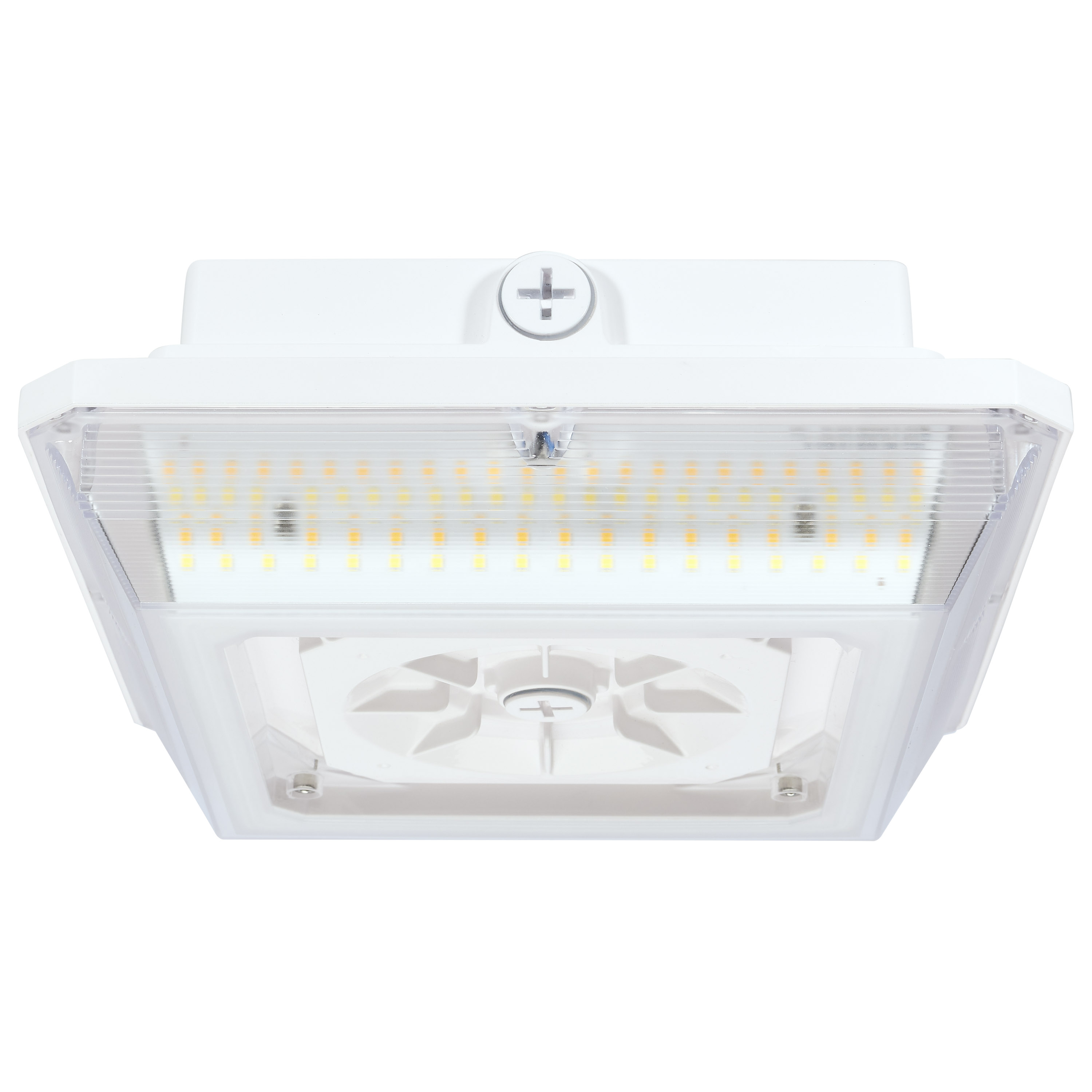

LED WIDE BEAM ANGLE CANOPY

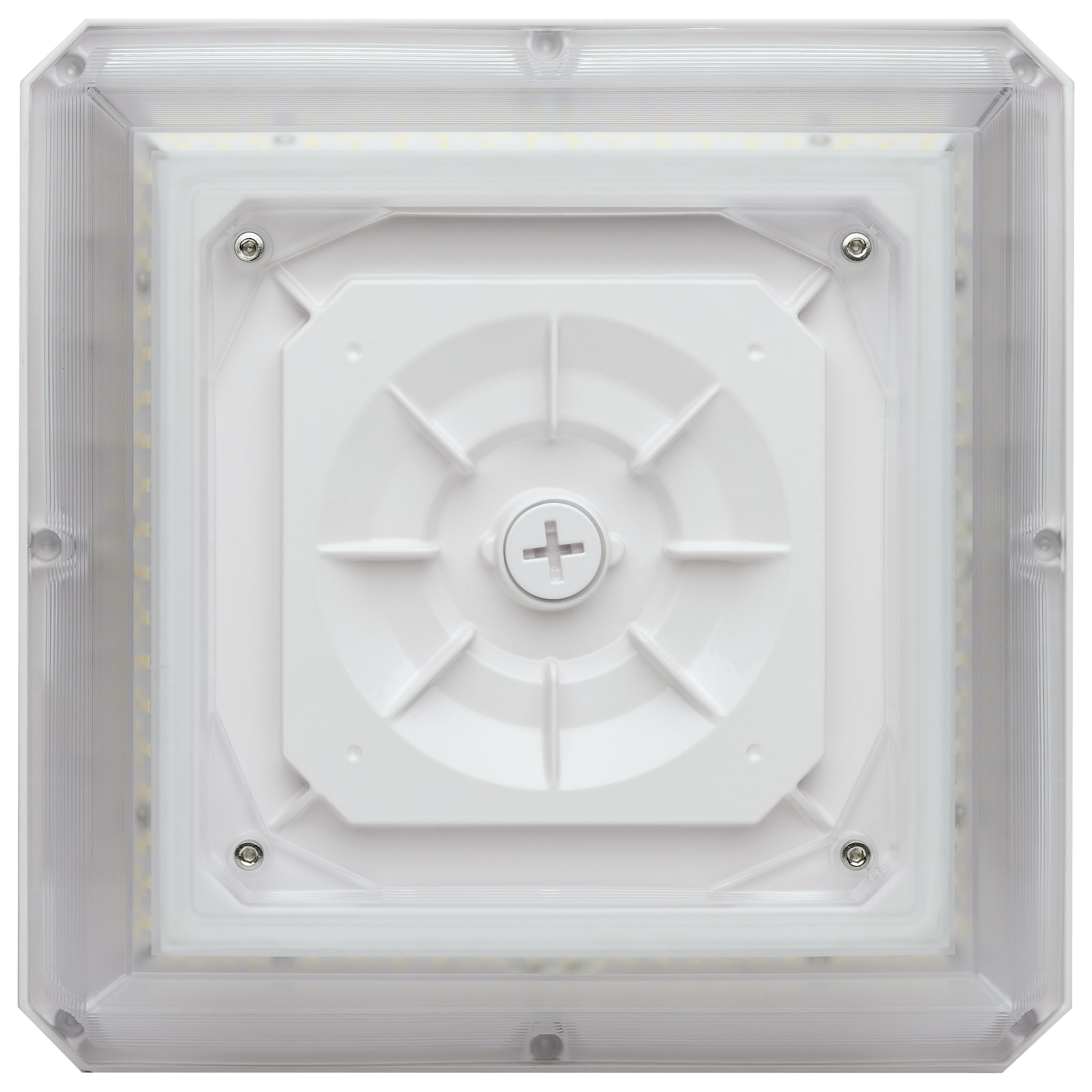

  • Square LED
  • Wide Beam Angle Canopy Light

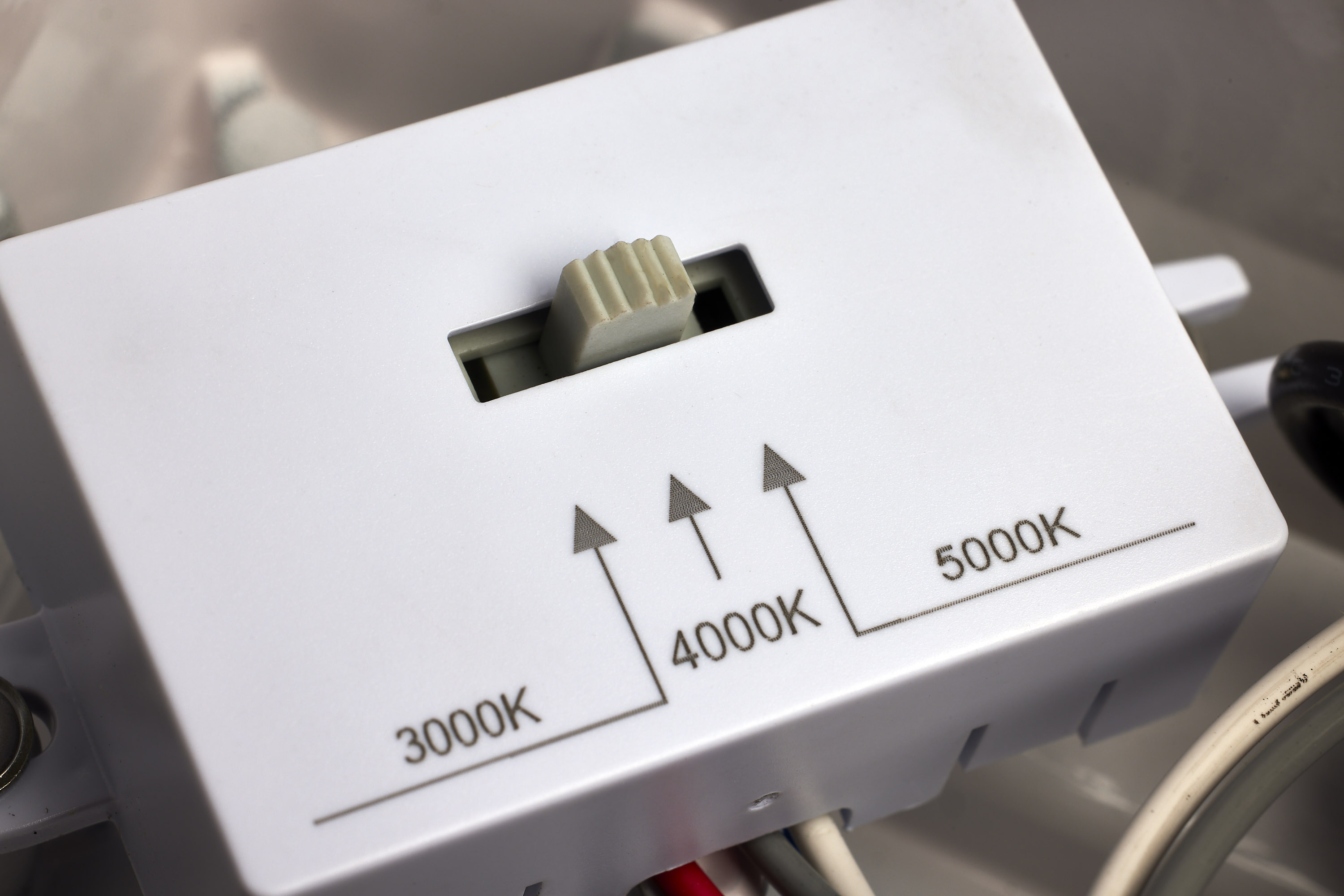

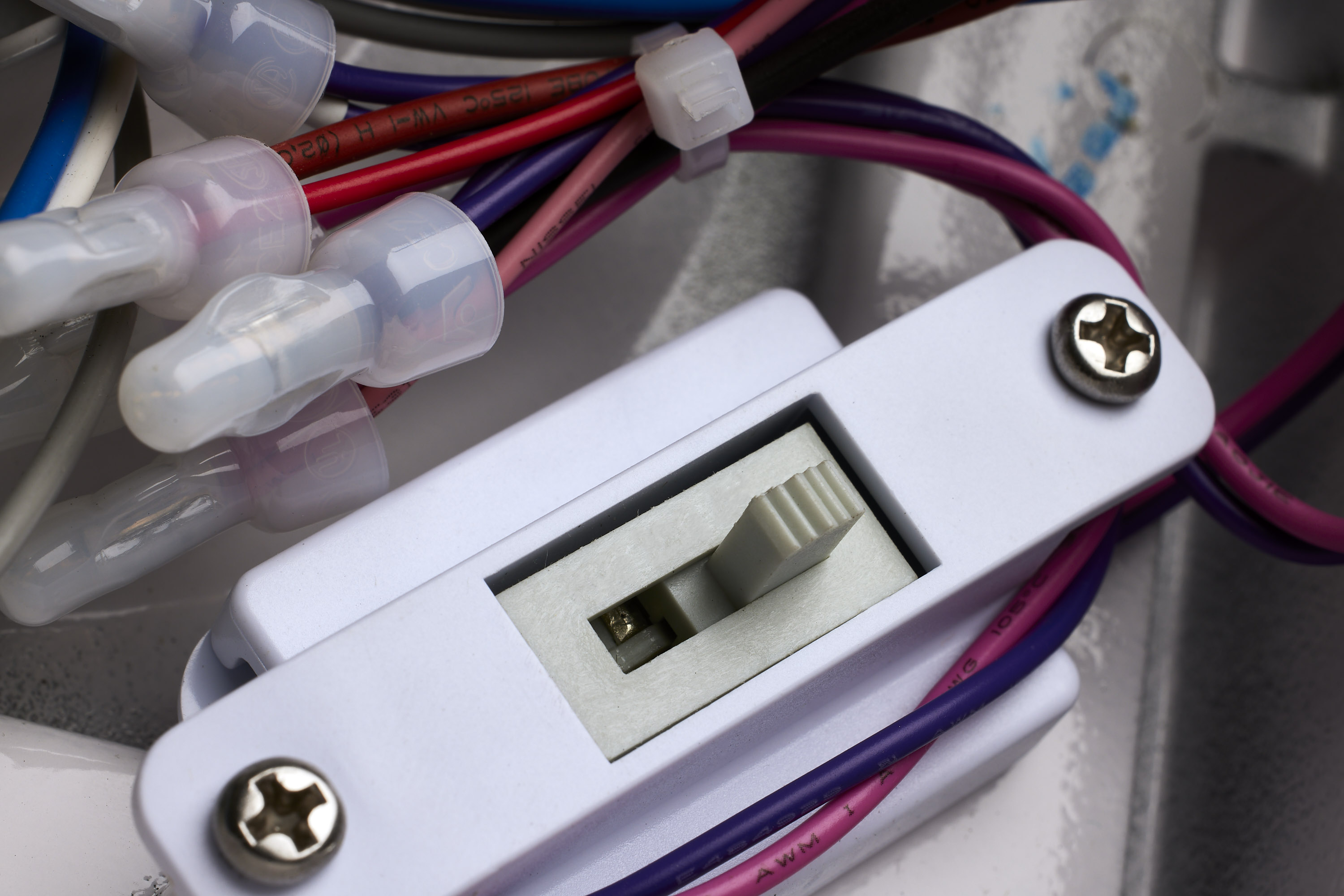

  • 3K/4K/5K CCT Selectable
  • 60W/75W/90W Wattage Selectable
  • White Finish
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-635 Specifications65-635 Photometrics 60W 3000K.ies65-635 Photometrics 60W 4000K.ies
Tools
Lighting Layout Analysis For 65-635
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Square LED; Wide Beam Angle Canopy Light; 3K/4K/5K CCT Selectable; 60W/75W/90W Wattage Selectable; White Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming
MaterialDie-cast Aluminum
Fixture TypeCanopy

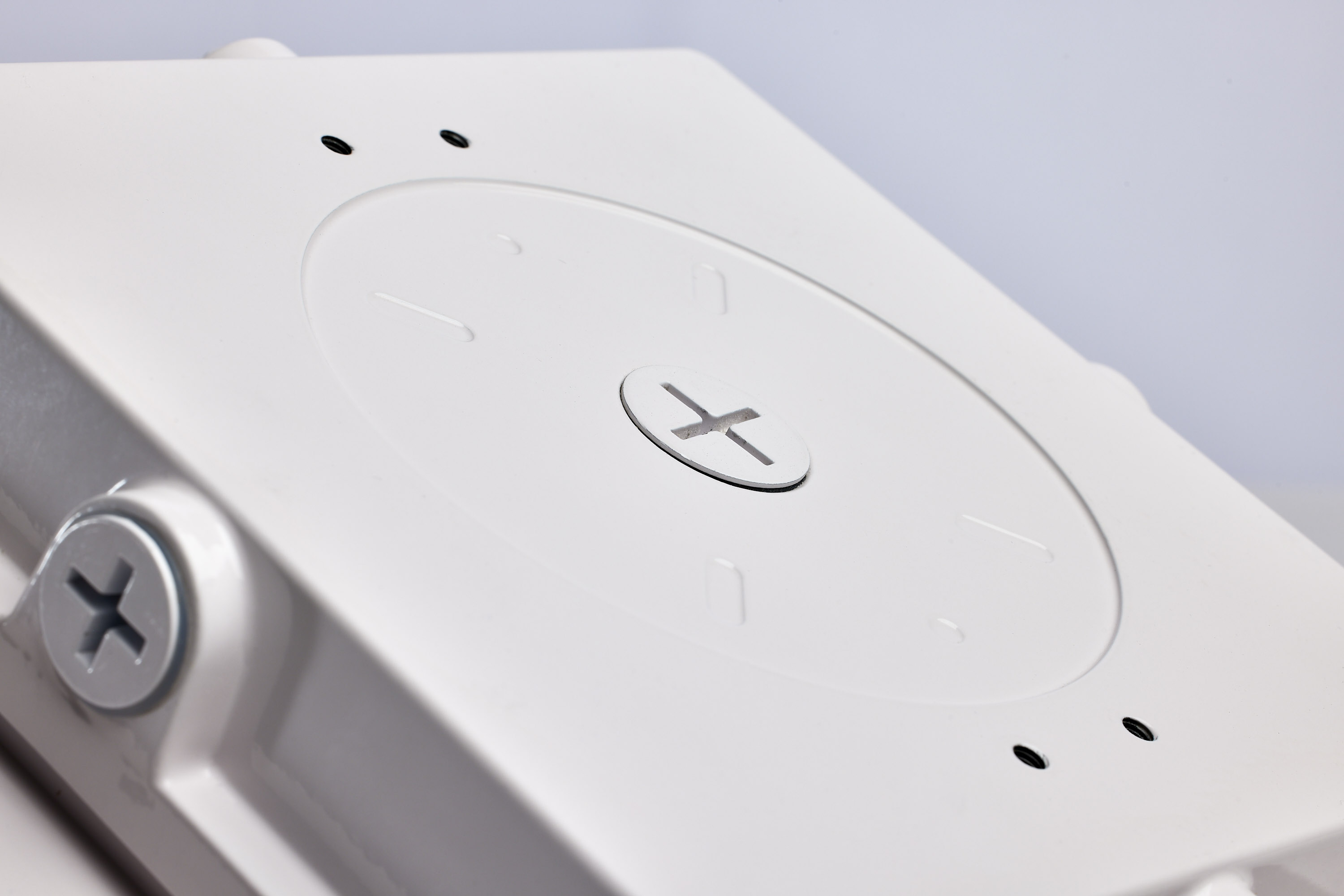

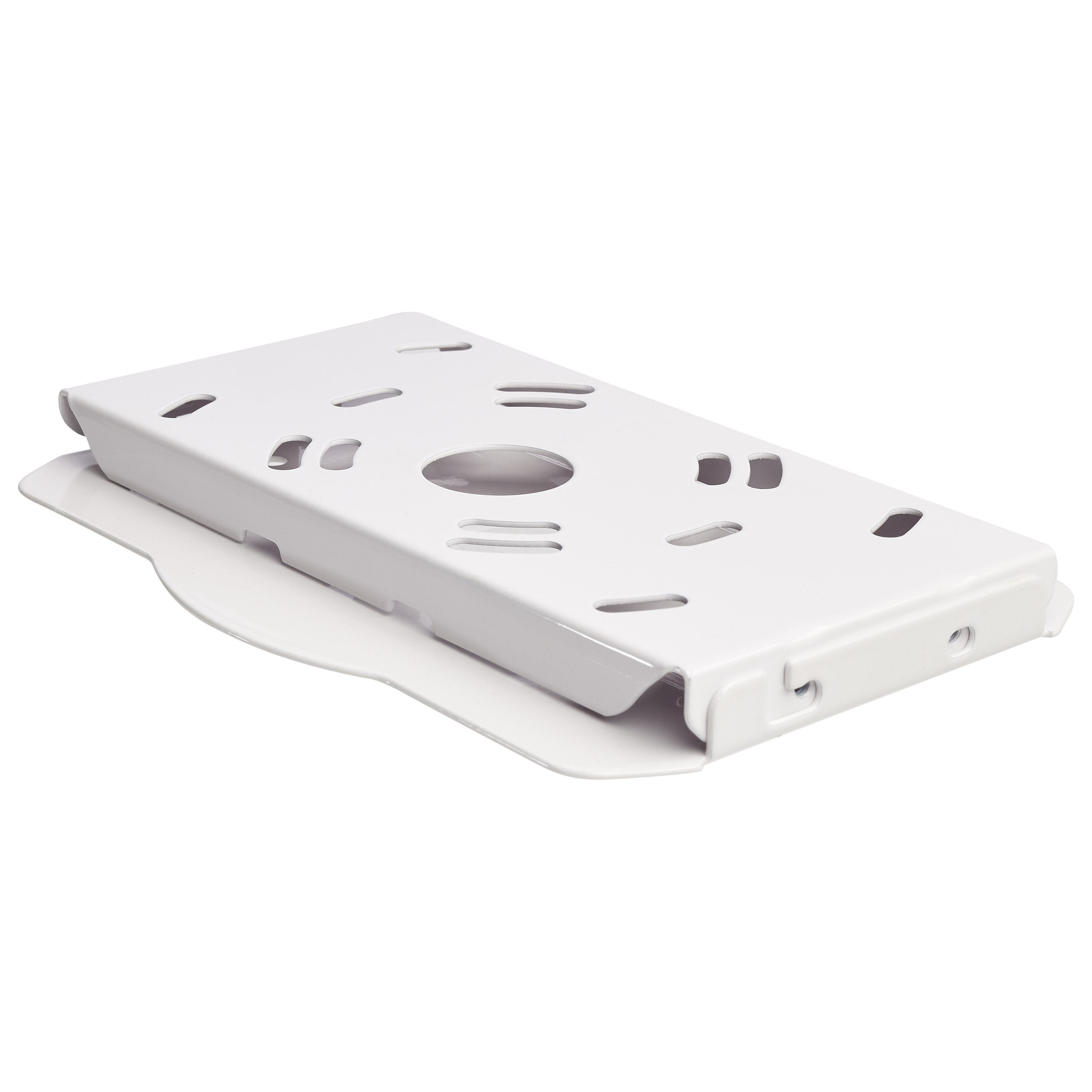

Product NotesMultiple half-inch knockouts; Three quarter inch back knockout for pendant applications
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite

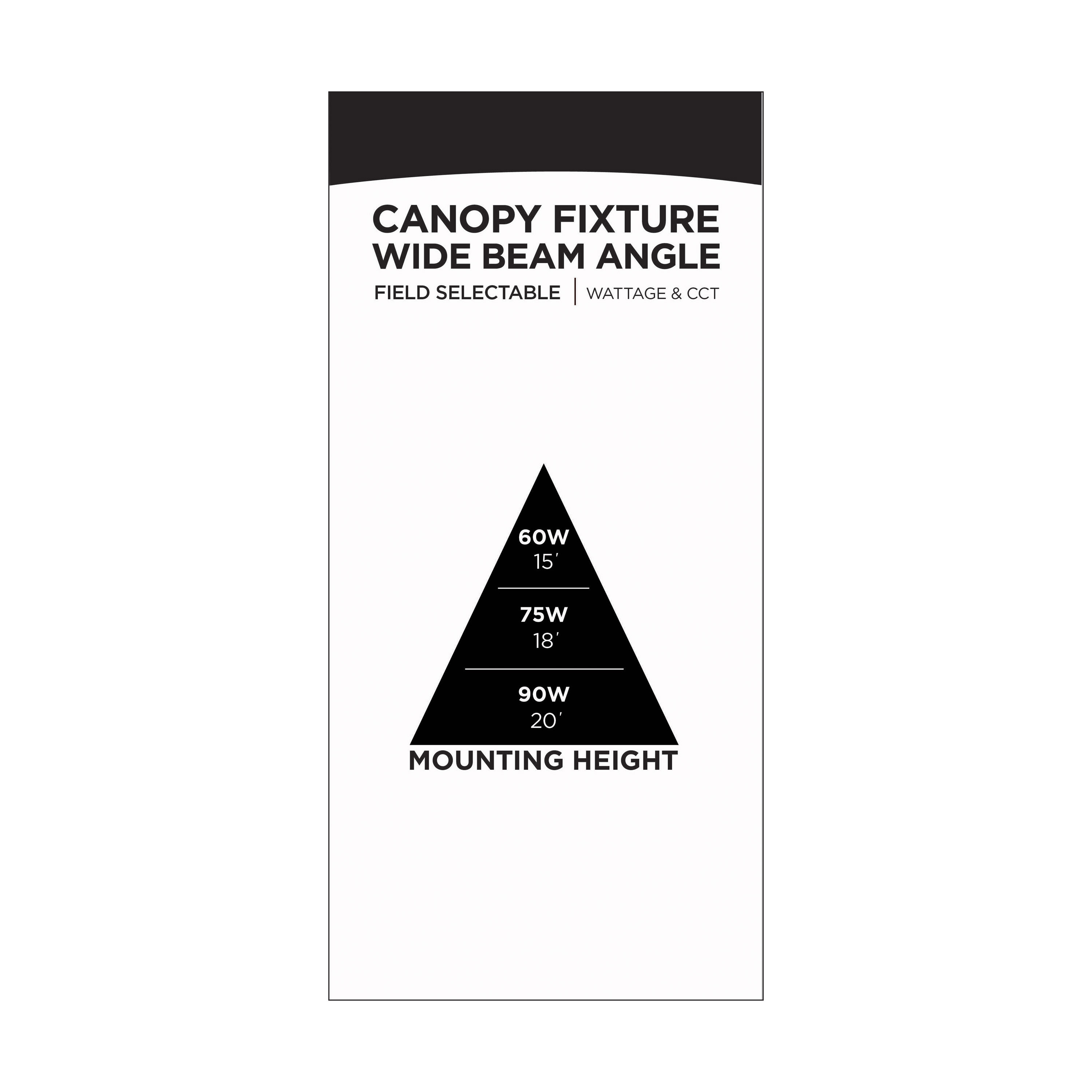

Additional InfoRecommended Mounting Height: 15 to 20 Feet
Amps0.500-0.217/0.625-0.271/0.750-0.325A
Has CameraNo

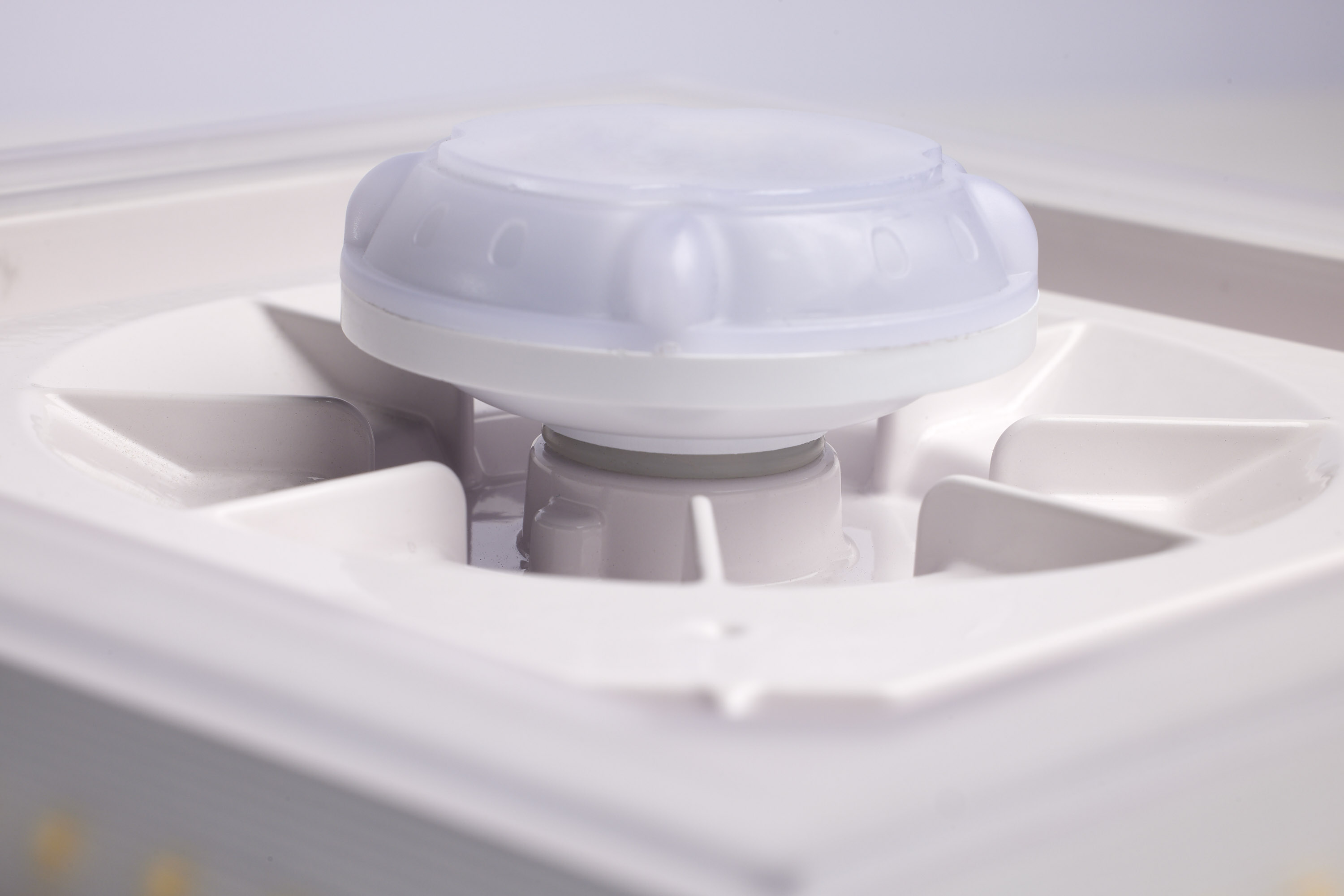

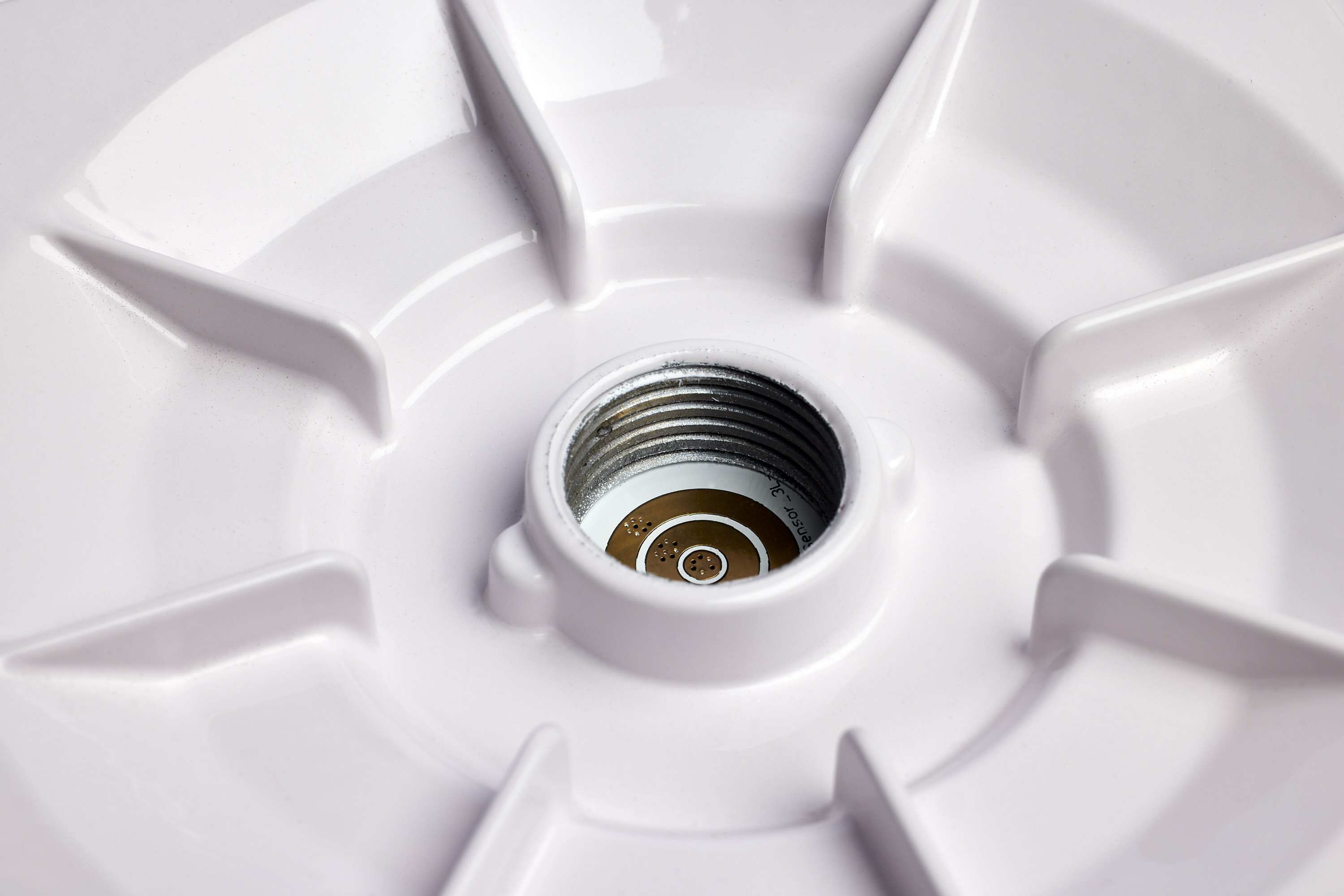

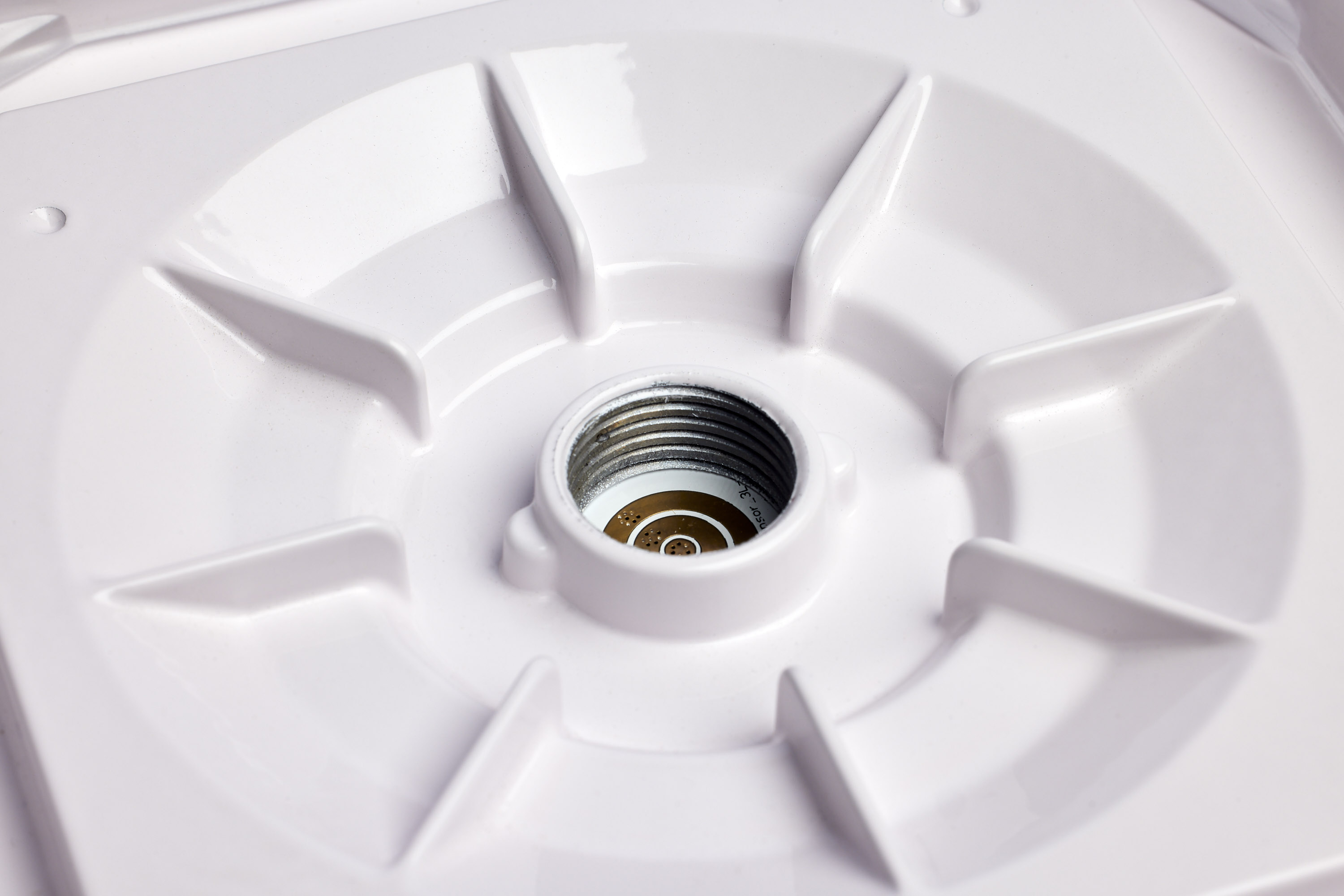

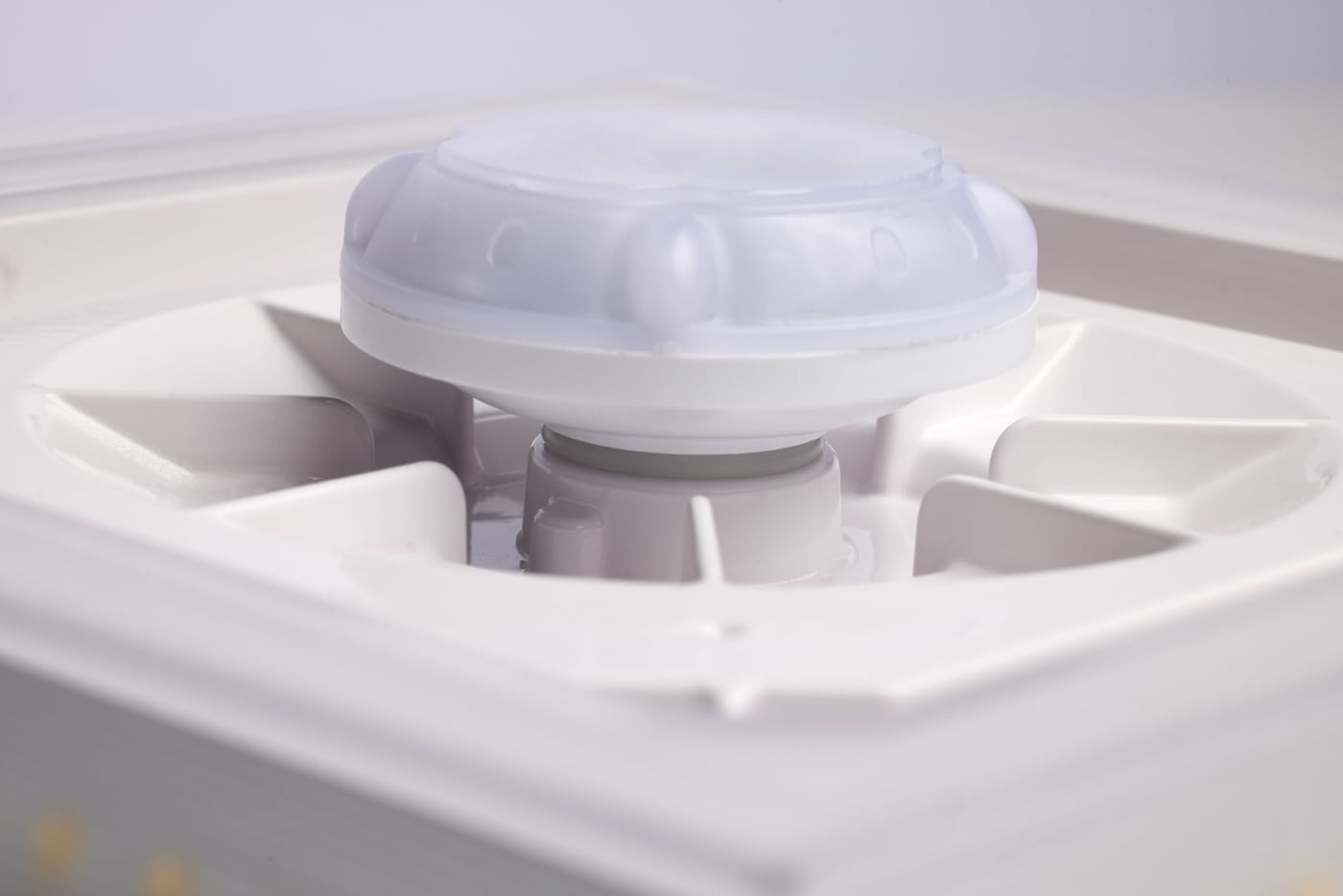

Integrated FeaturesIntegrated DC Sensor Port
IOT EnabledNo

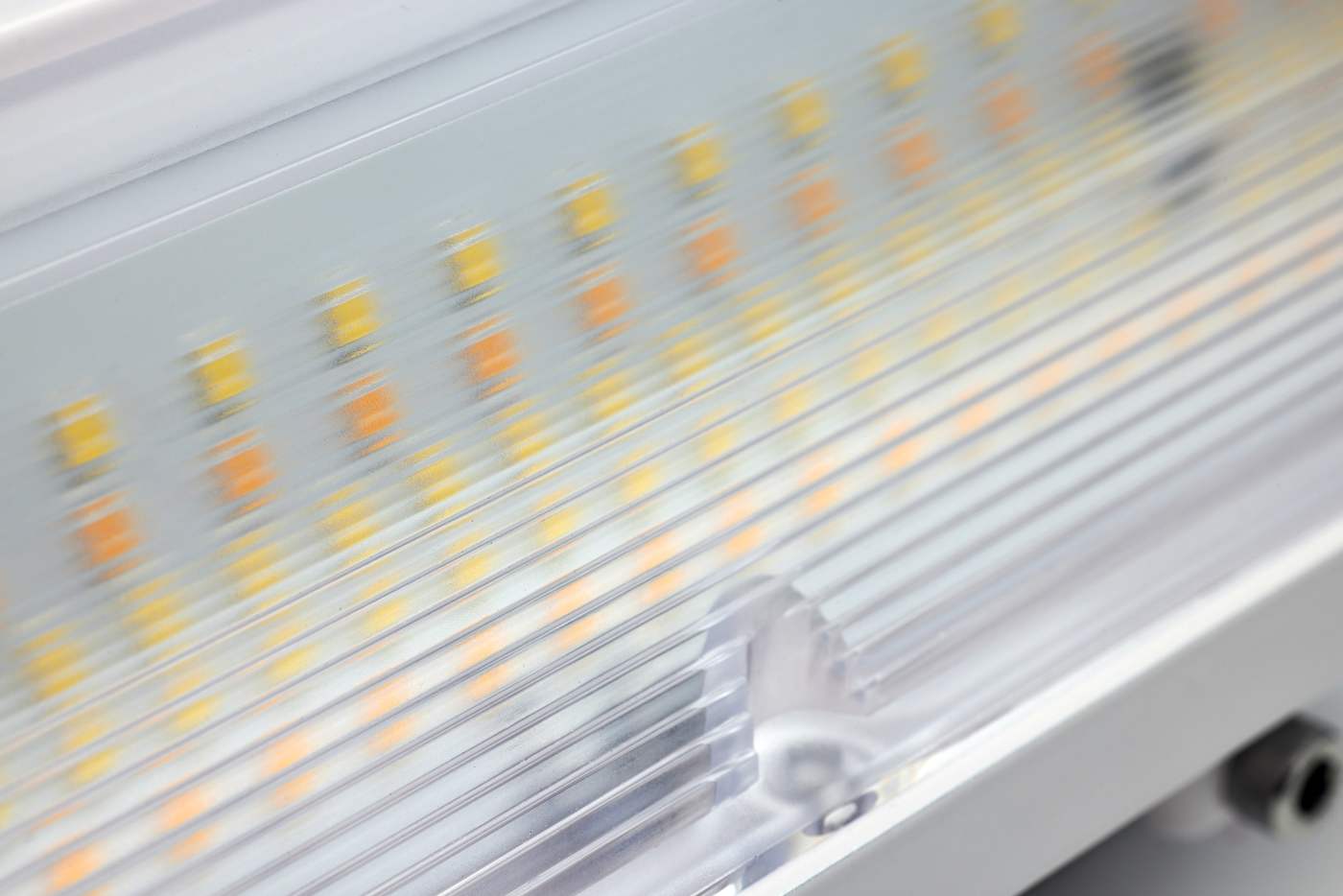

Lens MaterialPolycarbonate (PC)
Photo CellOptional Add-On
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent300W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)190
Color TempWarm White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +50C (+122F)

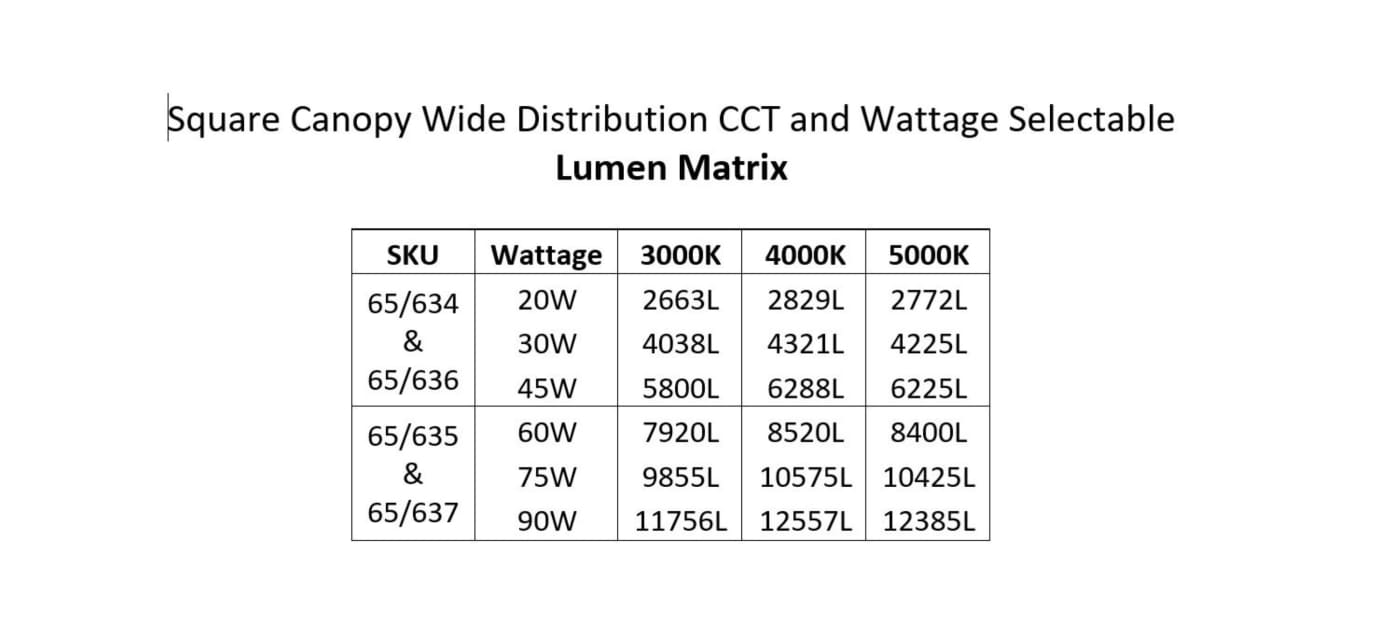

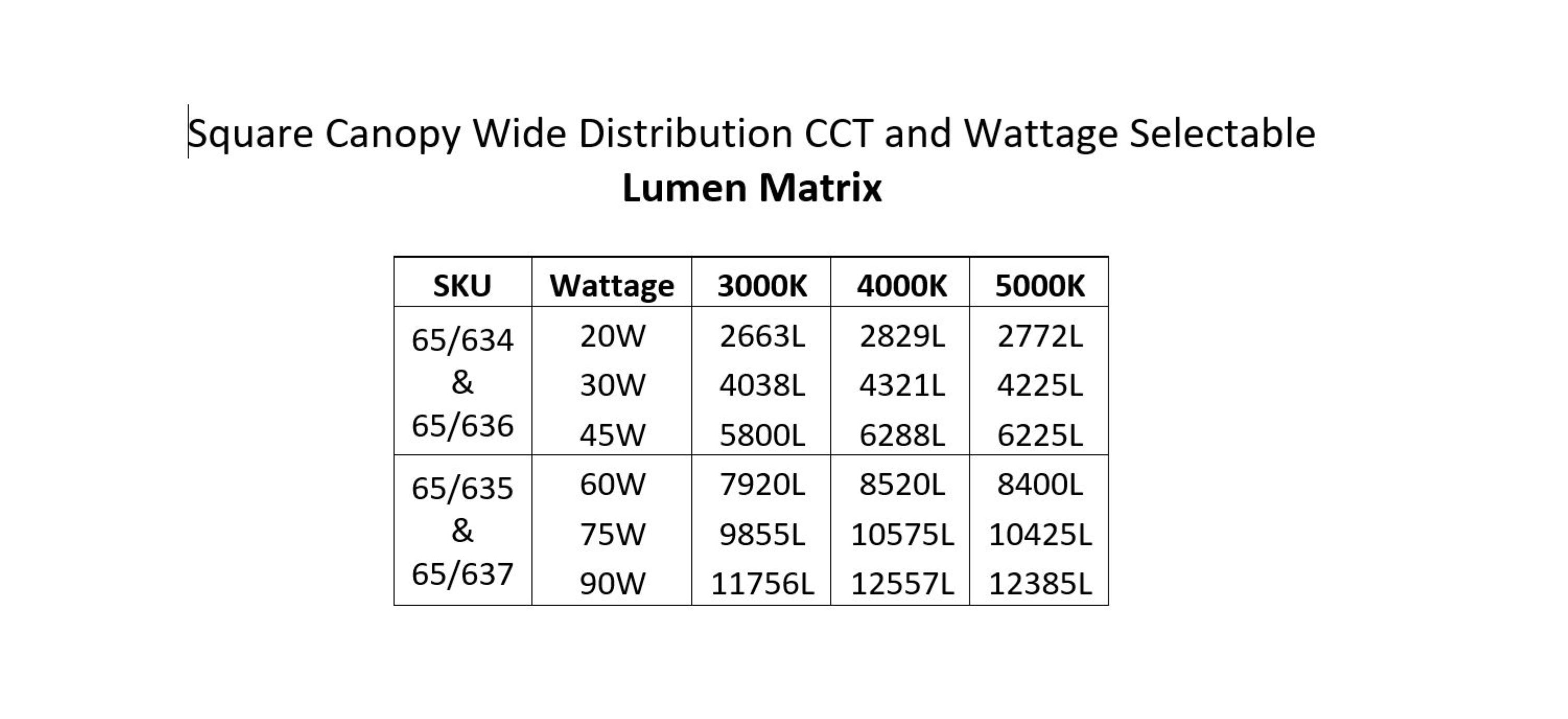

Lumens7920L-12557L
Volts120V-277V
Watts60W/75W/90W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years

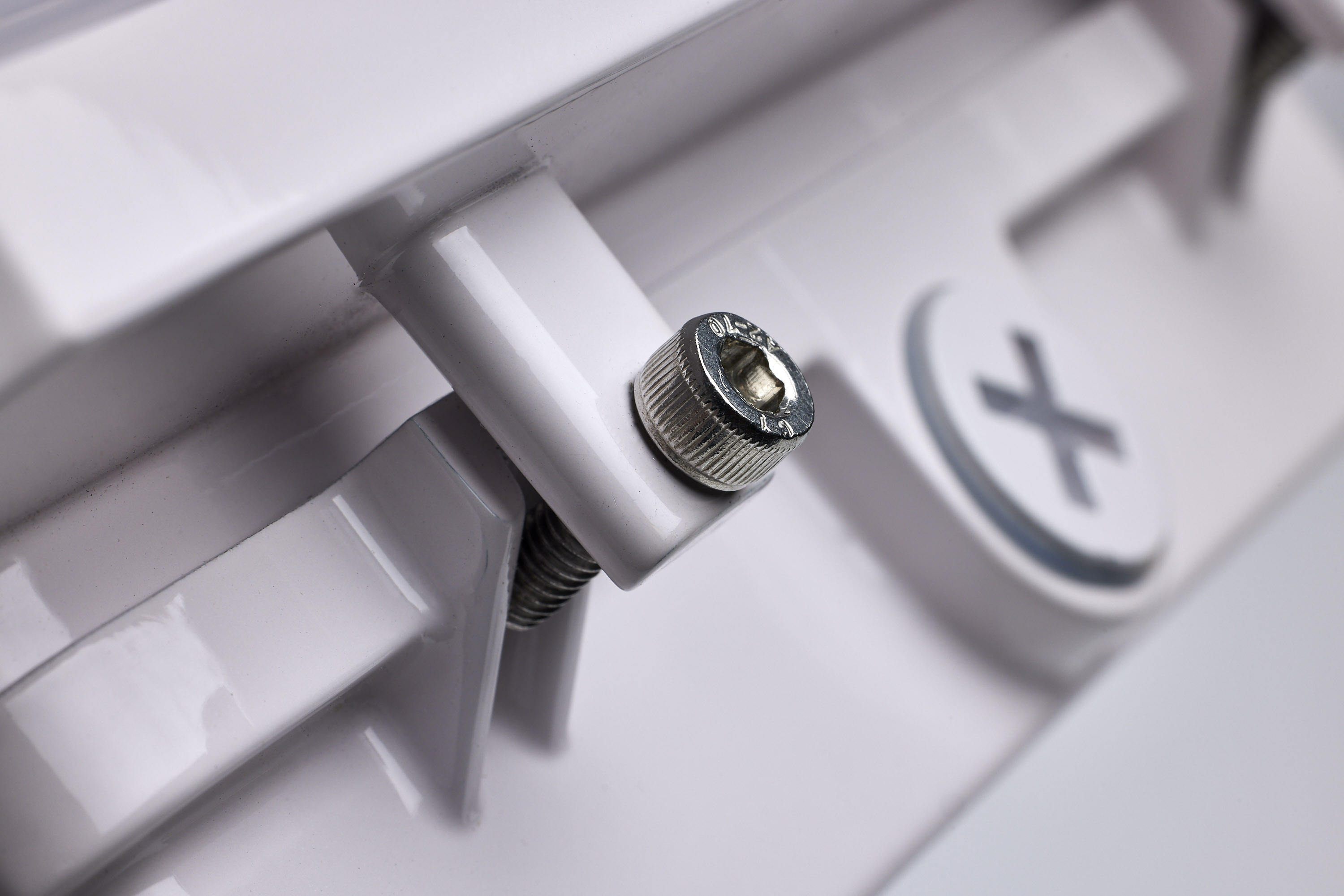

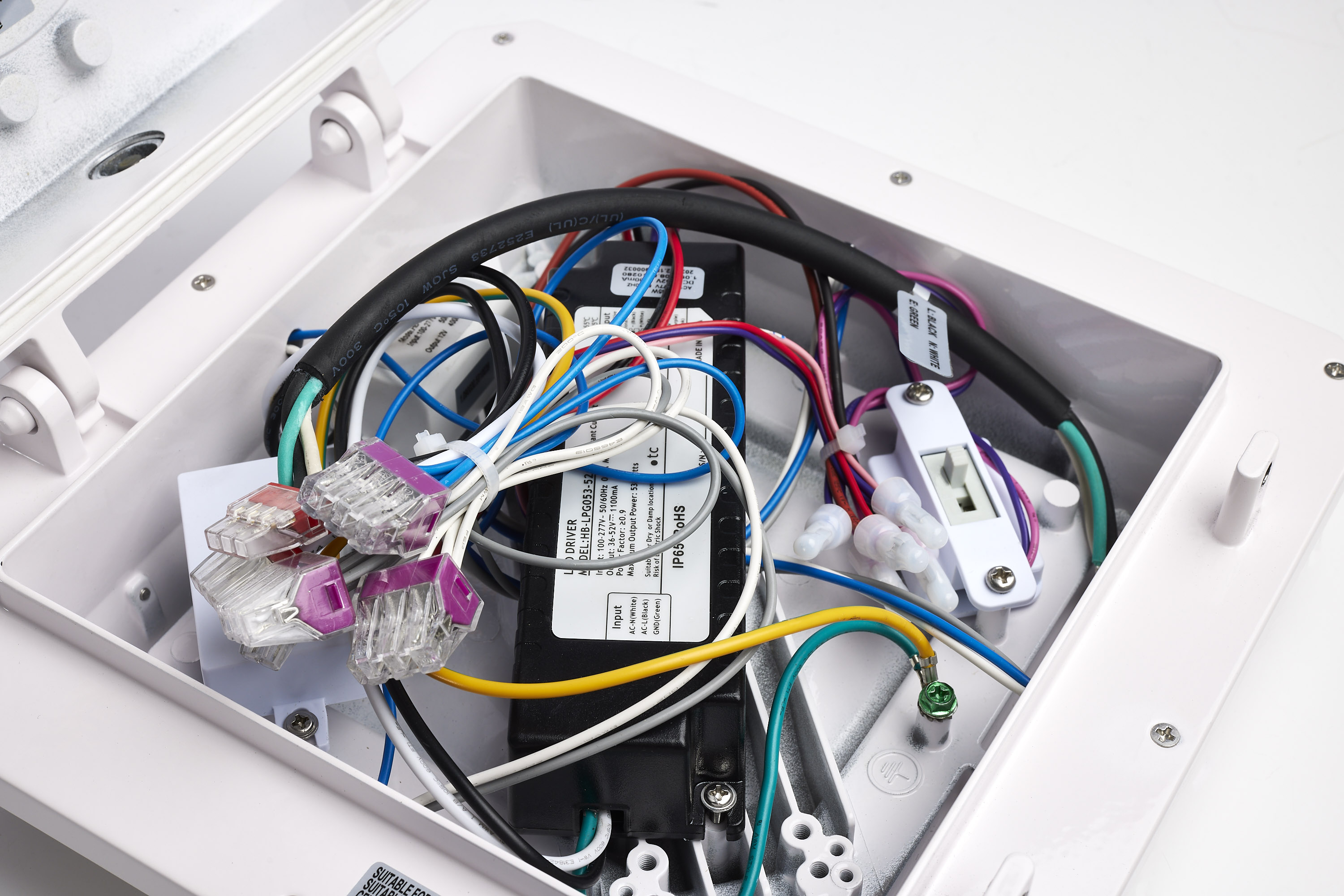

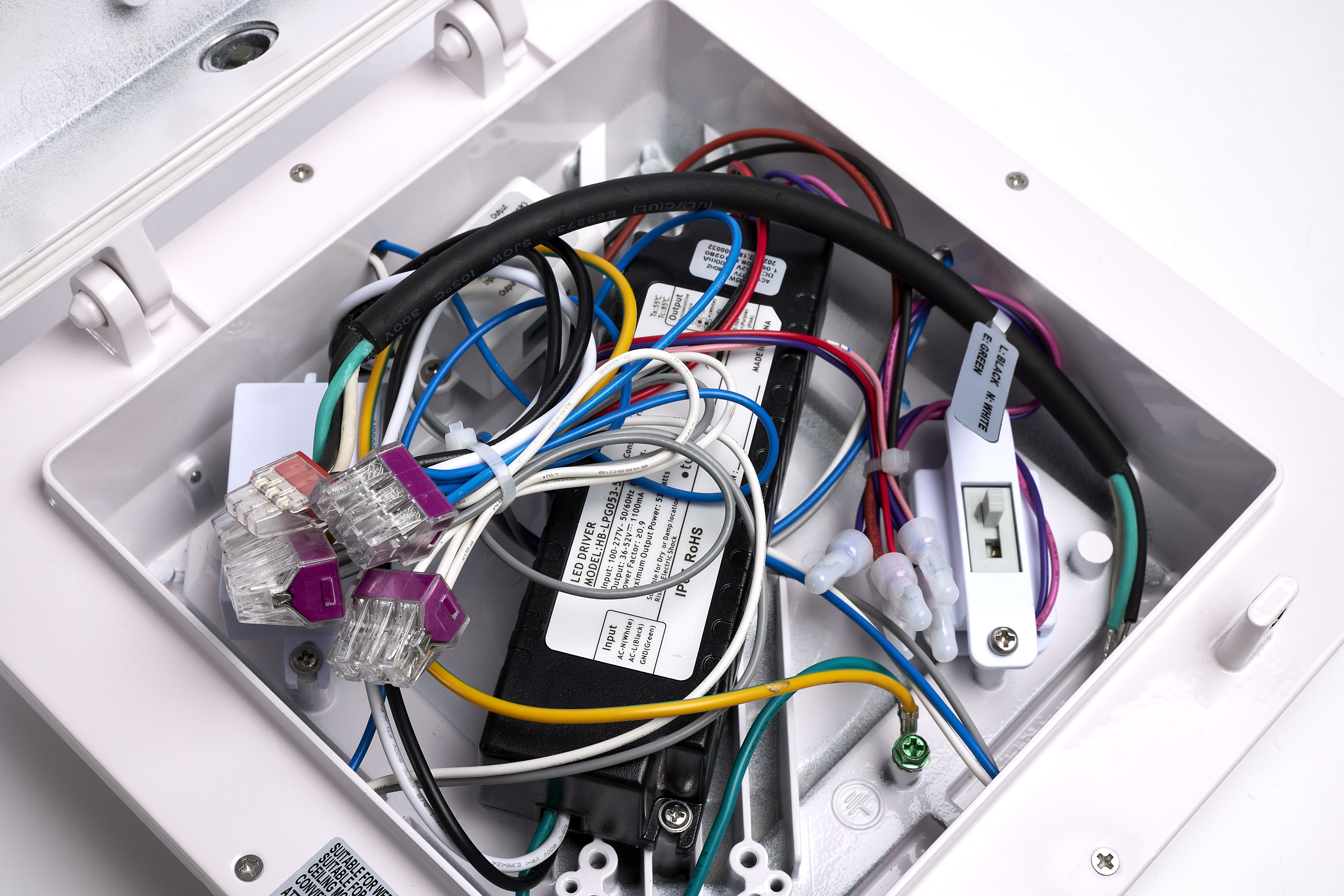

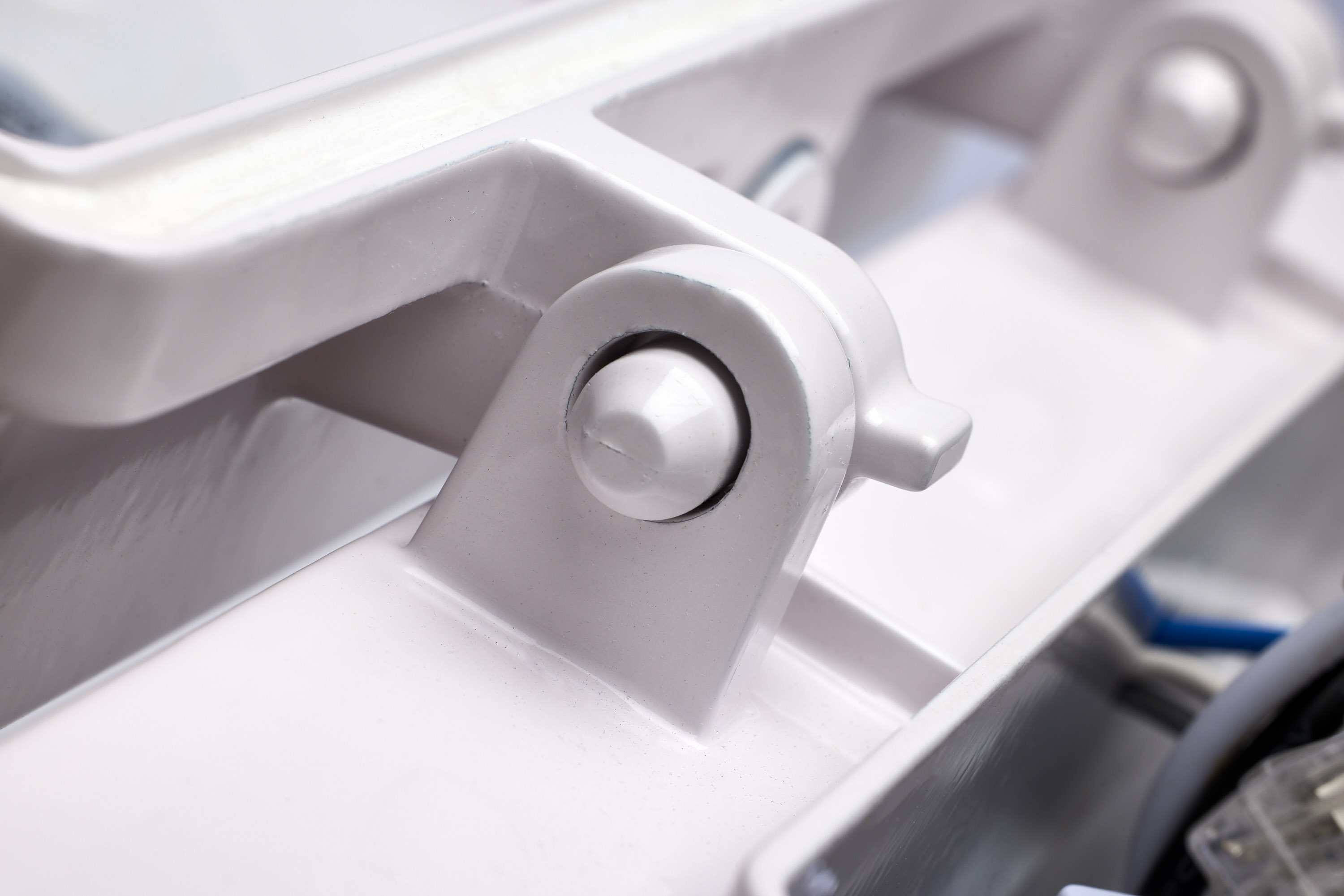

Installation NotesHinged door for ease of installation
Documents
Compliance
Bug RatingB3-U4-G5
CA Prop 65Lead
DLC IDS-7KZD81
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923654183
Case Cube1.6806
Case Height11.81
Case Length21.18
Case Quantity4
Case UPC10045923654180
Case Weight20.68
Case Width11.61
EA Cube0.3598
EA Height11.02
EA Length11.02
EA Quantity1
EA Weight4.73
EA Width5.12
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBrown Box

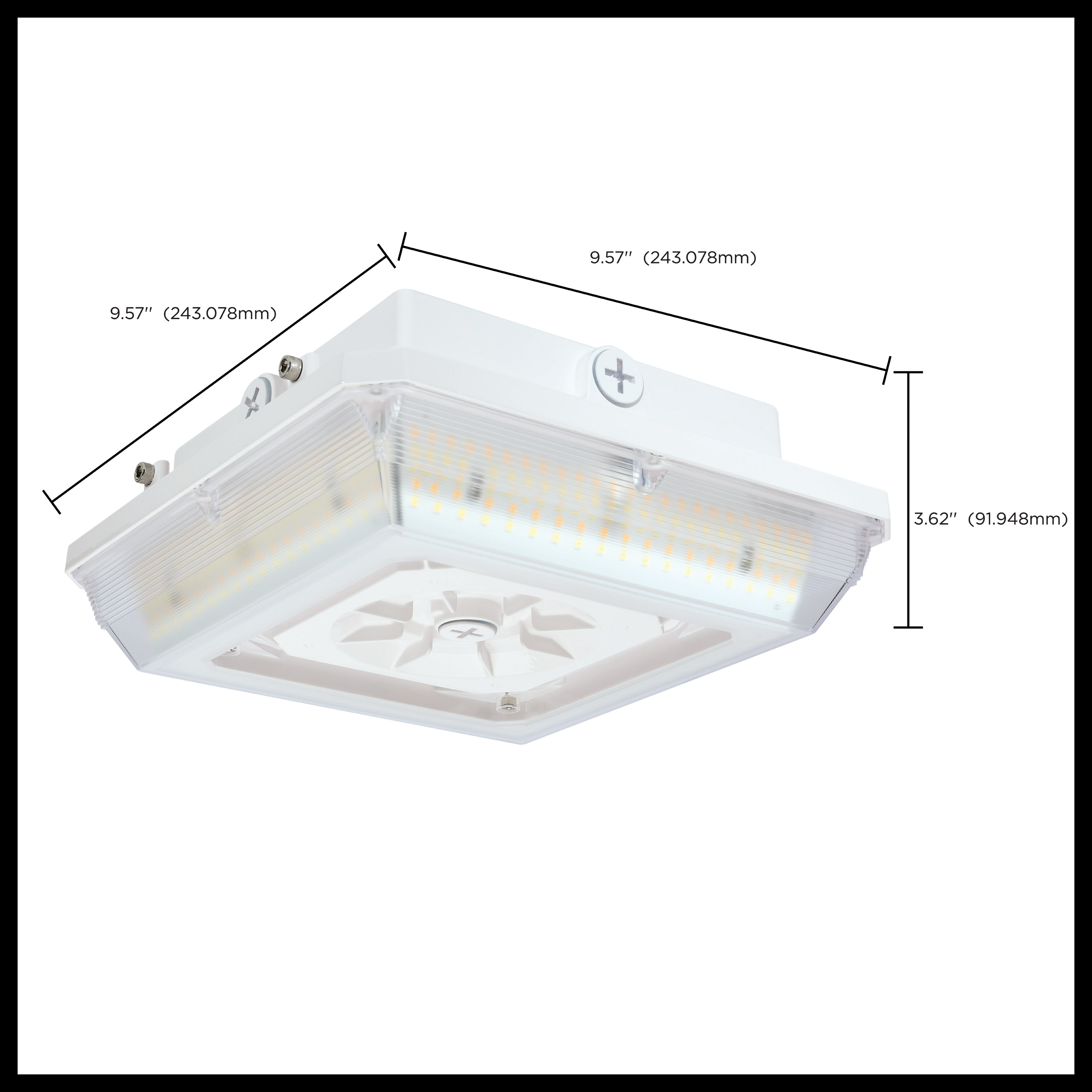

Web Height3.62
Web Length9.57
Web Width9.57
