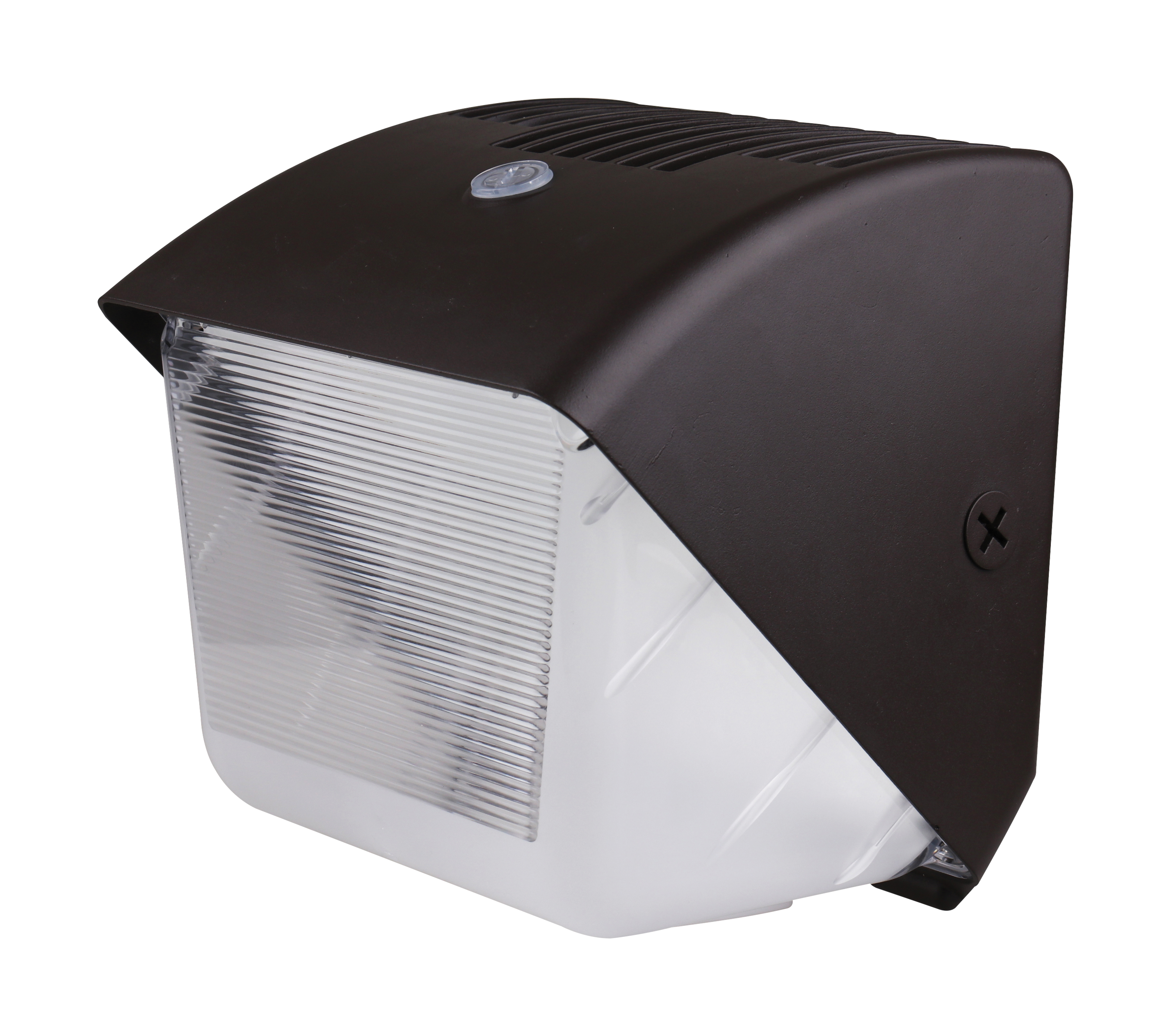

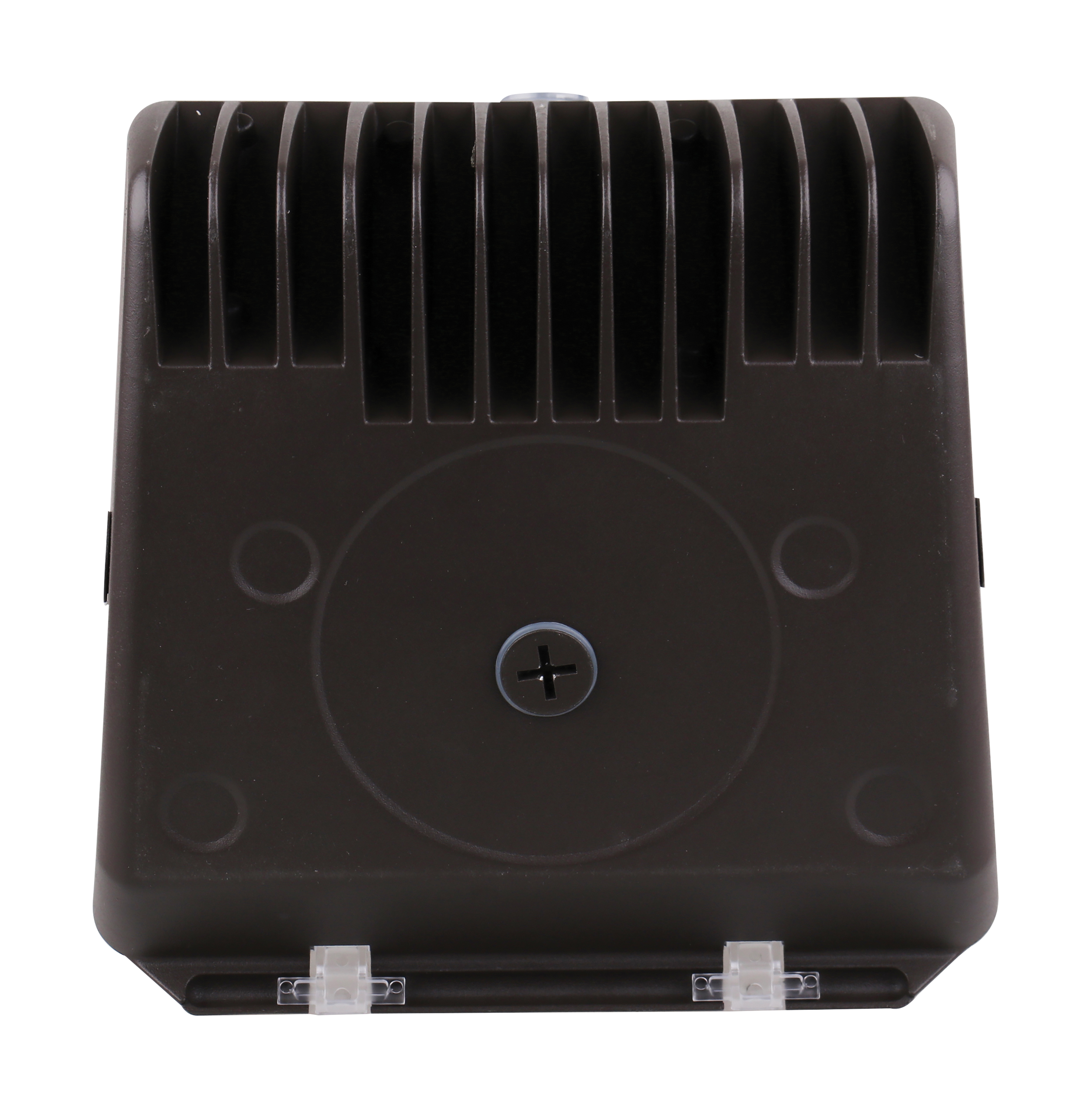

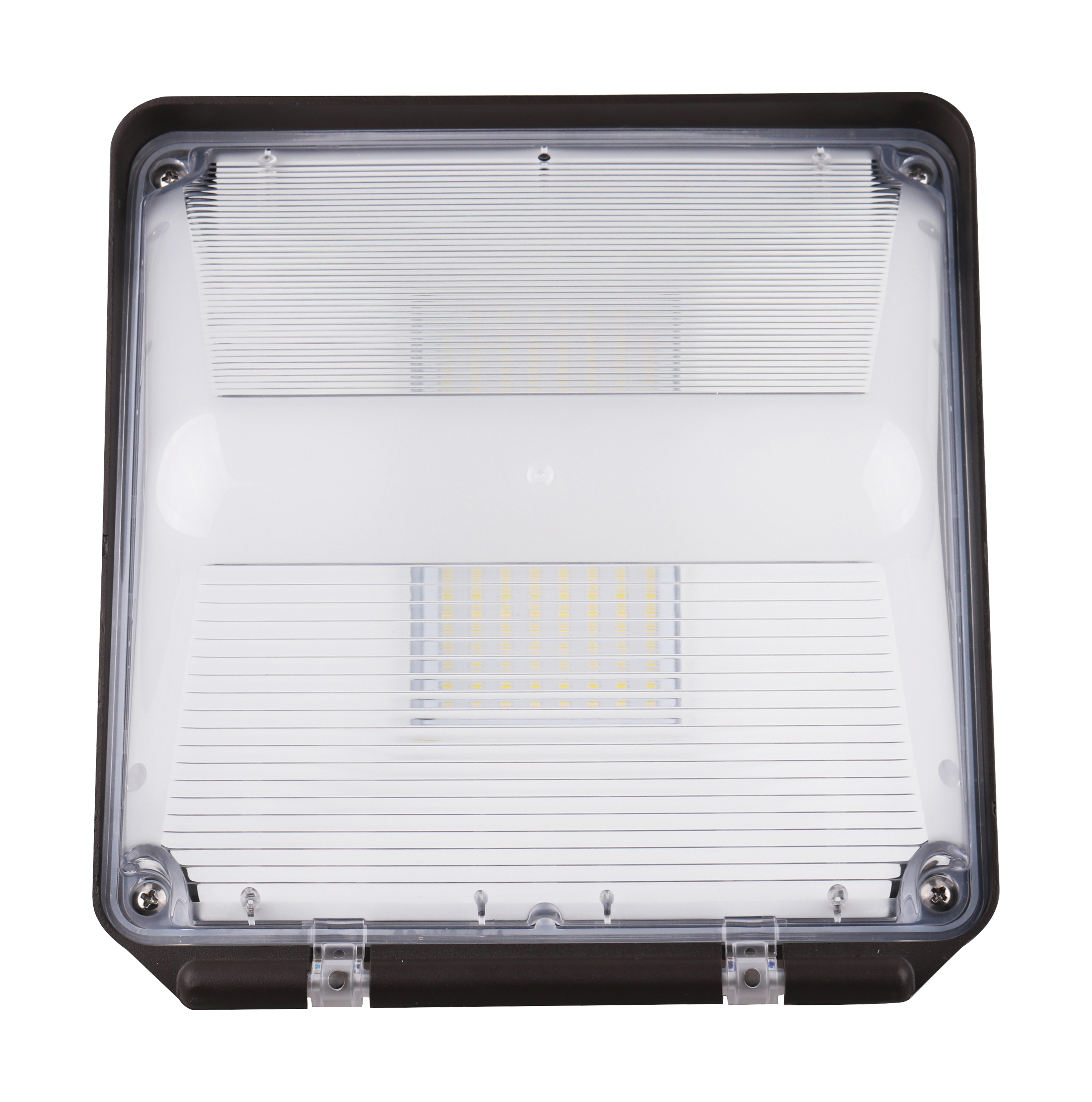

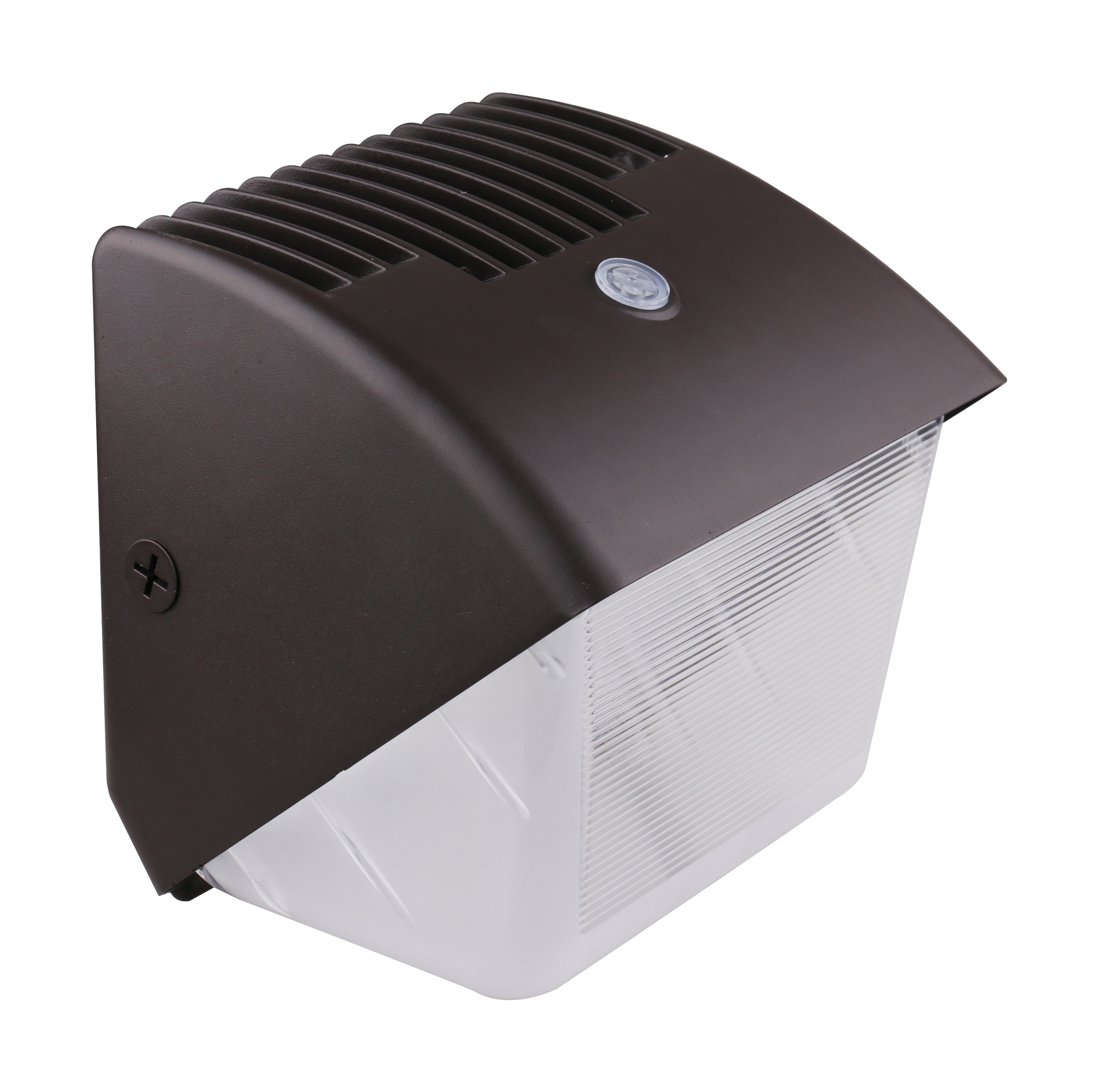

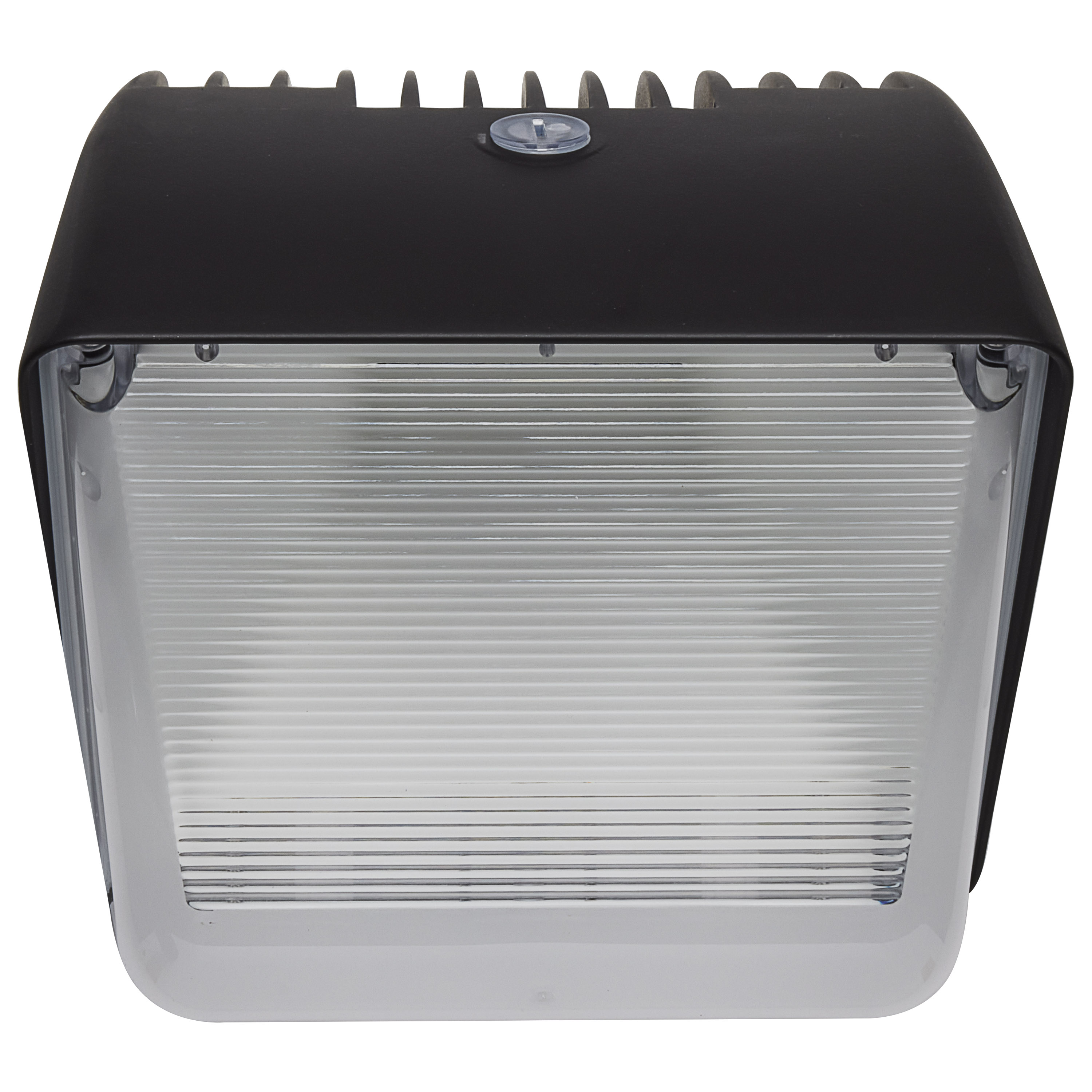

65-655 29W LED SMALL WALL PACK

65-655

29W LED SMALL WALL PACK

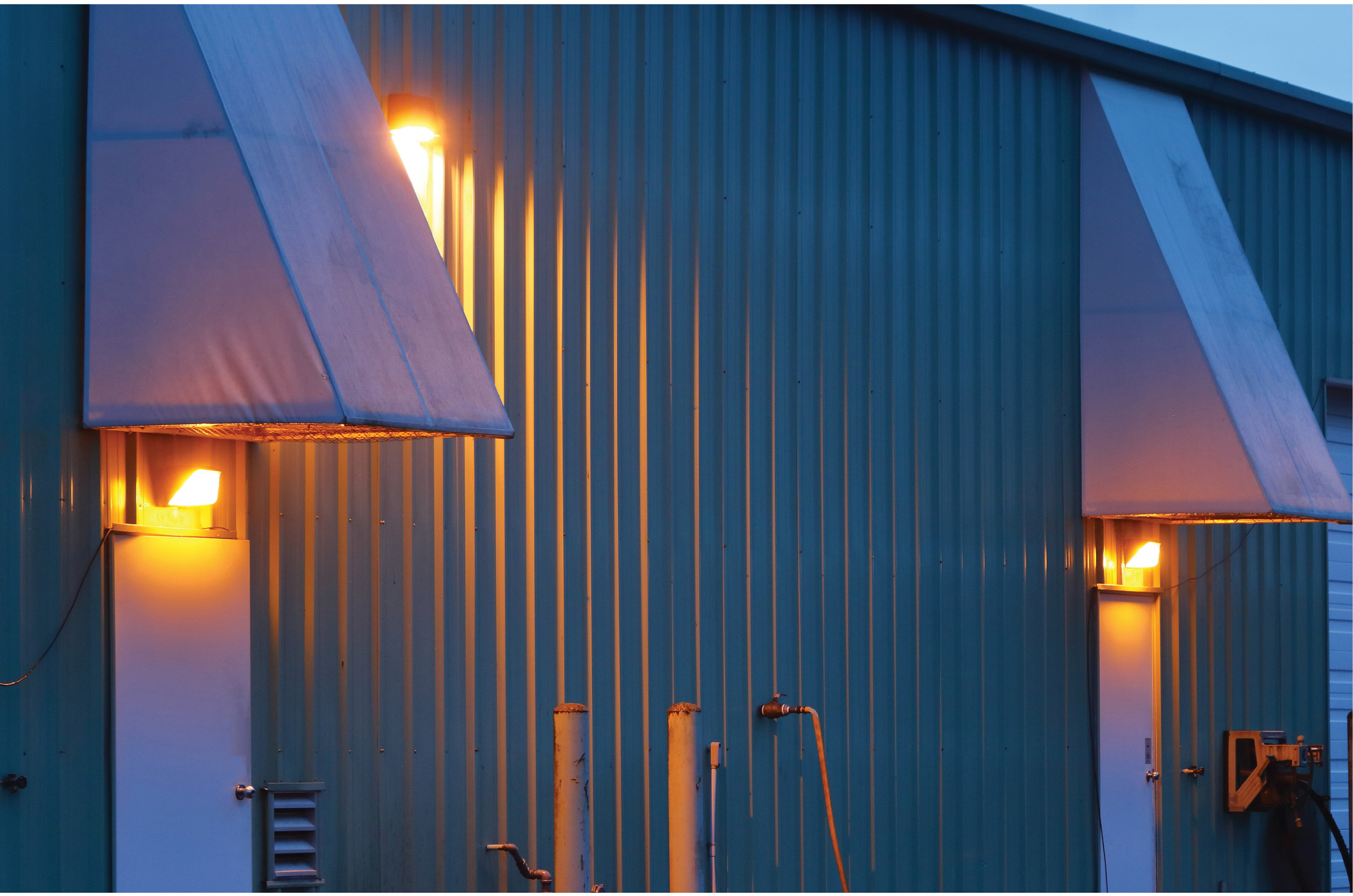

29 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; Dusk to Dawn Security Lighting; IP65; Bronze Finish

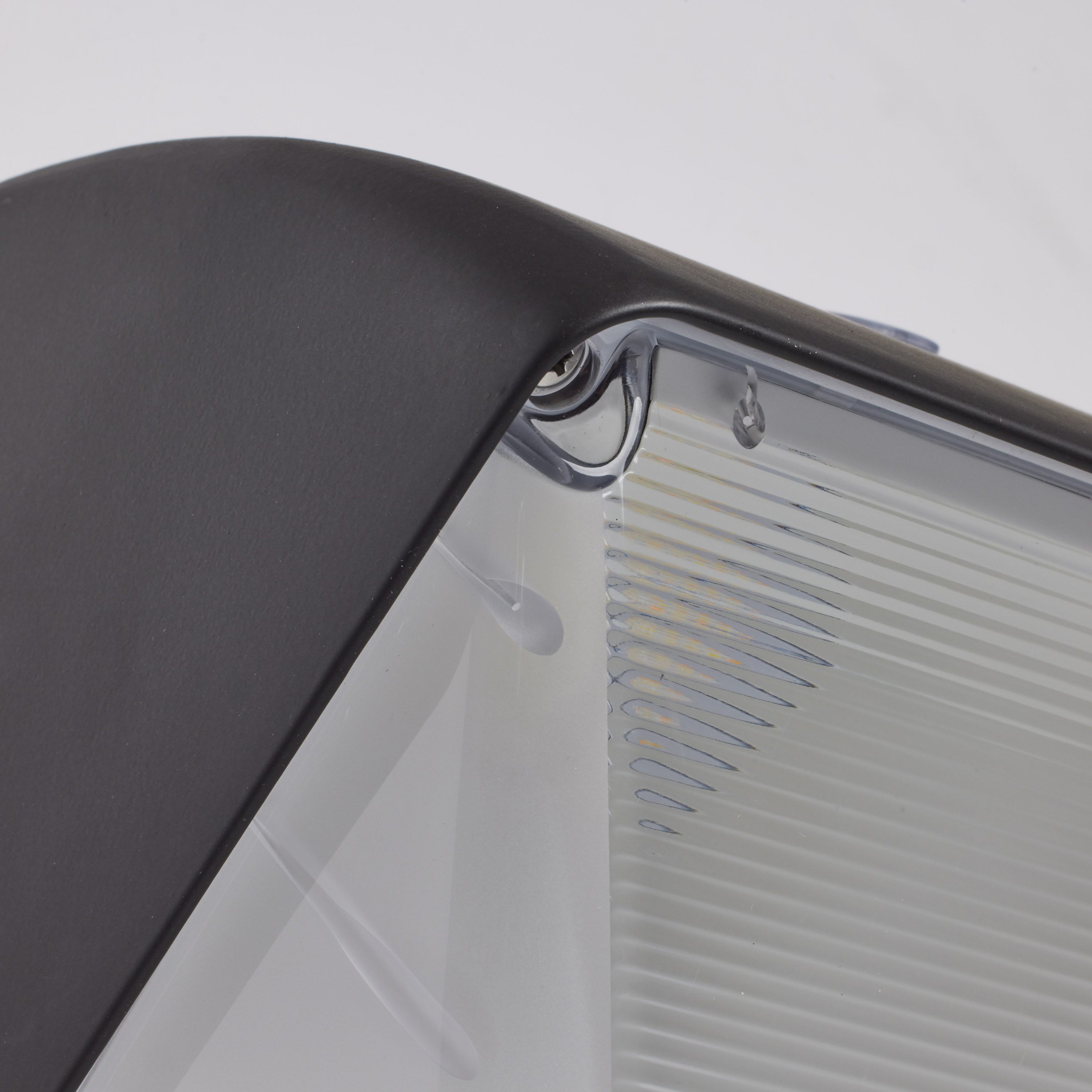

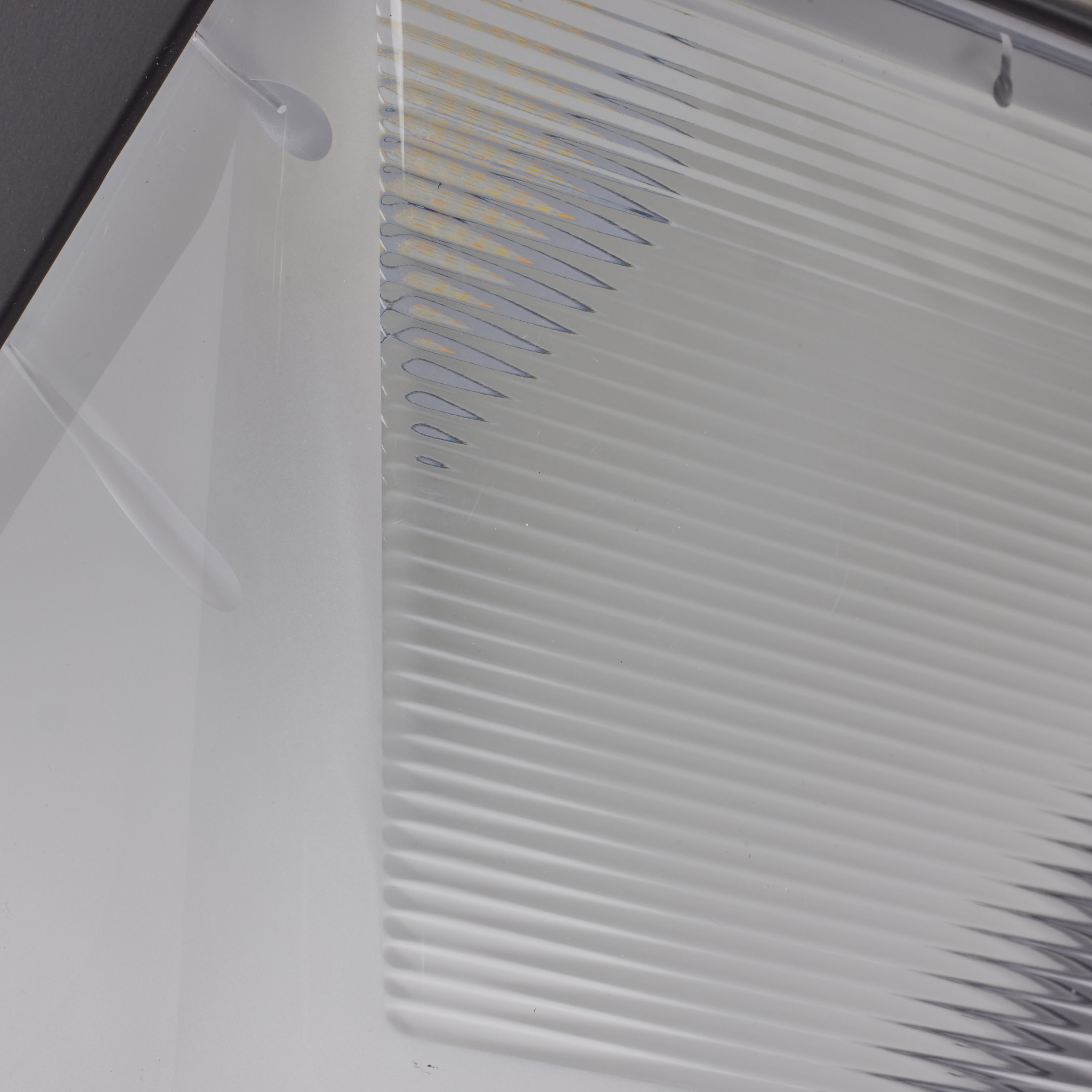

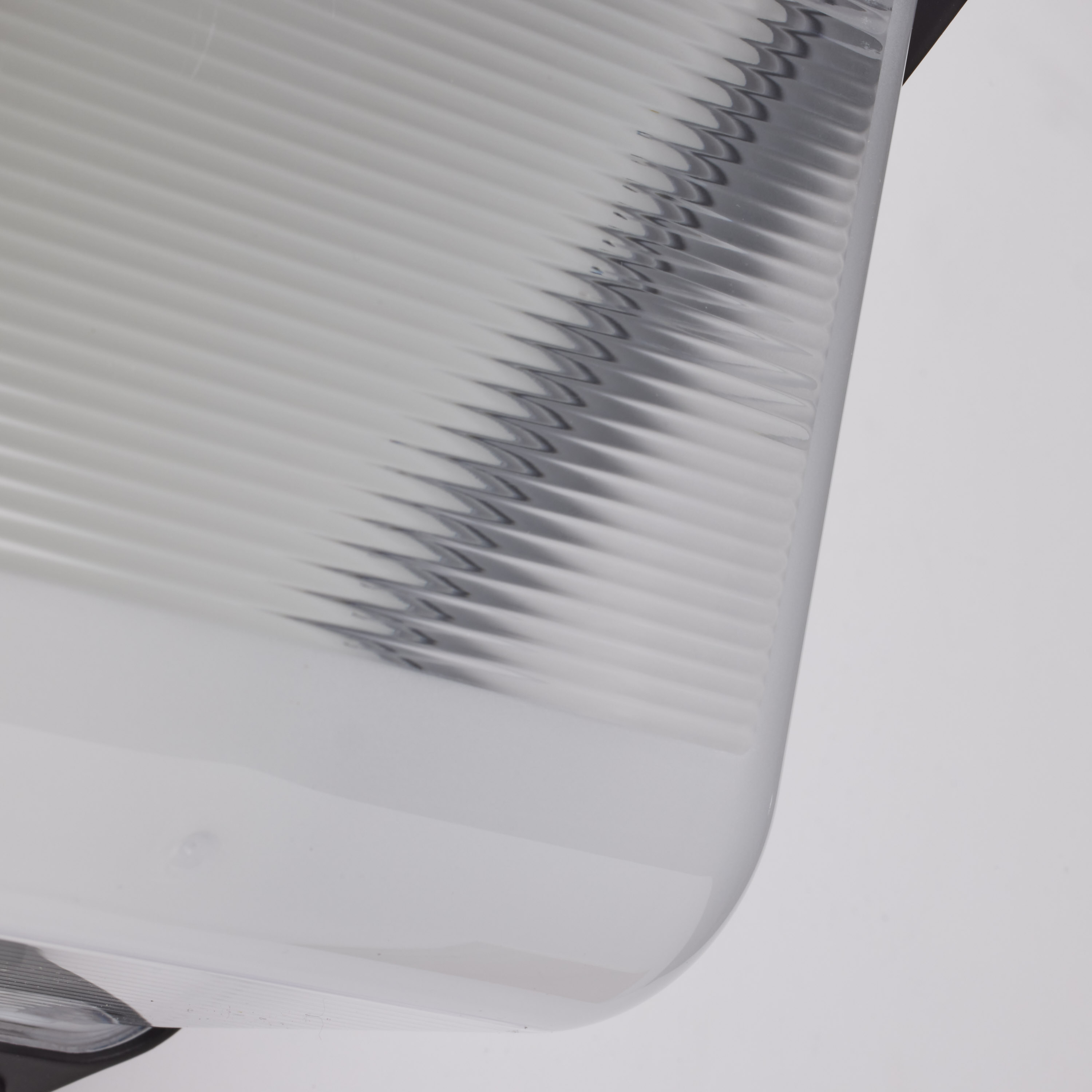

The Nuvo CCT selectable small wall pack comes in a compact size, perfect for light commercial use. This fixture is built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to direct light where you need it most with an integrated, bypassable photocell and long, maintenance free, LED life.
  • DLC Premium
  • Integrated Bypassable Photocell
  • CCT Selectable
  • UV stabilized powder coated finish
  • IP65 rated
  • 80 Degree Viewing Angle
Lights

65-655

29W LED SMALL WALL PACK

29 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; Dusk to Dawn Security Lighting; IP65; Bronze Finish

The Nuvo CCT selectable small wall pack comes in a compact size, perfect for light commercial use. This fixture is built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to direct light where you need it most with an integrated, bypassable photocell and long, maintenance free, LED life.
  • DLC Premium
  • Integrated Bypassable Photocell
  • CCT Selectable
  • UV stabilized powder coated finish
  • IP65 rated
  • 80 Degree Viewing Angle

Specifications

General
StatusActive
Fixture TypeWall Pack
FinishBronze
Wattage29W
Lumen Output3650L-3770L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
IP RatingIP65
Indoor or Outdoor FixtureOutdoor
Specifications
TechnologyLED
Wattage29W
Lumen Output3650L-3770L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI70+
Voltage120V-277V
Beam Angle80
Rated Hours50000
Operating Temperature-40C (-40F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming Only

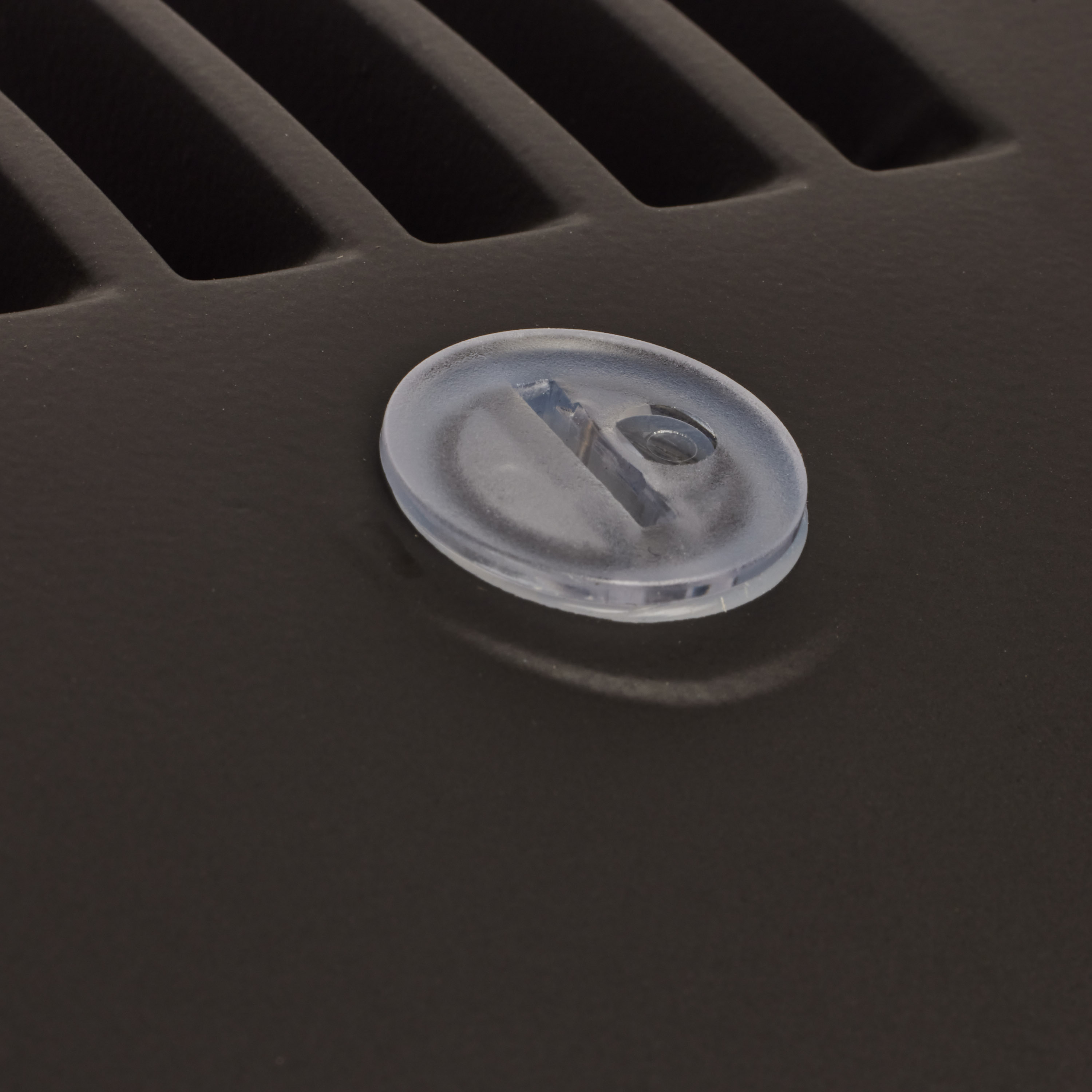

Photocell or SensorYes - Bypassable
Surge ProtectionBuilt-in surge protection - 2.5KV
Weight (lb.)5.08
IP RatingIP65
MaterialAluminum / Polycarbonate (PC)

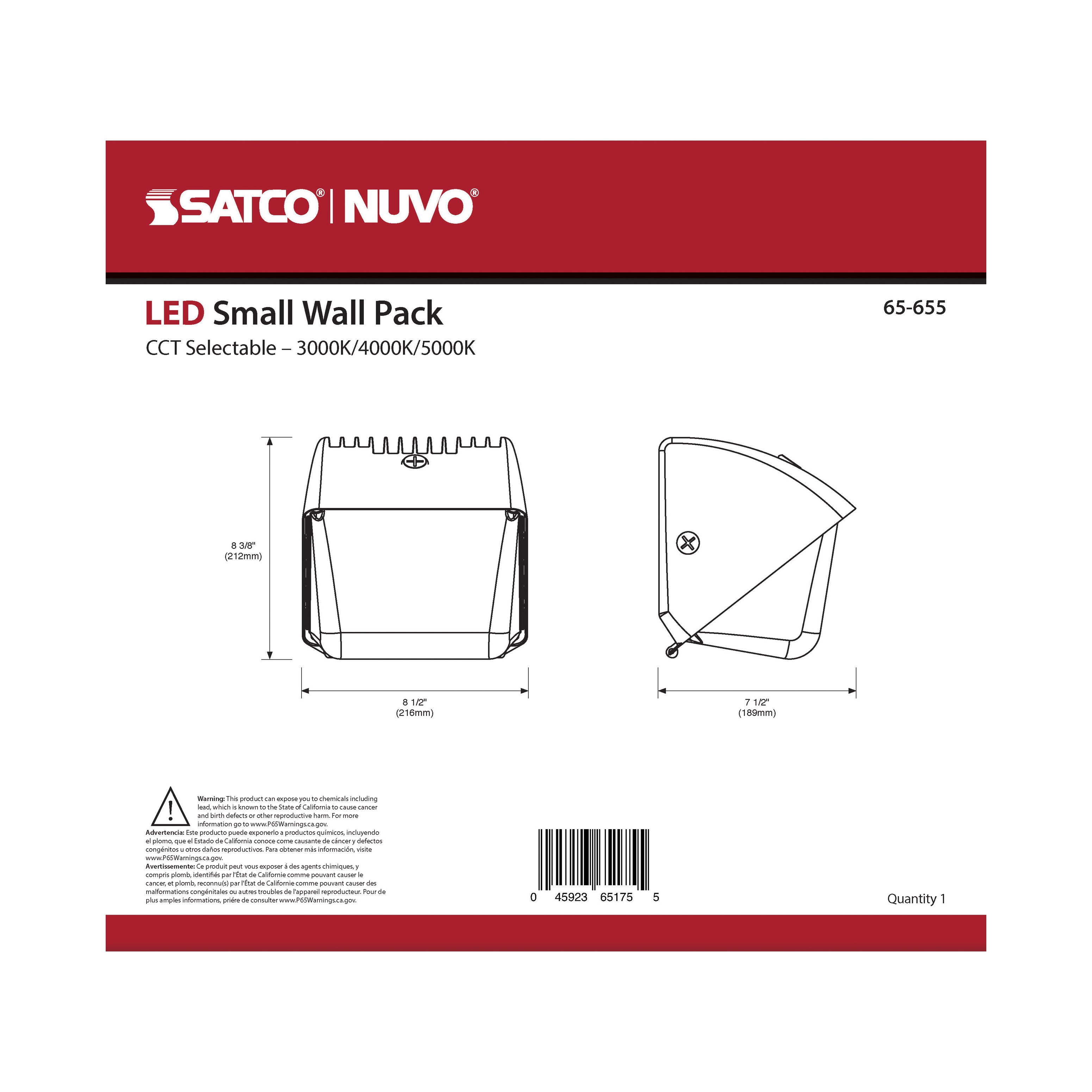

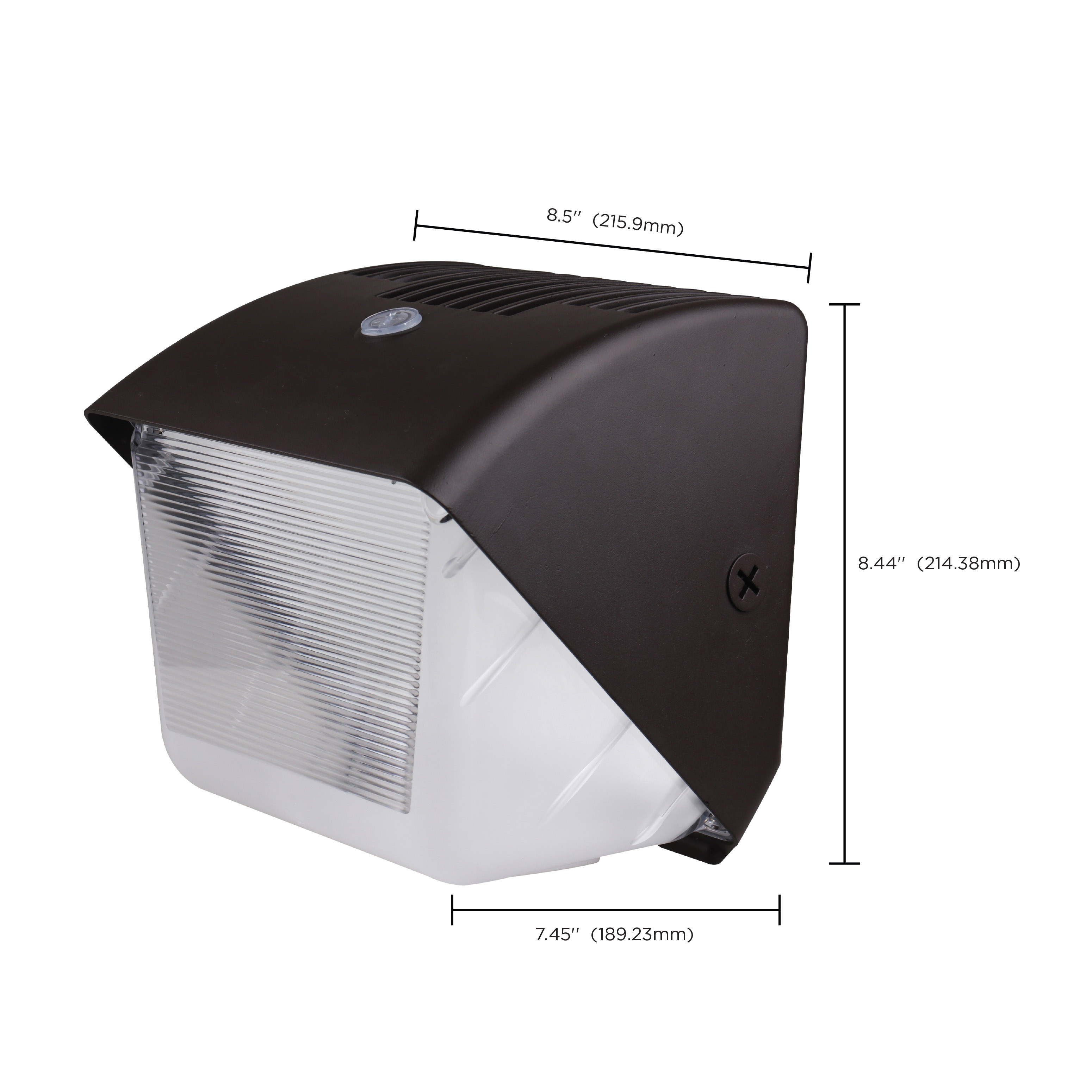

Dimensions
Height (in.)8.44
Width (in.)8.50
Extension (in.)7.45
Compliance
Safety ListingcULus
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDPLUFWGU0SVE7
ADA CompliantNo
B.U.G. RatingB1-U3-G2
CA T20 / T24 RationaleCalifornia T24 2016 - 2022 JA8 Compliant - Outdoor LED
California StatusLawful for sale in California
Title 20 / 24 StatusCalifornia T24 Compliant
California Prop 65
RoHS CompliantYes
FCC CompliantYes
Flicker FreeYes
SDS SheetLED Fixture
Additional Information

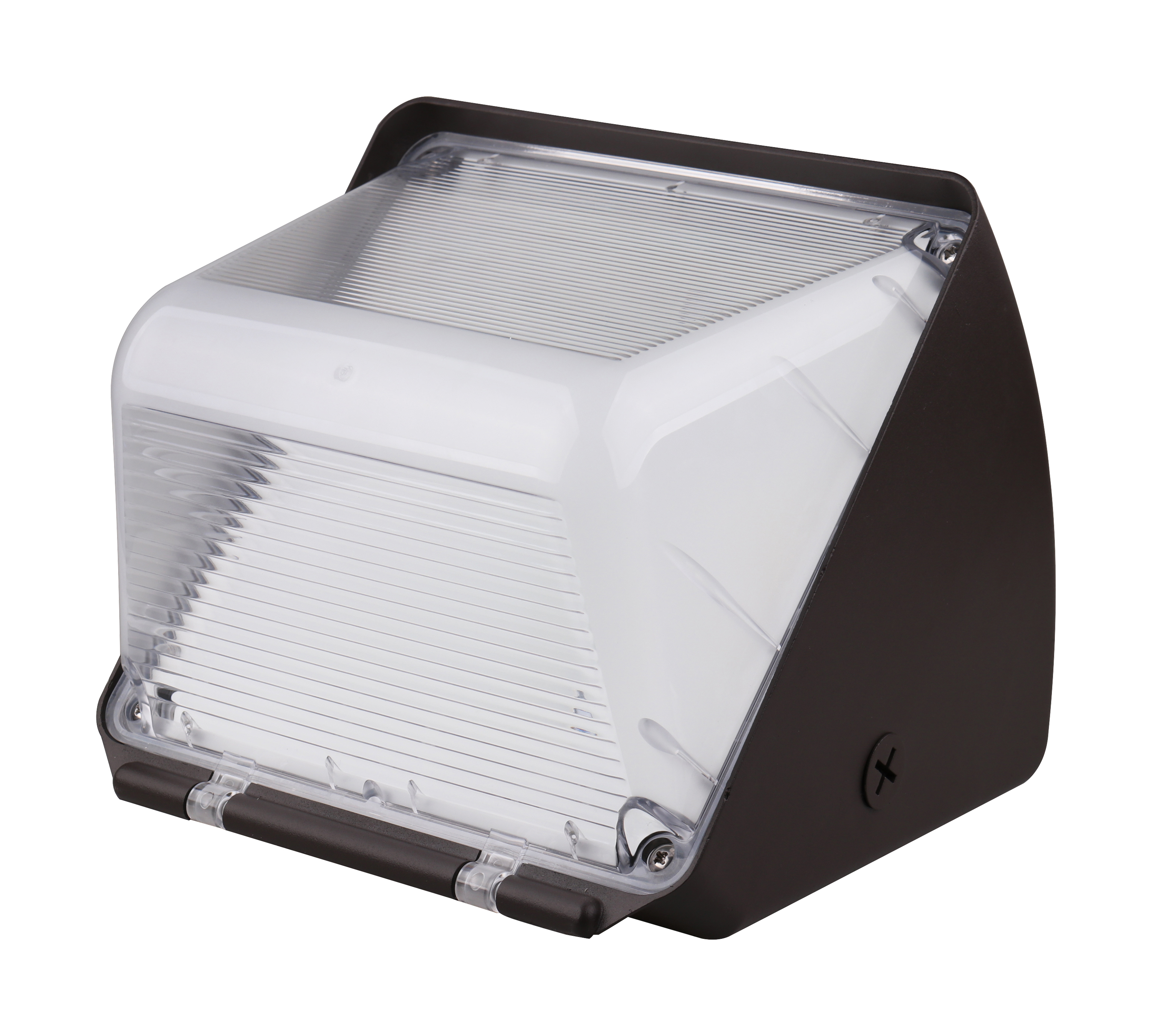

Additional InformationIK10 Lens
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923651755
Each Quantity1
Each Length (in.)9.88
Each Width (in.)10.19
Each Height (in.)9.65
Each Weight (lb.)5.35
Each Cube (CuFt.)0.5622
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923651752
Case Quantity4
Case Length (in.)20.28
Case Width (in.)11.02
Case Height (in.)20.28
Case Weight (lb.)21.38
Case Cube (CuFt.)2.6229
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Legrand ADPD4FBL3P2W4 Visit
Dimmer Cooper DF10P Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Lutron RMJS-8T-DV-B PJ2-3BRL-GWH-L01 Visit
Dimmer Cooper SF10P Visit
×
×

Precautions

No precautions available at this time.

×
