| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming Only |
| Extends (in) | 6.86 |
| Material | Die-cast Aluminum |

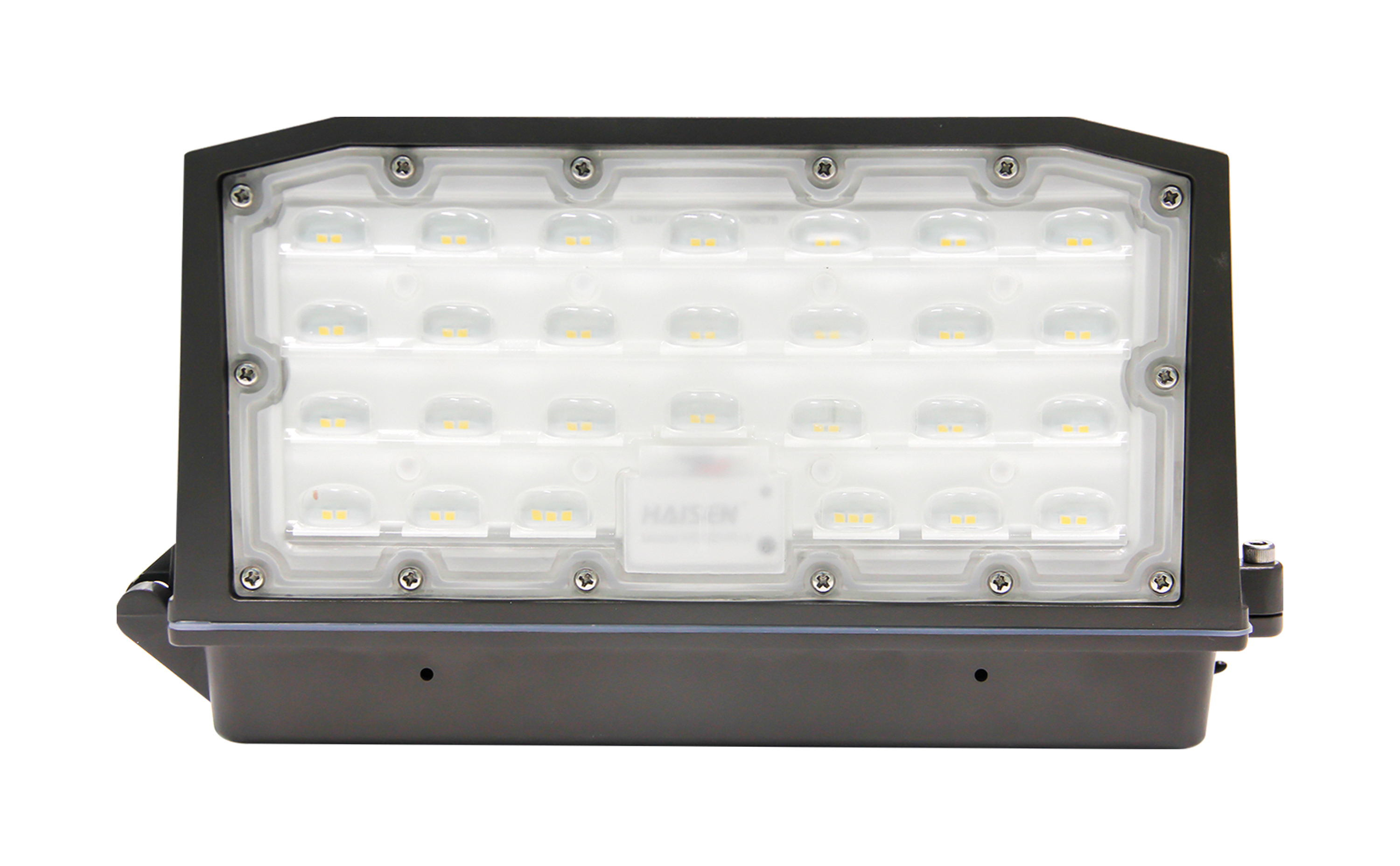

| Fixture Type | Wall Pack |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 10.42% |
| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | Bronze |
| Amps | 0.500-0.217A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Impact Resistant PC |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |

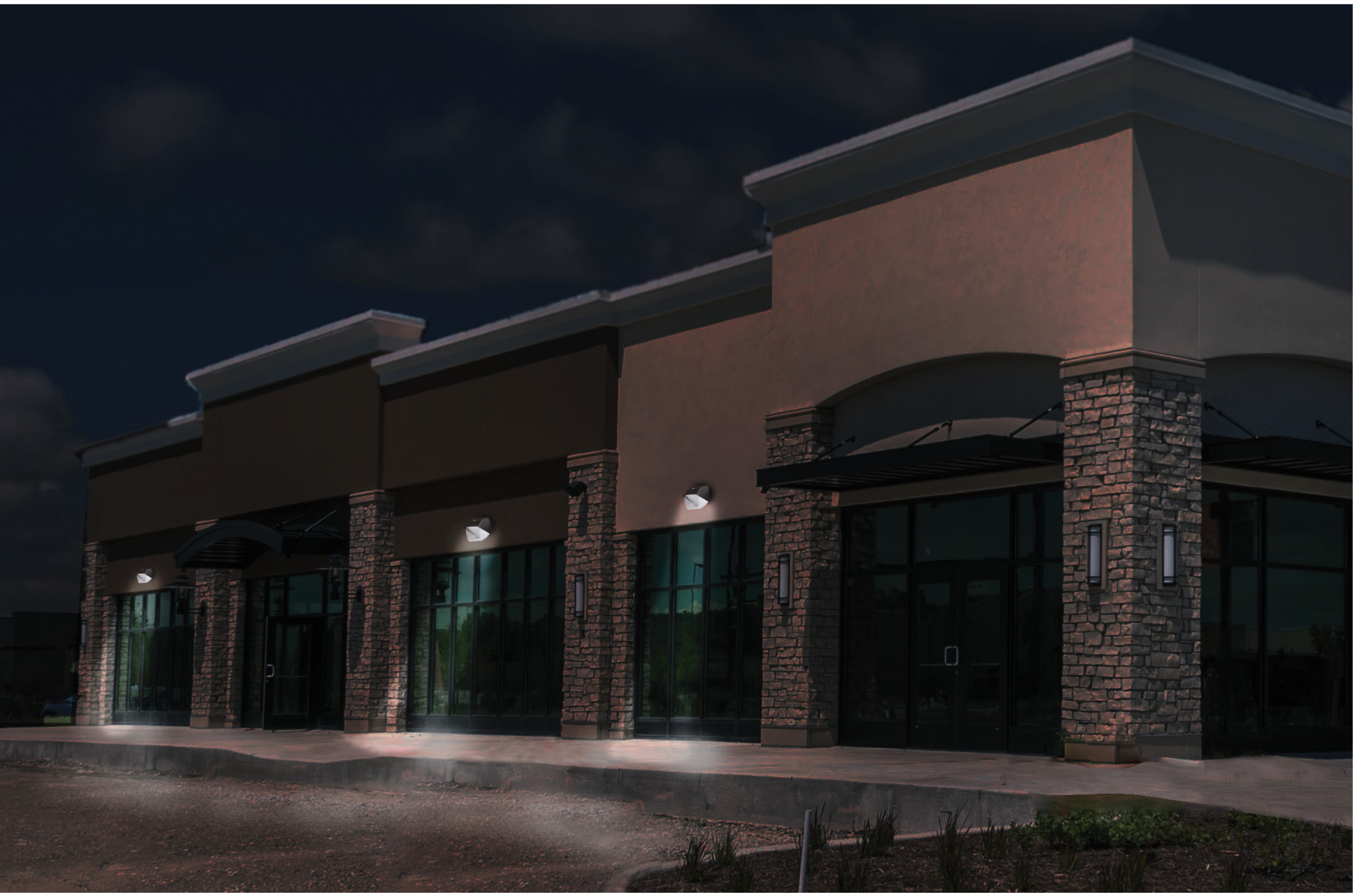

| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 400W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 90x100 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50-60Hz |
| Operating Temp | -40C (-40F) to +40C (+104F) |
| HID Equivalent | 150W-200W |
| Lumens | 7200L-7500L |
| Volts | 120V-277V |
| Watts | 60W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| ADA Compliant | False |
|---|---|
| Bug Rating | B2-U2-G1 |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | PLXV561HFHT2 |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923655272 |
|---|---|
| Case Cube | 2.5554 |
| Case Height | 19.49 |
| Case Length | 15.55 |
| Case Quantity | 4 |
| Case UPC | 10045923655279 |
| Case Weight | 25.68 |
| Case Width | 14.57 |
| EA Cube | 0.526 |
| EA Height | 9.06 |
| EA Length | 13.78 |
| EA Quantity | 1 |
| EA Weight | 5.95 |
| EA Width | 7.28 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

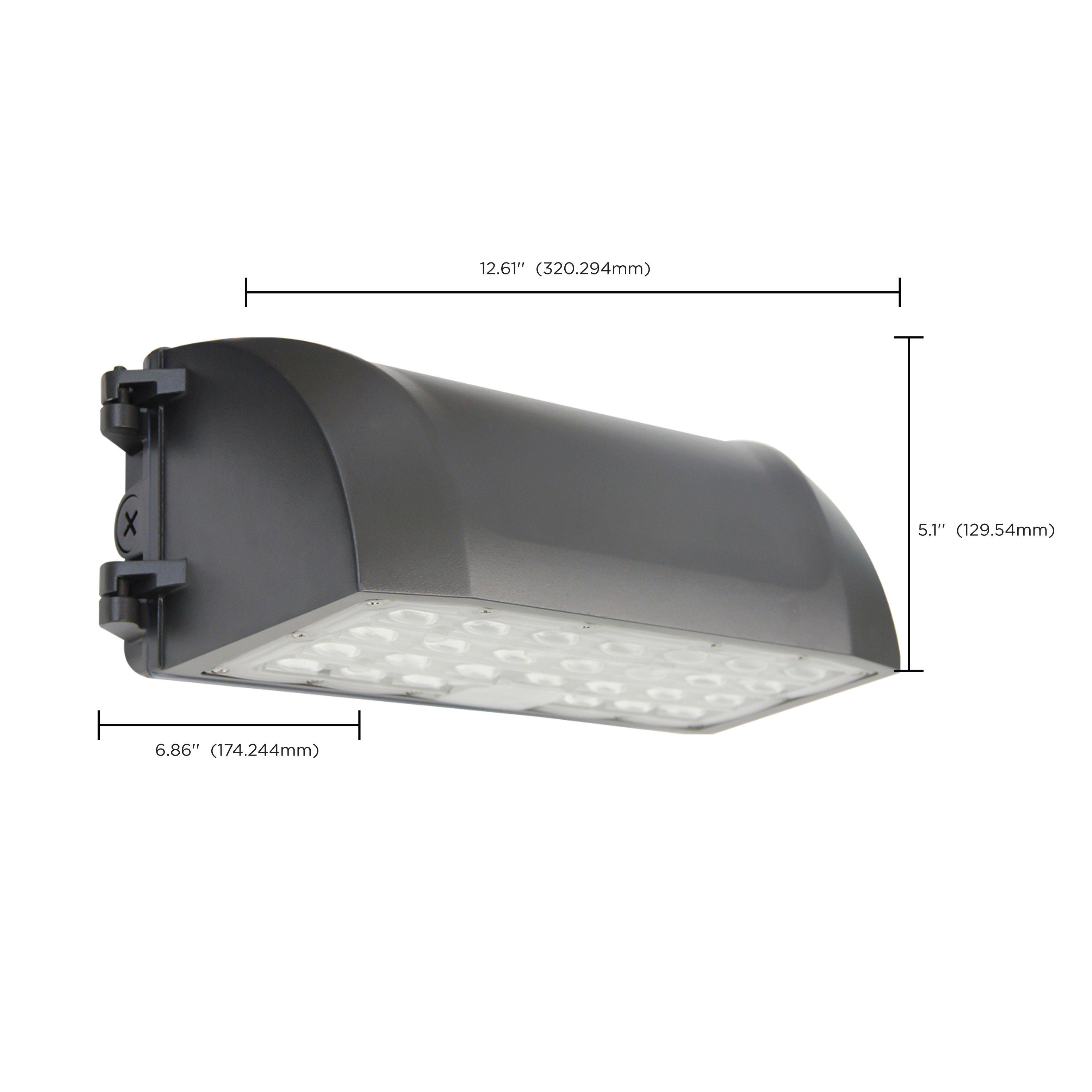

| Web Height | 5.1 |
| Web Width | 12.61 |
