65-696

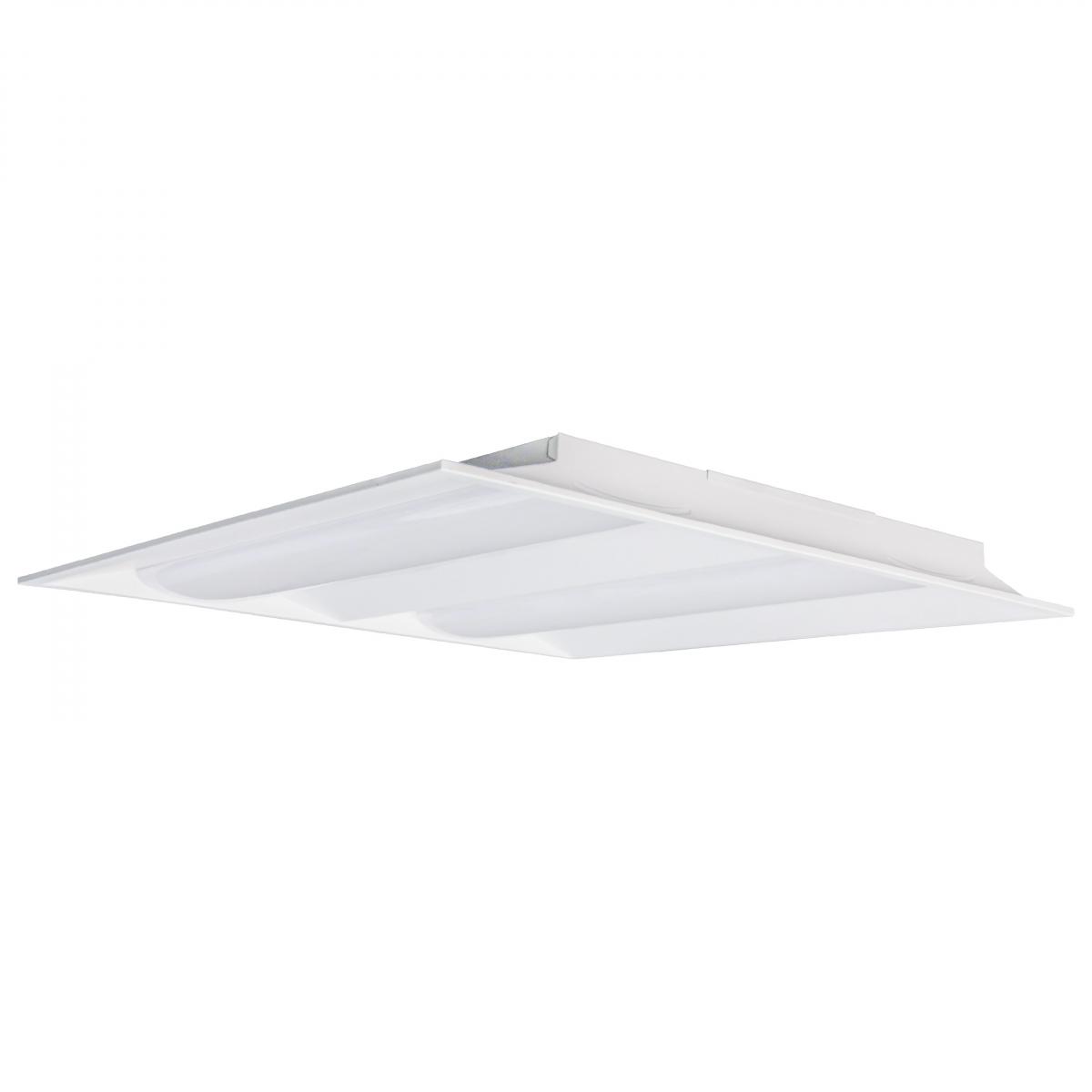

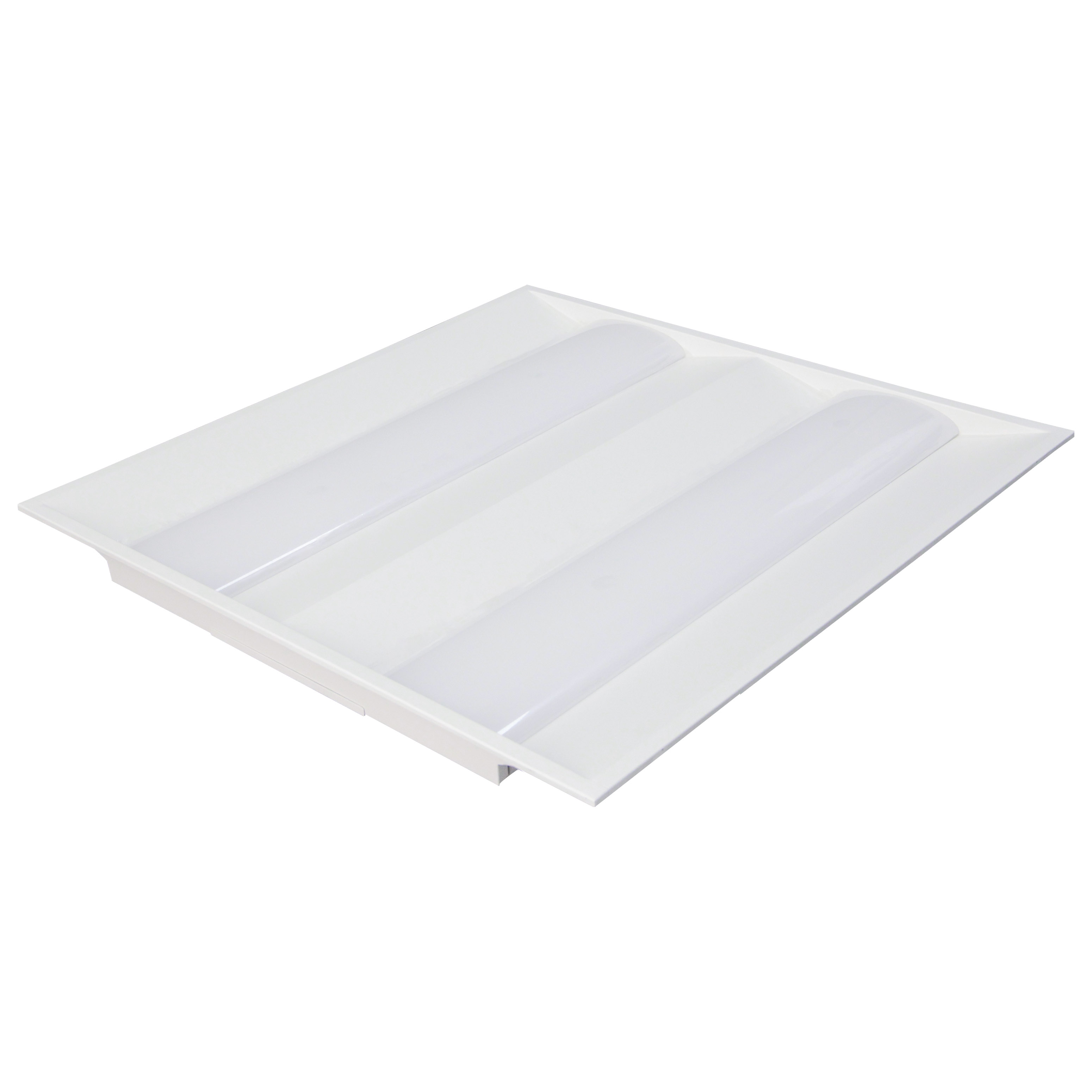

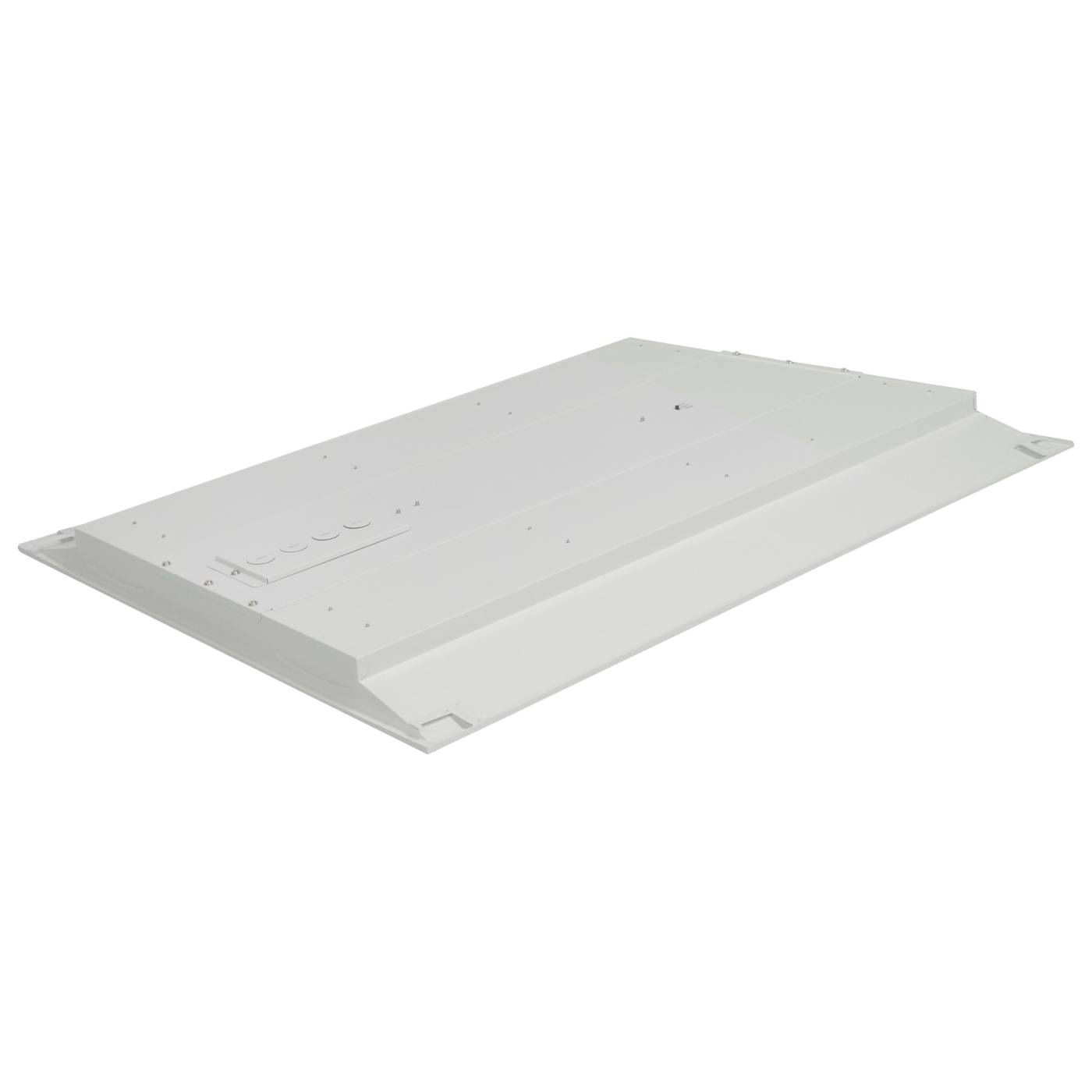

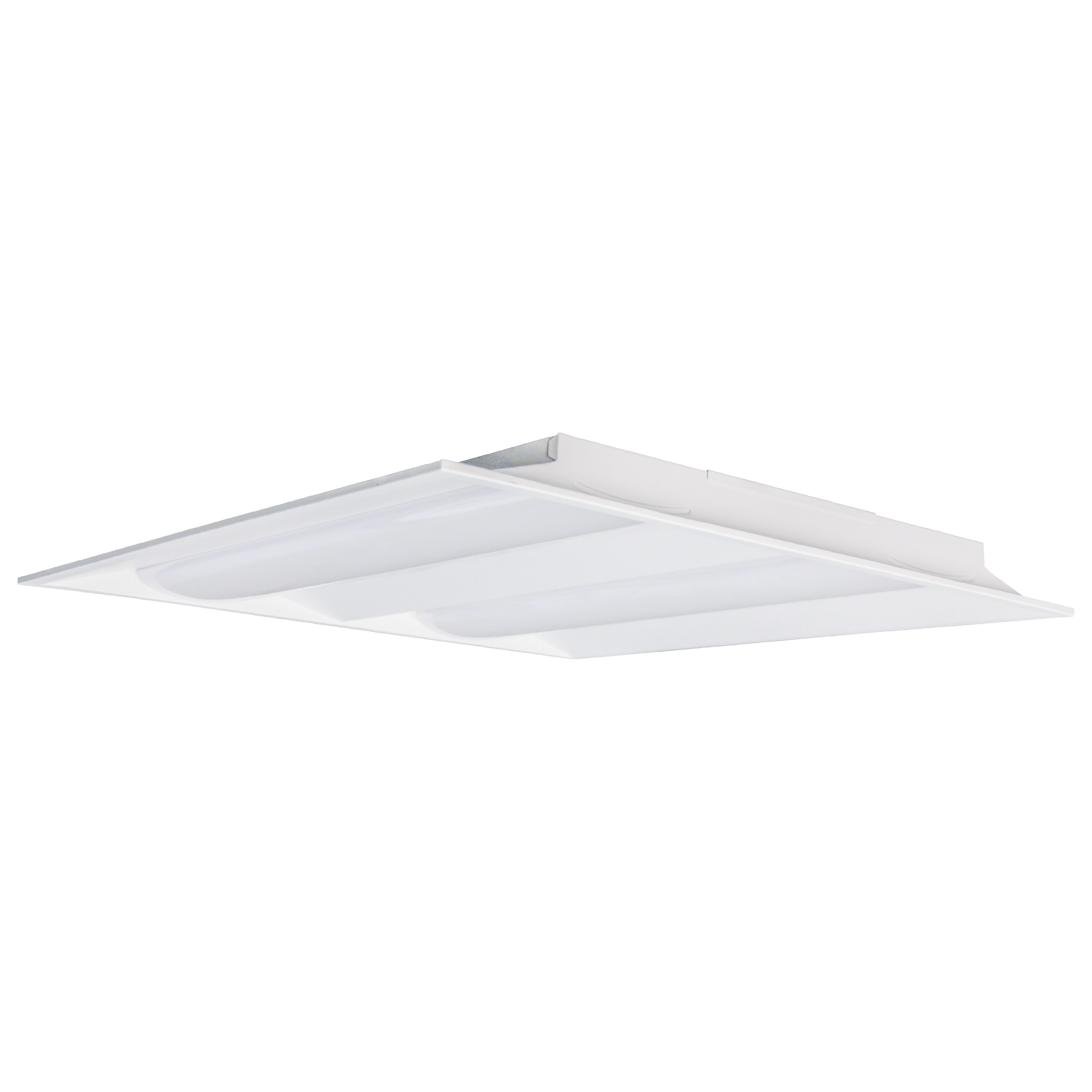

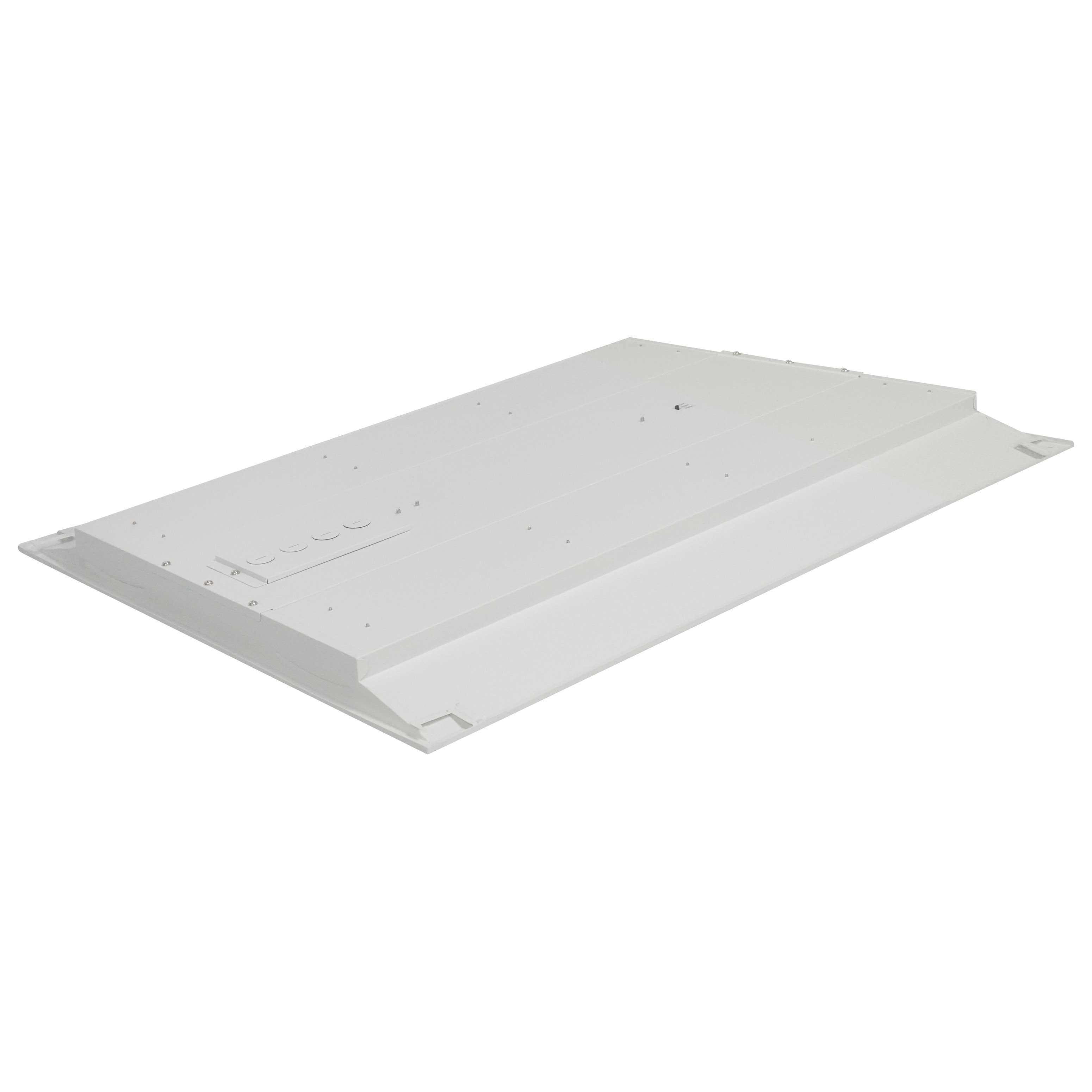

2X2 EM DOUBLE BASKET TROFFER

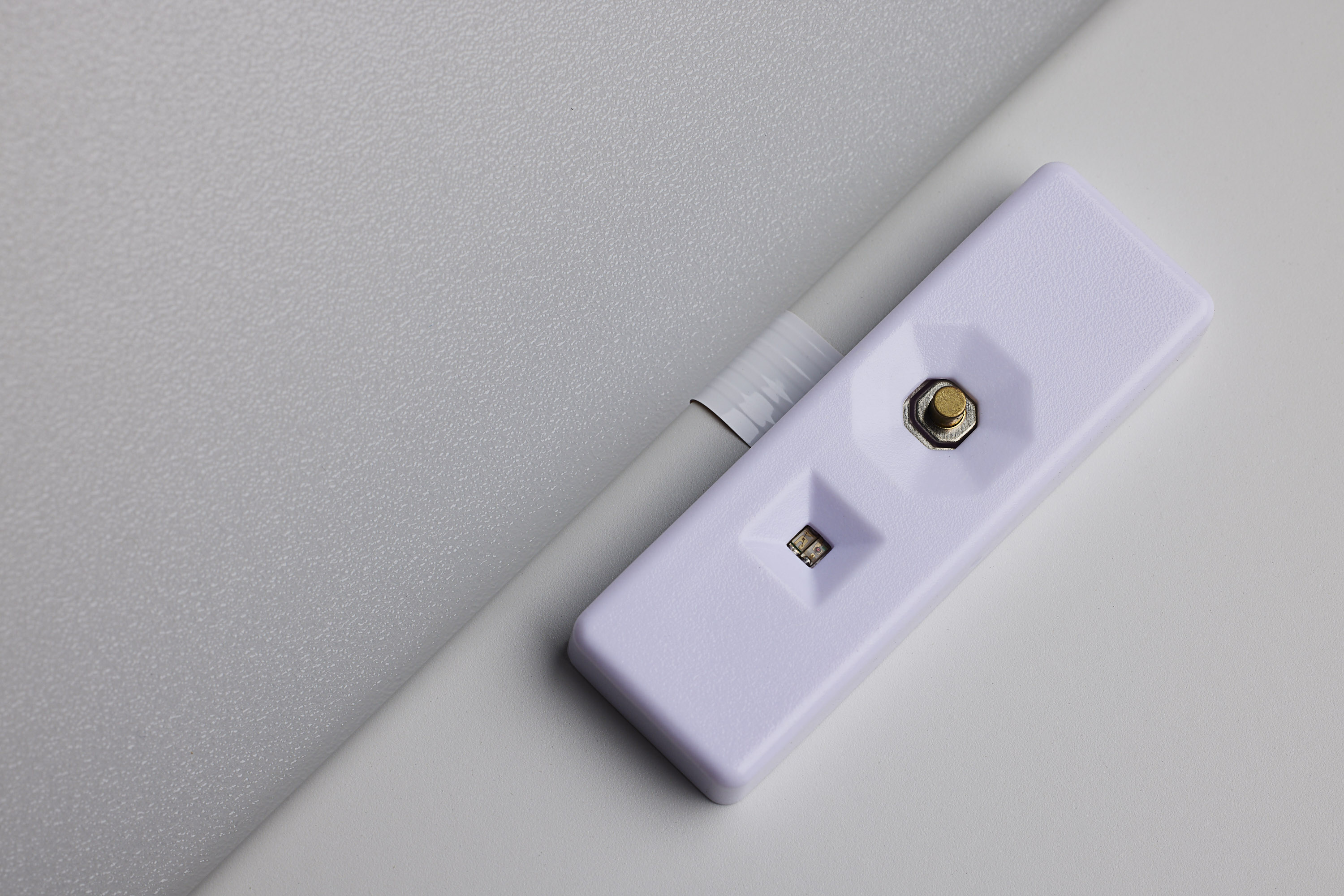

  • 2X2 Emergency Backup
  • Double Basket LED Troffer Fixture
  • Wattage Selectable
  • CCT Selectable
  • Lumens Selectable
  • White Finish
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
title_20^y^1
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-696 Specifications65-696 Photometrics 3500K.ies65-696 Photometrics 4000K.ies
Tools
Lighting Layout Analysis For 65-696
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
2X2 Emergency Backup; Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; White Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming
MaterialSteel
Fixture TypeDouble Basket Troffer
StatusActive
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite

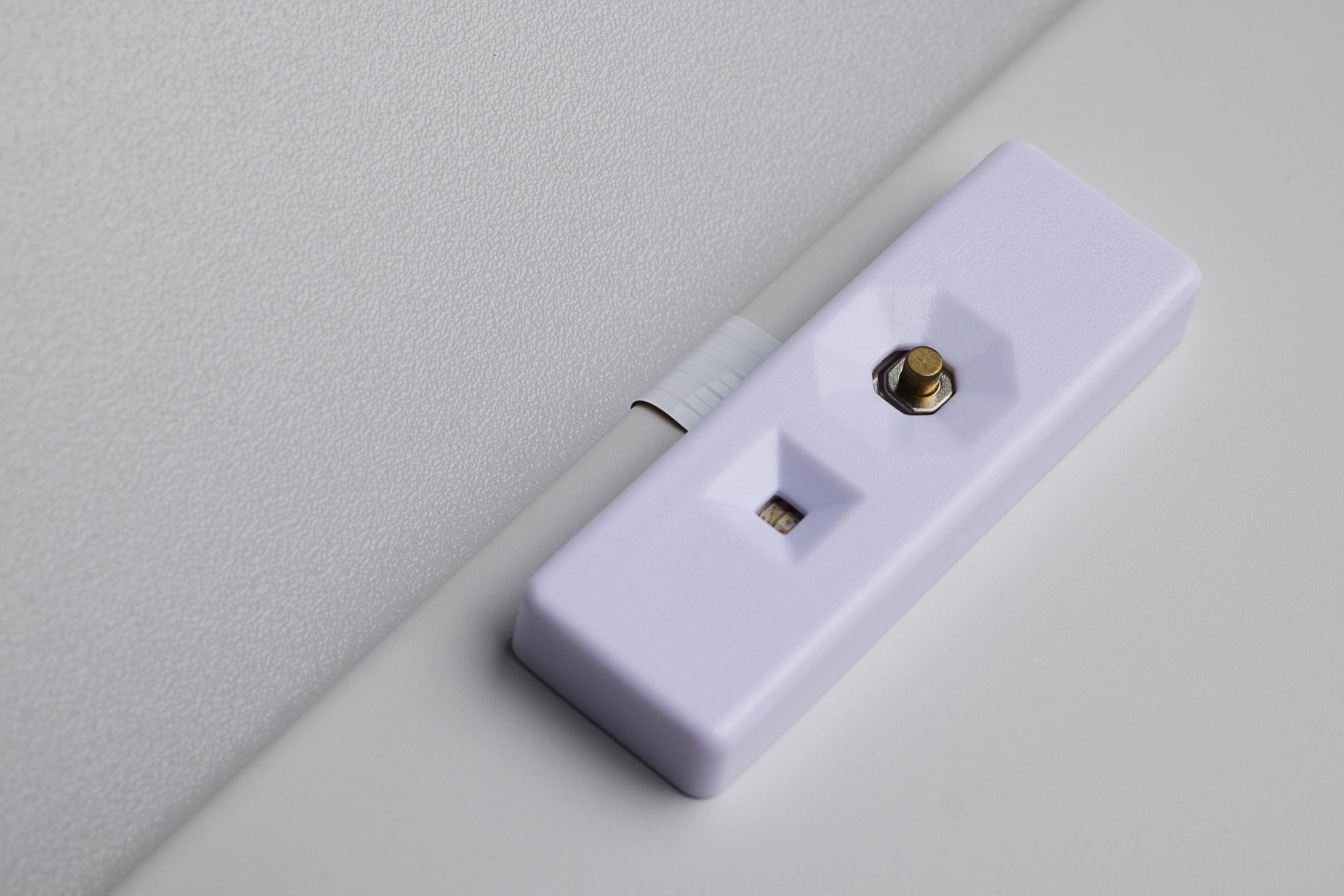

Additional Info90 Minute Battery Runtime
Amps0.300-0.108/0.350-0.126/0.400-0.144A
Has CameraNo
IOT EnabledNo
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent125W
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempNeutral White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +40C (+104F)
HID Equivalent70W-100W
Lumens3300L-4600L
Volts120V-277V
Watts30W/35W/40W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeYes
Compliance
CA Prop 65Lead
DLC IDS-SJPGH7
FCC CompliantYes
IC RatedYes
IP RatingIP20
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
UL ApplicationLED Recessed Luminaire/Type IC
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Yes
T24 CompliantNo
Packaging
UPC045923655241
Case Cube1.6435
Case Height25.71
Case Length25.51
Case Quantity1
Case UPC10045923655248
Case Weight8.93
Case Width4.33
EA Cube1.6435
EA Height25.71
EA Length25.51
EA Quantity1
EA Weight9.36
EA Width4.33
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

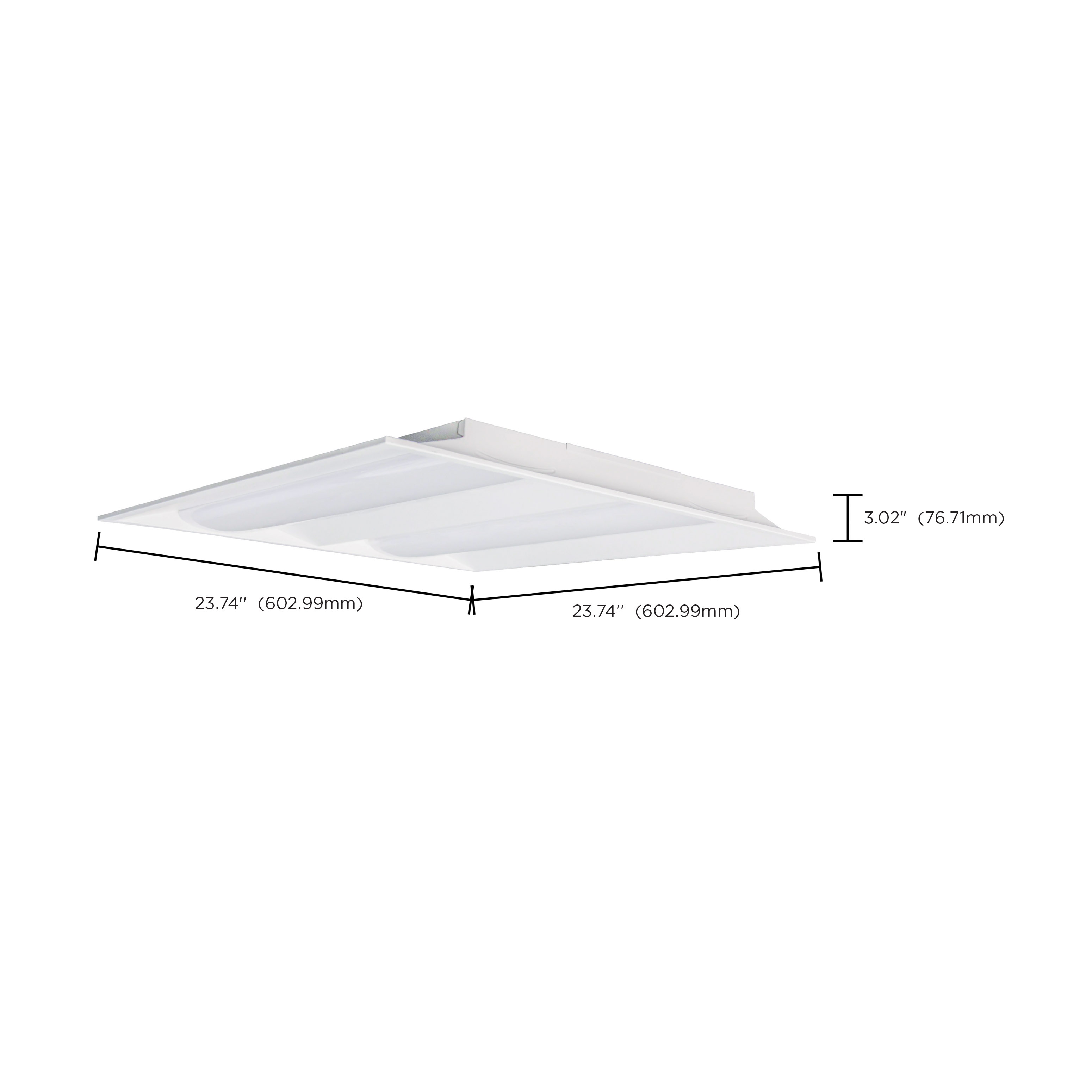

Web Height3.02
Web Length23.74
Web Width23.74
