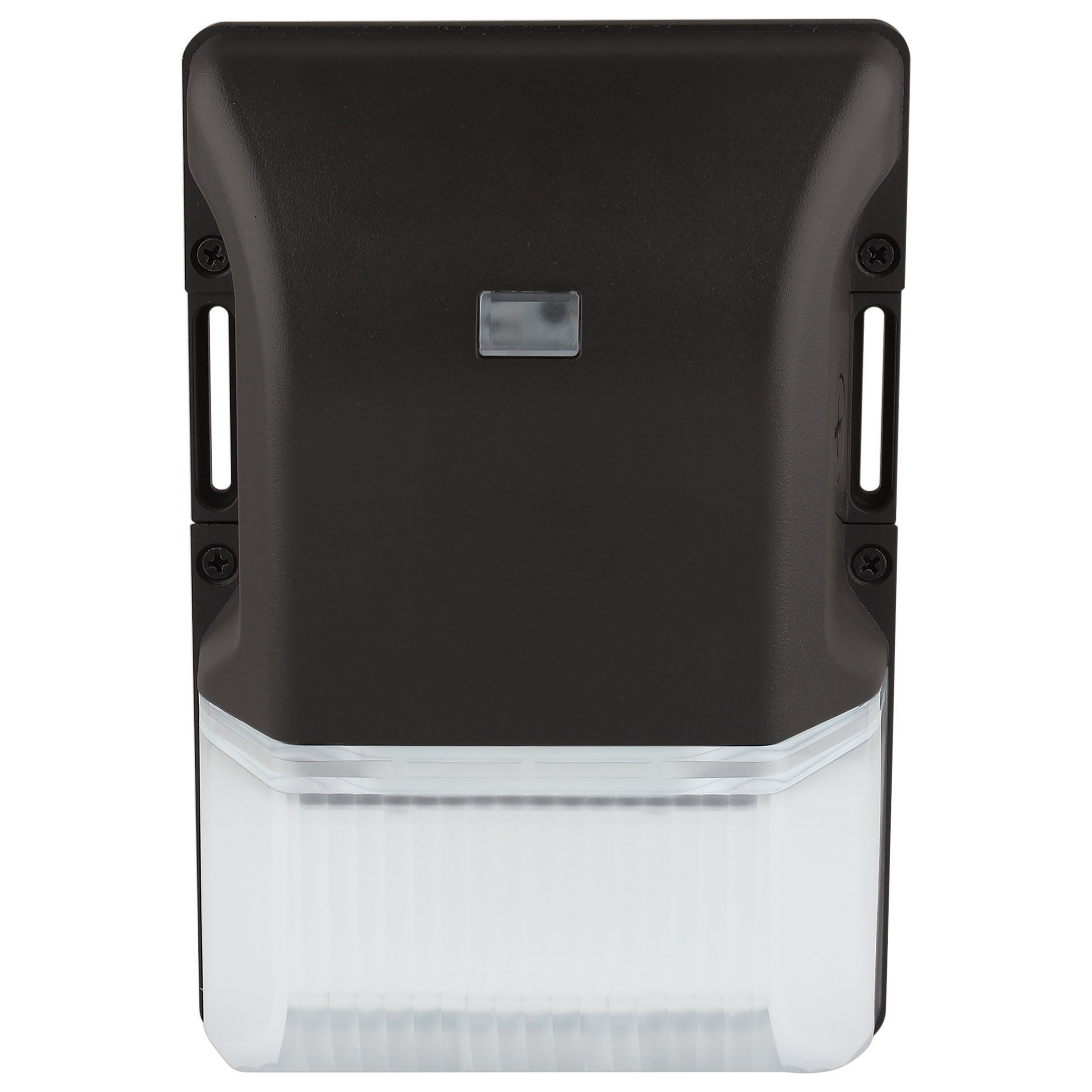

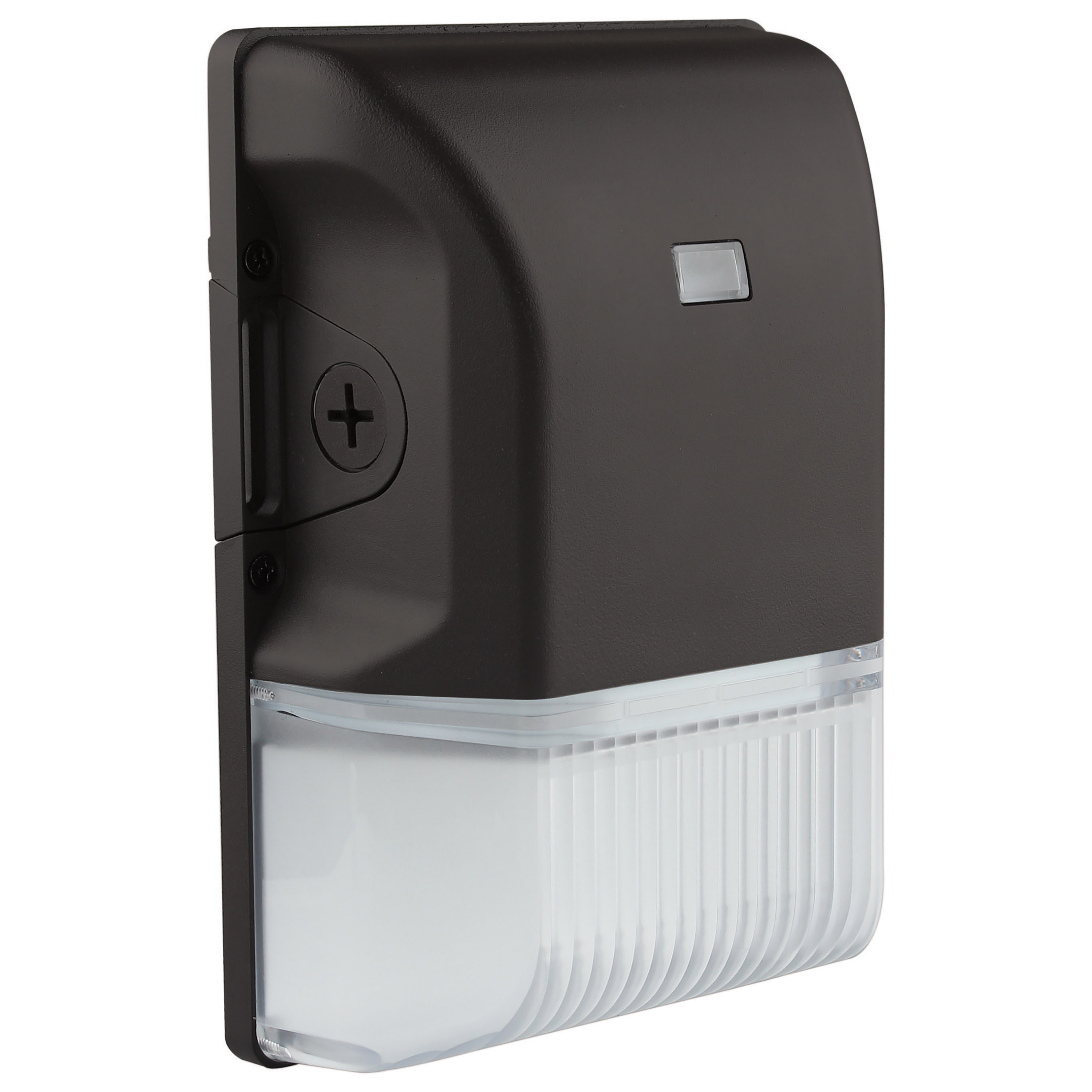

65-747 LED SMALL WALL PACK W/PHOTOCEL

65-747

LED SMALL WALL PACK W/PHOTOCEL

LED Small Wall Pack; 20W; CCT Selectable 3K/4K/5K; Black Finish; 100-277V

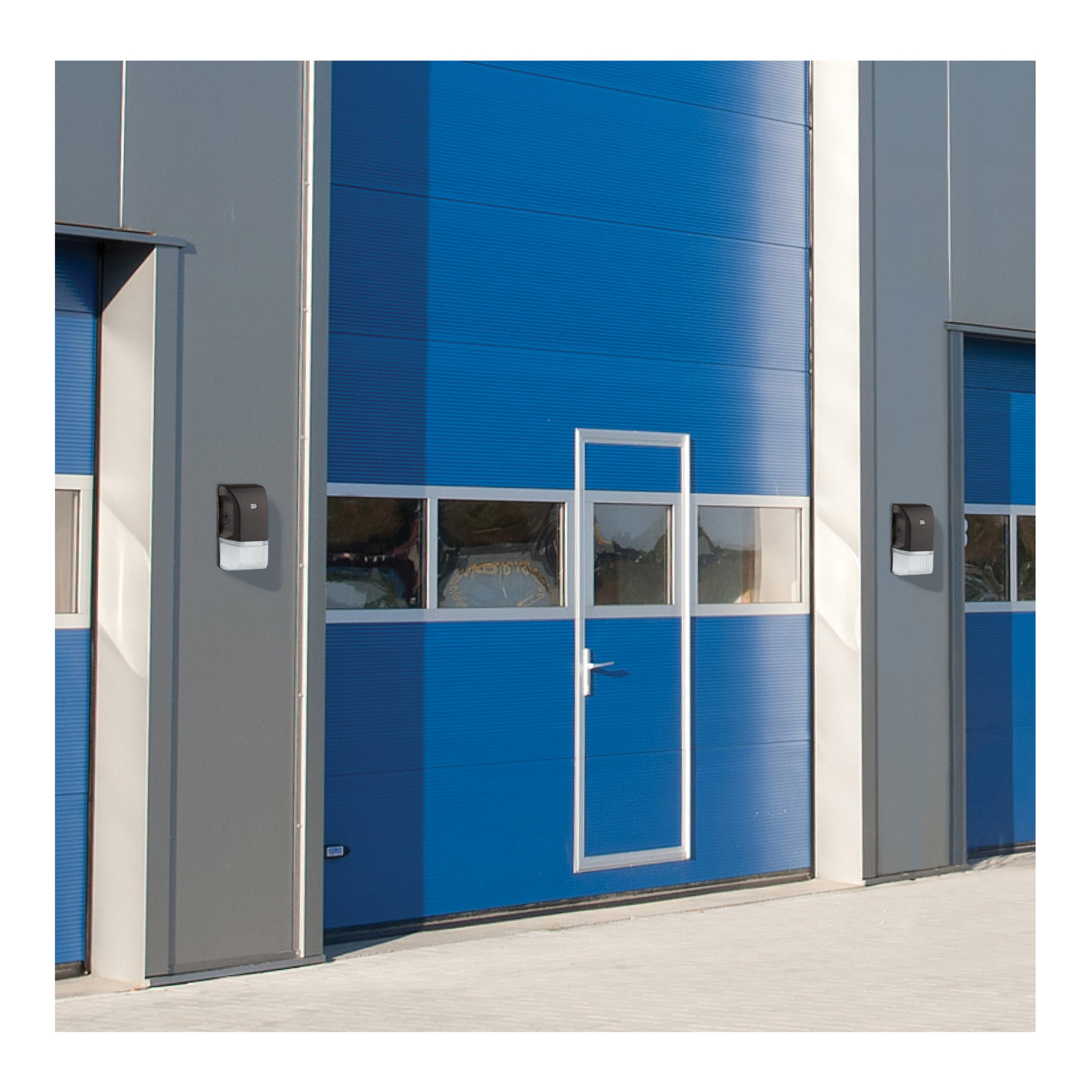

SATCO|NUVO's 20W LED Small Wall Pack is now CCT Selectable. Available in three finishes and featuring lighting choices from warm, cool, and natural light, this fixture is perfect for all of your lighting needs. This premium Wall Pack has a built in photocell sensor, a 100 degree beam spread, and is IP65 wet location rated making it the ideal addition to commercial buildings for exterior illumination.

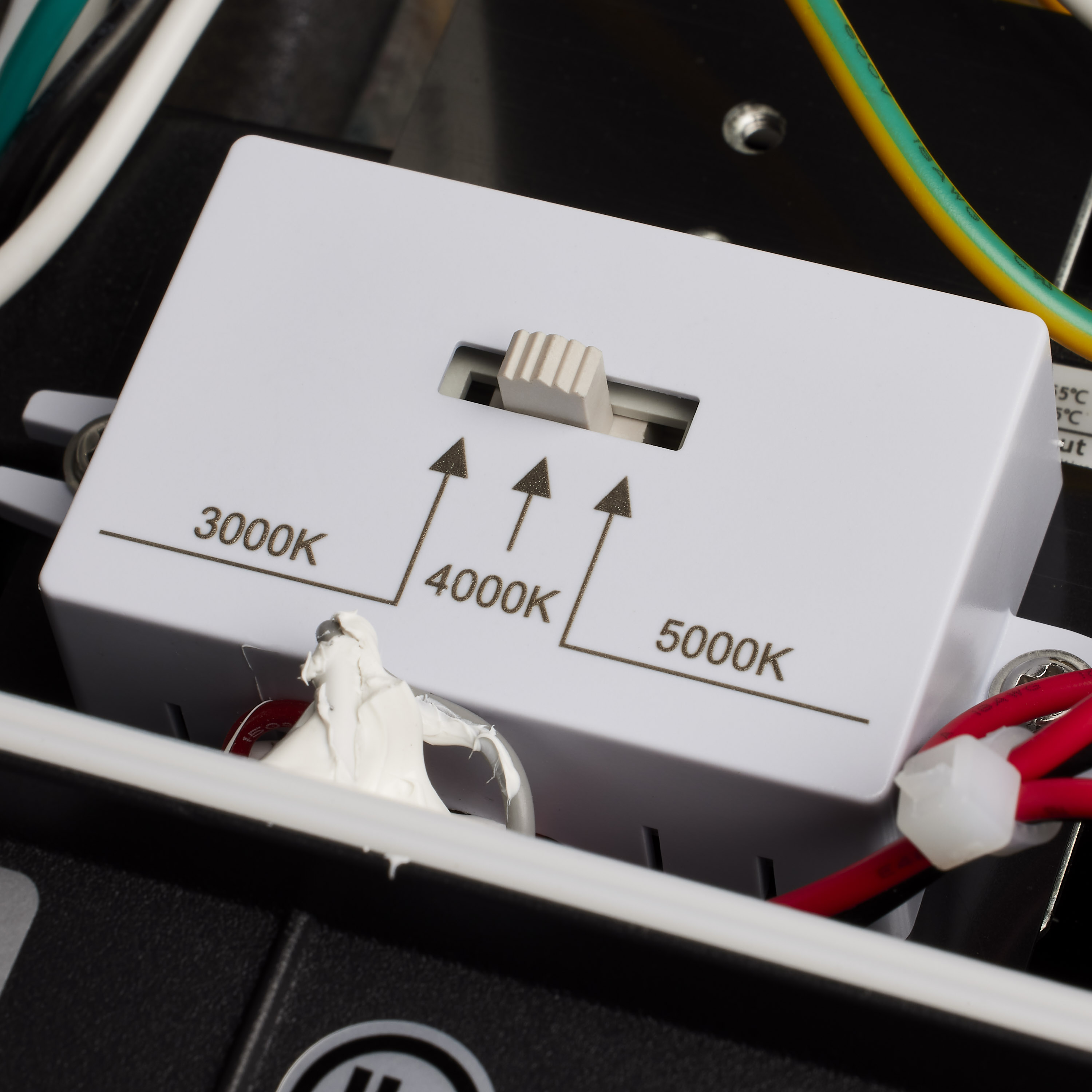

  • CCT Selectable
  • 0-10V Dimmable
  • Maintenance free - no bulb to change
  • Die-cast aluminum body
  • IP65, Wet rated for outdoor use
  • UV Stabilized Powder Coated Finish
Lights

65-747

LED SMALL WALL PACK W/PHOTOCEL

LED Small Wall Pack; 20W; CCT Selectable 3K/4K/5K; Black Finish; 100-277V

SATCO|NUVO's 20W LED Small Wall Pack is now CCT Selectable. Available in three finishes and featuring lighting choices from warm, cool, and natural light, this fixture is perfect for all of your lighting needs. This premium Wall Pack has a built in photocell sensor, a 100 degree beam spread, and is IP65 wet location rated making it the ideal addition to commercial buildings for exterior illumination.
  • CCT Selectable
  • 0-10V Dimmable
  • Maintenance free - no bulb to change
  • Die-cast aluminum body
  • IP65, Wet rated for outdoor use
  • UV Stabilized Powder Coated Finish

Specifications

General
StatusActive
Fixture TypeWall Pack
FinishBlack
Wattage20W
Lumen Output2608.9L/2920.8L/2703.4L
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
IP RatingIP65
Indoor or Outdoor FixtureOutdoor
Specifications
TechnologyLED
Wattage20W
Lumen Output2608.9L/2920.8L/2703.4L
CCT (Kelvin)3000K/4000K/5000K
Color TemperatureWarm to Cool White
CRI80+
Voltage120V-277V
Beam Angle100
Rated Hours50000
Operating Temperature-20C (-4F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming

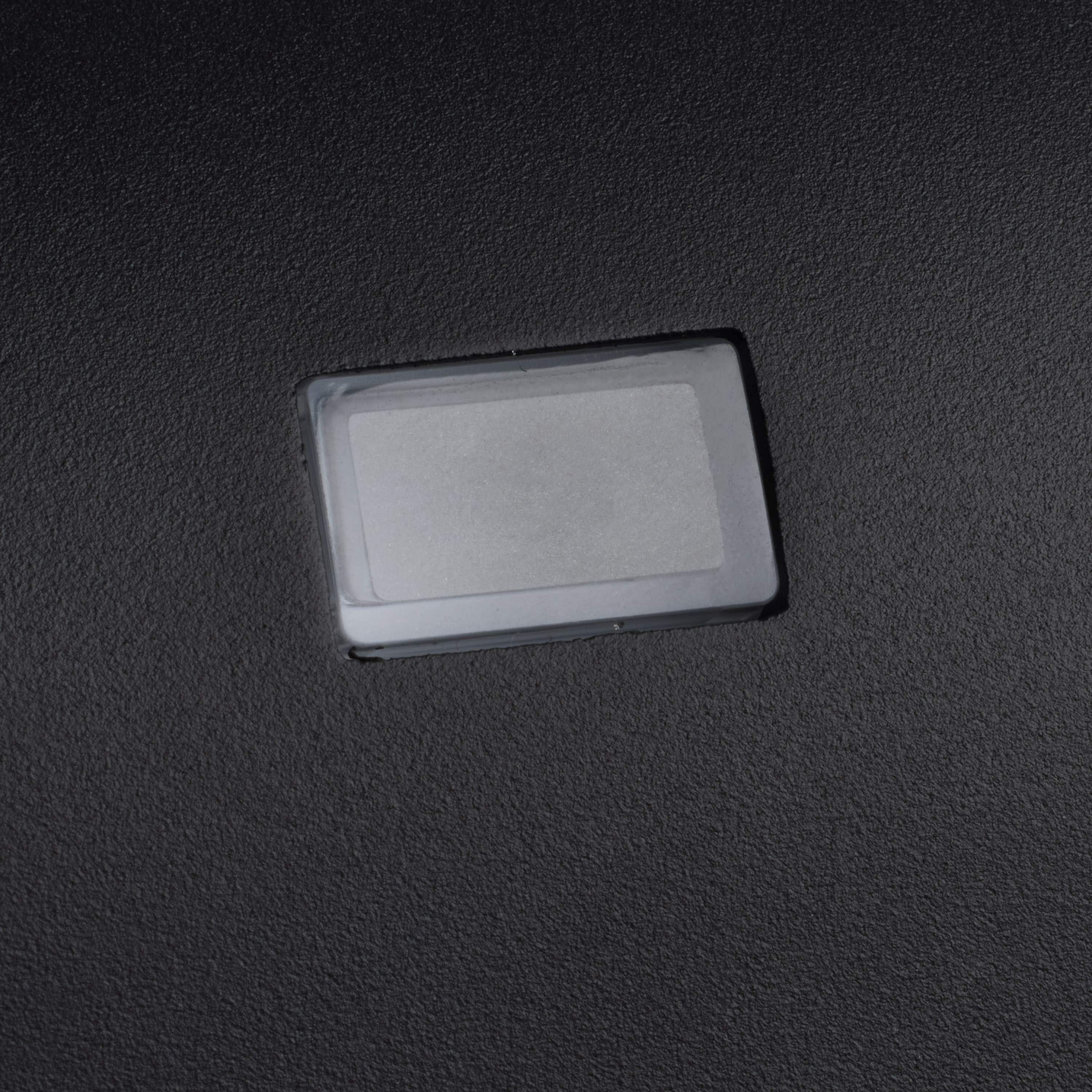

Photocell or SensorHas Photocell

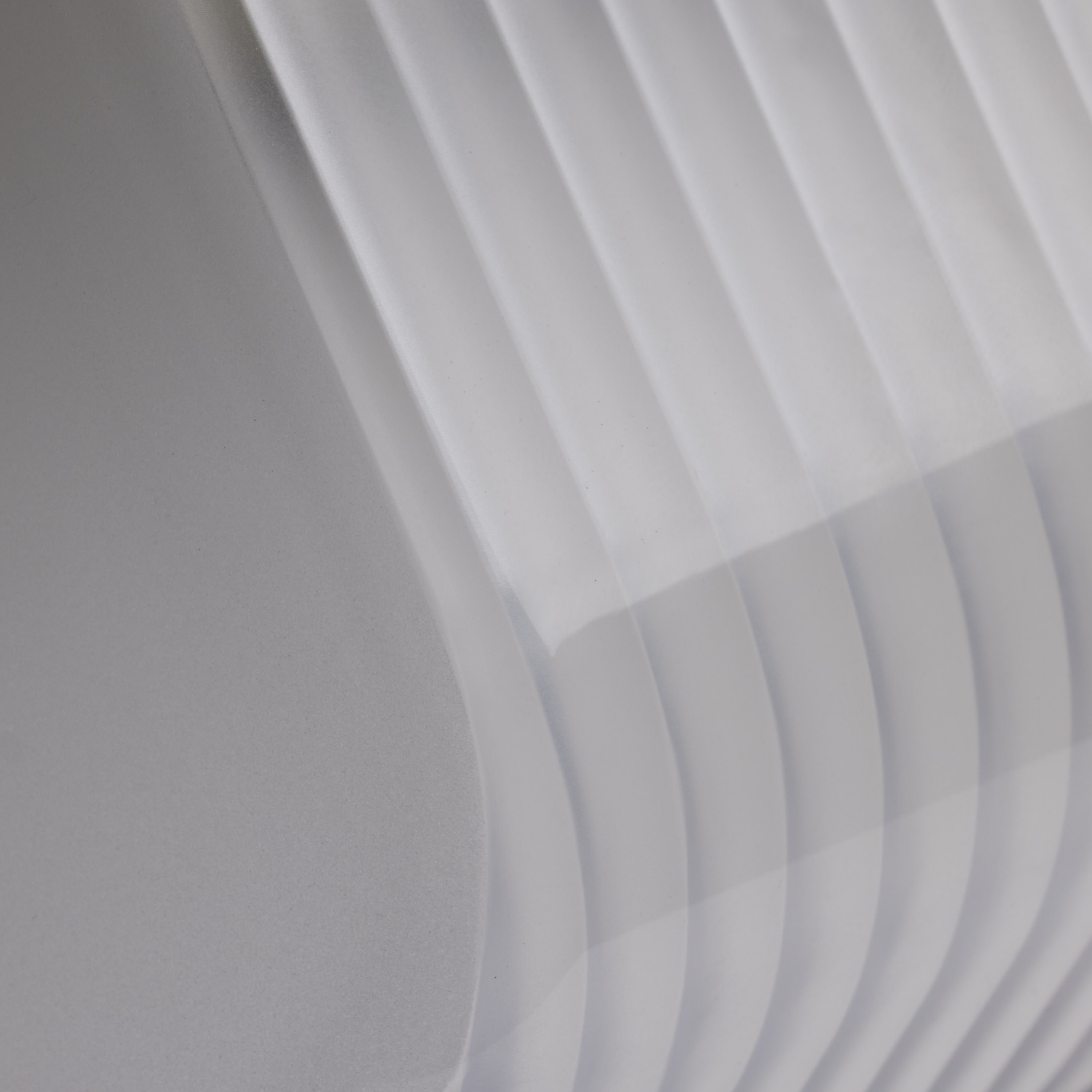

Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 2.5KV
Weight (lb.)1.98
IP RatingIP65
MaterialCast Aluminum

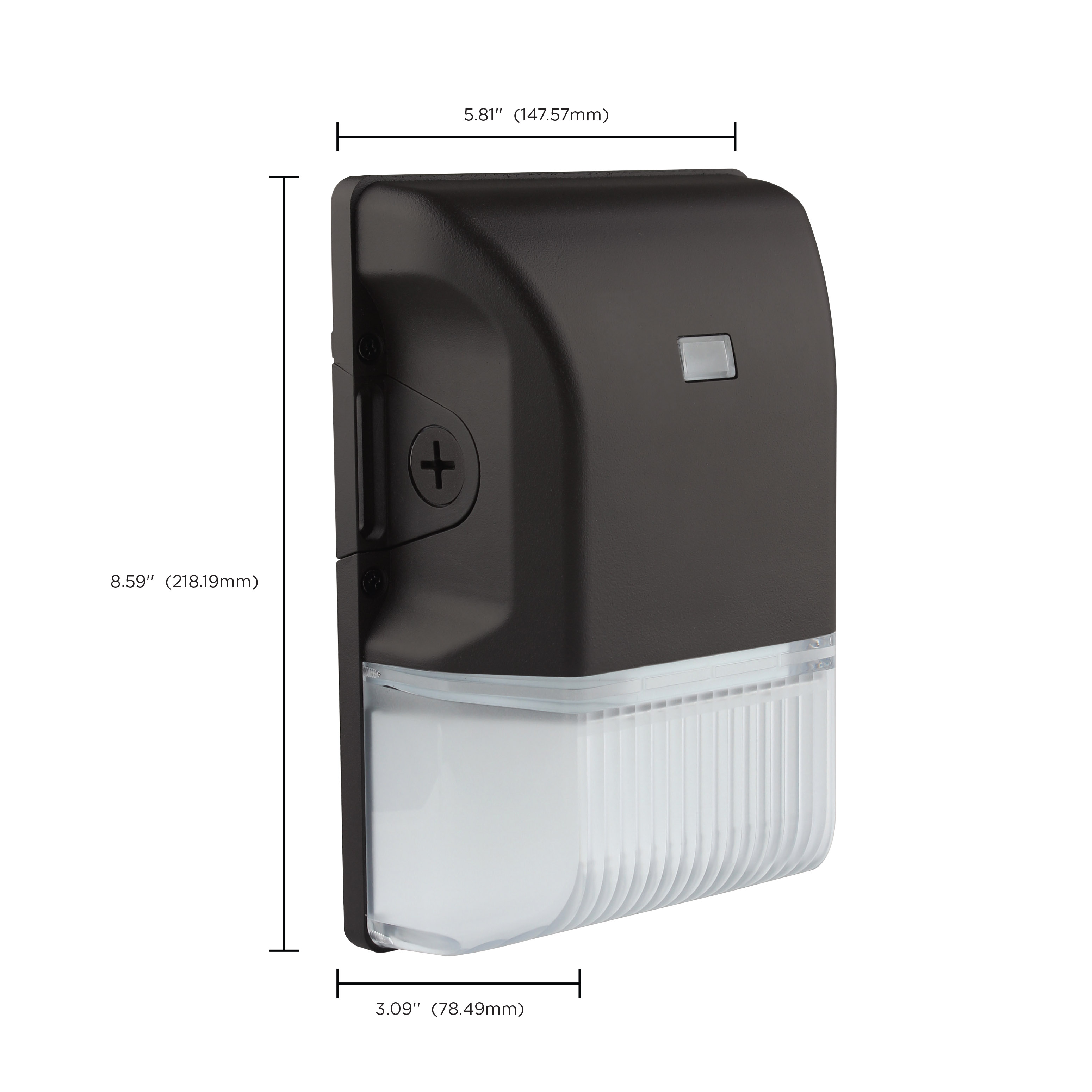

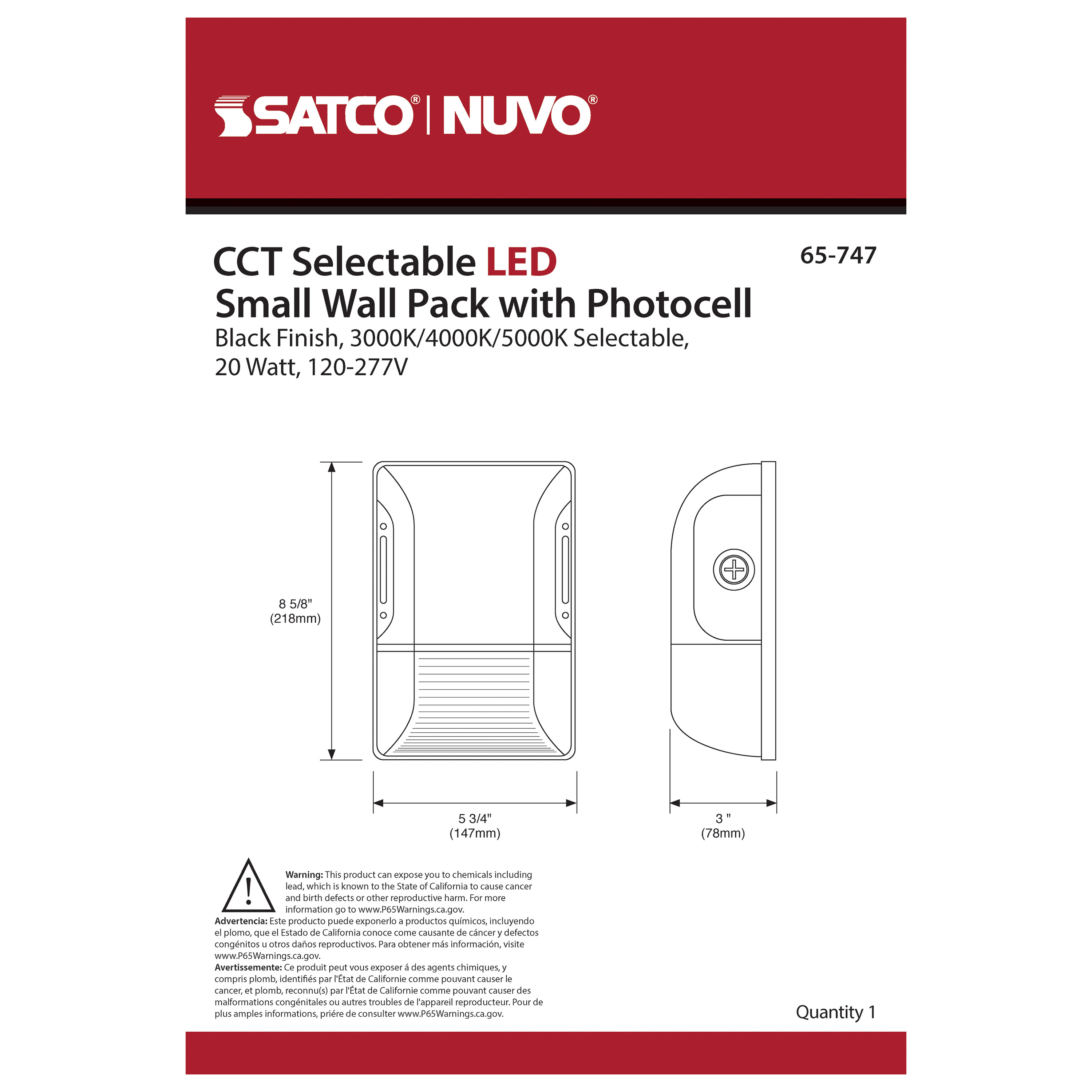

Dimensions
Height (in.)8.59
Width (in.)5.81
Extension (in.)3.09
Compliance
Safety ListingcULus - Listed
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDS-GL6EYJ
ADA CompliantYes
B.U.G. RatingB1-U3-G2
NSF ApprovedYes
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923657474
Each Quantity1
Each Length (in.)6.10
Each Width (in.)3.50
Each Height (in.)8.90
Each Weight (lb.)2.03
Each Cube (CuFt.)0.1100
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923657471
Case Quantity10
Case Length (in.)18.10
Case Width (in.)12.80
Case Height (in.)9.60
Case Weight (lb.)22.05
Case Cube (CuFt.)1.2871
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer LeGrand ADPD4FBL3P2W4 Visit
Dimmer Eaton DF10P Visit
Dimmer Leviton DS710-10Z Visit
Dimmer Lutron DVSCSTV Visit
Dimmer Lutron DVSTV Visit
Dimmer Leviton IP710-LFZ Visit
Dimmer Lutron MS-Z101 Visit
Dimmer Lutron MS-Z101-V Visit
Dimmer Lutron NTSTV-DV Visit
Dimmer Eaton SF10P Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
