| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming Only |

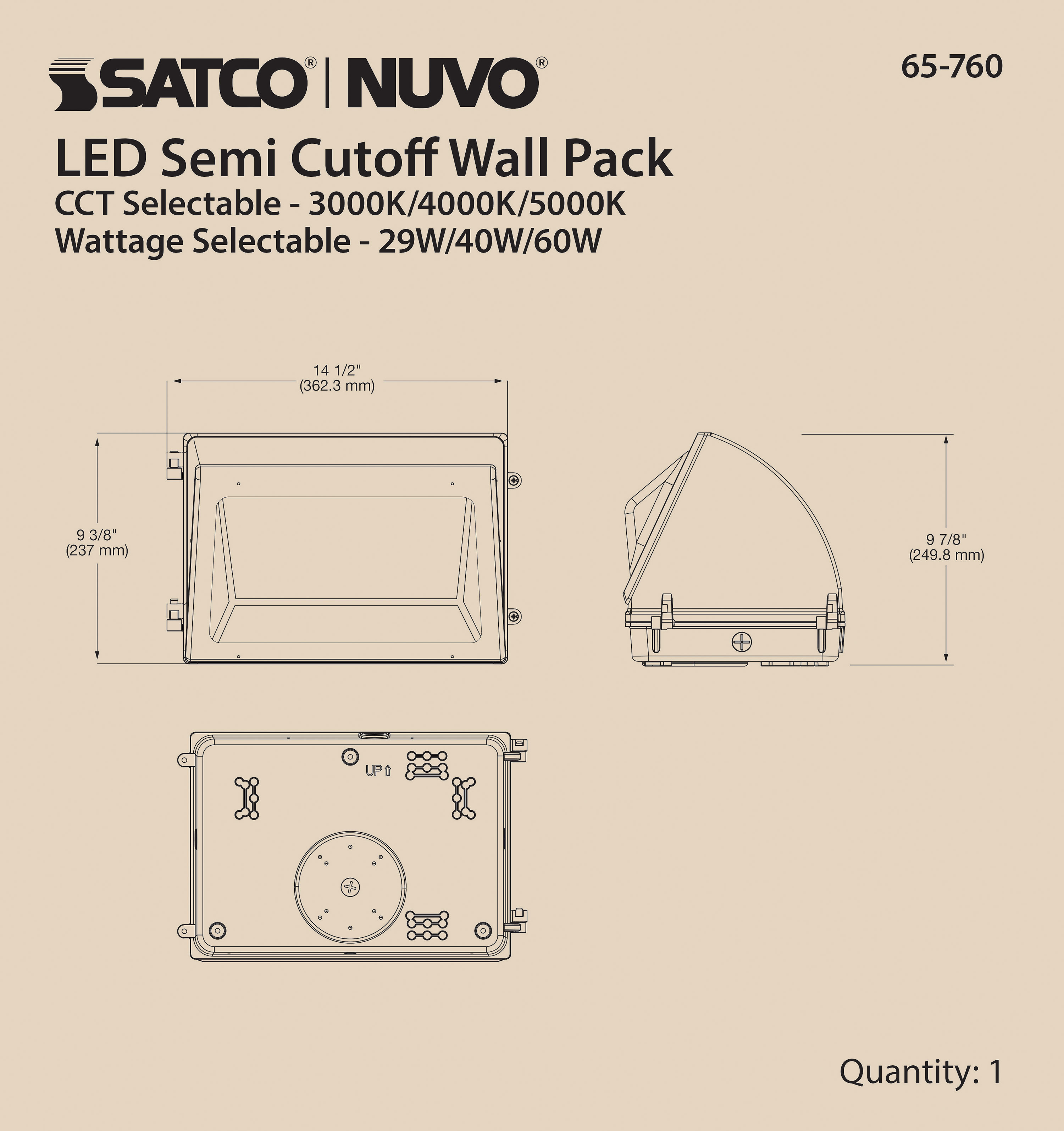

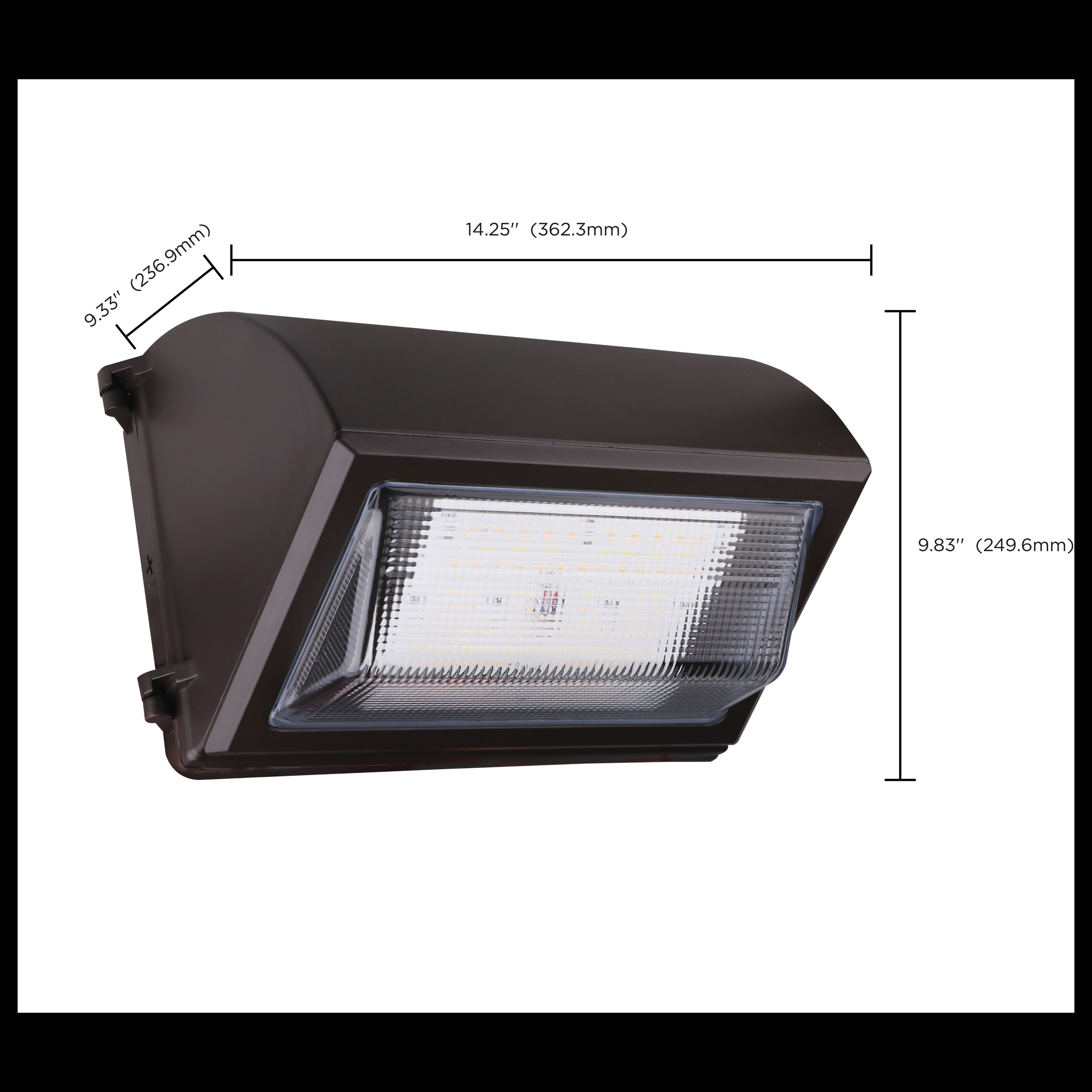

| Extends (in) | 9.33 |
| Material | Die-cast Aluminum |

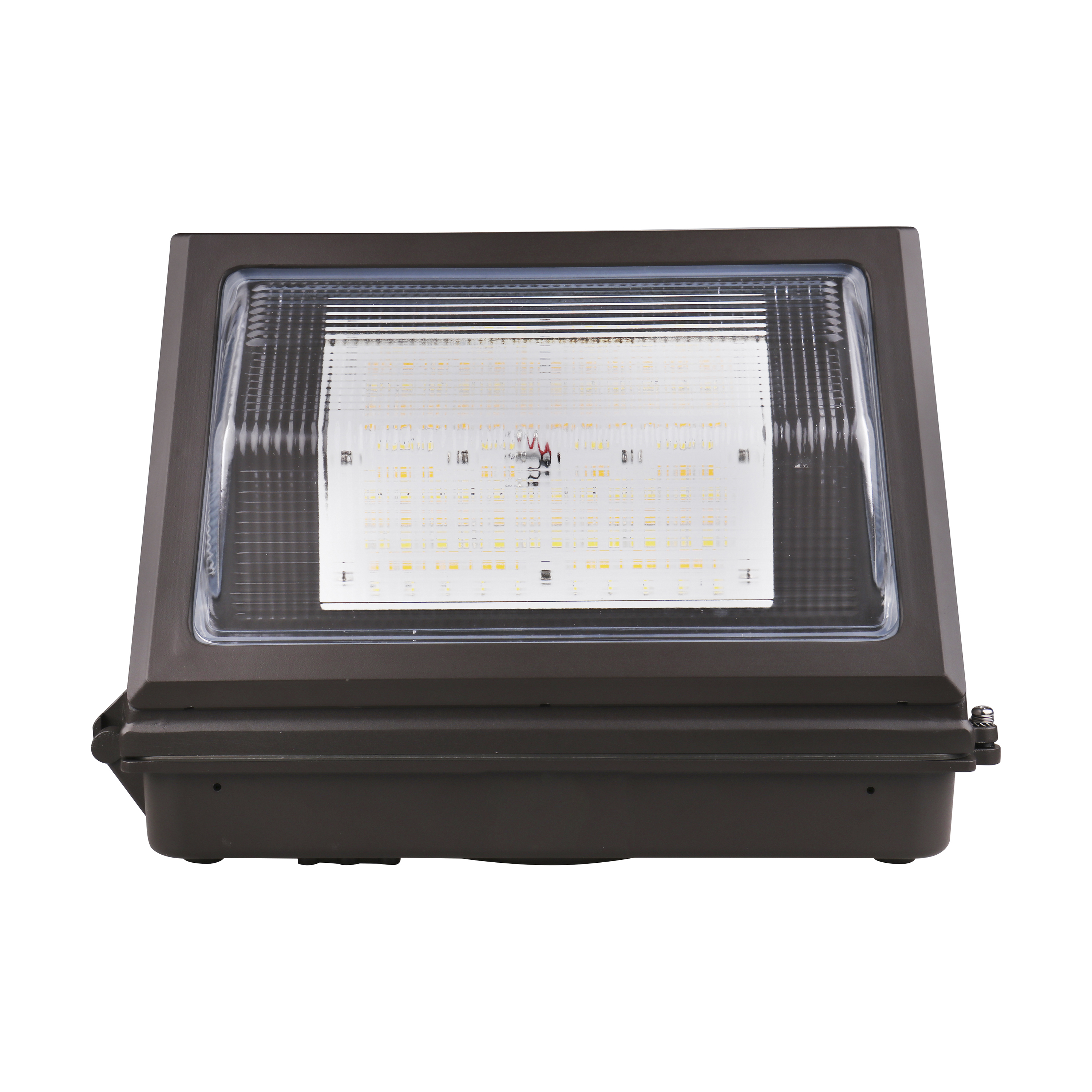

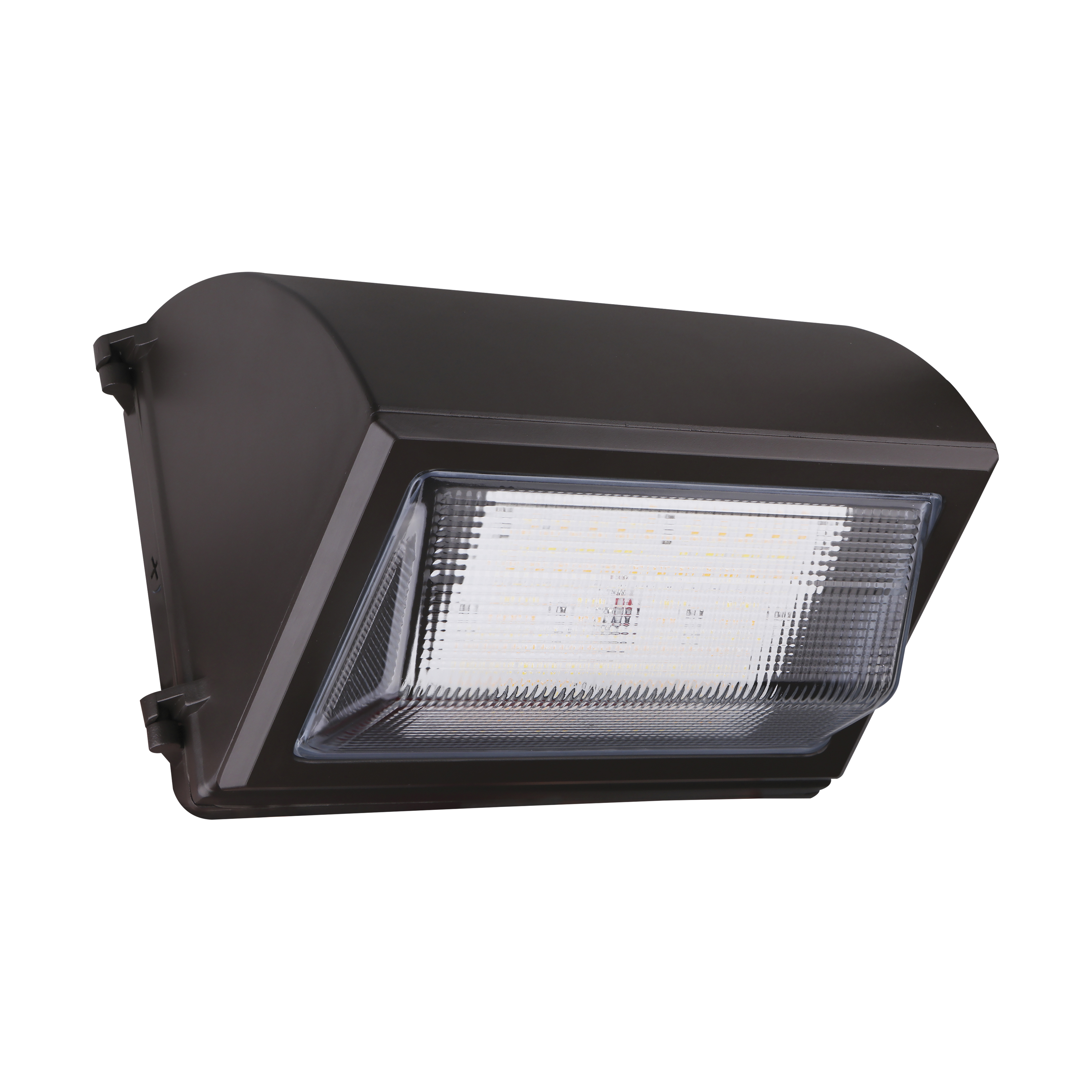

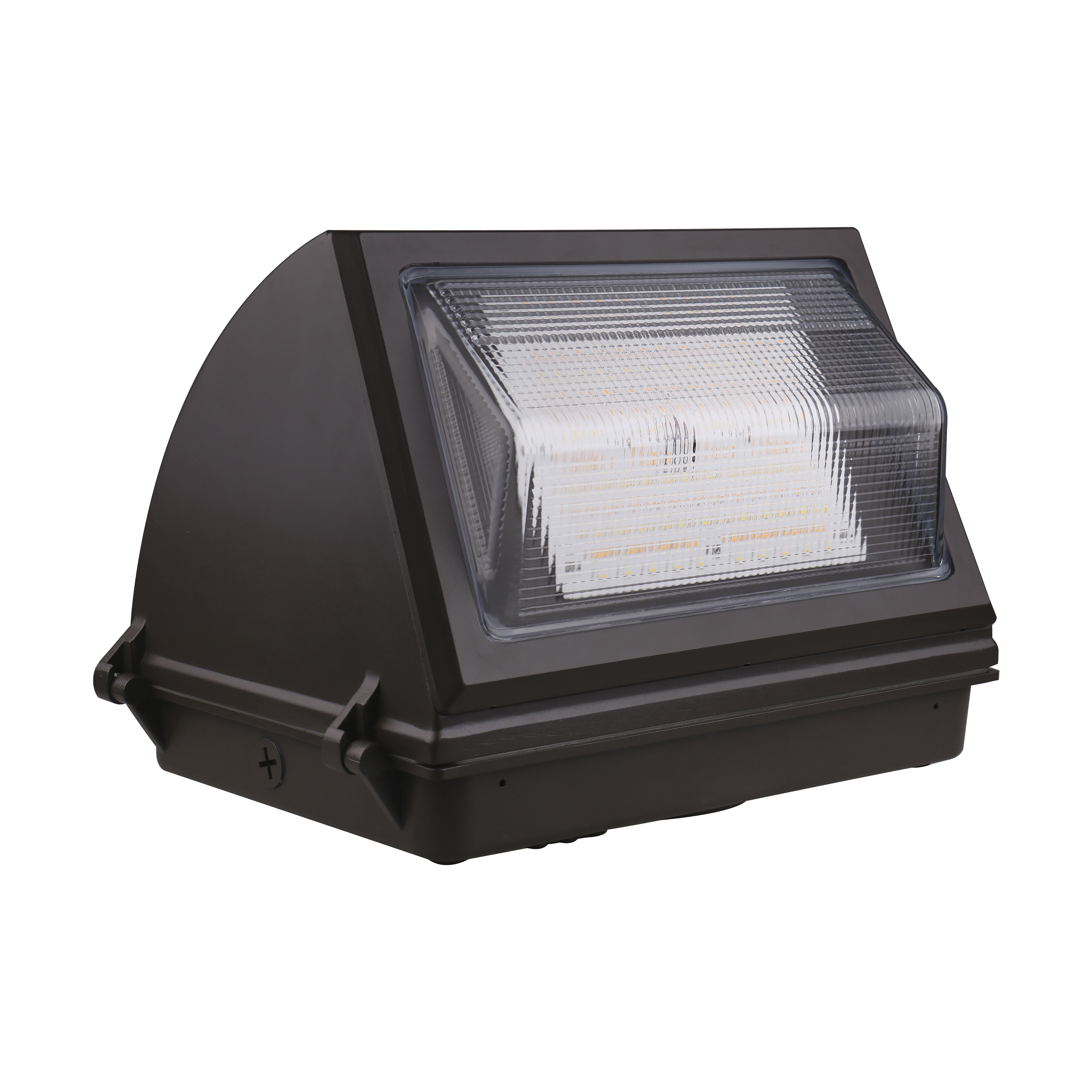

| Fixture Type | Wall Pack |
| Status | Active |
| Style | Traditional |
| Surge Protection | Built-in surge protection - 10KV |
| Total Harmonic Distortion | 15% |
| CCT Selectable | True |

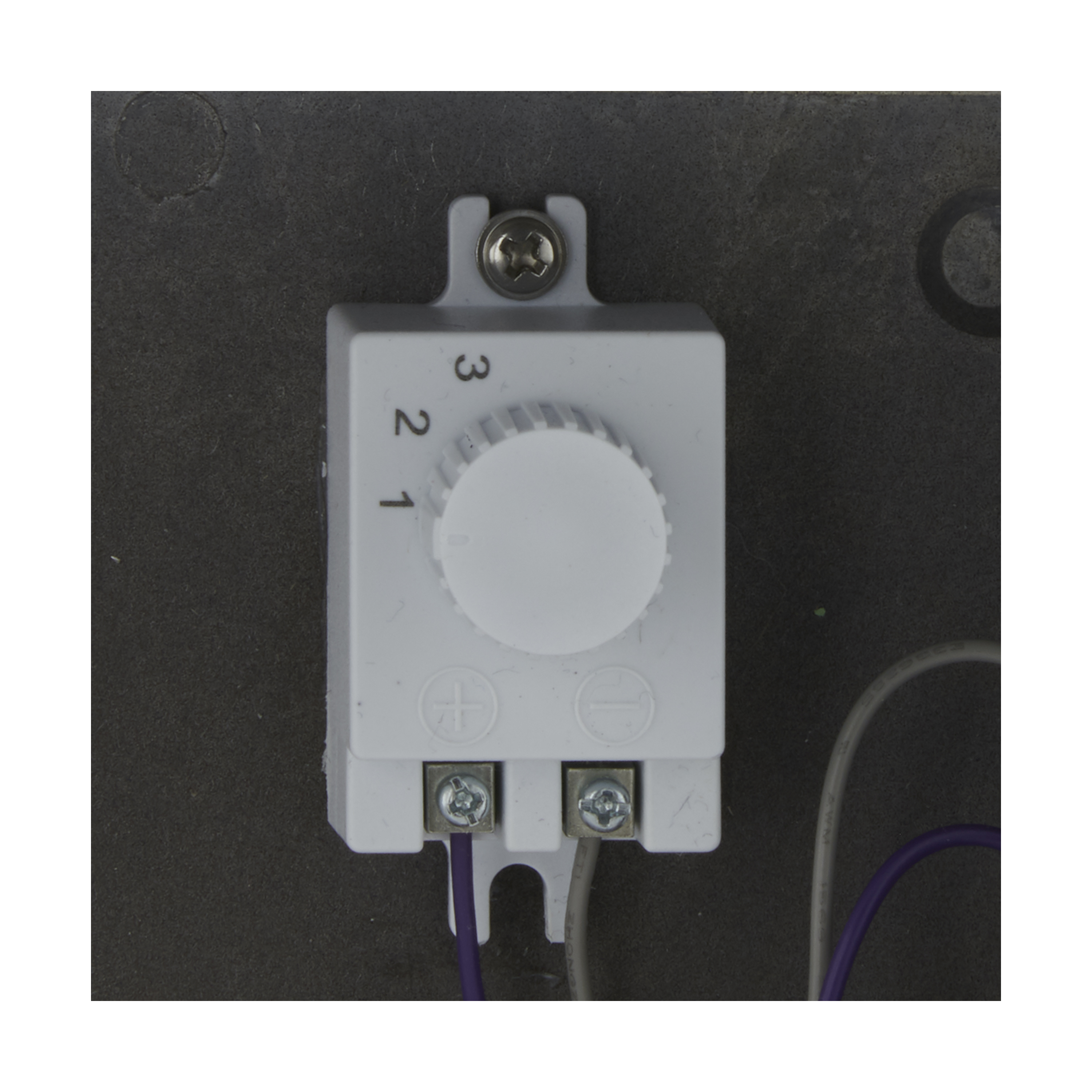

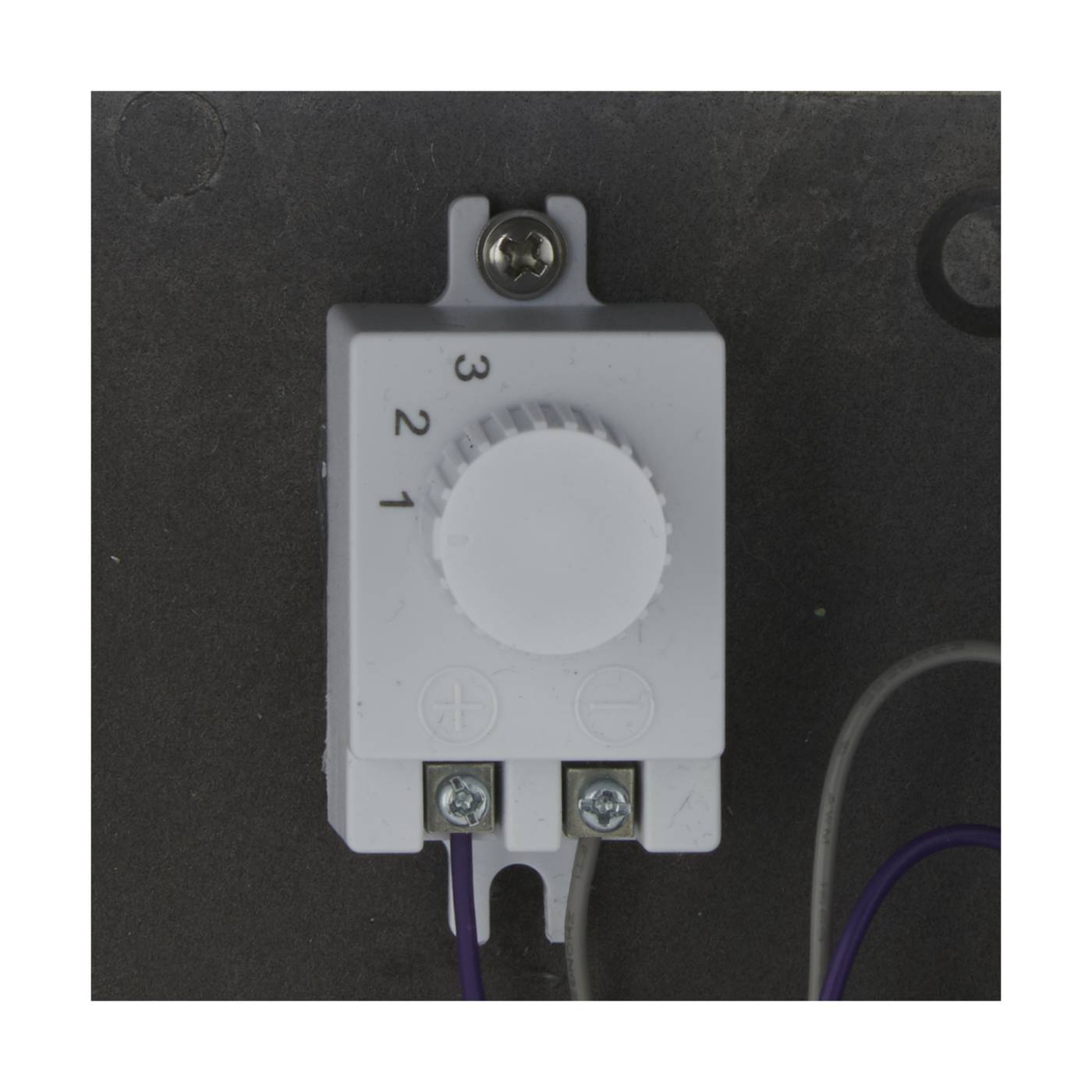

| Wattage Selectable | True |
| Finish Family | Bronze |
| Amps | 0.242-0.105/0.333-0.144/0.500-0.217A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Glass |
| Photo Cell | Yes - Bypassable |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 200W-500W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 110 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +50C (+122F) |
| HID Equivalent | 75W-175W |
| Lumens | 3915L-8400L |
| Volts | 120V-277V |
| Watts | 29W/40W/60W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| ADA Compliant | False |
|---|---|
| Bug Rating | B2-U3-G3 |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | PLGG00BXA47N |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |

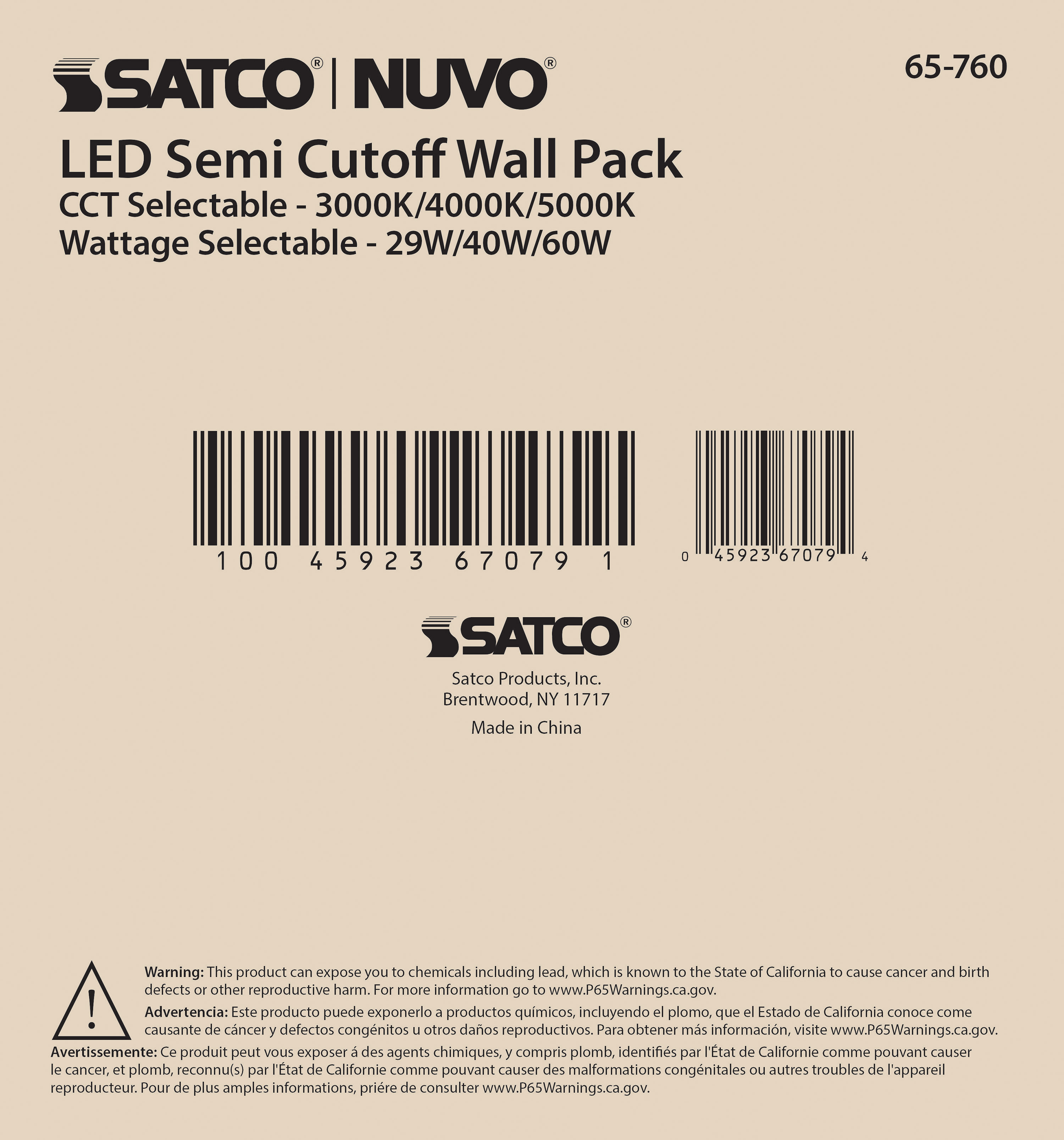

| UPC | 045923670794 |
|---|---|
| Case Cube | 1.3563 |
| Case Height | 12.6 |
| Case Length | 15.75 |
| Case Quantity | 1 |
| Case UPC | 10045923670791 |
| Case Weight | 11.24 |
| Case Width | 11.81 |
| EA Cube | 1.3563 |
| EA Height | 12.6 |
| EA Length | 15.75 |
| EA Quantity | 1 |
| EA Weight | 11.24 |
| EA Width | 11.81 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Height | 9.83 |
| Web Width | 14.26 |
