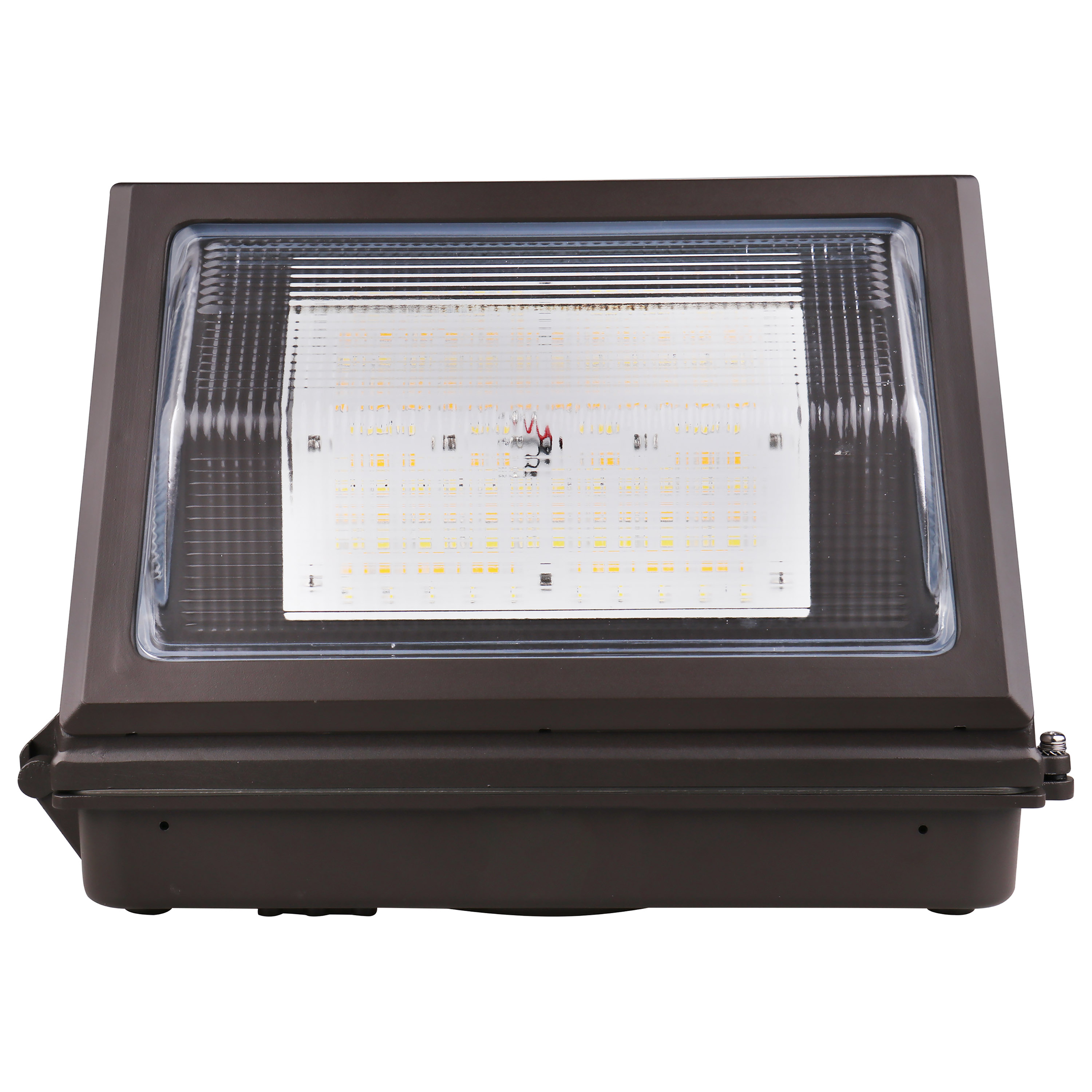

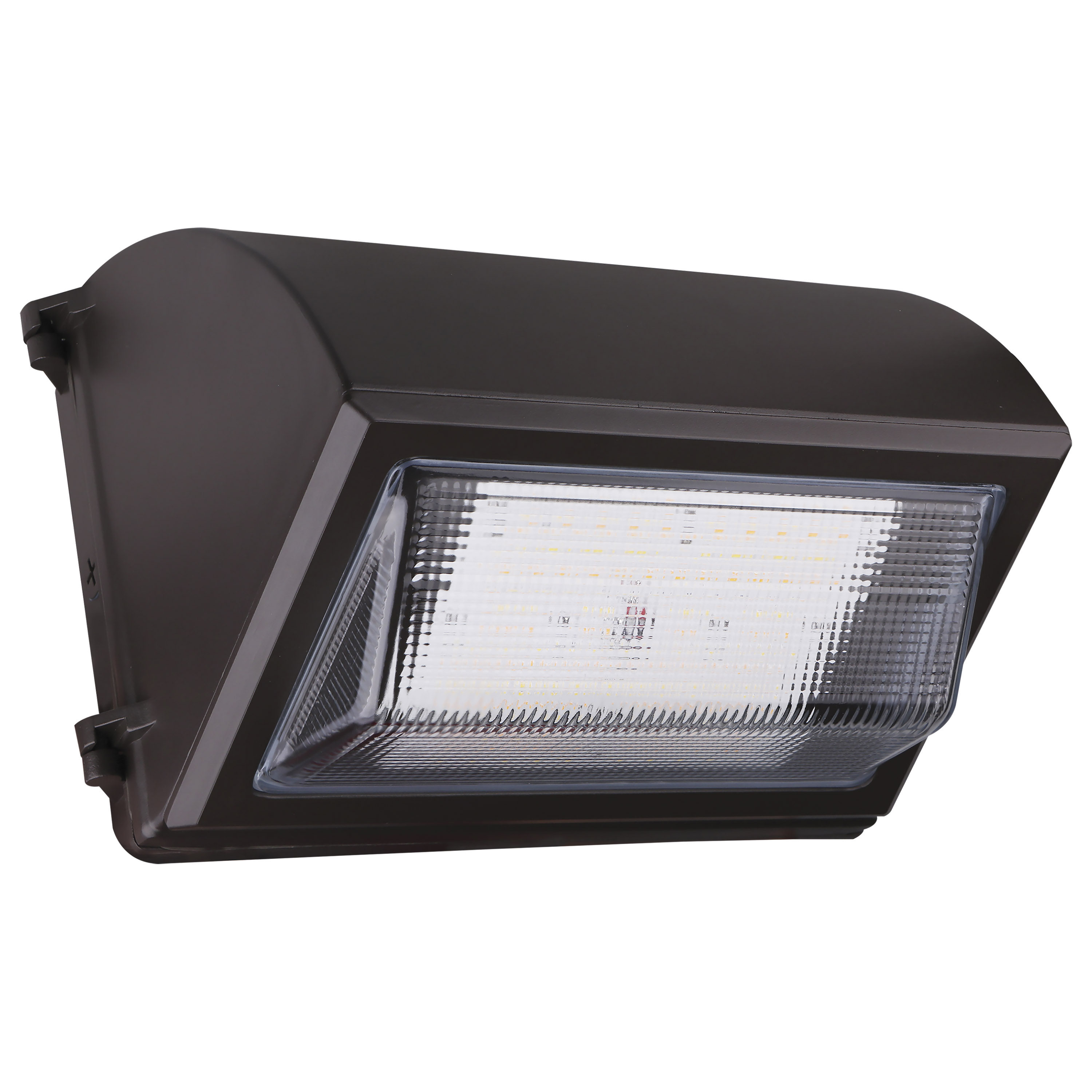

65-762 EM CUTOFF WALL PACK CCT&WATT

Description

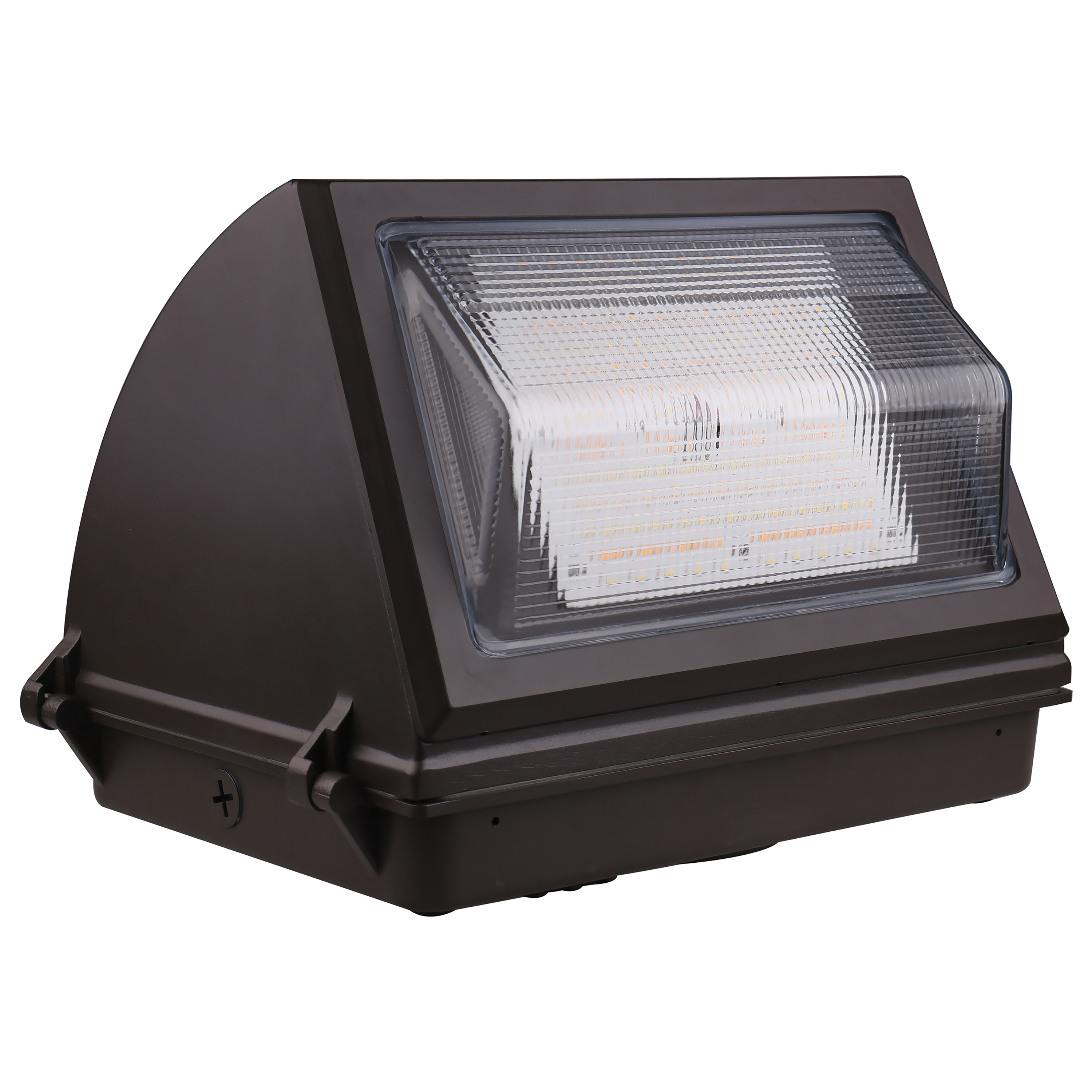

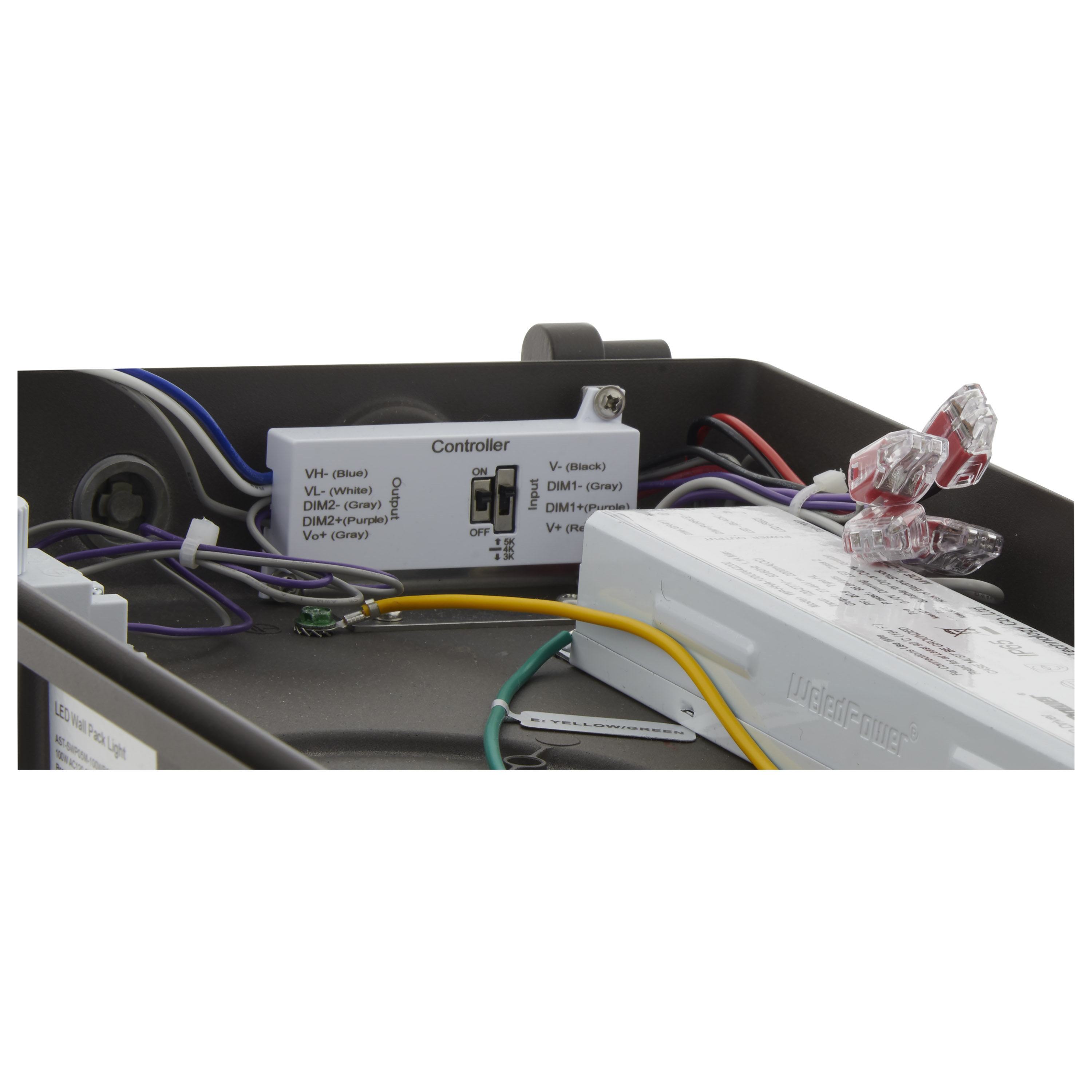

Introducing 65-762, SATCO NUVO's new CCT and Wattage selectable cutoff wall pack with integrated bypassable photocell and emergency battery backup. This cULus certified wall pack is offered in a traditional style with 29W/40W/60W wattage configurations, CCT selectable temperatures of 3000K, 4000K, and 5000K, and a voltage range of 120V-277V. The wall pack is 10KV, rated for 50,000 hours, is DLC premium, and carries a 5-year warranty. The battery backup mode features 16 watts of power at 1120 lumens with a run time of 90 minutes.

Products Specs

General

Company	NUVO
Bulb Included	Integrated

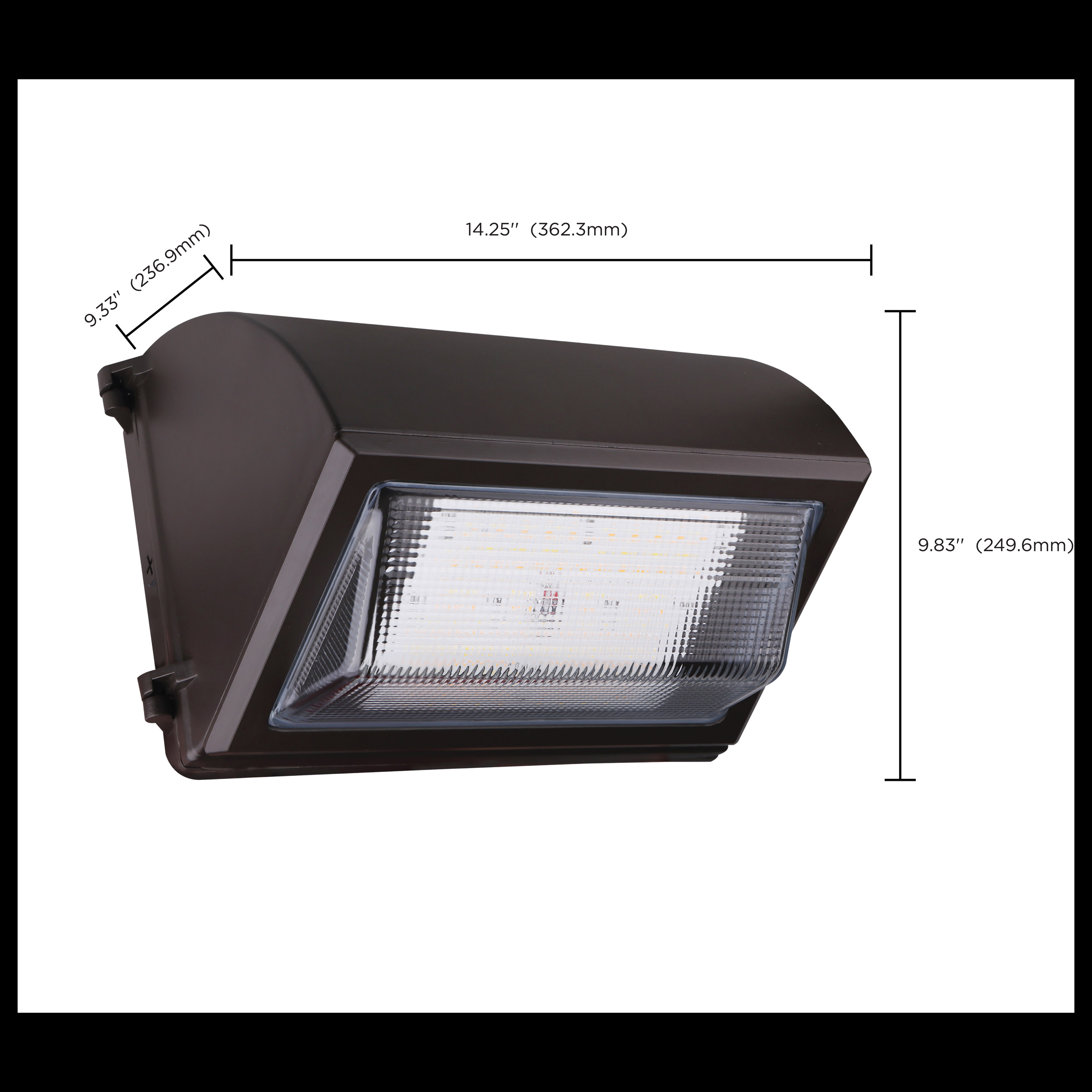

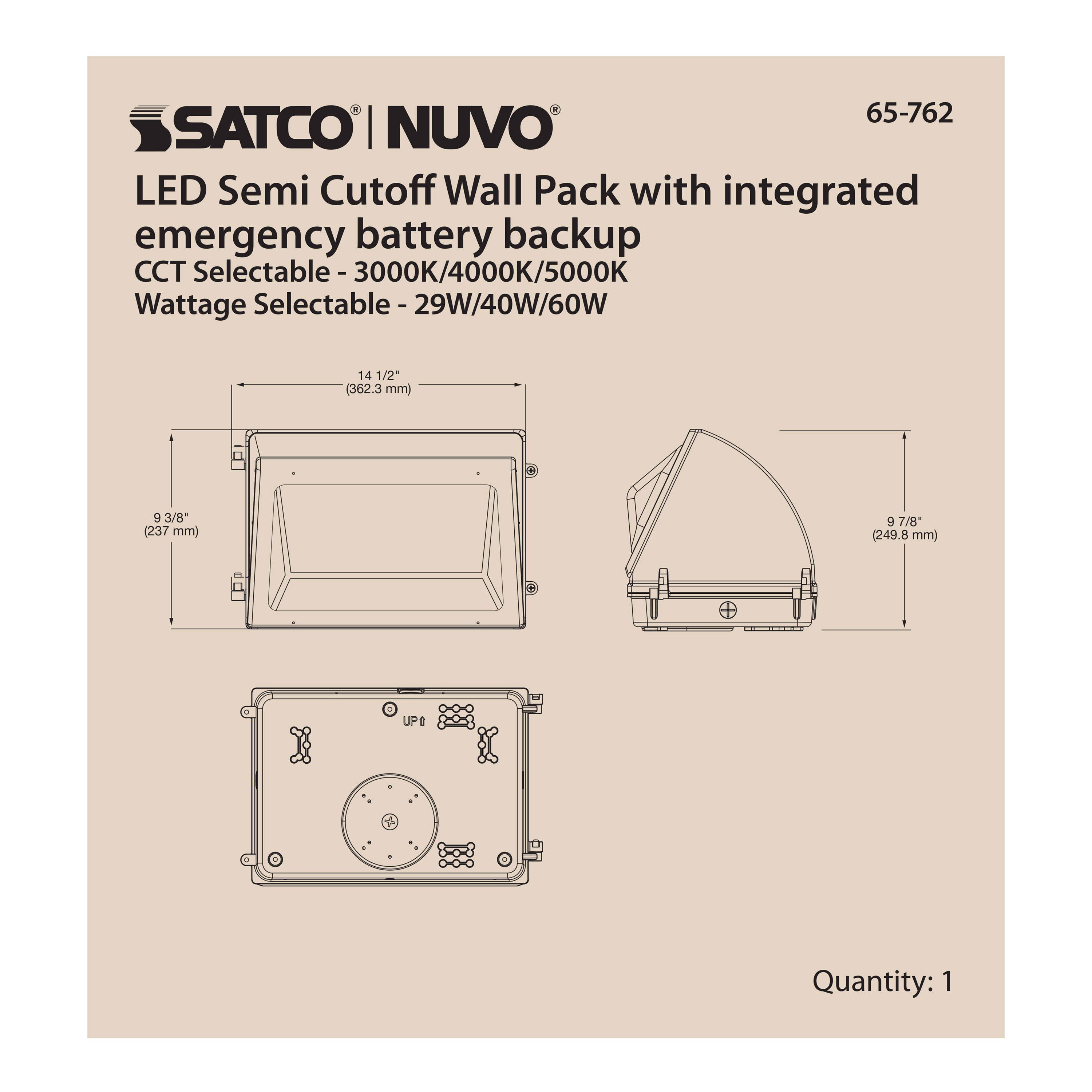

Extends (in)	9.33
Material	Die-cast Aluminum
Fixture Type	Wall Pack
Status	Discontinued
Style	Traditional
Surge Protection	Built-in surge protection - 10KV
Total Harmonic Distortion	<20%
CCT Selectable	Yes

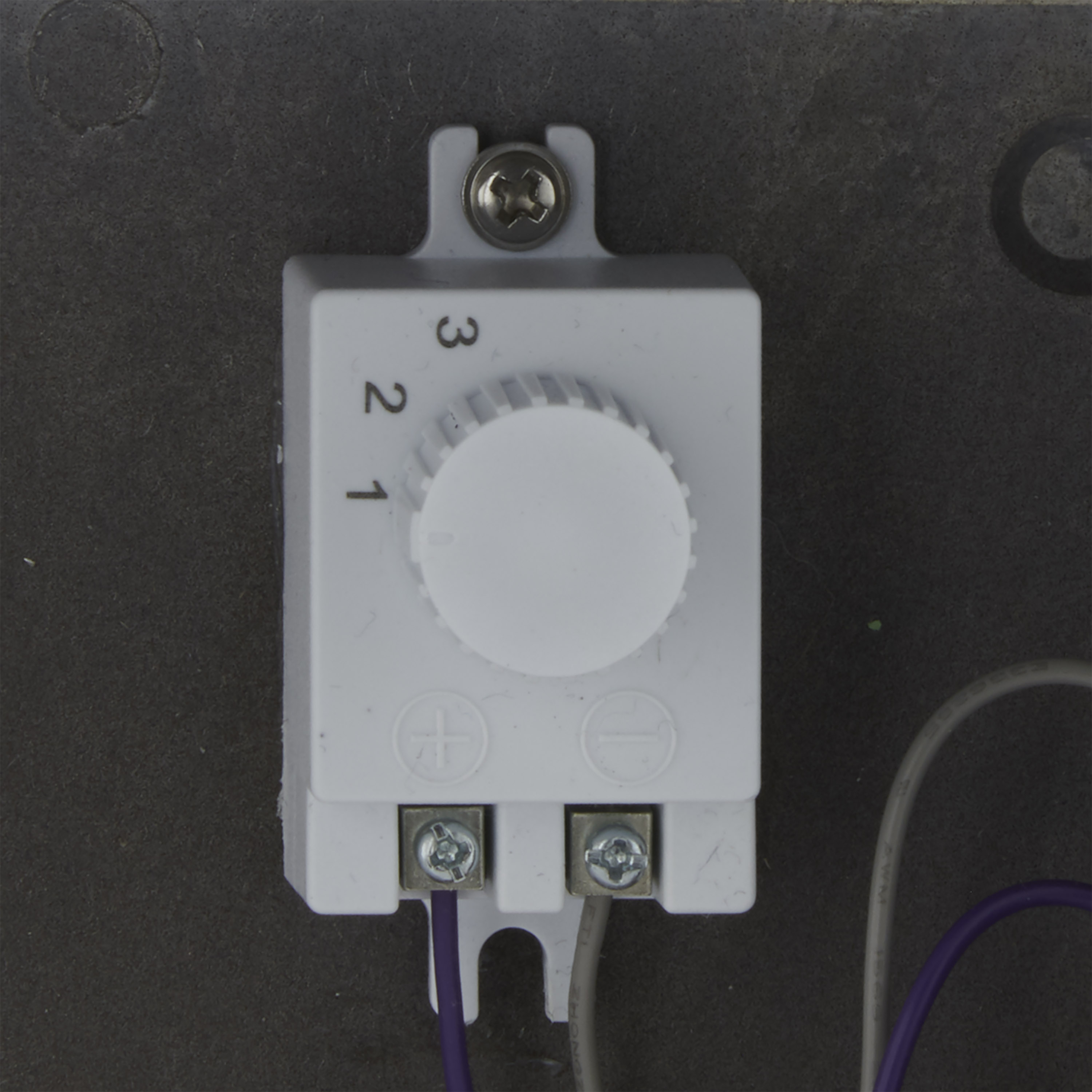

Wattage Selectable	Yes
Finish Family	Bronze
Amps	0.242-0.105/0.333-0.144/0.500-0.217A
Has Camera	No
IOT Enabled	No
Lens Material	Glass
Photo Cell	Yes - Bypassable
Power Factor	>0.9
SDS Class	LED_Fixture
Indoor Outdoor	Indoor, Outdoor
Product Technology	LED
Incandescent Equivalent	200W-500W

Electrical

CCT (Kelvin Temp)	3000K/4000K/5000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Beam Angle (degree)	110
Color Temp	Warm to Cool White
CRI	80+
Dimming Type	0-10V Dimming
Operating Frequency	50Hz
Operating Temp	-40F to +122F (-40C to +50C)
HID Equivalent	75W-175W
Lumens	3915L-8400L
Volts	120V-277V
Watts	29W/40W/60W
Max Lumens	8400L
Connection	Hardwire
Battery Chemistry	Lithium-ion (Li-ion)

Physical

Lamp Base	Integrated
Finish	BRONZE
ANSI Base	Integrated
Lamp Type	Integrated LED
Mounting Procedure	Wall

Additional Info

Warranty	5-Years

Documents

New! CCT & WATTAGE SELECTABLE LED WALL PACKS

65-762 Specifications

65-762_Instructions.pdf

SATCO|NUVO LED FUNCTIONAL FIXTURES

Compliance

ADA Compliant	No
Bug Rating	B2-U3-G3
CA Prop 65	Lead
DLC ID	S-LABY1P
FCC Compliant	Yes
IP Rating	IP65
Location Rating	Wet
ROHS Compliant	Yes
Safety Listing	cULus - Certified
California Ban	Lawful for sale
DLC Approved	Yes
Title 20	Yes
T24/JA8 Compliant	No

Packaging

UPC	045923658808
Case Cube	1.3563
Case Height	12.6
Case Length	15.75
Case Quantity	1
Case UPC	10045923658805
Case Weight	11.24
Case Width	11.81
EA Cube	1.3563
EA Height	12.6
EA Length	15.75
EA Quantity	1
EA Weight	11.24
EA Width	11.81
Pack Type	Box
Web Height	9.83
Web Width	14.26
