65-771R2

LED UFO HIGHBAY CCT & WATT ADJ

Discontinued - Suggested Replacement: 65-771R3
  • Wattage 150W/175W/200W and CCT Selectable 3K/4K/5K LED UFO High Bay
  • 120-277 Volt
  • Black Finish
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
Description
Description

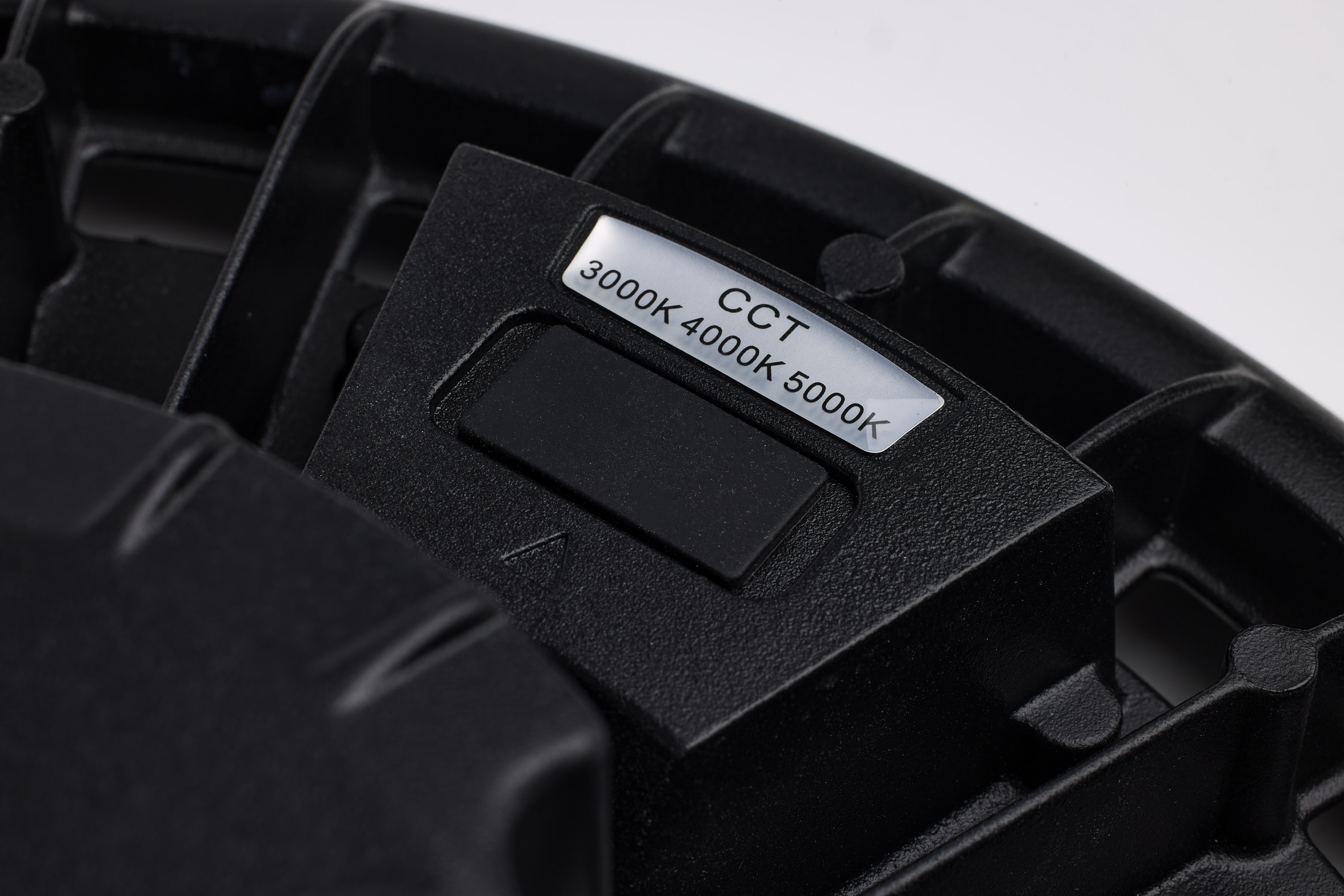

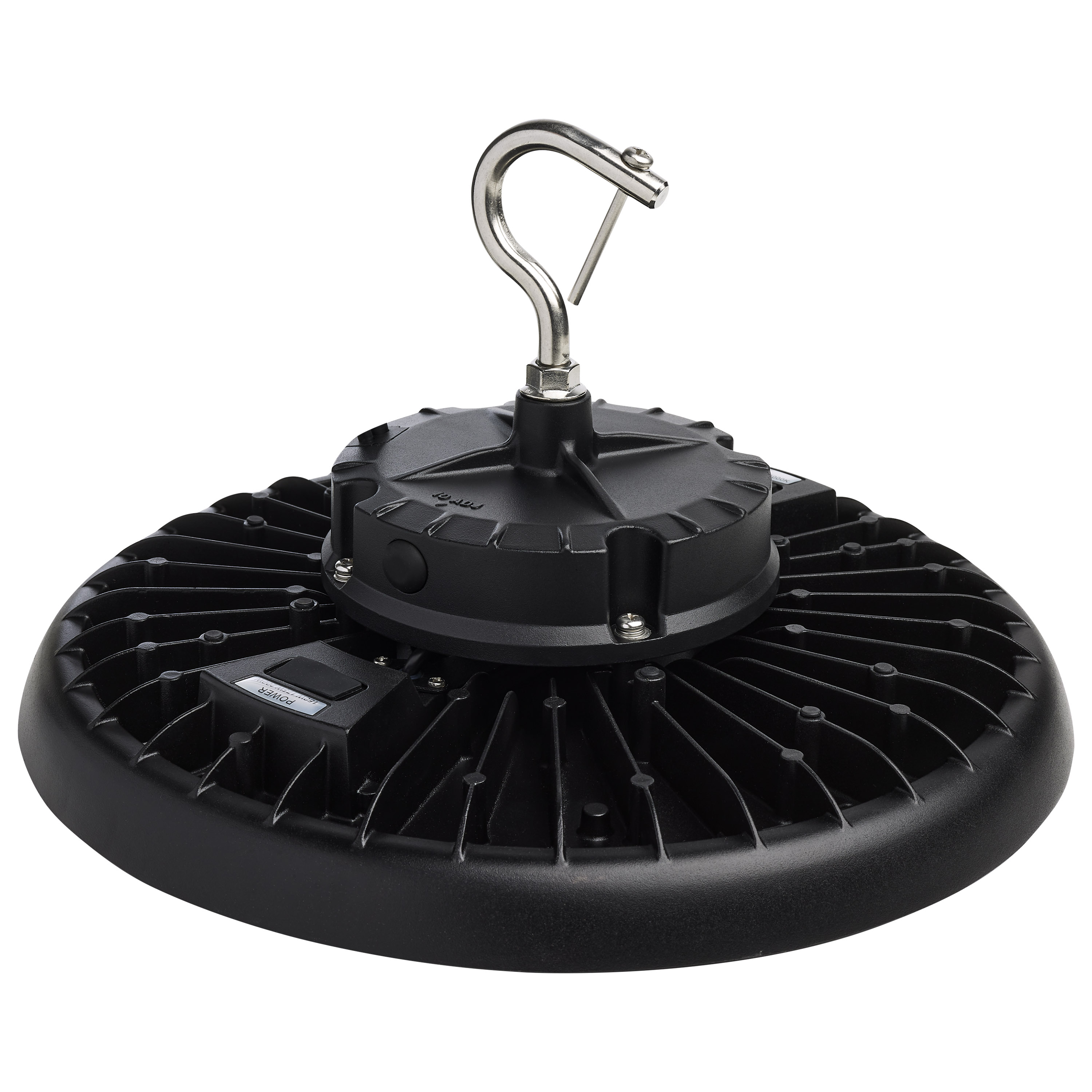

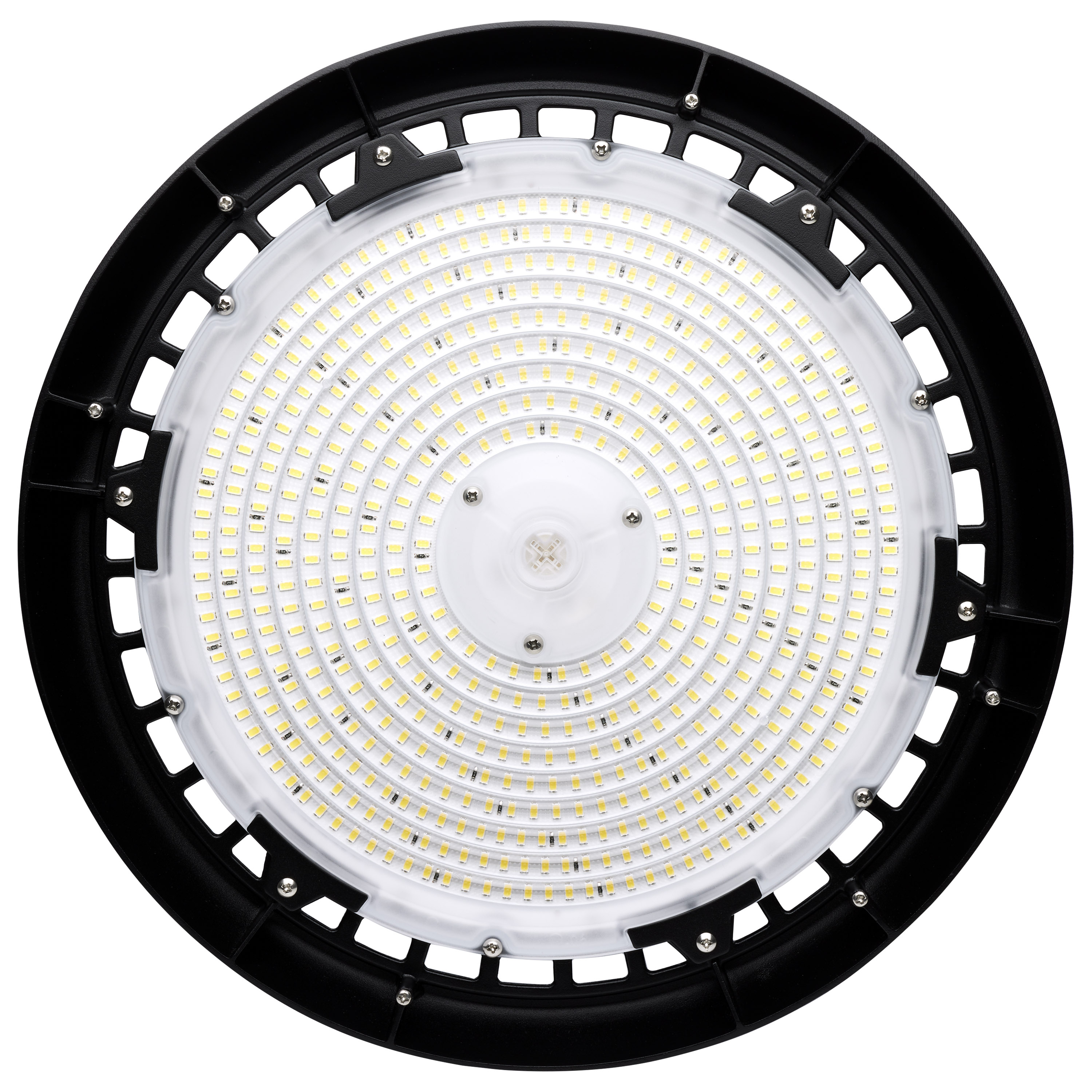

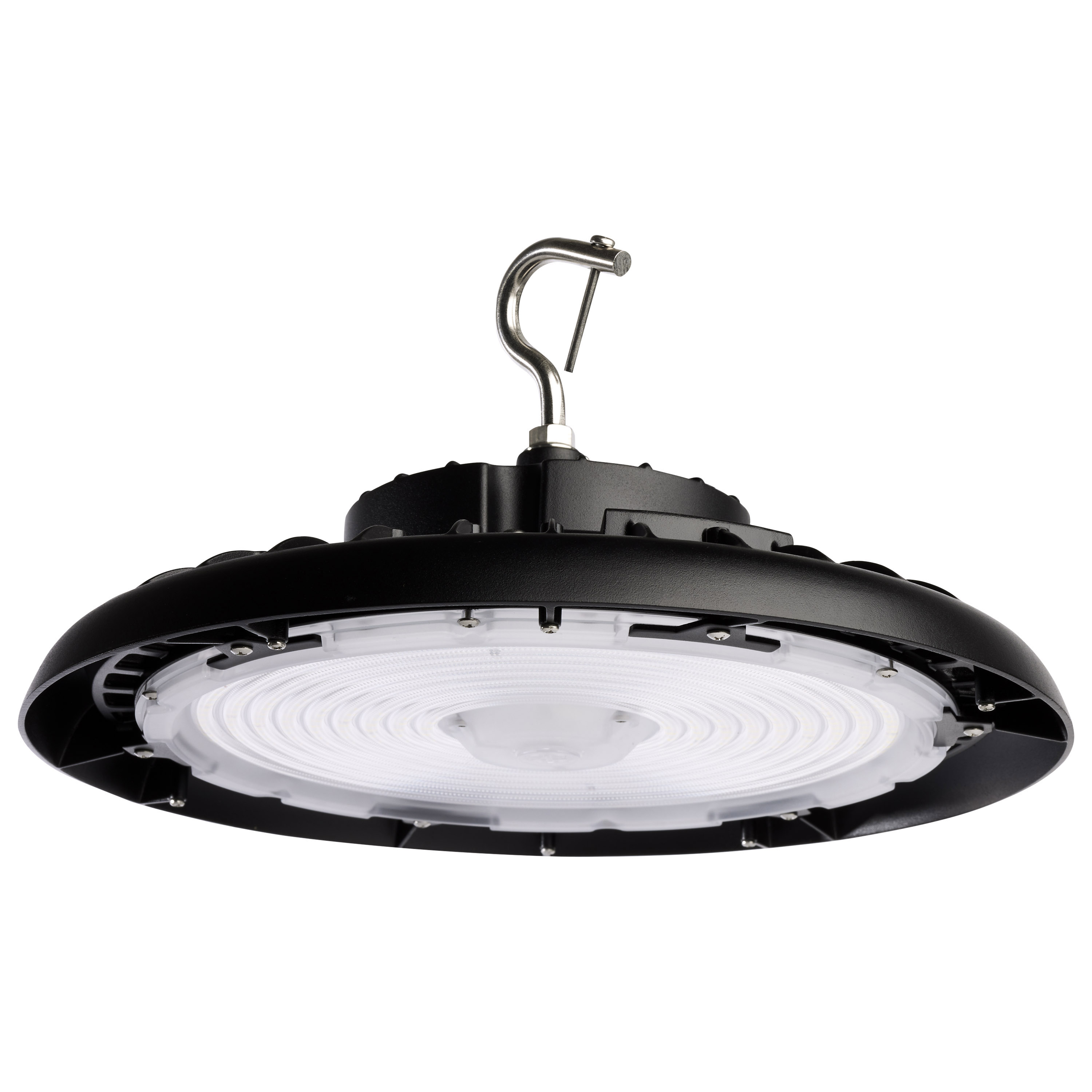

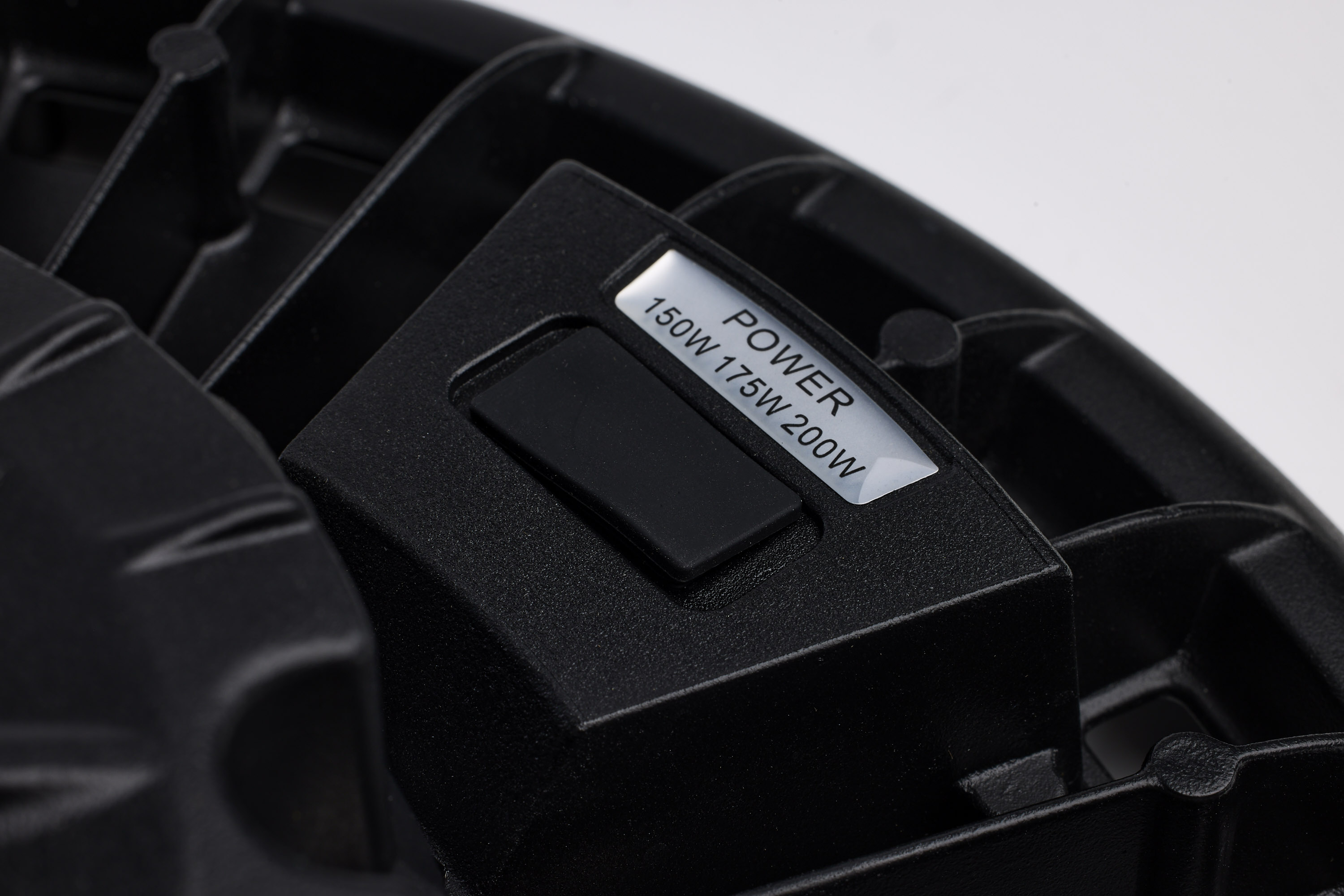

SATCO NUVO's 65-771R2 Round High Bay Field Selectable Fixture is an energy efficient and maintenance-free solution to traditional HID high bay fixtures. This luminaire features ColorQuick and PowerQuick technology allowing a choice of three wattages, 150W/175W/200W, and three CCT options, 3000K/4000K/5000K, at the time of installation. With a durable die-cast aluminum housing, IK08 impact rated polycarbonate lens, 6kV surge protection, IP65 rating and 0-10V dimming capabilities, this luminaire is built to endure the rigorous conditions found in most commercial environments. This fixture is also DLC Premium rated, has 50,000 hours rated life and is backed by a 5 year warranty.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Diameter13.4
MaterialDie-cast Aluminum
Fixture TypeUFO Hi-Bay

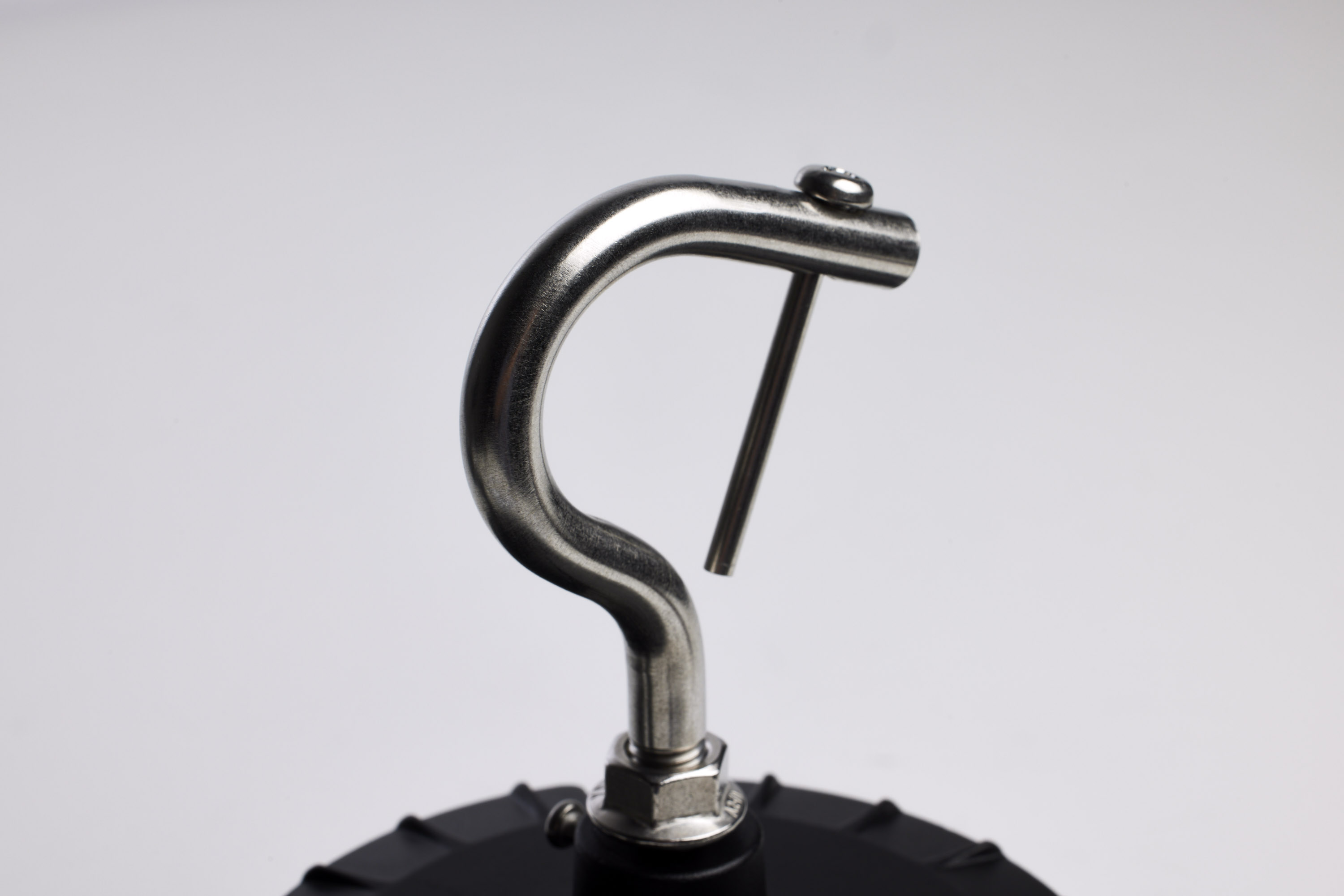

IncludesLocking Hanging Hook; 6 Foot Whip
Product NotesInput Current at 120V: 1.69A
StatusDiscontinued
StyleUtility
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion15%
Wire Length72.0
CCT SelectableYes
Wattage SelectableYes
Finish FamilyBlack
Amps1.250-0.541/1.458-0.631/1.667-0.722A
Has CameraNo

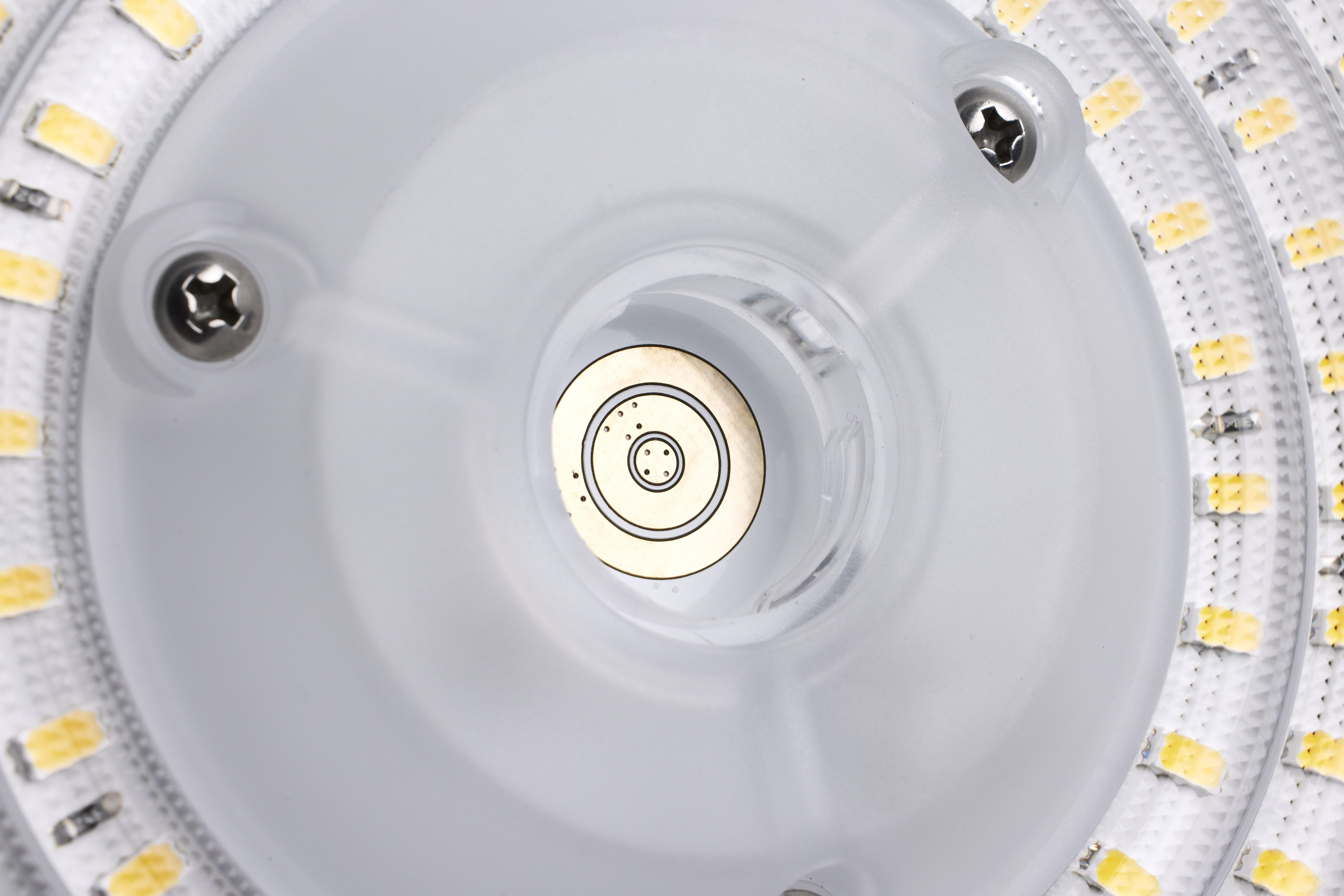

Integrated FeaturesIntegrated Sensor Port
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Photo CellOptional Add-On
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent1000W/1500W/2000W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +122F (-40C to +50C)
HID Equivalent400W-450W
Lumens22200L-28800L
Volts120V-277V
Watts150W/175W/200W
Max Lumens28800L
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Mounting ProcedurePendant Hanging Surface
Additional Info
Warranty5-Years
Installation NotesMounting Height: Up to 30 feet
Compliance
CA Prop 65Lead
DLC IDS-KCEODI
FCC CompliantYes
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923648304
Case Cube0.5717
Case Height4.92
Case Length14.17
Case Quantity1
Case UPC10045923648301
Case Weight7.99
Case Width14.17
EA Cube0.5717
EA Height4.92
EA Length14.17
EA Quantity1
EA Weight7.99
EA Width14.17
Pack TypeBrown Box
Web Height7.3
Web Width13.4
