65-822

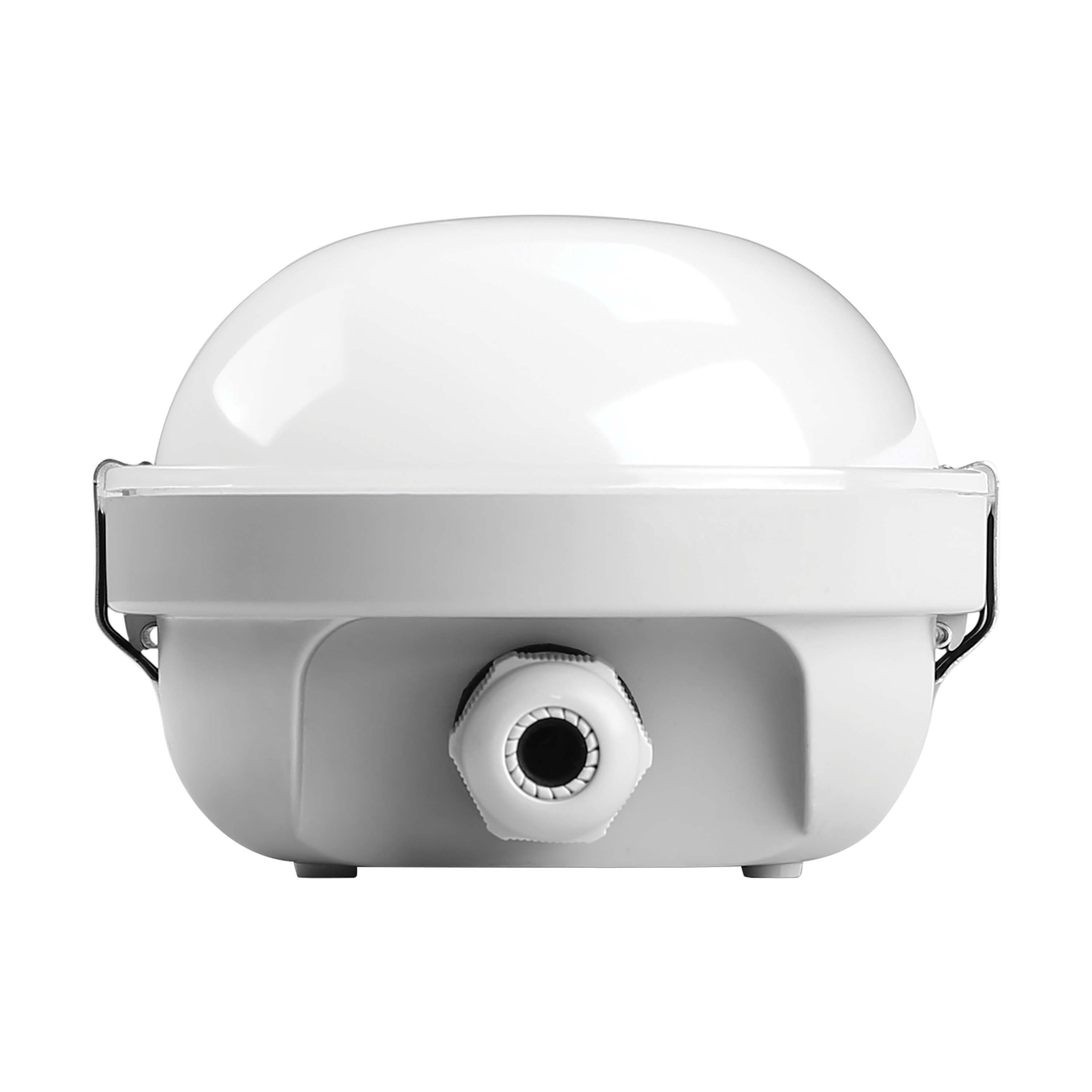

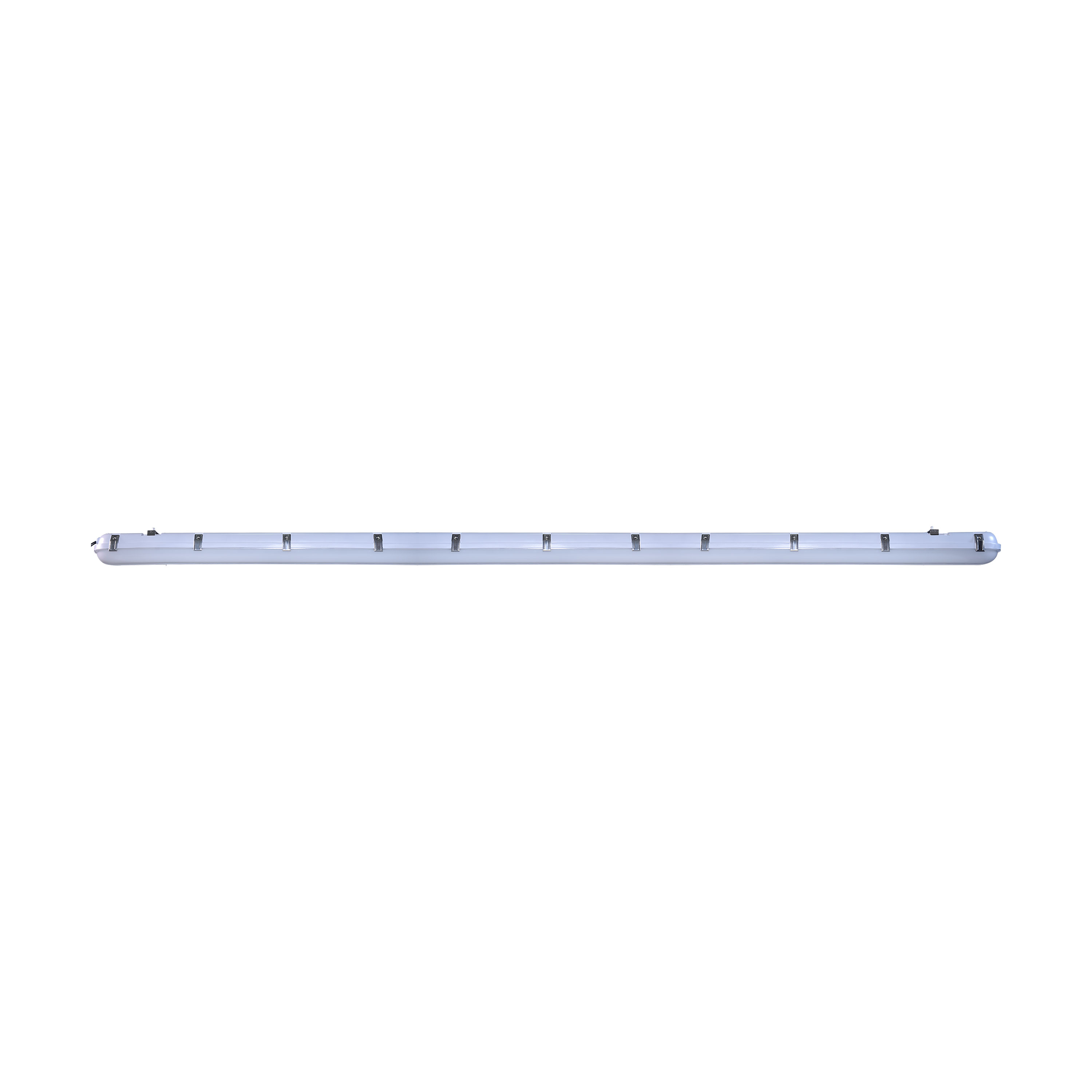

8' LINEAR VAPOR PROOF

  • 8 Foot
  • Vapor Proof Linear Fixture
  • CCT & Wattage Selectable
  • IP65 and IK08 Rated
  • 0-10V Dimming
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-822 Specifications65-822 Instructions65-822 Spec Chart
Tools
Lighting Layout Analysis For 65-822
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
8 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming Only
MaterialPlastic
Fixture TypeVapor Tight
StatusDiscontinued
StyleUtility
Most Current Generation65-822R1
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion7.30%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyGray
Amps0.500-0.181/0.600-0.217/0.720-0.260A
Has CameraFalse
IOT EnabledFalse
Lens MaterialPolycarbonate (PC)
Power Factor>0.96
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv100W-150W
Incandescent Equivalent400W-500W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent150W-200W
Lumens6400L-9360L
Volts120V-277V
Watts50W/60W/72W
Physical
Lamp BaseIntegrated
FinishGray
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeFalse
Compliance
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPLT1Y9Y7EID4
FCC CompliantTrue
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923650475
Case Cube1.2375
Case Height4.33
Case Length96.46
Case Quantity1
Case UPC10045923650472
Case Weight12.35
Case Width5.12
EA Cube1.2375
EA Height4.33
EA Length96.46
EA Quantity1
EA Weight12.35
EA Width5.12
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.46
Web Length94.49
Web Width4.33
