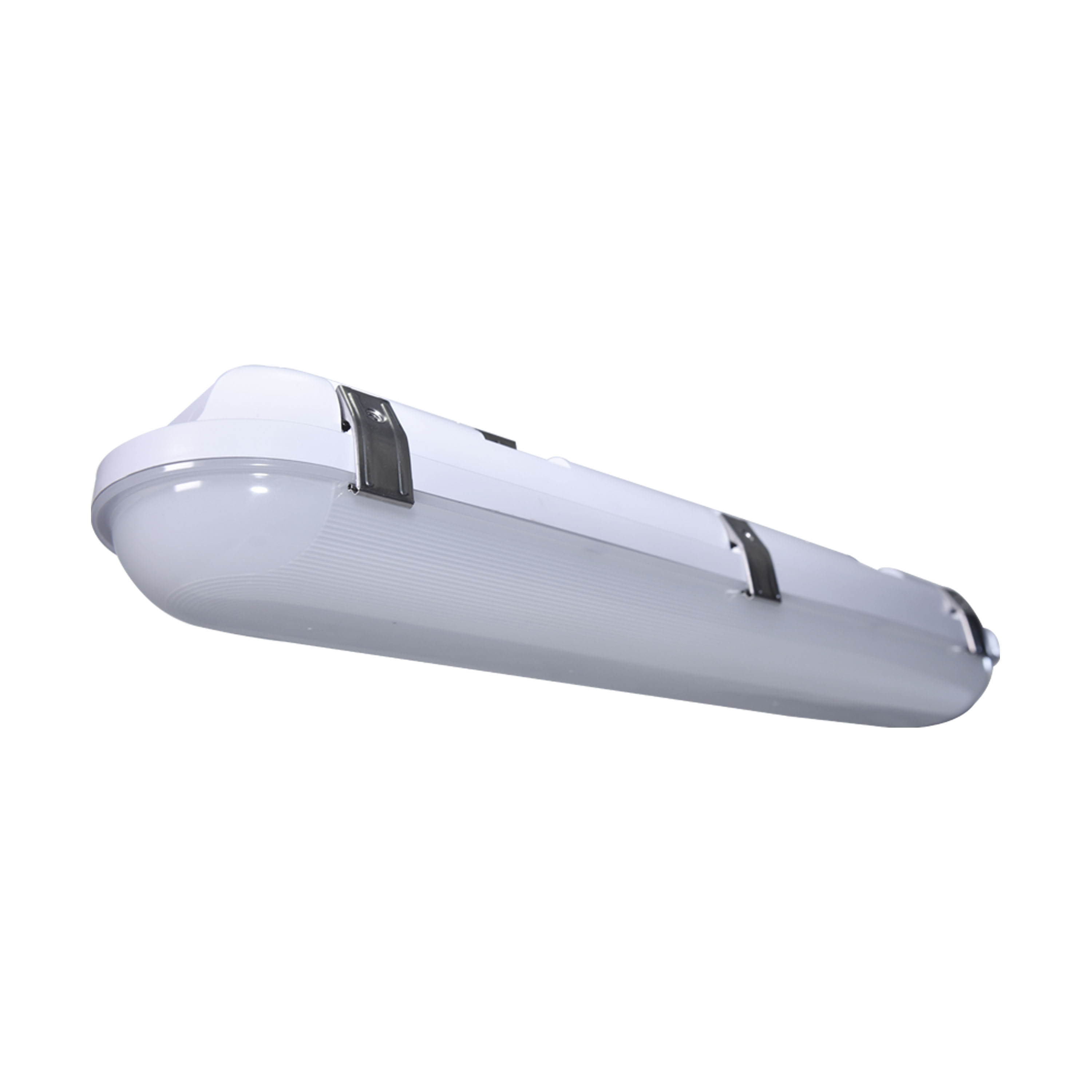

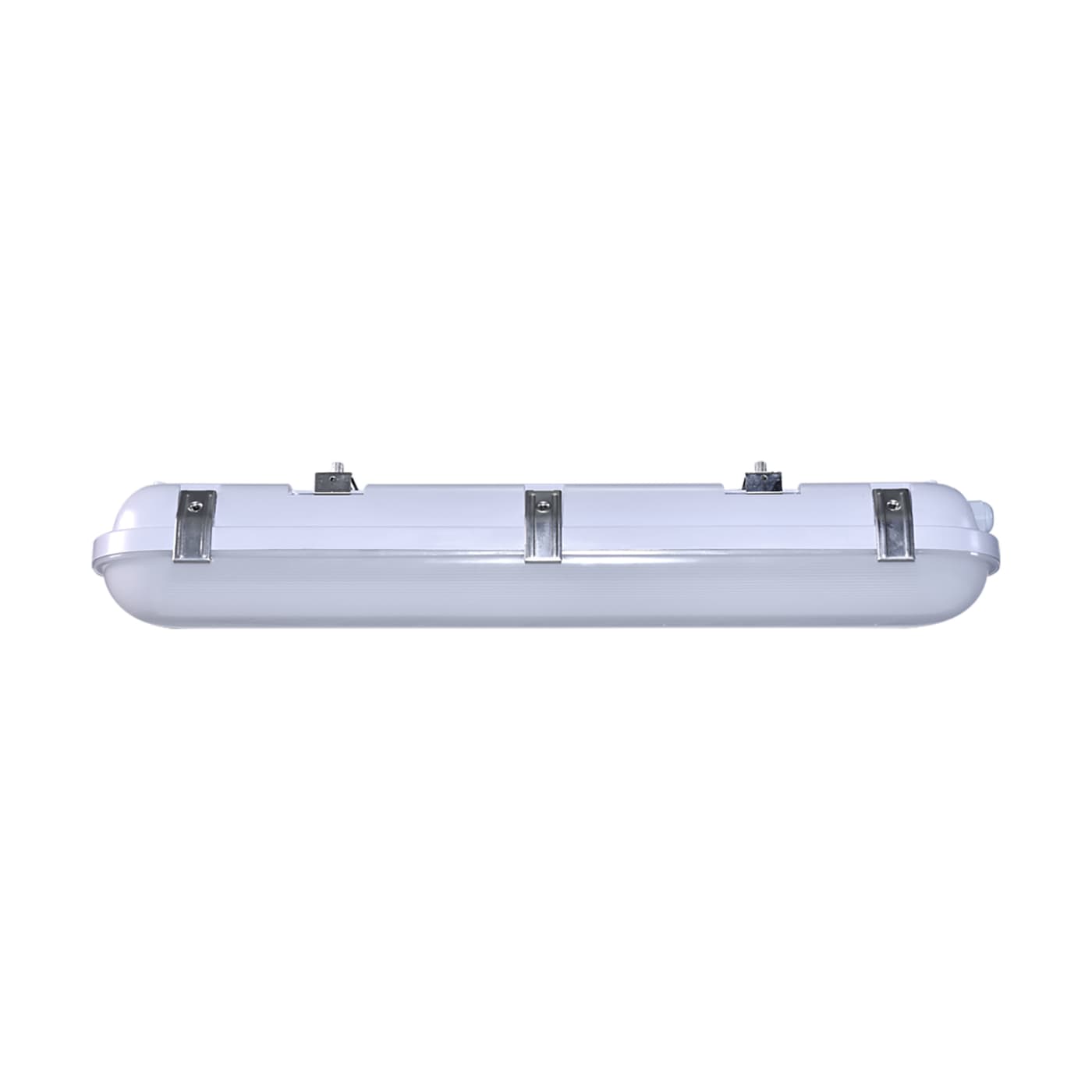

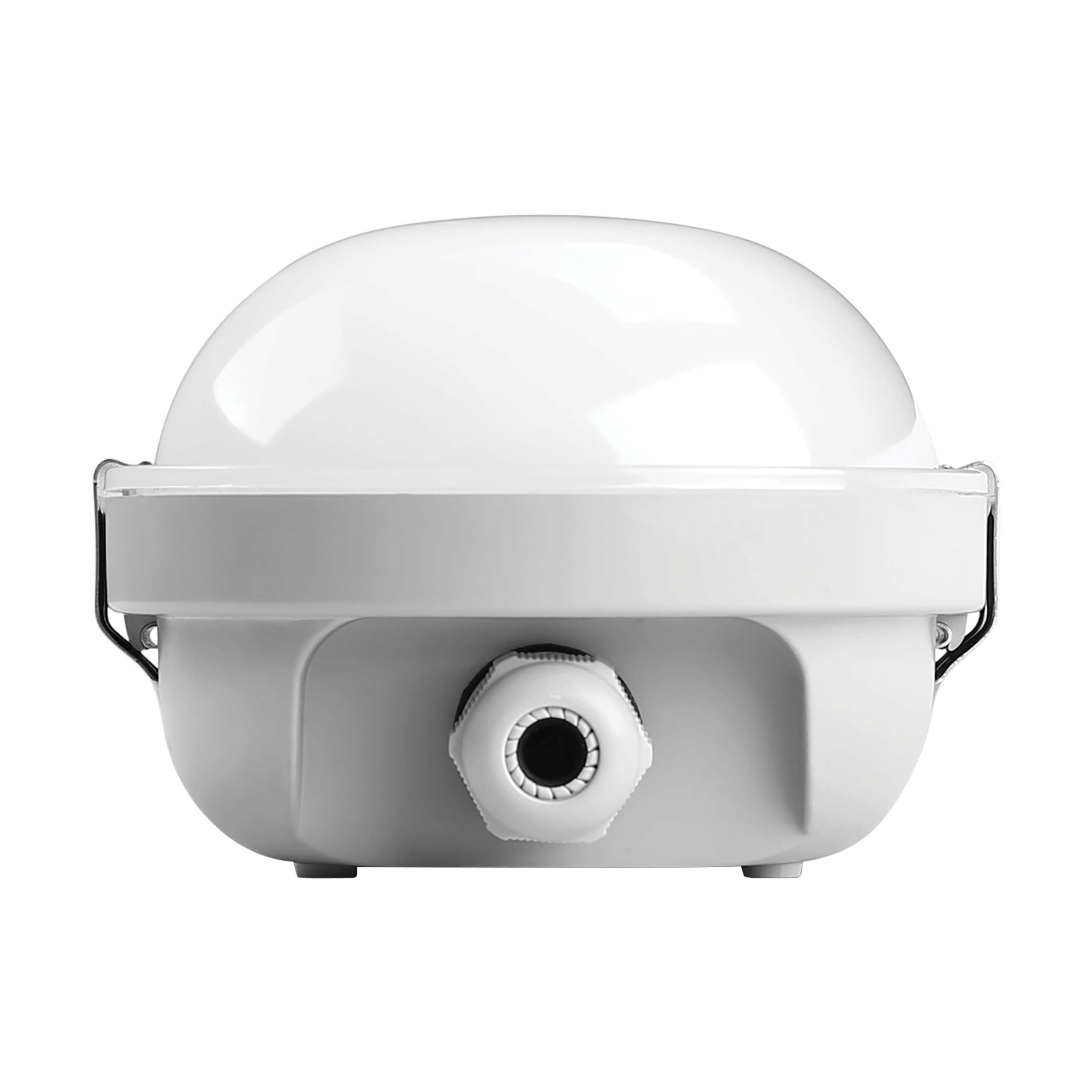

2' 20W LINEAR VAPOR PROOF - 65-823
2' 20W LINEAR VAPOR PROOF - 65-823
2' 20W LINEAR VAPOR PROOF - 65-823
2' 20W LINEAR VAPOR PROOF - 65-823
65-823

2' 20W LINEAR VAPOR PROOF

Discontinued - Suggested Replacement: 65-823R1
  • 2 Foot
  • 20 Watt
  • Vapor Proof Linear Fixture with Integrated Microwave Sensor
  • CCT Selectable
  • IP65 and IK08 Rated
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-823 Specifications65-823 Photometrics 3000K.ies65-823 Photometrics 4000K.ies
Tools
Lighting Layout Analysis For 65-823
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
2 Foot; 20 Watt; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT Selectable; IP65 and IK08 Rated
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V; Integrated Sensor; Bi-Level Dimmable
MaterialPlastic
Fixture TypeVapor Tight
StatusDiscontinued
StyleUtility
Most Current Generation65-823R1
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion10.70%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyGray
Amps0.200-0.072A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Photo CellIntegrated Microwave Sensor
Power Factor>0.96
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv33W
Incandescent Equivalent125W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent50W
Lumens2164L-2505L
Volts120V-277V
Watts20W
Physical
Lamp BaseIntegrated
FinishGray
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeNo
Compliance
CA Prop 65Lead
DLC IDPLK7JV4W2UVC
FCC CompliantYes
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923650482
Case Cube2.0277
Case Height11.81
Case Length25.98
Case Quantity6
Case UPC10045923650489
Case Weight22.93
Case Width11.42
EA Cube0.3382
EA Height3.94
EA Length25.98
EA Quantity1
EA Weight3.82
EA Width5.71
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.46
Web Length23.62
Web Width4.92
