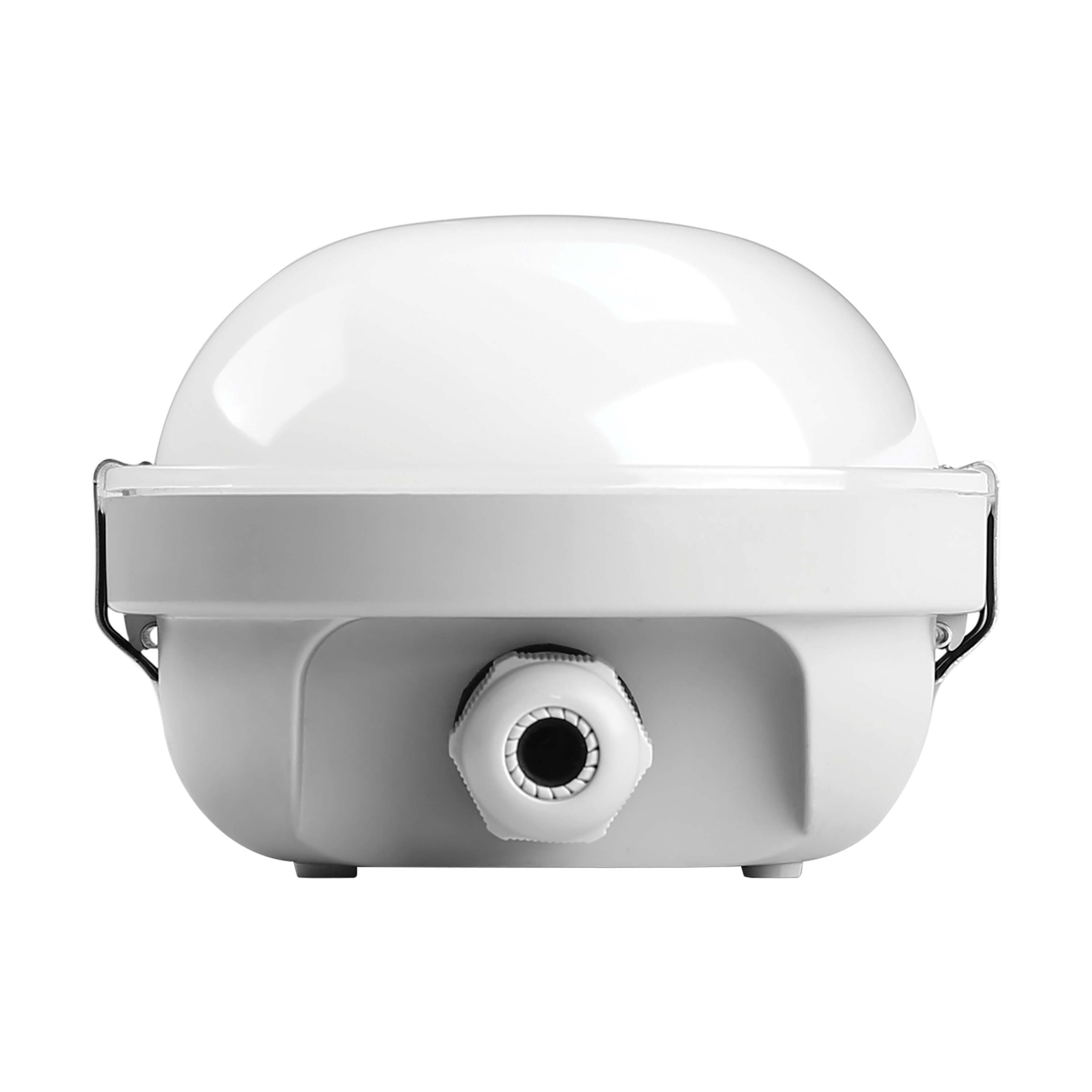

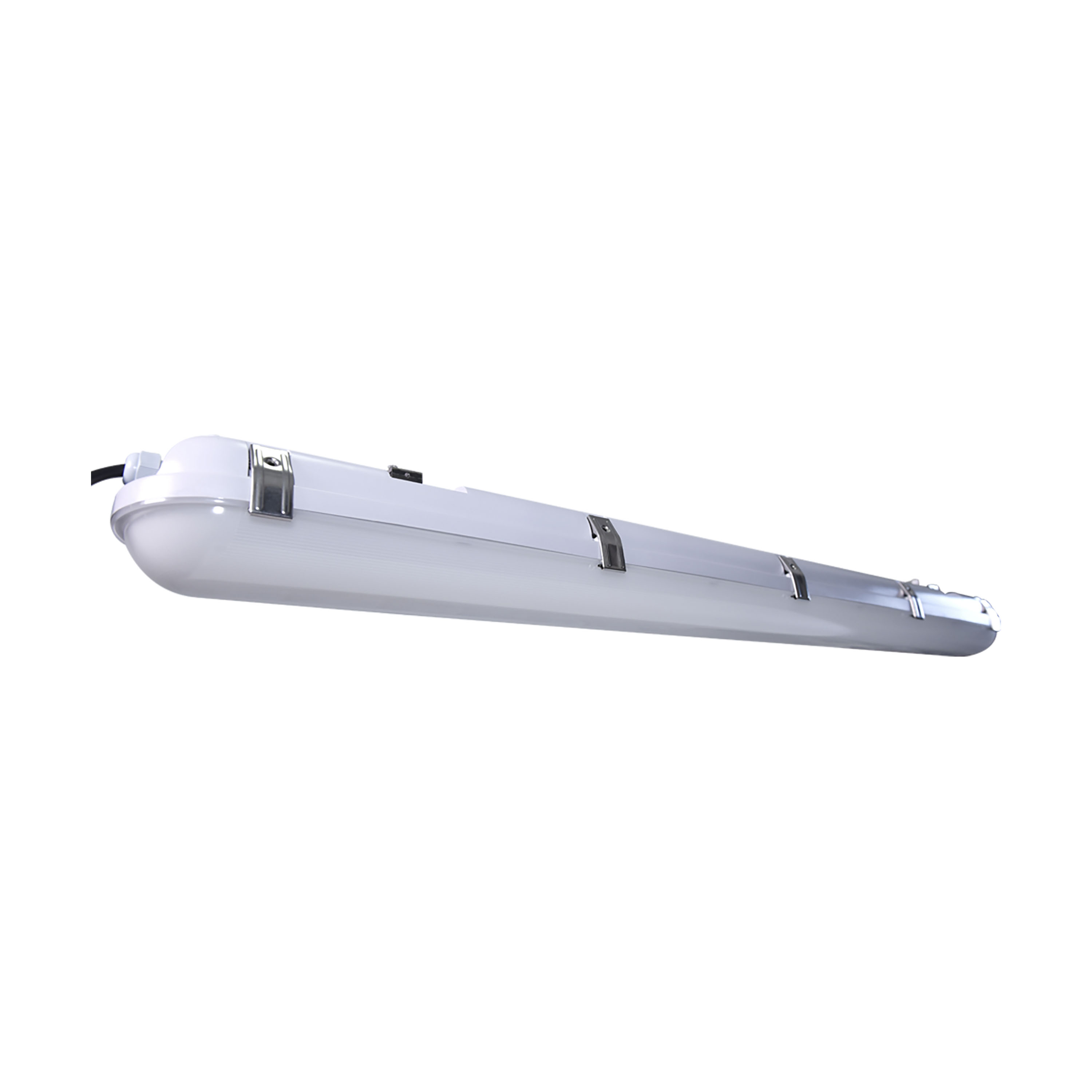

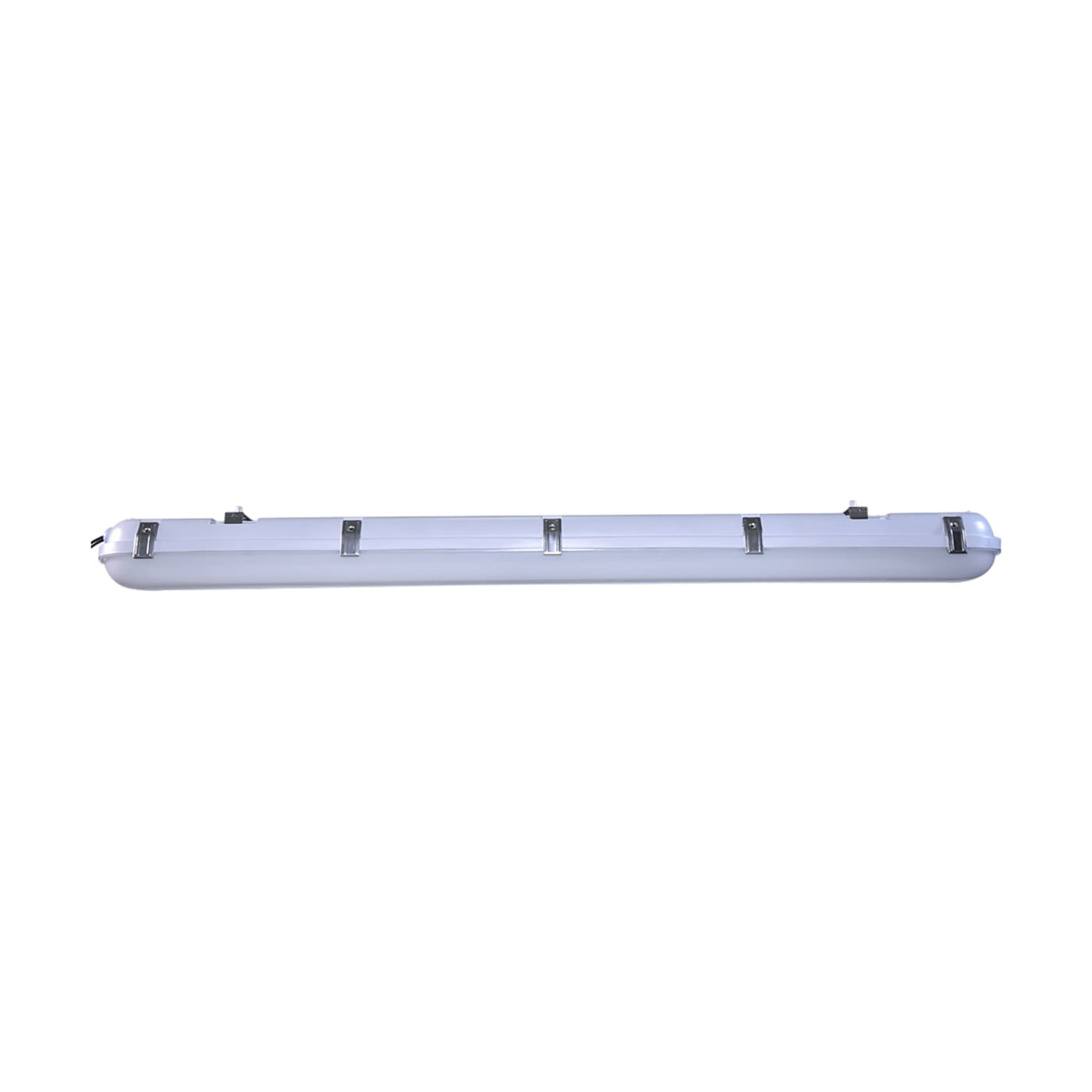

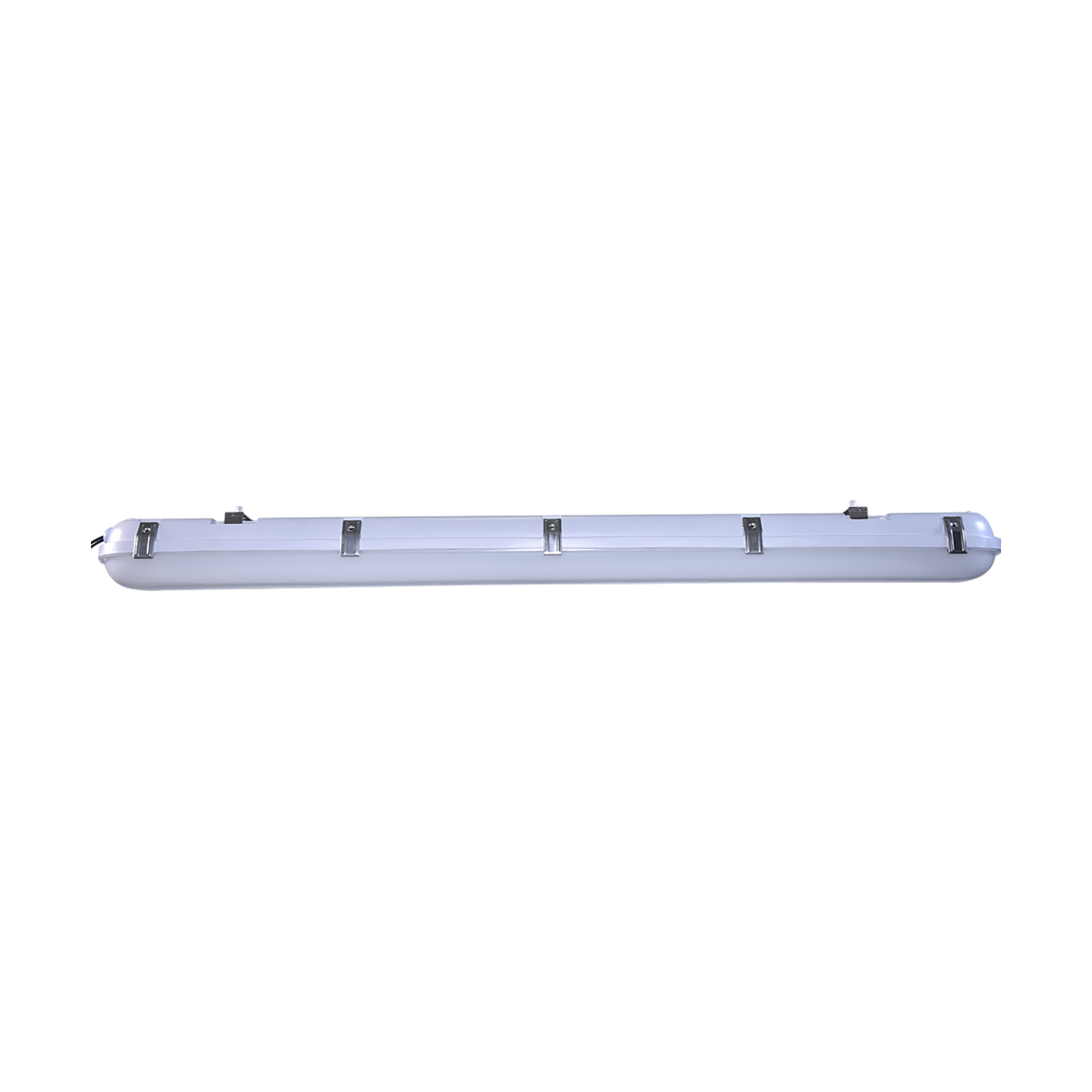

4' LINEAR VAPOR PROOF W/SENSOR - 65-824
4' LINEAR VAPOR PROOF W/SENSOR - 65-824
4' LINEAR VAPOR PROOF W/SENSOR - 65-824
4' LINEAR VAPOR PROOF W/SENSOR - 65-824
65-824

4' LINEAR VAPOR PROOF W/SENSOR

Discontinued - Suggested Replacement: 65-824R1
  • 4 Foot
  • Vapor Proof Linear Fixture with Integrated Microwave Sensor
  • CCT & Wattage Selectable
  • IP65 and IK08 Rated
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-824 Specifications65-824 Photometrics 40W 3000K.ies65-824 Photometrics 40W 4000K.ies
Tools
Lighting Layout Analysis For 65-824
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4 Foot; Vapor Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V; Integrated Sensor; Bi-Level Dimmable
MaterialPlastic
Fixture TypeVapor Tight
StatusObsolete
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion10.10%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyGray
Amps0.400-0.144/0.500-0.181/0.600-0.217A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Photo CellIntegrated Microwave Sensor
Power Factor>0.96
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv80W-100W
Incandescent Equivalent300W-400W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent125W-150W
Lumens5360L-7991L
Volts120V-277V
Watts40W/50W/60W
Physical
Lamp BaseIntegrated
FinishGray
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeNo
Compliance
CA Prop 65Lead
DLC IDPL8HPD2HX0JD
FCC CompliantYes
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923650659
Case Cube3.8721
Case Height11.81
Case Length49.61
Case Quantity6
Case UPC10045923650656
Case Weight39.24
Case Width11.42
EA Cube0.6459
EA Height3.94
EA Length49.61
EA Quantity1
EA Weight6.54
EA Width5.71
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.46
Web Length47.24
Web Width4.92
