| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Dimmable Text | 0-10V; Integrated Sensor; Bi-Level Dimmable |
| Material | Polycarbonate (PC) |
| Fixture Type | Vapor Tight |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2KV |
| Total Harmonic Distortion | 14.20% |
| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | Gray |
| Amps | 0.417-0.144/0.500-0.173/0.600-0.207A |
| Has Camera | False |
| IOT Enabled | False |

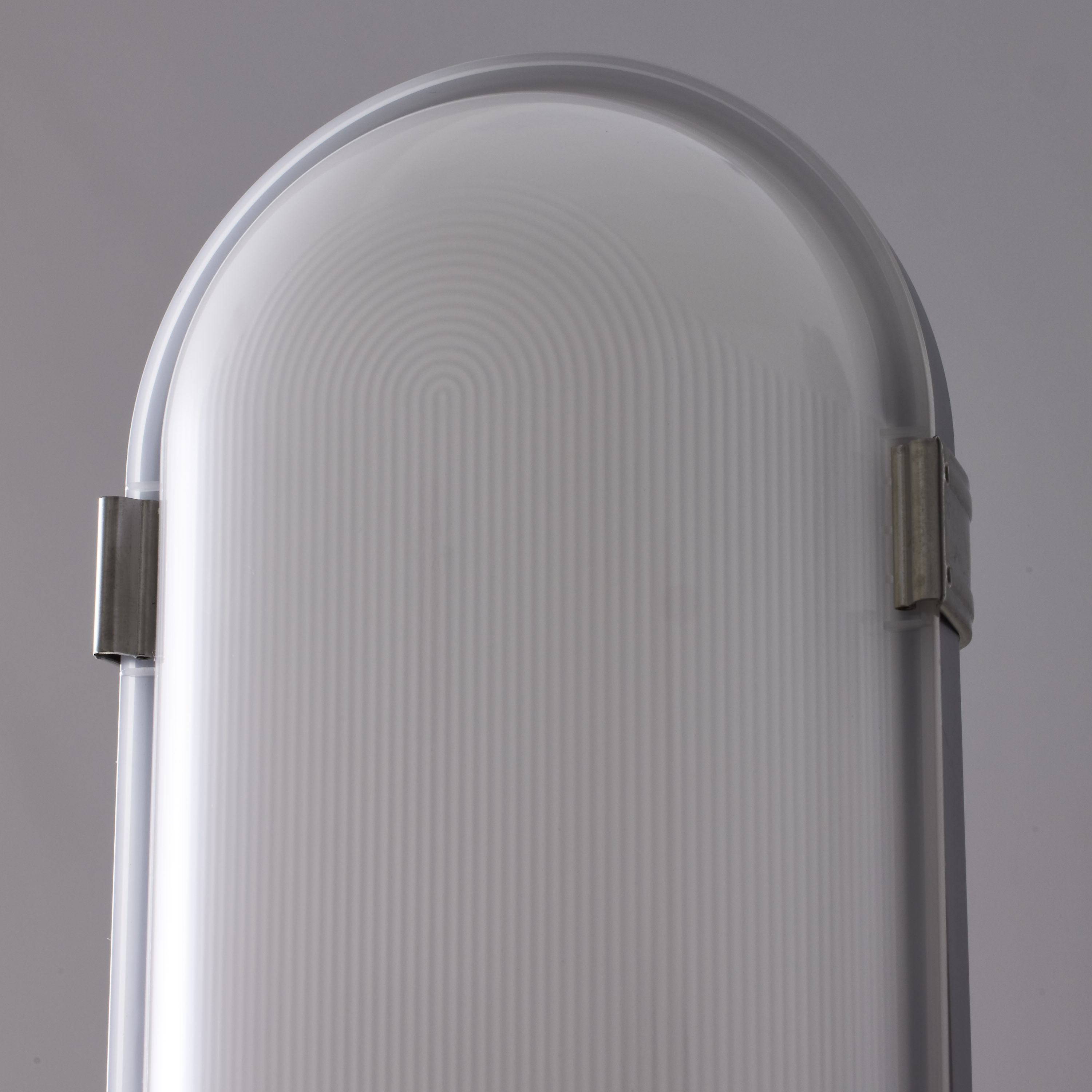

| Lens Finish | Opaque |
| Lens Material | Polycarbonate (PC) |

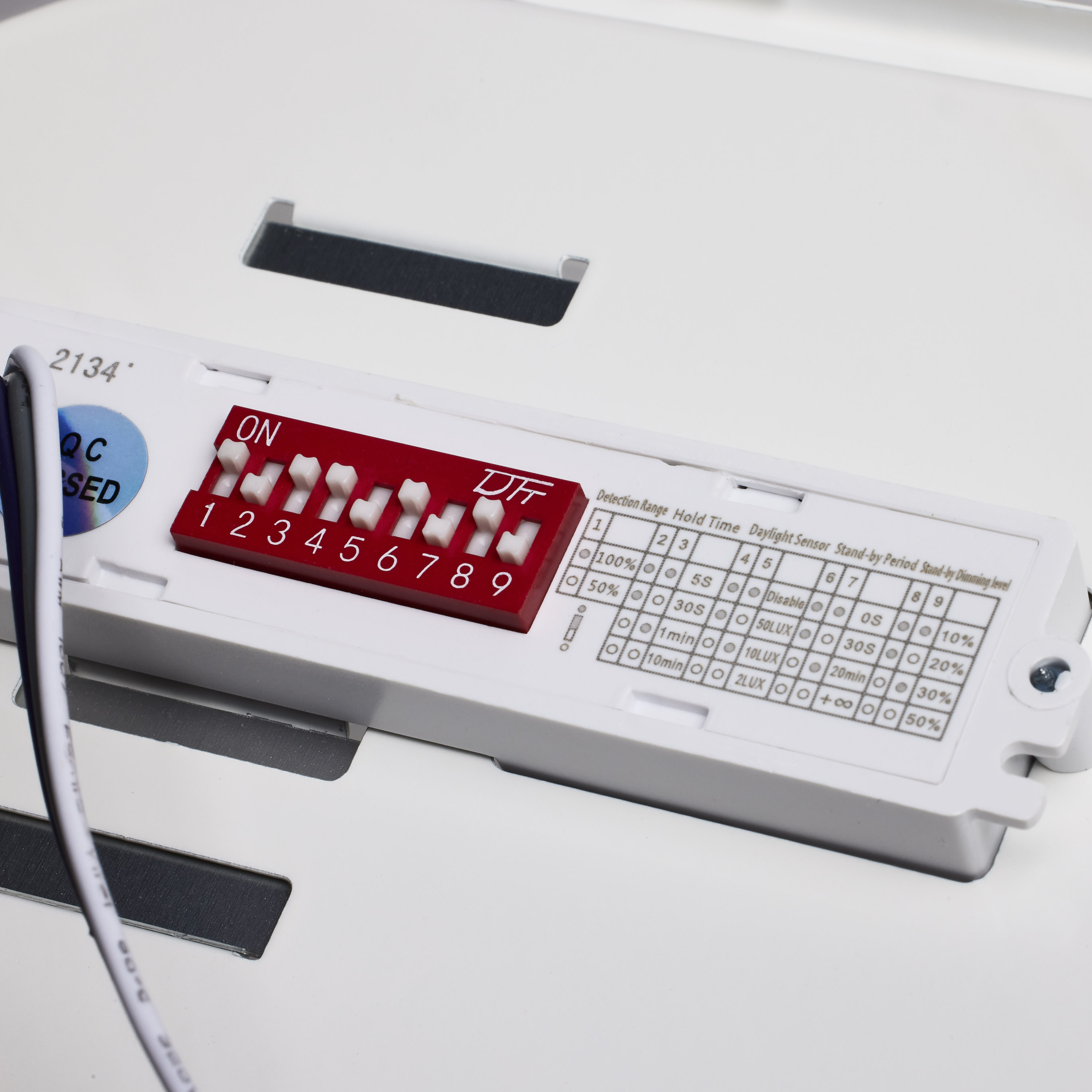

| Photo Cell | Integrated Microwave Sensor |
| Power Factor | >0.96 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 400W-500W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 120 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +45C (+113F) |
| HID Equivalent | 150W-200W |
| Lumens | 6400L-9360L |
| Volts | 120V-347V |
| Watts | 50W/60W/72W |
| Lamp Base | Integrated |
|---|---|
| Finish | Gray |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |

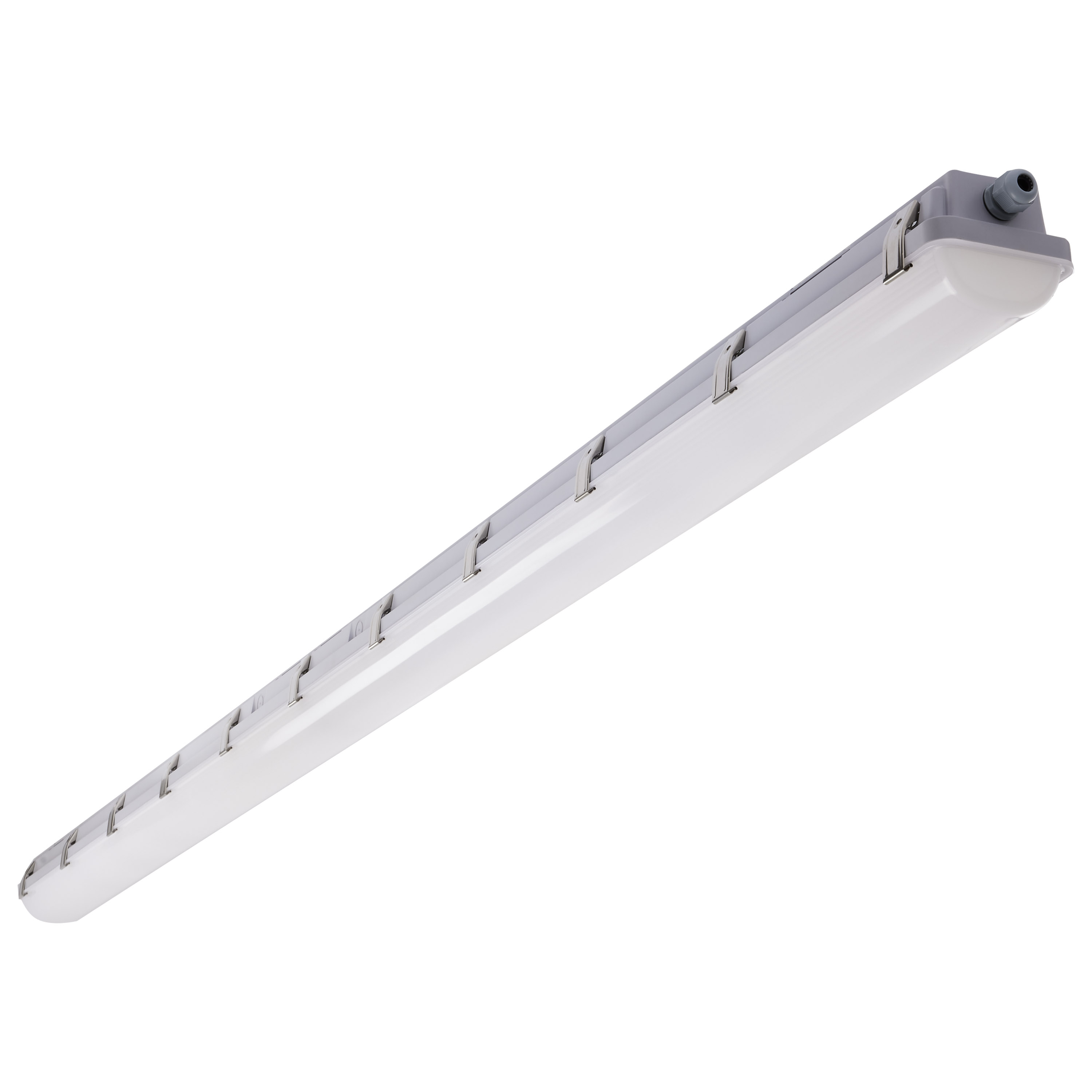

| Fixture Shape | Linear |
| Warranty | 5-Years |
|---|
| Flicker Free | False |
|---|
| CA Prop 65 | Lead |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | S-UBDKSW; S-ZAI6T3 |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923651007 |
|---|---|
| Case Cube | 1.2375 |
| Case Height | 4.33 |
| Case Length | 96.46 |
| Case Quantity | 1 |
| Case UPC | 10045923651004 |
| Case Weight | 12.79 |
| Case Width | 5.12 |
| EA Cube | 1.2375 |
| EA Height | 4.33 |
| EA Length | 96.46 |
| EA Quantity | 1 |
| EA Weight | 12.79 |
| EA Width | 5.12 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

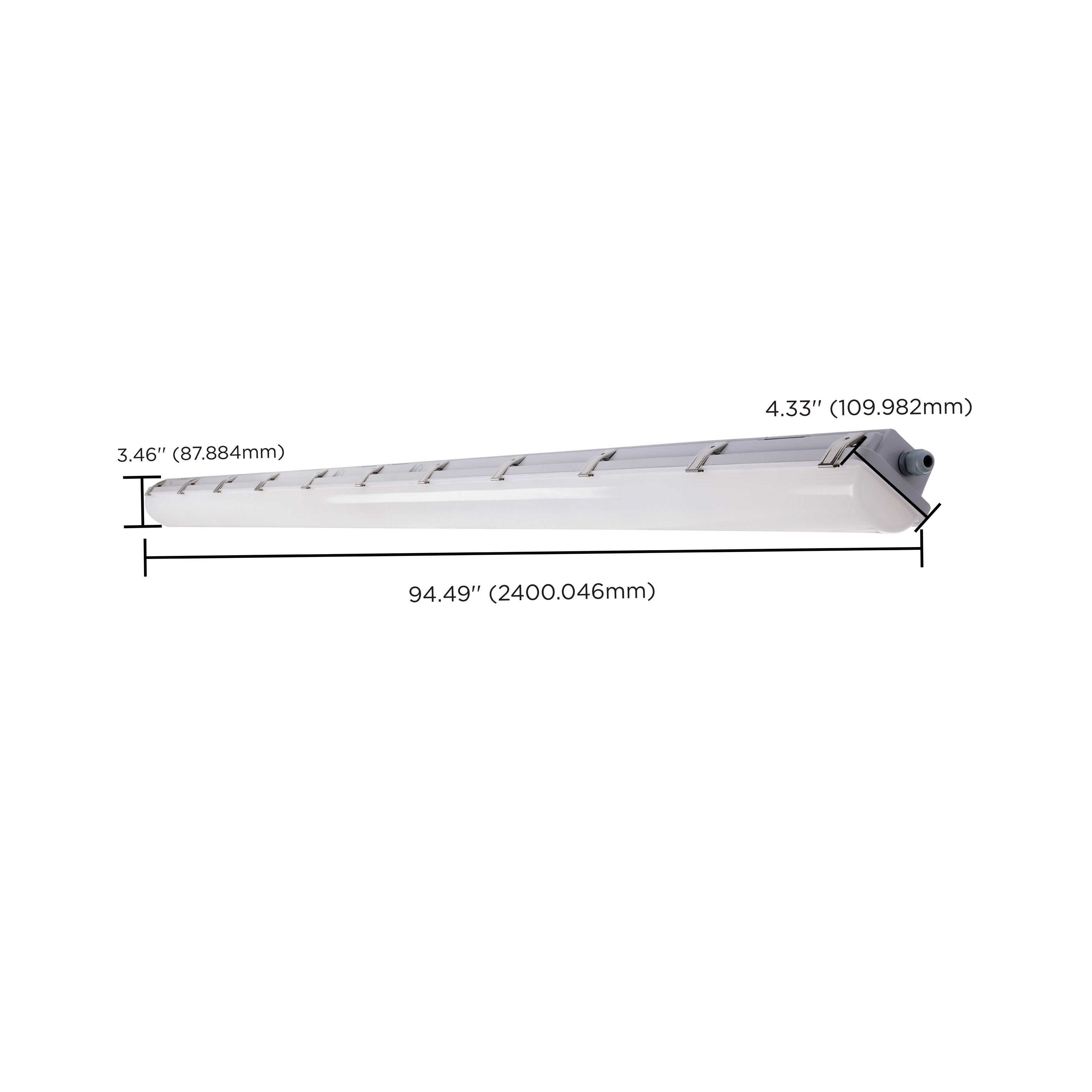

| Web Height | 3.46 |
| Web Length | 94.49 |
| Web Width | 4.33 |
