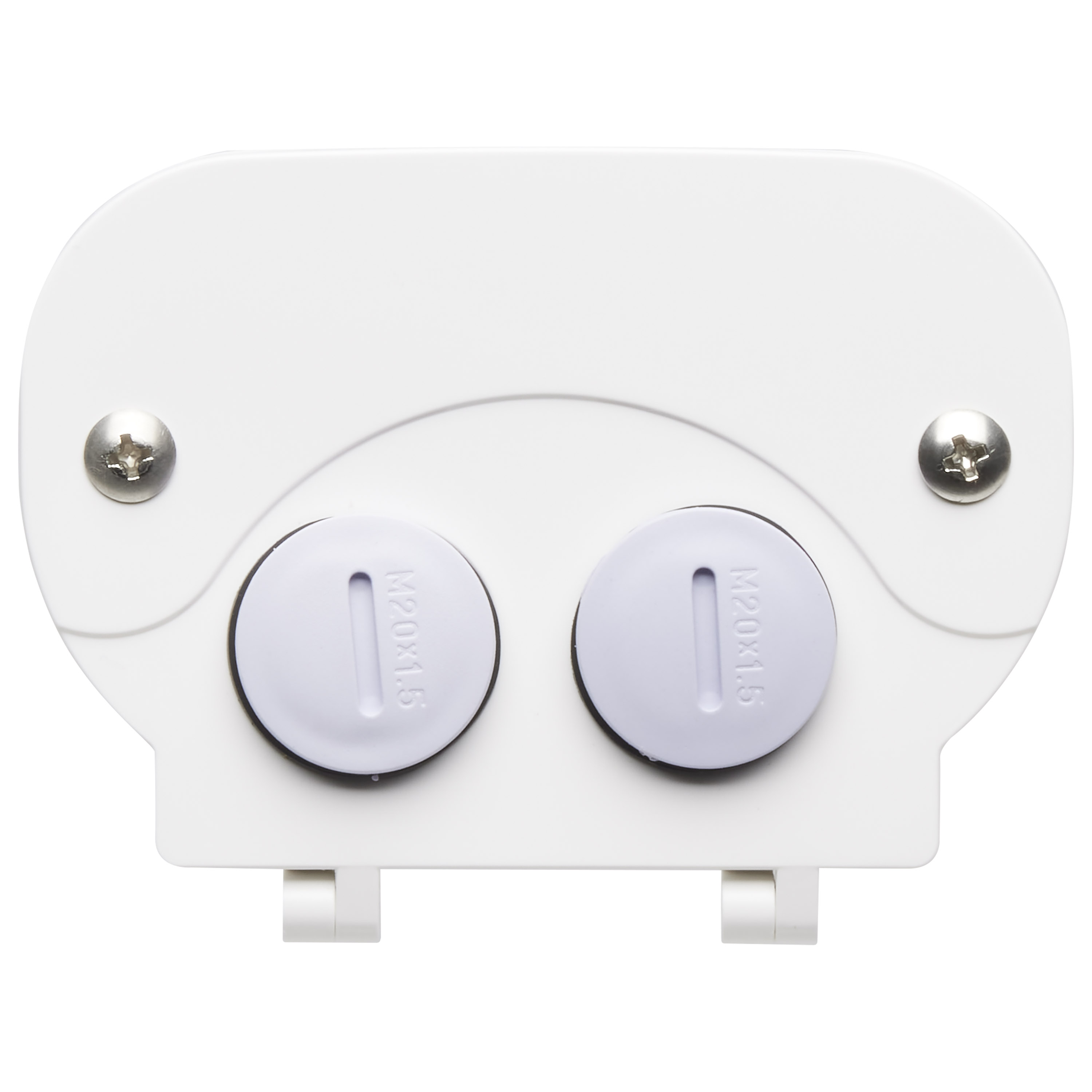

SKU 65-830R1 - Image 1

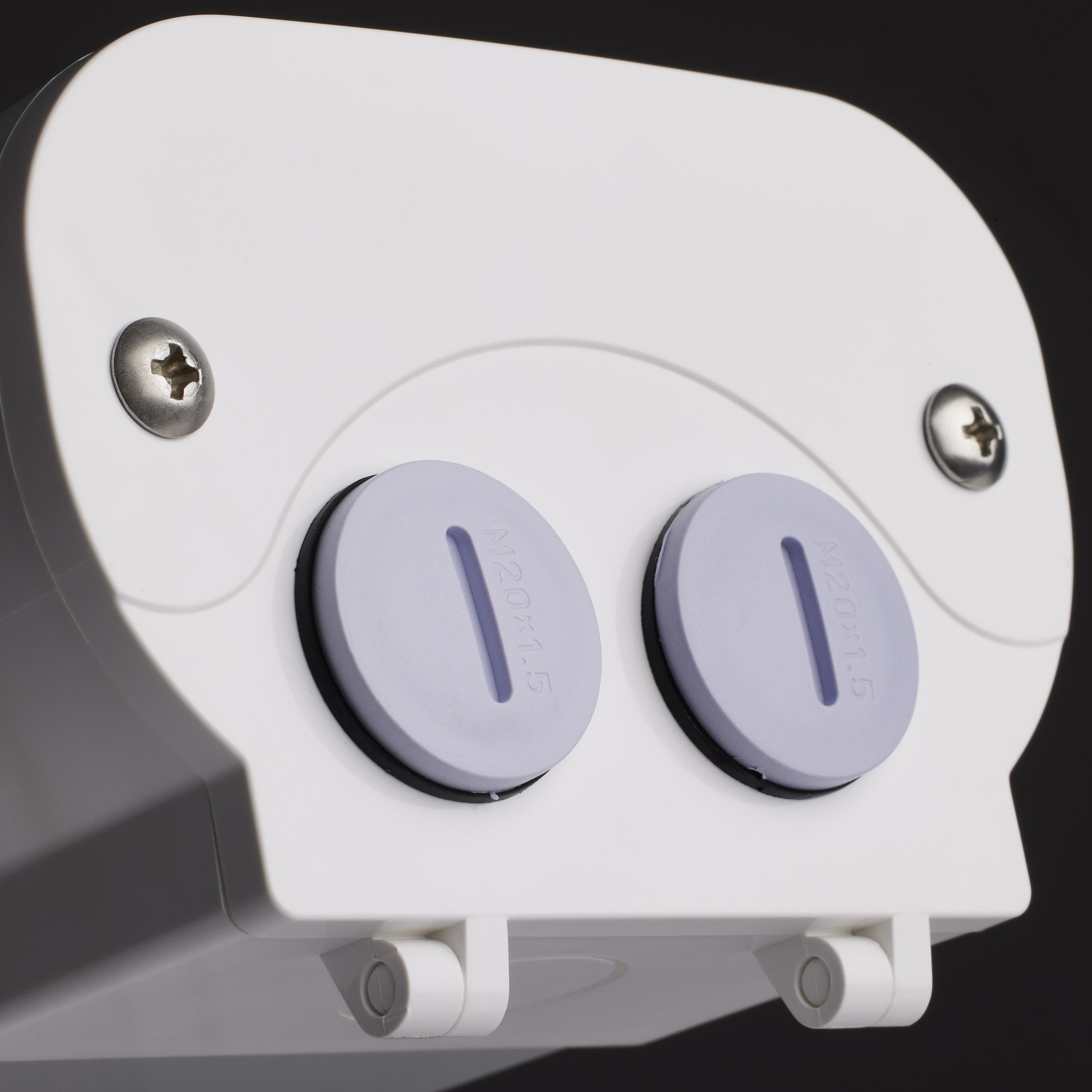

SKU 65-830R1 - Image 2

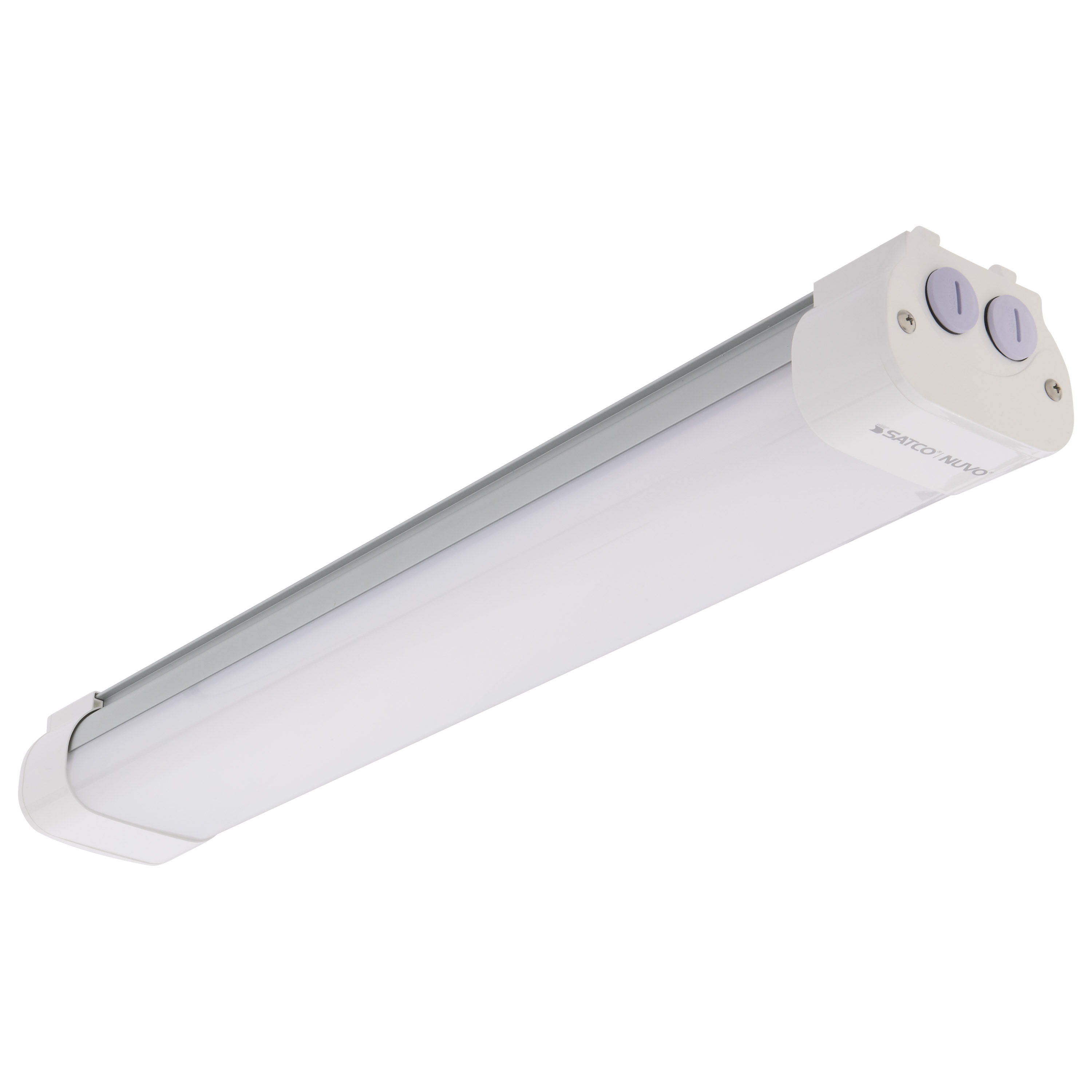

SKU 65-830R1 - Image 3
SKU 65-830R1 - Image 4
SKU 65-830R1 - Image 5
SKU 65-830R1 - Image 6
SKU 65-830R1 - Image 7
SKU 65-830R1 - Image 8
SKU 65-830R1 - Image 9
SKU 65-830R1 - Image 10
65-830R1

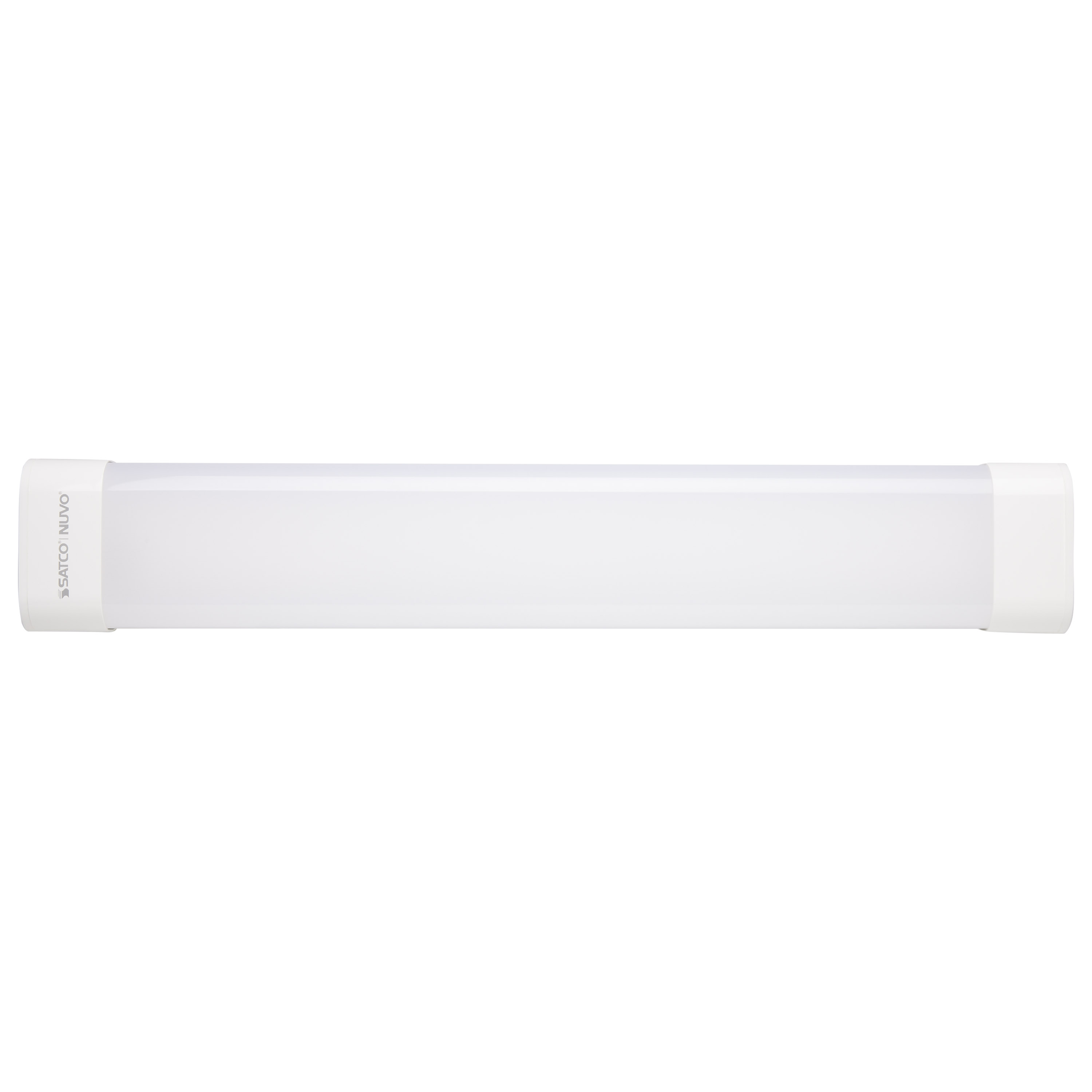

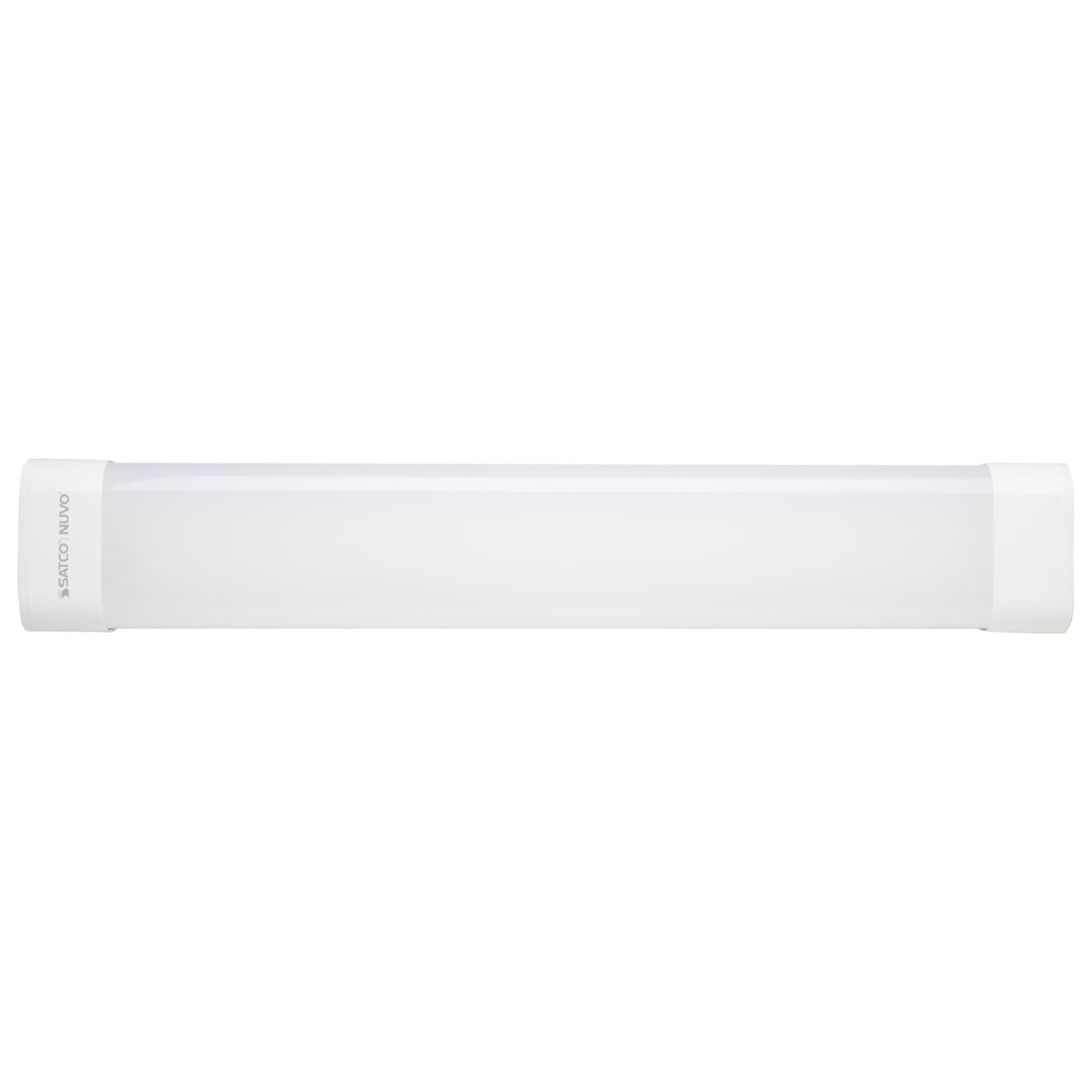

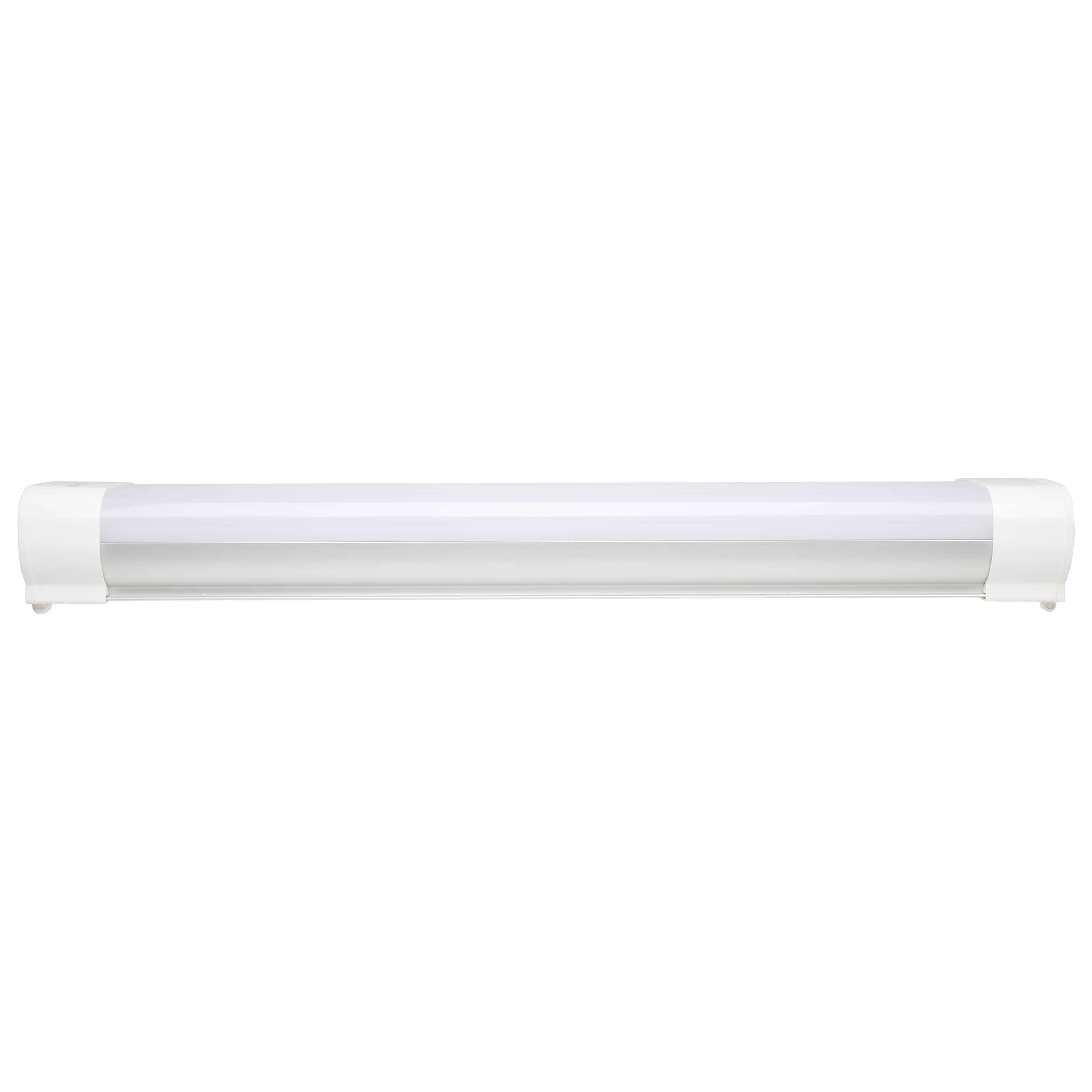

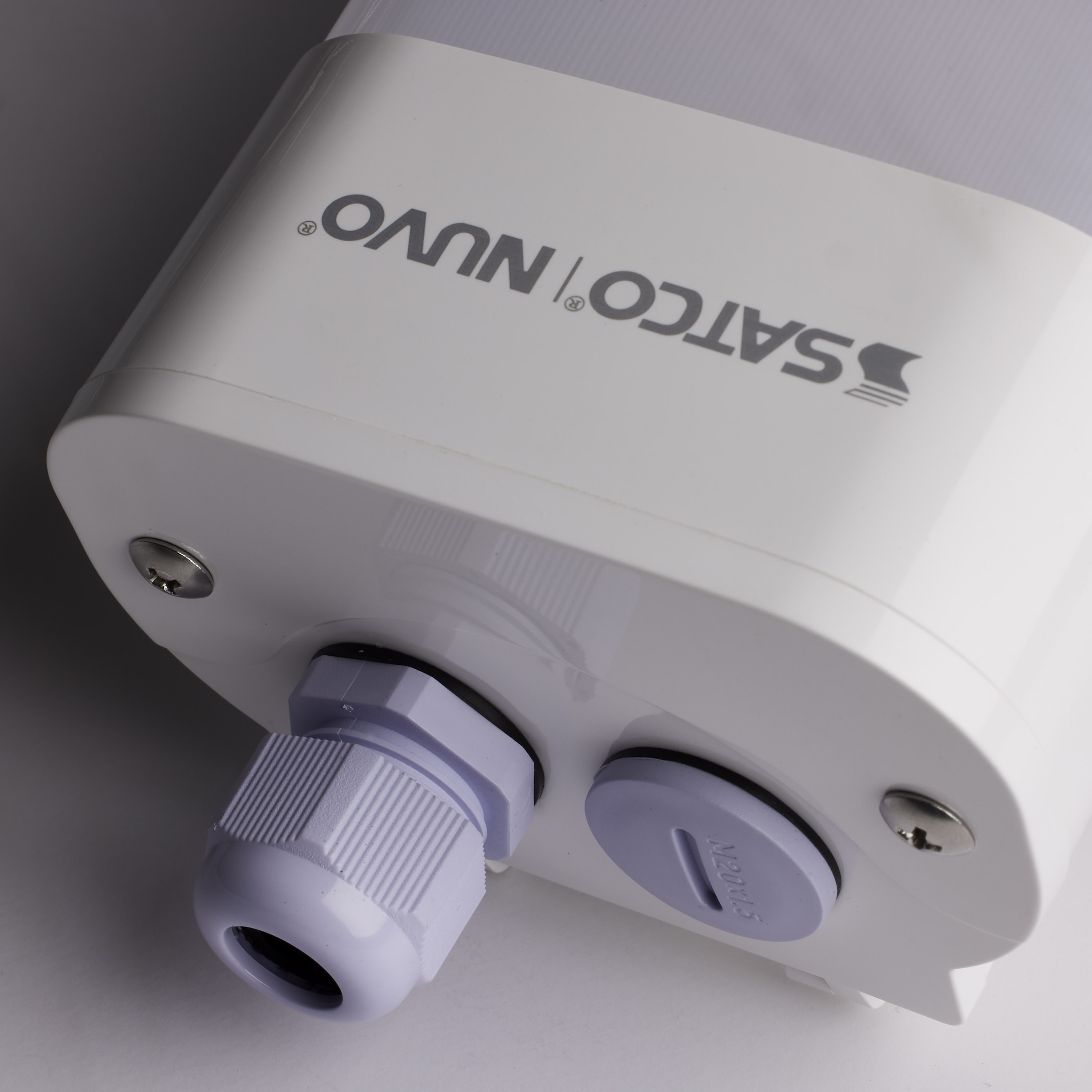

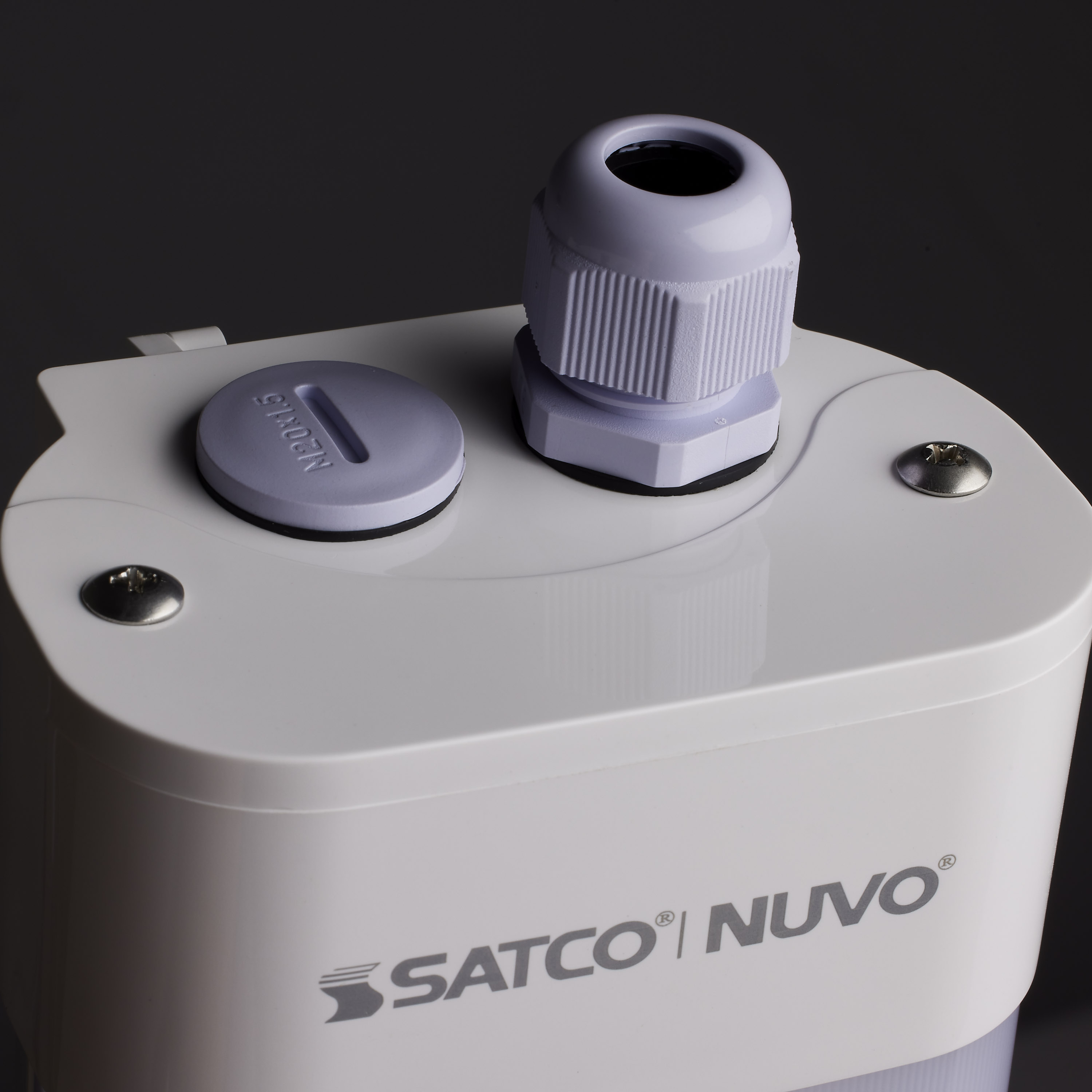

2' 20W LED TRI-PROOF LINEAR

  • 2 Foot
  • 20 Watt
  • LED Tri-Proof Linear Fixture

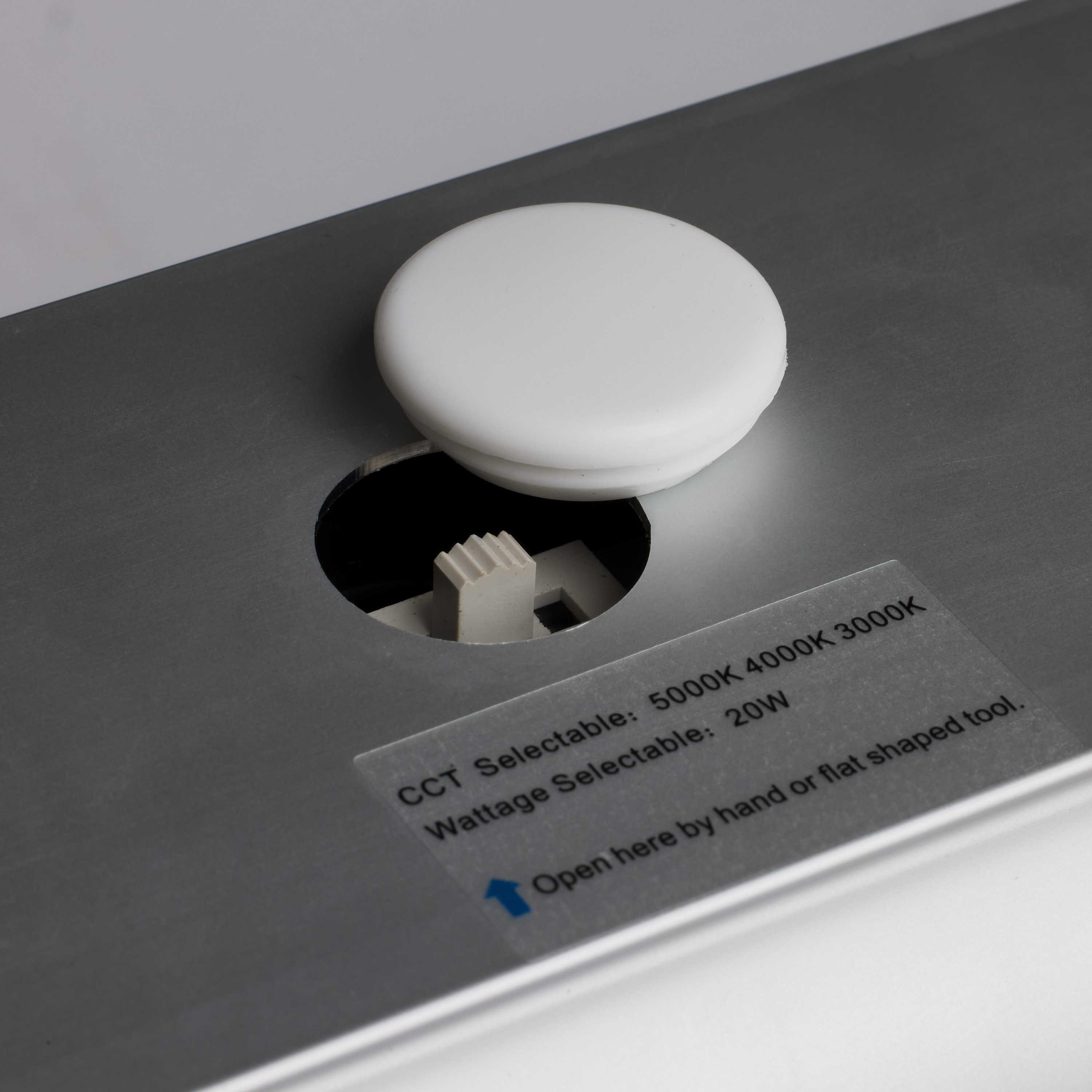

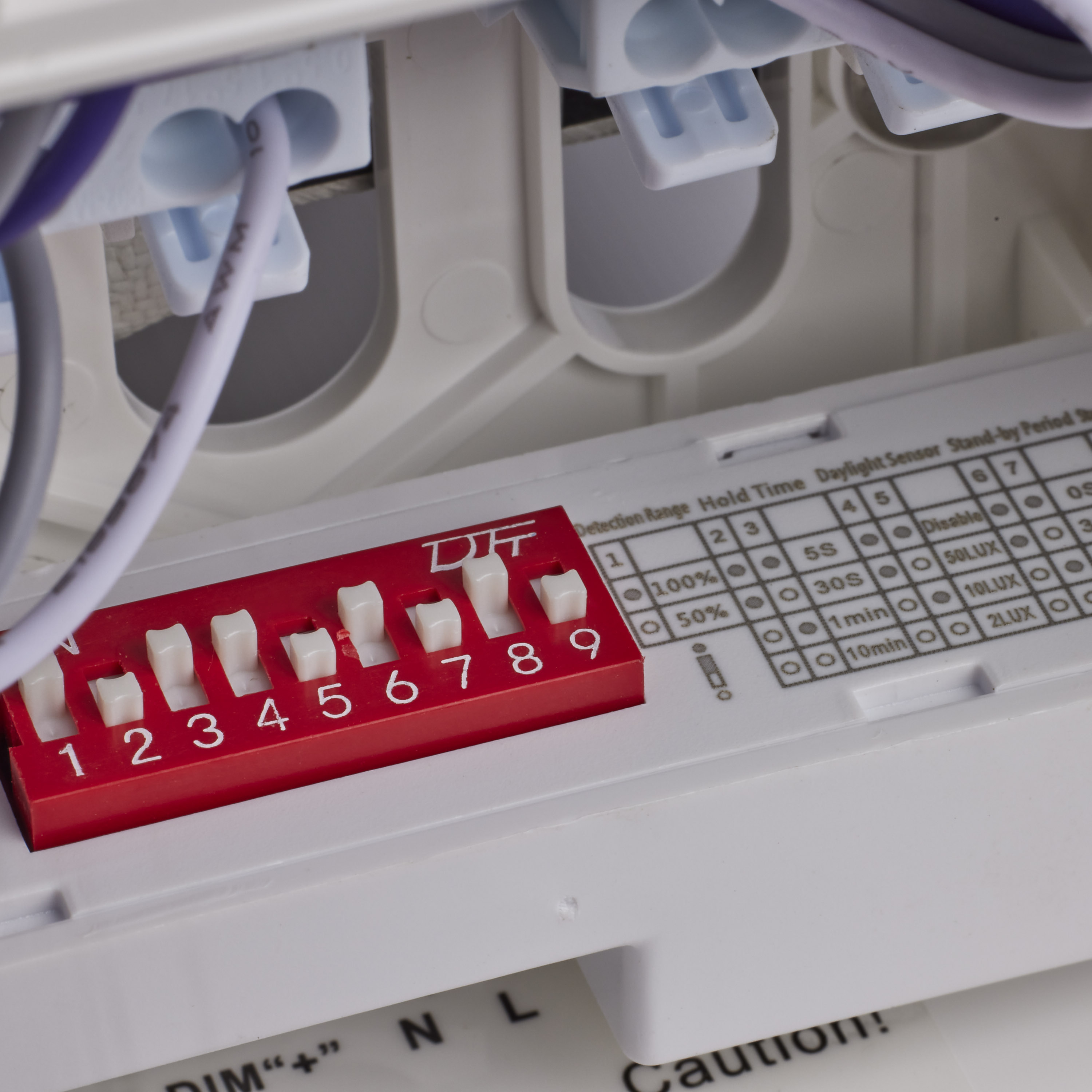

  • CCT Selectable
  • IP65 and IK08 Rated
  • 0-10V Dimming
  • 120V-347V
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-830R1 Specifications65-830R1 InstructionsNU1600-2 LED Fixture Reference 8-30-24 Lo-Res
Tools
Lighting Layout Analysis For 65-830R1
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
2 Foot; 20 Watt; LED Tri-Proof Linear Fixture; CCT Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming
MaterialPlastic
Fixture TypeVapor Tight
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion10.60%
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.167-0.058A
Has CameraFalse
IOT EnabledFalse

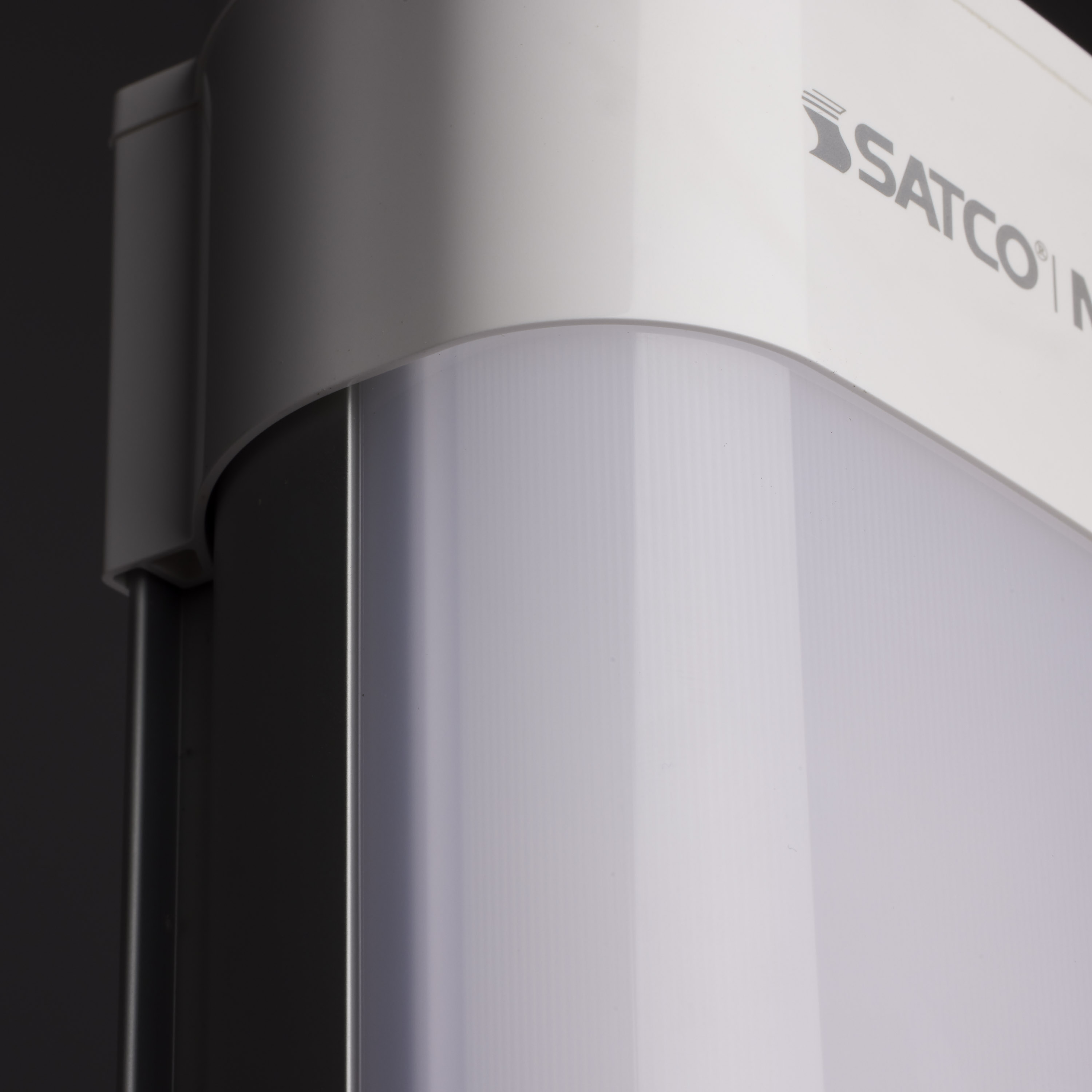

Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
Power Factor>0.96
SDS ClassLED_Fixture
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent125W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)115
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent50W
Lumens2065L-2249L
Volts120V-347V
Watts20W
Physical
Lamp BaseIntegrated
FinishWhite / Gray
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeFalse
Compliance
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-AJRQLE
FCC CompliantTrue
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923651090
Case Cube2.6912
Case Height12.99
Case Length25.98
Case Quantity6
Case UPC10045923651097
Case Weight17.64
Case Width13.78
EA Cube0.4485
EA Height4.33
EA Length25.98
EA Quantity1
EA Weight2.94
EA Width6.89
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox

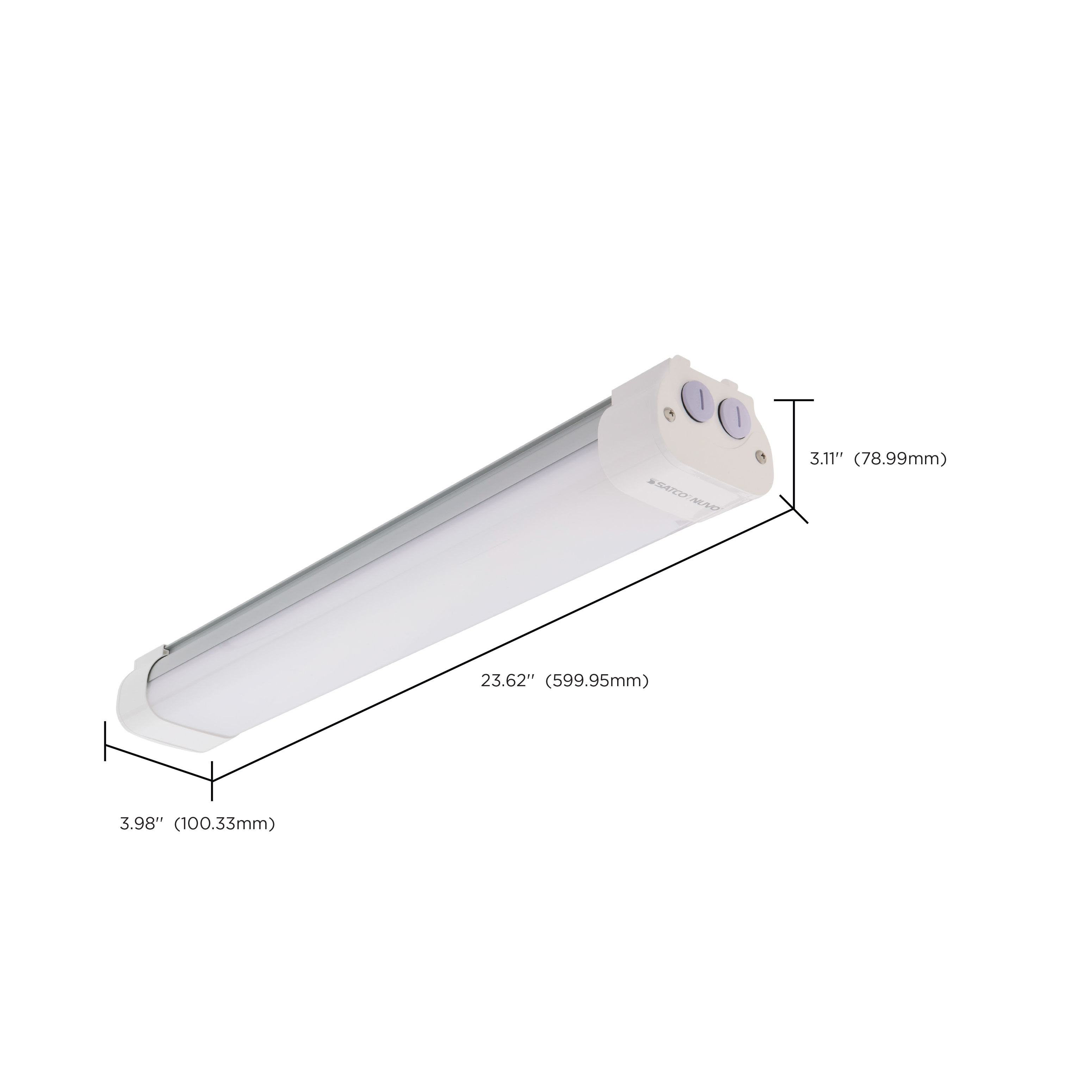

Web Height3.11
Web Length23.62
Web Width3.98
