65-832

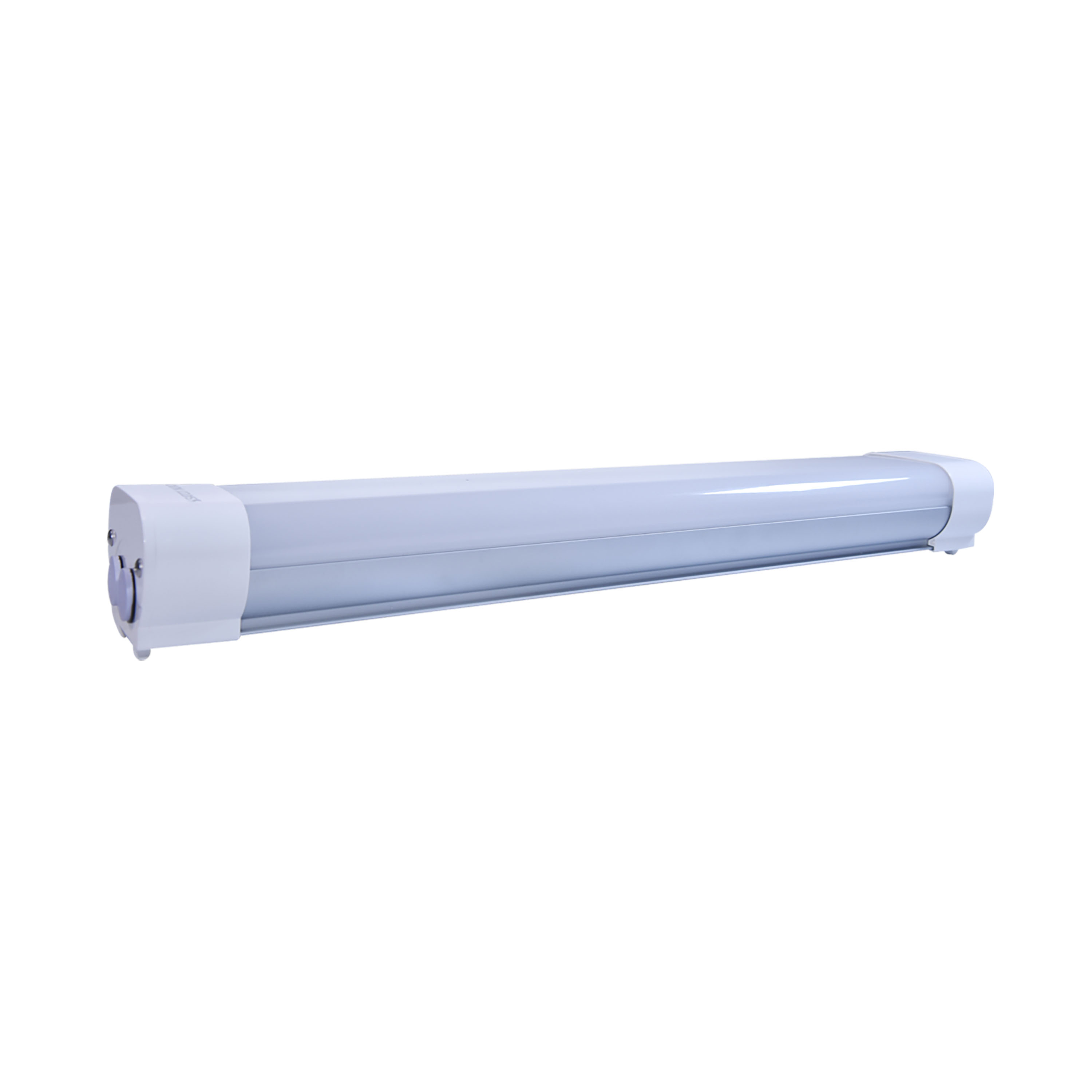

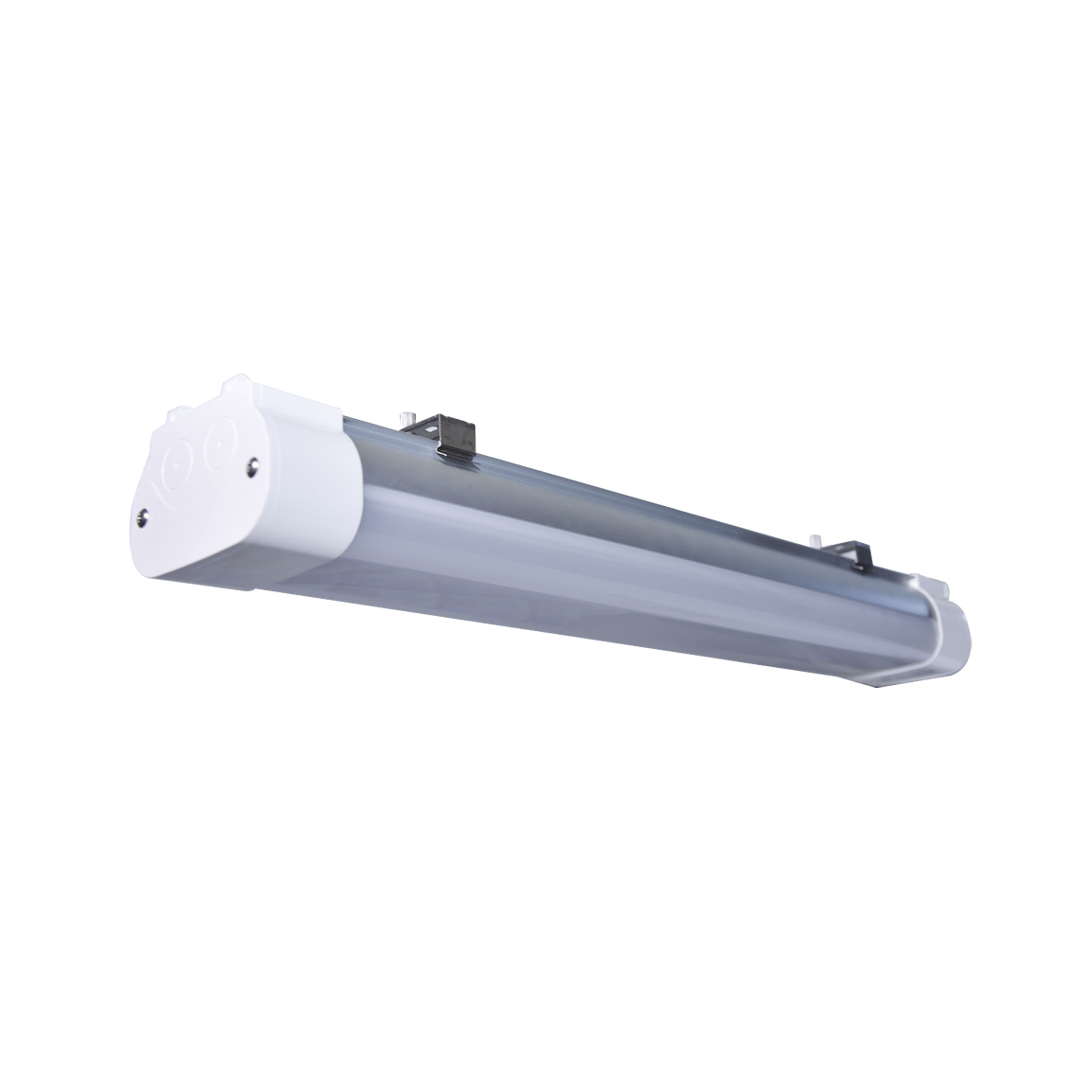

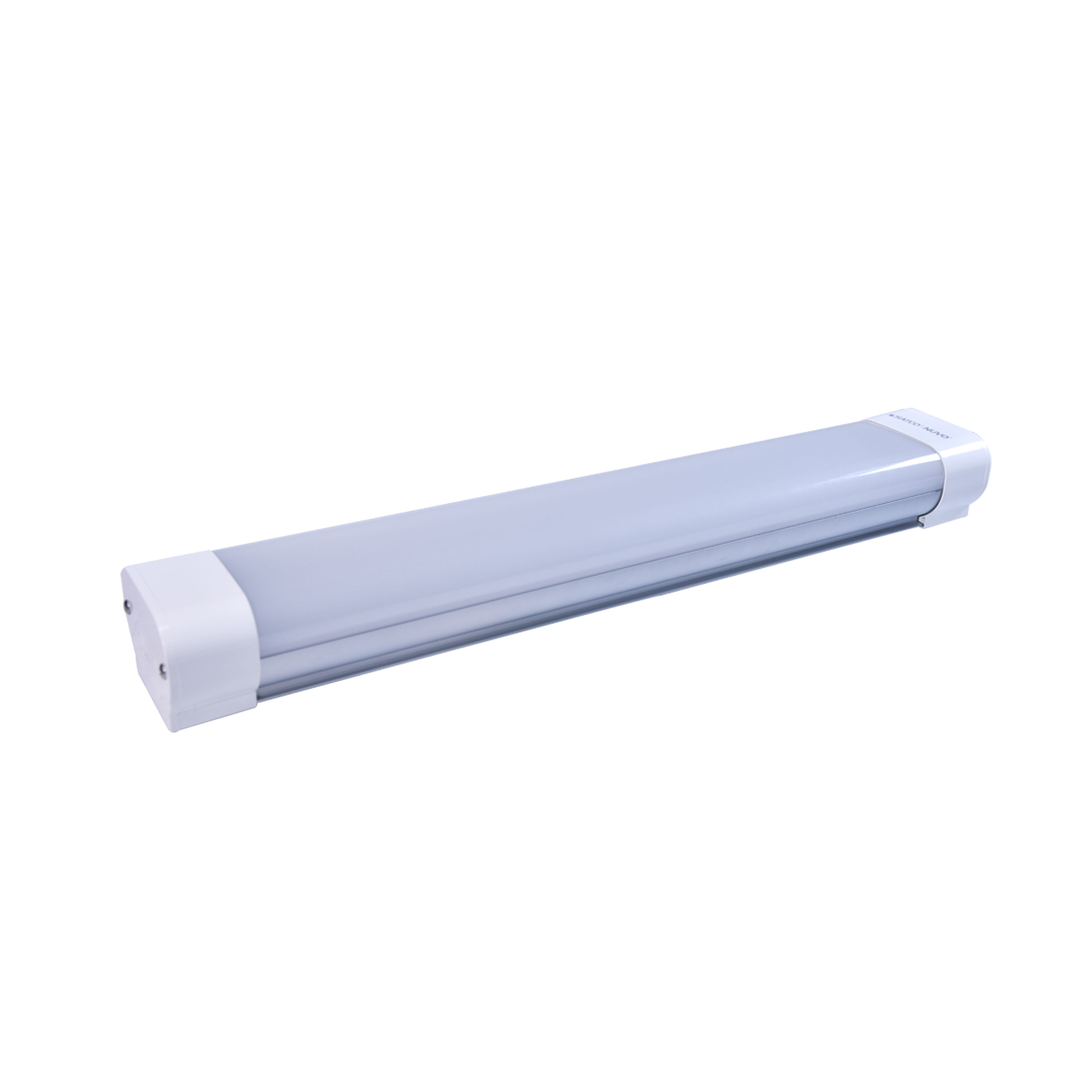

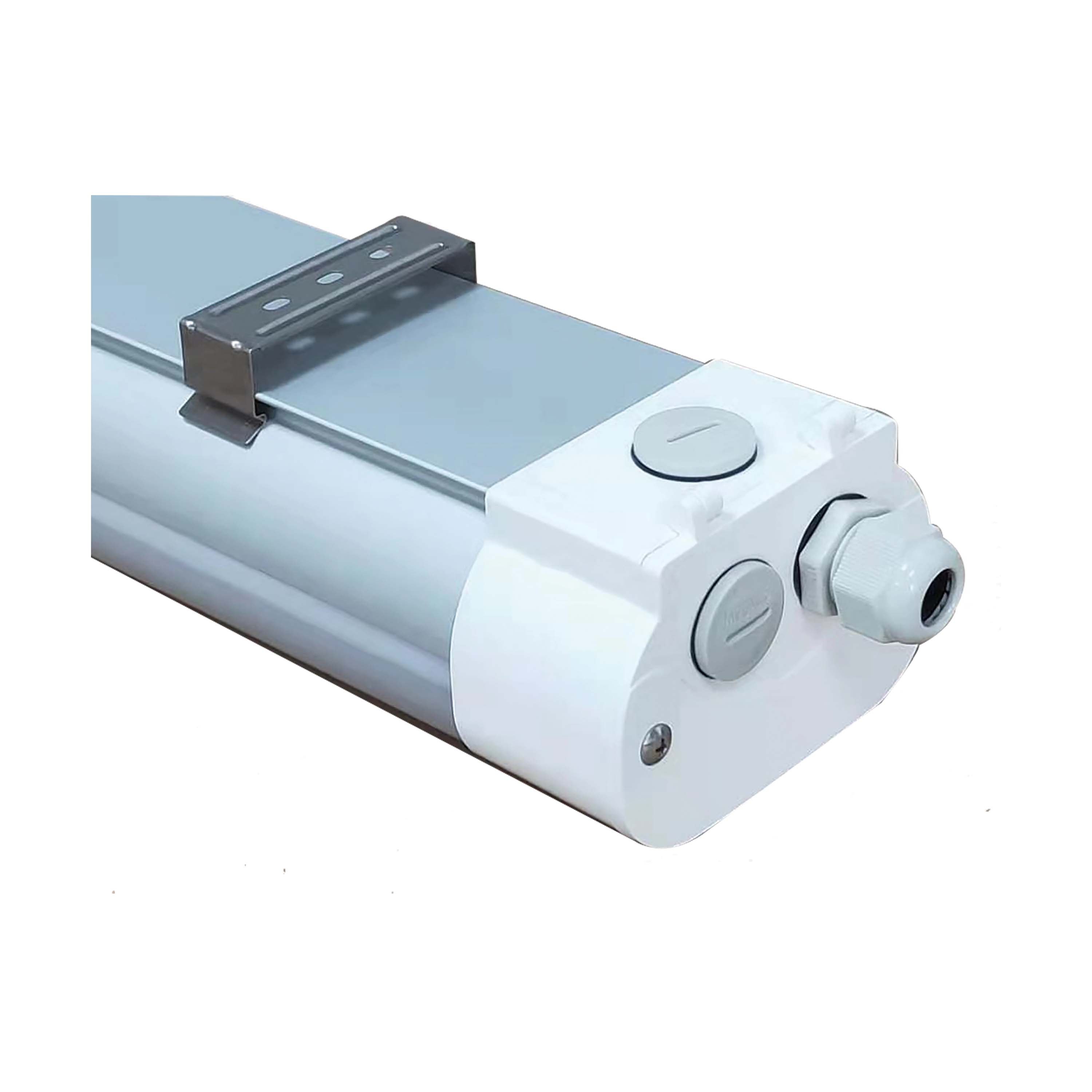

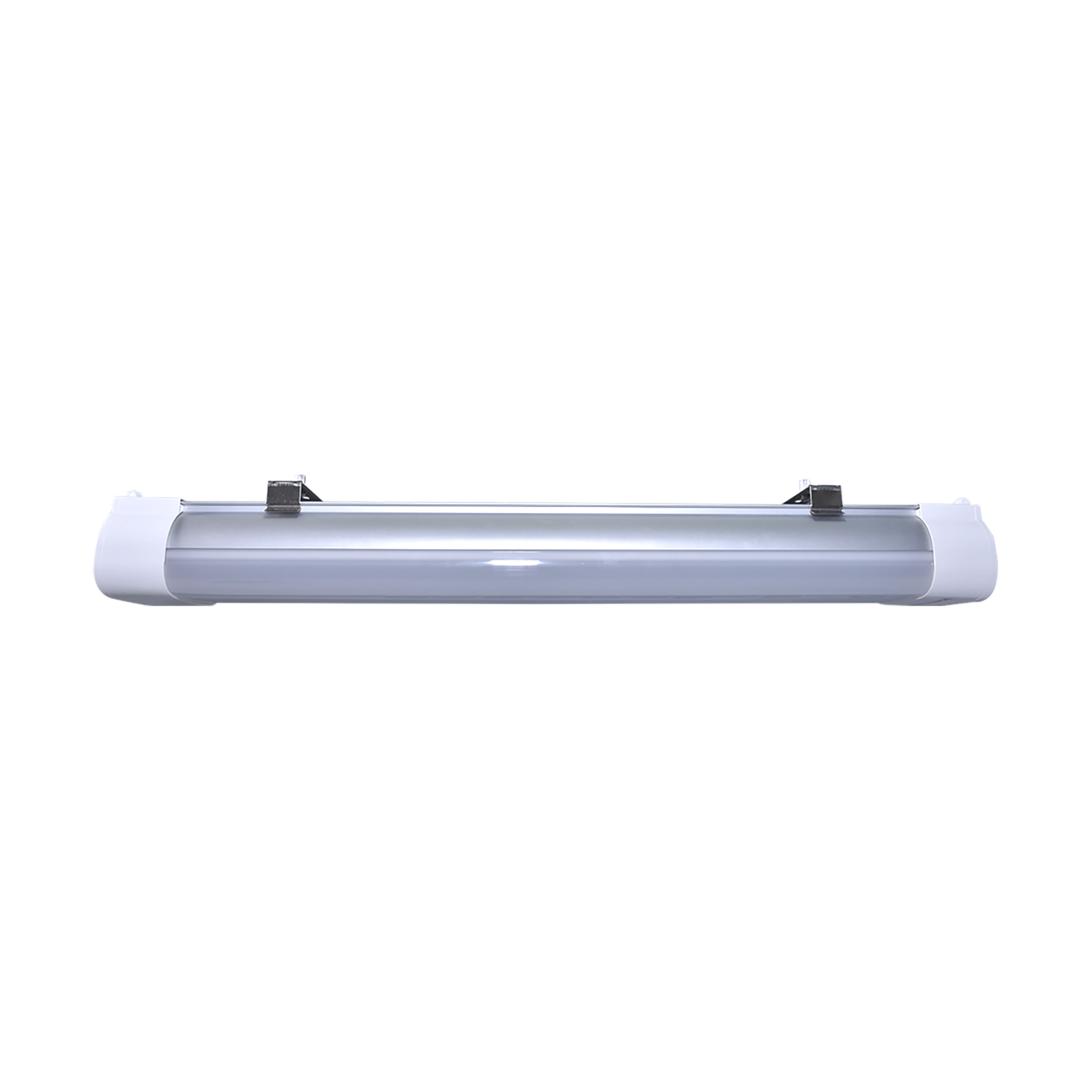

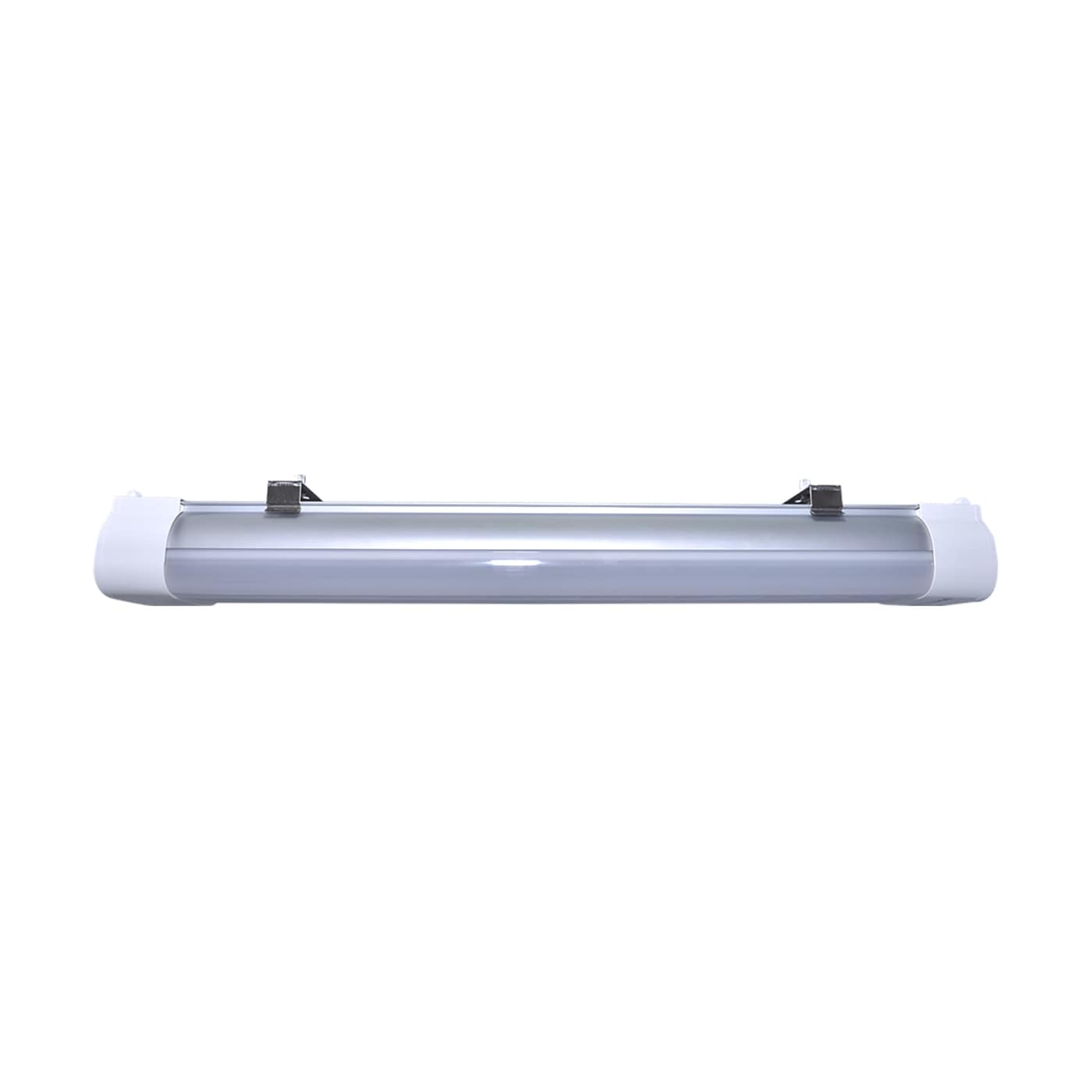

2' 20W LED TRI-PROOF W/SENSOR

  • 2 Foot
  • 20 Watt
  • LED Tri-Proof Linear Fixture with Integrated Microwave Sensor
  • CCT Selectable
  • IP65 and IK08 Rated
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-832 Specifications65-832 Instructions65-832 Spec Chart
Tools
Lighting Layout Analysis For 65-832
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
2 Foot; 20 Watt; LED Tri-Proof Linear Fixture with Integrated Microwave Sensor; CCT Selectable; IP65 and IK08 Rated
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V; Integrated Sensor; Bi-Level Dimmable
MaterialPlastic
Fixture TypeVapor Tight
StatusActive
StyleUtility
Most Current Generation65-832R1
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion9.10%
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.200-0.072A
Has CameraFalse
IOT EnabledFalse
Lens MaterialPolycarbonate (PC)
Photo CellIntegrated Microwave Sensor
Power Factor>0.96
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv33W
Incandescent Equivalent125W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)115
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent50W
Lumens2065L-2249L
Volts120V-277V
Watts20W
Physical
Lamp BaseIntegrated
FinishWhite / Gray
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeFalse
Compliance
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDPLTCJ3OQVJ3H
FCC CompliantTrue
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923650697
Case Cube2.6912
Case Height12.99
Case Length25.98
Case Quantity6
Case UPC10045923650694
Case Weight18.96
Case Width13.78
EA Cube0.4485
EA Height4.33
EA Length25.98
EA Quantity1
EA Weight3.16
EA Width6.89
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height3.11
Web Length23.62
Web Width3.98
