65-837

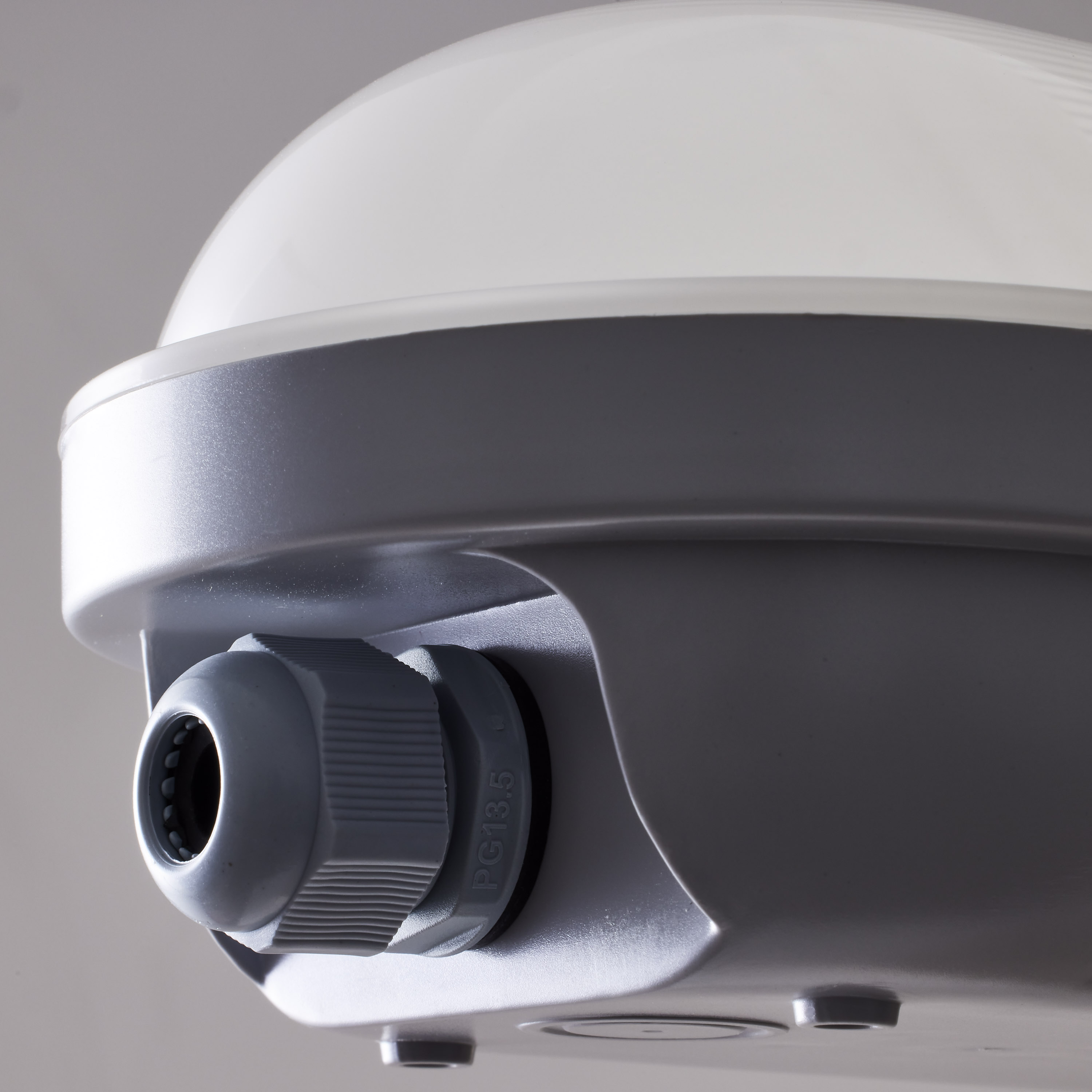

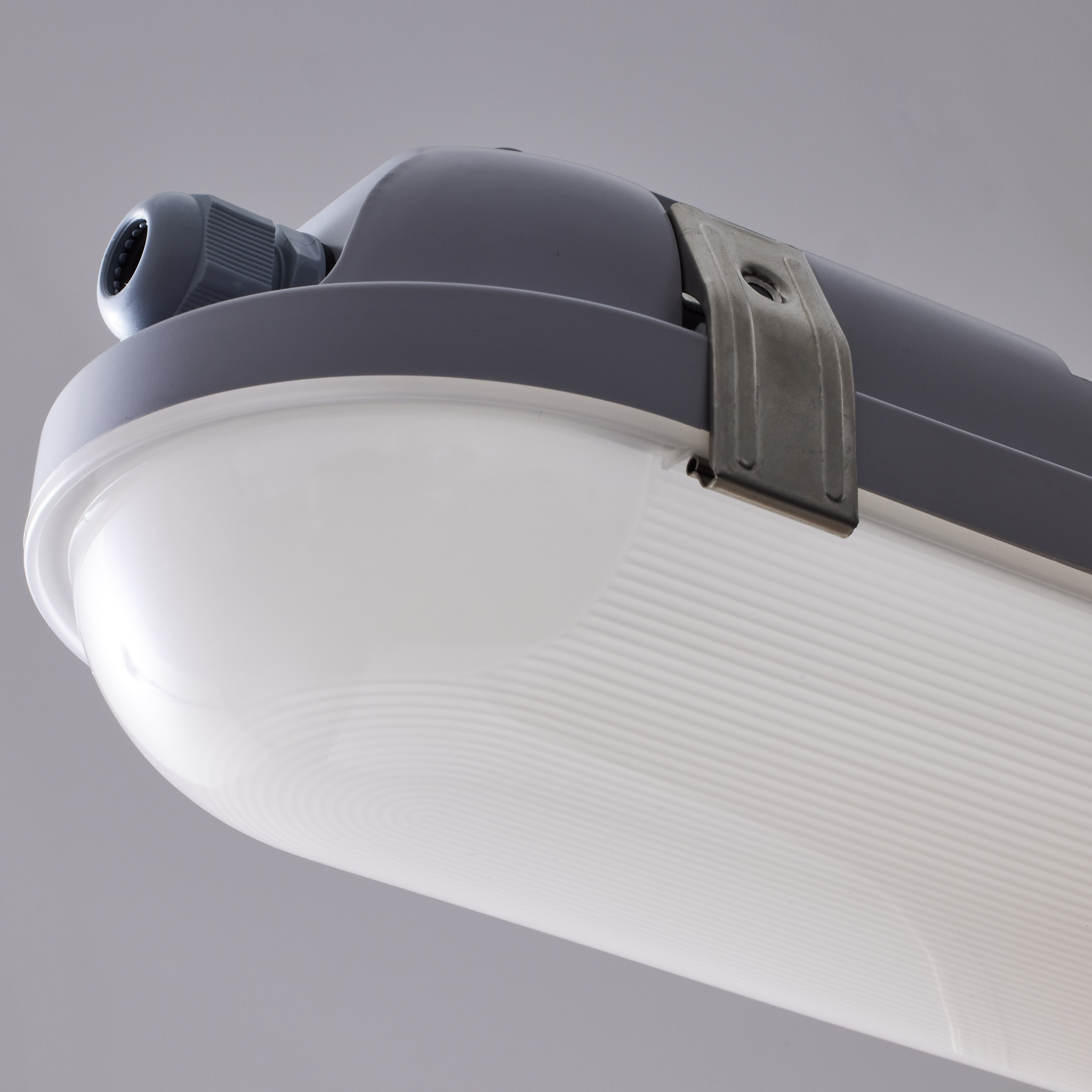

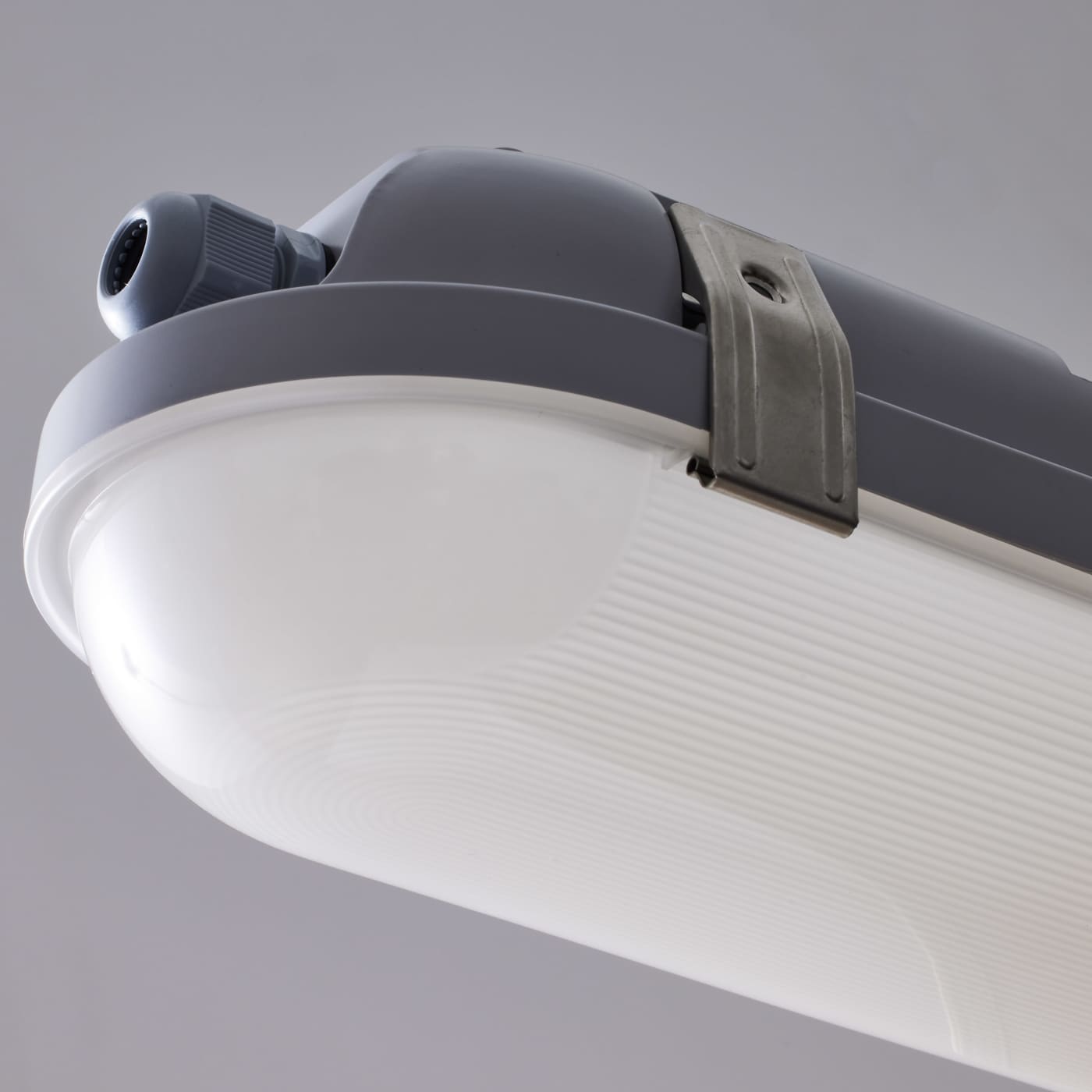

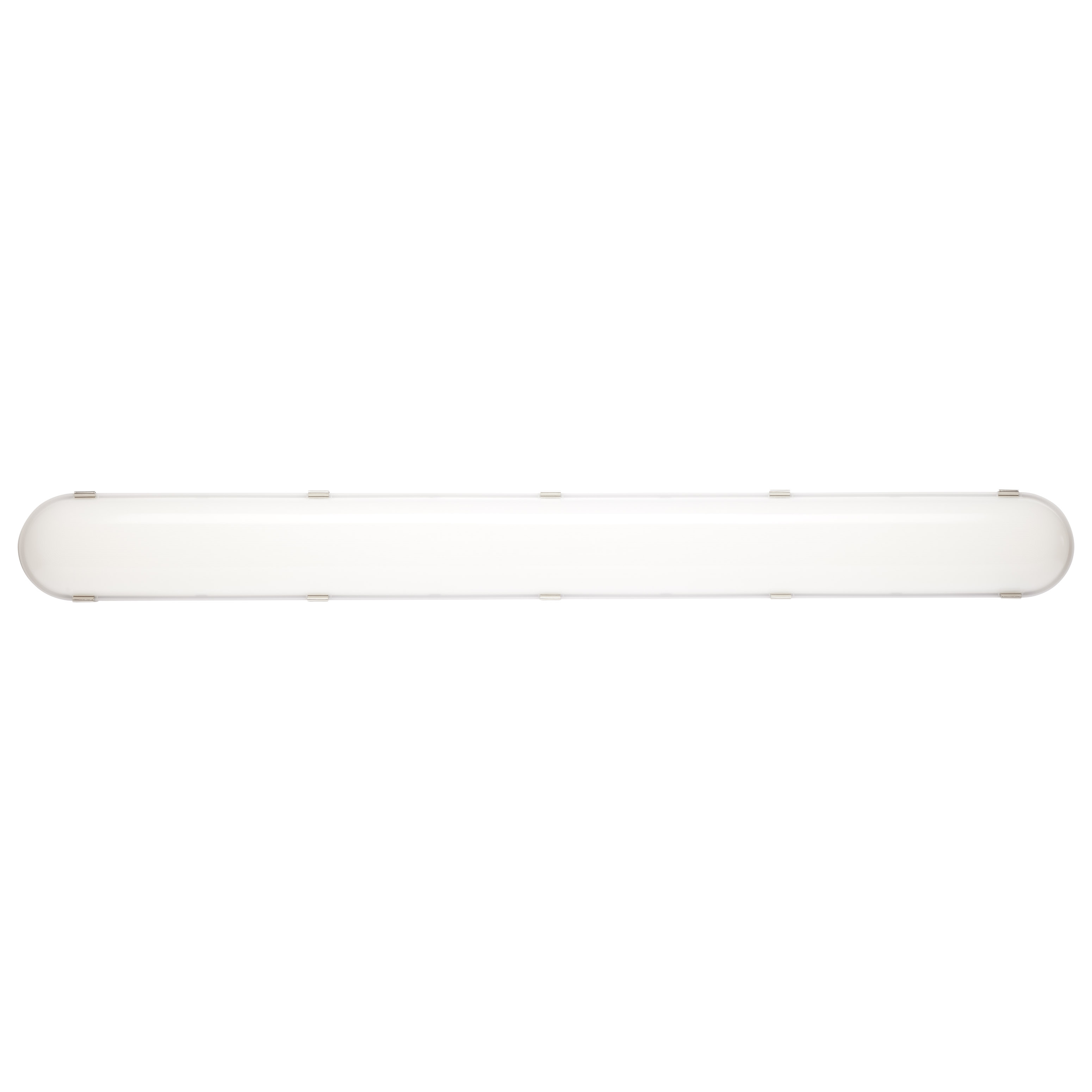

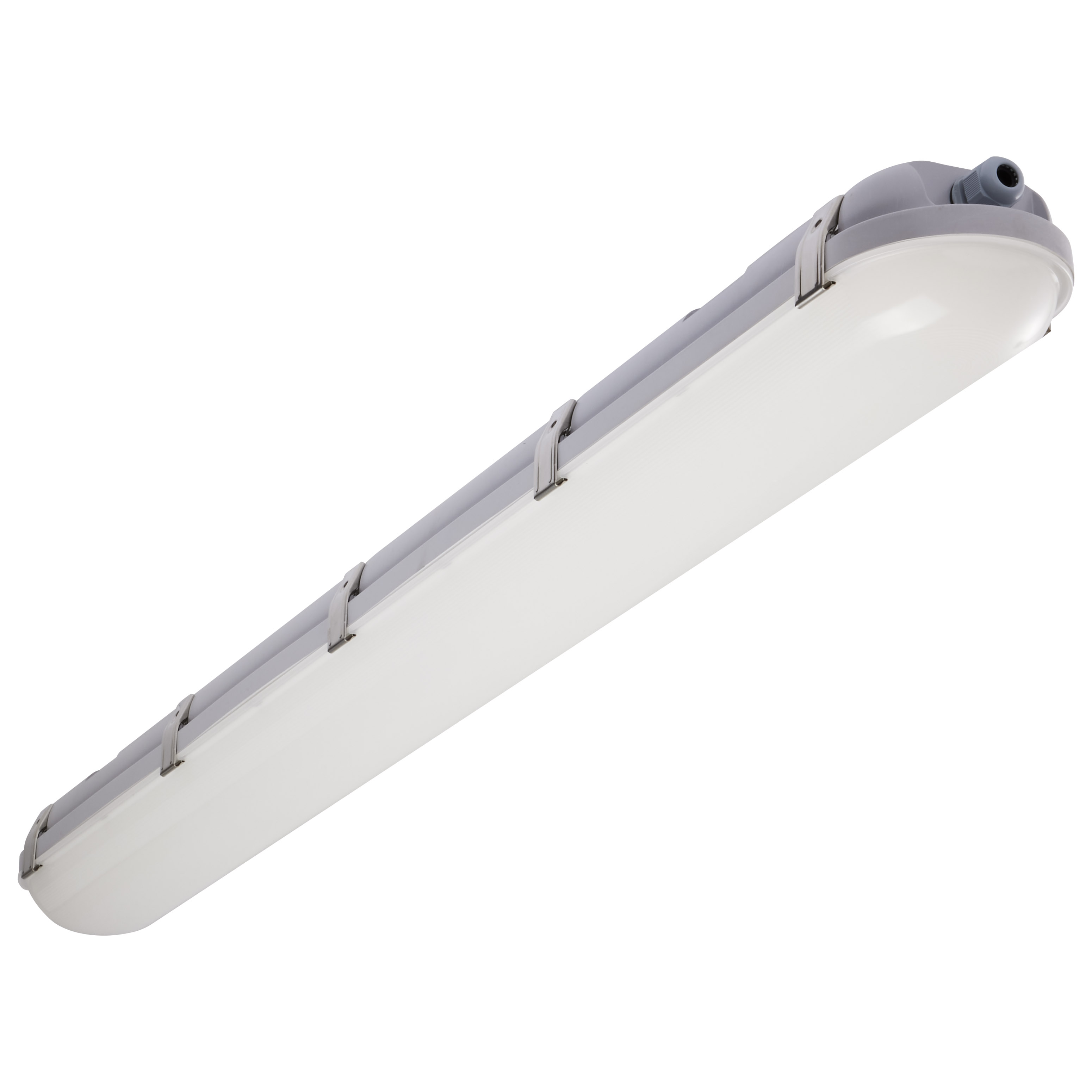

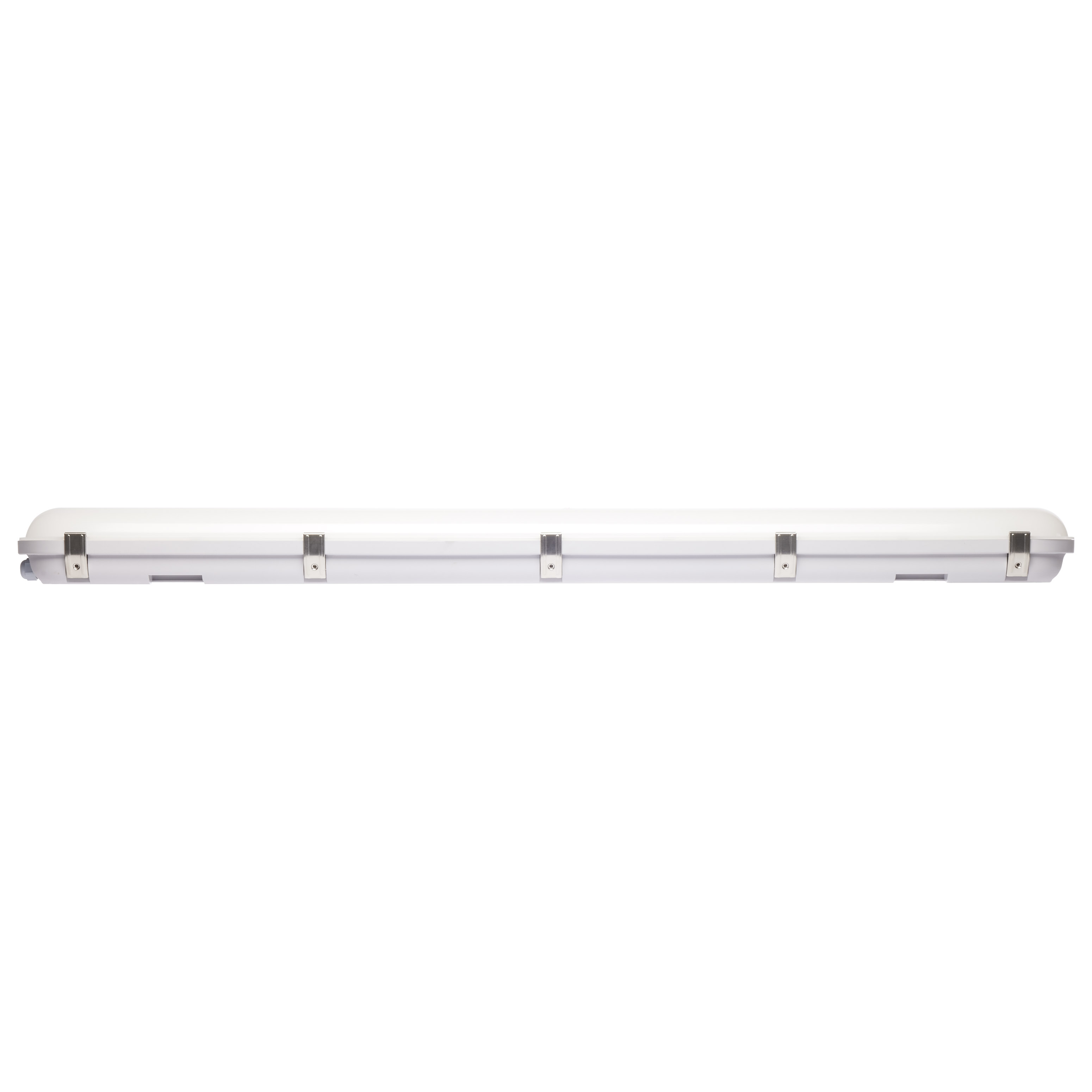

4' LED EM LINEAR VAPOR PROOF

  • 40/50/60 Watt LED 4 Foot Linear Vapor Proof Fixture
  • 3K/4K/5K CCT Selectable
  • 120-347 Volt
cc_selectable^y^1
ip_rating^IP65^1
title_20^y^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
65-837 Specifications65-837 InstructionsSN1889 New-Old Vapor Proof Fixtures FINAL
Tools
Lighting Layout Analysis For 65-837
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
40/50/60 Watt LED 4 Foot Linear Vapor Proof Fixture; 3K/4K/5K CCT Selectable; 120-347 Volt
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming
MaterialPolycarbonate (PC)
Fixture TypeVapor Tight

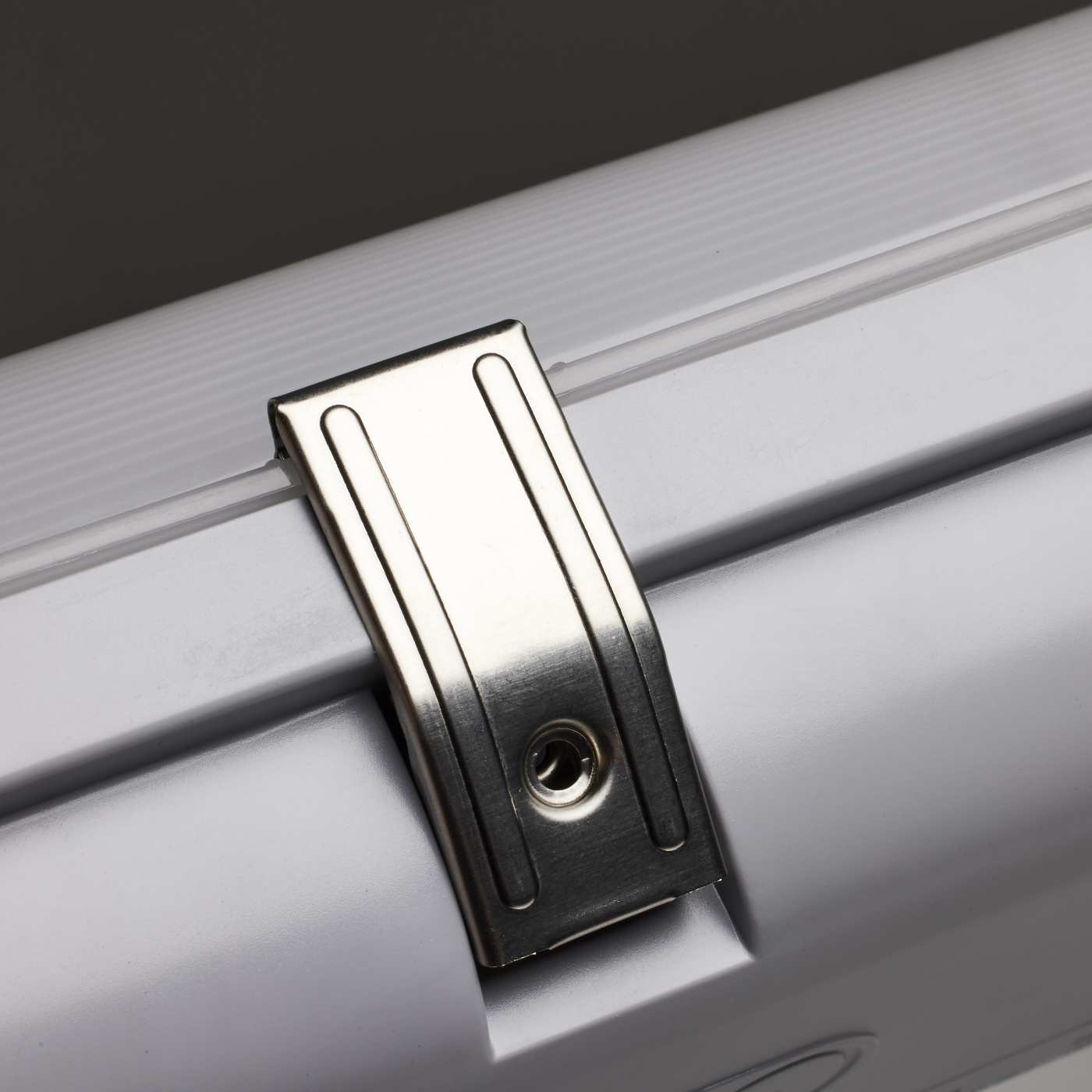

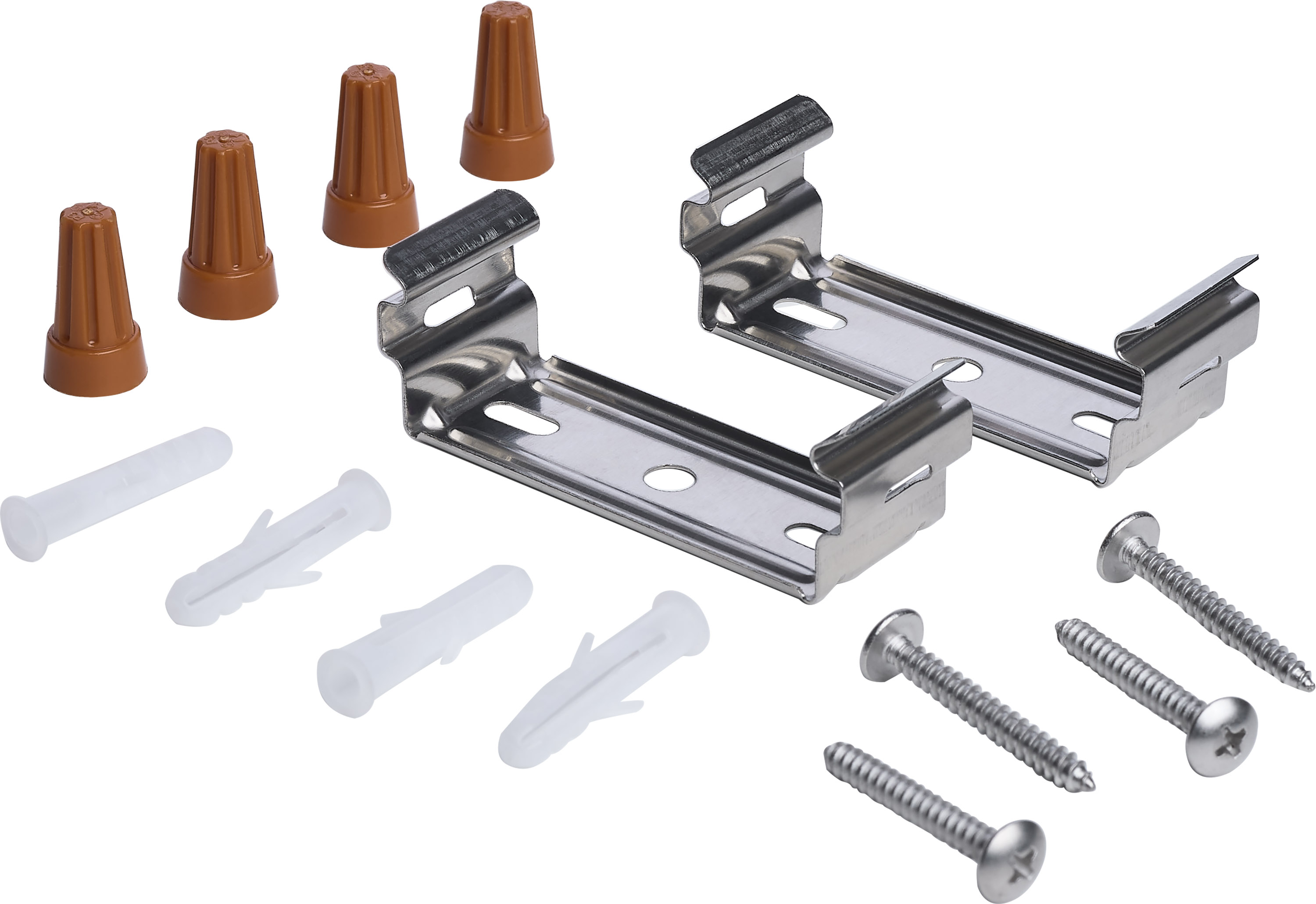

IncludesMounting Hardware
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion17.60%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyGray
Additional Info90 Minute Battery Backup Runtime
Amps0.333-0.115/0.417-0.144/0.500-0.173A
Has CameraFalse
IOT EnabledFalse

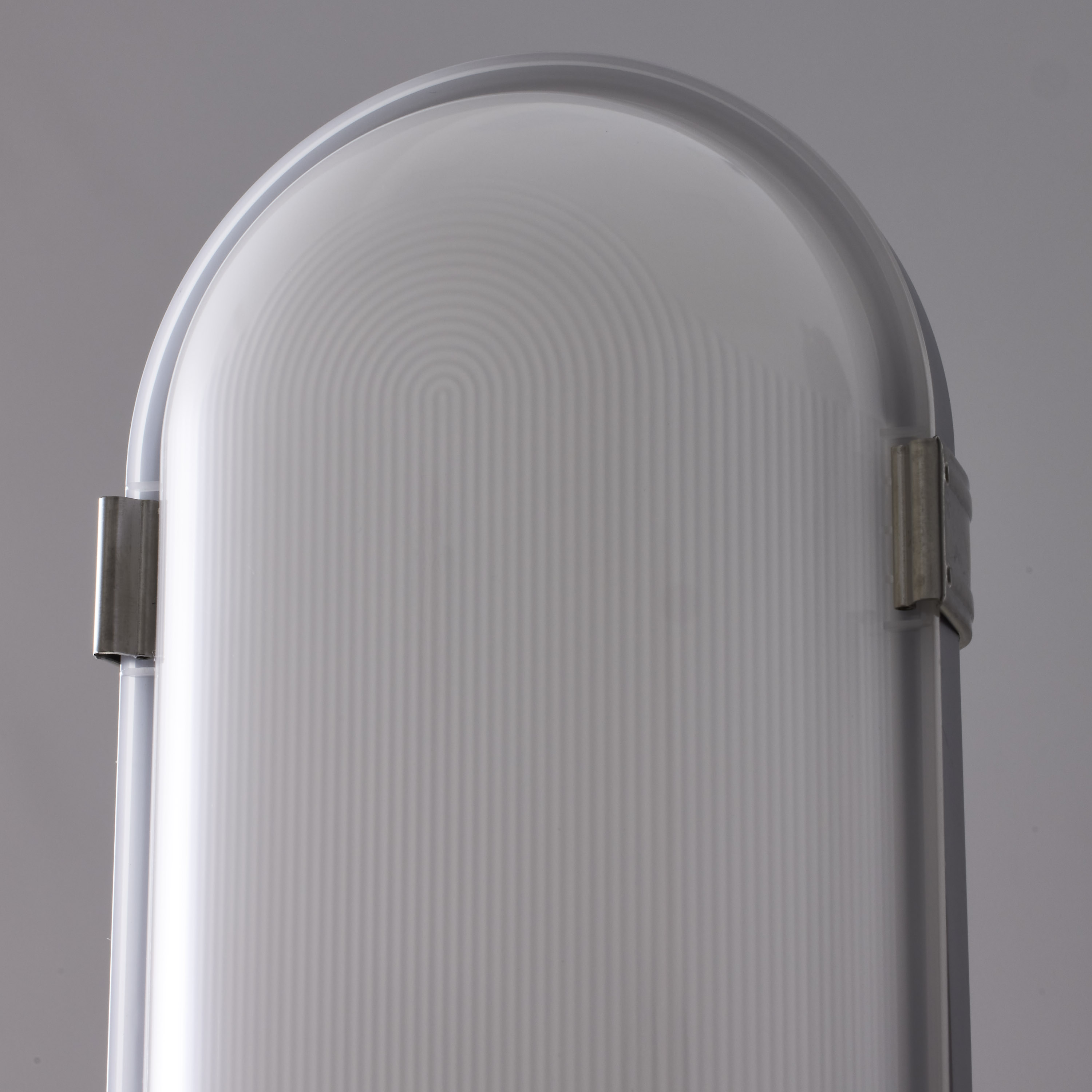

Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
Power Factor>0.96
SDS ClassLED_Fixture
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent300W-400W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempSoft White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +45C (+113F)
HID Equivalent125W-150W
Lumens5360L-7991L
Volts120V-347V
Watts40W/50W/60W
Physical
Lamp BaseIntegrated
FinishGray
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeFalse
Compliance
CA RegulationsT20 SBCS Listed
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-8XDJS8;S-WP9TSQ
FCC CompliantTrue
IP RatingIP65
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
DLC ApprovedTrue
Energy Star CertifiedNo
Title 20Yes
T24 CompliantFalse
Packaging
UPC045923403545
Case Cube3.8598
Case Height12.2
Case Length49.61
Case Quantity6
Case UPC10045923403542
Case Weight37.04
Case Width11.02
EA Cube0.541
EA Height3.74
EA Length48.82
EA Quantity1
EA Weight6.17
EA Width5.12
Inner Cube0.0
Pack TypeKraft Box

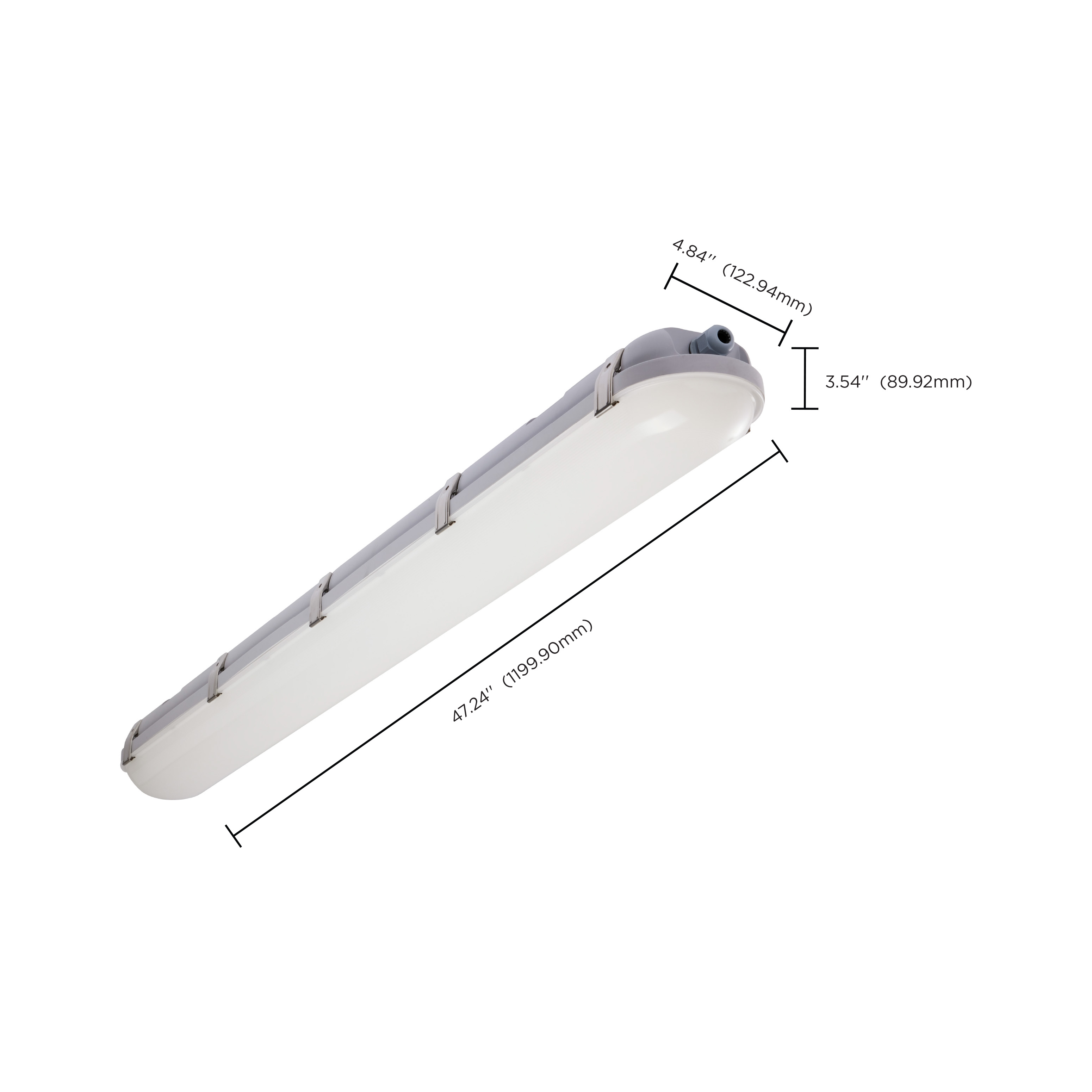

Web Height3.54
Web Length47.24
Web Width4.84
