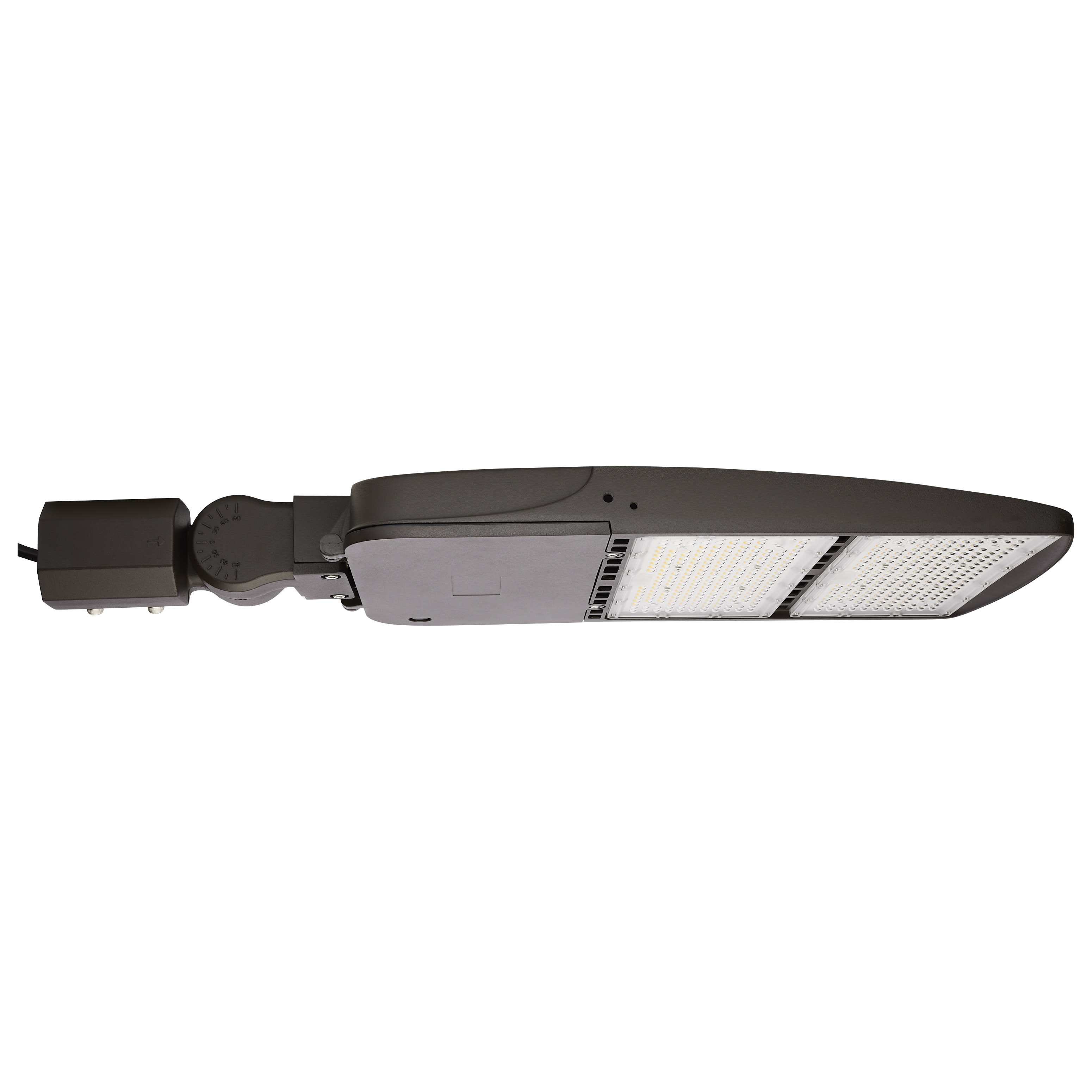

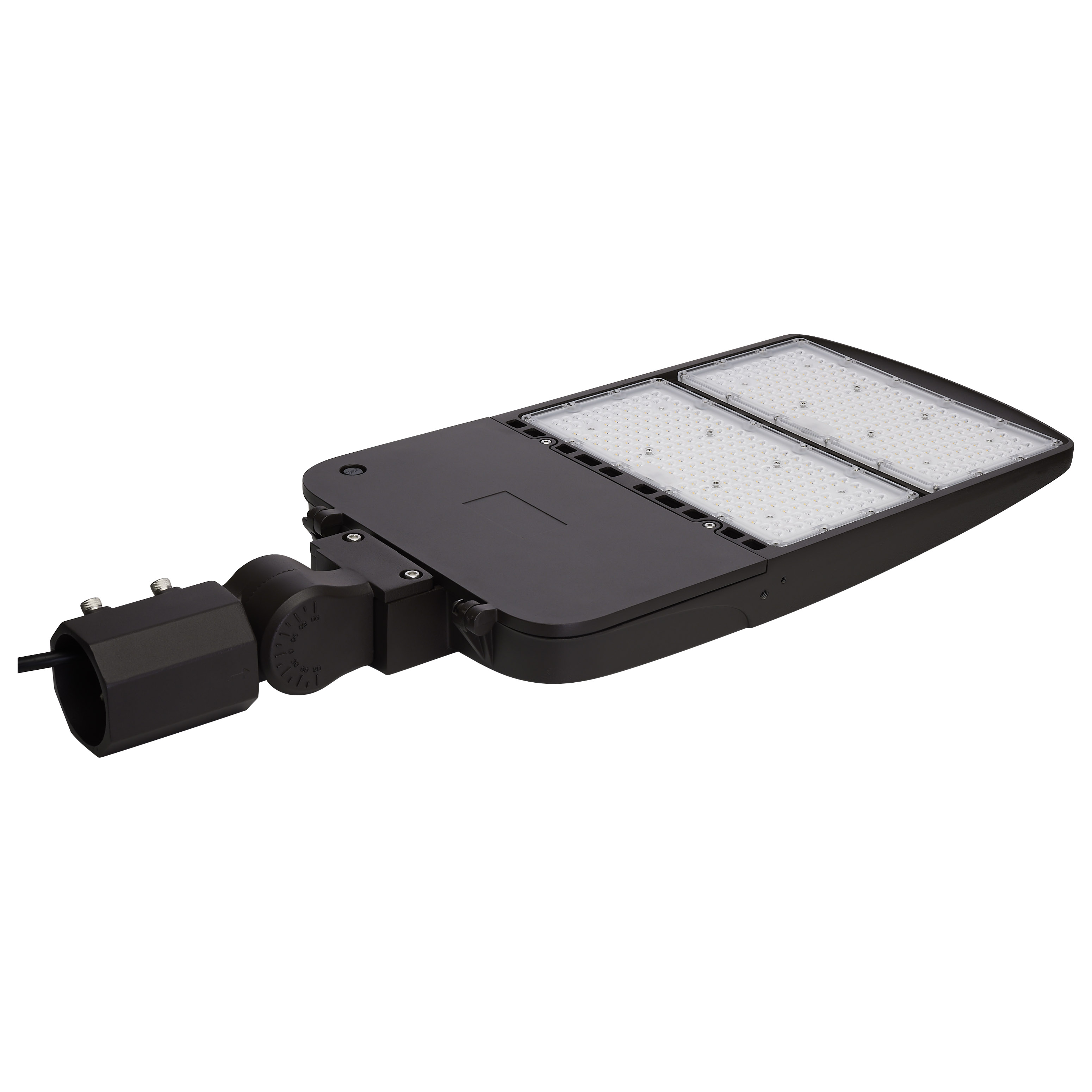

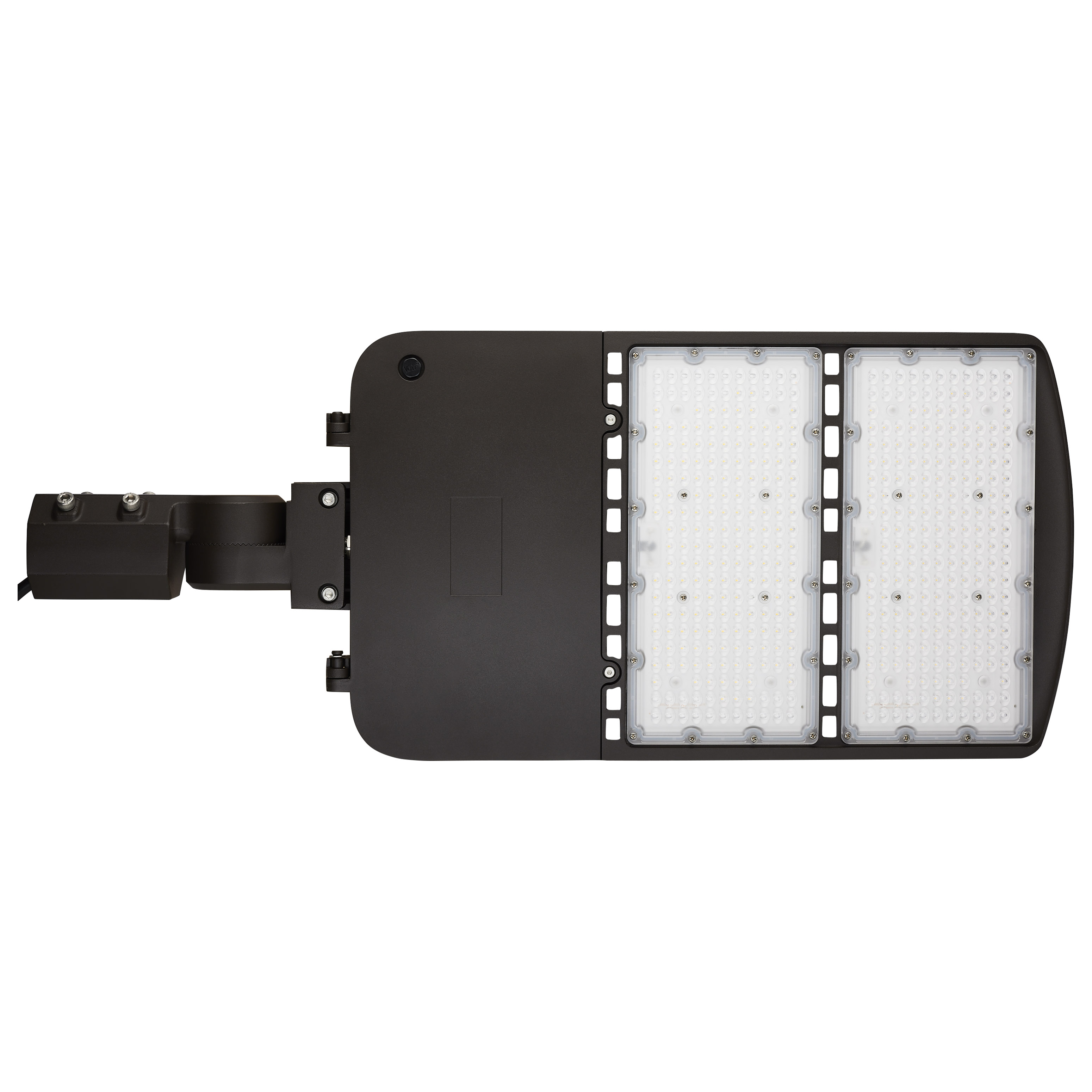

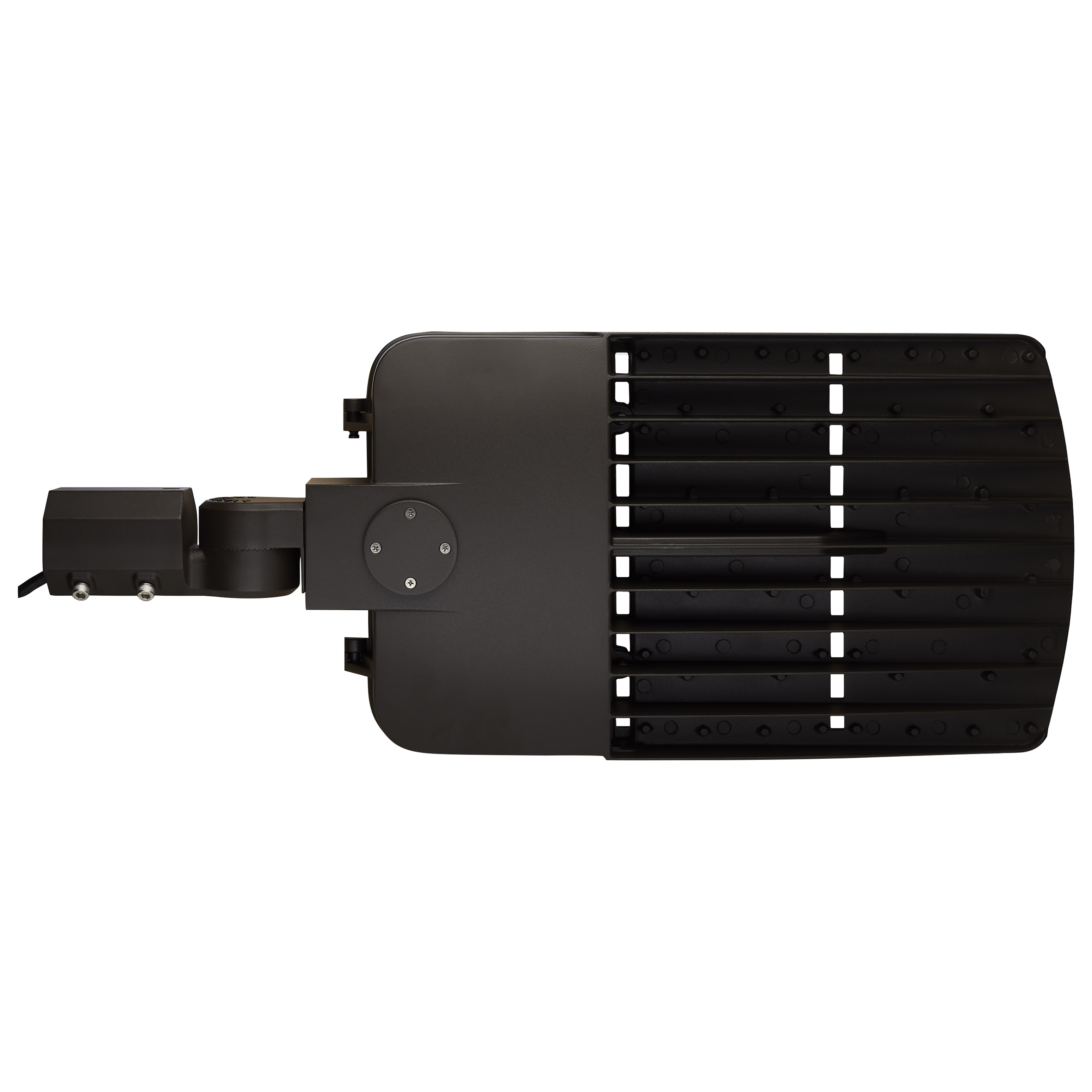

65-868-5 300W LED AREA LIGHT TYPE V

65-868-5

300W LED AREA LIGHT TYPE V

LED Area Light Type V; 300W; Bronze Finish; 4000K; 277-480V


Lights

65-868-5

300W LED AREA LIGHT TYPE V

LED Area Light Type V; 300W; Bronze Finish; 4000K; 277-480V

Specifications

General
StatusActive
Fixture TypeArea Light
FinishBronze
Wattage300W

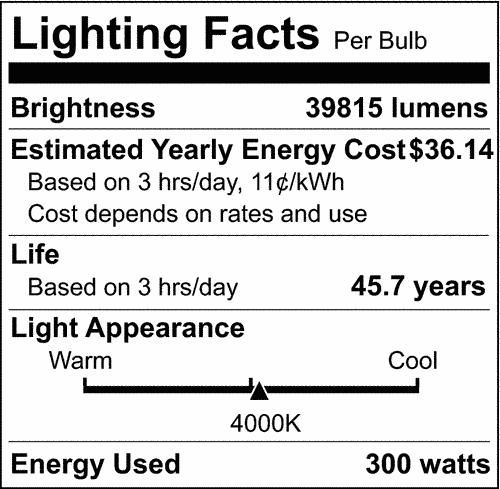

Lumen Output39815L
CCT (Kelvin)4000K
TemperatureCool White
IP RatingIP65
Indoor or Outdoor FixtureIndoor; Outdoor
Specifications
TechnologyLED
Wattage300W
Lumen Output39815L
CCT (Kelvin)4000K
Color TemperatureCool White
CRI80
Voltage277V-480V
Rated Hours50000
Operating Temperature-40C (-40F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note0-10V Dimming

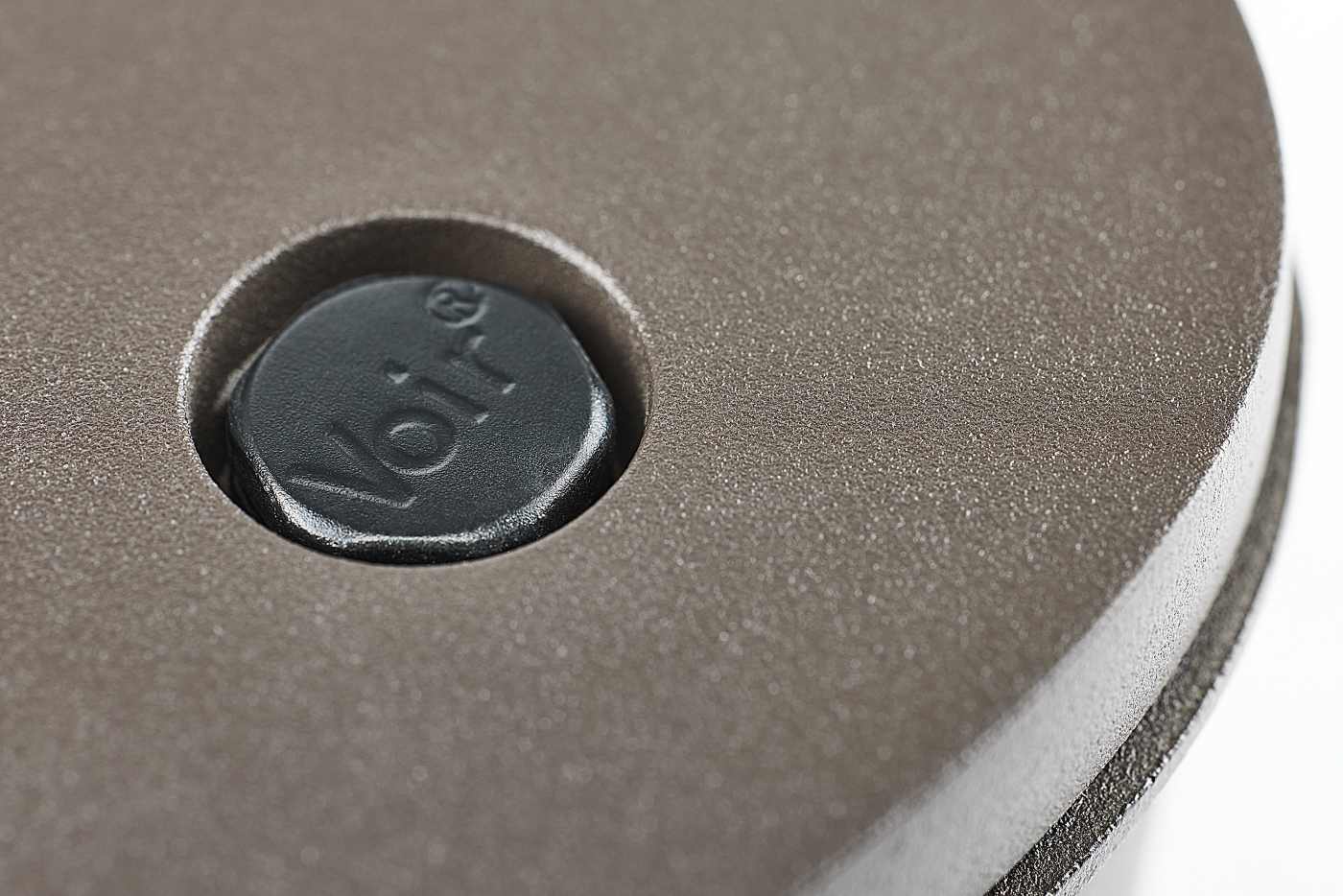

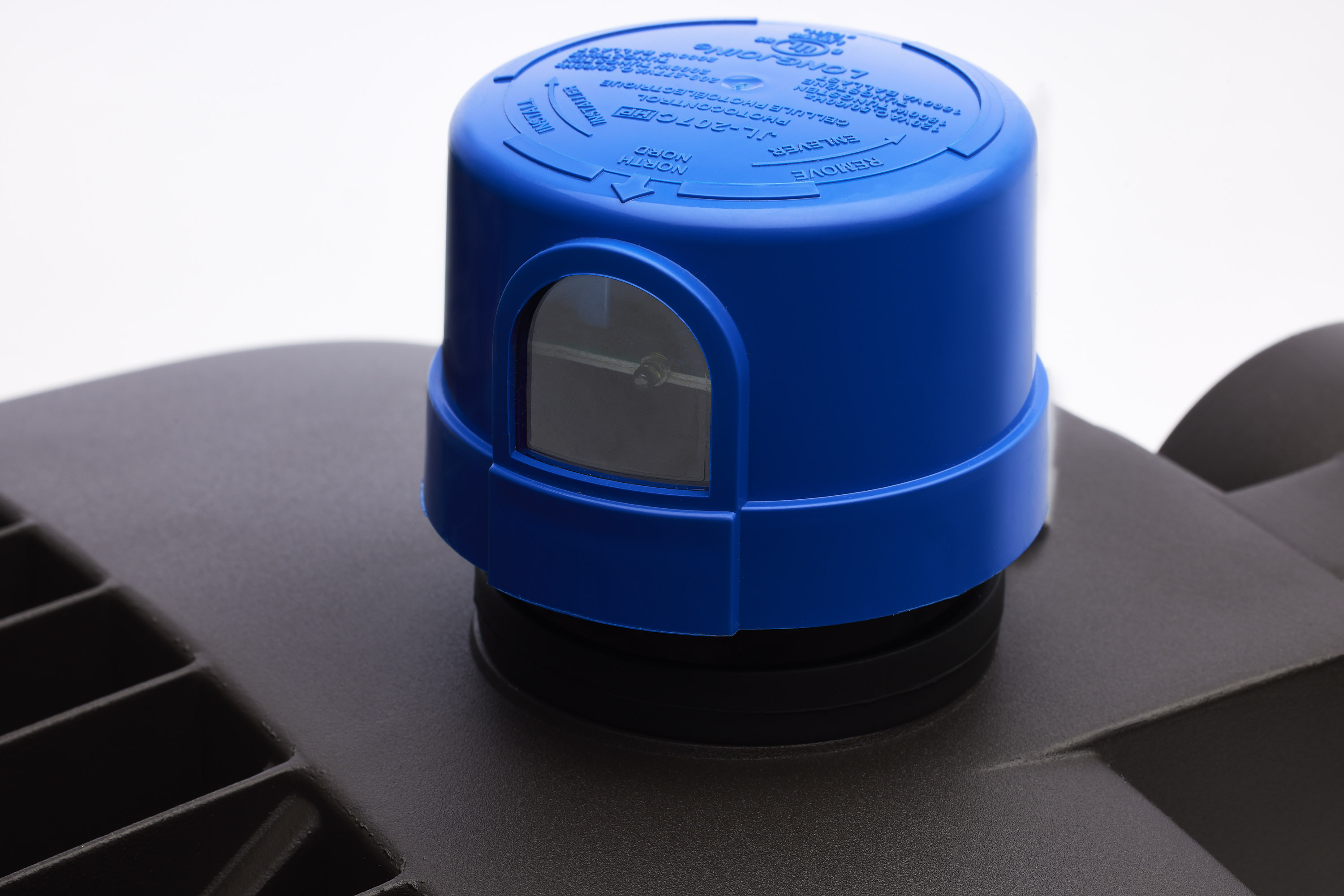

Photocell or SensorOptional

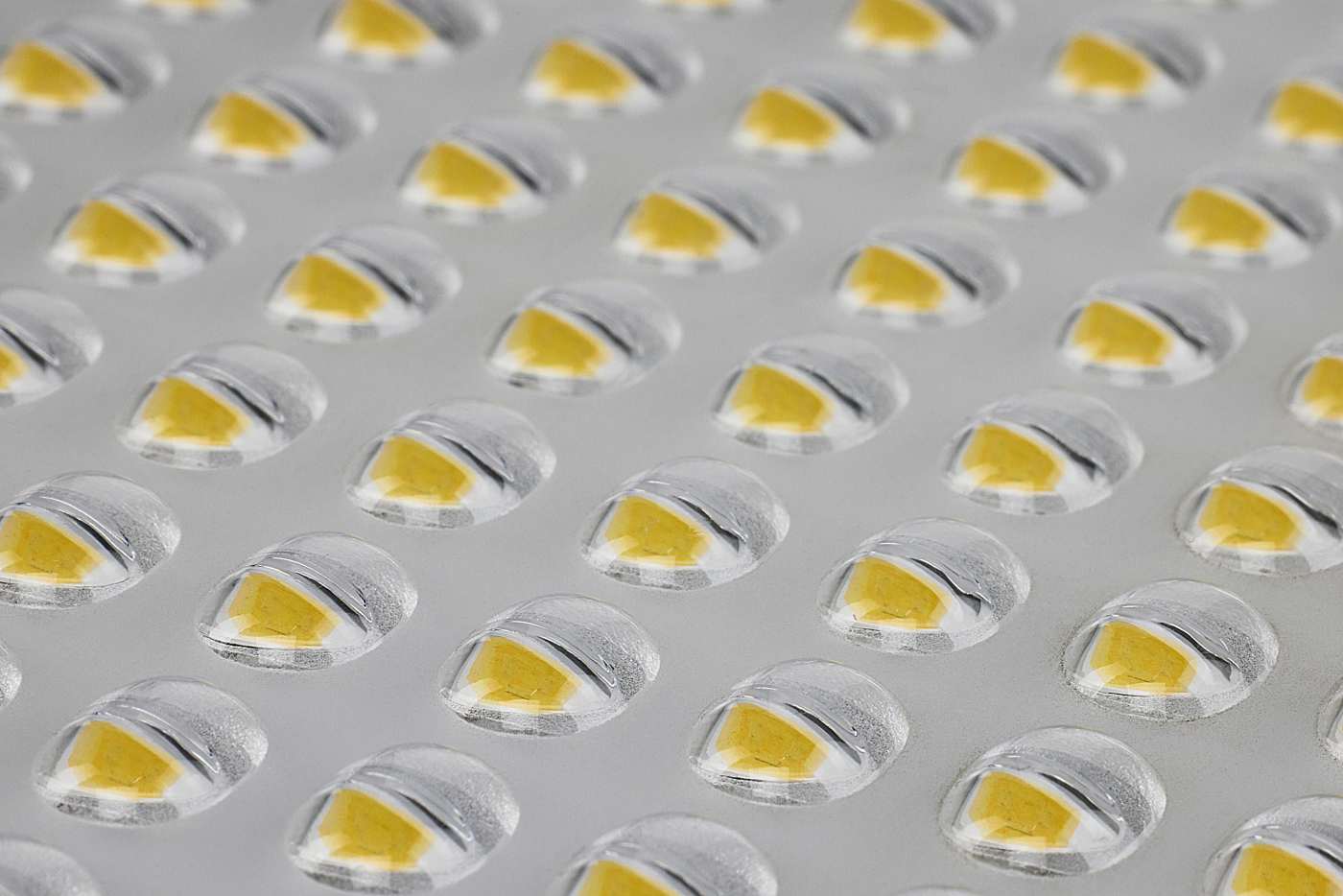

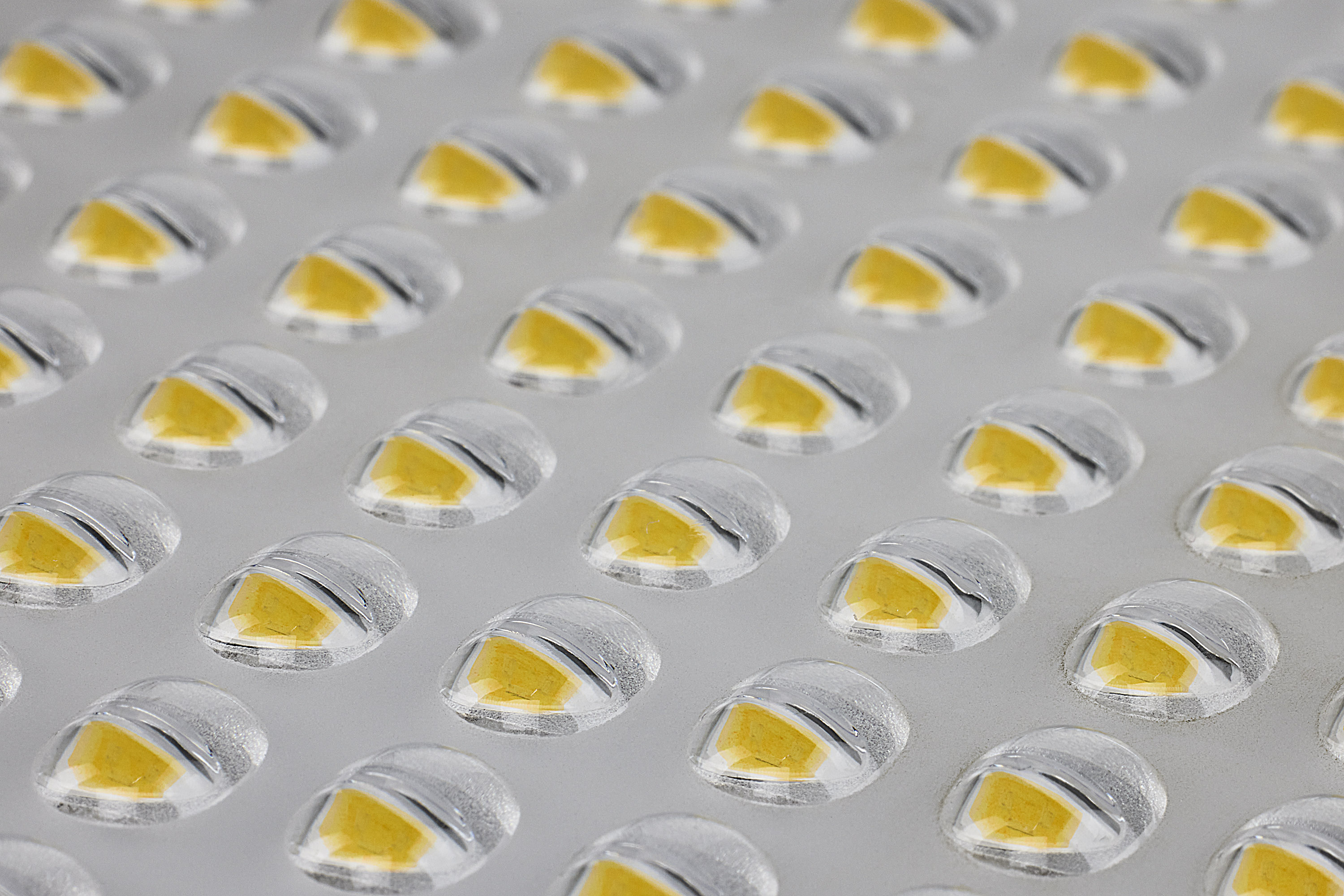

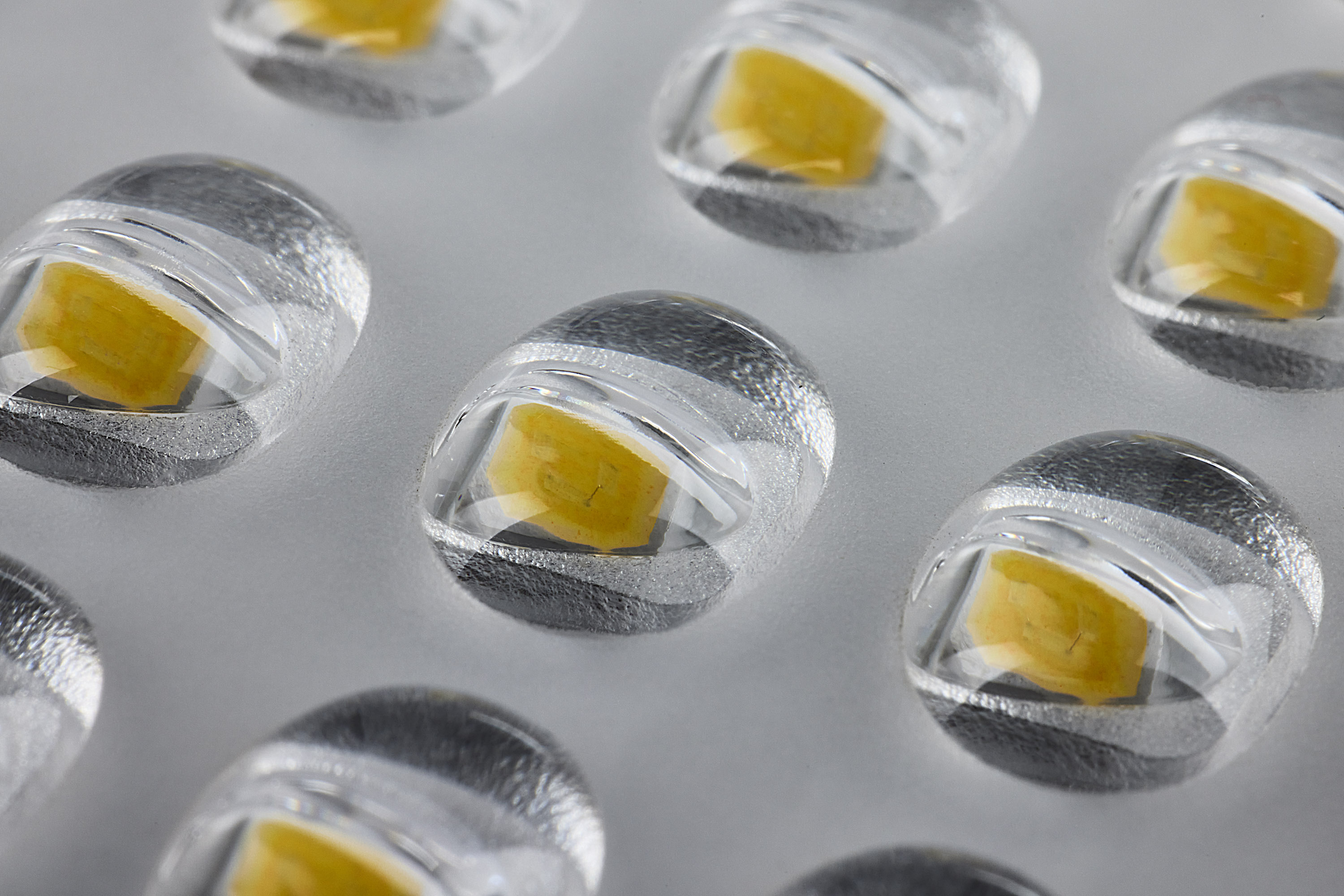

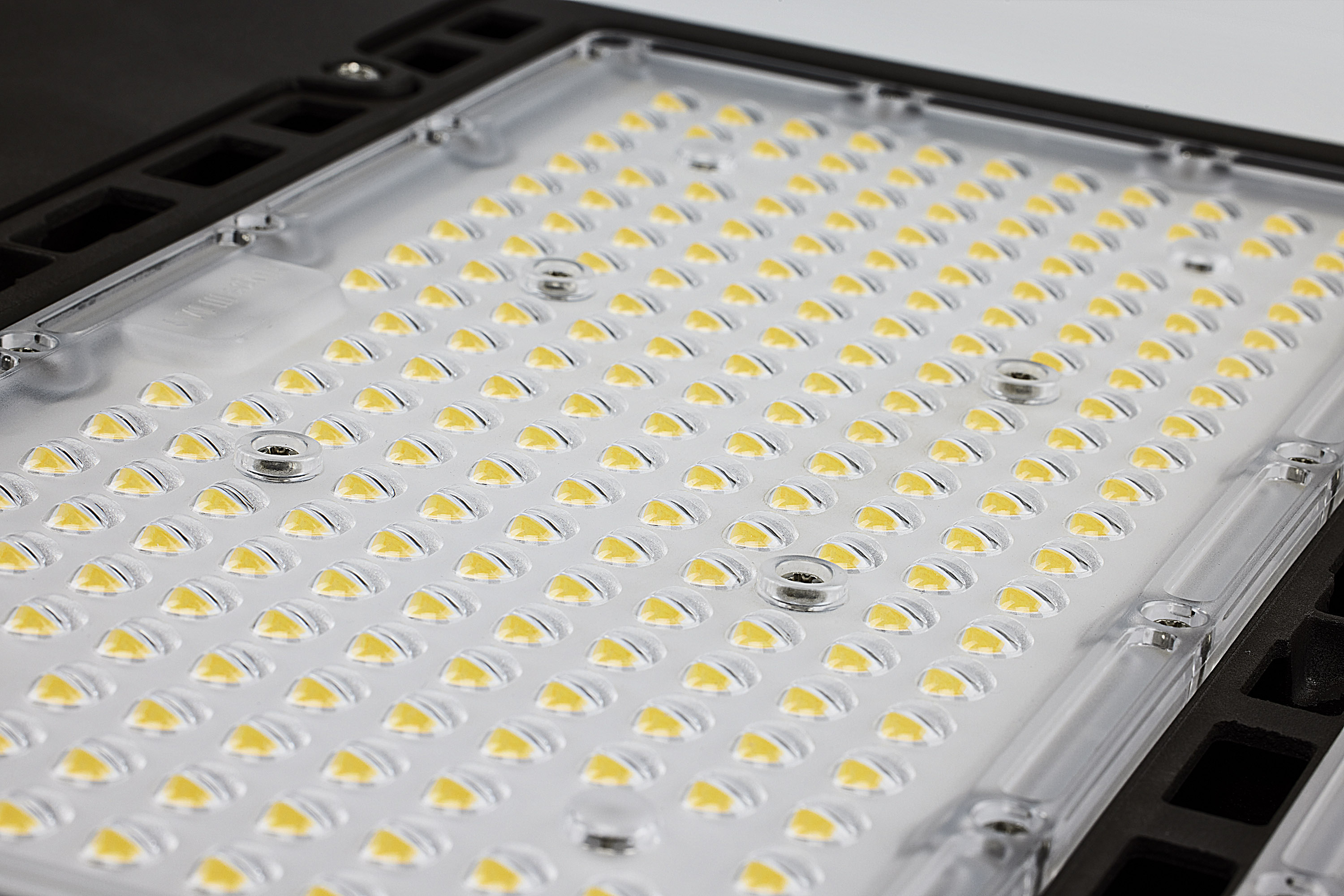

Lens MaterialPolycarbonate (PC)
Surge ProtectionBuilt-in surge protection - 4KV
Weight (lb.)12.35
IP RatingIP65
MaterialDie-Cast Aluminum

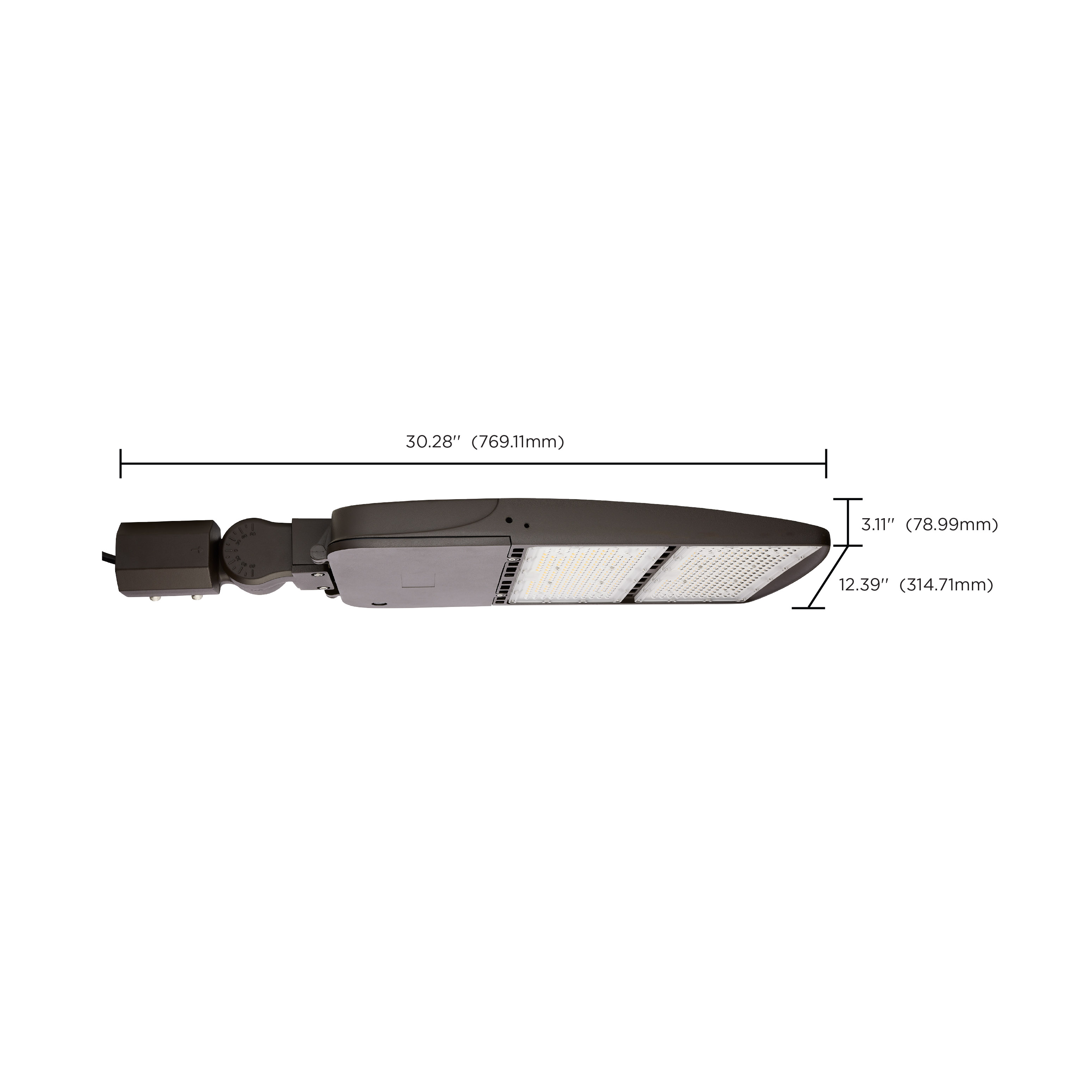

Dimensions
Height (in.)3.11
Width (in.)12.39
Length (in.)30.28
Compliance
Safety ListingcULus - Certified
Location RatingWet
Energy StarNo
DLC ApprovedYes
DLC IDS-5Y18M3
B.U.G. RatingB5-U3-G2
Dark Sky CompliantNo
CA T20 / T24 RationaleT20 Exempt - Fixtures Not Regulated
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Additional InformationPowder Coated
Specification NoteType V Light Distribution

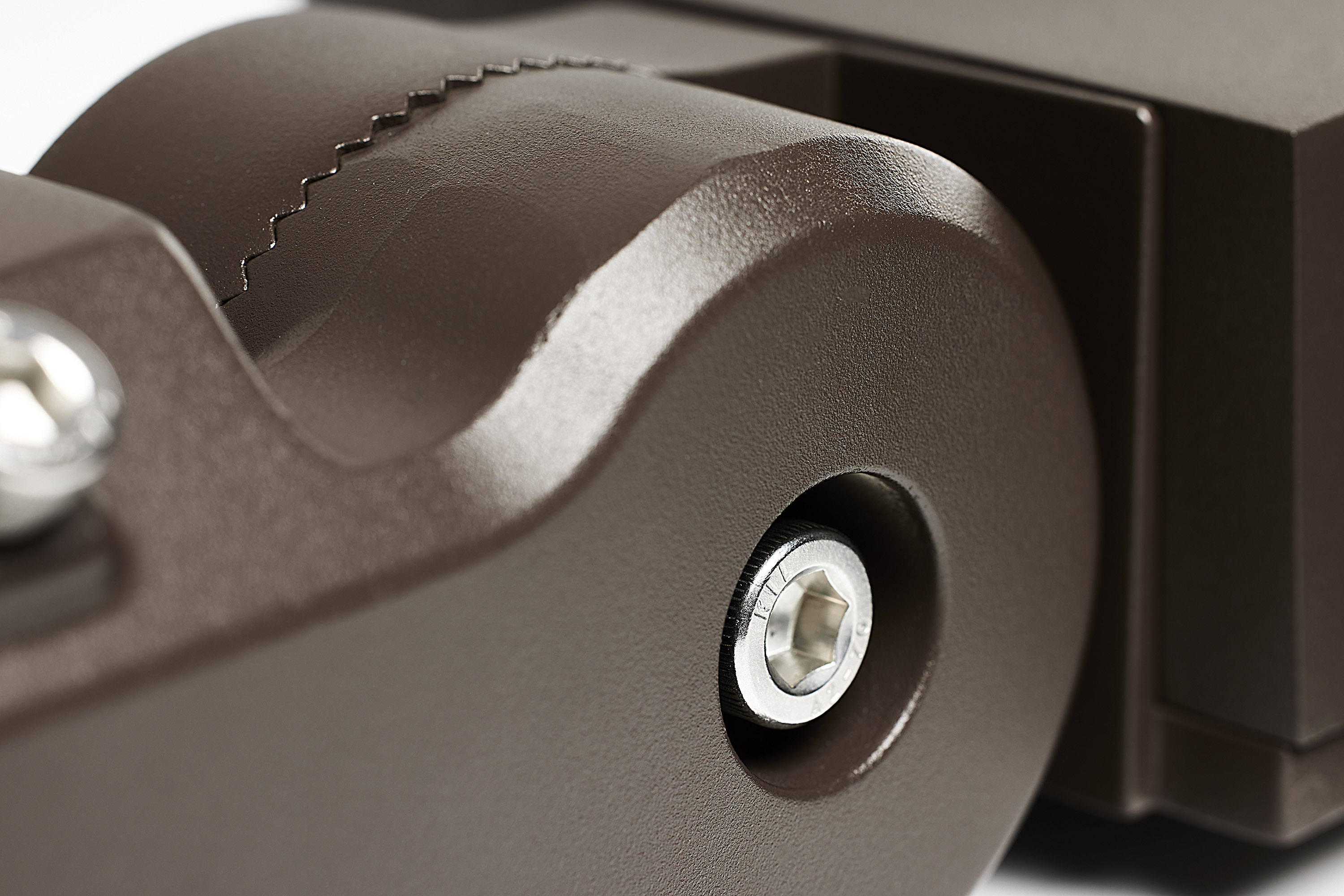

Includes2-3/8 inch Slip-fitter Mount
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923686856
Each Quantity1
Each Length (in.)32.76
Each Width (in.)14.37
Each Height (in.)5.71
Each Weight (lb.)13.00
Each Cube (CuFt.)1.5556
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923686853
Case Quantity1
Case Length (in.)32.76
Case Width (in.)14.37
Case Height (in.)5.71
Case Weight (lb.)13.00
Case Cube (CuFt.)1.5556
No compatibility links for this item.
×
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
