| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 6.54 |
| Dimmable Text | 0-10V Dimming |
| Extends (in) | 3.78 |
| Material | Die-cast Aluminum |

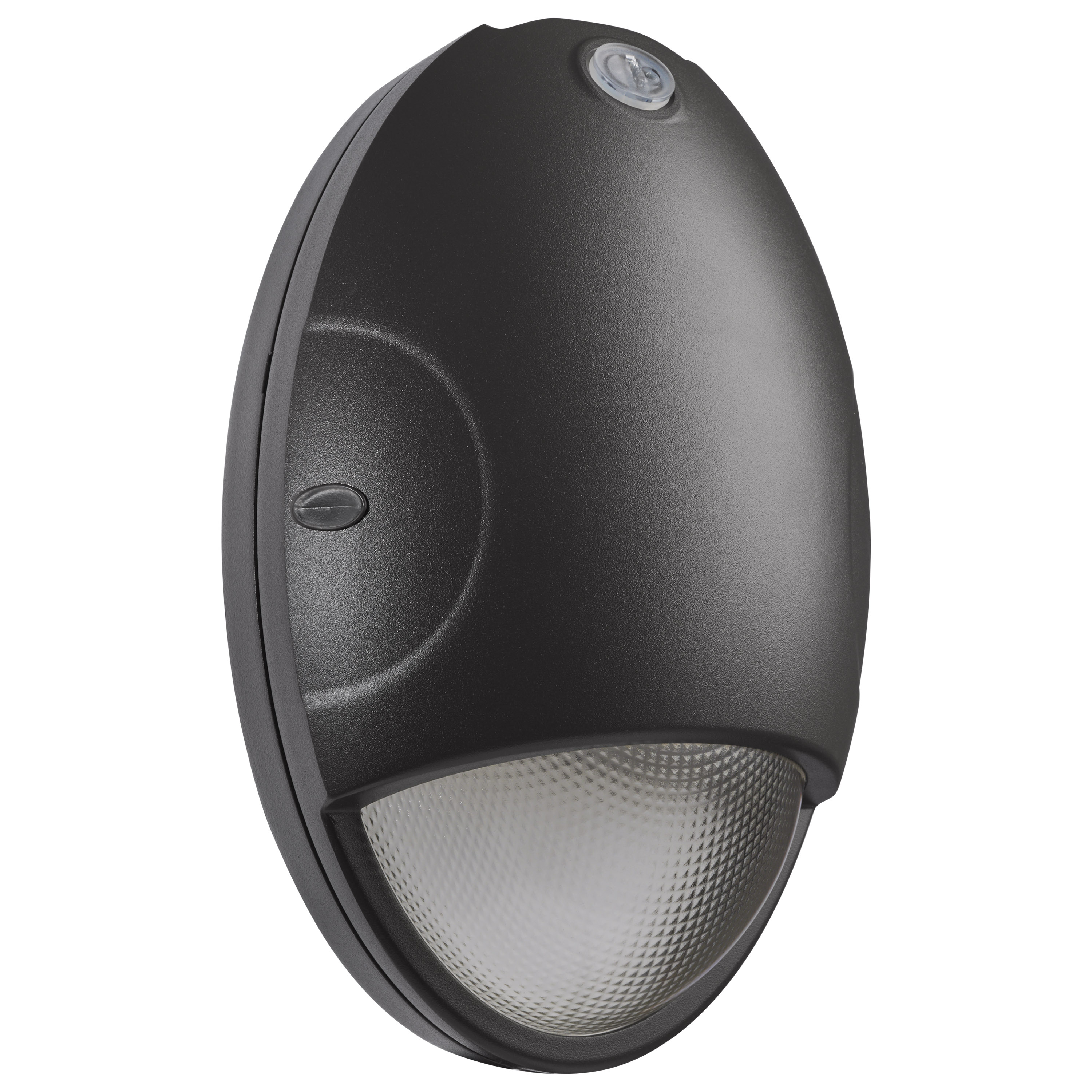

| Fixture Type | Wall Pack |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2.5KV |
| Total Harmonic Distortion | 15% |
| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | Black |
| Additional Info | Battery Mode: 5 Watts, 90 Minute Run Time |
| Amps | 0.125-0.054A |
| Has Camera | False |
| IOT Enabled | False |

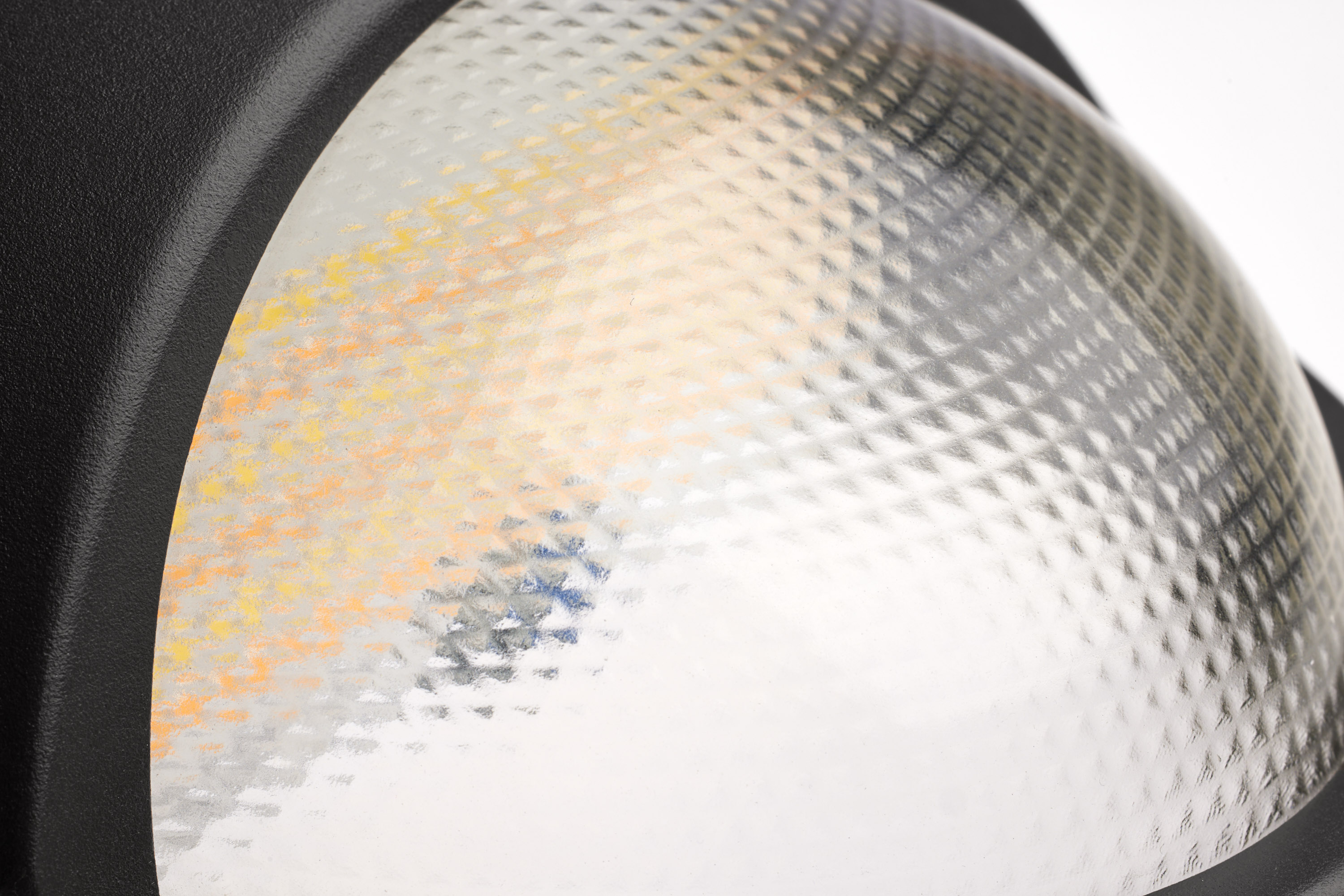

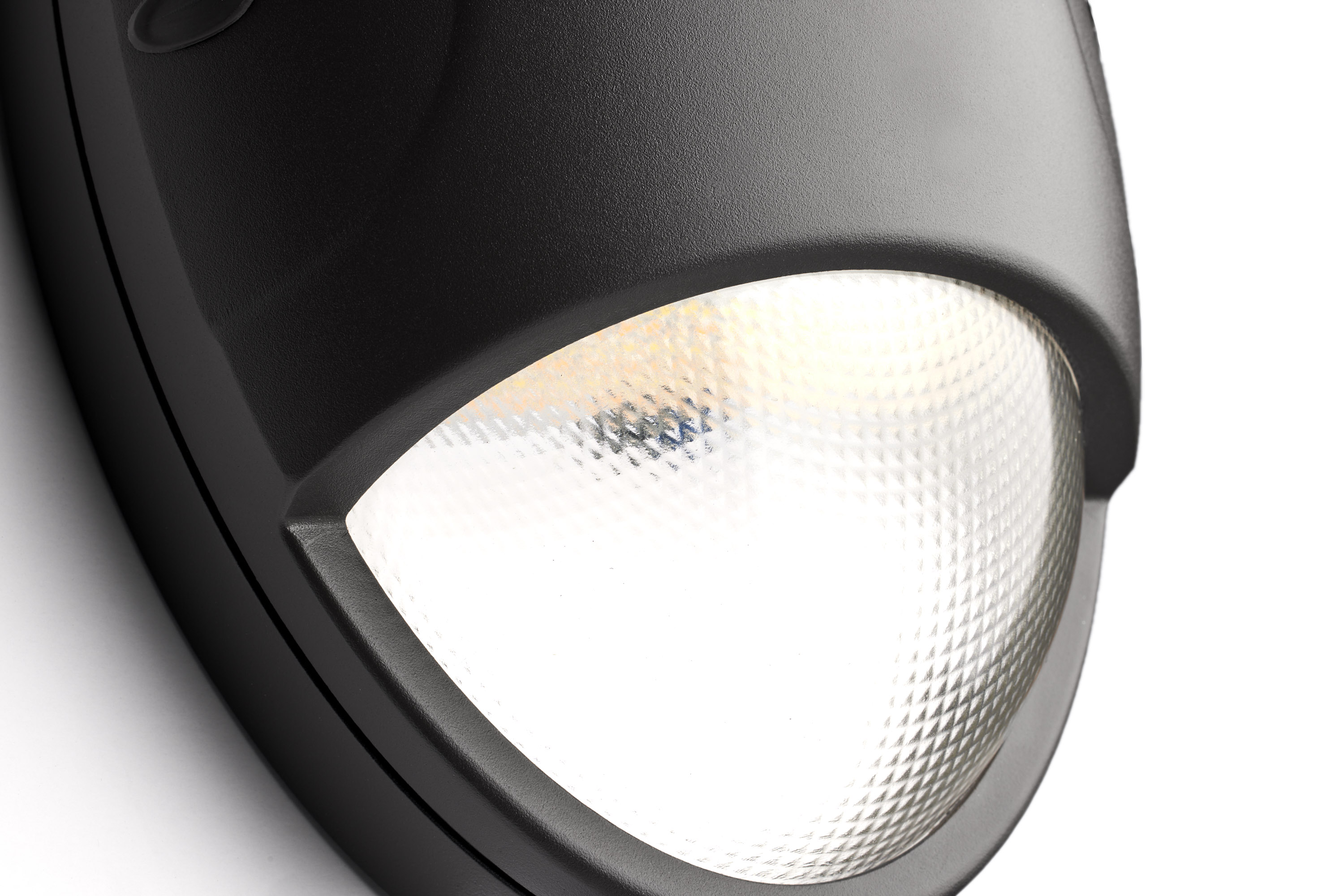

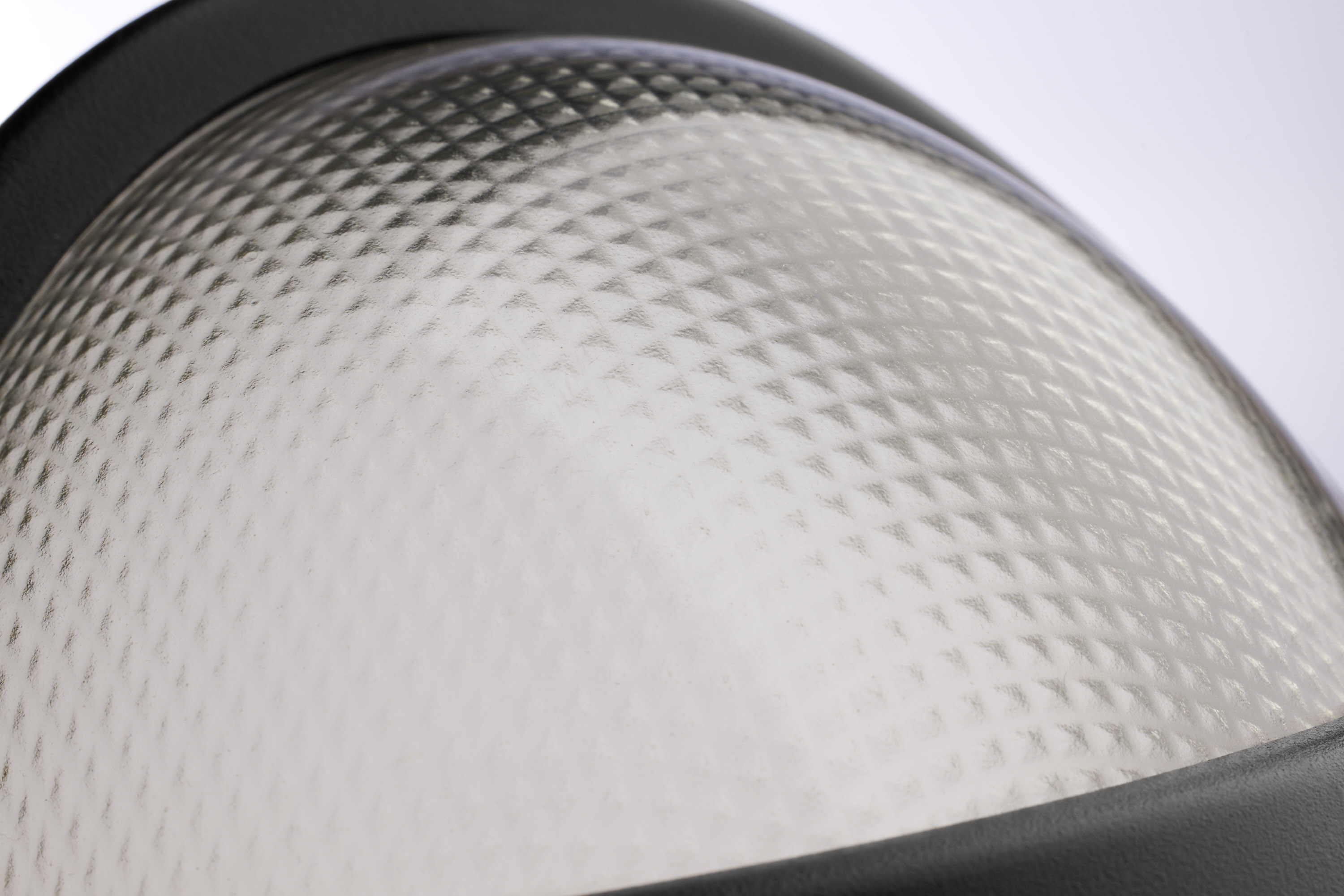

| Lens Finish | Prismatic |
| Lens Material | Polycarbonate (PC) |

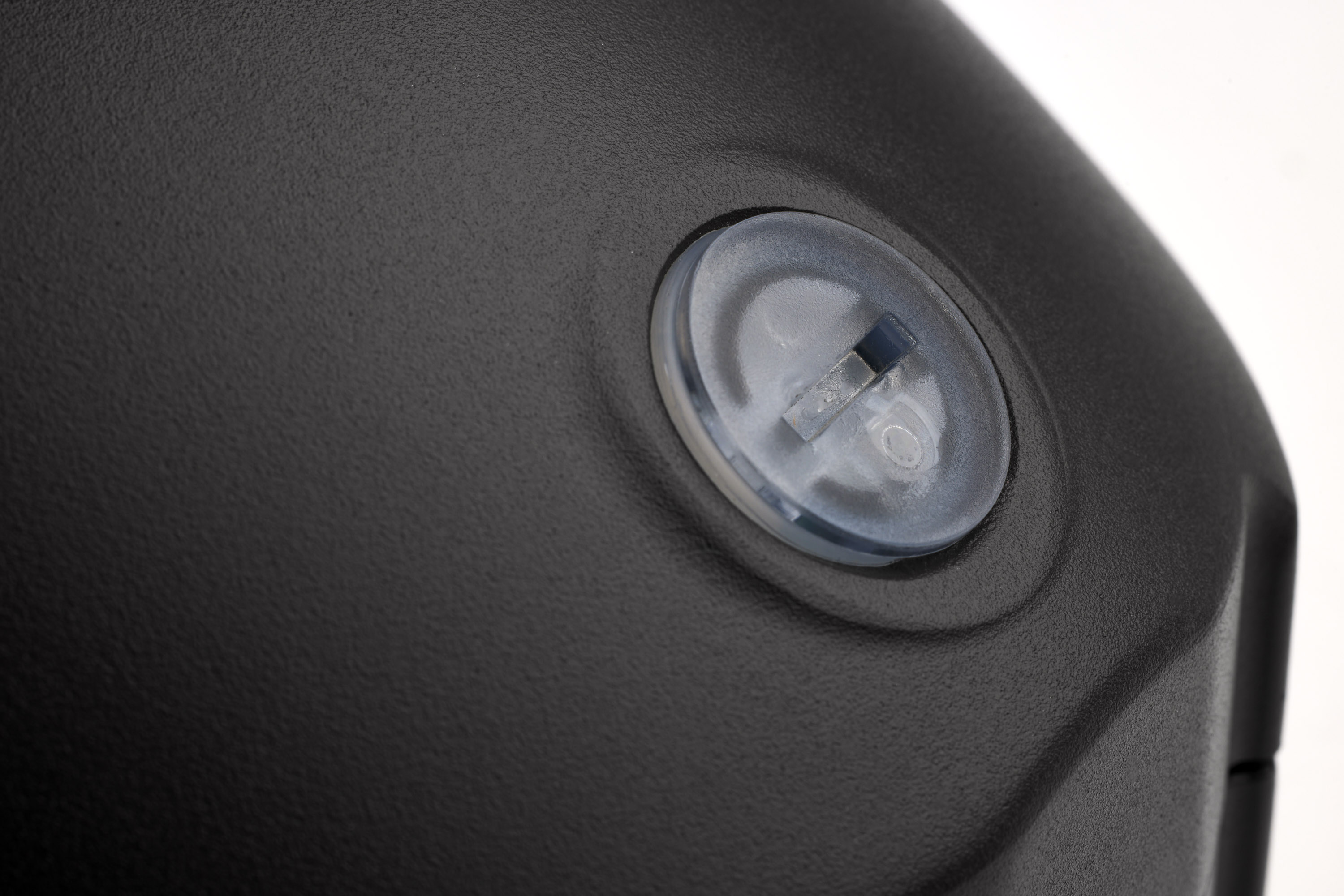

| Photo Cell | Has Photocell |
| Power Factor | 0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 75W |
| CCT (Kelvin Temp) | 3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 100 |
| Color Temp | Neutral White to Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | 0C (+32F) to +45C (+113F) |
| HID Equivalent | 60W |
| Lumens | 1740L-1814L |
| Volts | 120V-277V |
| Watts | 15W |
| Lamp Base | Integrated |
|---|---|
| Finish | BLACK |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Oval |
| Warranty | 5-Years |
|---|
| Flicker Free | False |
|---|
| ADA Compliant | True |
|---|---|
| Bug Rating | B1-U3-G1 |
| CA Regulations | T20 SBCS Listed |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | S-FW6VDL |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Yes |
| T24 Compliant | False |
| UPC | 045923650505 |
|---|---|
| Case Cube | 0.8222 |
| Case Height | 11.61 |
| Case Length | 7.28 |
| Case Quantity | 4 |
| Case UPC | 10045923650502 |
| Case Weight | 17.16 |
| Case Width | 16.81 |
| EA Cube | 0.1723 |
| EA Height | 10.83 |
| EA Length | 6.77 |
| EA Quantity | 1 |
| EA Weight | 3.9 |
| EA Width | 4.06 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Color Box |
| Web Height | 10.47 |
| Web Width | 6.54 |
