65-888

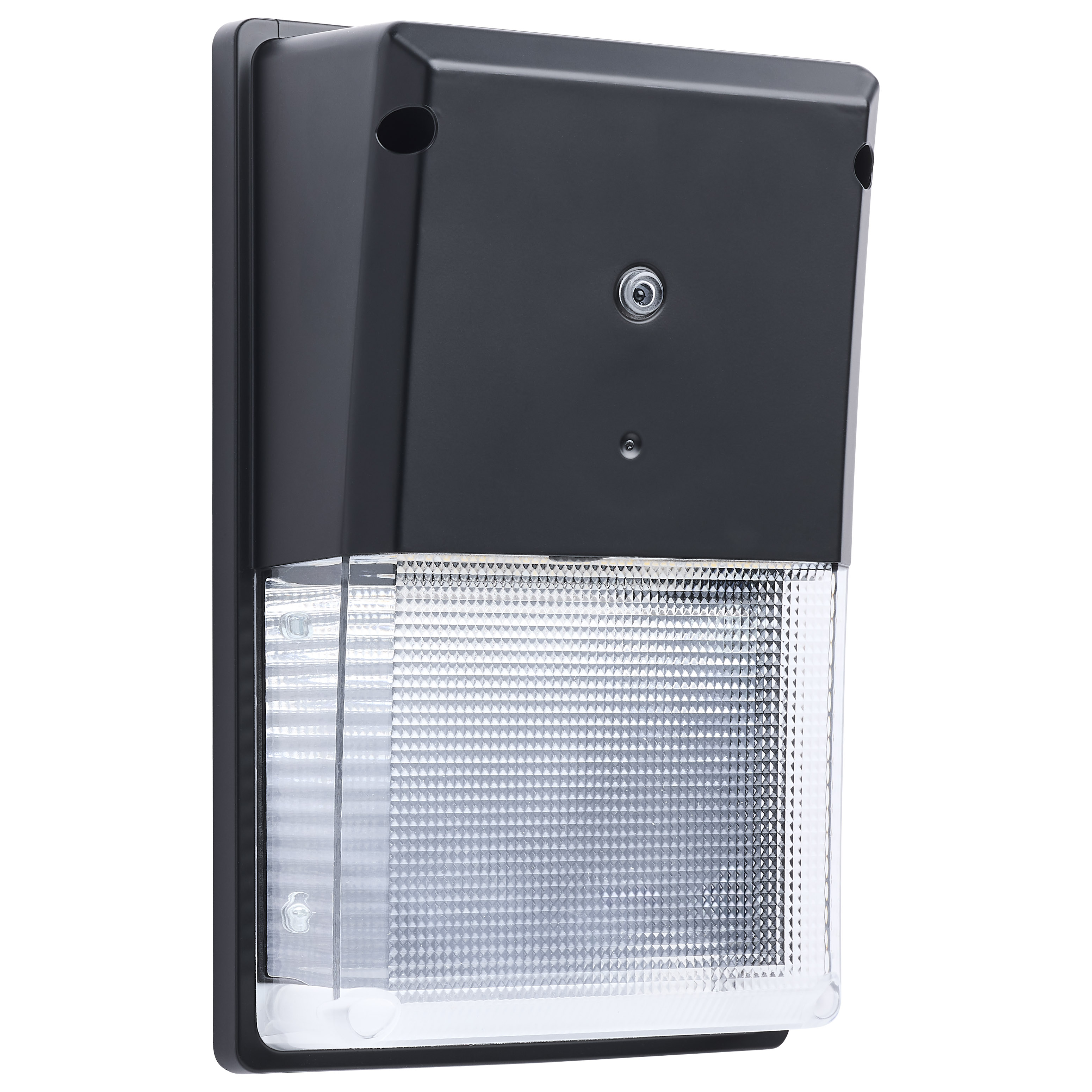

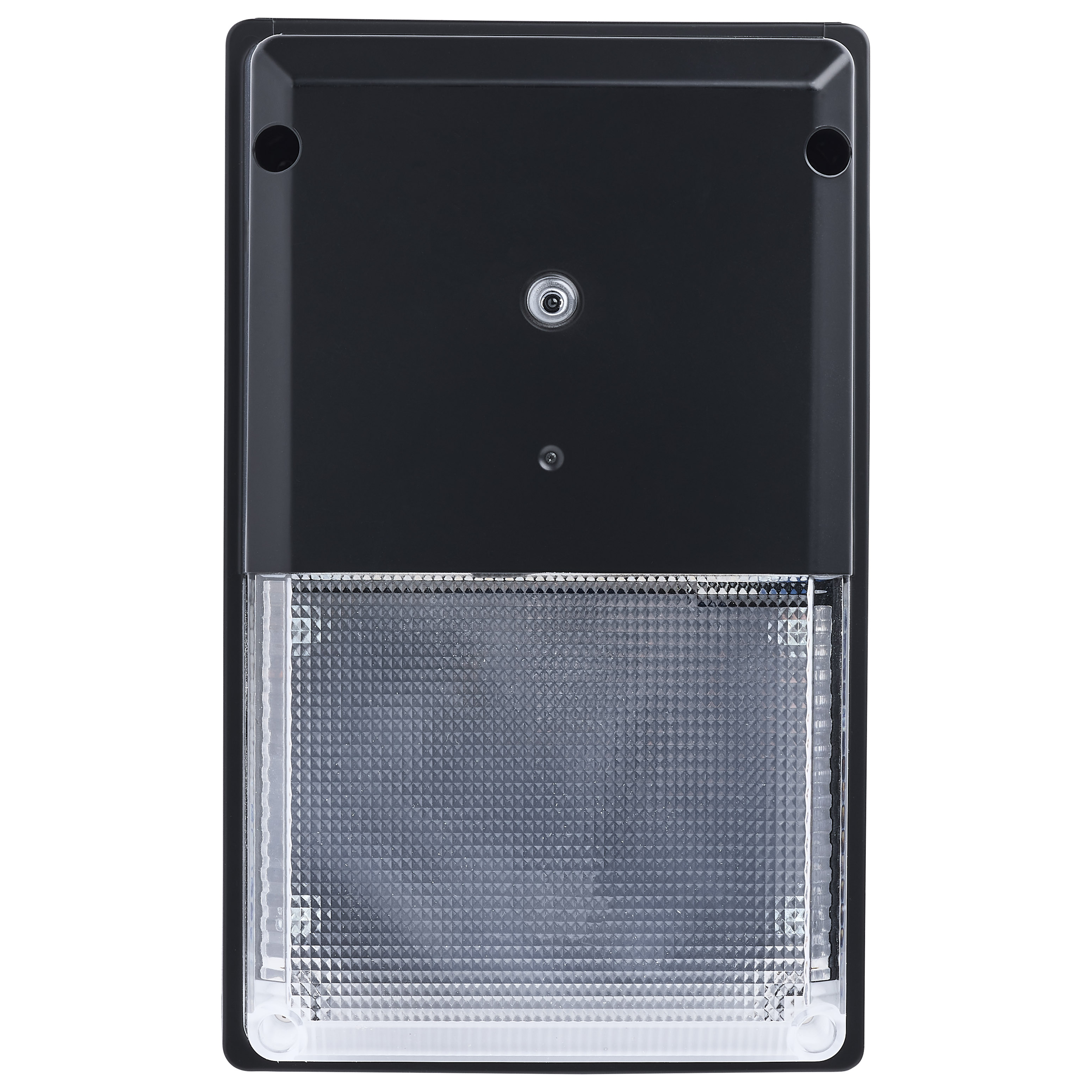

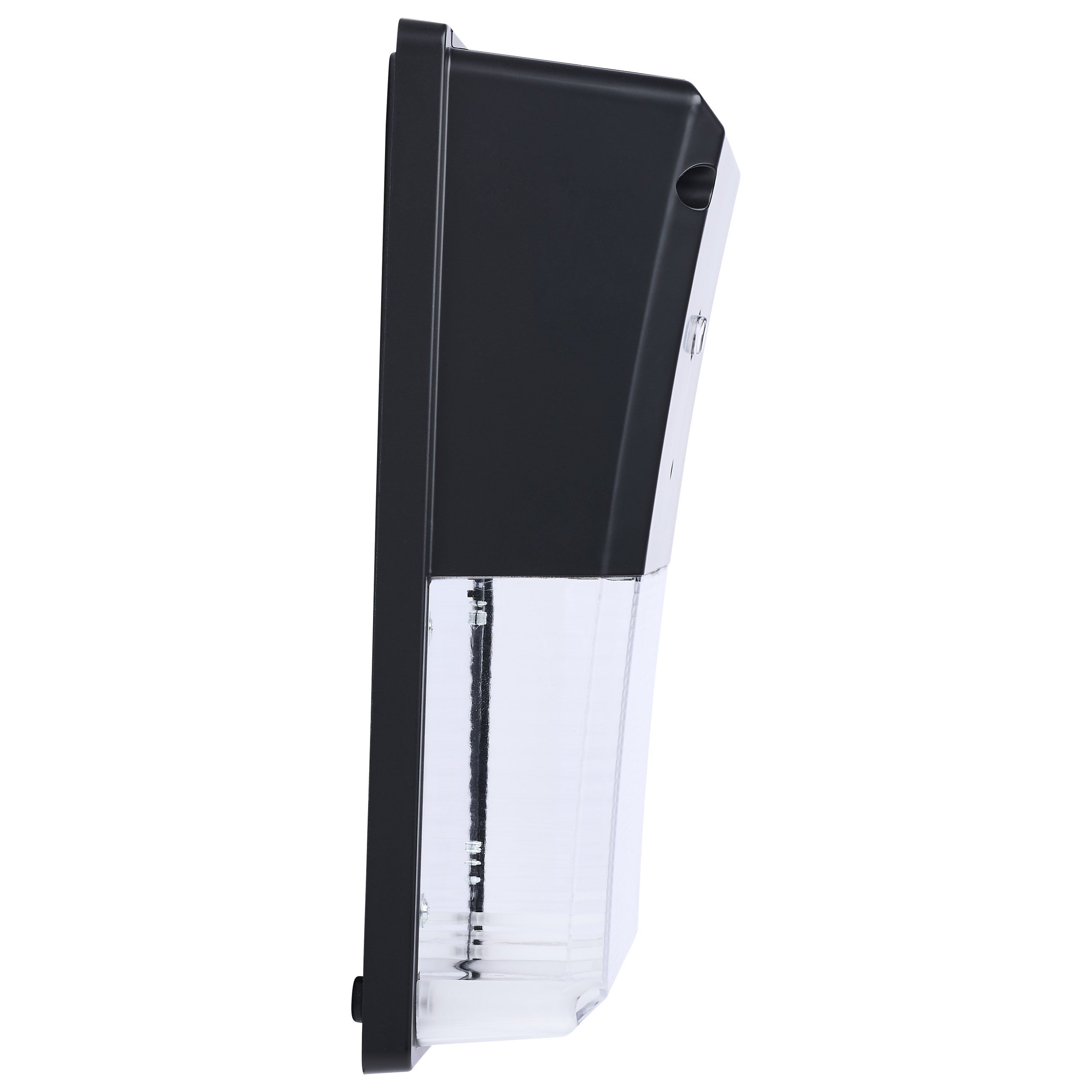

LED TURTLE SAFE SM WALL PACK

  • Turtle Safe Wall Pack
  • 20 Watt
  • 4000K CCT
  • Black Finish
  • Amber Light
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-888 Specifications65-888 InstructionsSN1775 LED Mini Wall Pack Turtle Safe FINAL
Tools
Lighting Layout Analysis For 65-888
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Turtle Safe Wall Pack; 20 Watt; 4000K CCT; Black Finish; Amber Light

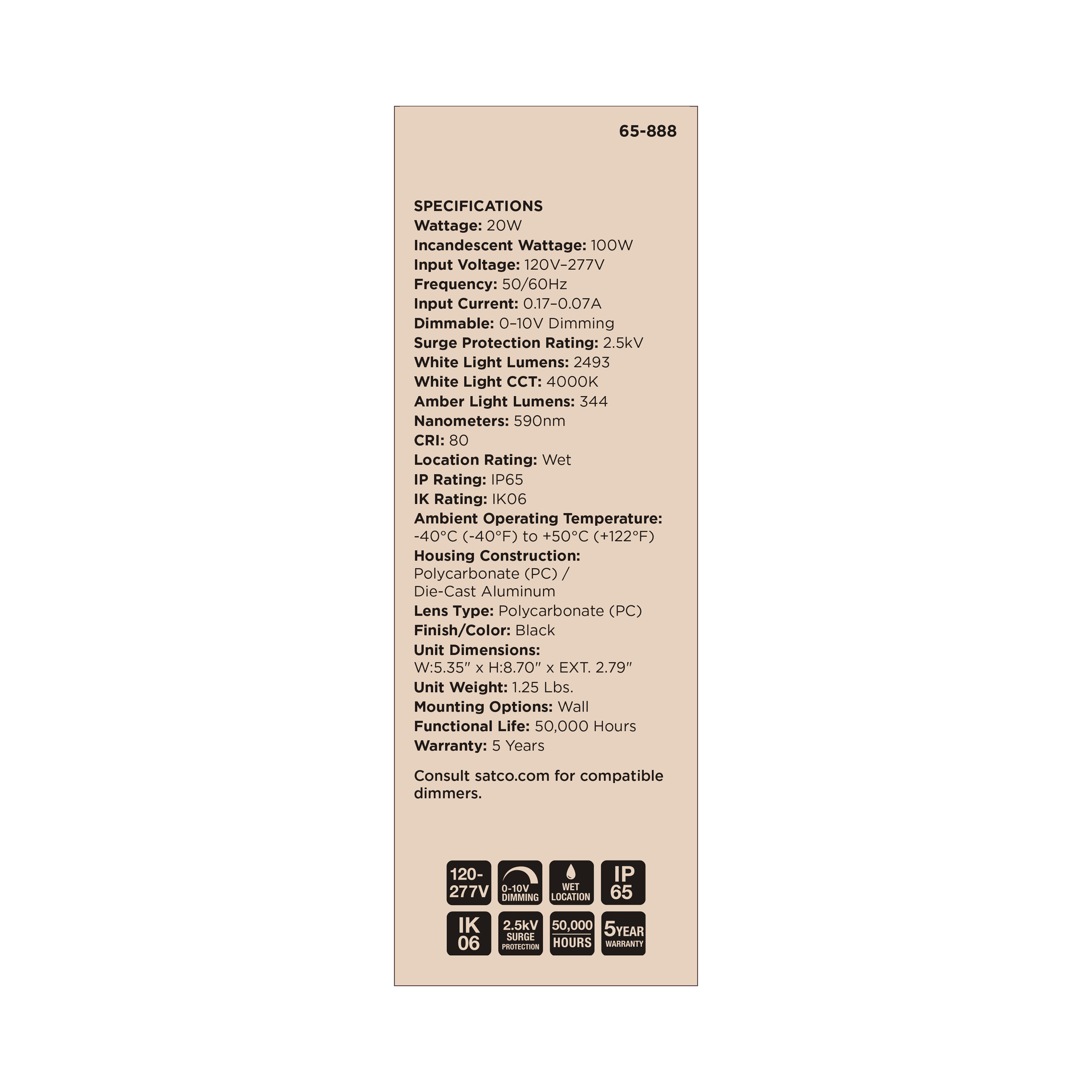

Products Specs
General
CompanySATCO

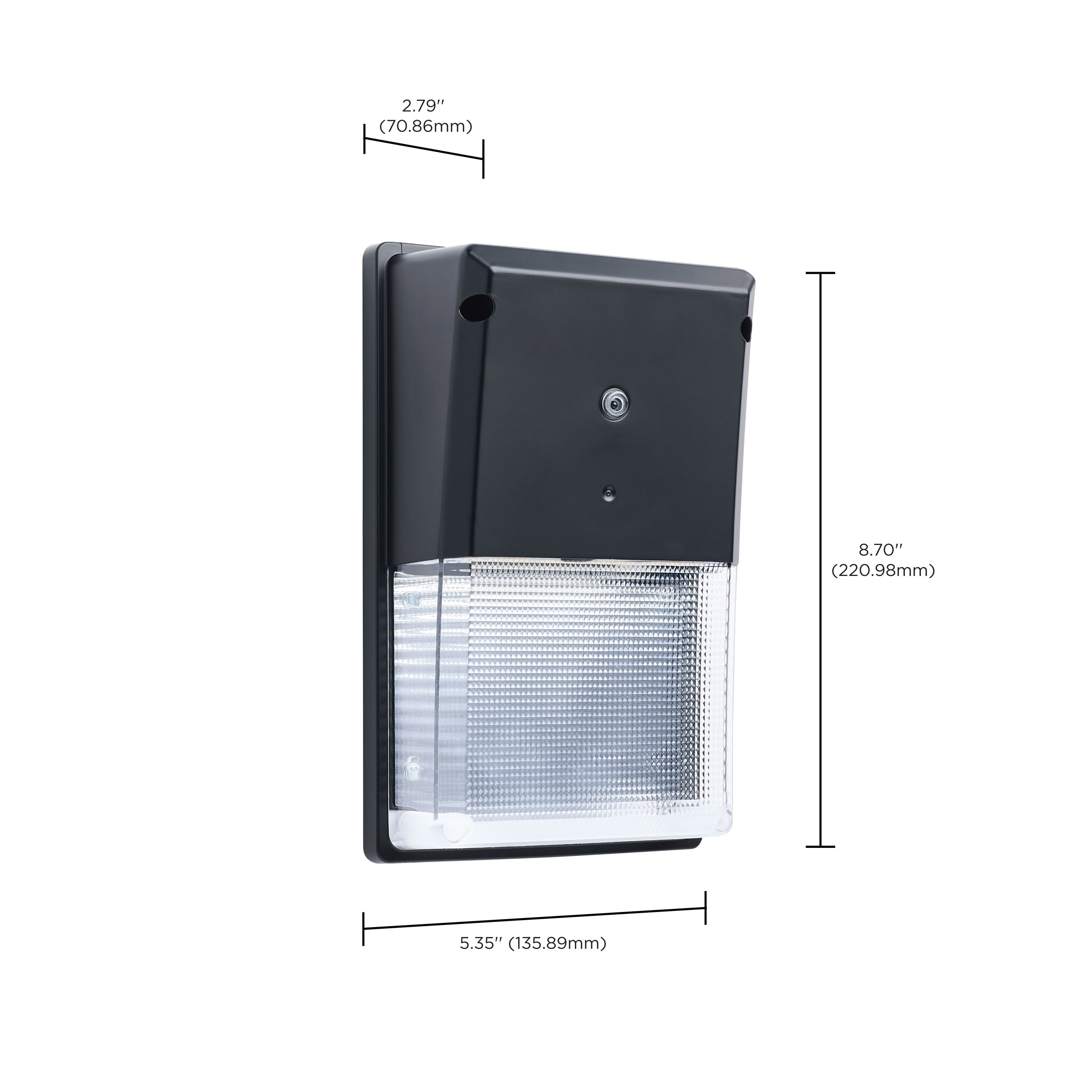

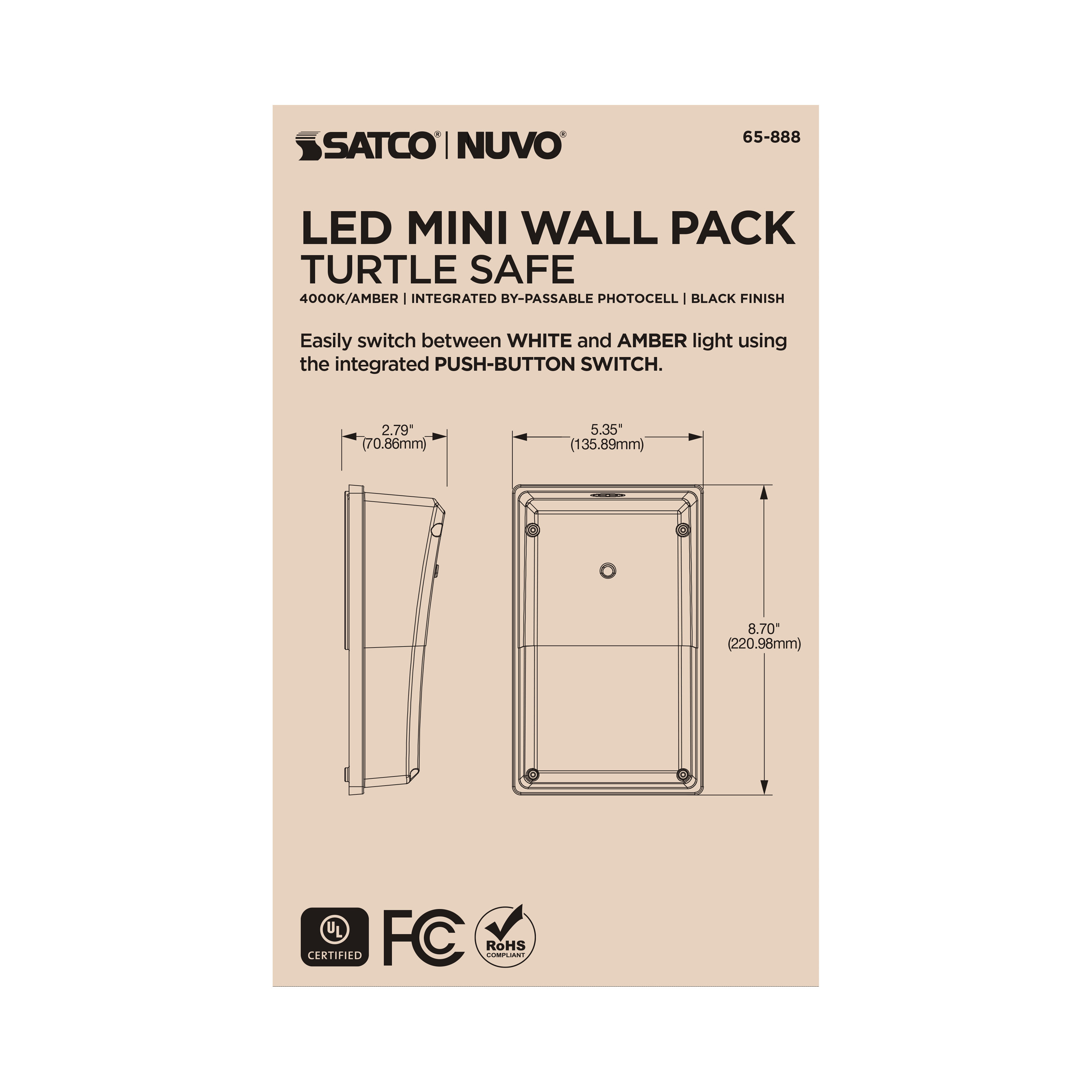

Mounting Height8.7
Mounting Width5.35
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only

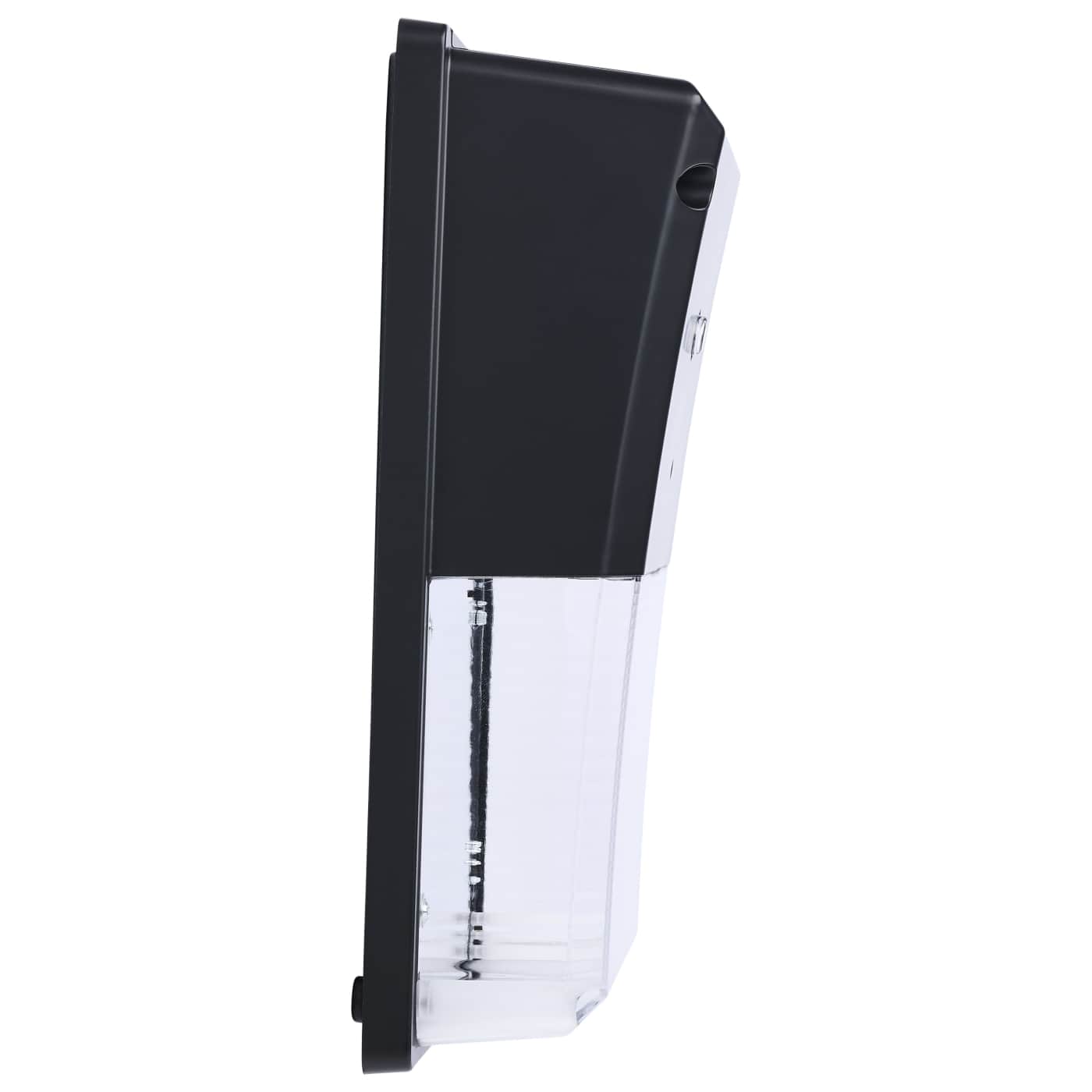

Extends (in)2.79
MaterialDie-Cast Aluminum / PC
Fixture TypeWall Pack
Product NotesAmber Color: 344 Lumens/18 LPW; Stainless Steel Hardware; Amber Light: 590 nanometers; Amber Light: 1500K
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion>20%
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyBlack
Amps0.167-0.072A
Has CameraFalse
IOT EnabledFalse
Lens FinishPrismatic
Lens MaterialPolycarbonate (PC)

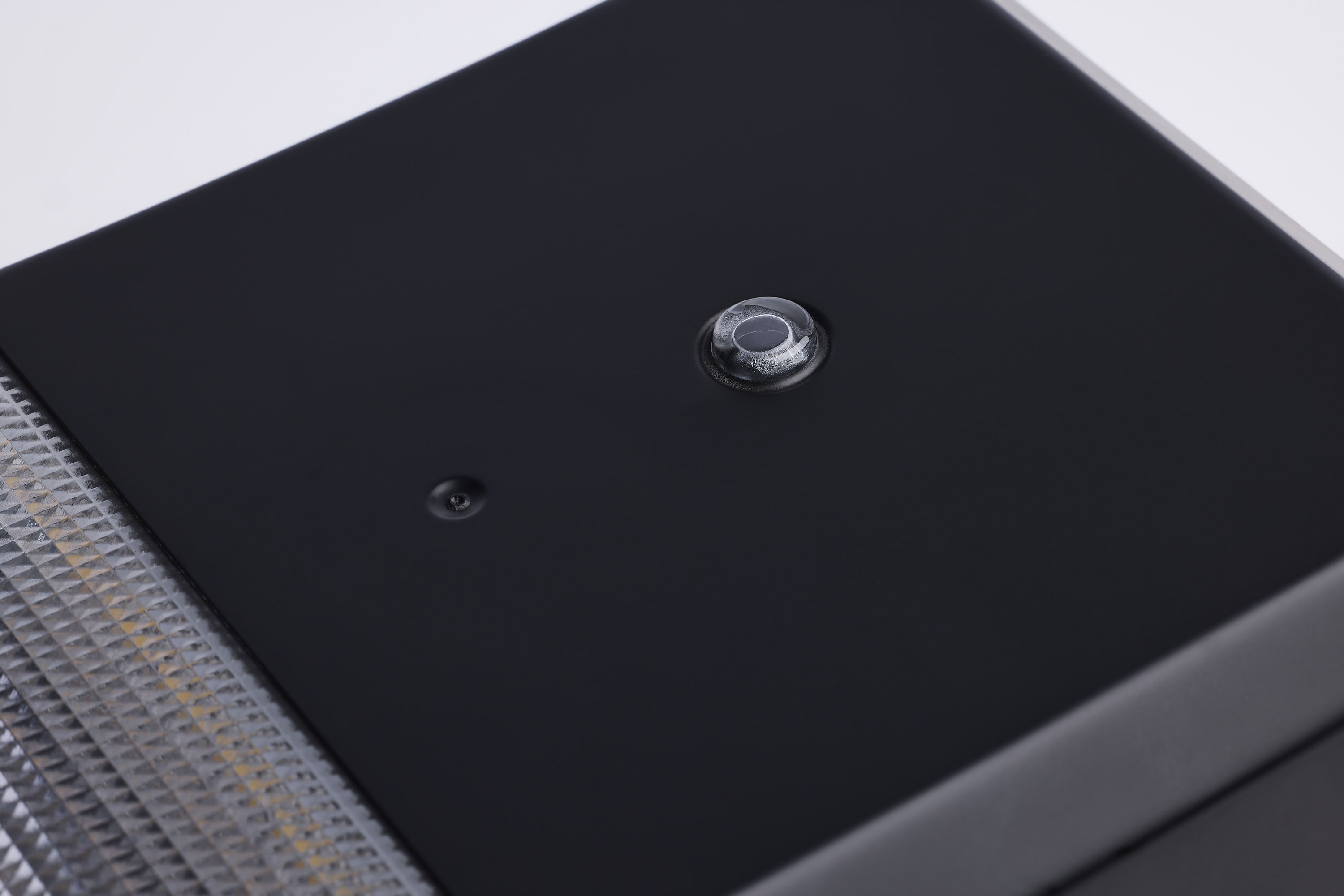

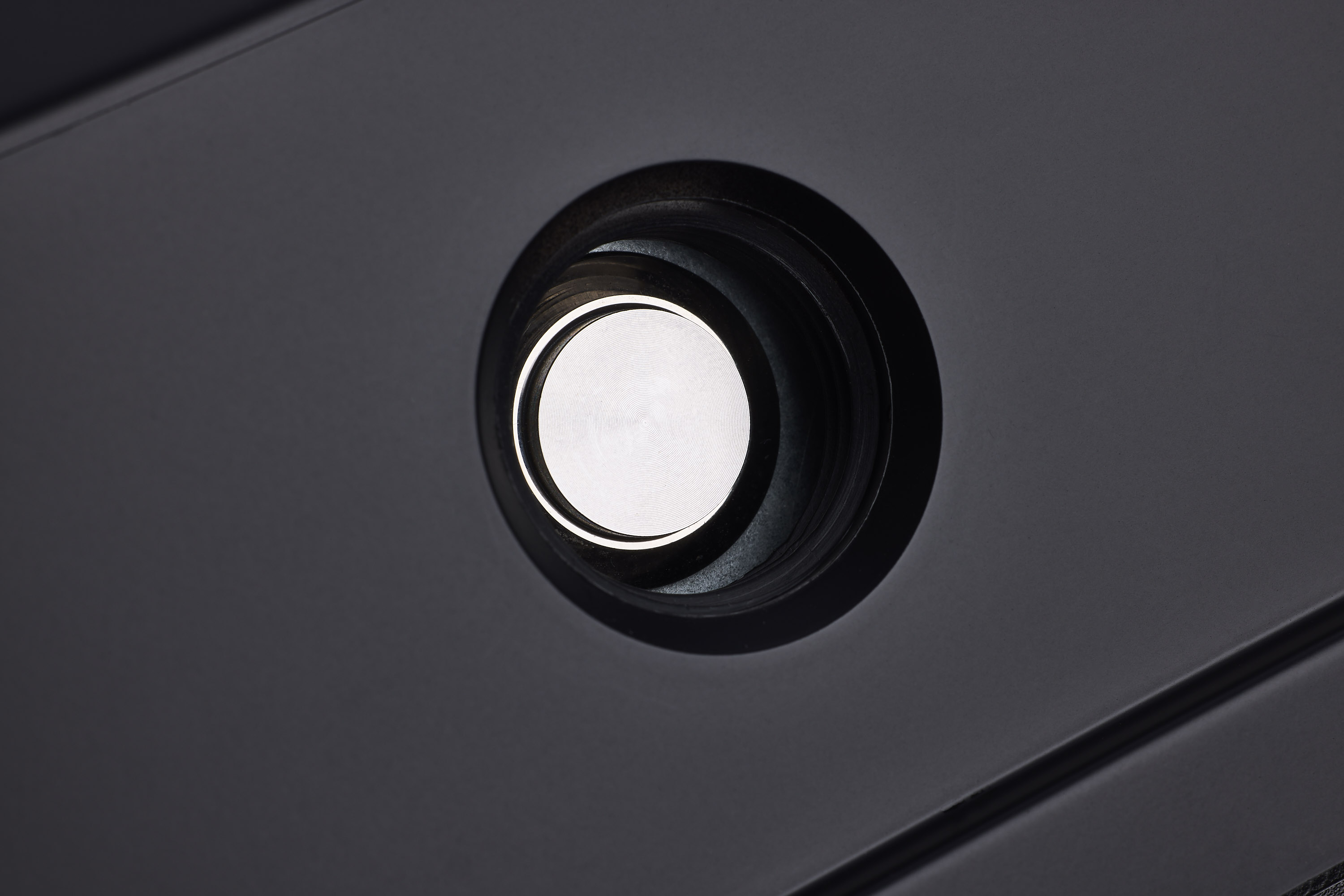

Photo CellHas Photocell
Power Factor0.99
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +50C (+122F)
Lumens2493L
Volts120V-277V
Watts20W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Additional Info
Warranty5-Years
Documents
Compliance
ADA CompliantTrue
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
Dark Sky RatedFalse
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextLawful for sale
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923404566
Case Cube1.1117
Case Height9.84
Case Length16.53
Case Quantity10
Case UPC10045923404563
Case Weight15.62
Case Width11.81
EA Cube0.0928
EA Height9.06
EA Length5.62
EA Quantity1
EA Weight1.39
EA Width3.15
Inner Cube0.0
Pack TypeBox
Web Height8.7
Web Width5.35
