65-987

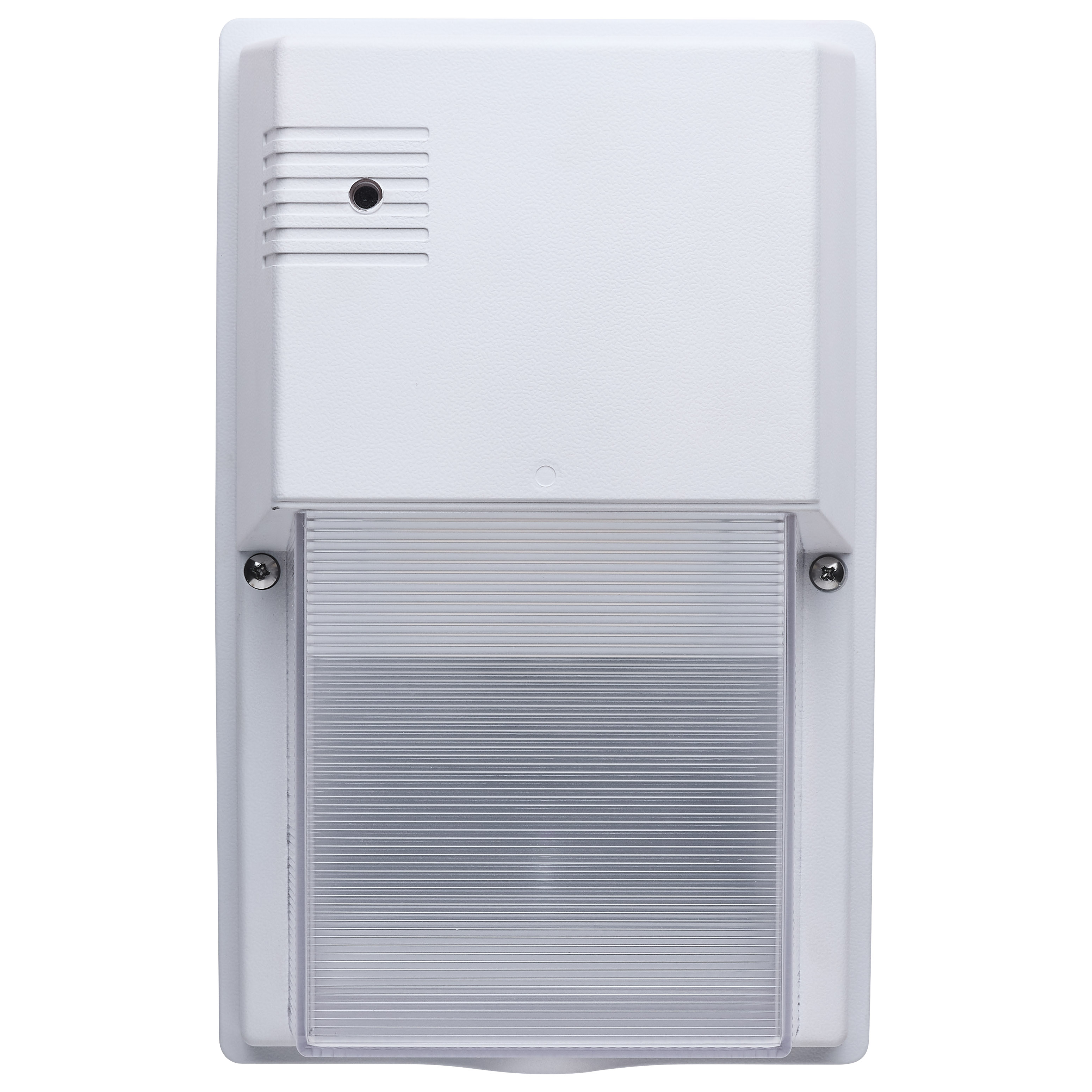

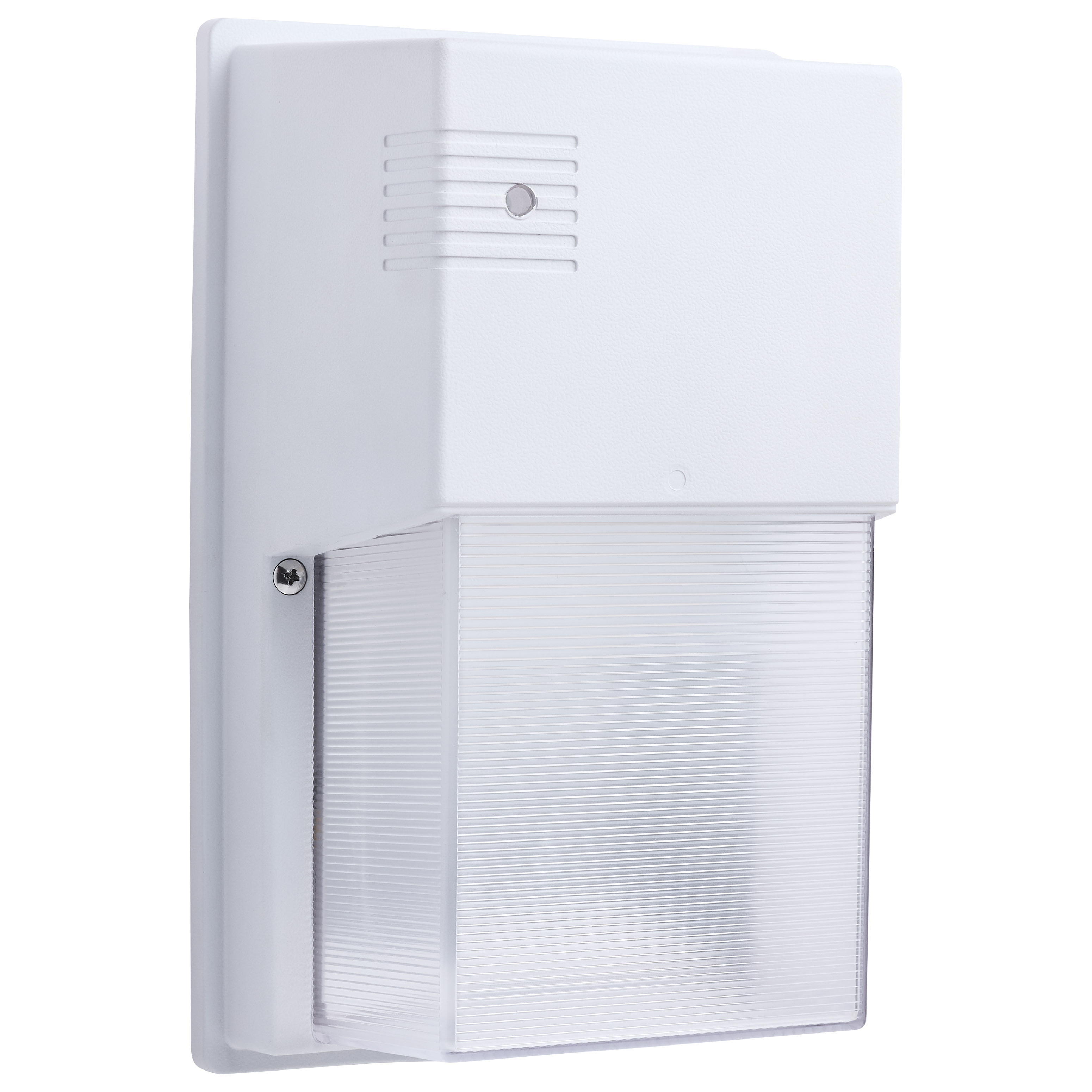

LED ENTRYWAY WALL PACK

  • LED Entryway Wall Pack

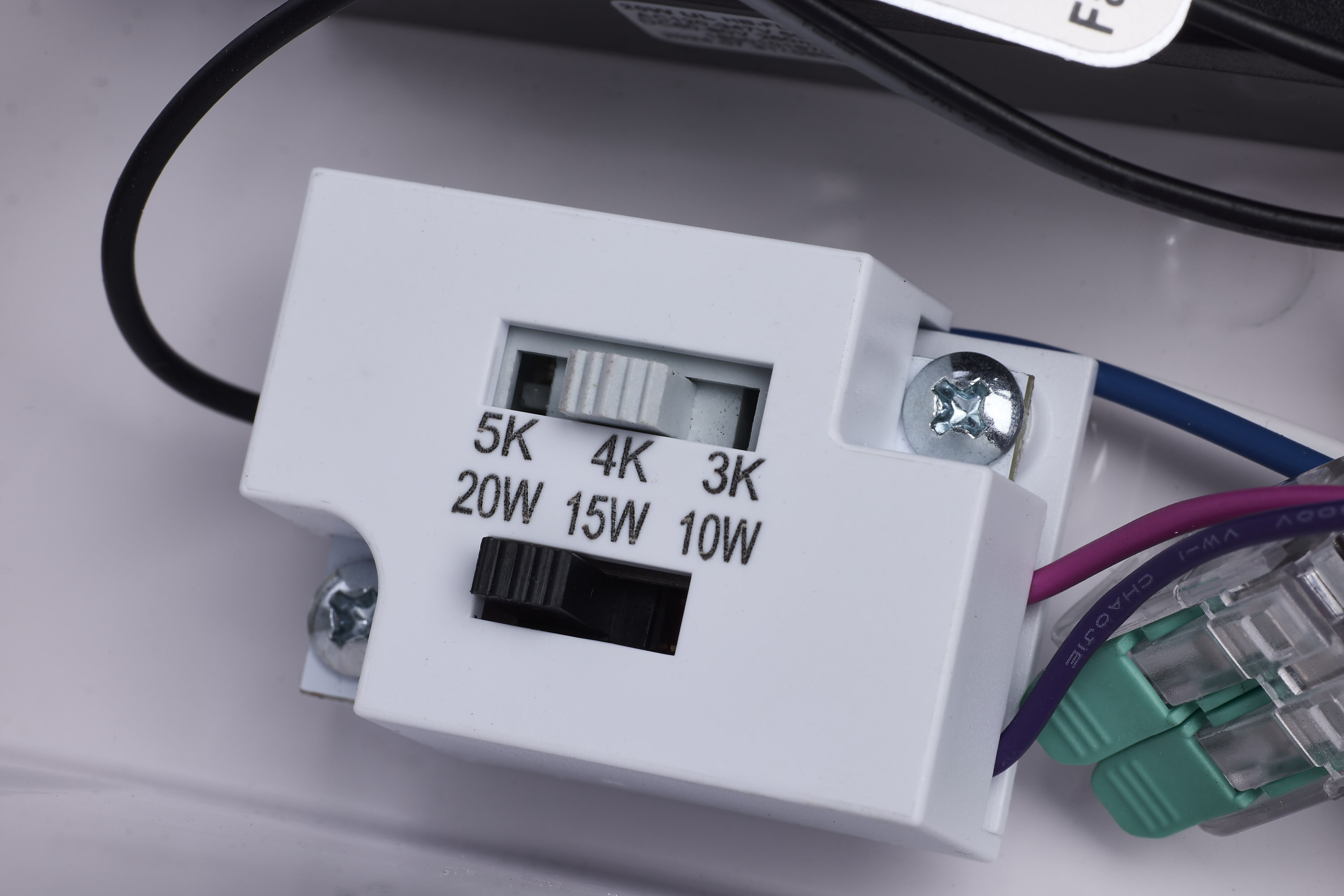

  • 10/15/20 Wattage Selectable
  • 30K/40K/50K CCT Selectable
  • White Finish
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-987 Specifications65-987 InstructionsSN1751 LED Entryway Wall Pks 12-30-24
Tools
Lighting Layout Analysis For 65-987
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
LED Entryway Wall Pack; 10/15/20 Wattage Selectable; 30K/40K/50K CCT Selectable; White Finish

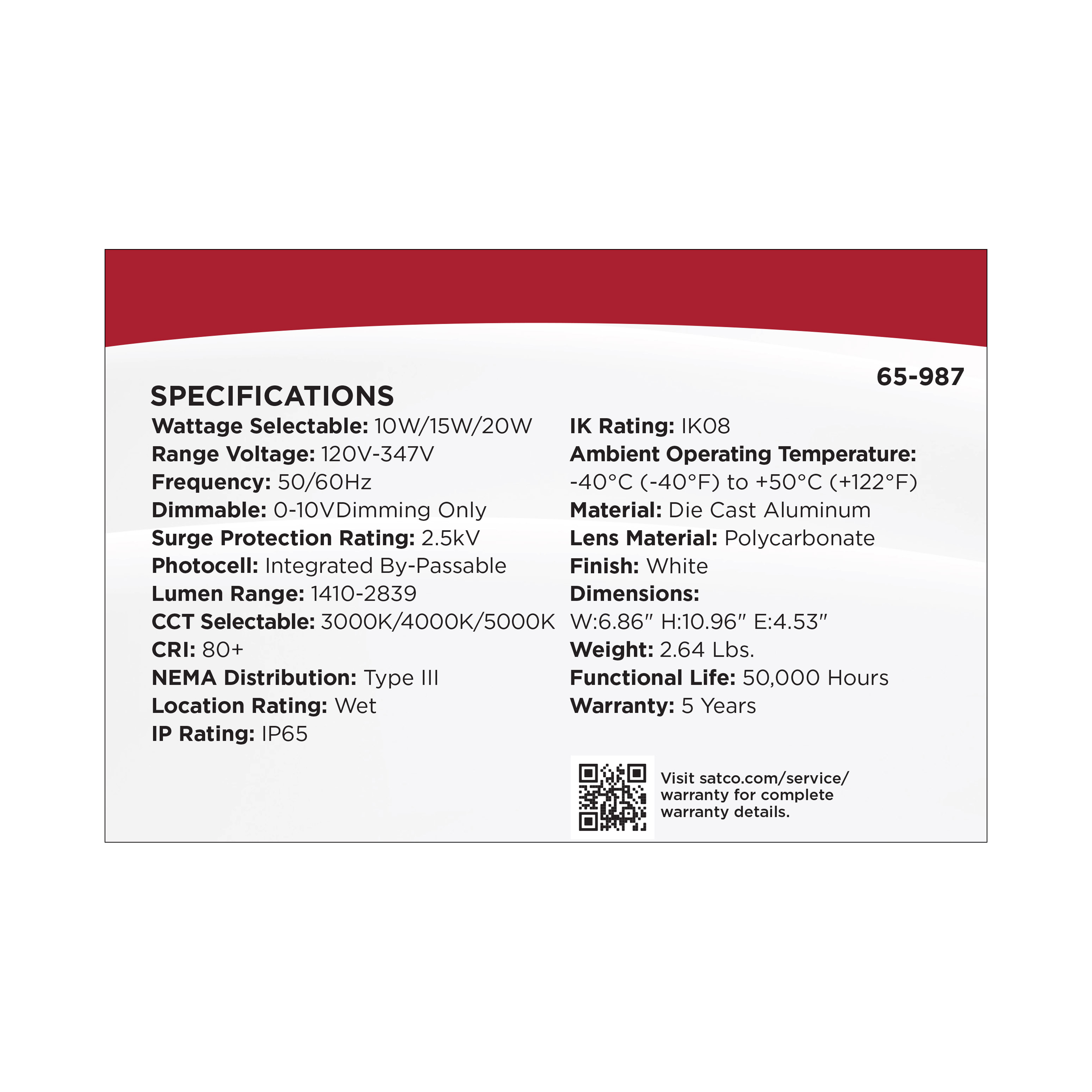

Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V Dimming Only

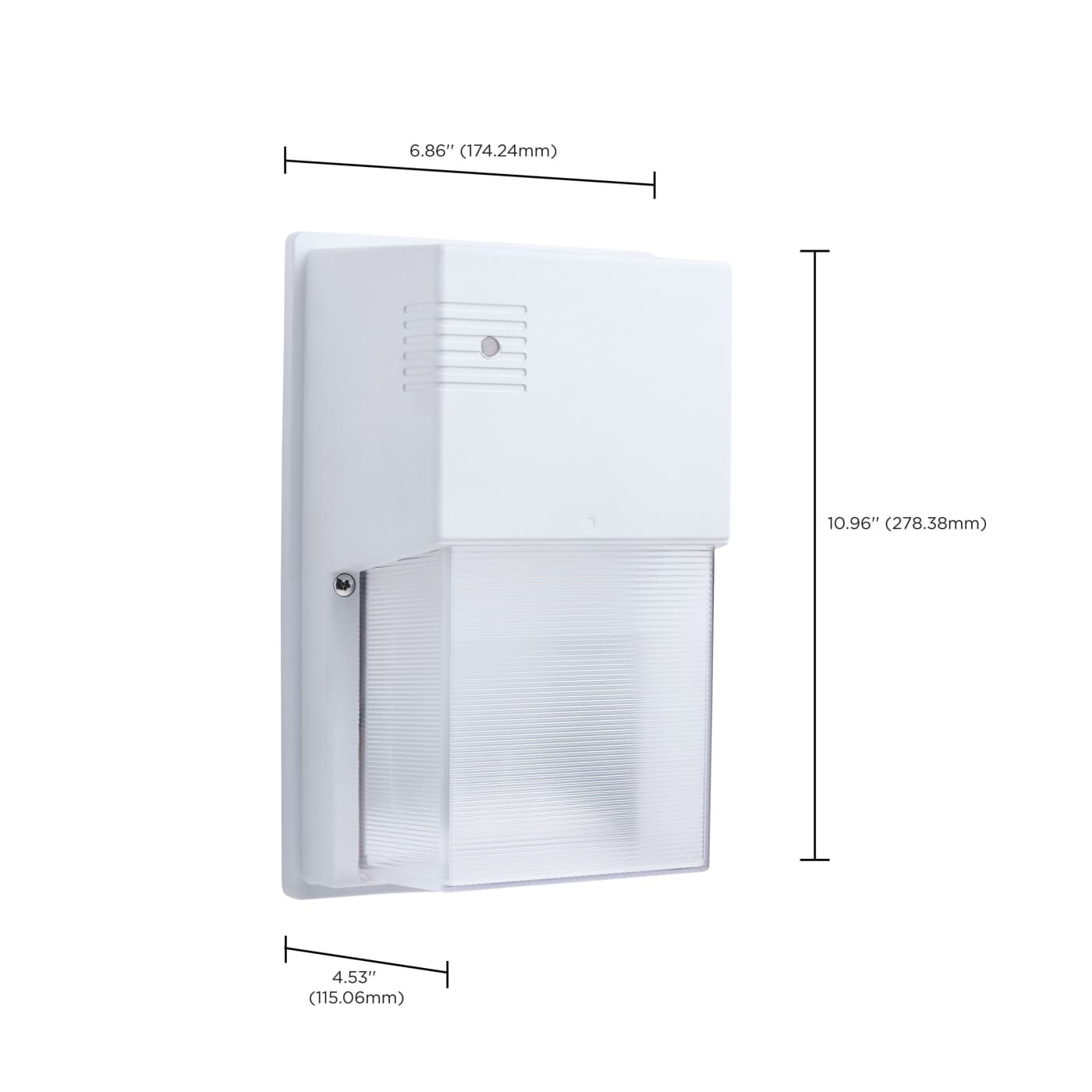

Extends (in)4.53
MaterialDie-cast Aluminum
Fixture TypeWall Pack
Product NotesPhotocell does not function in artificial light
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Amps0.083-0.029/0.125-0.043/0.167-0.058A
Has CameraFalse
IOT EnabledFalse

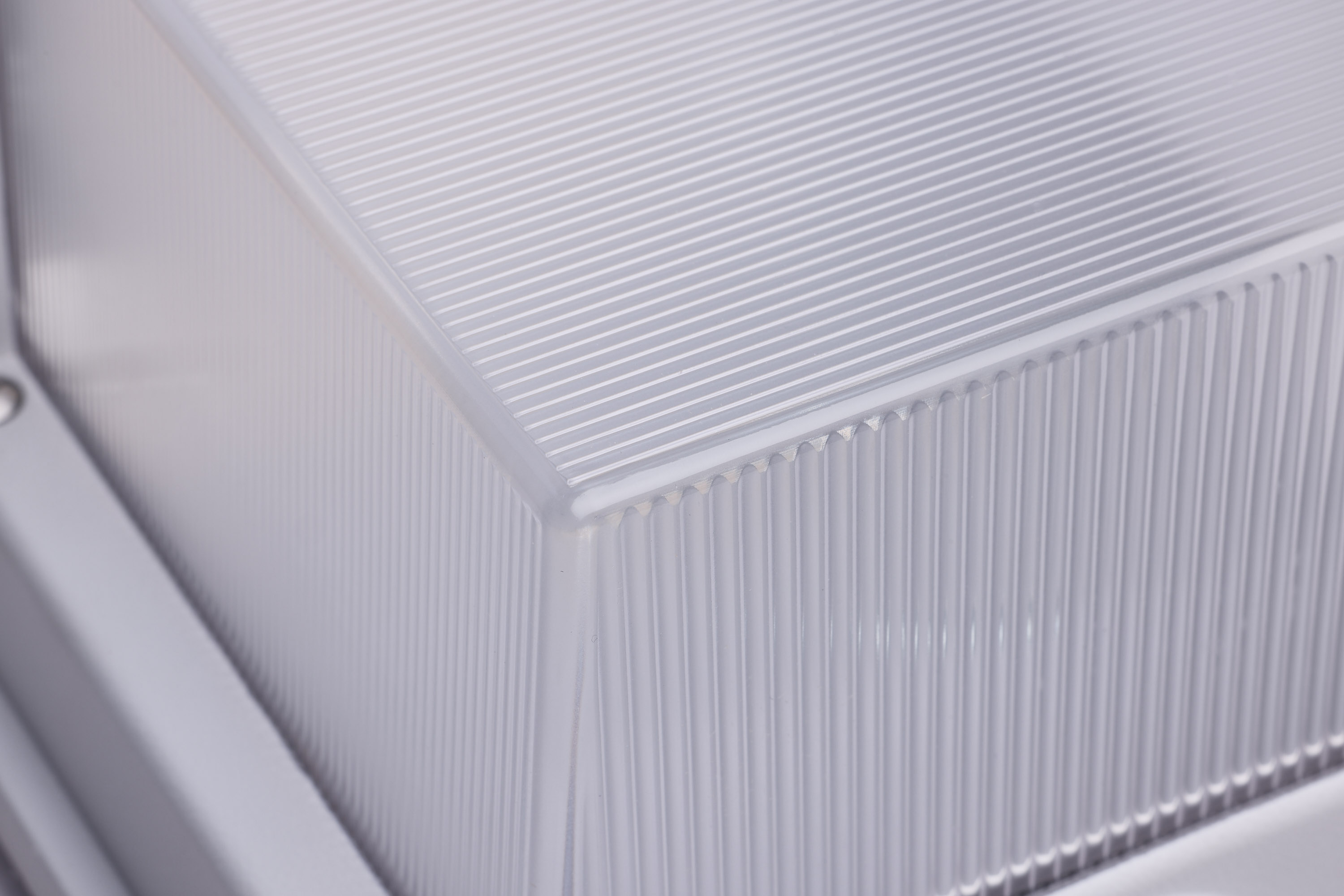

Lens FinishPrismatic
Lens MaterialPolycarbonate (PC)

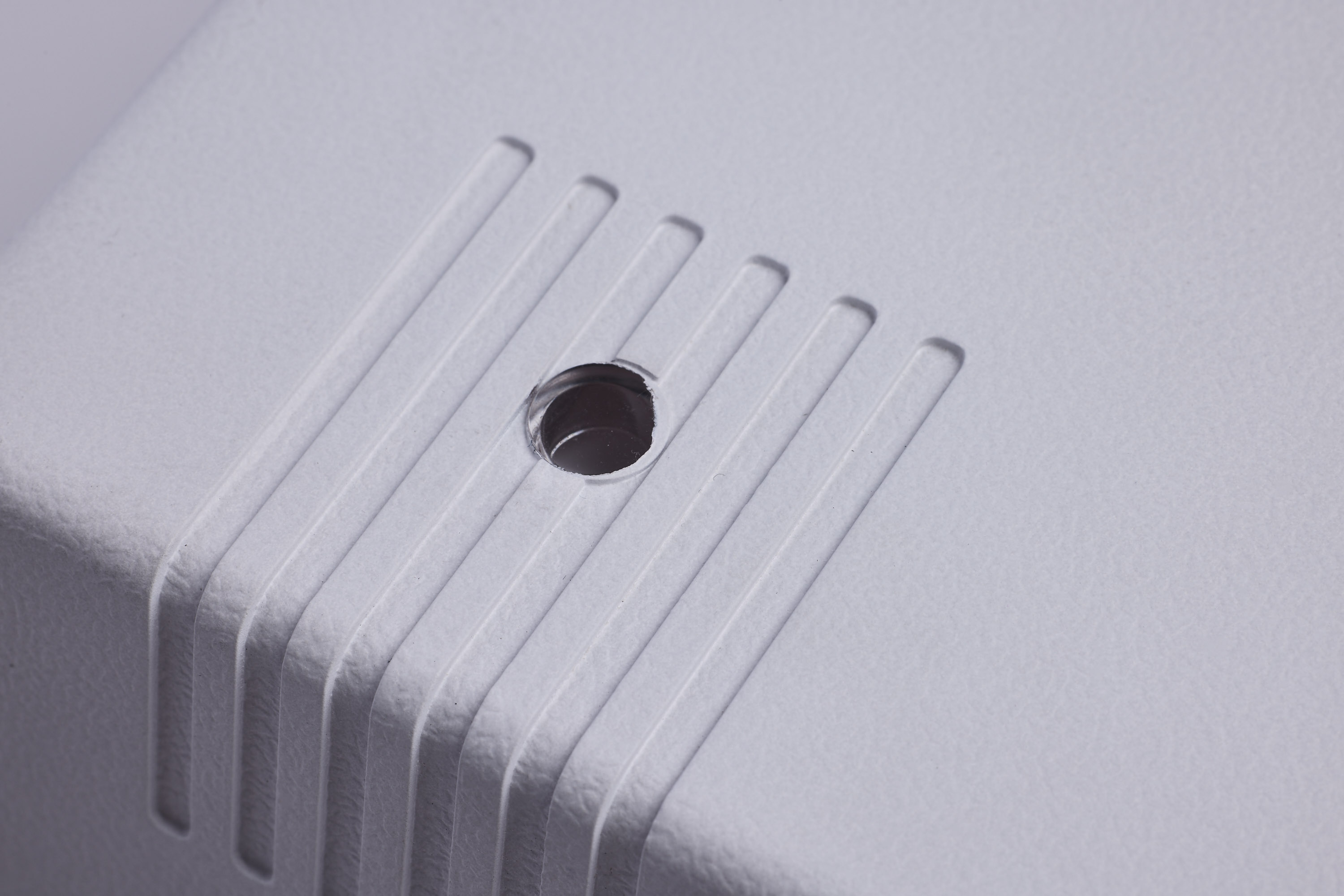

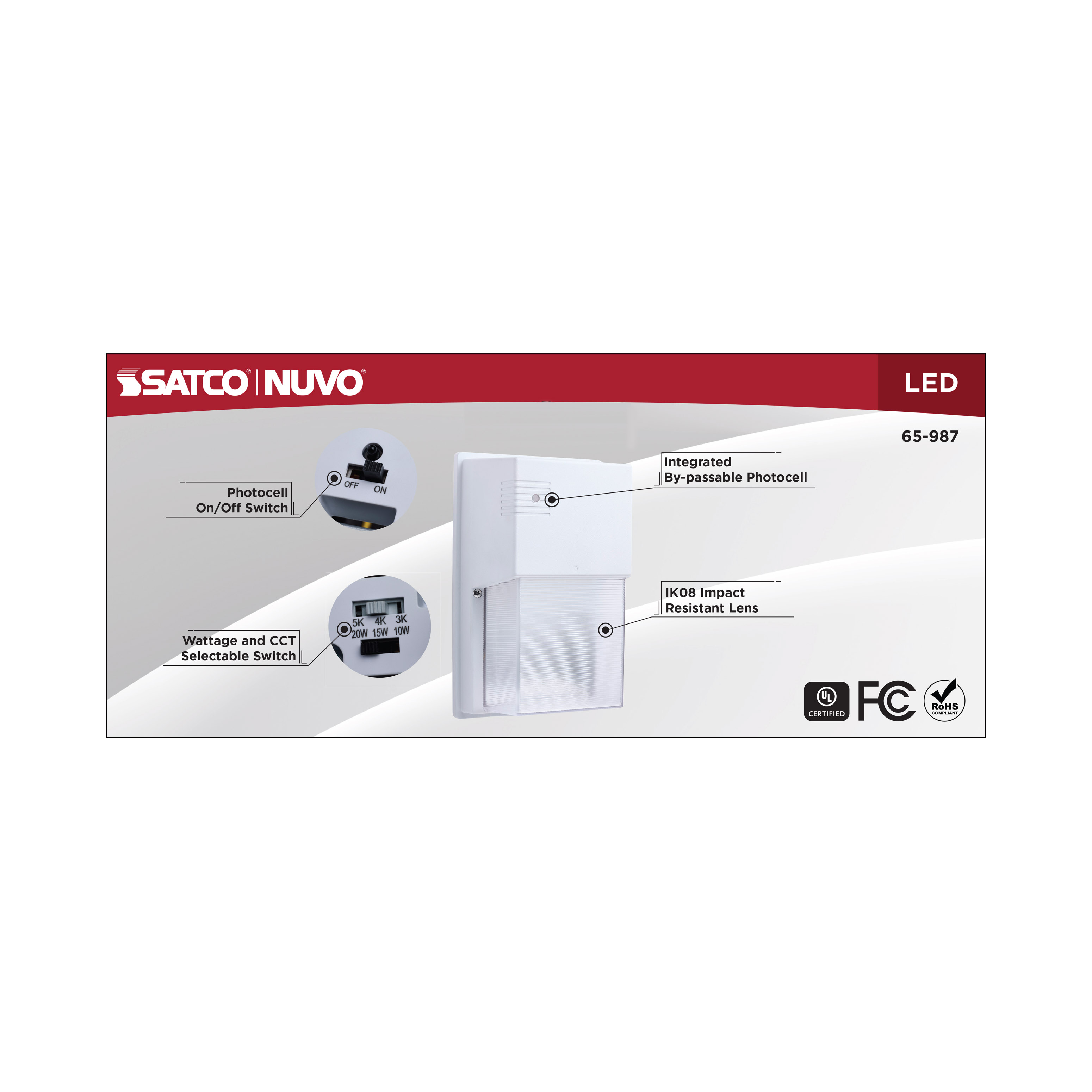

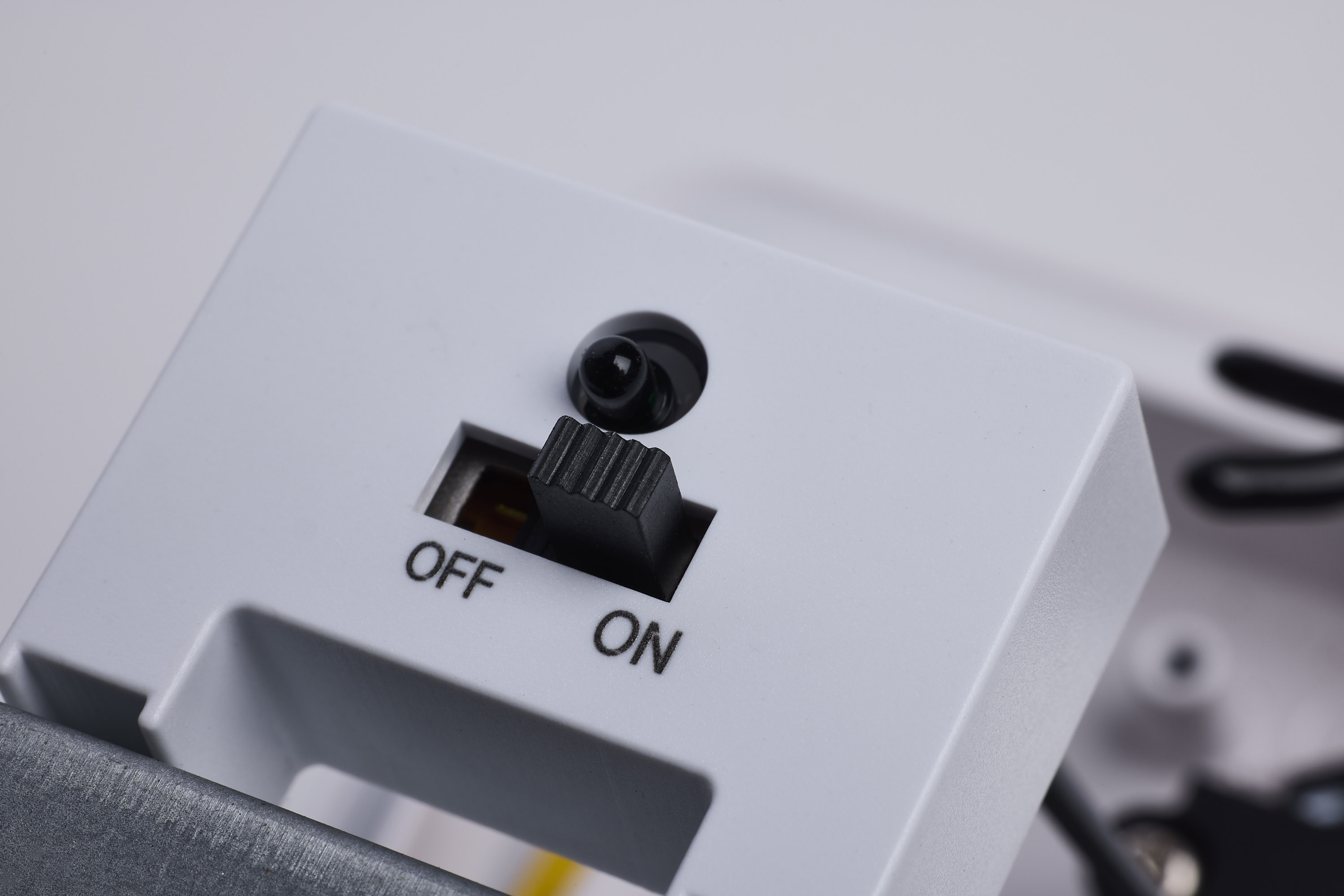

Photo CellHas Photocell
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Fluor Equiv42W
Incandescent Equivalent150W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)100
Color TempSoft White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-40C (-40F) to +50C (+122F)
HID Equivalent100W
Lumens1410L-2839L
Volts120V-347V
Watts10W/15W/20W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeFalse
Compliance
ADA CompliantFalse
Bug RatingB1-U3-G1
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-MGDDN0
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextLawful for sale
DLC ApprovedTrue
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923404108
Case Cube1.1899
Case Height10.87
Case Length12.01
Case Quantity4
Case UPC10045923404105
Case Weight13.67
Case Width15.75
EA Cube0.2496
EA Height5.0
EA Length7.5
EA Quantity1
EA Weight3.09
EA Width11.5
Inner Cube0.0
Pack TypeBox

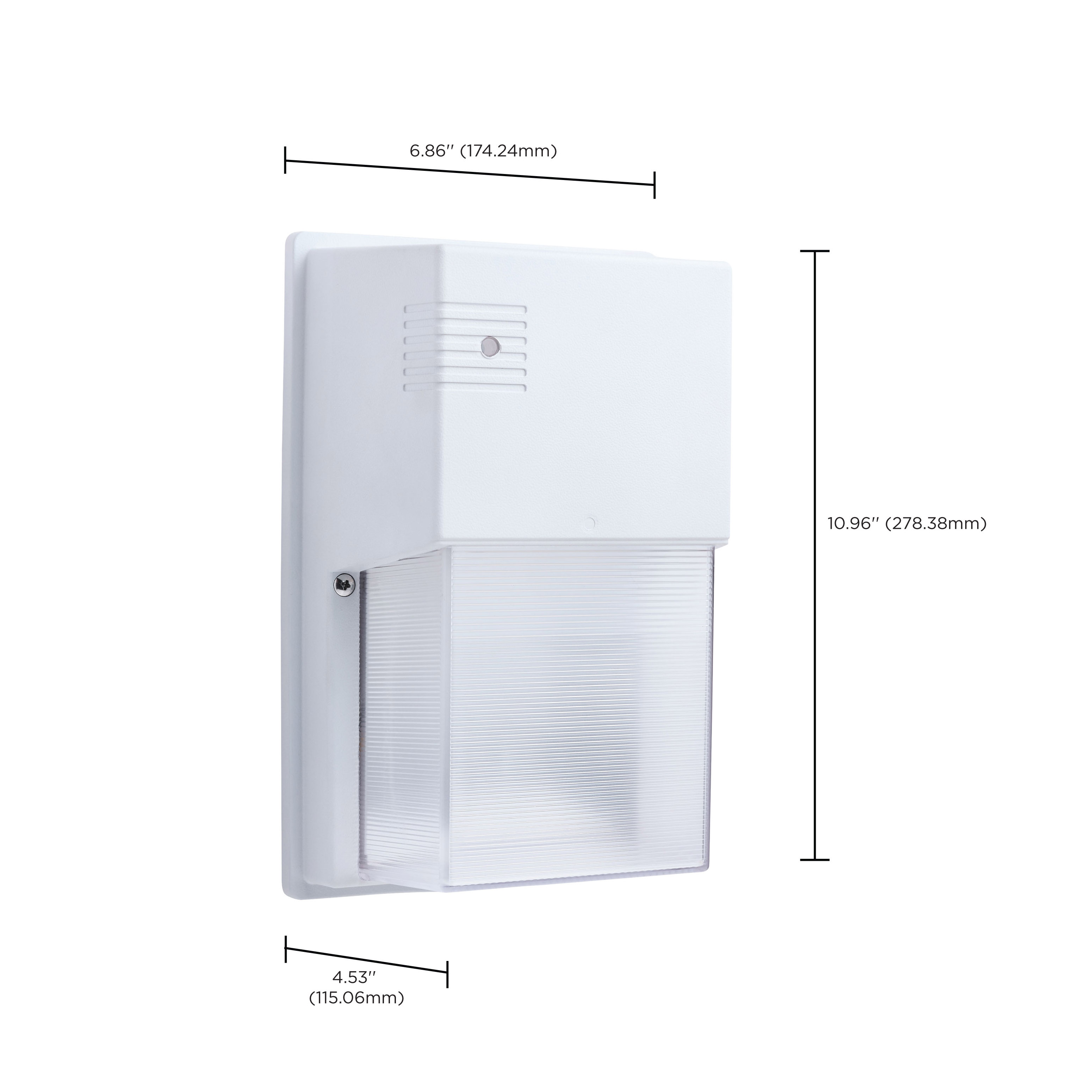

Web Height10.96
Web Width6.86
