67-113

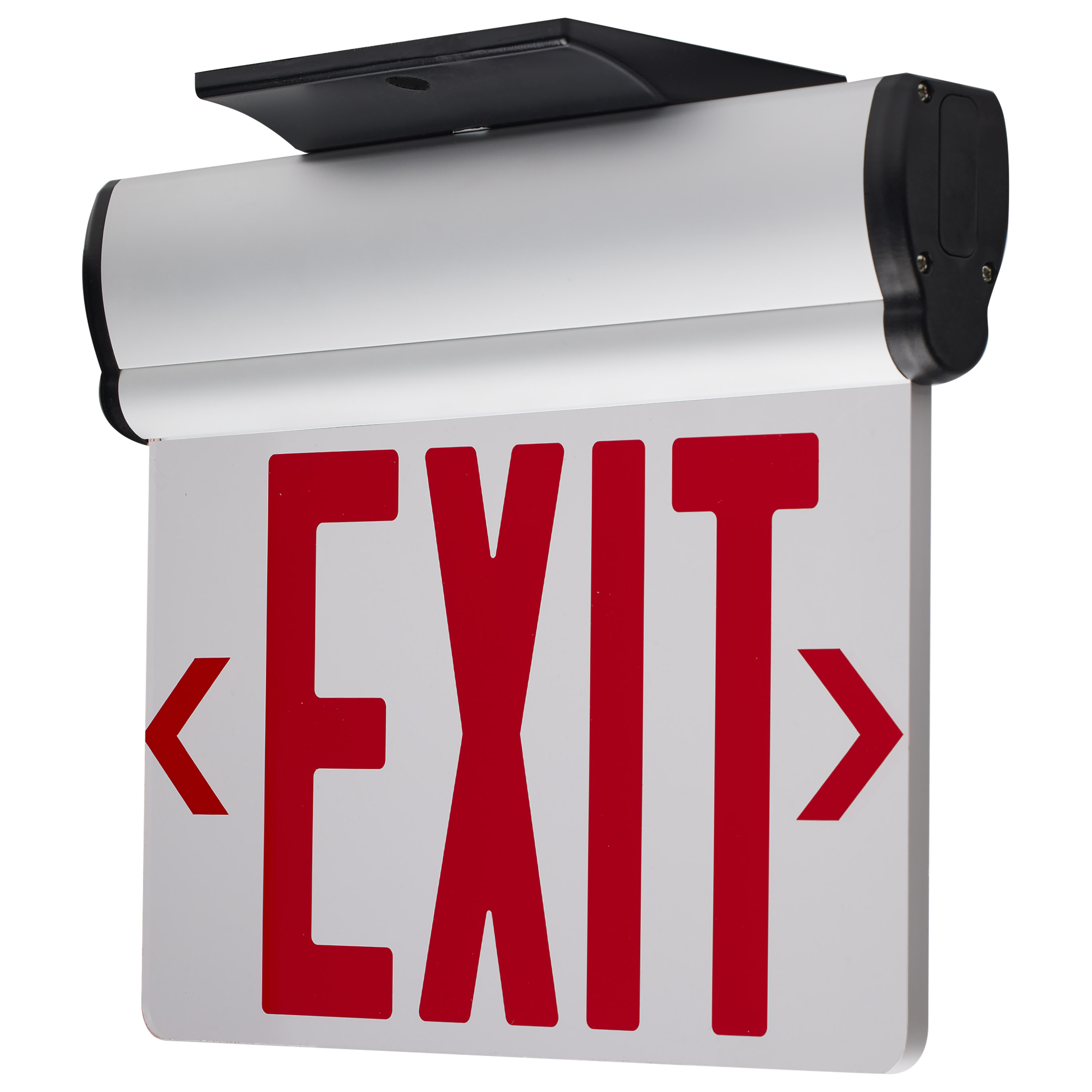

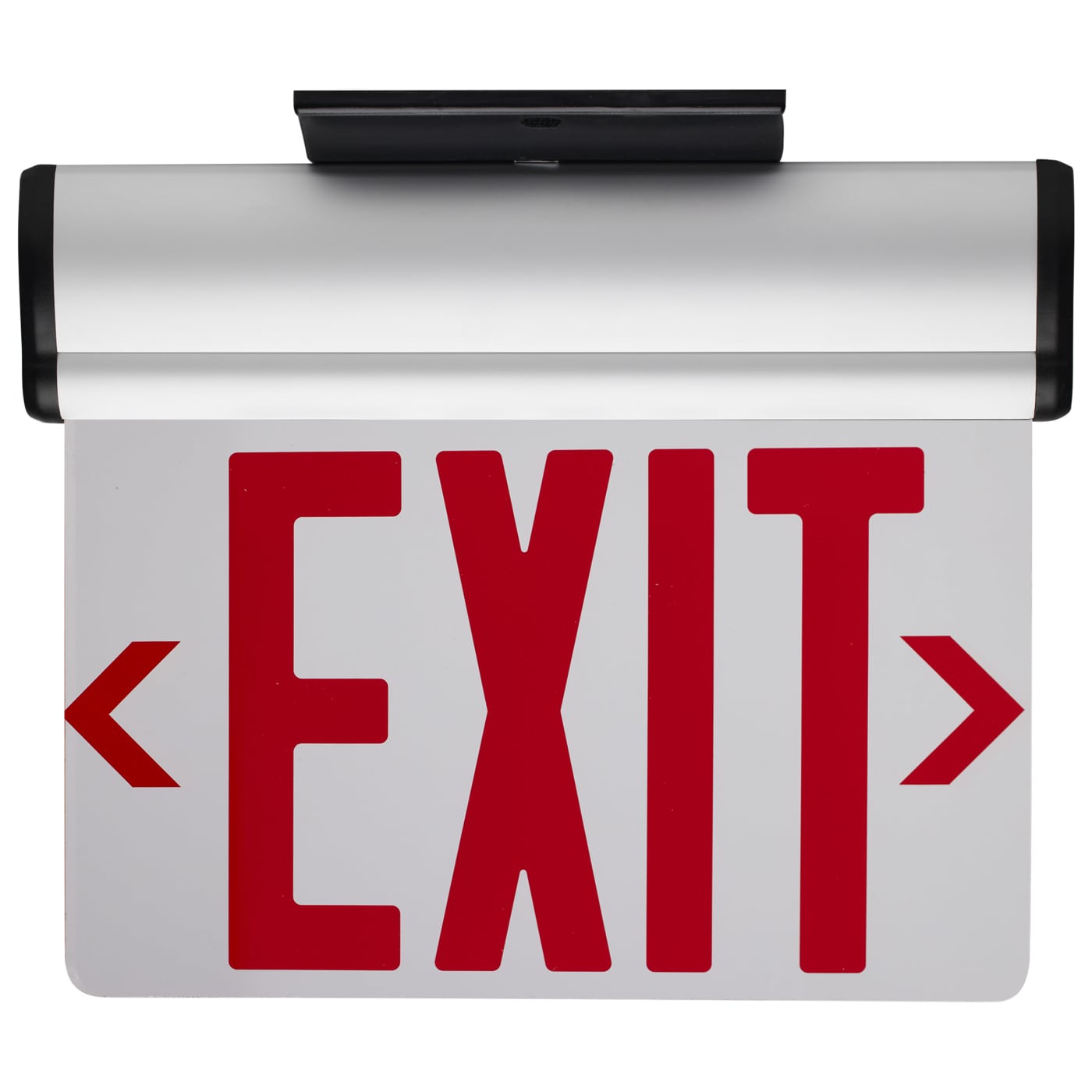

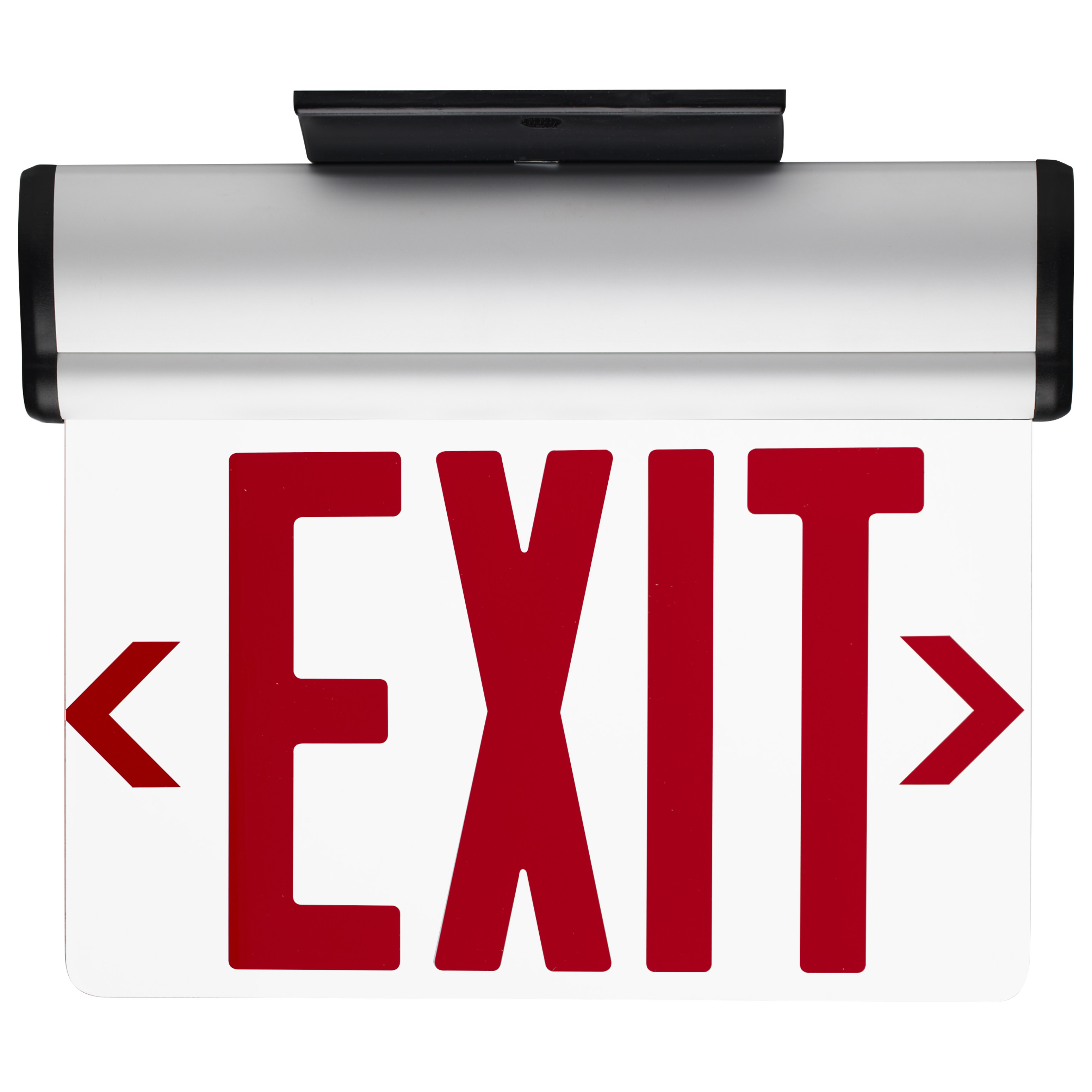

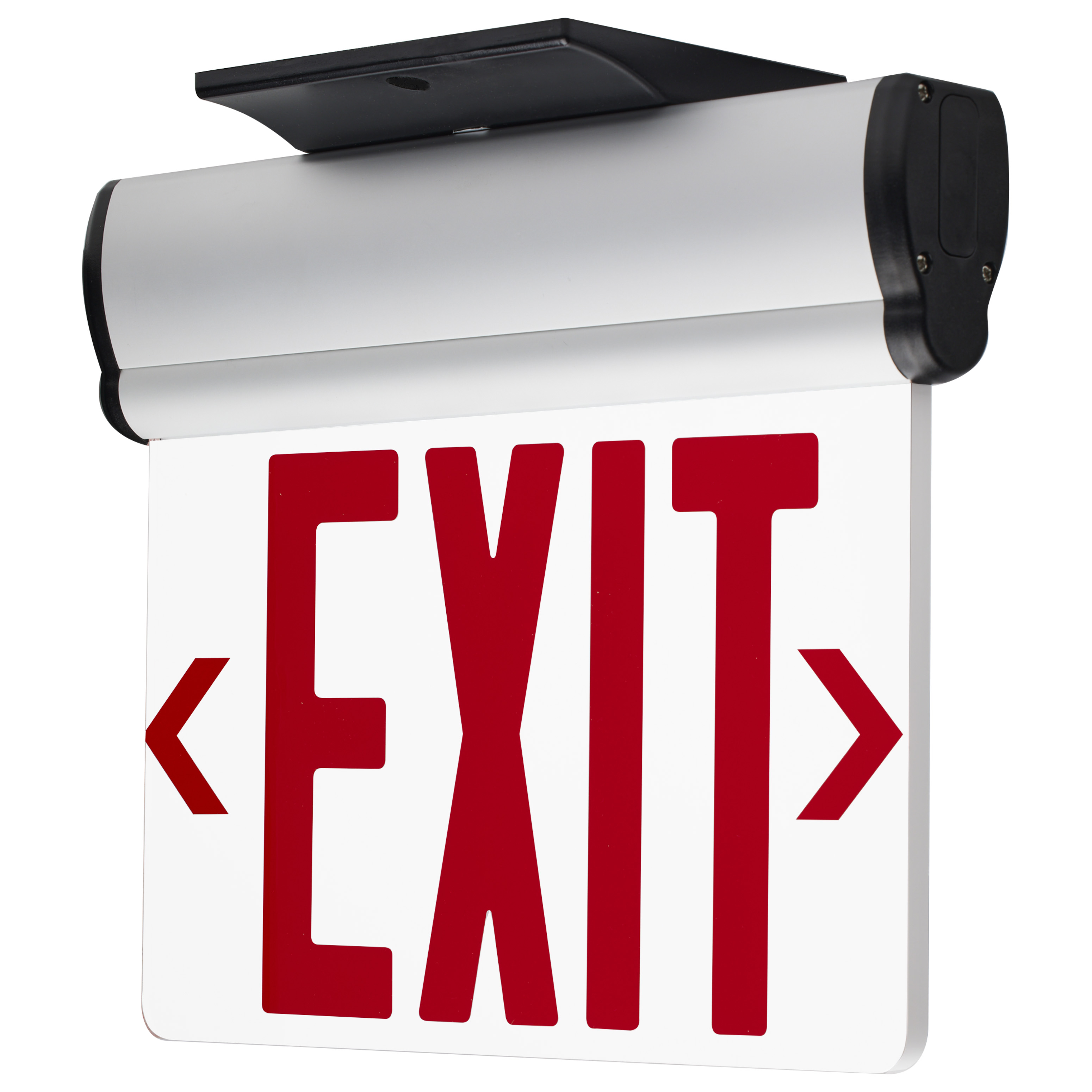

EL EXIT SIGN - SF RD CLR

  • Red (Clear) Edge Lit LED Exit Sign, 90min Ni-Cad backup, 120/277V, Single Face, Top/Back/End Mount
  • Clear Finish
location_rating^damp^1
title_20^y^1
volts^120-277v^2
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

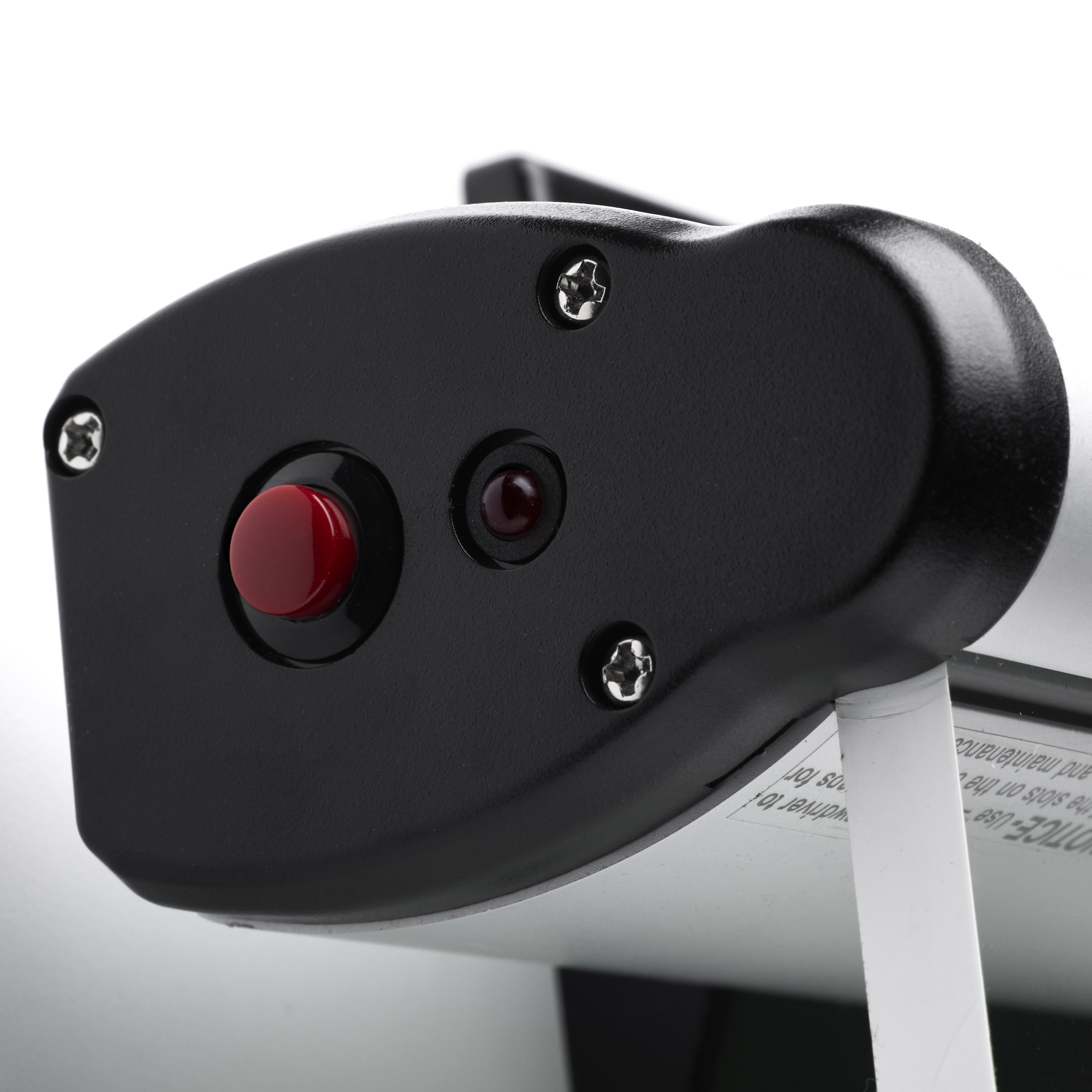

SATCO NUVO's LED Surface Mount Edge-Lit Exit Sign 67-113 - the perfect solution for your commercial, hospitality and multi-family spaces. This sign has red lettering in a single face clear finish designed with a sleek, brushed aluminum housing and offer configurable arrows, ceiling, wall or side mounting options, and a push-to-test button with an AC supply indicator. With a 90-minute battery backup run time, you can trust these signs to keep your space illuminated in the event of a power outage or emergency. The surface mount style provides an easy installation process, and the versatility of these signs makes them suitable for a range of applications. OSHA and NFPA compliant, don't compromise on safety - upgrade to SATCO NUVO's LED Edge-Lit Exit Signs today.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialAluminum
Fixture TypeExit Sign
IncludesMounting hardware and accessories
Product NotesAluminum, Acrylic Panel, 4.8V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 6 in.; Letter Stroke: 0.75 in.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 3KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyClear
Additional InfoInput Wattage: 3.14W; Output Wattage: 0.4W; Energy Used in Maintenance Mode: 3.14W
Amps0.026/0.011A
Has CameraNo
IOT EnabledNo
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Electrical
DimmableNon-Dimmable
Operating Frequency60Hz
Operating Temp+50F to +104F (+10C to +40C)
Volts120V/277V
Watts3.14W
Battery ChemistryNi-Cad
Replaceable Battery TypeAAA
Physical
Lamp BaseIntegrated
FinishClear
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Mounting ProcedureUniversal
Additional Info
Warranty2-Years
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingULus - Certified, ULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Yes
T24/JA8 CompliantNo
Packaging
UPC045923675737
Case Cube1.2683
Case Height9.45
Case Length13.39
Case Quantity6
Case UPC10045923675734
Case Weight18.24
Case Width17.32
EA Cube0.1703
EA Height2.76
EA Length12.6
EA Quantity1
EA Weight2.98
EA Width8.46
Pack TypeBox

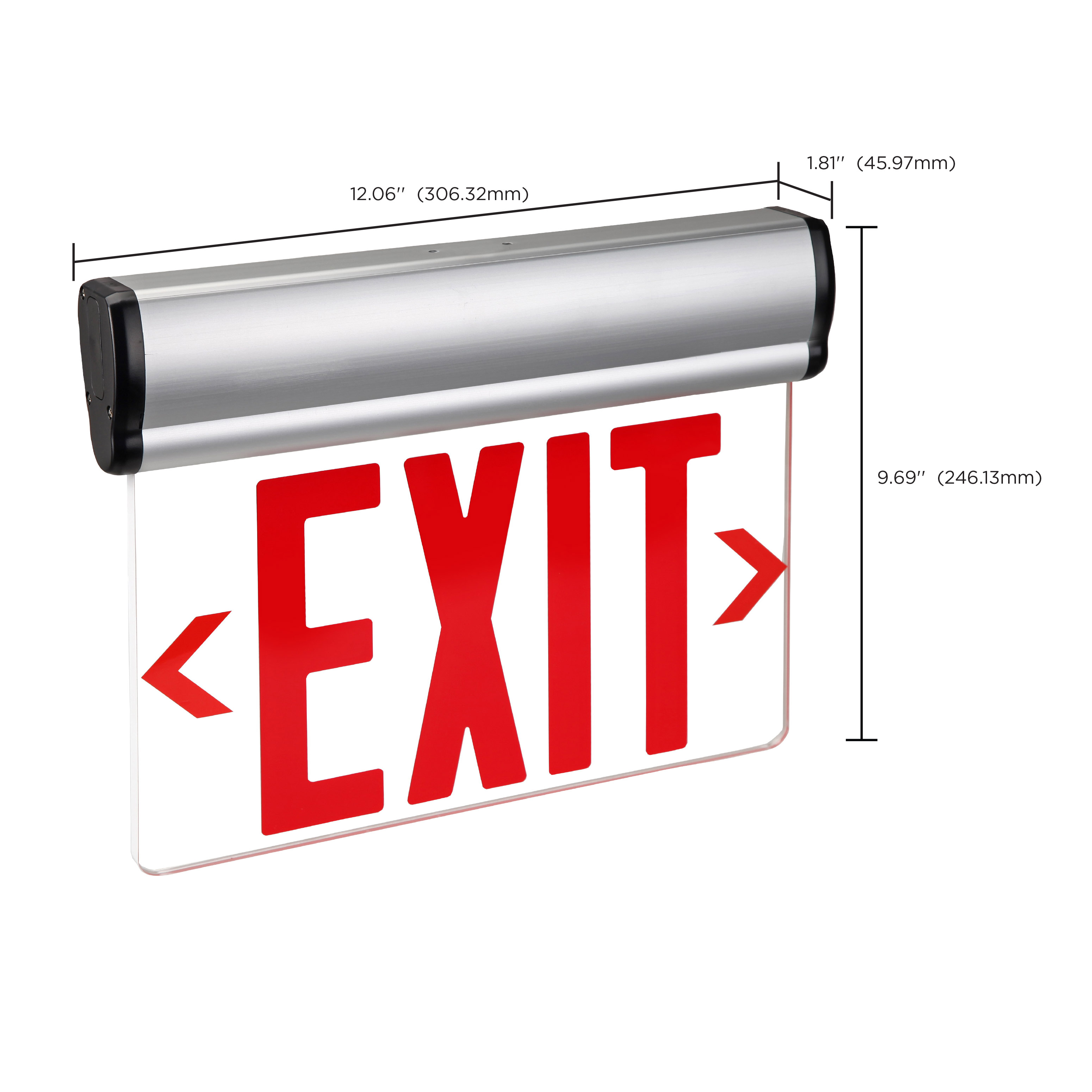

Web Height9.69
Web Length1.81
Web Width12.06
