67-116

REC EL EXIT SIGN - SF GR CLR

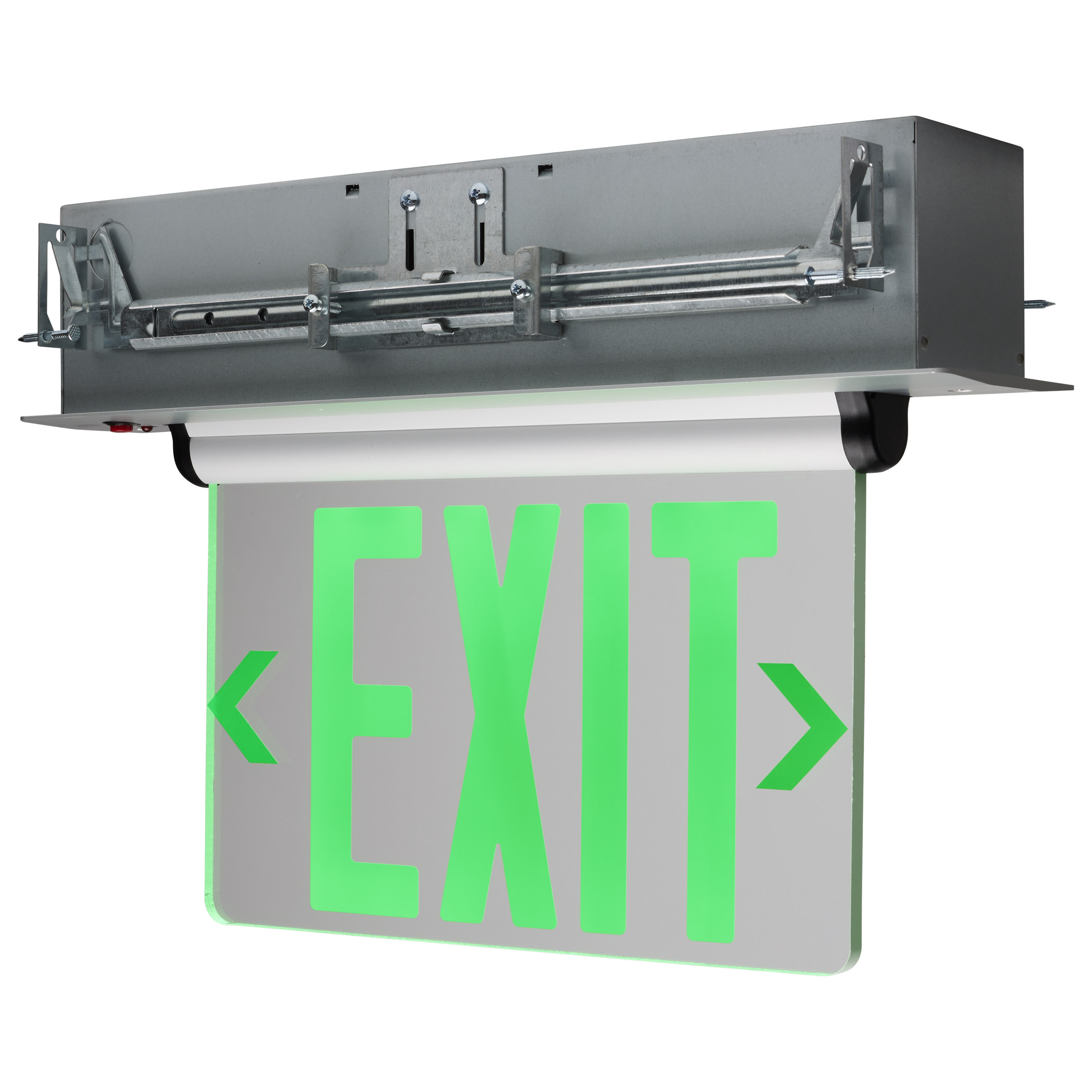

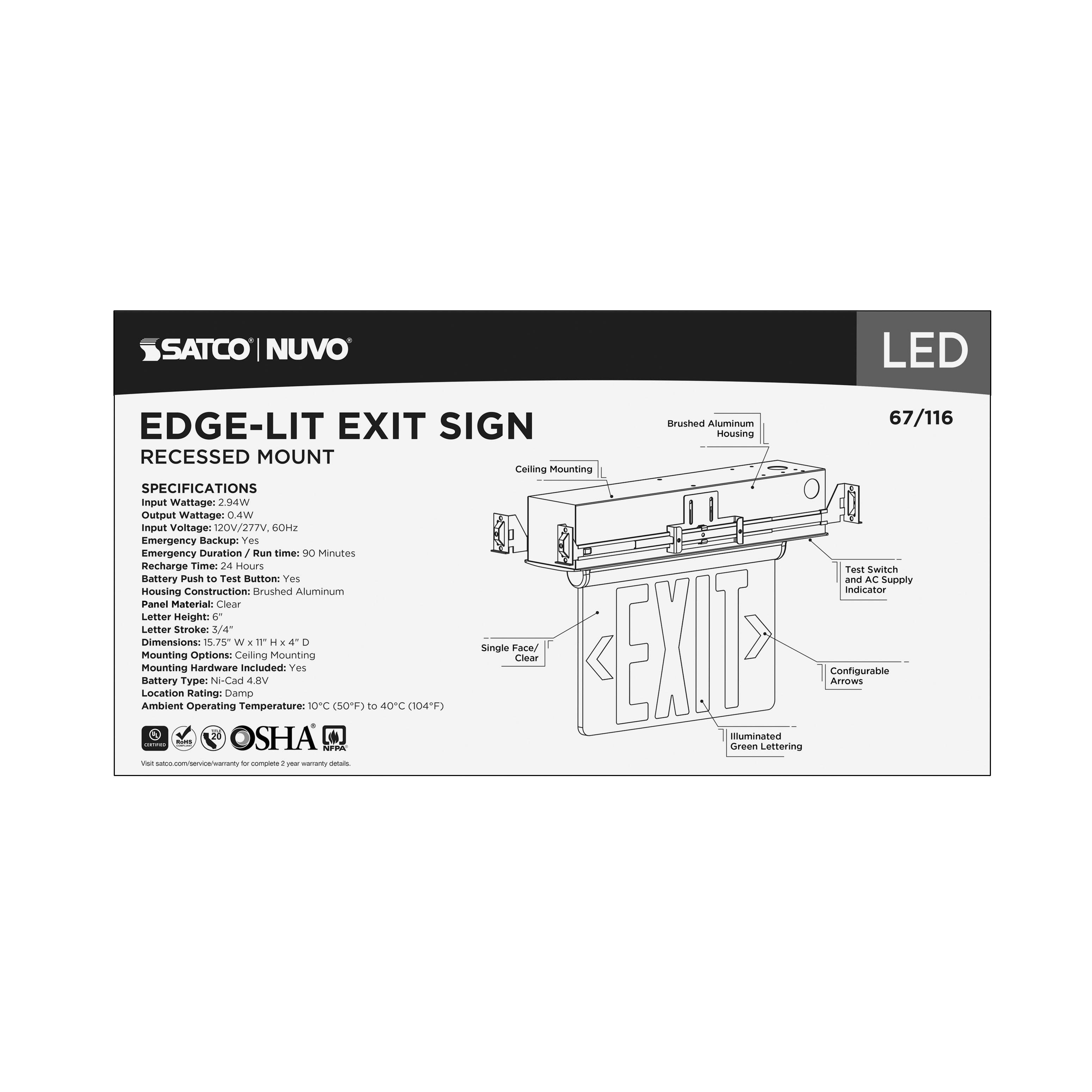

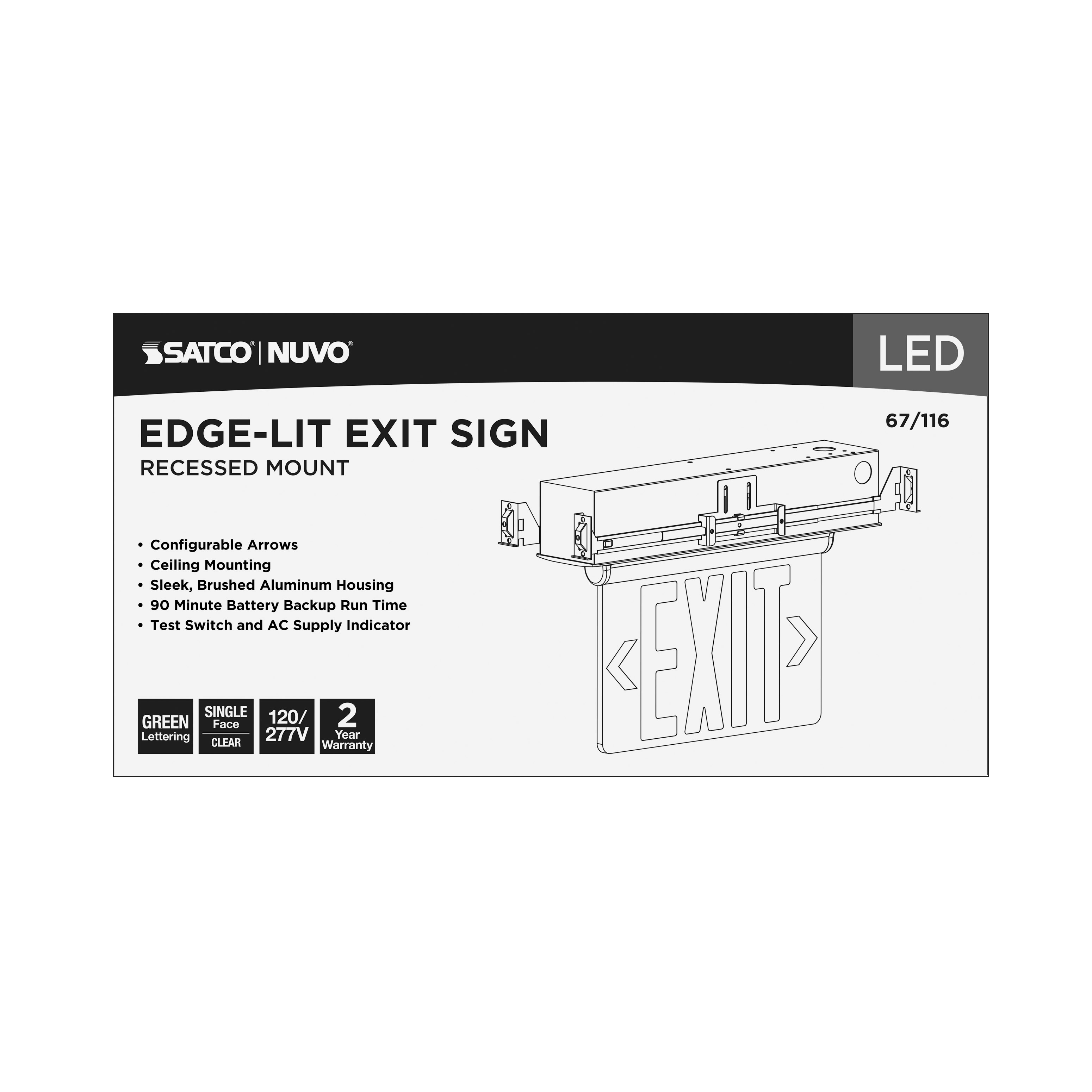

  • Green (Clear) Edge Lit LED Exit Sign
  • 2.94 Watts
  • Single Face
  • 120V/277 Volts
  • Clear Finish
location_rating^damp^1
title_20^y^1
volts^120-277v^2
fcc_compliant^true^3
rohs_compliant^y^3
67-116 Specifications67-116 Instructions.pdf67-116 Exit-Emergency Product Cross Ref.pdf
Description
Description

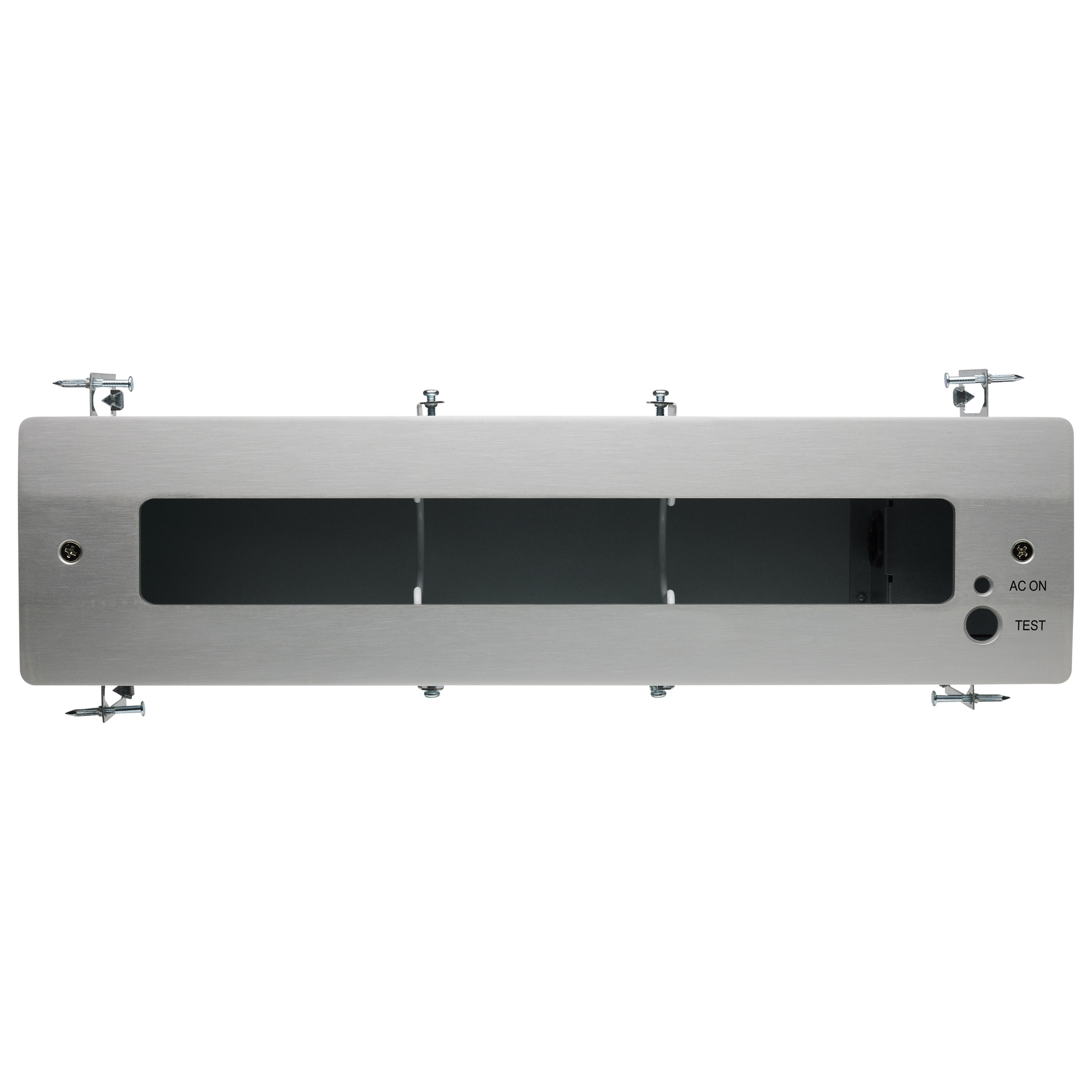

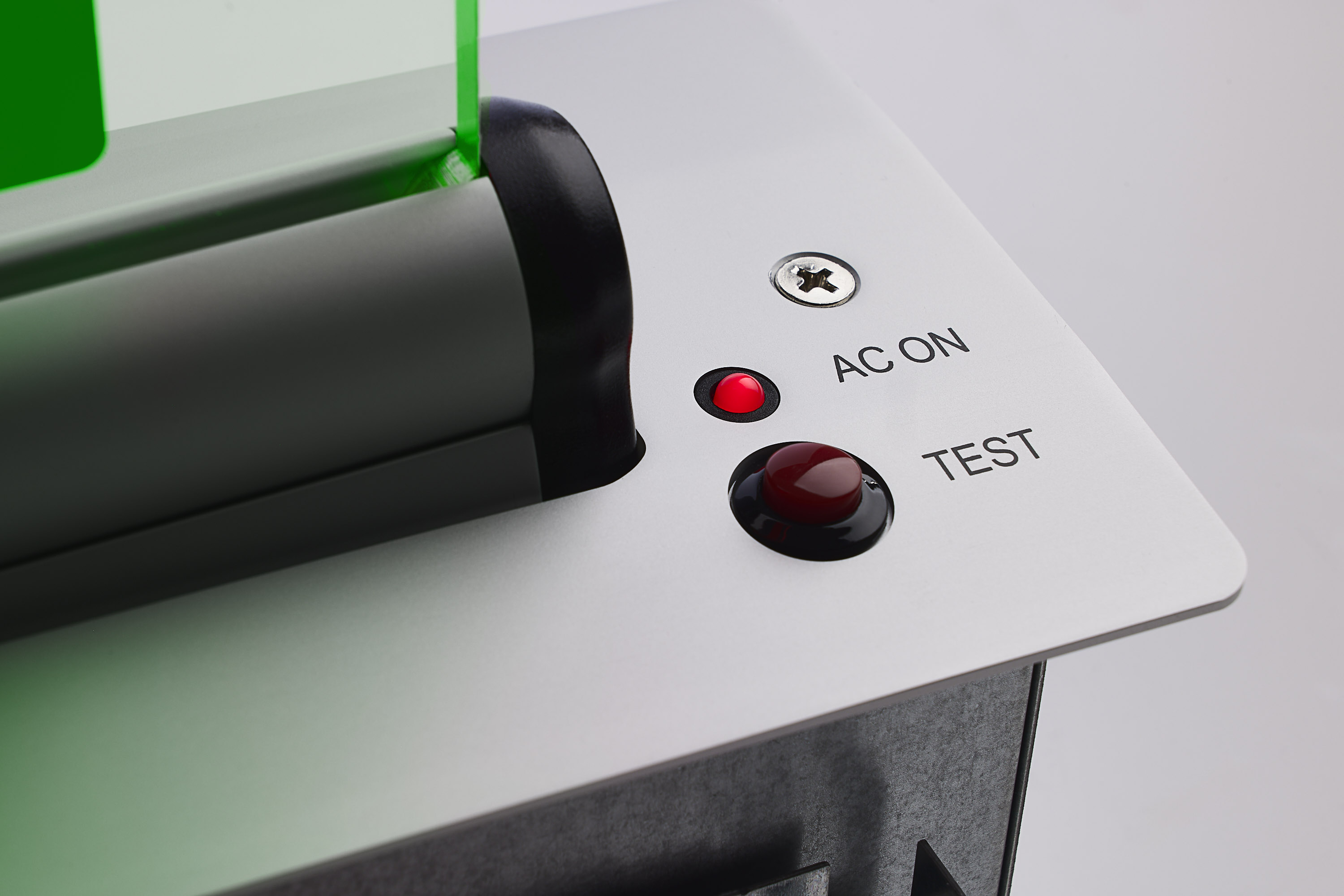

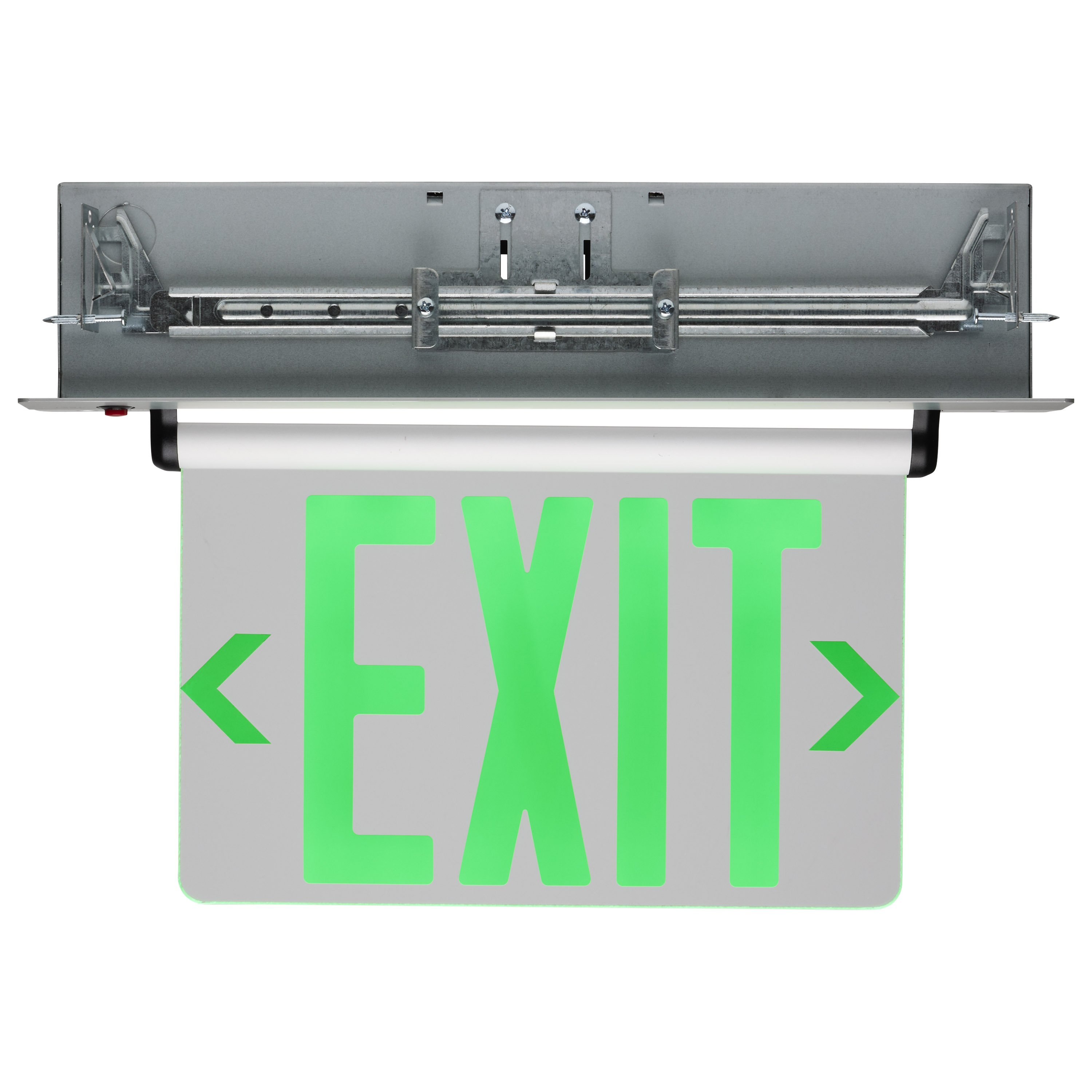

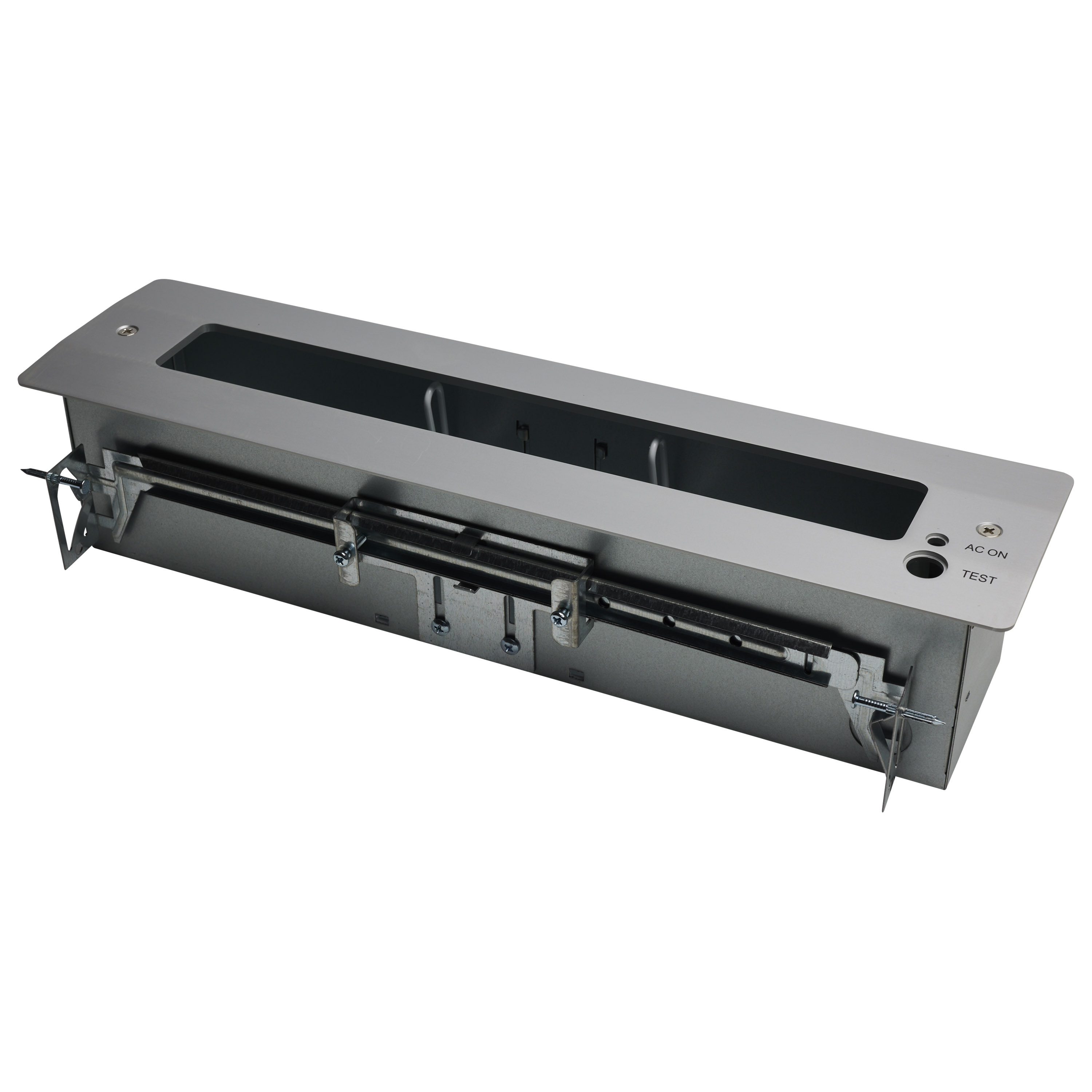

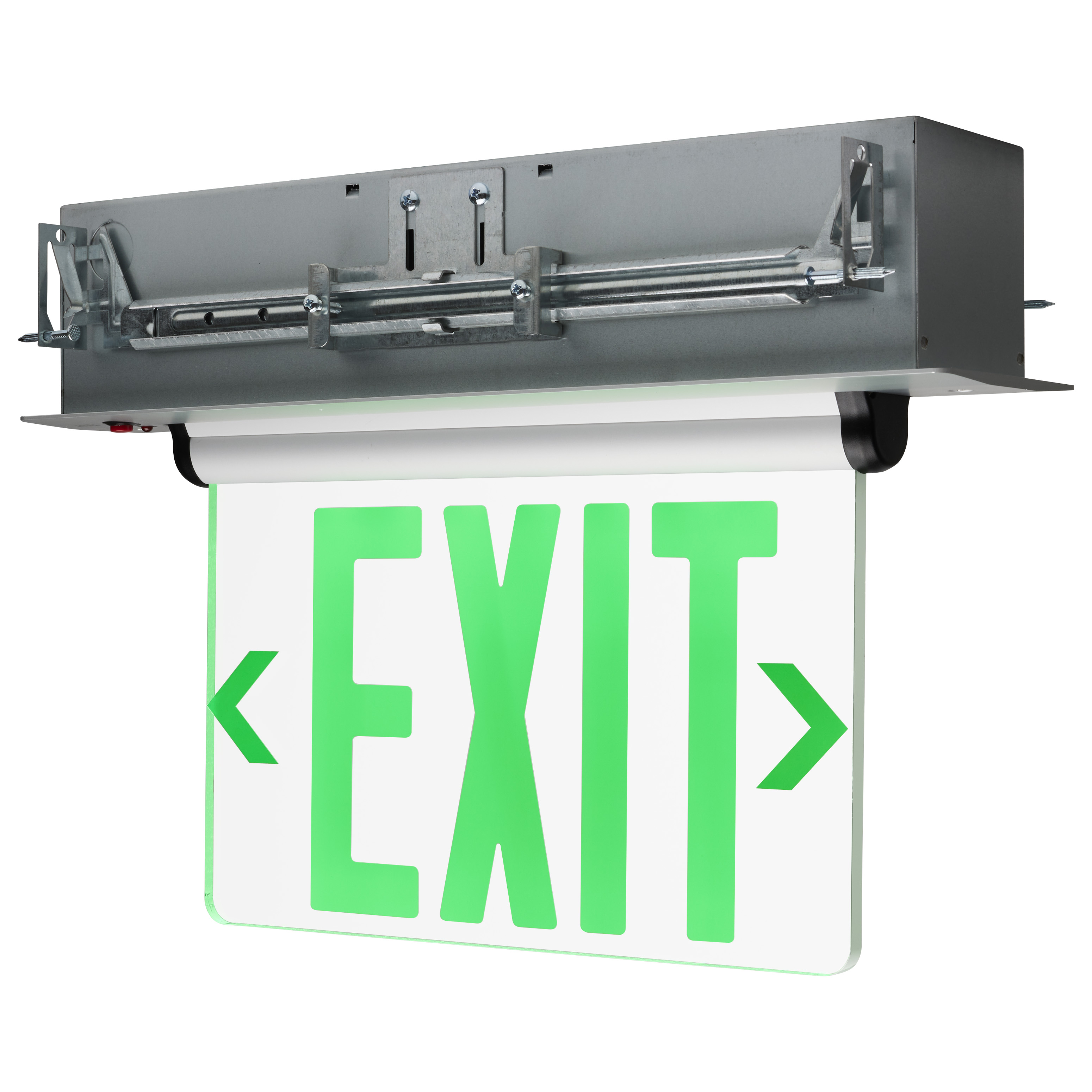

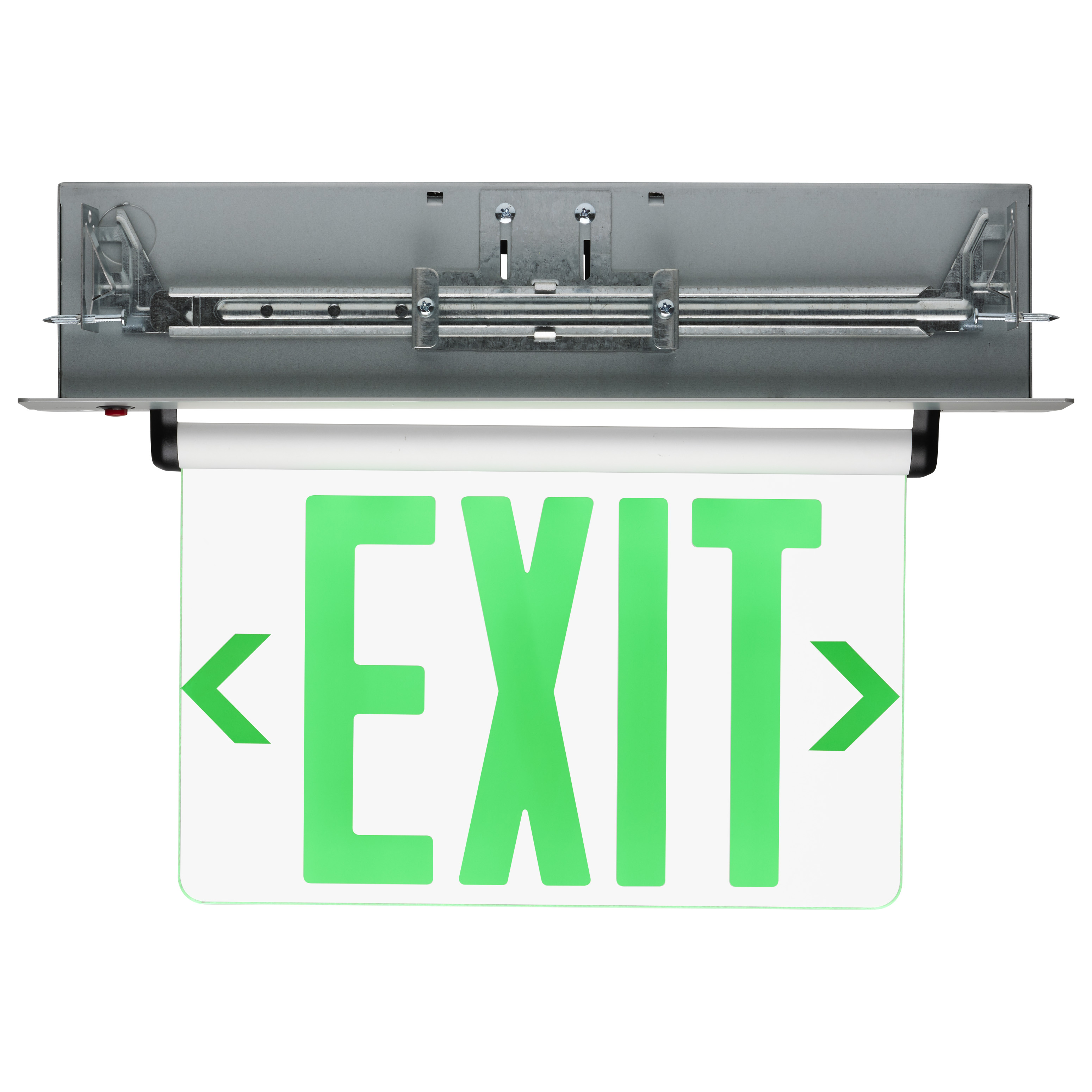

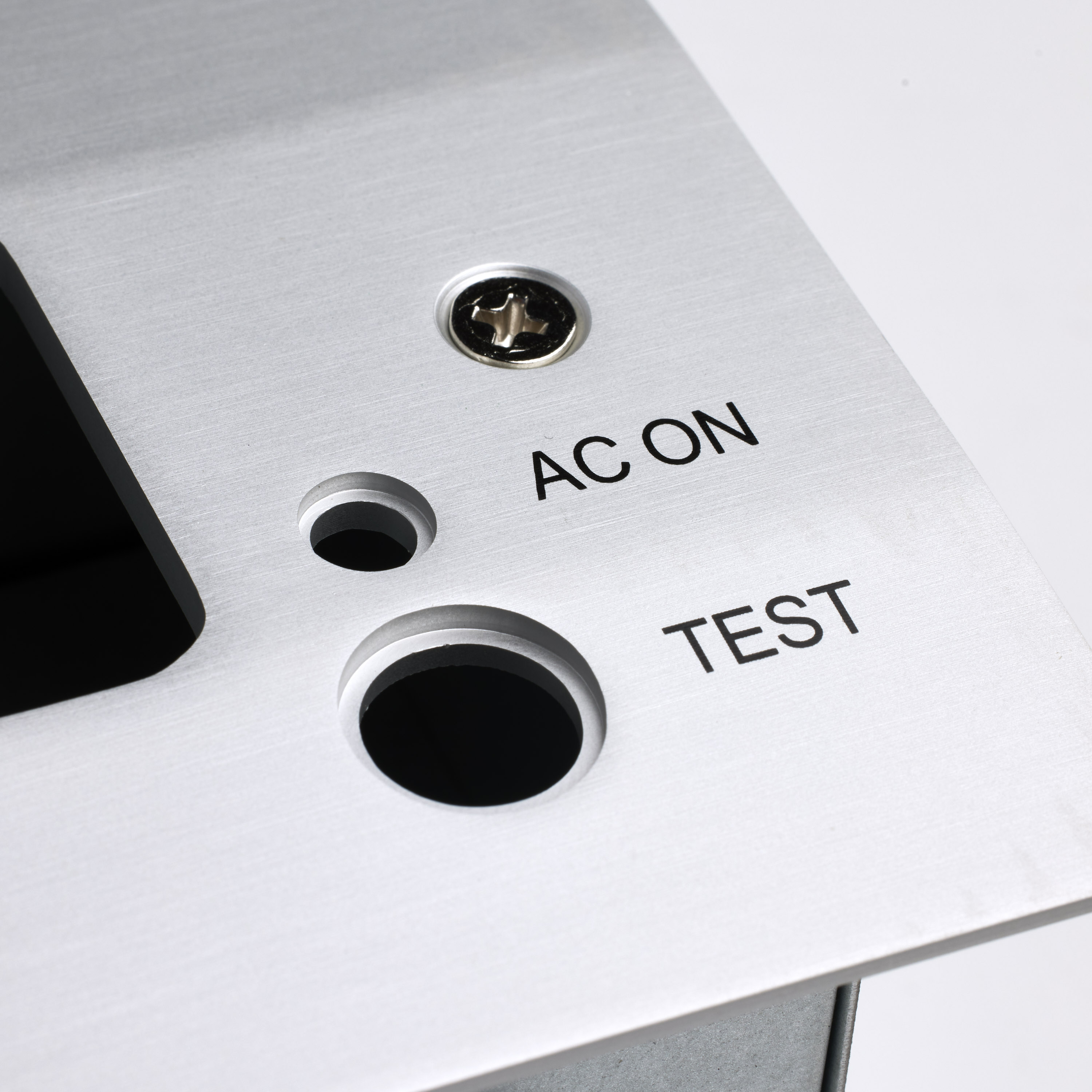

SATCO NUVO's LED Recessed Mount Edge-Lit Exit Sign 67-116 - the perfect solution for your commercial, hospitality and multi-family spaces. This sign has green lettering in a single face clear design with a sleek, brushed aluminum housing and offers configurable arrows for recessed mounting in ceilings and walls. This LED exit sign features a battery backup with a 90-minute run time, battery push-to-test button, and AC supply indicator for easy maintenance and monitoring. OSHA and NFPA compliant, don't compromise on safety - upgrade to SATCO NUVO's LED Edge-Lit Exit Signs today.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialAluminum
Fixture TypeExit Sign

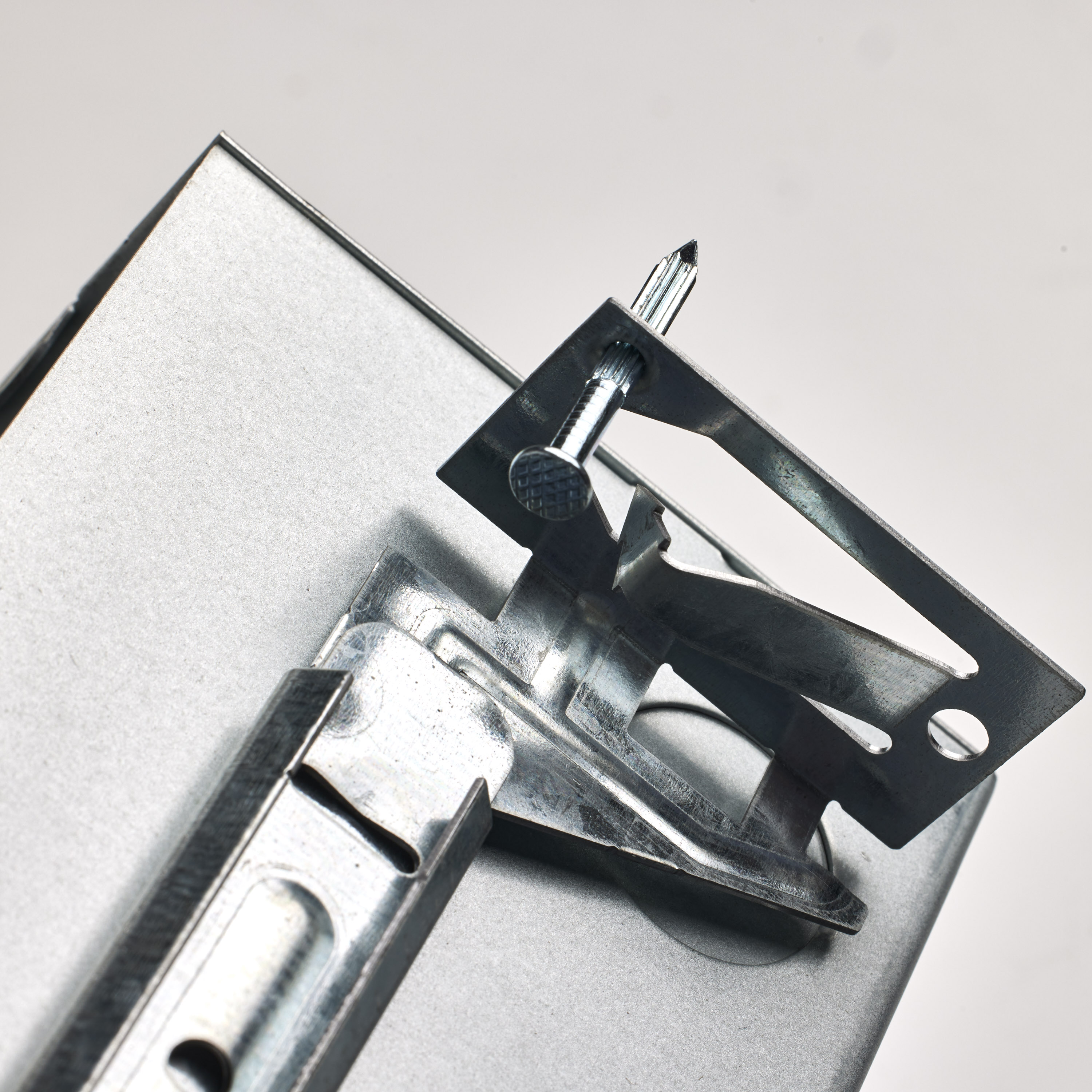

IncludesMounting hardware and accessories
Product NotesAluminum, Acrylic Panel, 4.8V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Lumens/Illuminance: 73cd/m2 average; Letter Height: 6 in.; Letter Stroke: 0.75 in.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 3KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyClear
Additional InfoInput Wattage: 2.94W; Output Wattage: 0.4W; Energy Used in Maintenance Mode: 2.94W
Amps0.025/0.011A
Has CameraNo
IOT EnabledNo
Lens MaterialAcrylic
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Electrical
DimmableNon-Dimmable
Operating Frequency60Hz
Operating Temp+50F to +104F (+10C to +40C)
Volts120V/277V
Watts2.94W
Battery ChemistryNi-Cad
Physical
Lamp BaseIntegrated
FinishClear
ANSI BaseIntegrated
Lamp TypeIntegrated LED

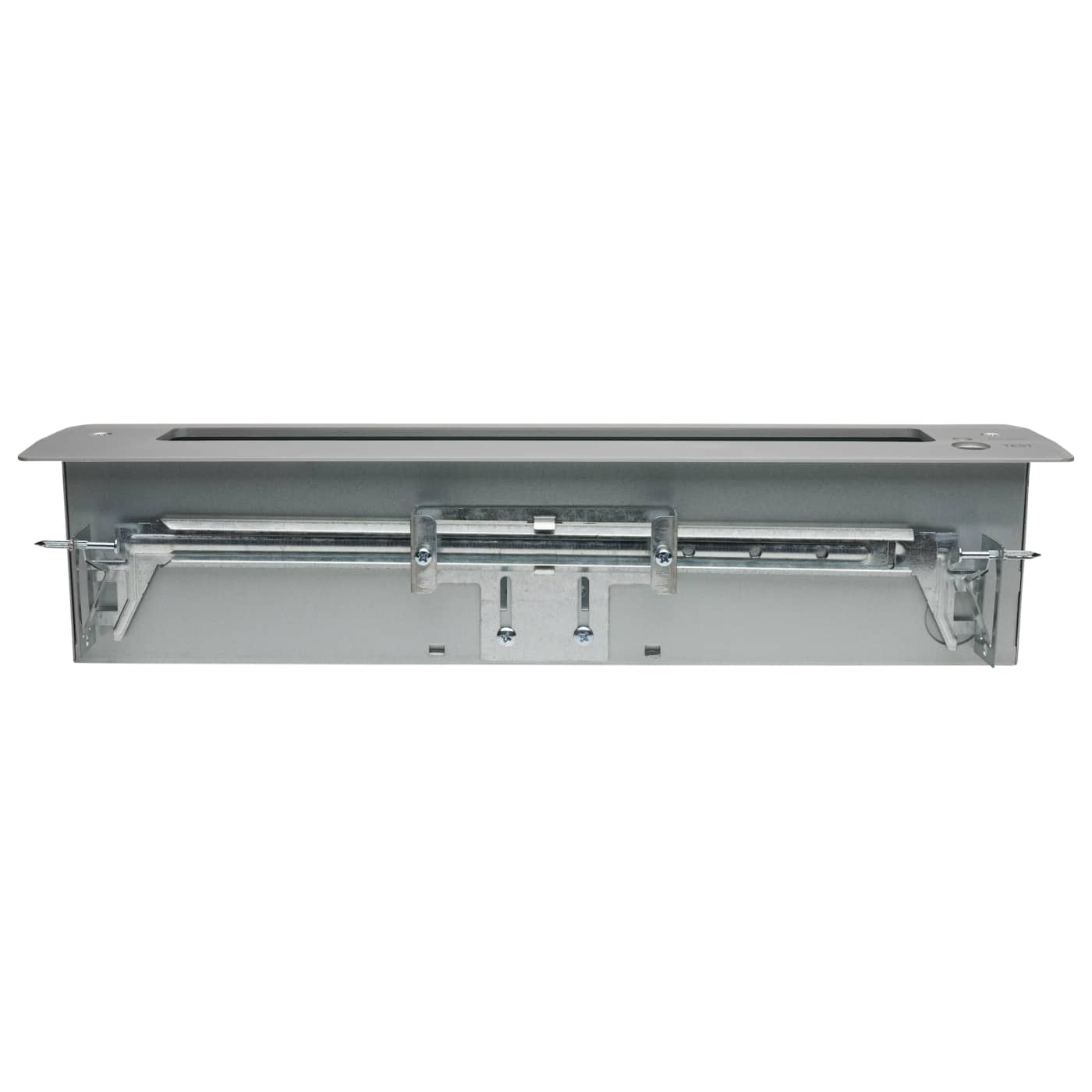

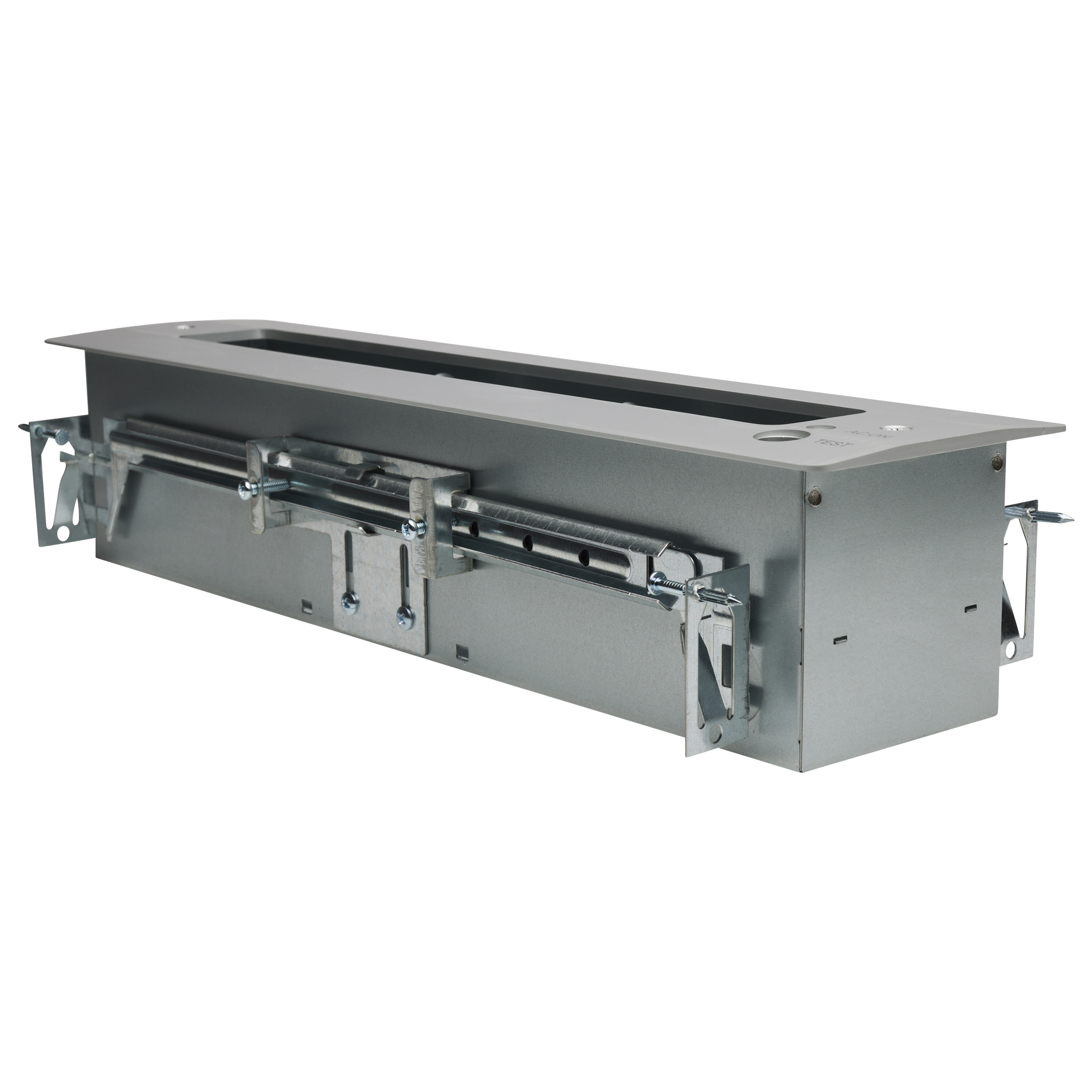

Mounting ProcedureRecessed Ceiling/Wall
Additional Info
Warranty2-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingULus - Certified, ULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Yes
T24/JA8 CompliantNo
Packaging
UPC045923670251
Case Cube1.3851
Case Height9.45
Case Length14.96
Case Quantity3
Case UPC10045923670258
Case Weight17.2
Case Width16.93
EA Cube0.3865
EA Height8.66
EA Length16.34
EA Quantity1
EA Weight5.62
EA Width4.72
Pack TypeBox

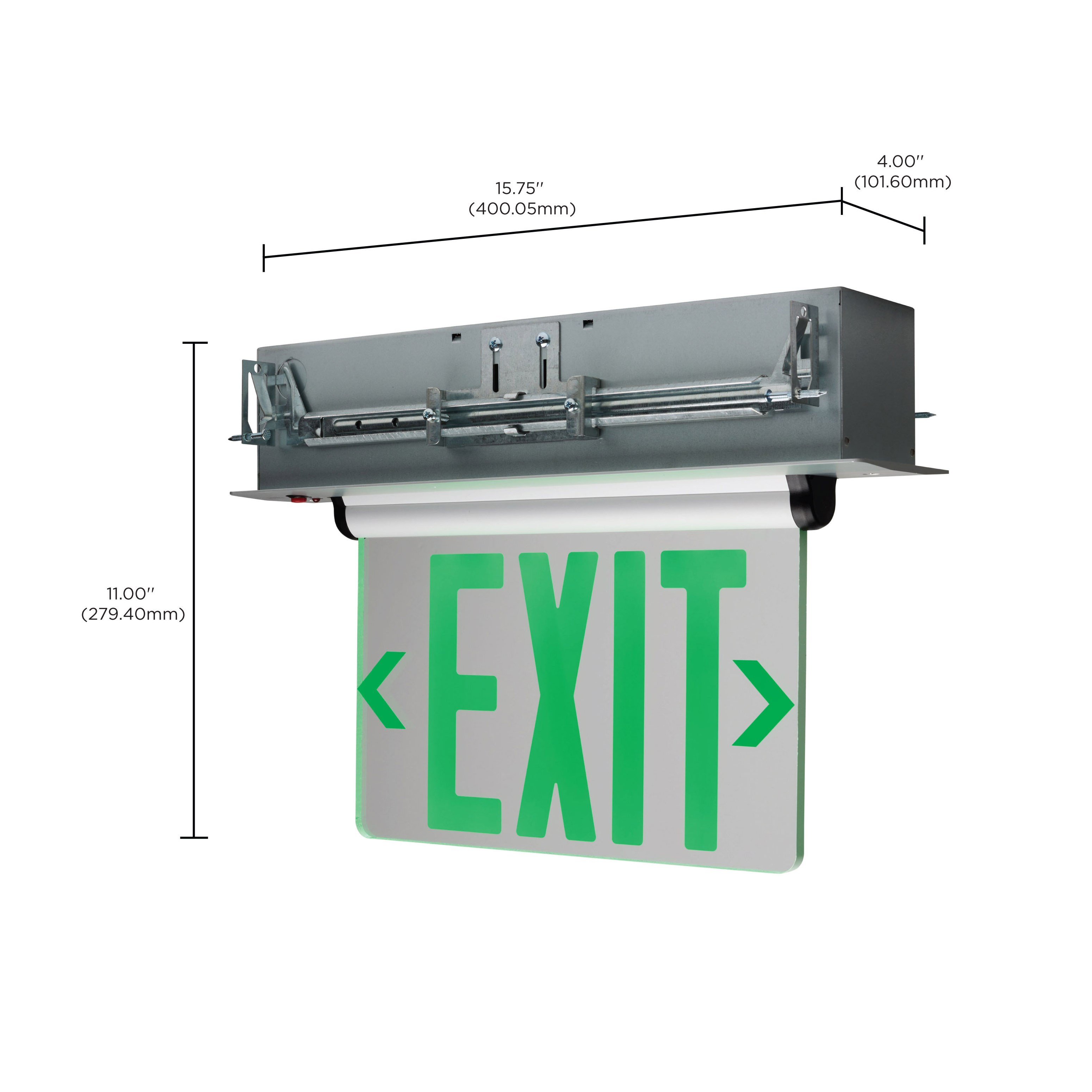

Web Height11.0
Web Length4.0
Web Width15.75
