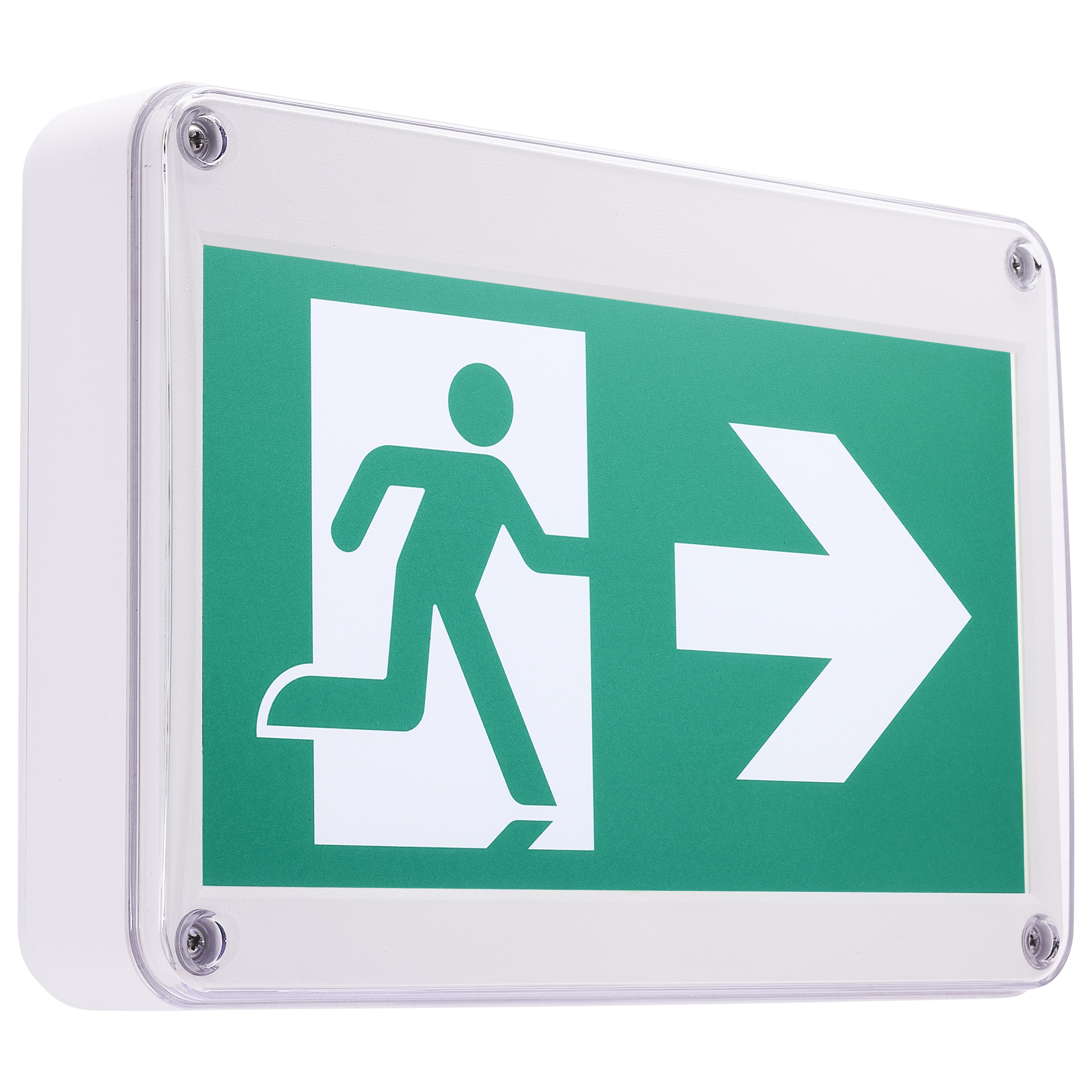

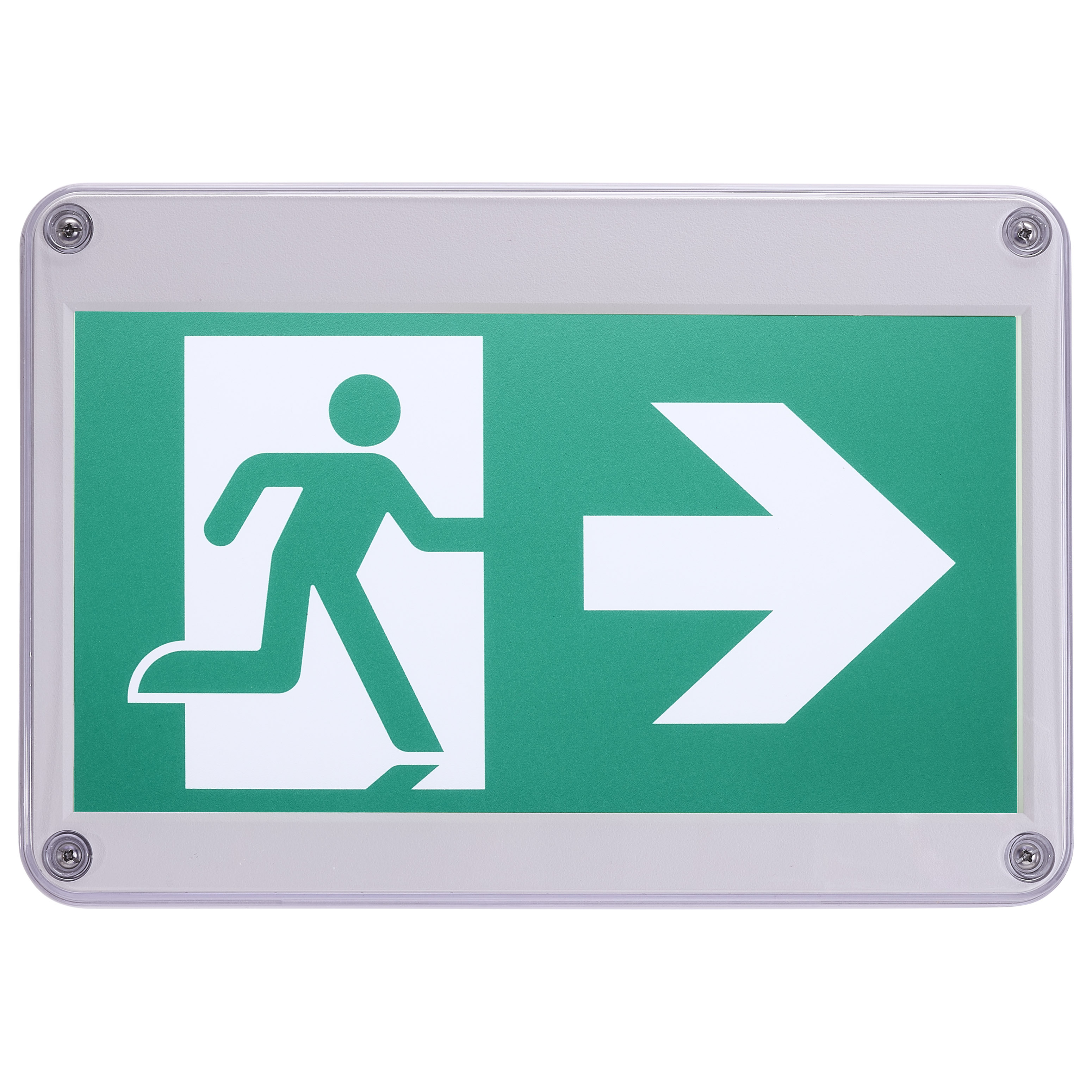

67-560

EX SIGN-CAN-WET

  • Running Man Green Exit Sign
  • 120/347V
  • 2HR backup
  • Single/Dual Face
  • Universal Mounting
  • Wet Location
  • White Finish
ip_rating^IP65^1
location_rating^wet^2
rohs_compliant^y^3
67-560 Specifications67-560 Instructions.pdfLED RUNNING MAN SIGNS | BATTERY BACKUP + WET LOCATION
Description
Description

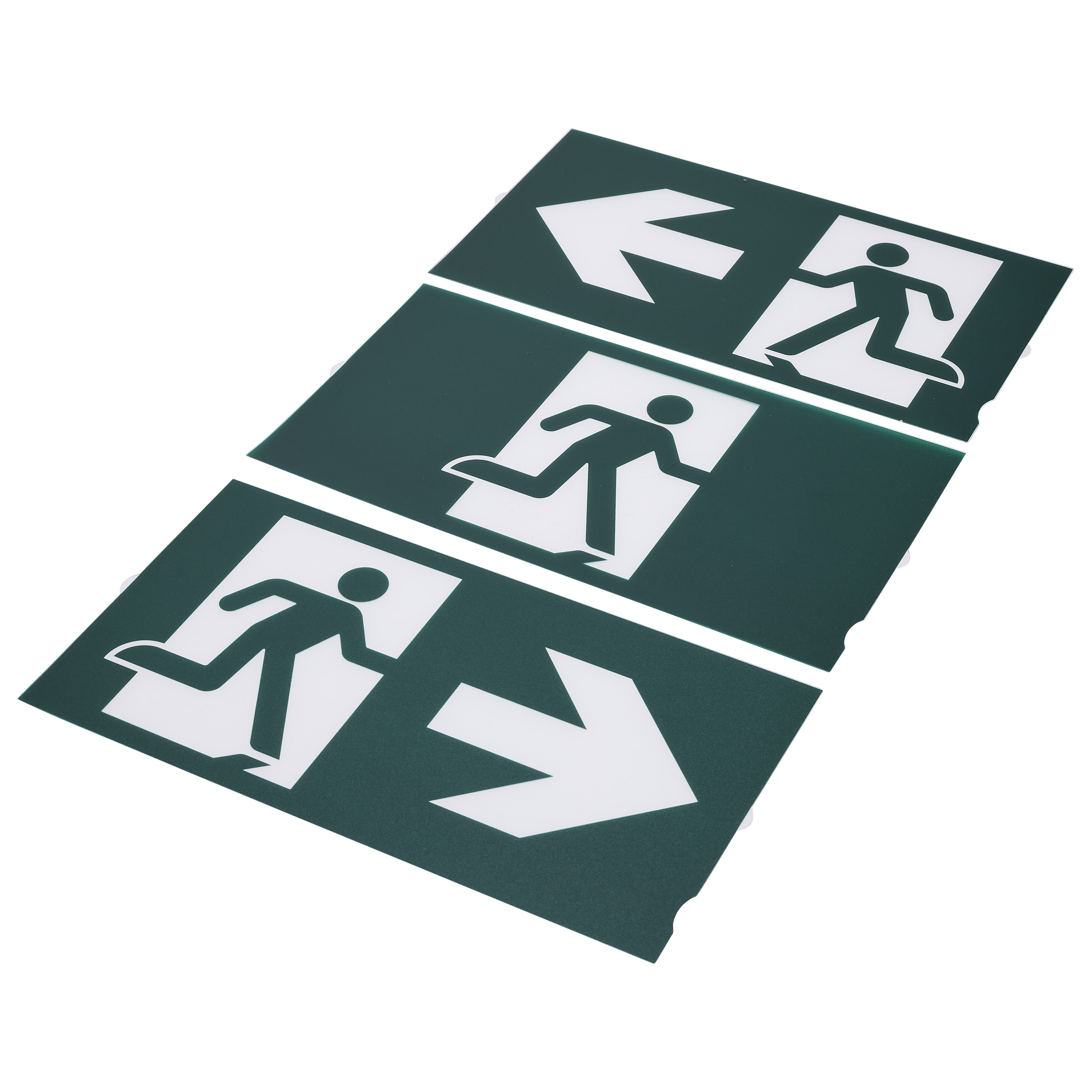

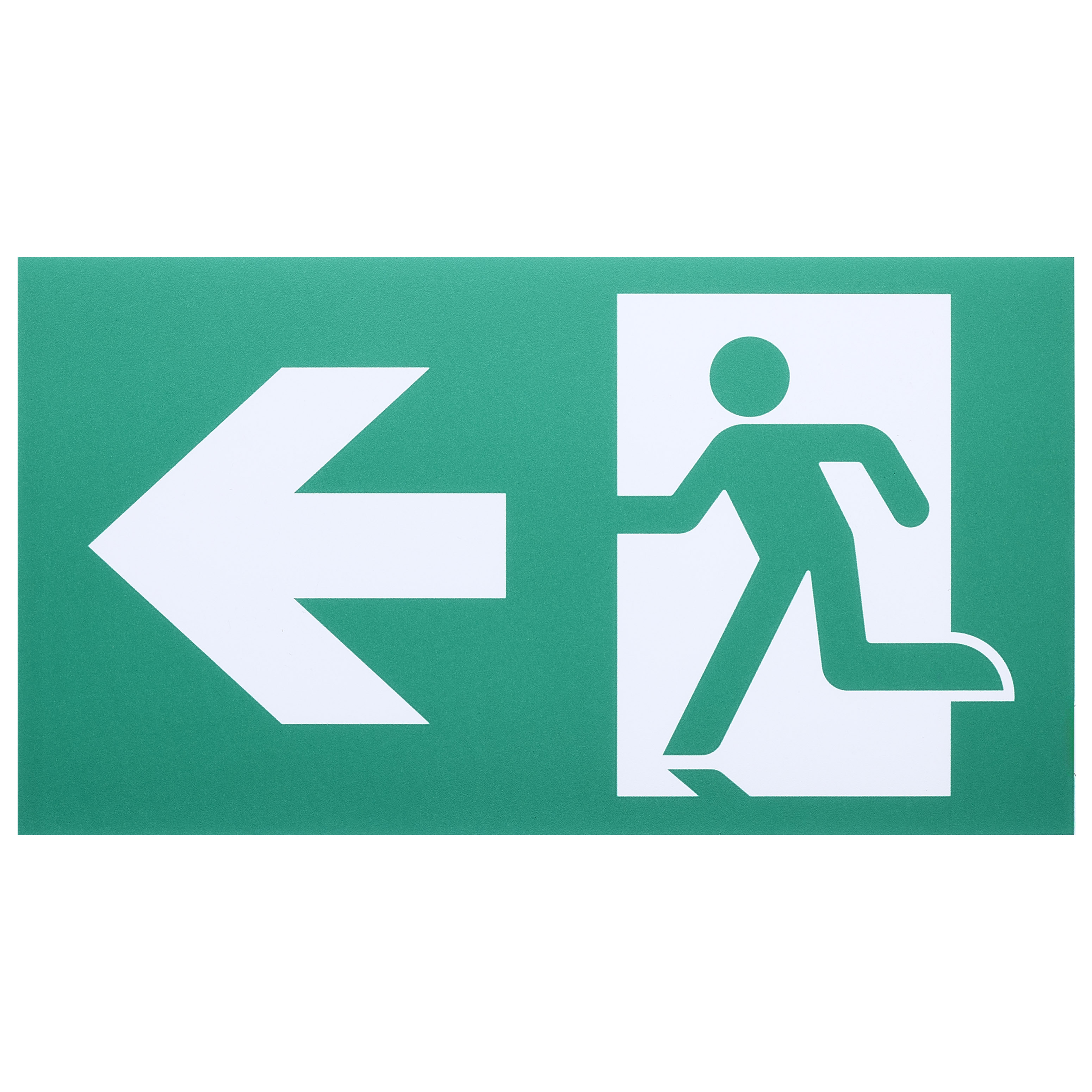

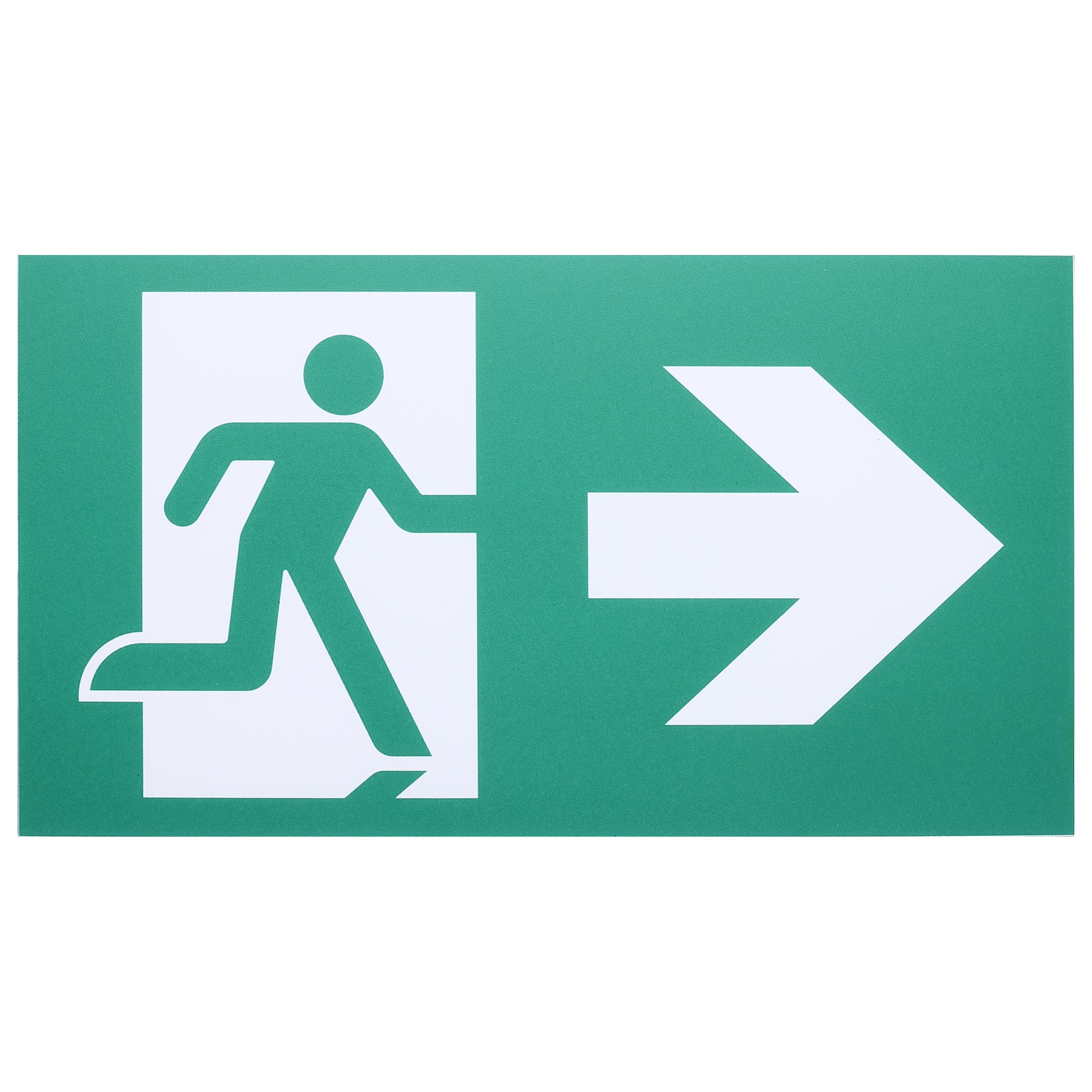

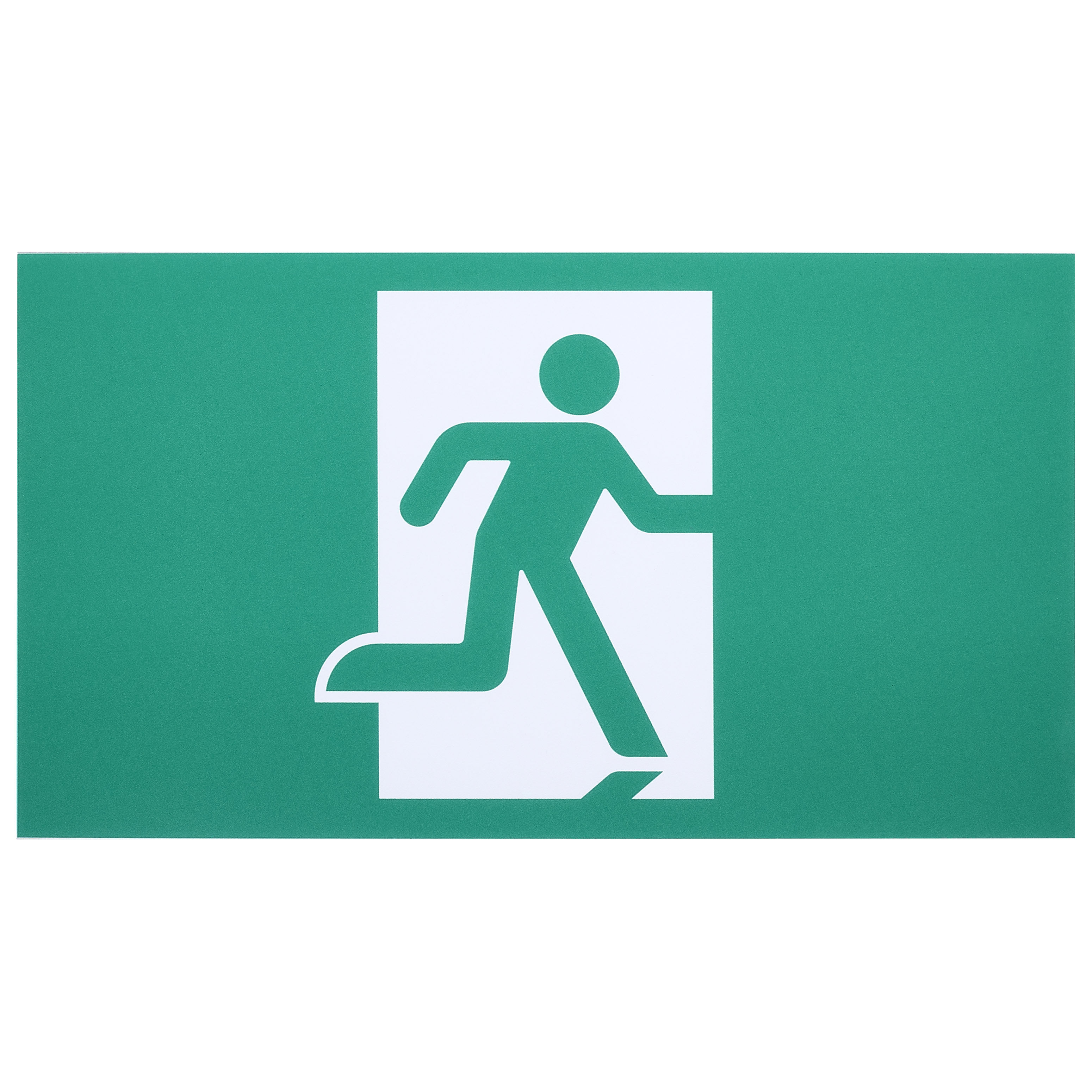

Keep your building safe and secure with the SATCO NUVO 67-560 LED Running Man Signs and Emergency Light Combos. Choose single or dual-face installation and customize with the interchangeable pictograms to fit your needs. Combo models offer two adjustable light heads to provide ample illumination in the event of an emergency for up to two hours with the integrated battery backup. Designed for use in wet locations, select models are also rated for use in low temperature applications such as cold storage or refrigerated units.
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
MaterialThermo Plastic
Fixture TypeExit Sign
Product NotesNi-Cad Battery; 120 minute discharge time; 24 Hour Recharge Time
StatusActive
StyleUtility
Total Harmonic Distortion35%-45%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoDesigned for Canadian Markets
Amps0.023/0.008A
Has CameraNo
IOT EnabledNo
Power Factor0.75
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Electrical
DimmableNon-Dimmable
Operating Frequency60Hz
Operating Temp+32F to +122F (0C to +50C)
Volts120V/347V
Watts2.8W
Battery ChemistryNi-Cad
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED

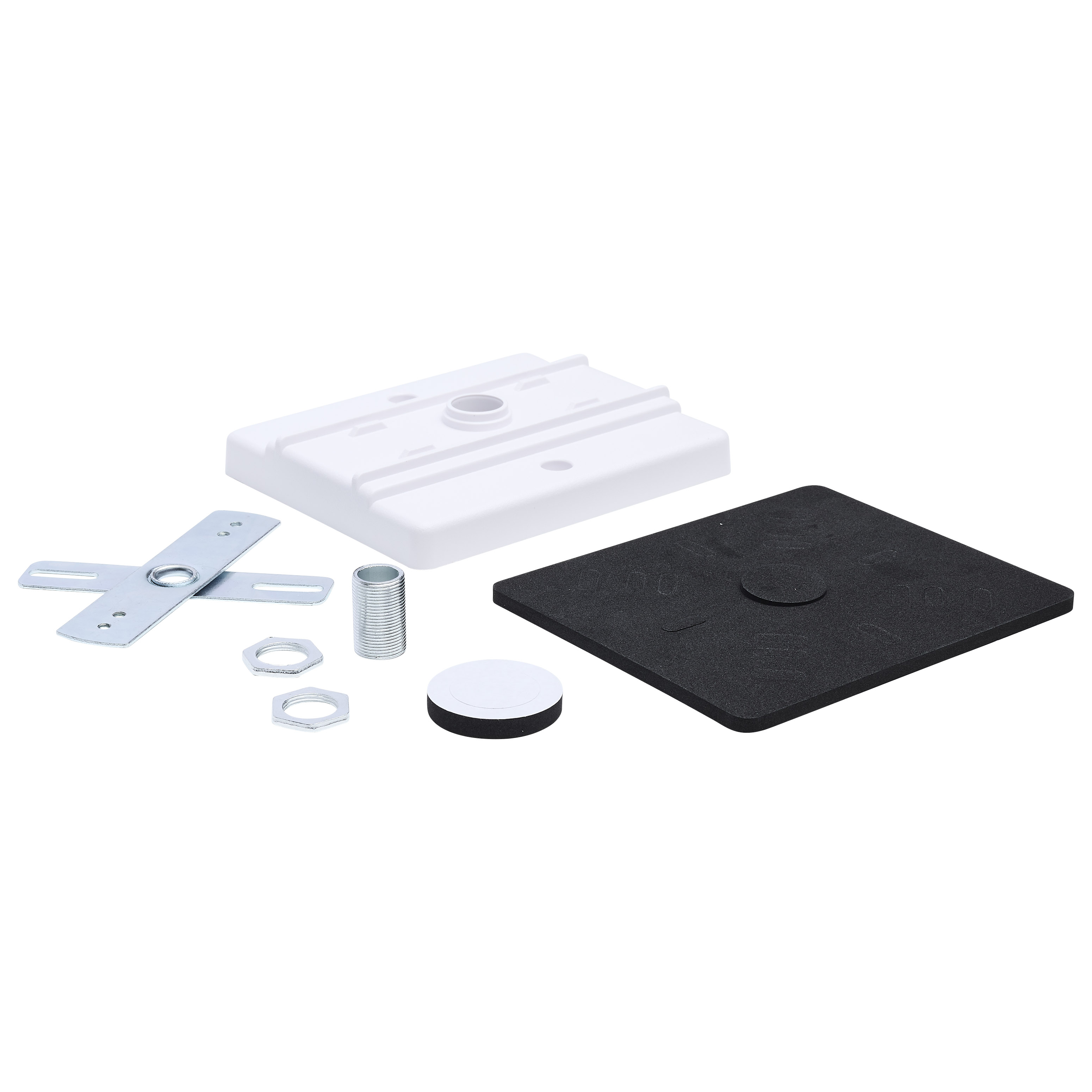

Mounting ProcedureUniversal
Additional Info
Warranty2-Years
Documents
Compliance
CA Prop 65Lead
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingCSAus
California BanNon-Compliant
Title 20No
T24/JA8 CompliantNo
Packaging
UPC045923675904
Case Cube1.7235
Case Height9.84
Case Length21.65
Case Quantity6
Case UPC10045923675901
Case Weight31.97
Case Width13.98
EA Cube0.2408
EA Height13.39
EA Length9.06
EA Quantity1
EA Weight4.7
EA Width3.43
Pack TypeBox

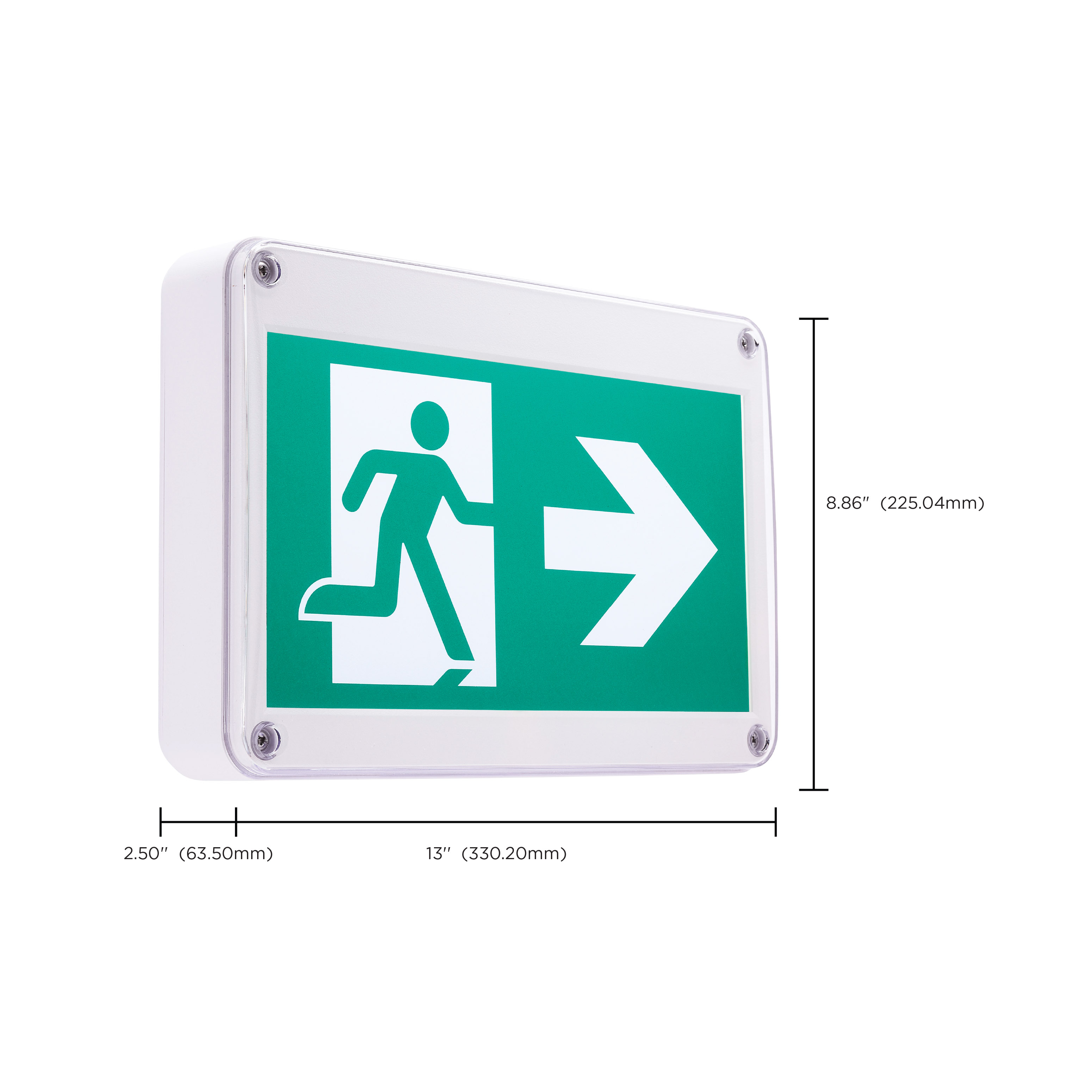

Web Height8.86
Web Width13.0
