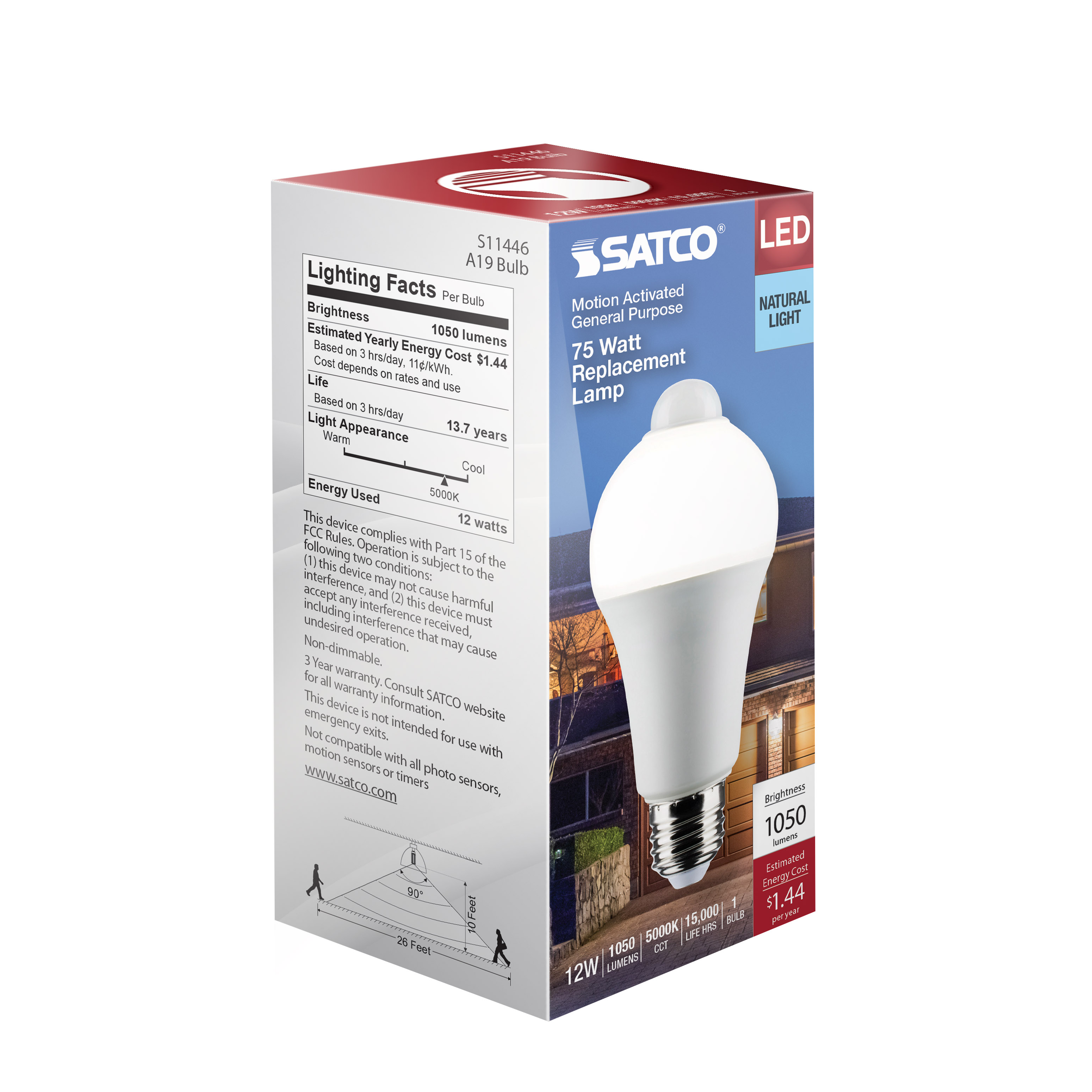

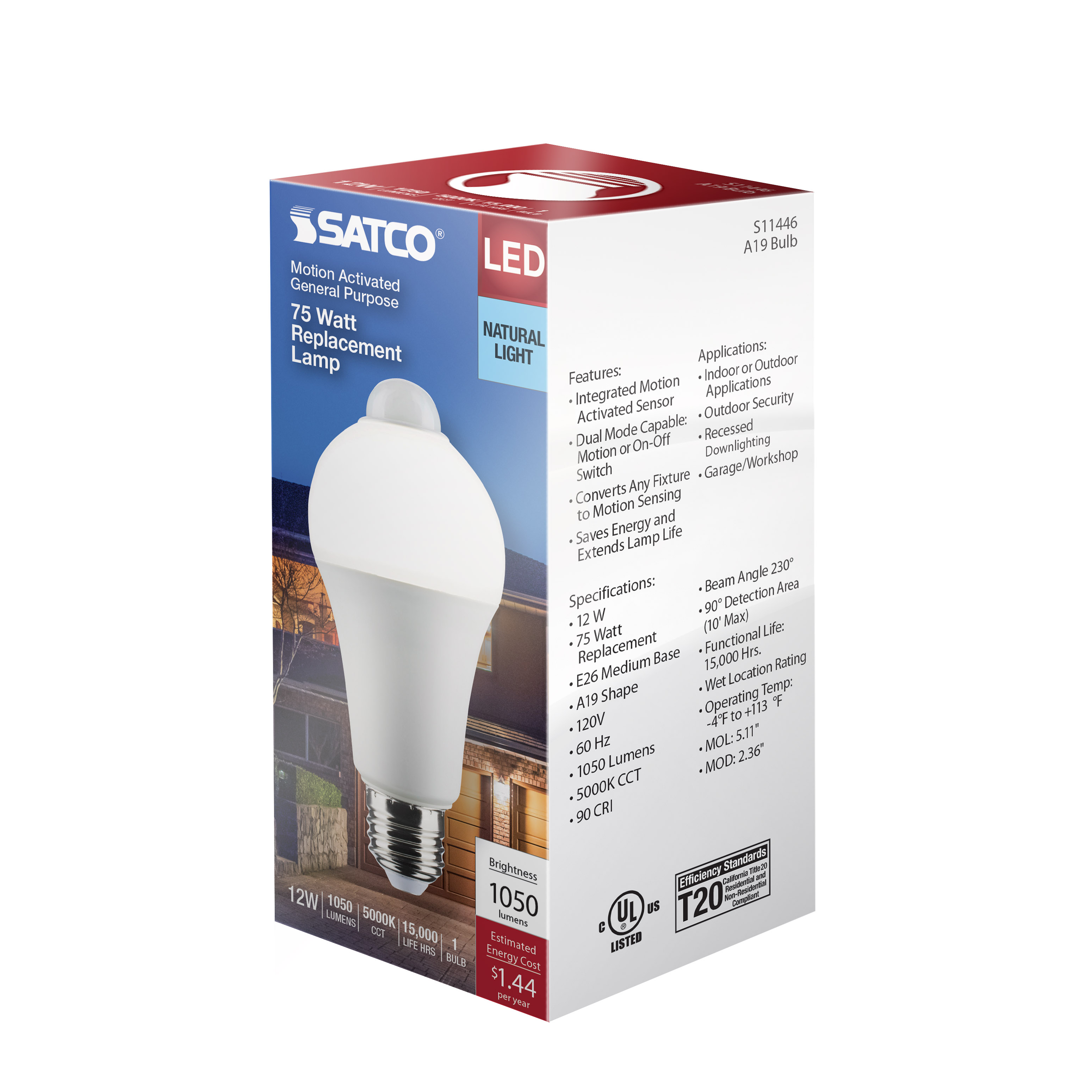

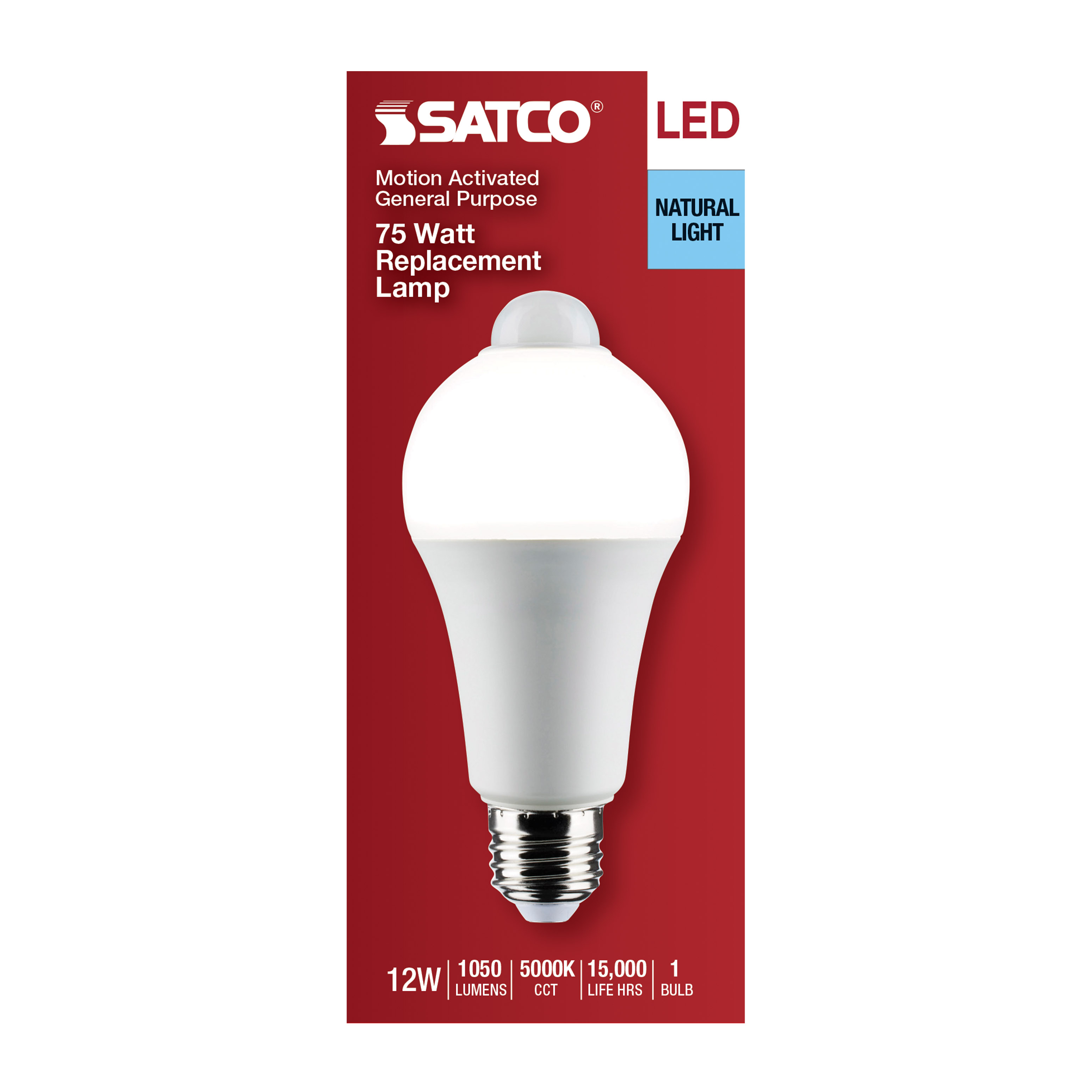

S11446 12A19/PIR/950/120V/ND

S11446

12A19/PIR/950/120V/ND

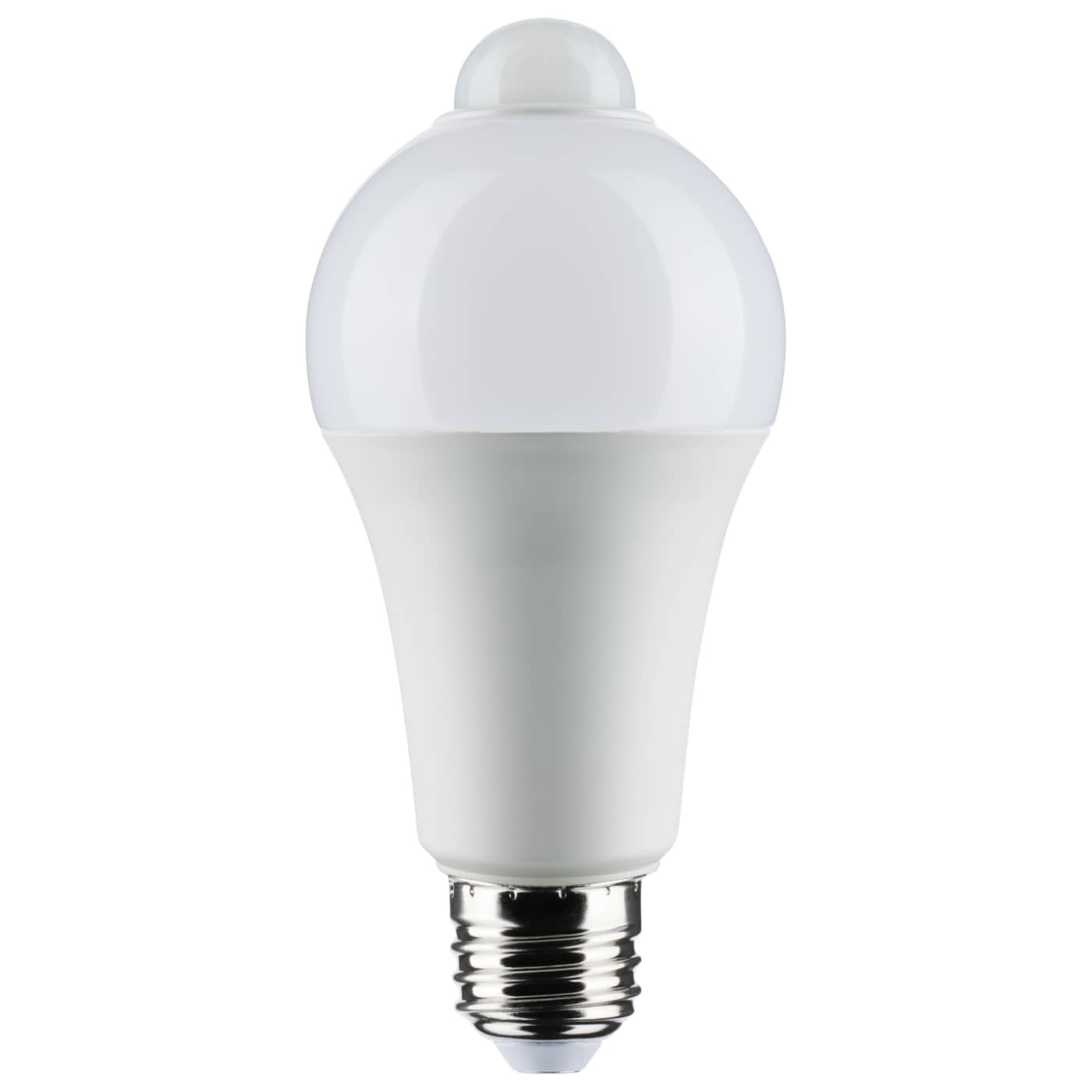

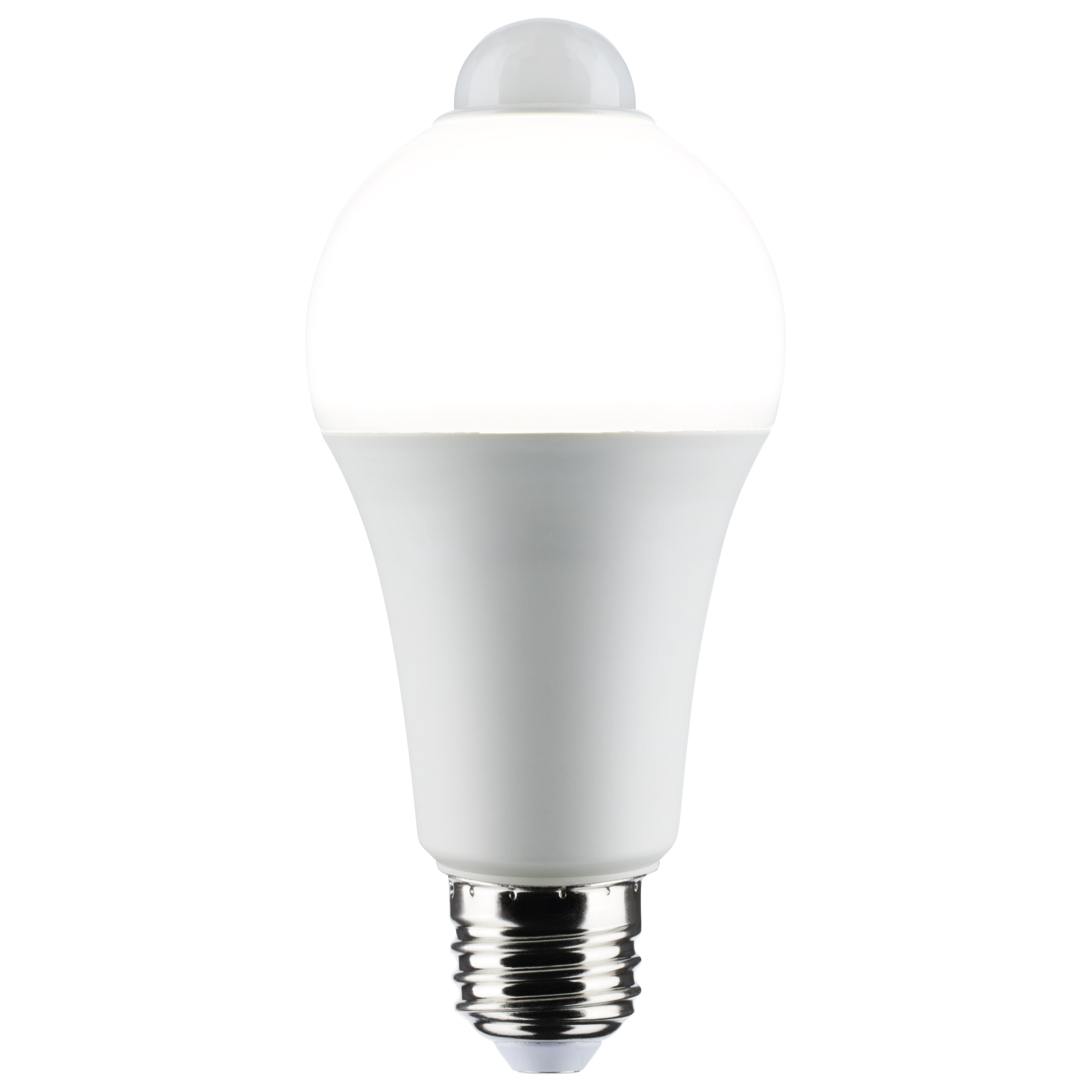

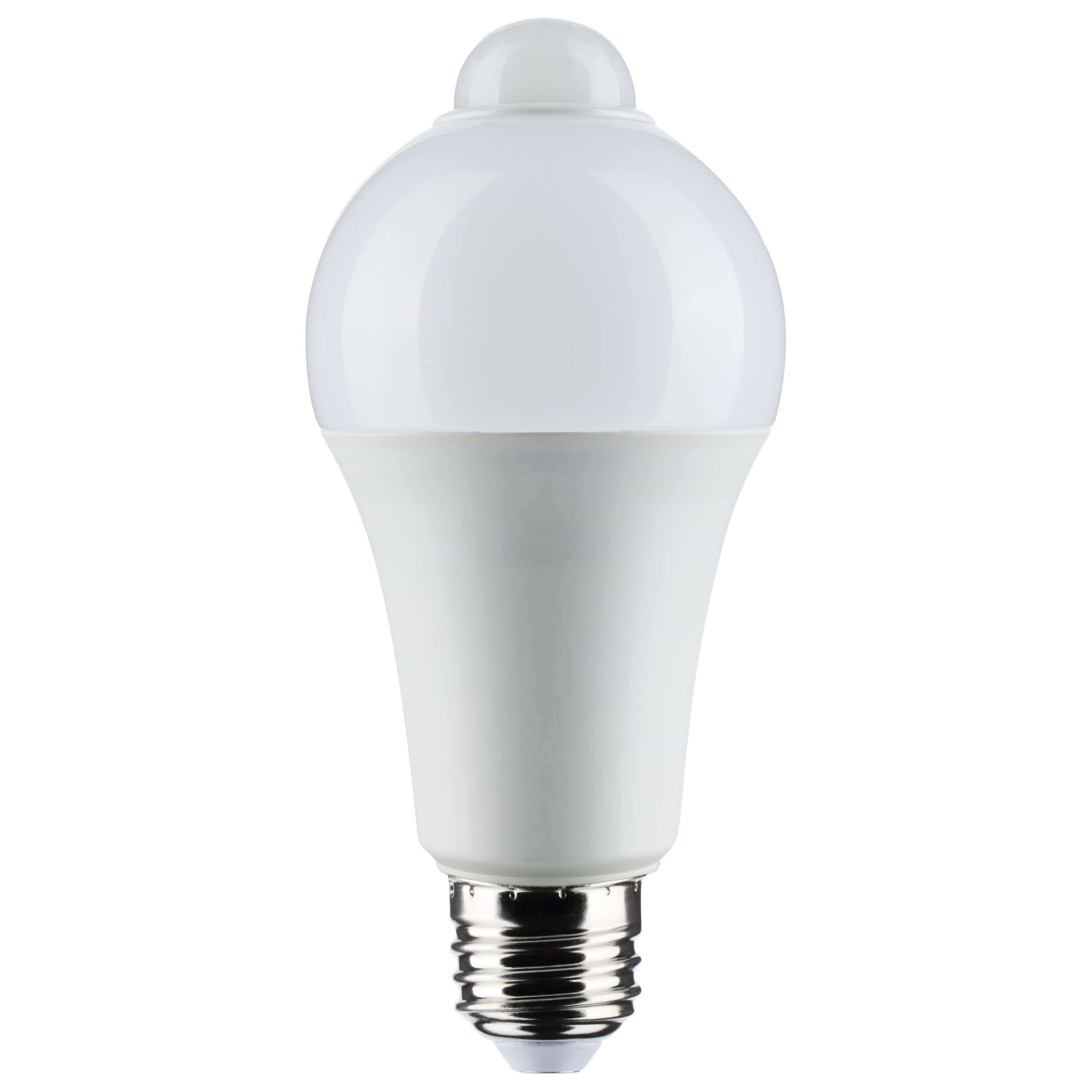

12 Watt A19 LED; White; 5000K; 1050 Lumens; 120 Volt; PIR Sensor; Non-Dimmable


Lights

S11446

12A19/PIR/950/120V/ND

12 Watt A19 LED; White; 5000K; 1050 Lumens; 120 Volt; PIR Sensor; Non-Dimmable

Specifications

General
StatusActive
Watts12W
Incandescent Equivalent75W
Volts120V
ShapeA19
BaseMedium
ANSI BaseE26
FinishWhite
CCT (Kelvin)5000K
TemperatureNatural Light
CRI90
Lumens1050L
Beam Spread230
DimmableNon-Dimmable
Hours Rated15000
Photocell or SensorHas PIR Sensor
Product CategoryType A
Lamp TypeType A
TechnologyLED
Electrical
Watts12W
Incandescent Equivalent75W
Volts120V
Operating Frequency60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI90
Lumens1050L
Beam Spread230
Power Factor0.7
Hours Rated15000
Operating Temperature-20C (-4F) to +40C (+104F)
Physical
MOL5.11
MOD2.36
ShapeA19
BaseMedium
ANSI BaseE26
FinishWhite
Weight (lb.)0.27
Additional Information
Additional InfoThe lamp has an integrated motion-activated sensor designed to activate between dusk and dawn. It remains inactive in the absence of motion but turns on for a duration of 5 minutes once motion is detected. This functionality can be overridden by toggling the bulb's switch on and off twice within a span of 3 seconds, allowing it to remain continuously illuminated like a standard light bulb.
Rated For Enclosed FixtureNo

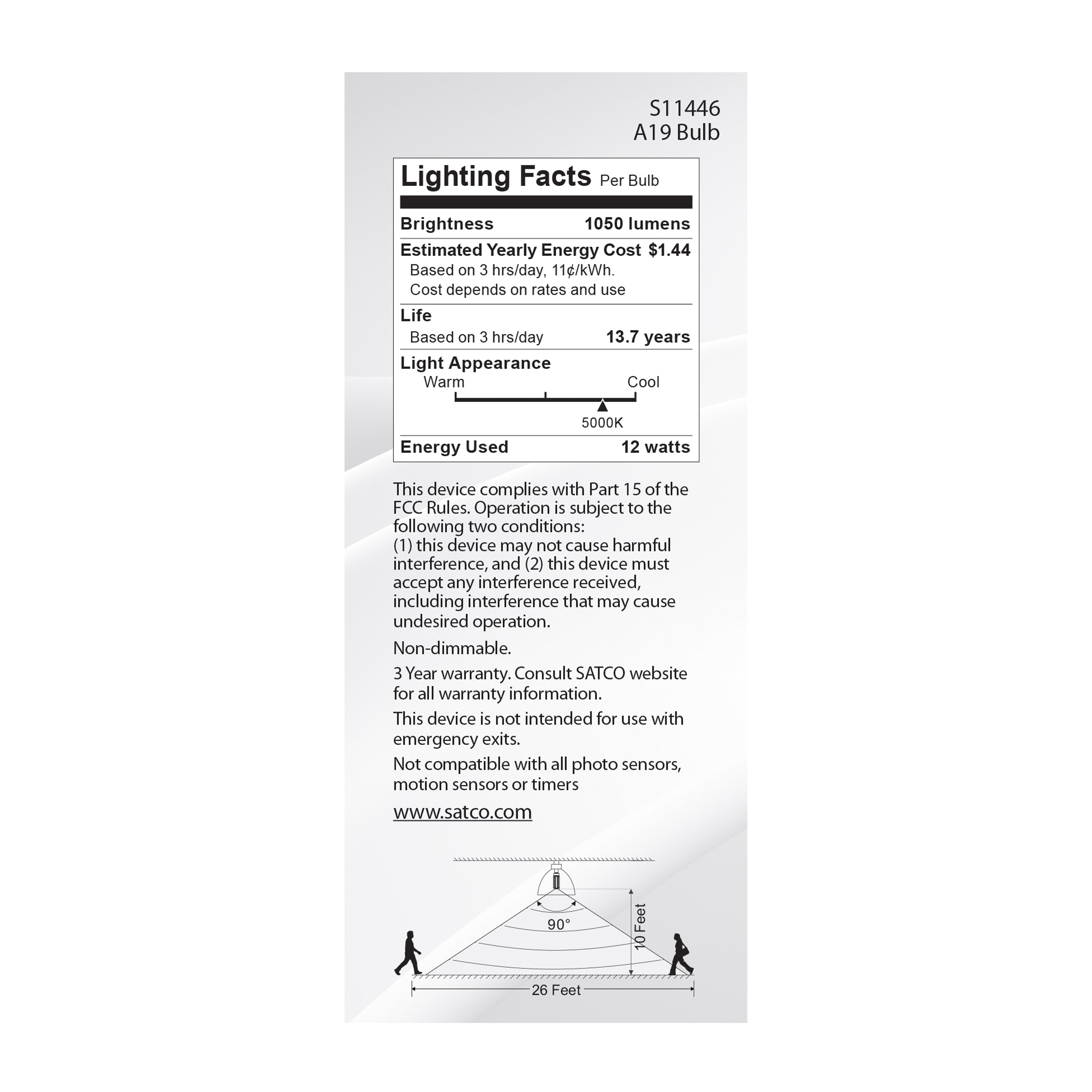

Installation NotesTo achieve optimal sensor reading, make sure the sensor is facing the desired motion area within proper distance and angle.

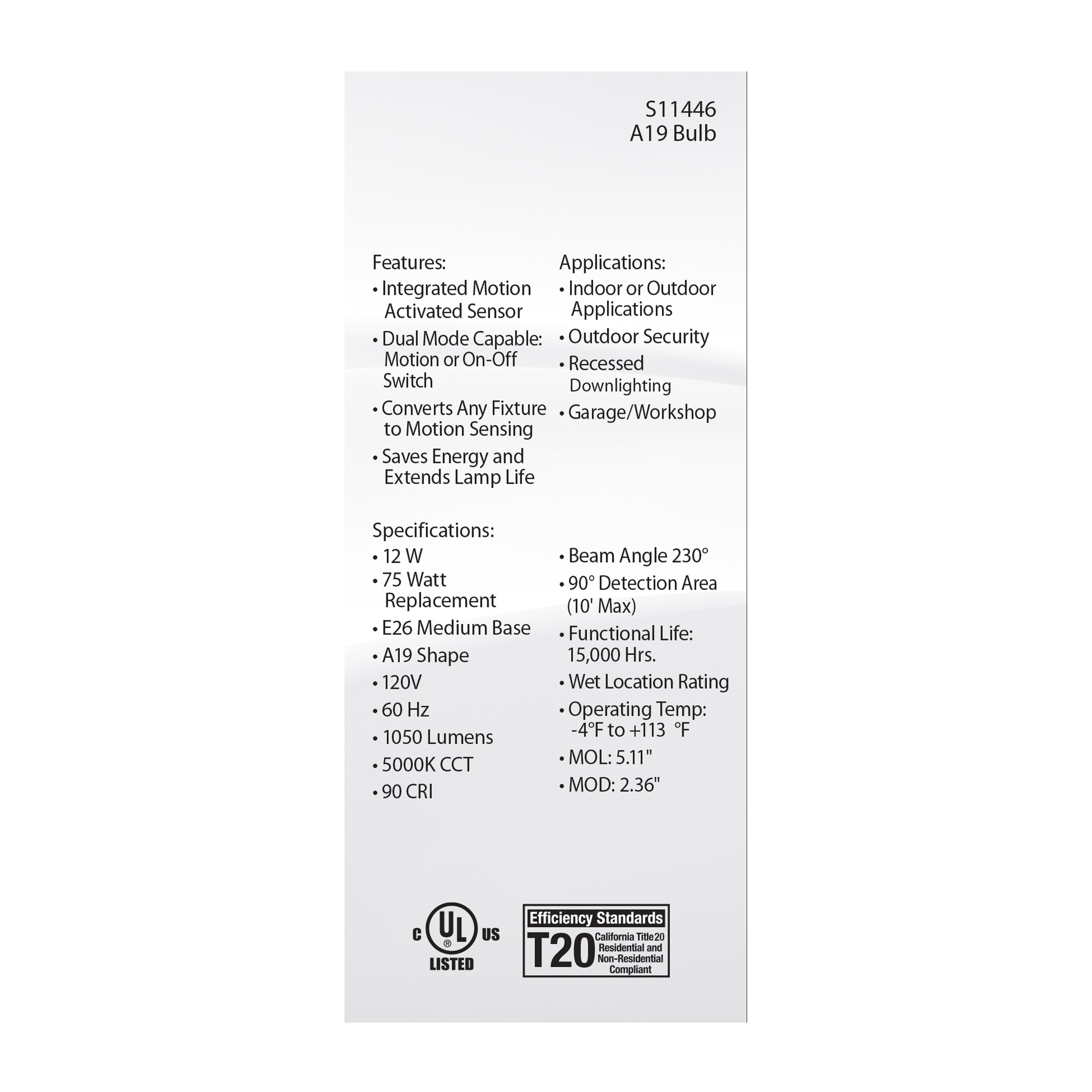

Specification NoteDual Mode Capable: Motion or On-Off Switch
Warranty3 Year Limited
Compliance
Safety ListingcULus - Certified; cULus - Listed
Location RatingWet
Energy StarNo
CA T20 / T24 RationaleT20 Listed
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923114465
Each Quantity1
Each Length (in.)2.44
Each Width (in.)2.44
Each Height (in.)5.71
Each Weight (lb.)0.30
Each Cube (CuFt.)0.0197
Pack TypeBox
Inner UPC20045923114469
Inner Quantity6
Inner Length (in.)7.87
Inner Width (in.)5.28
Inner Height (in.)6.30
Inner Weight (lb.)1.81
Inner Cube (CuFt.)0.1515
Case UPC10045923114462
Case Quantity24
Case Length (in.)21.89
Case Width (in.)8.46
Case Height (in.)7.48
Case Weight (lb.)9.88
Case Cube (CuFt.)0.8016
